Product details

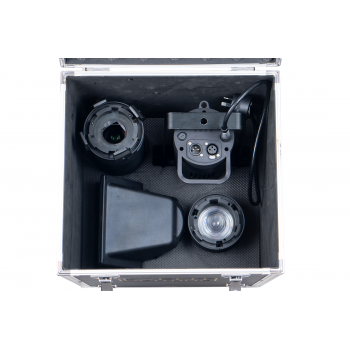

The versatile ZOOMPRO system is comprised of a 200 W Warm White LED Engine, with a choice of lenses. Options include two zoom profile lenses, fresnel lens and cyc lens.
Photometrics
Light Source: 3200 K 200 W COB LED
CRI: 95
PWM: 16,000 Hz
LED Lifespan: 50,000 hours
PROFILE Lens: ZPLP1828
- Output: 1896 lux @ 5 m at 18°, 1692 lux @ 5 m at 28°
- Beam Angle: 18°- 28°
PROFILE Lens: ZPLP2636
- Output: 1896 lux @ 5 m at 26°, 1692 lux @ 5 m at 36°
- Beam Angle: 26°- 36°
FRESNEL Lens: ZPLF 80mm Fresnel
- Beam Angle: 16°- 25°
- Field Angle: 30°- 55°
- Output: 2198 lux @ 2.5 m at 16°, 1685 lux @ 2.5 m at 25°
CYC Lens: ZPLCYC
- Output: 210 lux @ 2.5 m at 120°
- Beam Angle: 120°
Effects
- Dimming: 0~100%, 8-bit / 16-bit
- Strobe: 1~25 Hz
- Zoom: Manual
Power
- Input Voltage: 100~240 V AC, 50/60 Hz, 200 W
- Power Connection: Fixed
Control
- Operational Modes: DMX, Manual & Master / Slave
- Display: 4-Button LCD control panel
- DMX Protocol: DMX512
- DMX Channel Mode: 1 / 2 / 3
- DMX Interface: 3-pin XLR
Housing
- Housing Materials: Aluminium, matte black finish
- Cooling: Sensor Thermostat Controlled Variable Speed Fan

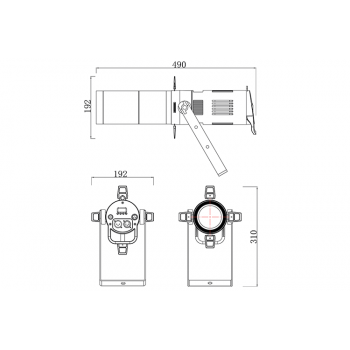

- Dimension: LED Engine: 241 X 105 X 310 mm
- Profile Lens: 262 X 192 X 192 mm
- Fresnel Lens: 105 X 105 X 151 mm
- Net Weight: LED Engine 9kg
- Profile Lens: 1.9 kg
- Fresnel Lens: 0.9 kg
- Cyc Lens: 0.4 kg
