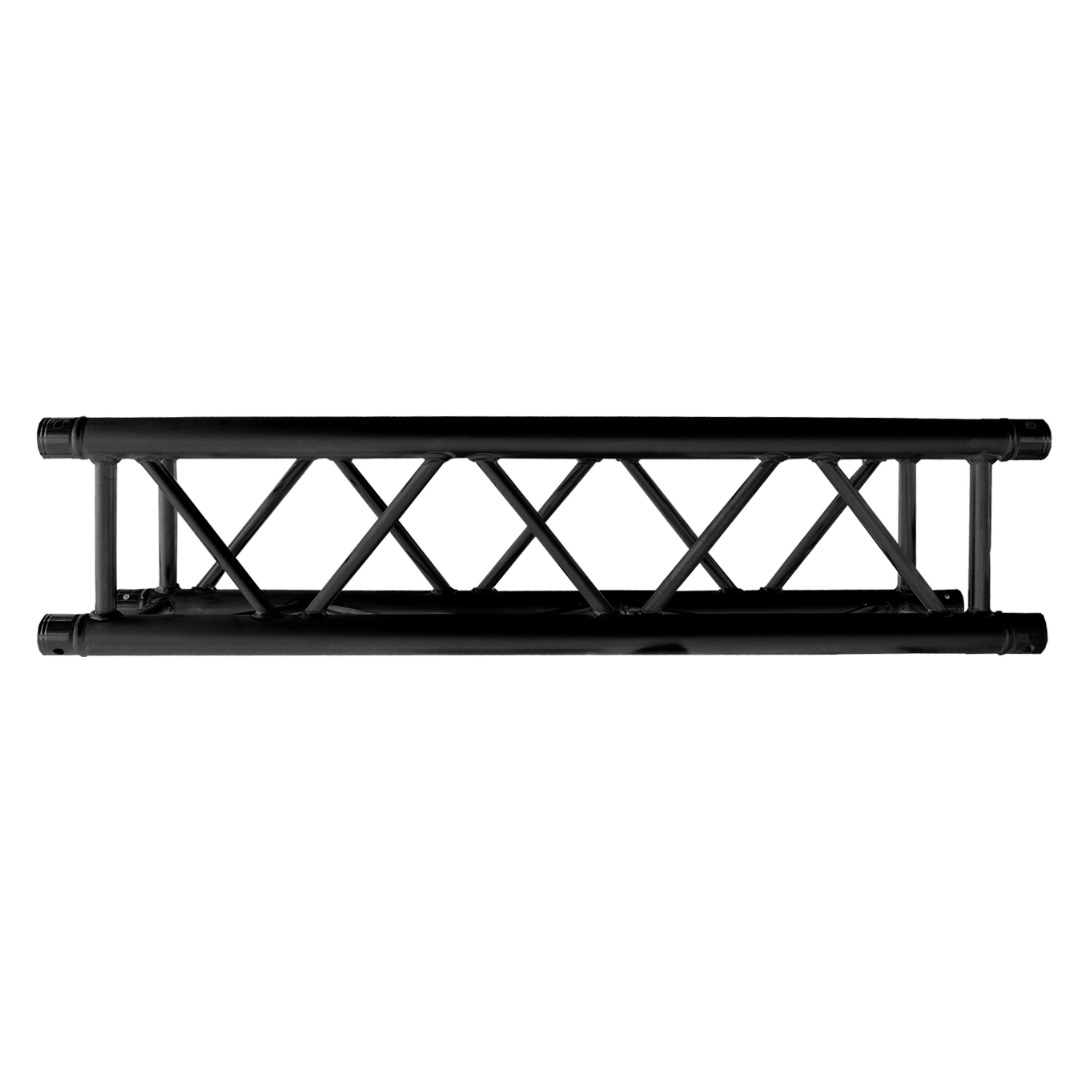

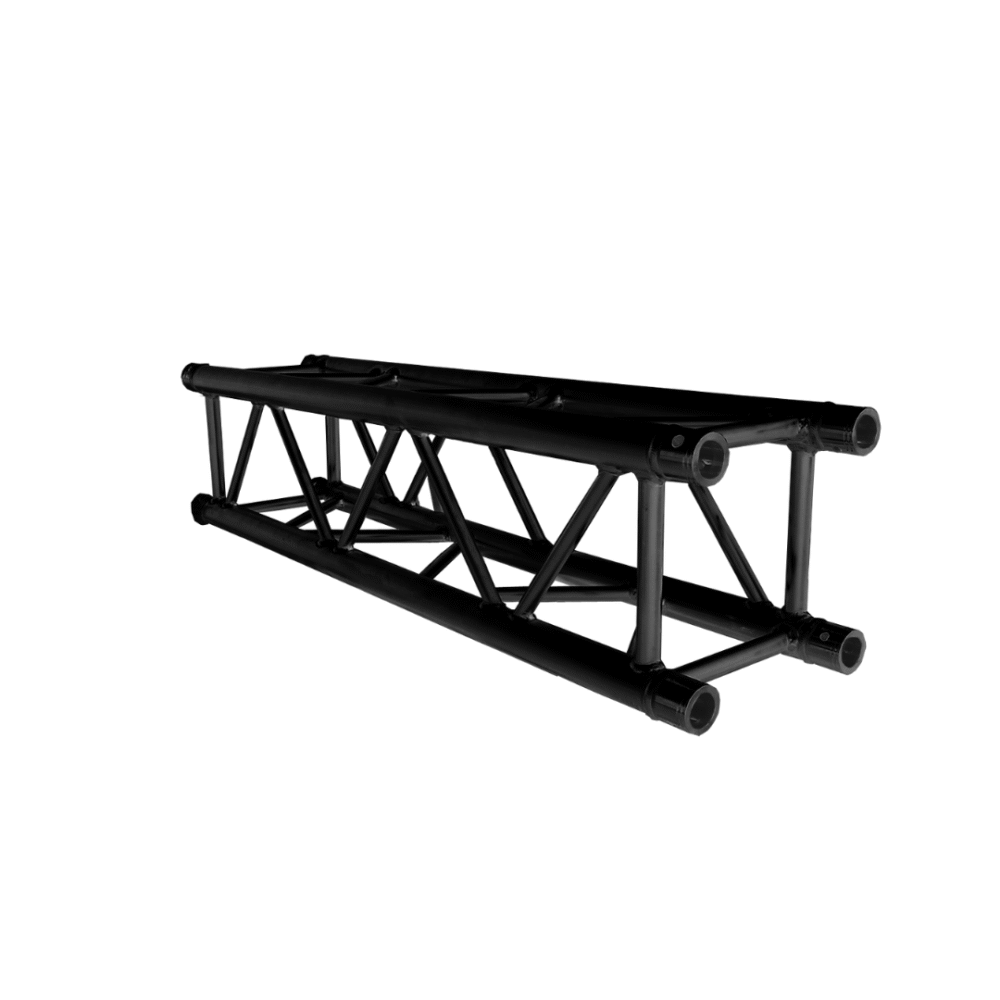

Name: T3BD1.5BK - 290mm Diagonal Truss - Black 1.5m
SKU: T3BD1.5BK
Availability: OutOfStock

T3BD1.5BK – 290mm Diagonal Truss – Black 1.5m

Out of stock

Product will be Shipped from Warehouse.
Call us for Floor Stock

$389.00

T3BD1.5BK – 290mm Diagonal Truss – Black 1.5m

290mm Aluminium Lighting Spigot Truss, Diagonal Style, 3mm wall thickness, 1.5m Length

Main Tube: 50mm x 3mm
Vice Brace: 50mm x 2mm
Diagonal Brace: 20mm x 2mm
Materials: Aluminum alloy 6061-T6
Finishing: Black
Rating: TUV
Length: 1.5m

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

SKU: T3BD1.5BK

Product details

T3BD1.5BK – 290mm Diagonal Truss – Black 1.5m

290mm Aluminium Lighting Spigot Truss, Diagonal Style, 3mm wall thickness, 1.5m Length

Main Tube: 50mm x 3mm
Vice Brace: 50mm x 2mm
Diagonal Brace: 20mm x 2mm
Materials: Aluminum alloy 6061-T6
Finishing: Black
Rating: TUV

Length: 1.5m

Span (m)	Uniform Load (kg/m)	Centre Point Load (kg)	1/3 Points Load (kg)	1/4 Points Load (kg)

1	2500	2500	1250	850
2	950	1300	1000	700
3	750	1200	900	650
4	550	1000	750	560
5	400	800	630	440
6	250	700	570	385
7	200	600	500	330
8	150	500	400	280
9	120	400	370	245
10	95	350	320	220
11	80	320	270	190
12	70	300	250	175

*The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings

Download Australian Engineering Certificate

Download user manual

Warranty: 3 years
