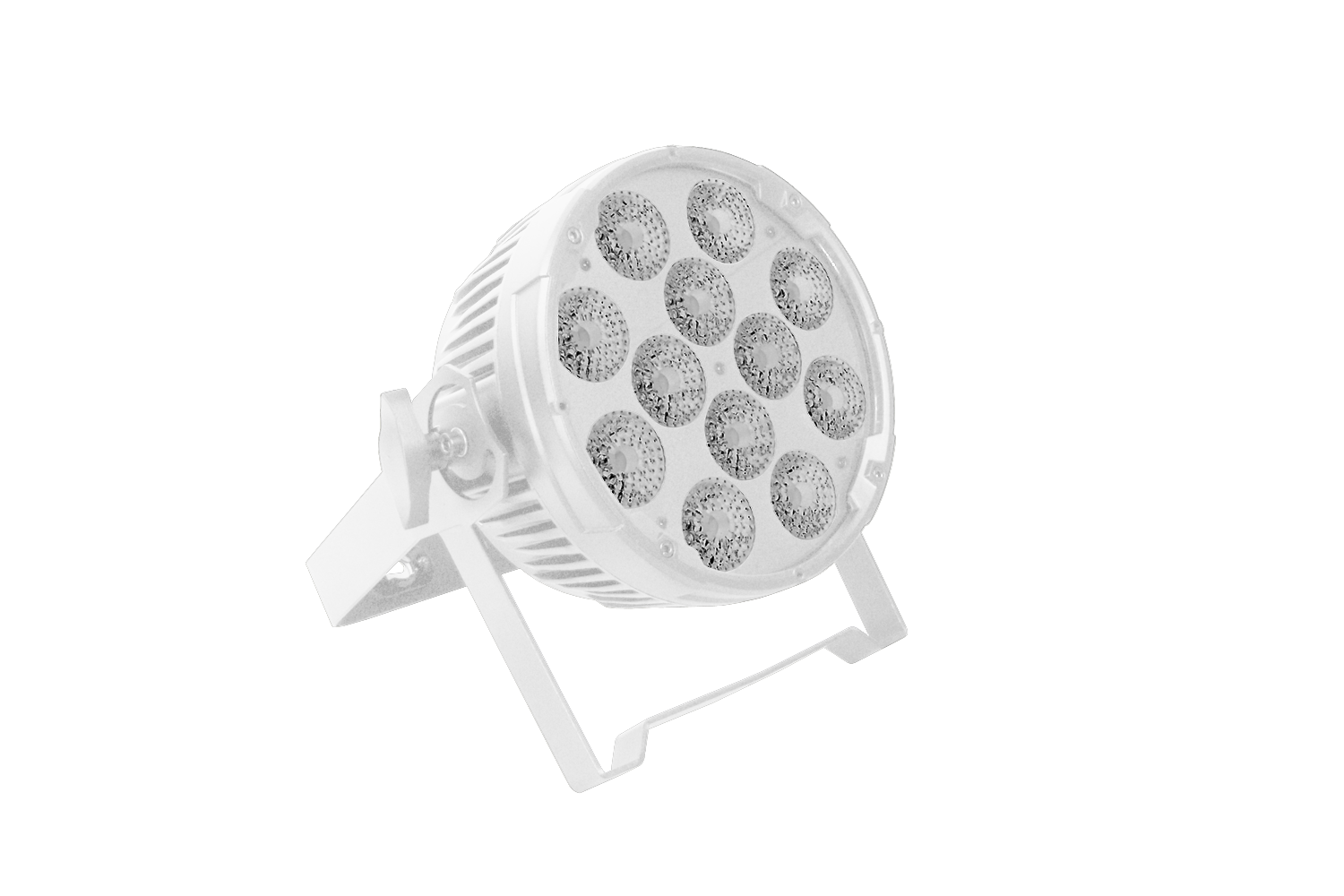

PAR12H-WH – Indoor Pro Par with 12 x 12W RGBWAU LEDs

PAR12H-WH – Indoor Pro PAR with 12 x 12W RGBWA+UV LEDs (White)

The PAR12H-WH is a professional-grade LED PAR fixture designed for theatres, churches, wedding venues, concerts, stage productions, and architectural lighting applications. Equipped with 12 high-output 12W RGBWA+UV LEDs, it delivers vibrant color mixing, rich pastel tones, ultraviolet effects, and powerful wash lighting in a durable and elegant white housing.

Designed for maximum flexibility, the fixture offers multiple beam angle options, advanced dimming control, and optional wireless DMX functionality. Its fanless cooling system ensures completely silent operation, making it ideal for noise-sensitive environments such as theatres, houses of worship, and corporate events.

Photometric Specifications

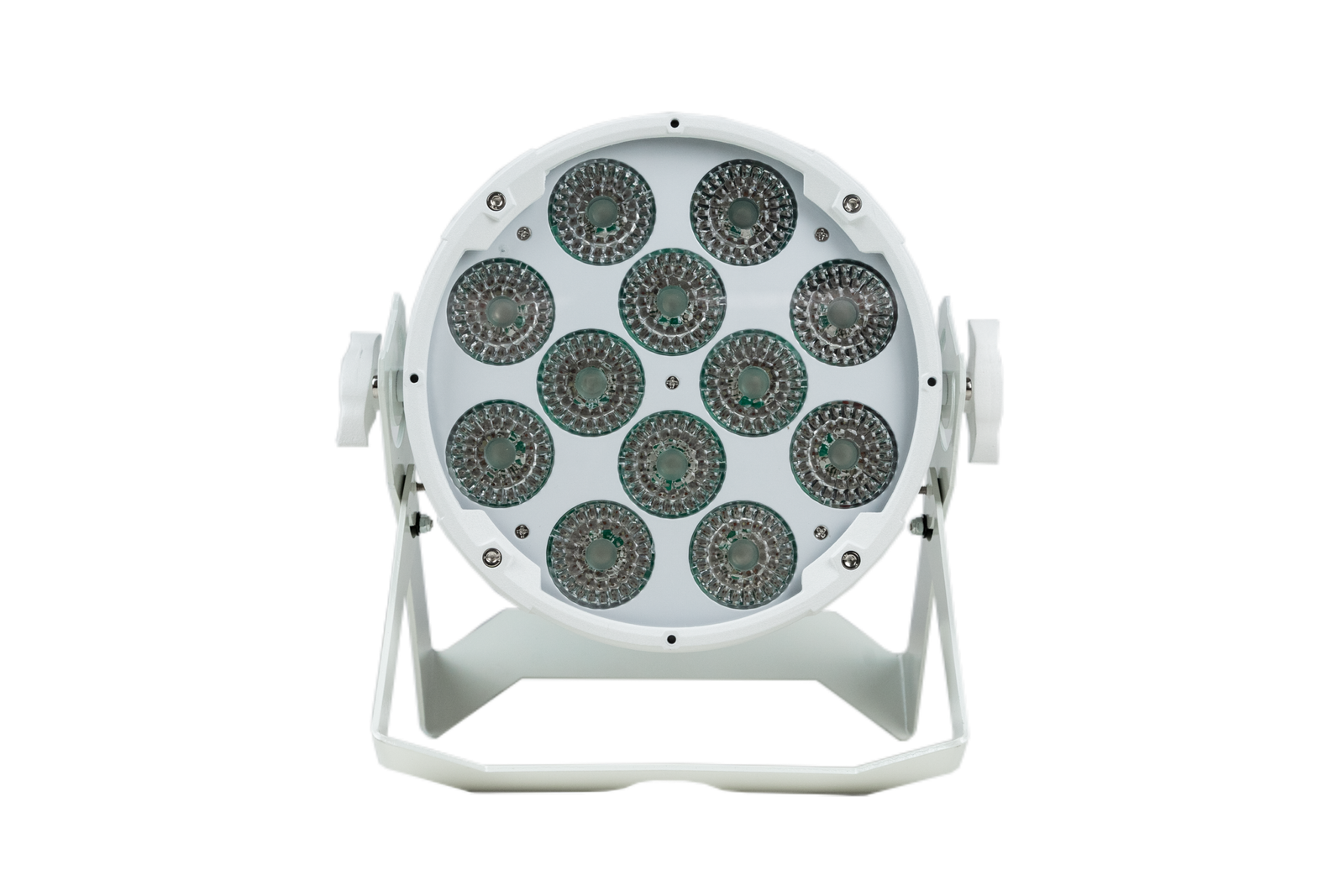

• Light Source: 12 × 12W RGBWA+UV 6-in-1 LEDs

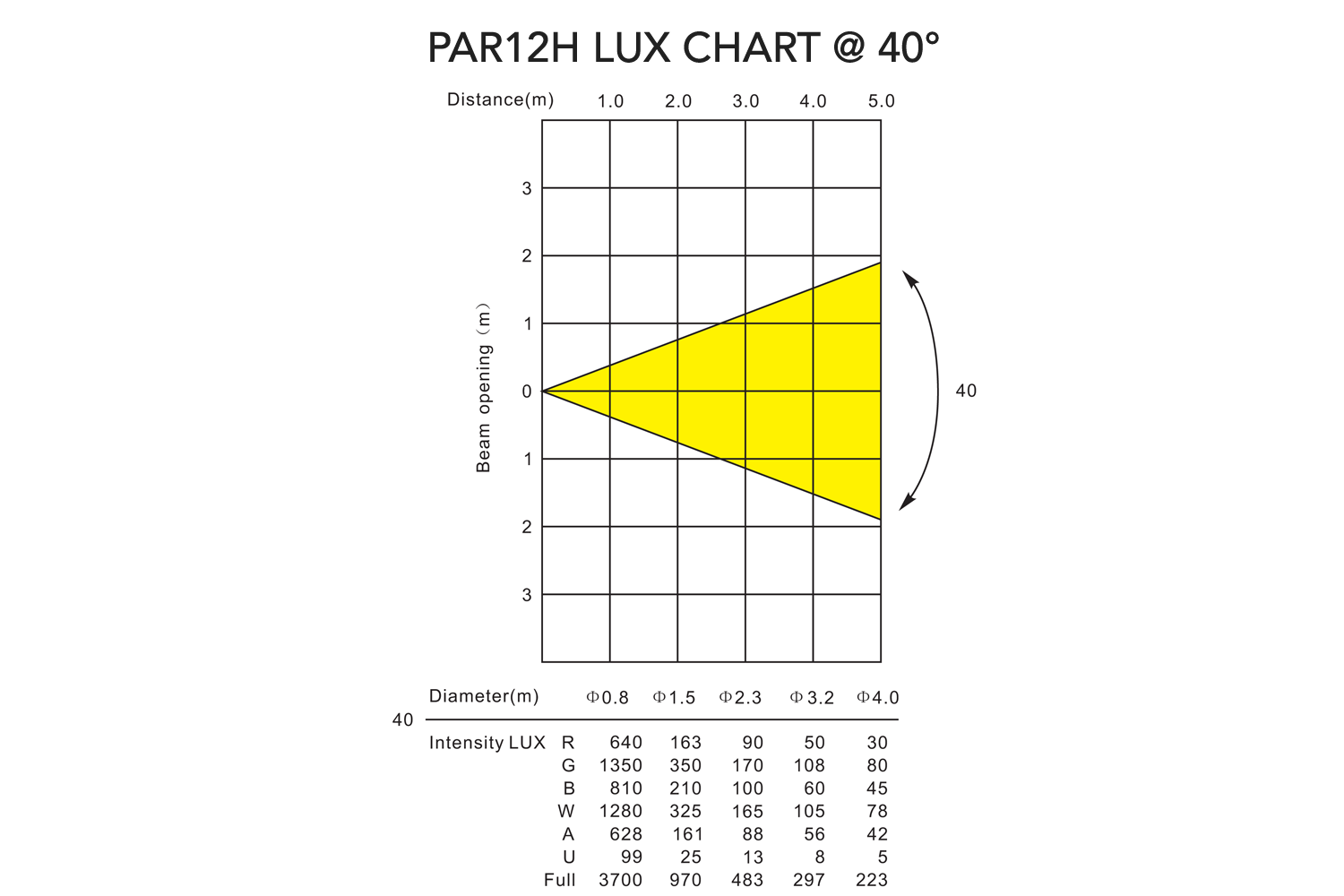

• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

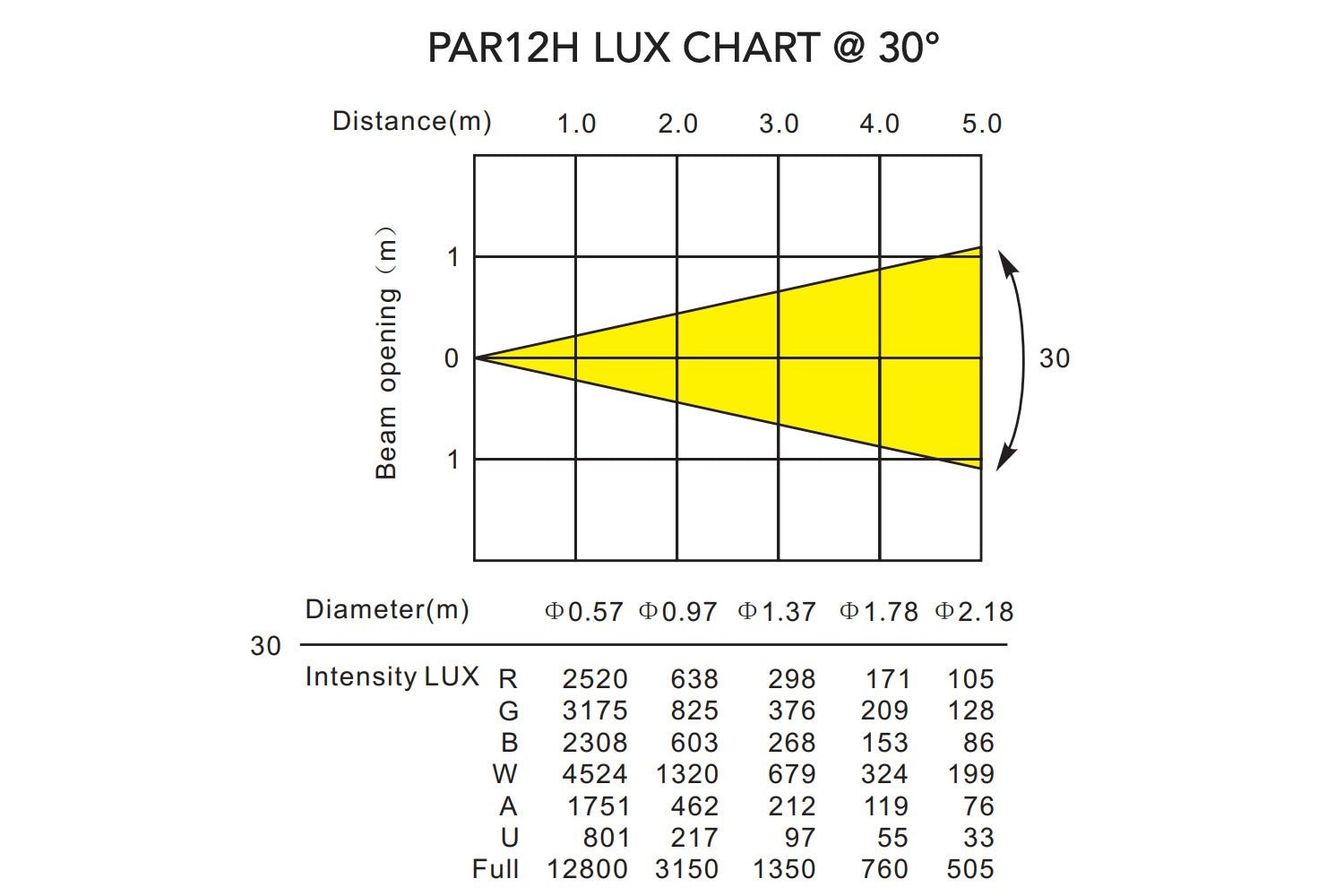

• Output: 3,150 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

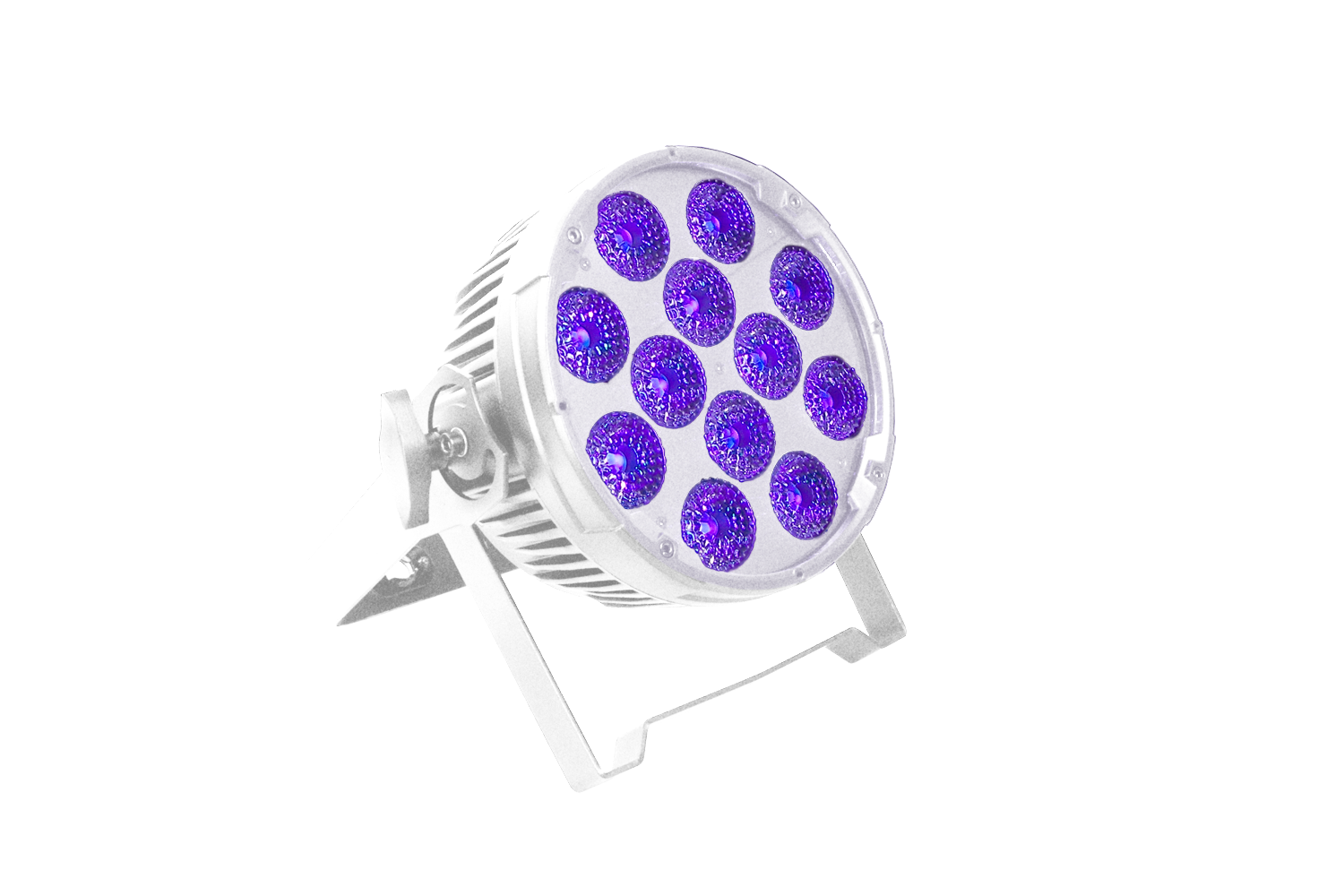

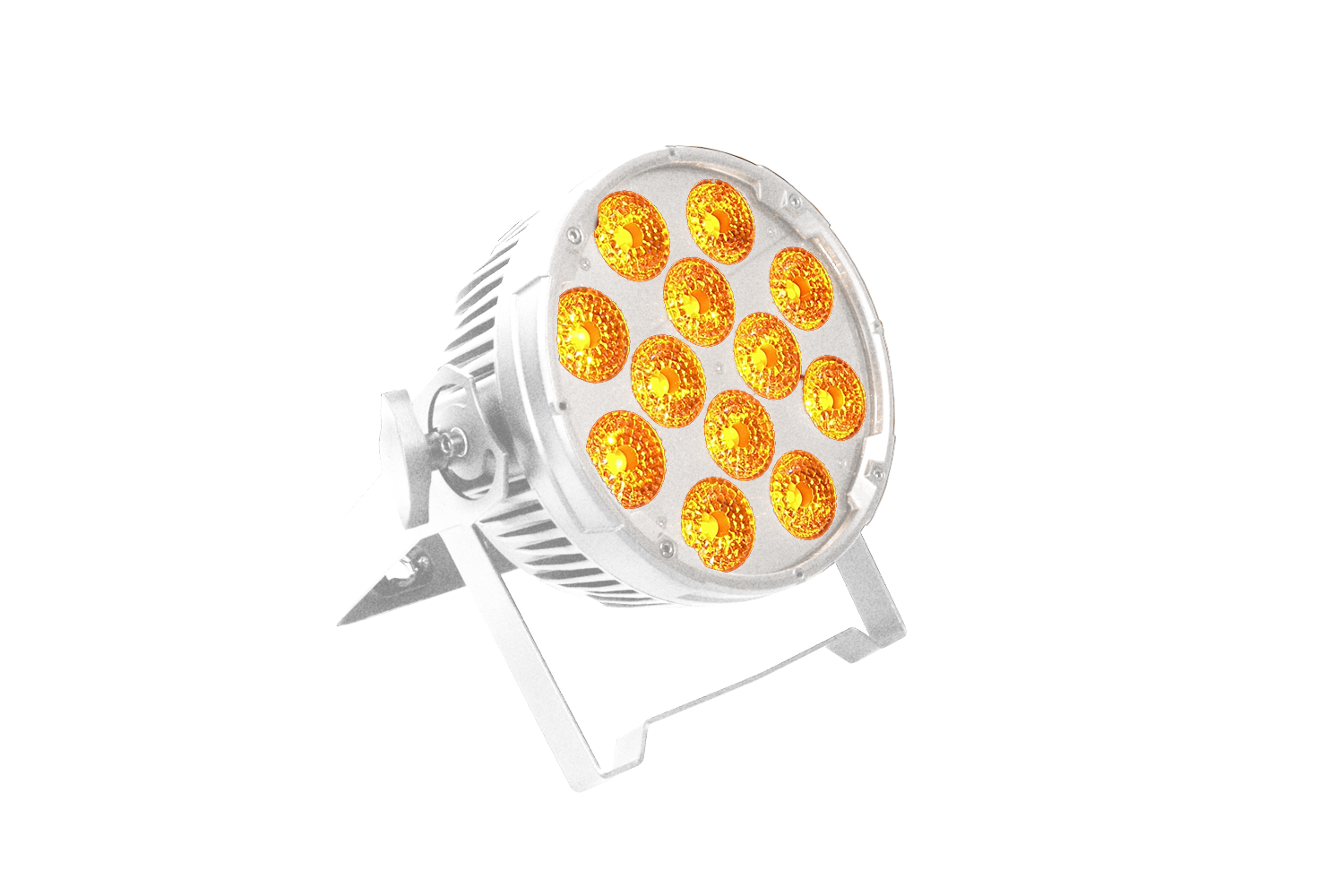

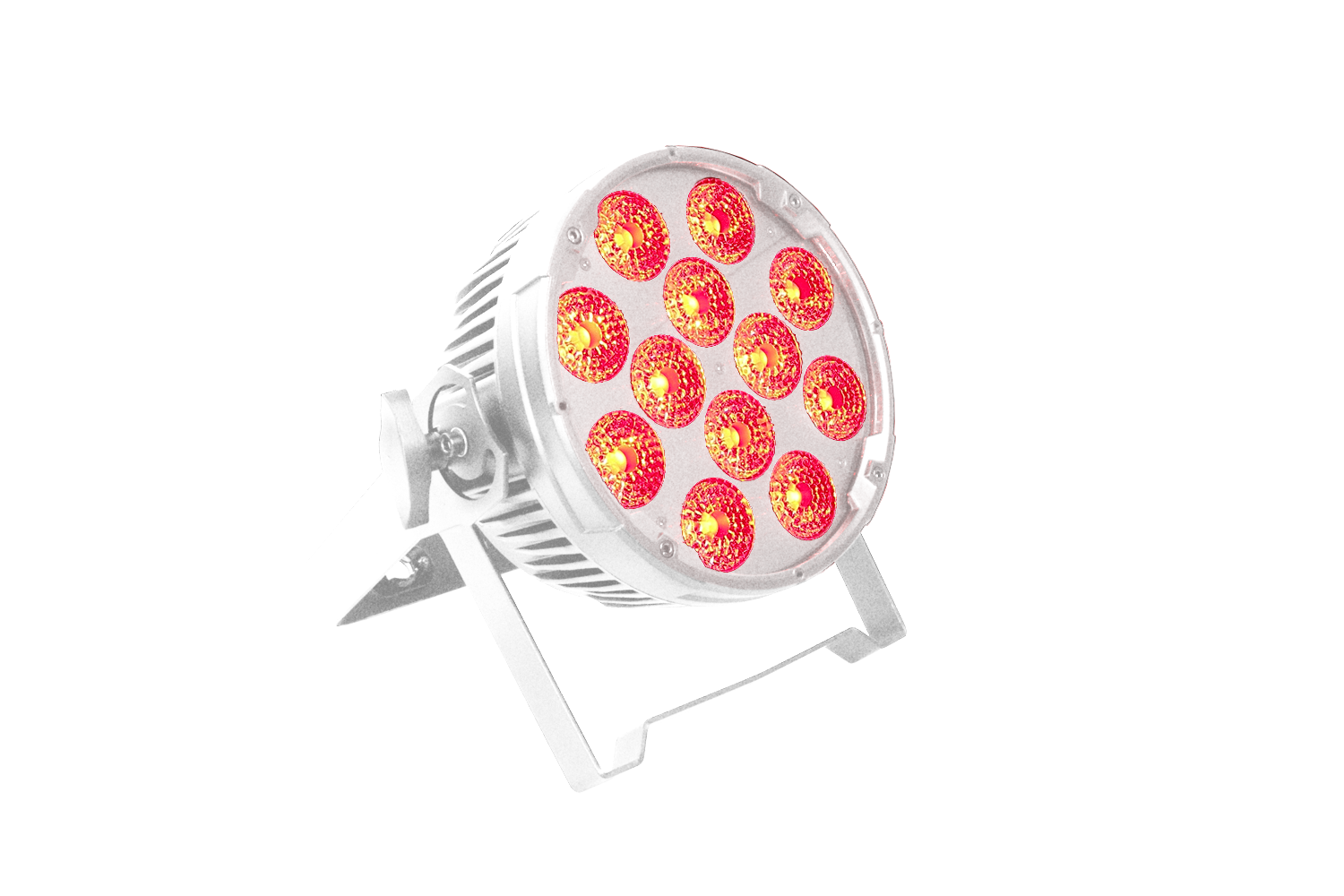

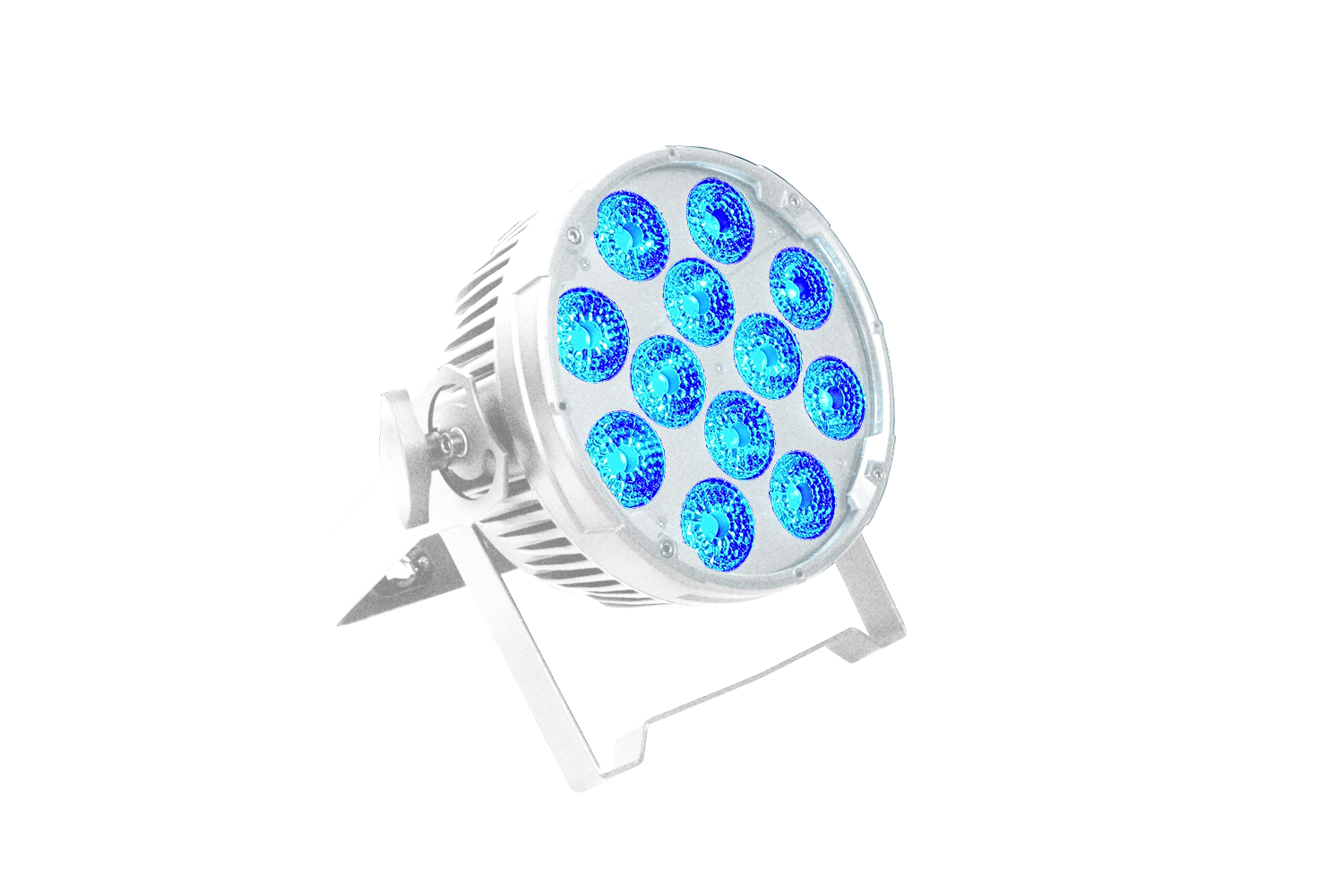

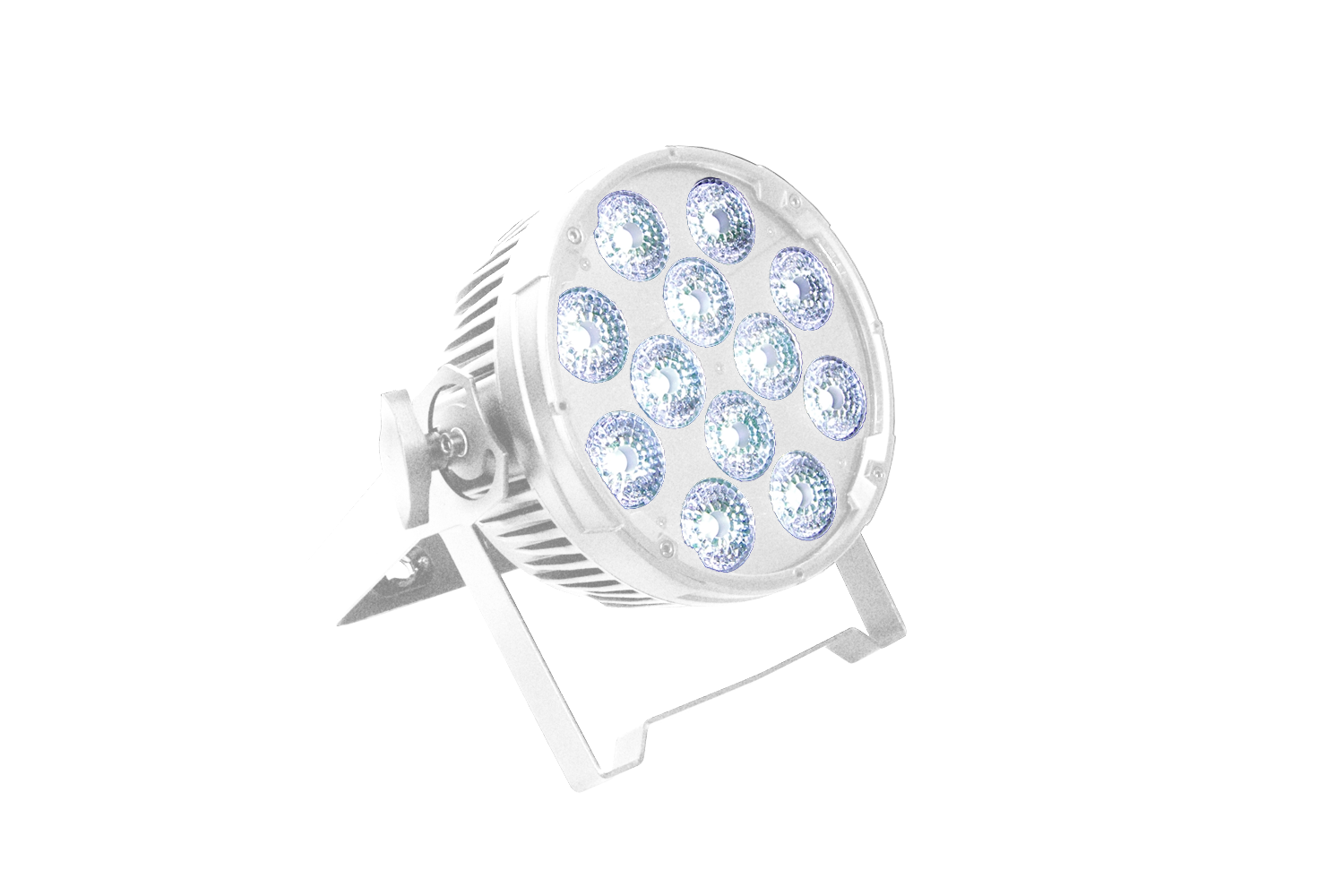

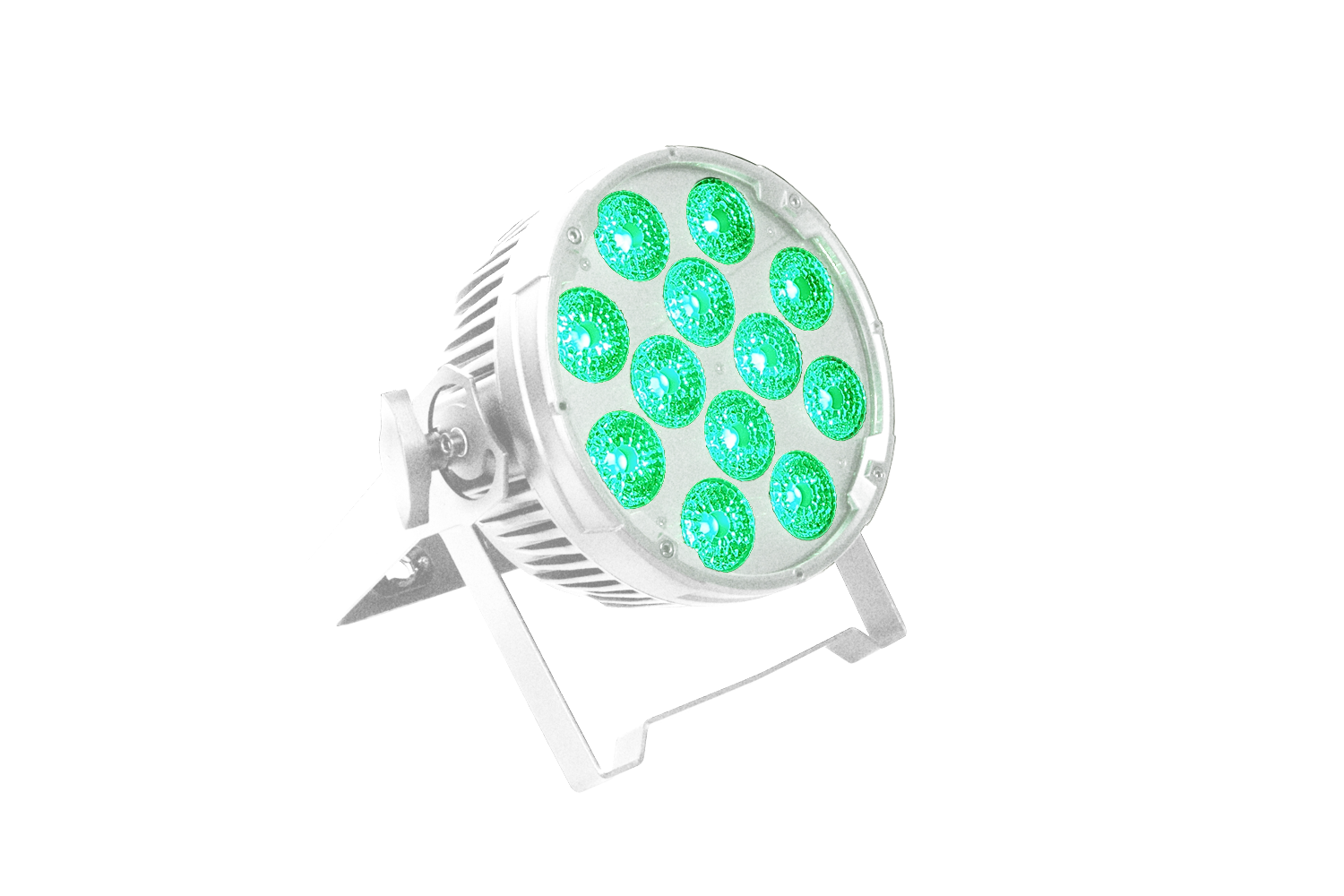

• Color Mixing: RGBWA+UV technology for vibrant colors, pastel shades, and UV-enhanced effects
• Silent Operation: Fanless cooling system for quiet environments

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control
• Wireless DMX: Optional WDMX support
• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, 4W, 4A, 6CH, 8CH, 12CH, and 14CH

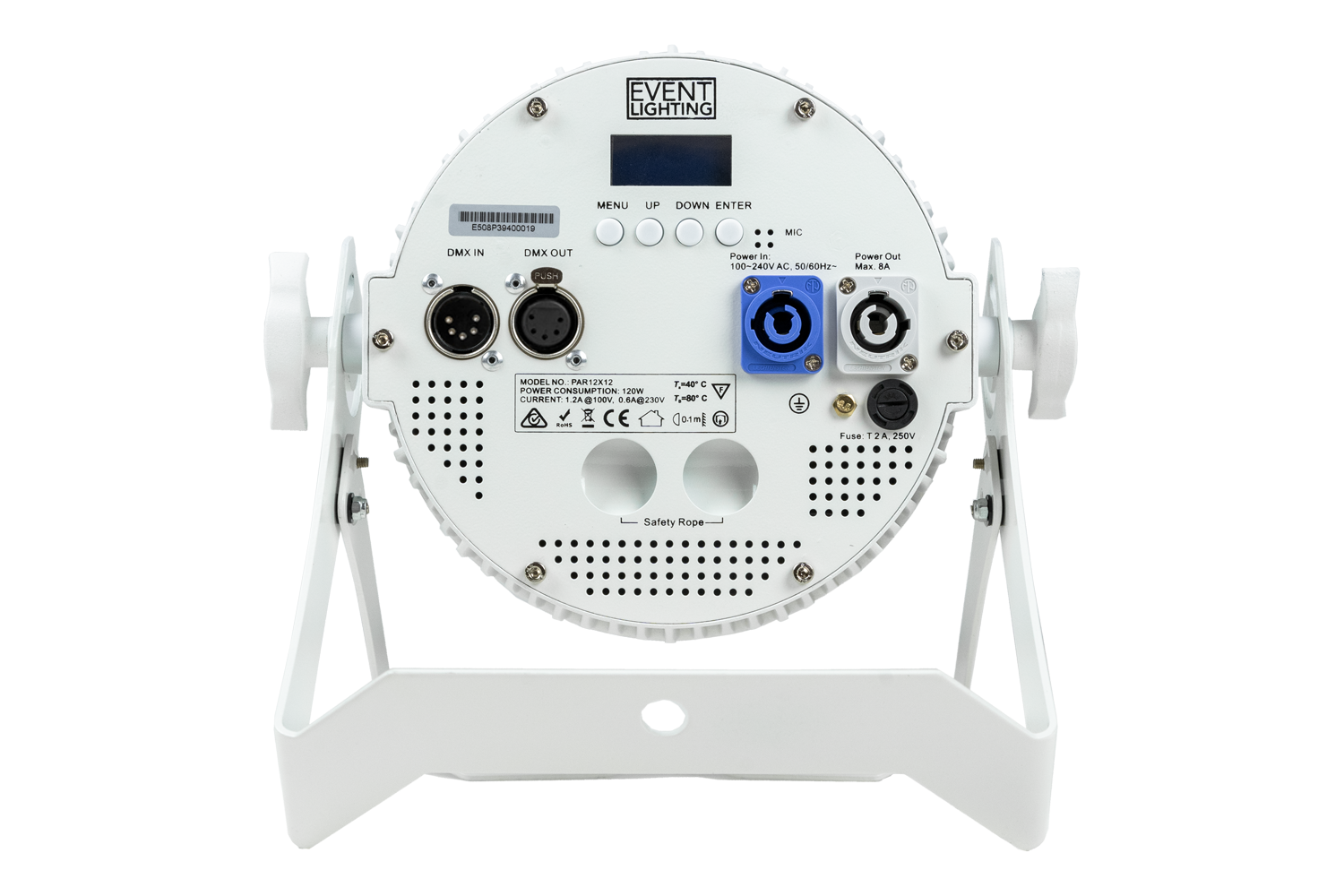

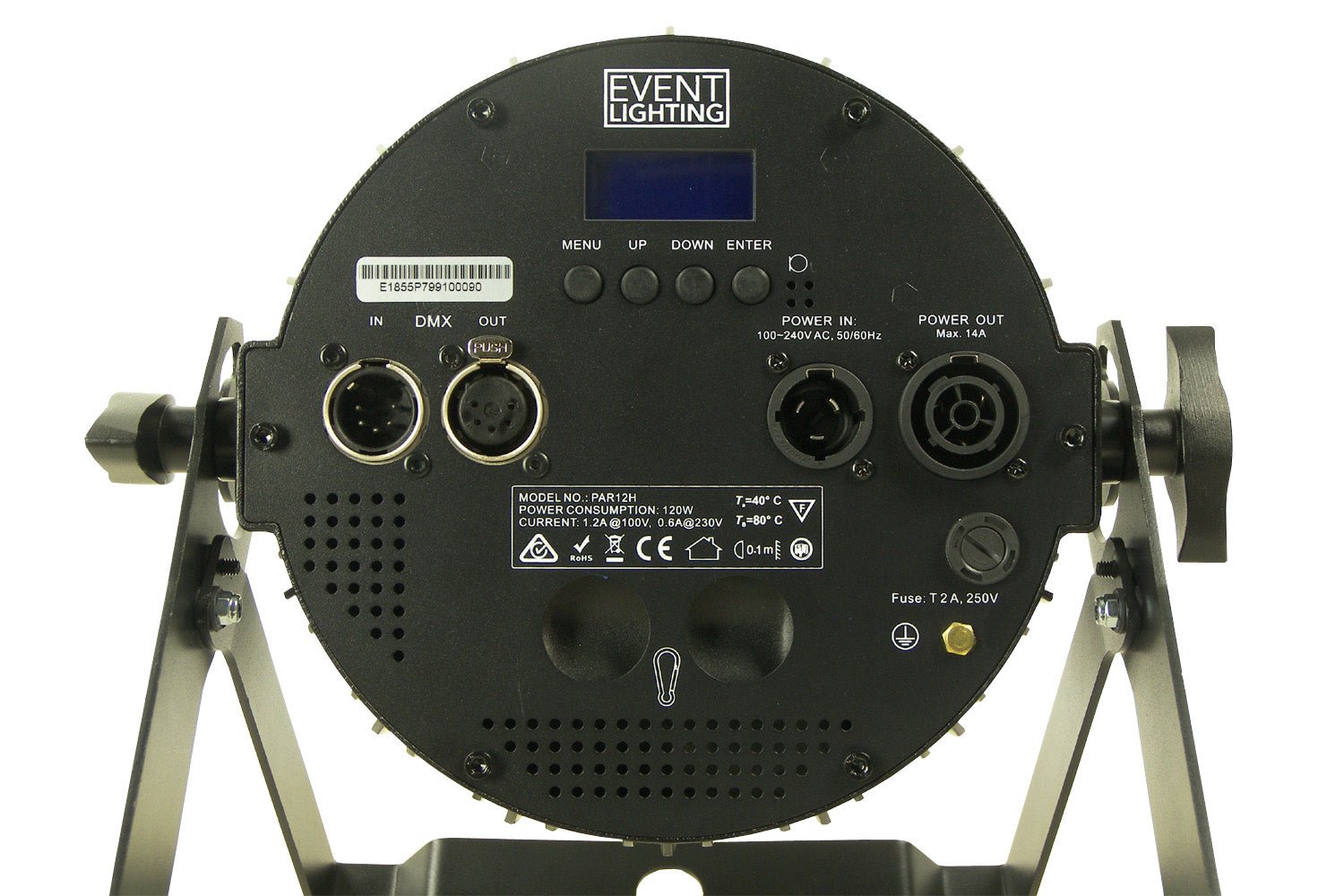

• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 120W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte white
• Cooling System: Fanless cooling

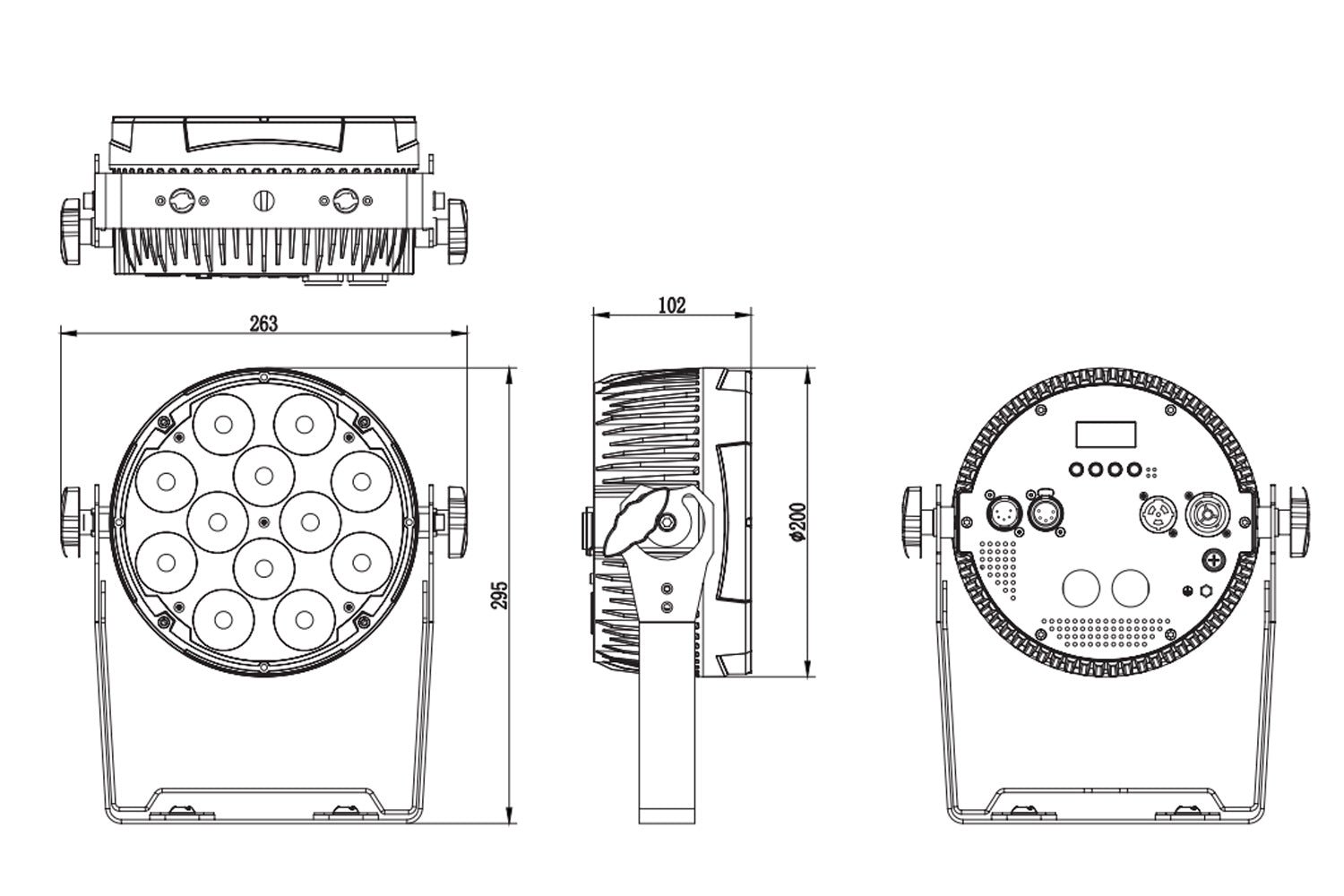

• Dimensions: 263 × 293 × 98 mm (10.4″ × 11.5″ × 3.9″)
• Weight: 3.2 kg (7.1 lbs)

Rigging

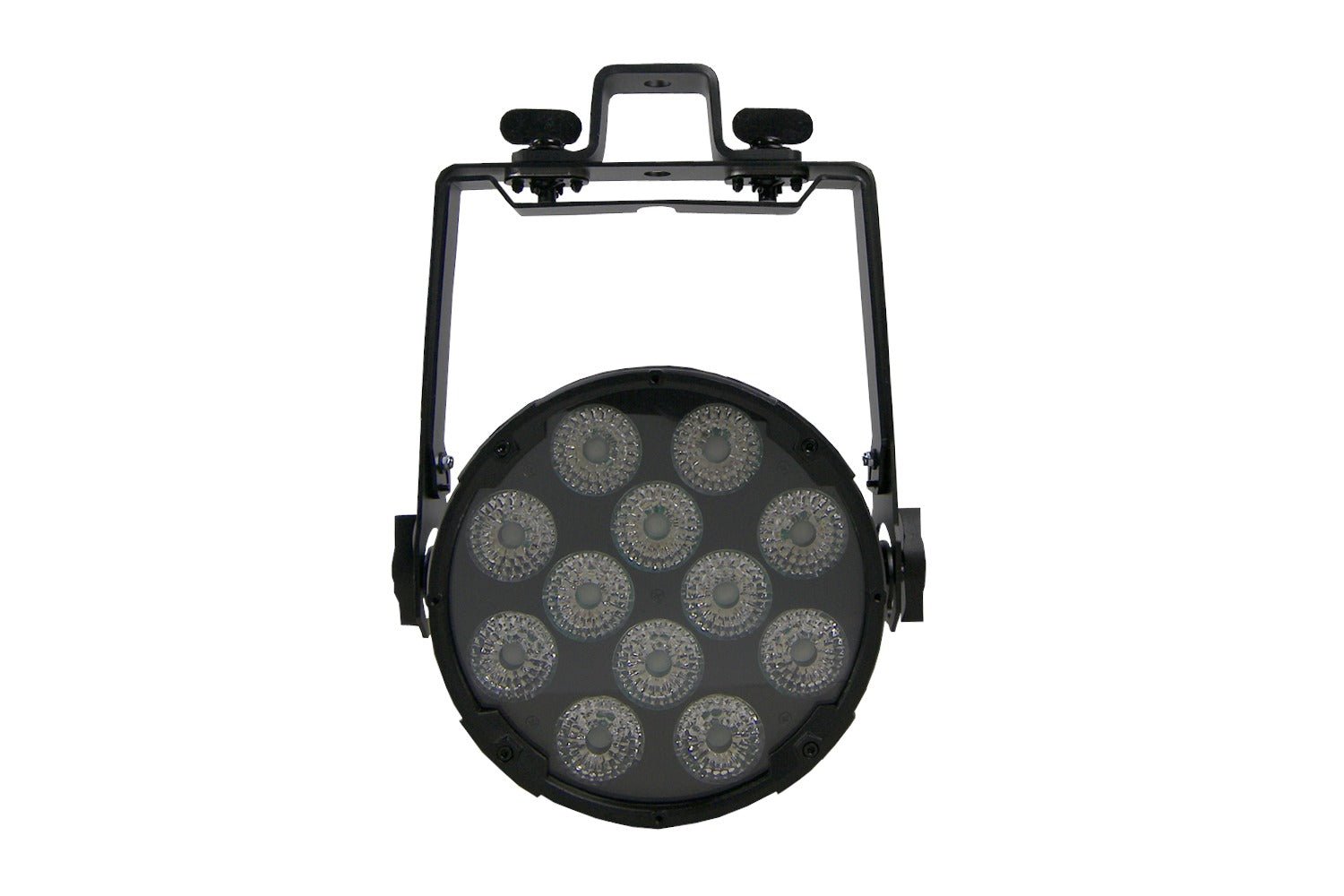

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for fast and secure installation.

Optional Accessories

• PAR12BDCASEWC – Road Case
• PAR12CASEWC – Protective Carry Case
• PAR12GELFR – Gel Frame
• PAR12FROST – Frost Filter
• PAR12BDKIT-WH – Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance and reliability.
