PAR12X20H-IP – Outdoor Pro Par with 12 x 20W RGBWAU LEDs

PAR12X20H-IP – Outdoor Pro PAR with 12 x 20W RGBWA+UV LEDs

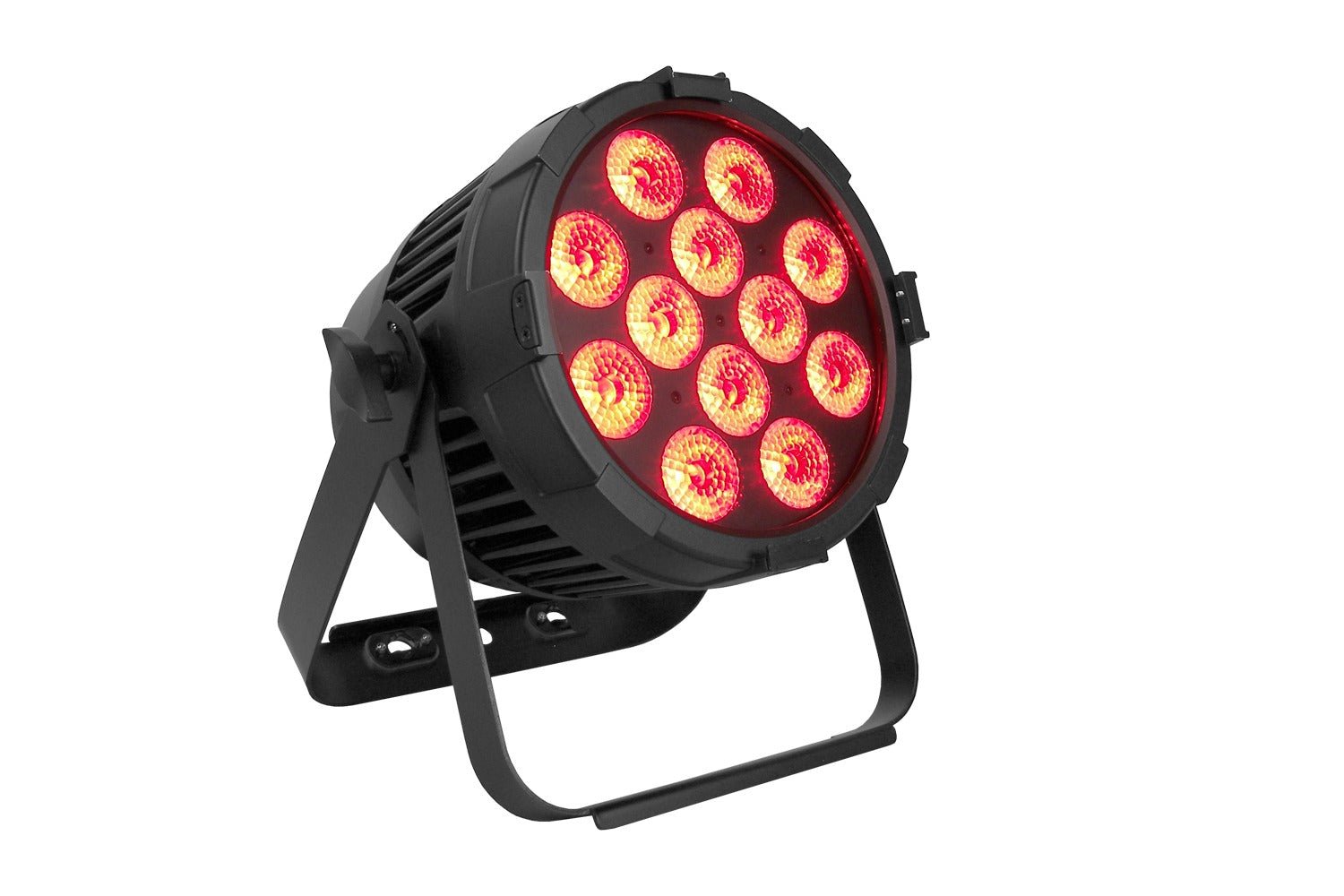

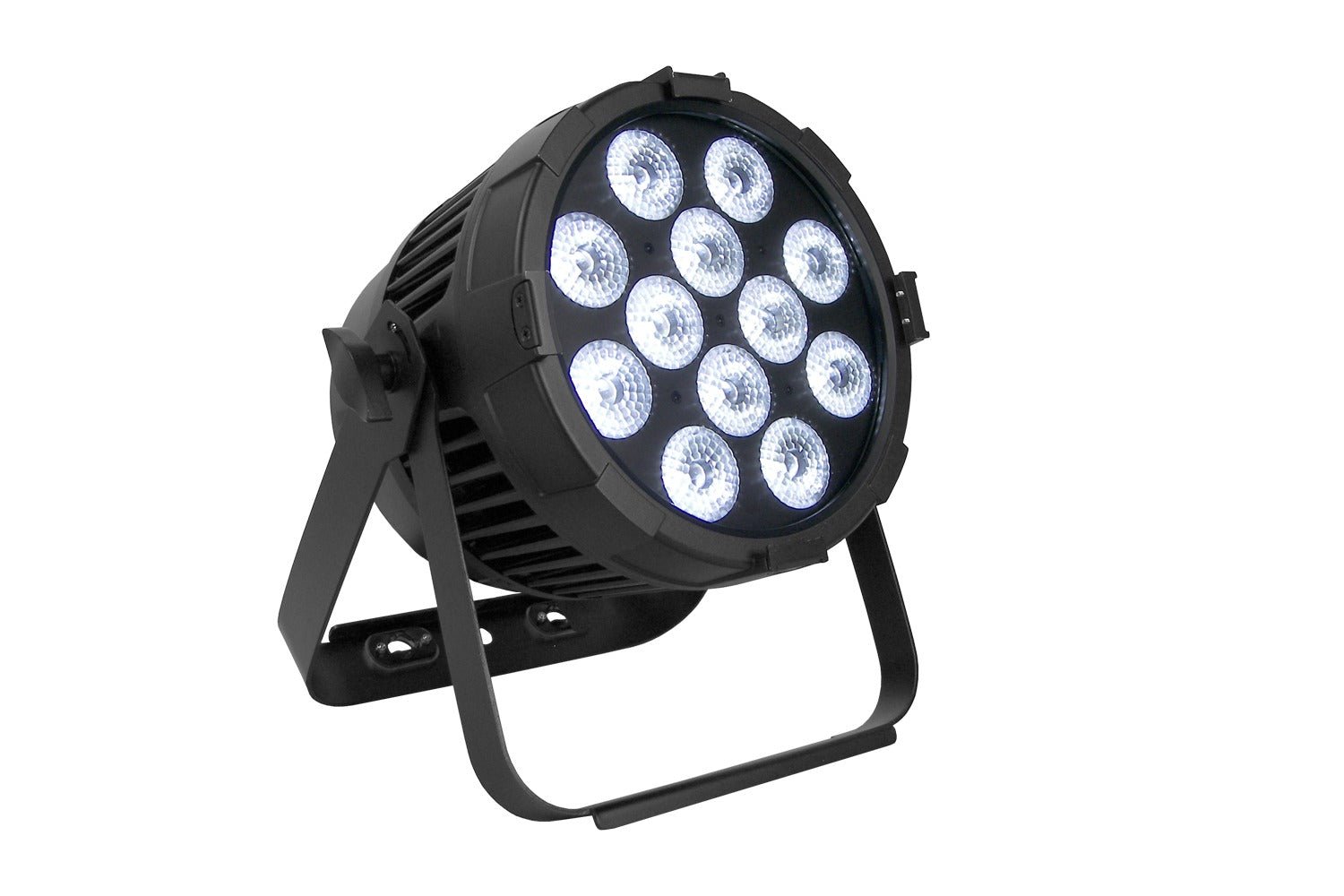

The PAR12X20H-IP is a high-performance outdoor LED PAR fixture engineered for concerts, festivals, architectural lighting, stage productions, touring events, and permanent outdoor installations. Powered by 12 high-output 20W RGBWA+UV 6-in-1 LEDs, it delivers vibrant color mixing, ultraviolet effects, and exceptional brightness for professional lighting applications.

Designed to perform in demanding environments, this IP65-rated fixture features multiple beam angle options, integrated WDMX wireless control, and advanced dimming capabilities. With a powerful output of 12,700 lux at 2 meters and a rugged die-cast aluminum housing, the PAR12X20H-IP provides reliable performance for both indoor and outdoor lighting projects.

Photometric Specifications

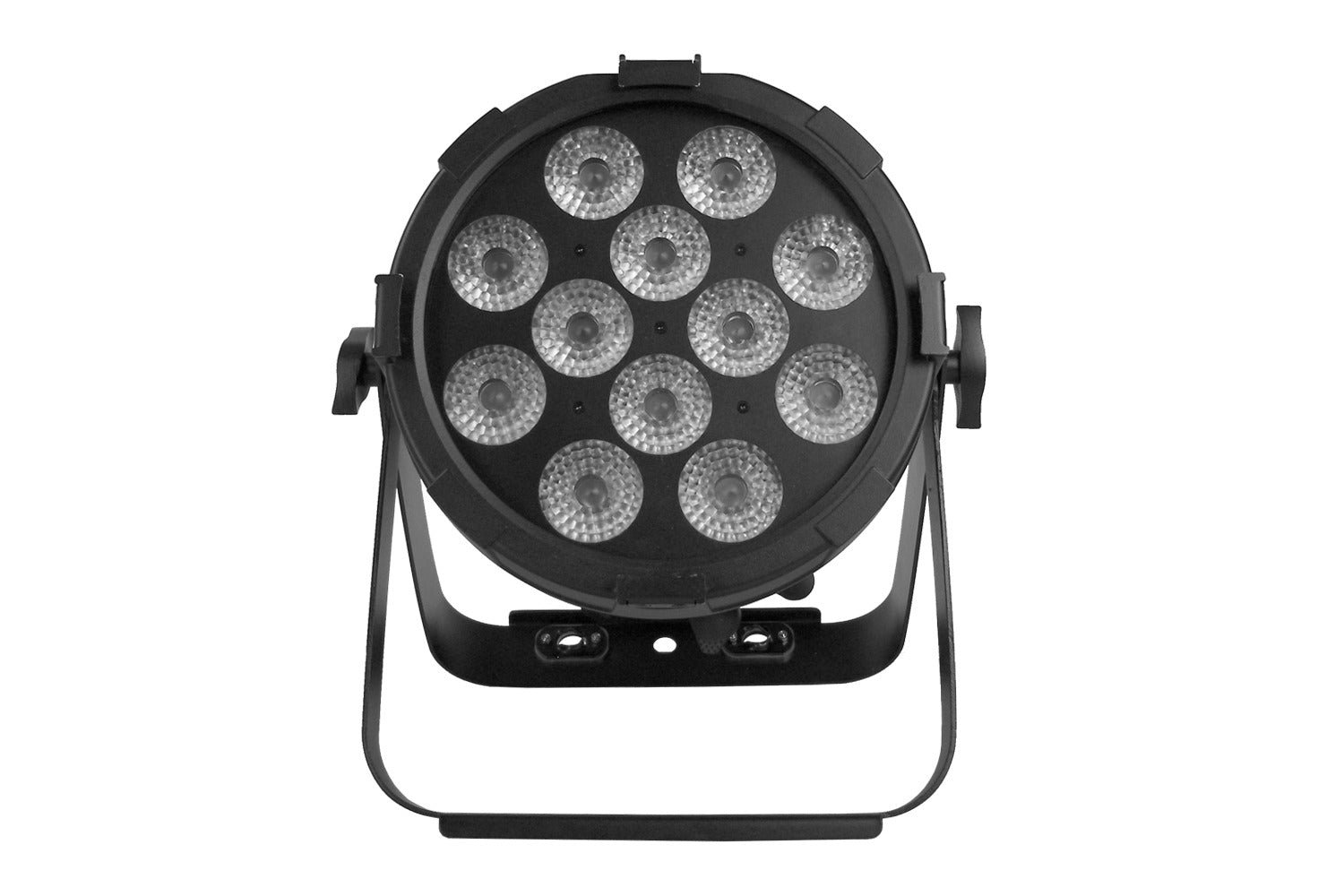

• Light Source: 12 × 20W RGBWA+UV 6-in-1 LEDs
• Beam Angle: 22° standard (Optional: 8°, 15°, 45°)

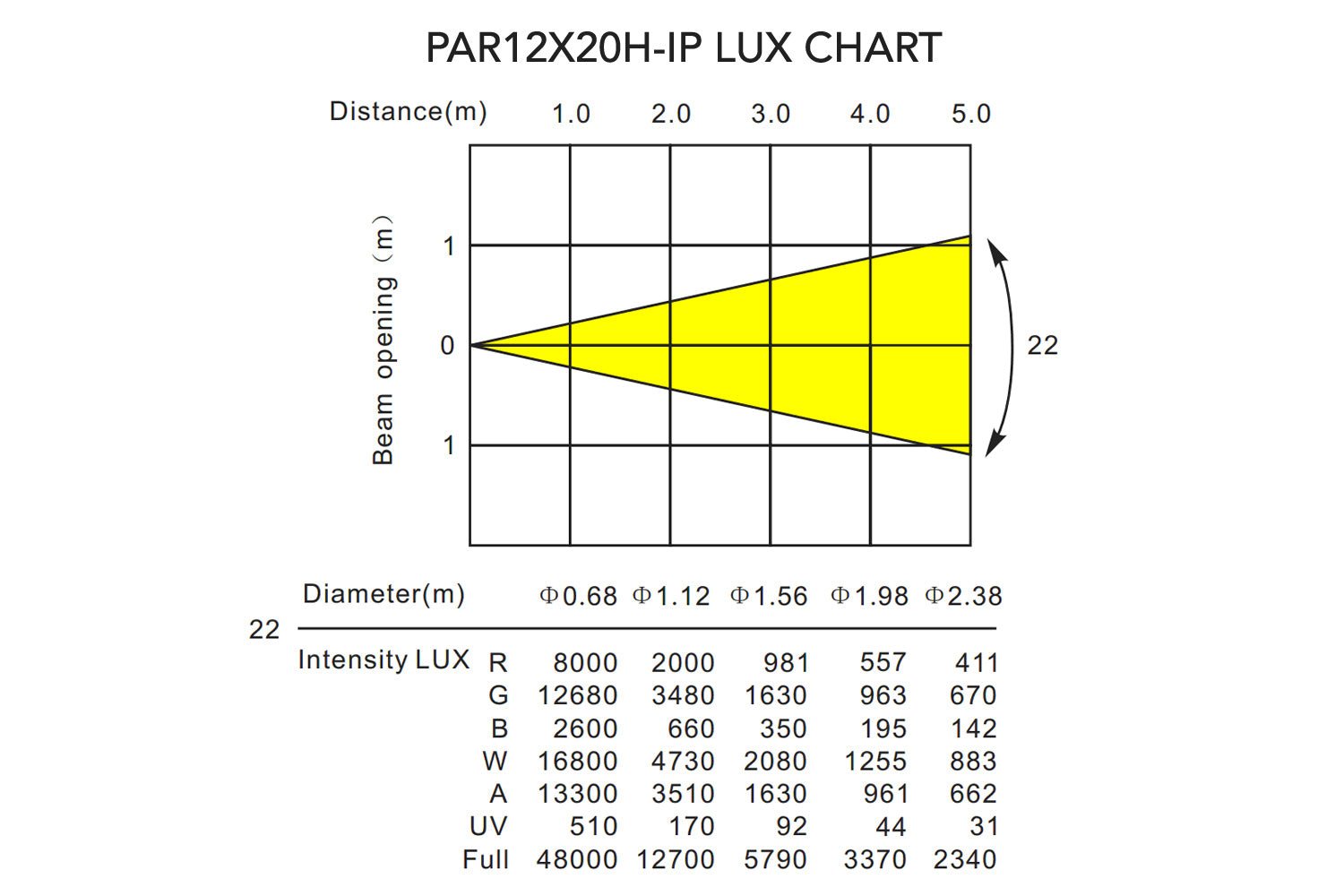

• Output: 12,700 lux at 2.0m (full output)
• PWM Frequency: 1,240Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz
• Color Mixing: RGBWA+UV technology for vibrant colors, pastel shades, and UV effects
• Wireless DMX: Integrated WDMX functionality
• Silent Operation: Fanless cooling system

Control & Connectivity

• Operating Modes: DMX, WDMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control

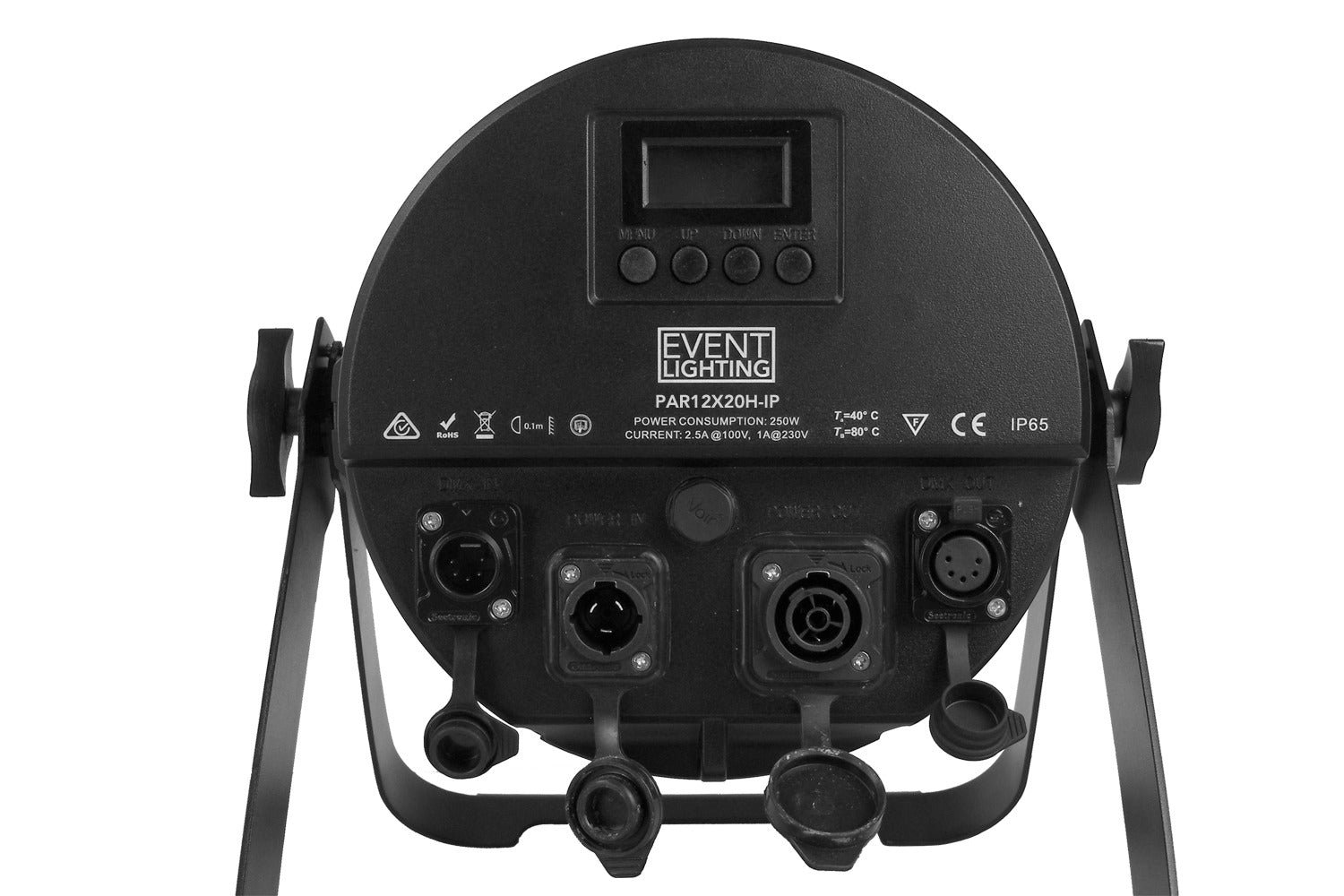

• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, 4W, 4A, 6CH, 8CH, 12CH, and 14CH
• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 250W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black
• Cooling System: Fanless cooling
• IP Rating: IP65 for outdoor use

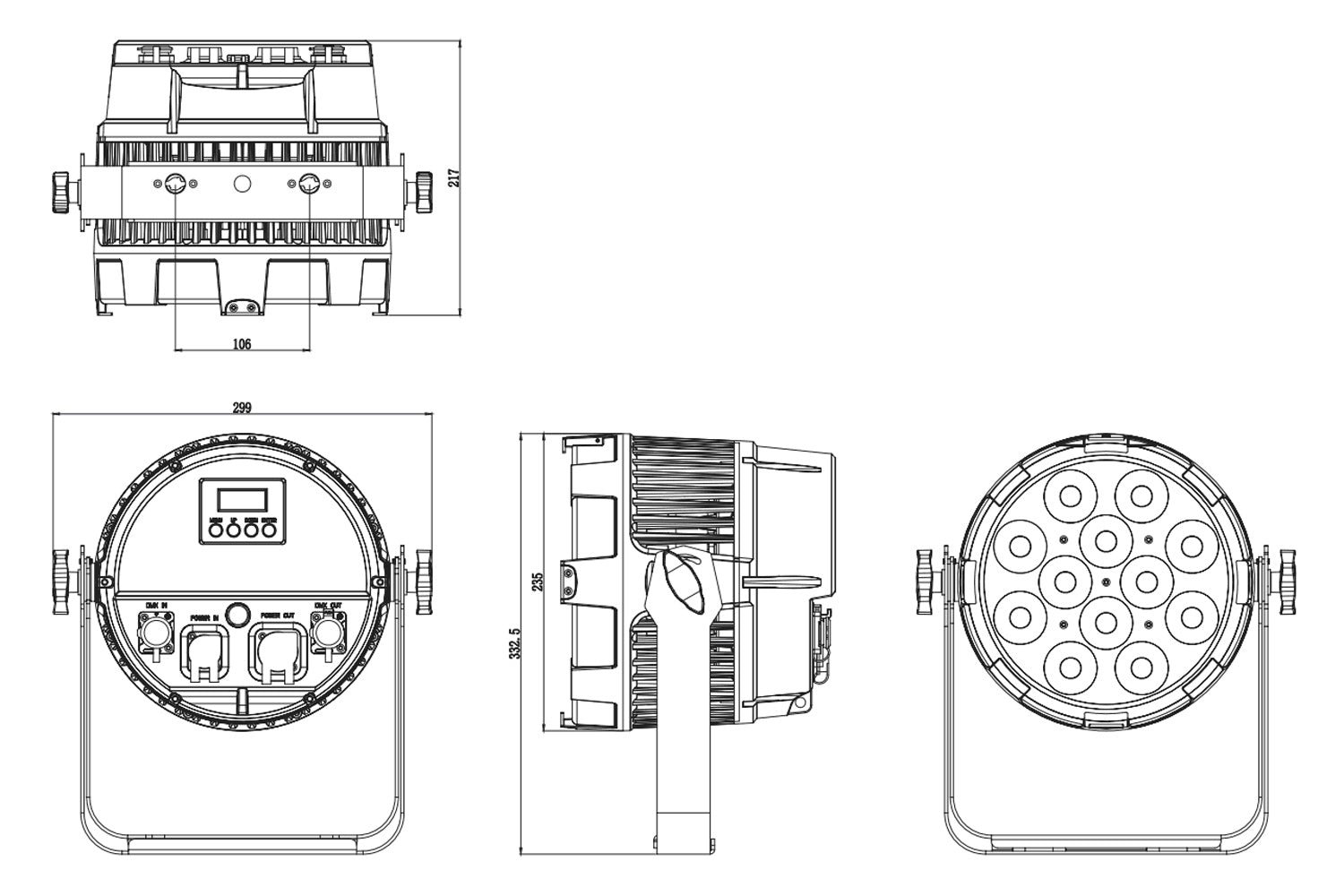

• Dimensions: 299 × 217 × 333 mm (11.8″ × 8.5″ × 13.1″)
• Weight: 6.5 kg (14.3 lbs)

Rigging

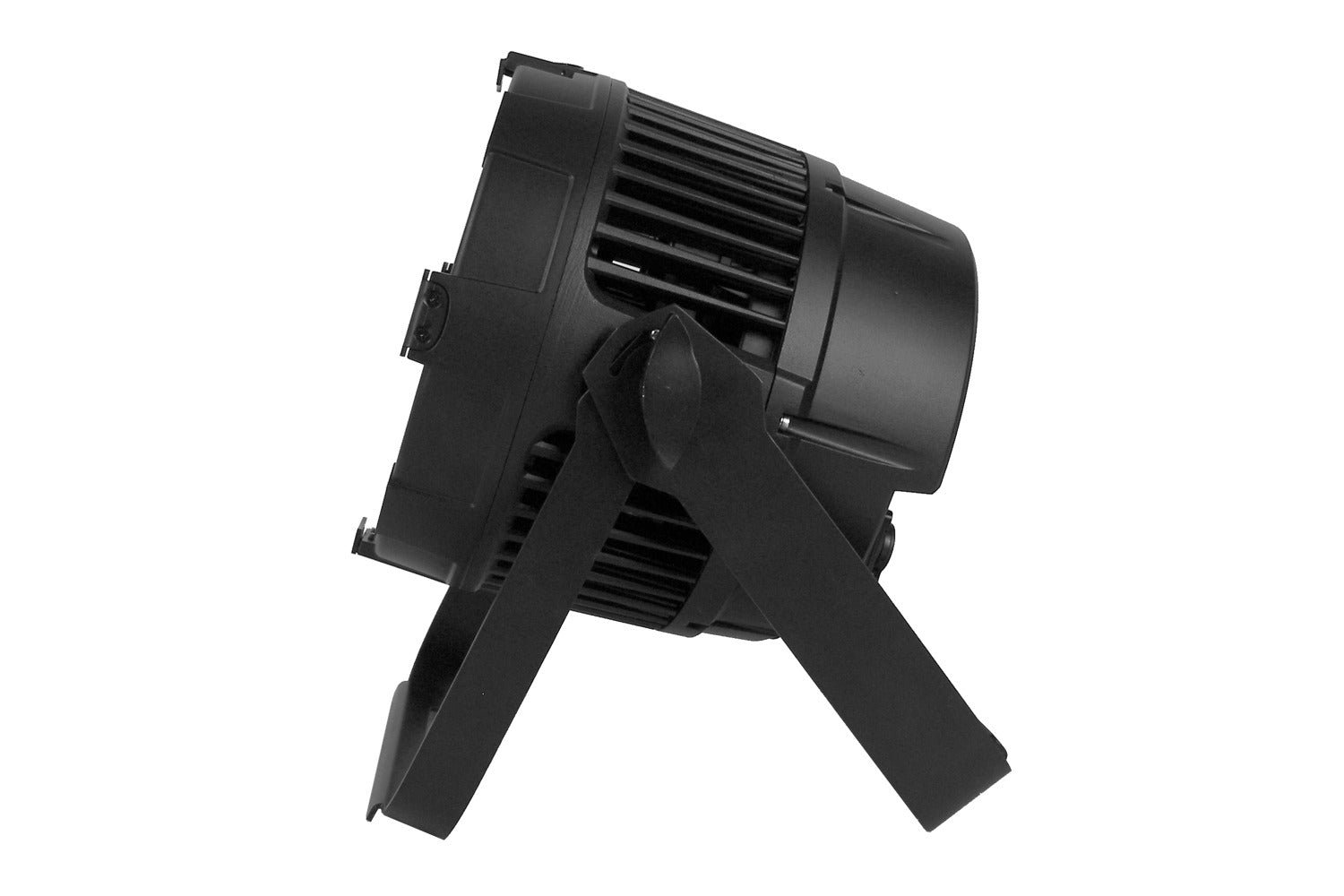

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for secure and efficient installation.

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance and reliability.
