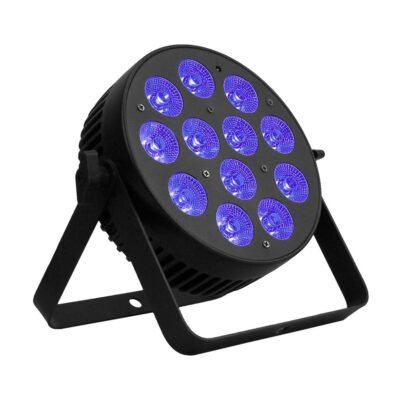

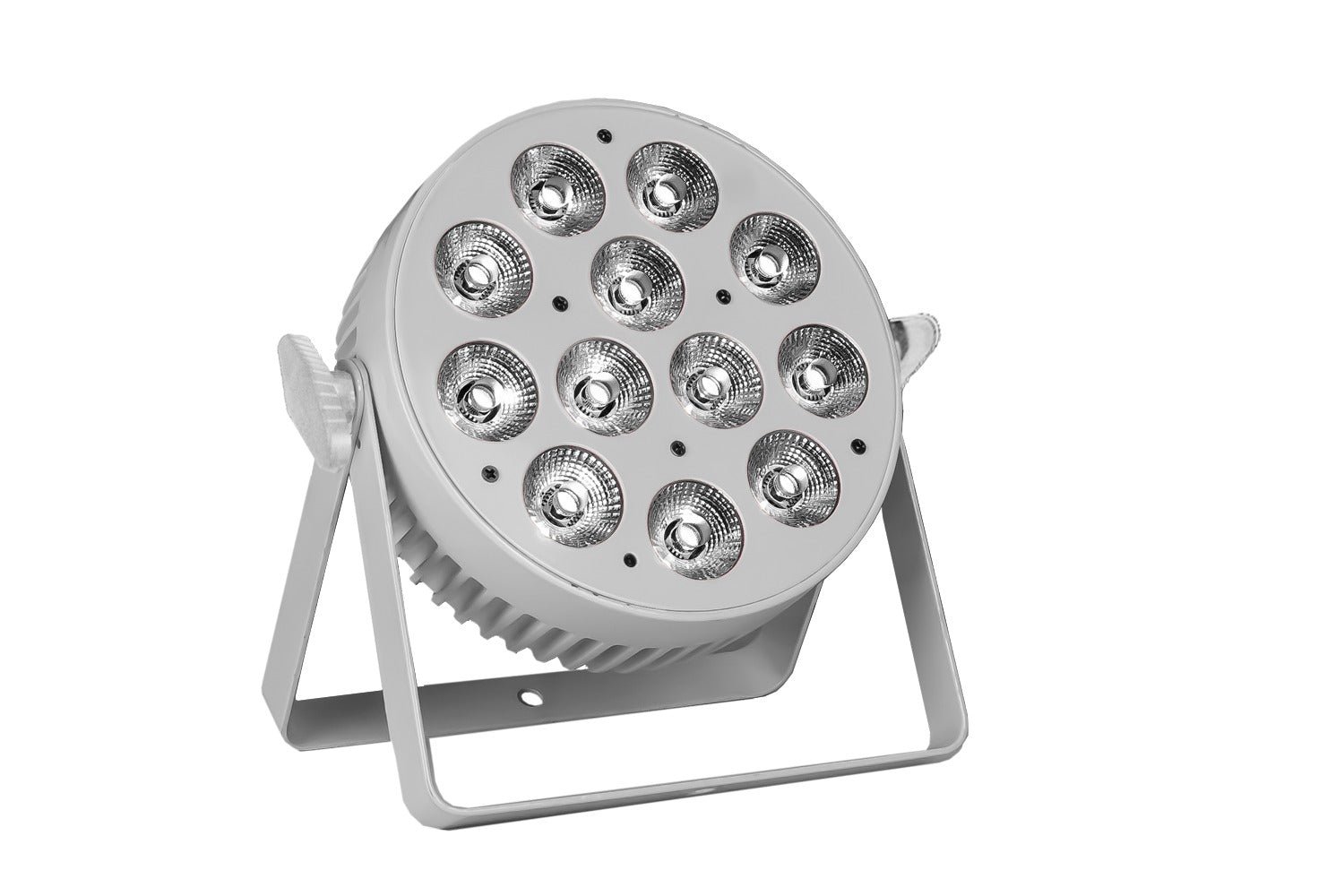

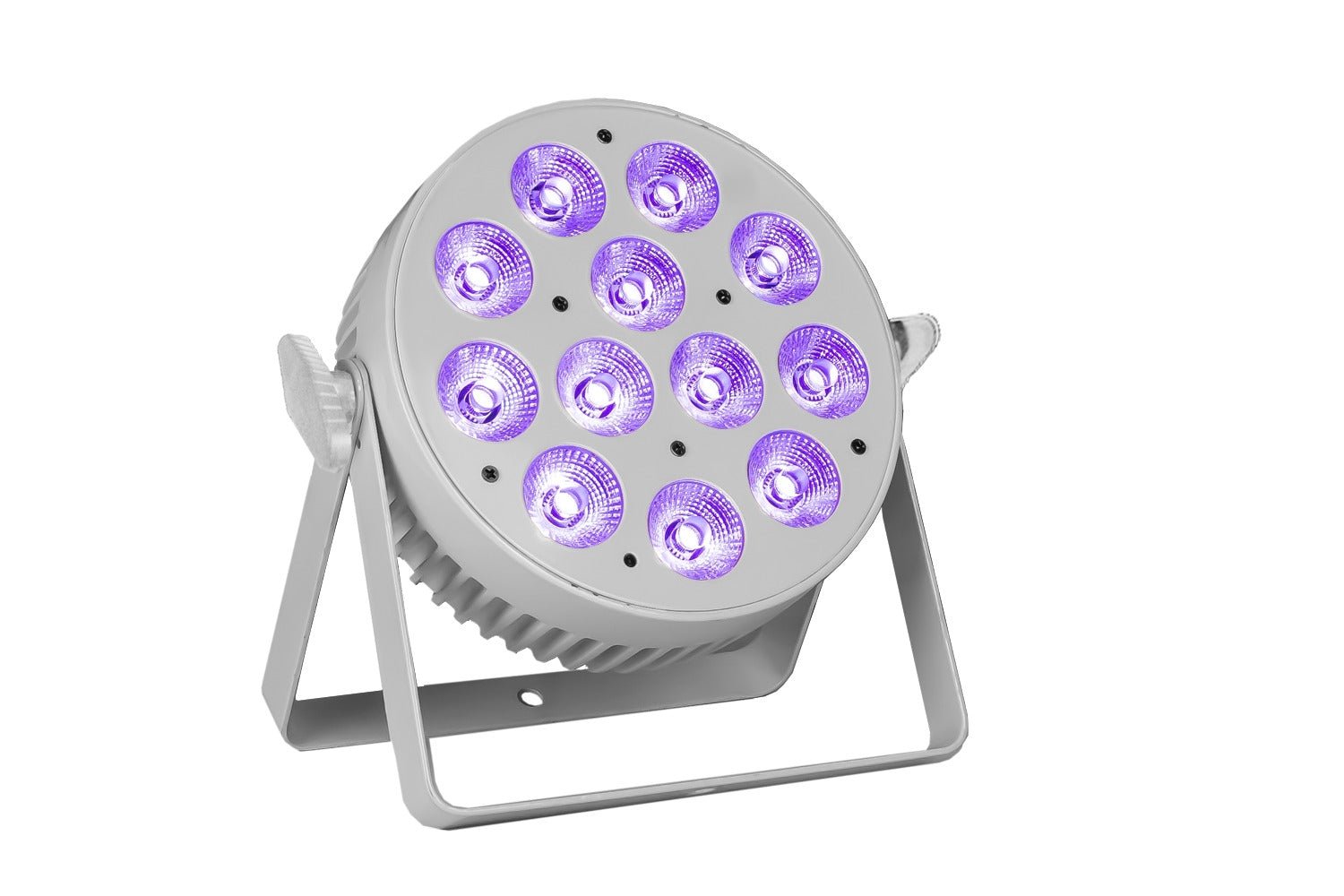

PAR12X4UVL-WH – Indoor Dedicated UV Lite Par (White)

PAR12X4UVL-WH – Indoor UV LED Par Fixture (White)

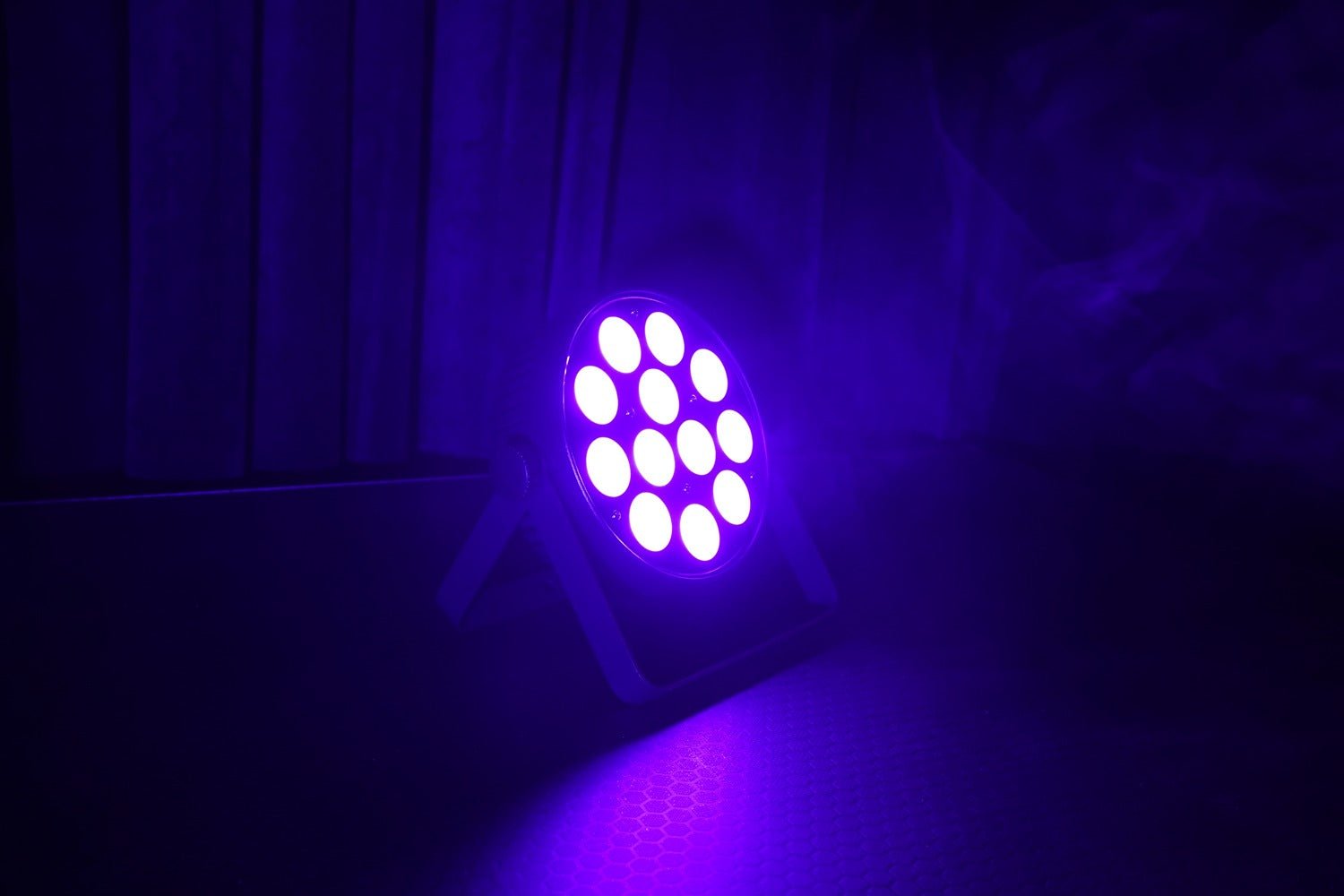

The PAR12X4UVL-WH is a compact and powerful UV LED PAR fixture designed to create vibrant ultraviolet lighting effects for parties, clubs, bars, entertainment venues, stage productions, and special events. Featuring 12 high-output 4W UV LEDs, this fixture delivers intense blacklight effects that enhance fluorescent materials, décor, costumes, and stage elements.

Built with a durable die-cast aluminum housing and fanless cooling system, the fixture operates silently, making it ideal for both professional and recreational environments. Its versatile control options, including DMX, sound active, auto programs, and master/slave functionality, allow for easy integration into a wide range of lighting setups.

Photometric Specifications

• Light Source: 12 × 4W UV LEDs
• Beam Angle: 40°
• PWM Frequency: 20,000Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 0%–100% brightness control
• Strobe Effect: Adjustable from 1Hz to 20Hz
• UV Output: Powerful ultraviolet illumination for blacklight effects
• Silent Operation: Fanless cooling design

Control & Connectivity

• Control Protocol: DMX512
• DMX Channel Modes: 1CH and 2CH
• Operating Modes: DMX, Manual, Auto, Sound Active, and Master/Slave

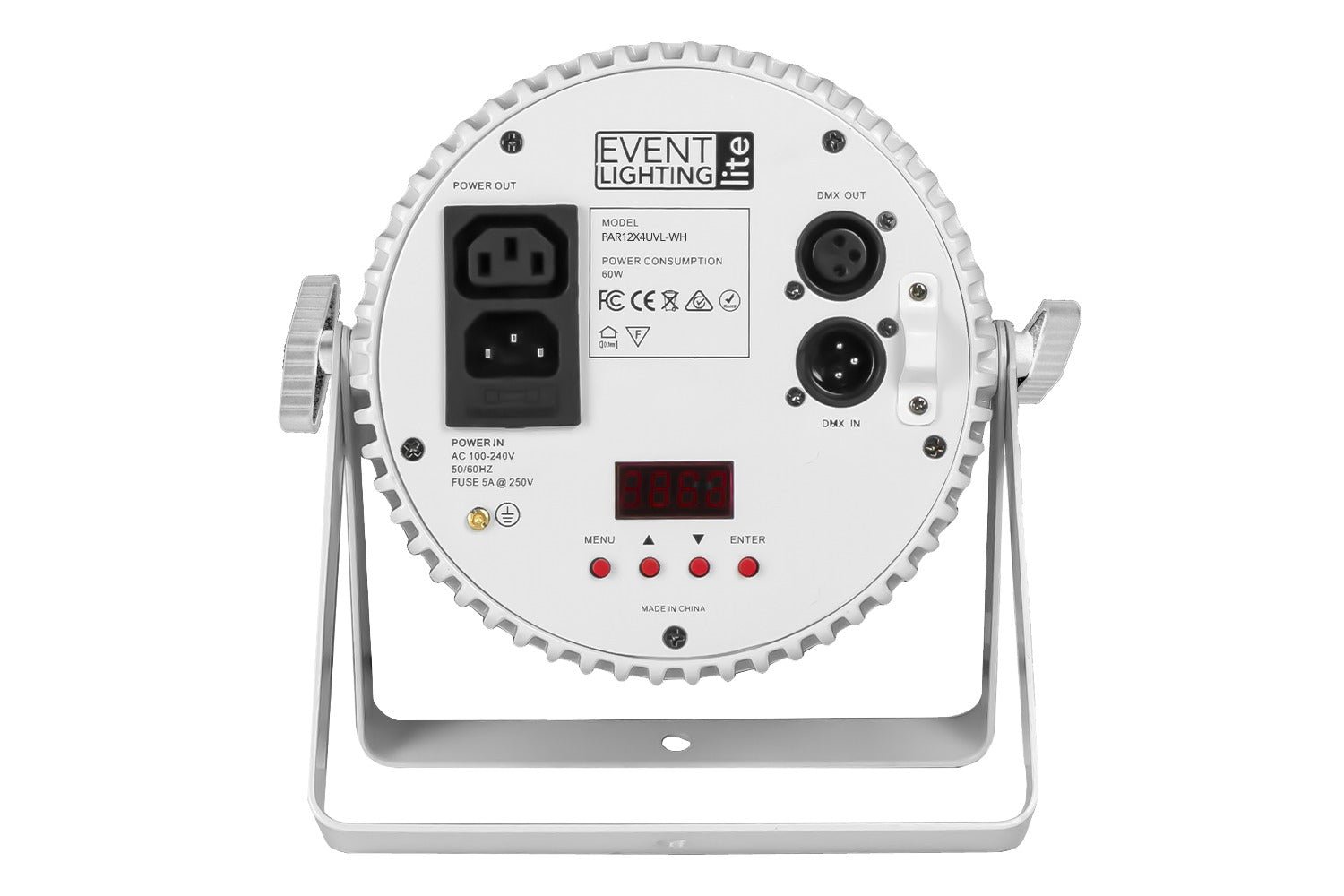

• DMX Connections: 3-pin XLR input and output
• Display: 4-digit LED display with 4-button control panel

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 50W
• Power Connections: IEC input and output
• Included Accessory: IEC piggyback power cable

Construction & Design

• Housing Material: Die-cast aluminum
• Finish: White
• Cooling System: Fanless cooling

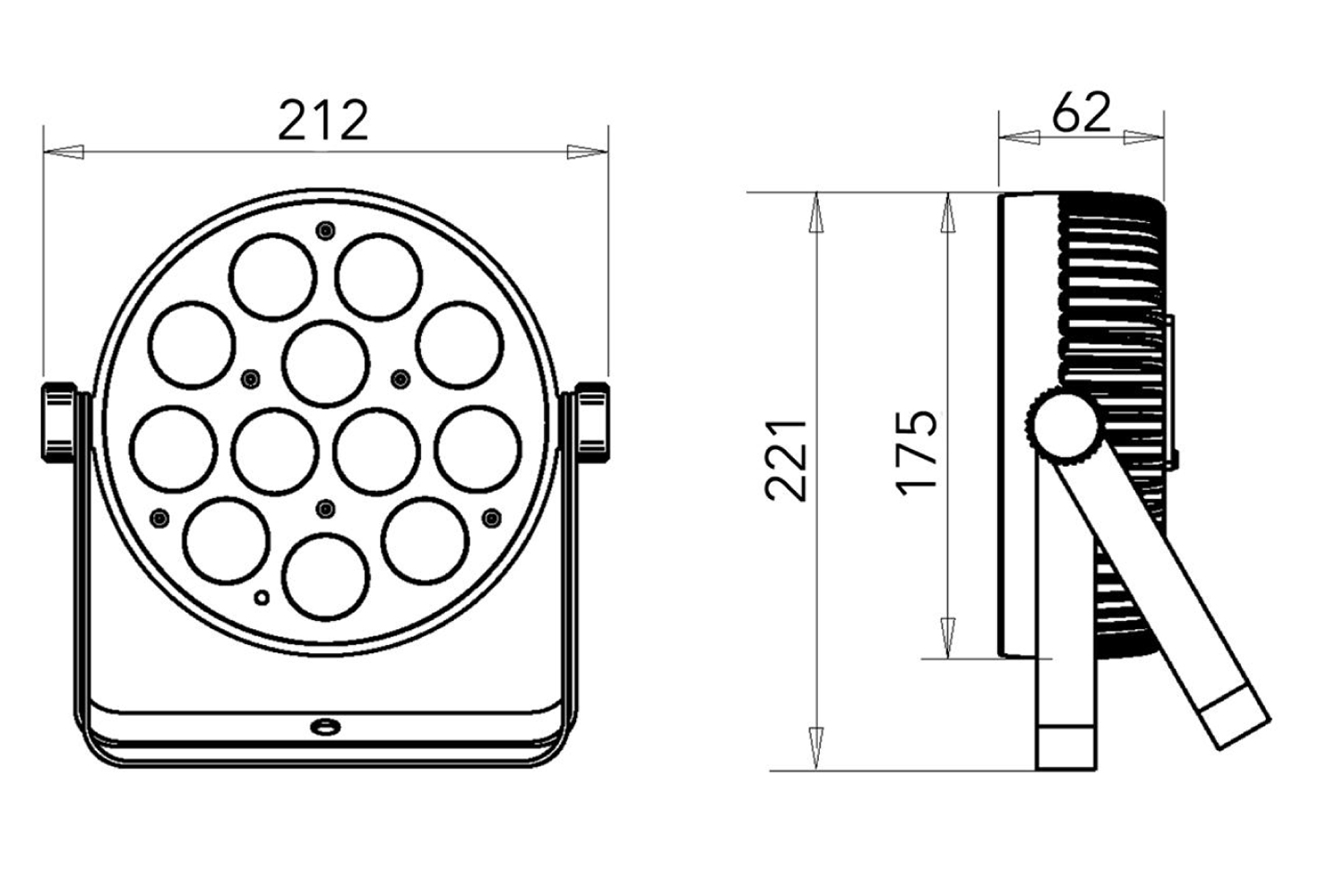

• Dimensions: 221 × 212 × 62 mm (8.7″ × 8.3″ × 2.4″)
• Weight: 1.85 kg (4.1 lbs)

Optional Accessories

• PAR12LBAG: Optional carry bag for safe transport and storage.

Warranty

• Backed by a 2-year manufacturer warranty for reliable performance.
