PAR12Q – Indoor Pro Par with 12 x 8W RGBW LEDs

PAR12Q – Indoor Pro PAR with 12 x 8W RGBW LEDs

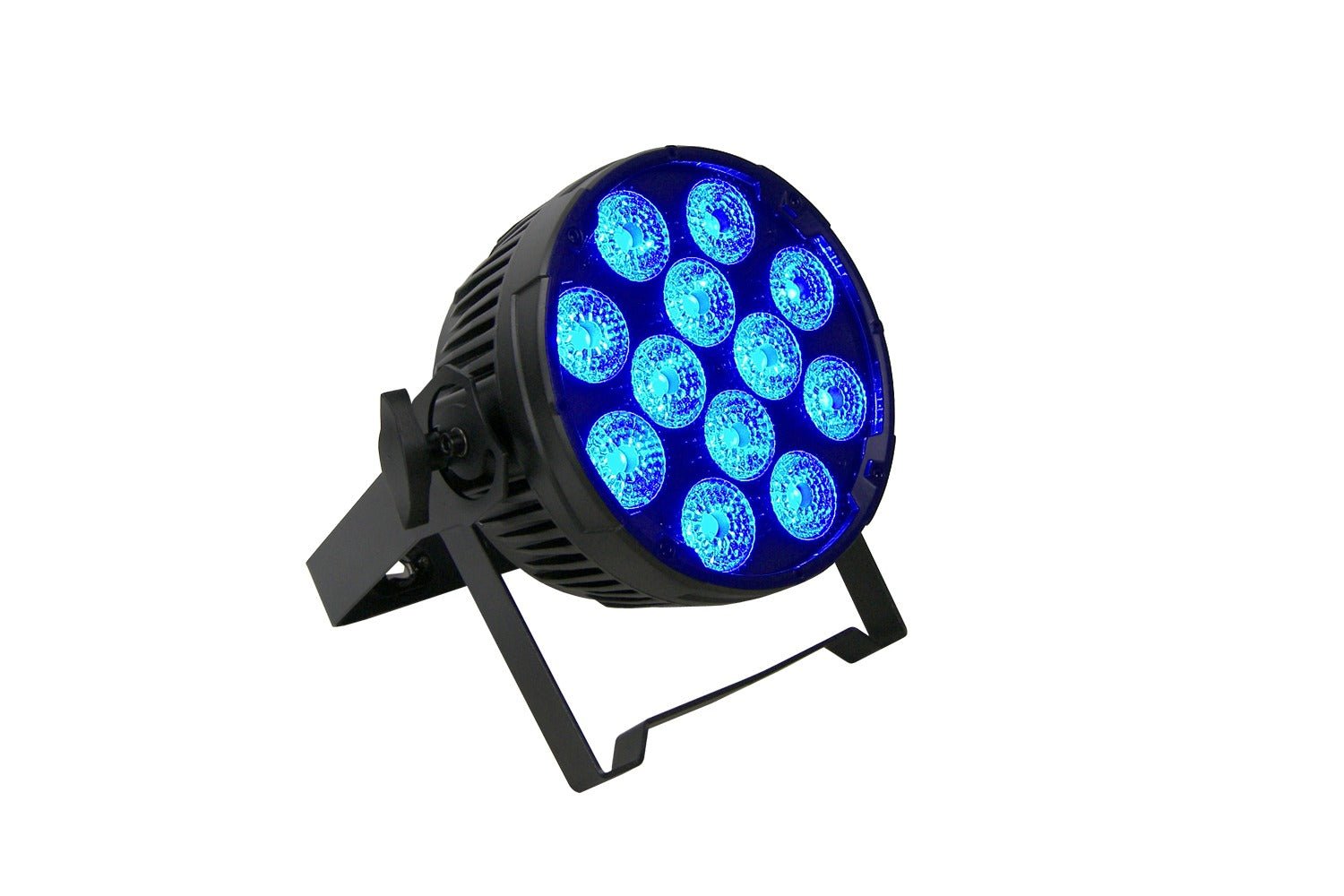

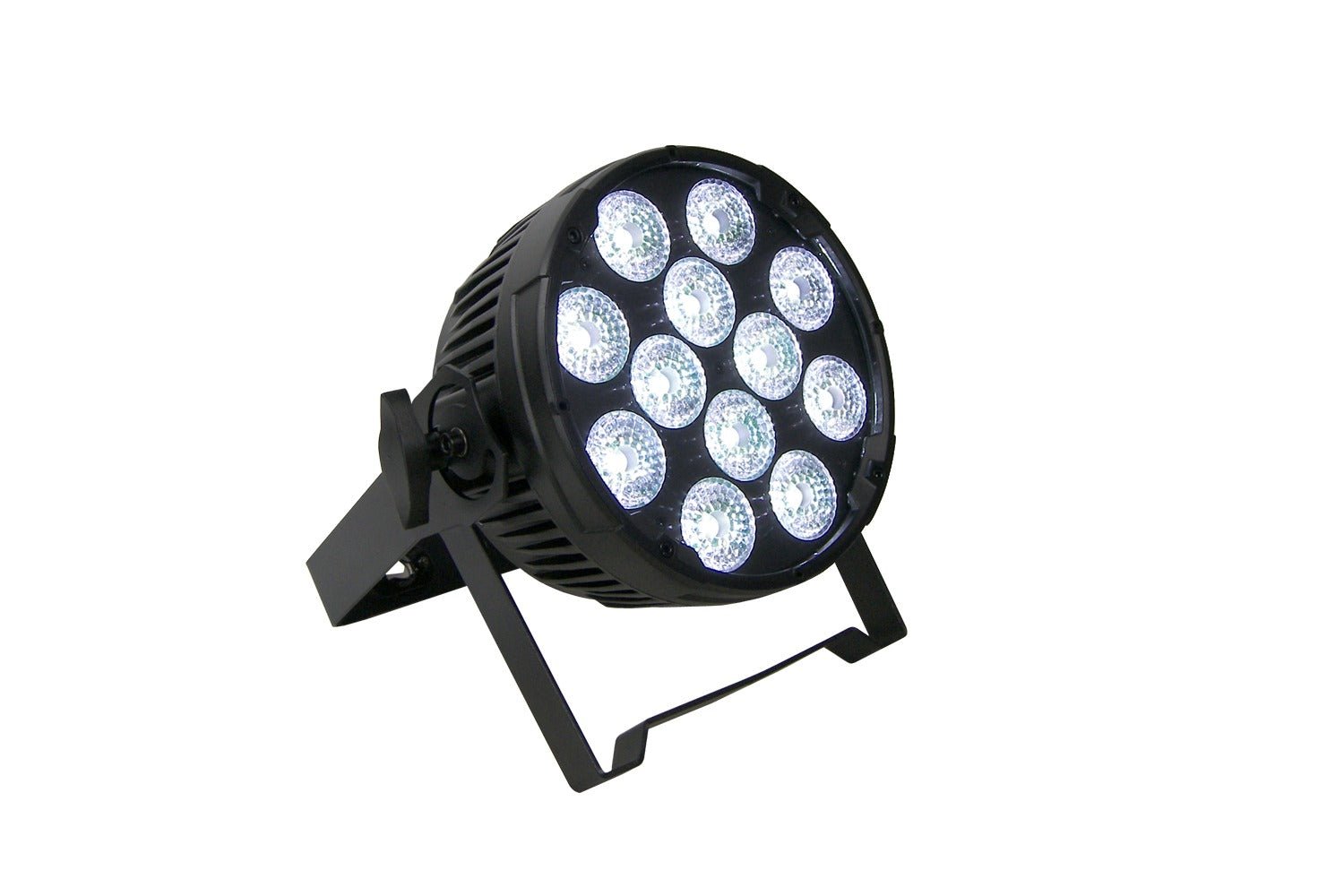

The PAR12Q is a professional LED PAR fixture engineered for stage productions, theatres, churches, wedding venues, live events, and architectural lighting applications. Featuring 12 high-output 8W RGBW LEDs, it delivers vibrant color mixing, smooth wash effects, and exceptional brightness, making it a reliable solution for both permanent installations and mobile lighting setups.

Designed for flexibility and performance, the fixture offers multiple beam angle options to suit different venue sizes and lighting requirements. Advanced 16-bit dimming technology, adjustable strobe effects, and optional wireless DMX compatibility provide lighting professionals with precise control and creative freedom. The robust matte black die-cast aluminum housing and fanless cooling system ensure durability and silent operation in any environment.

Photometric Specifications

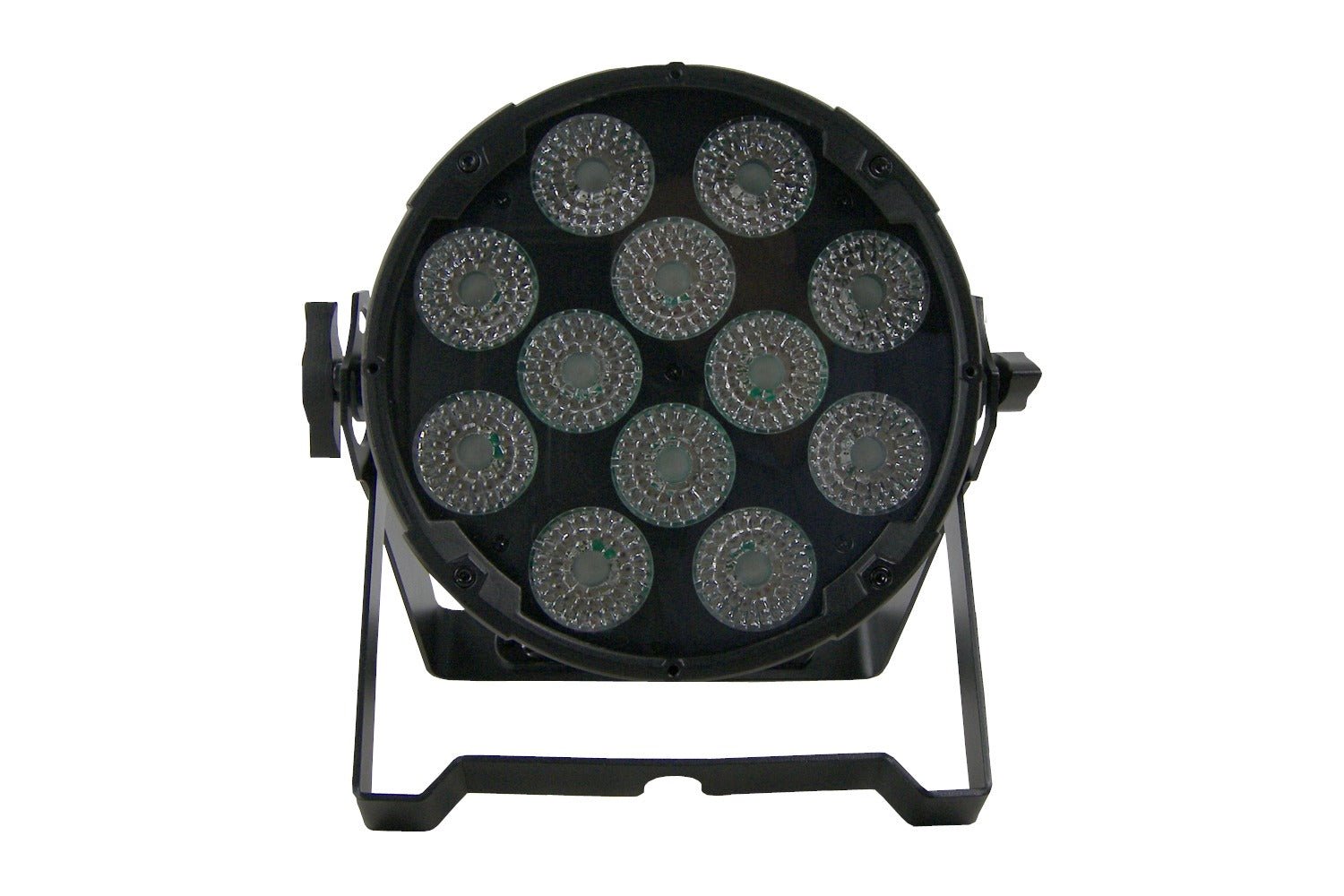

• Light Source: 12 × 8W RGBW LEDs

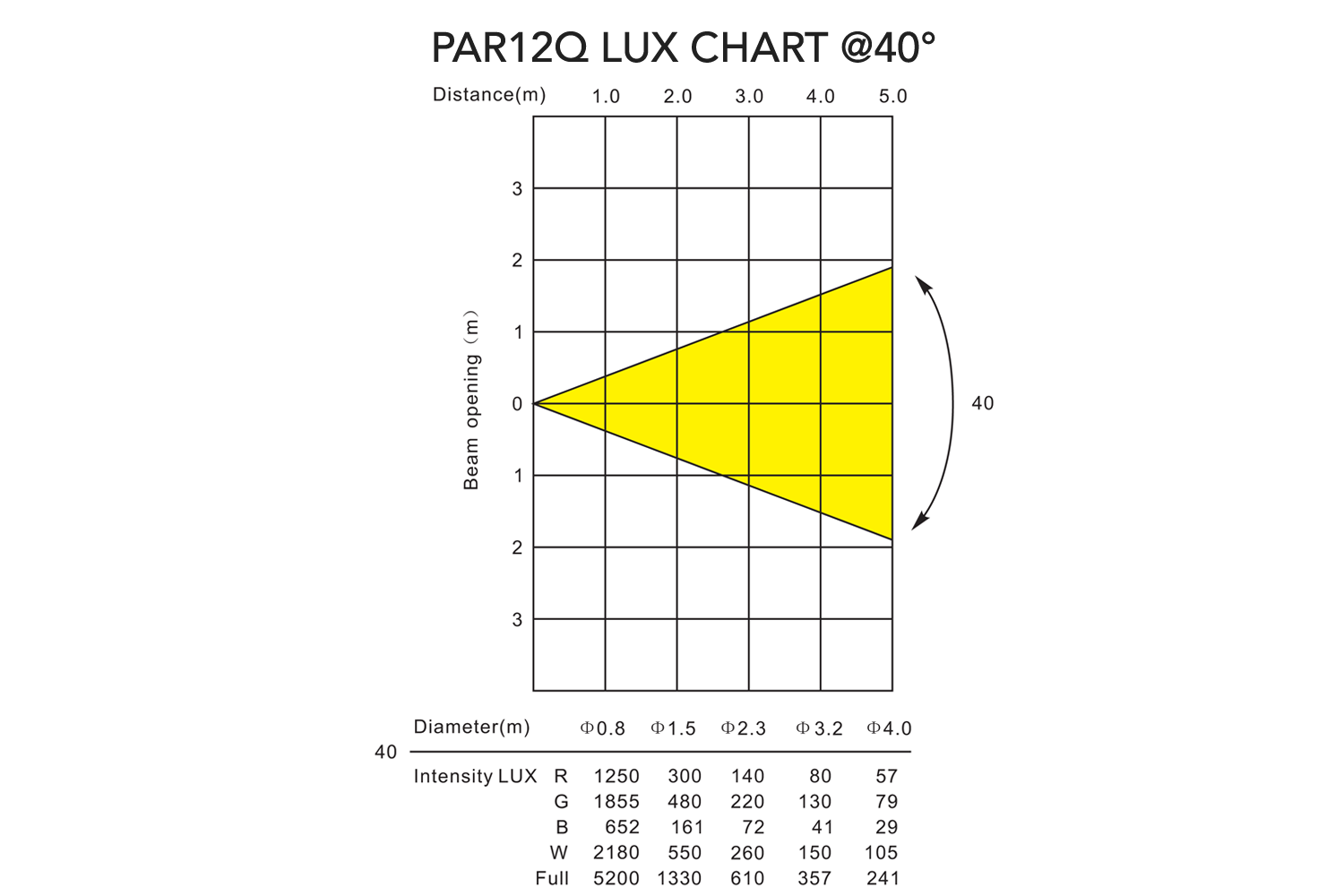

• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

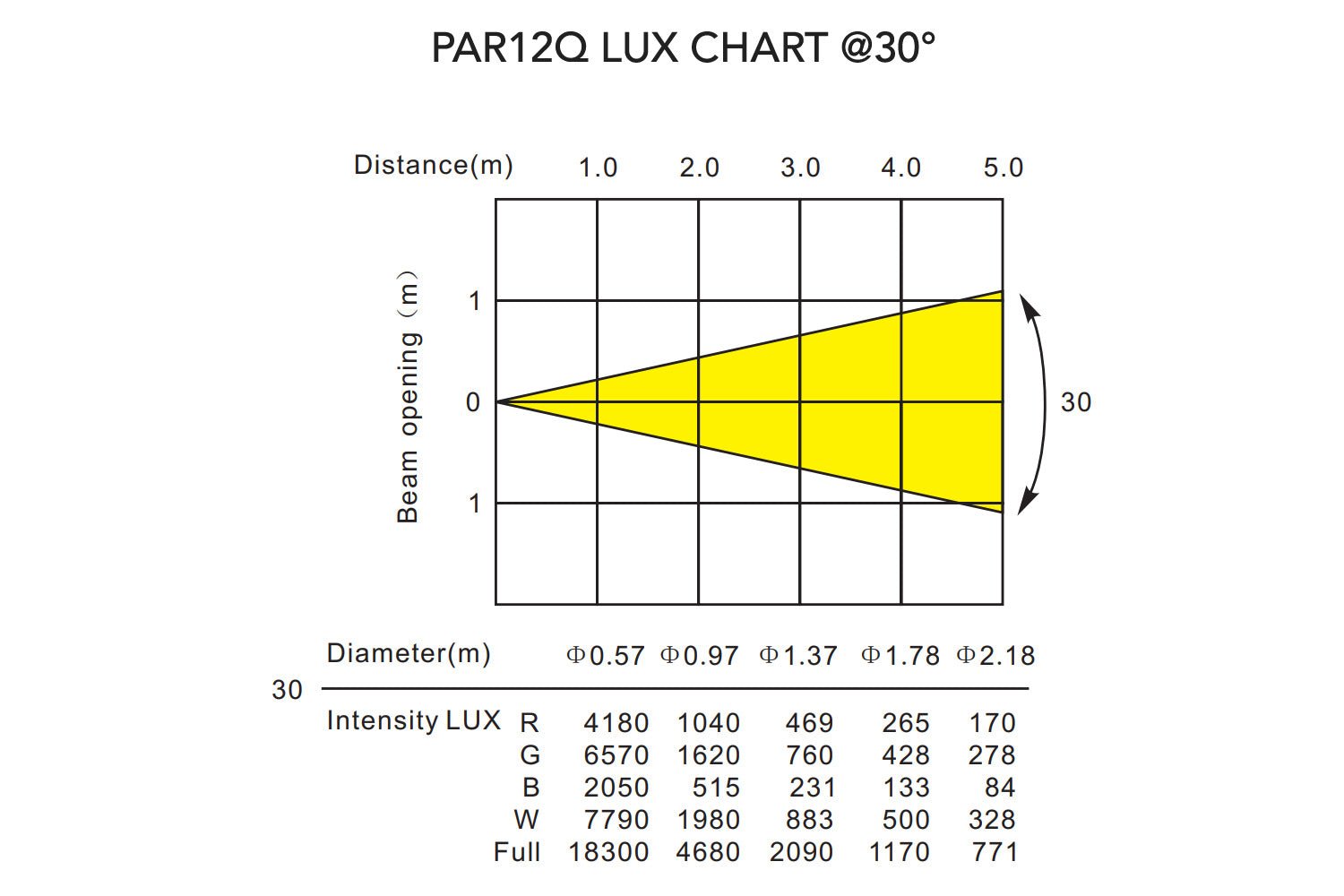

• Output: 4,680 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz
• Color Mixing: RGBW technology for vibrant colors and smooth pastel tones
• Silent Operation: Fanless cooling design for noise-sensitive environments

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control
• Wireless DMX: Optional WDMX support

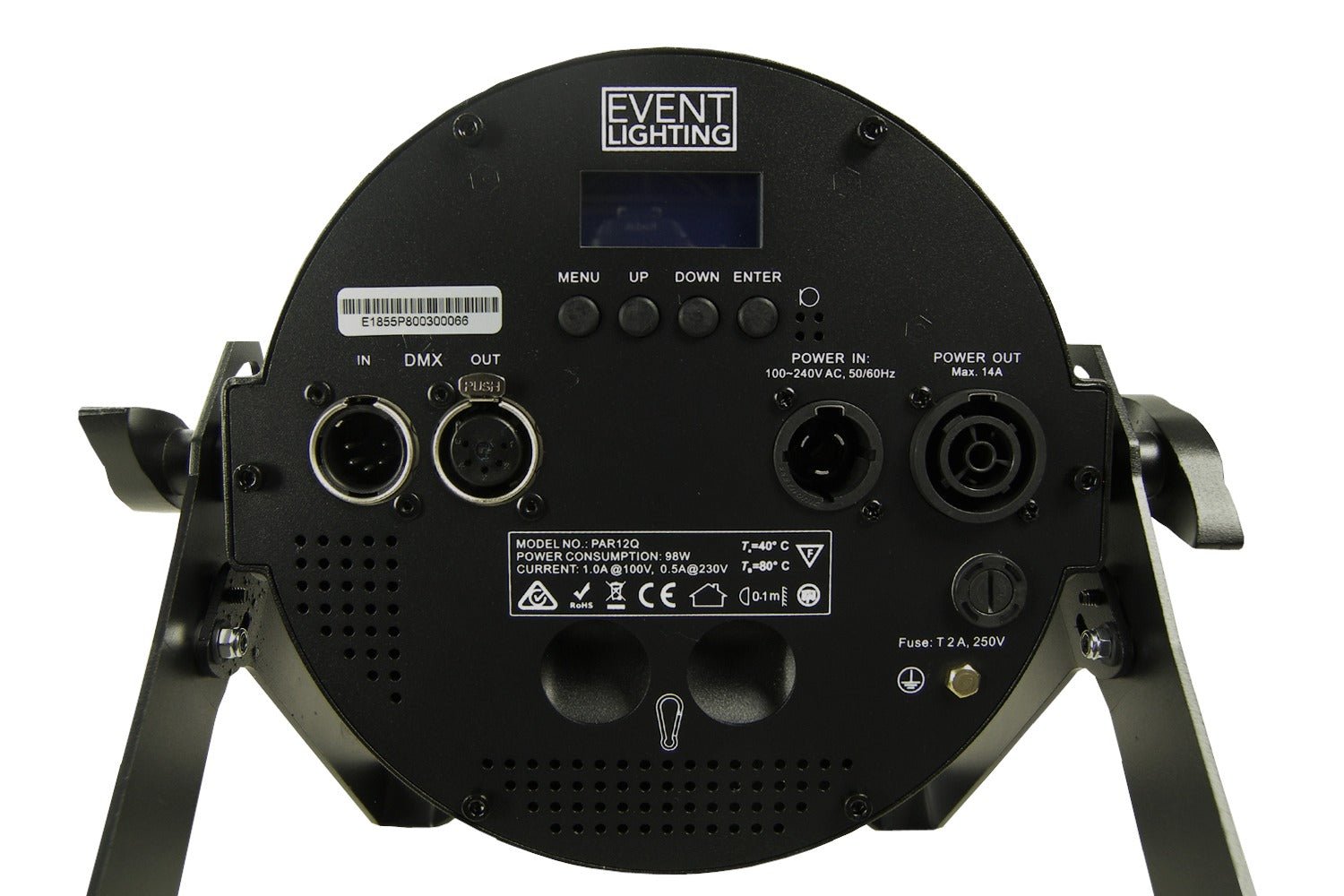

• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, 4CH, 6CH, and 10CH
• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 98W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black

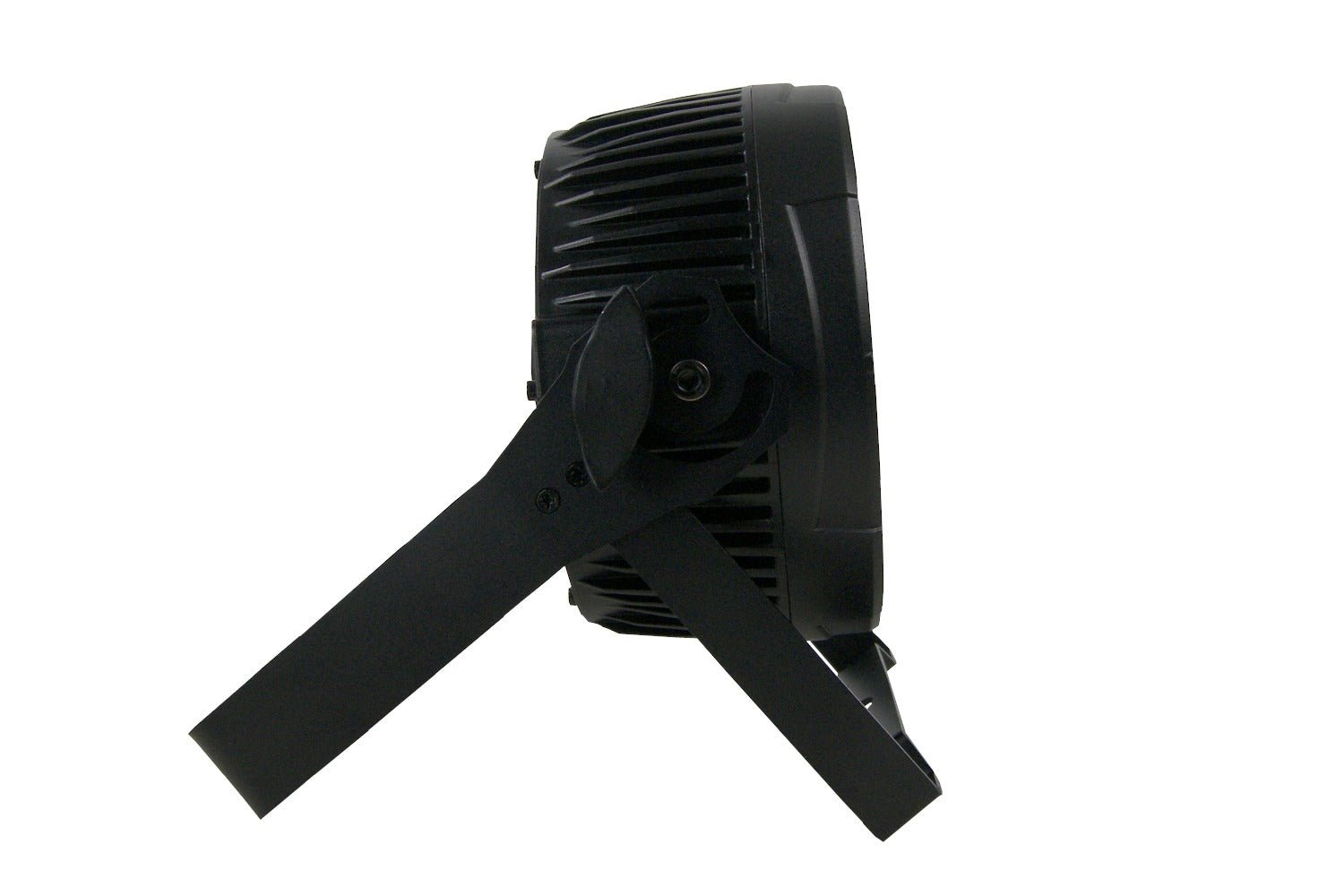

• Cooling System: Fanless cooling

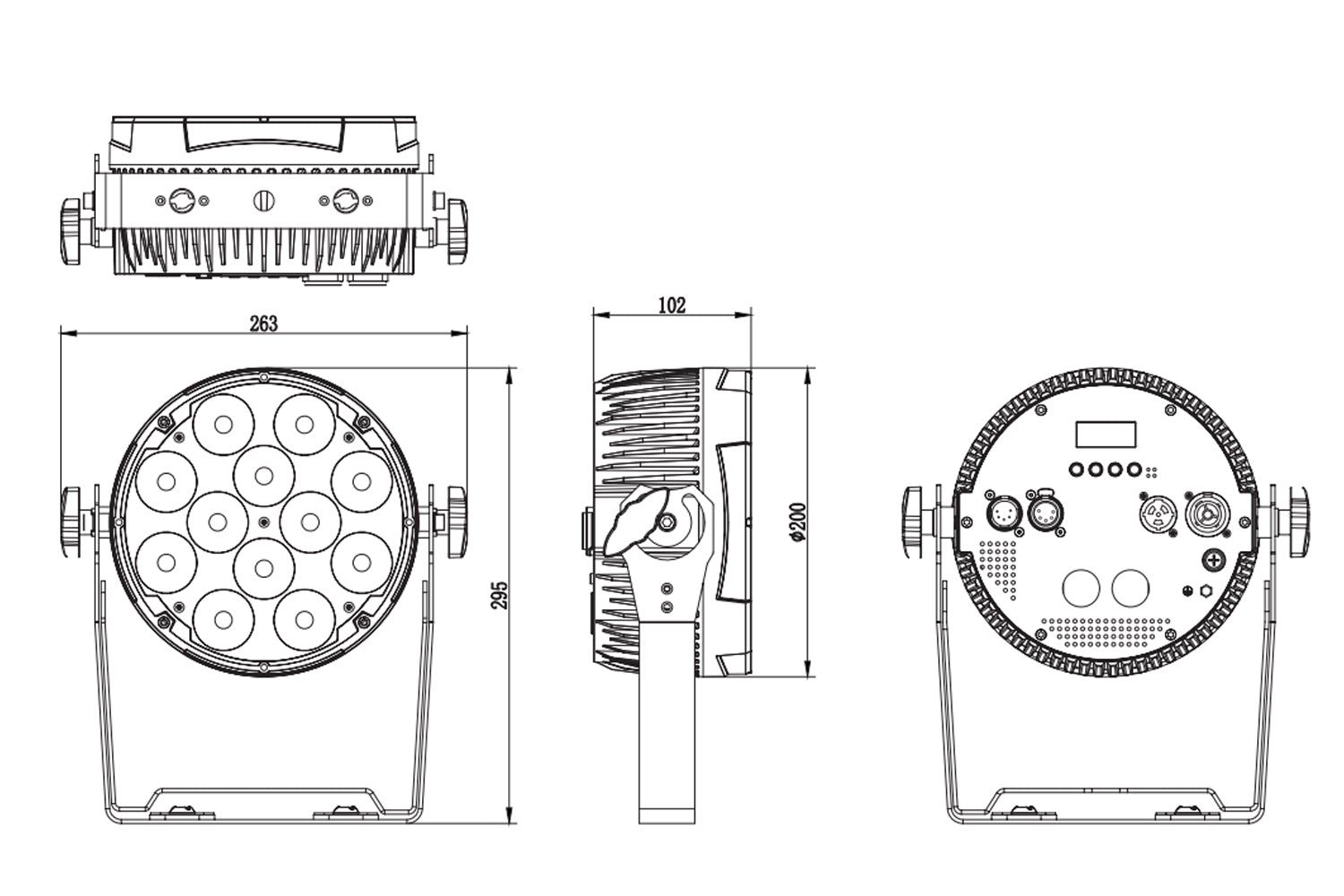

• Dimensions: 263 × 293 × 98 mm (10.4″ × 11.5″ × 3.9″)
• Weight: 3.2 kg (7.1 lbs)

Rigging

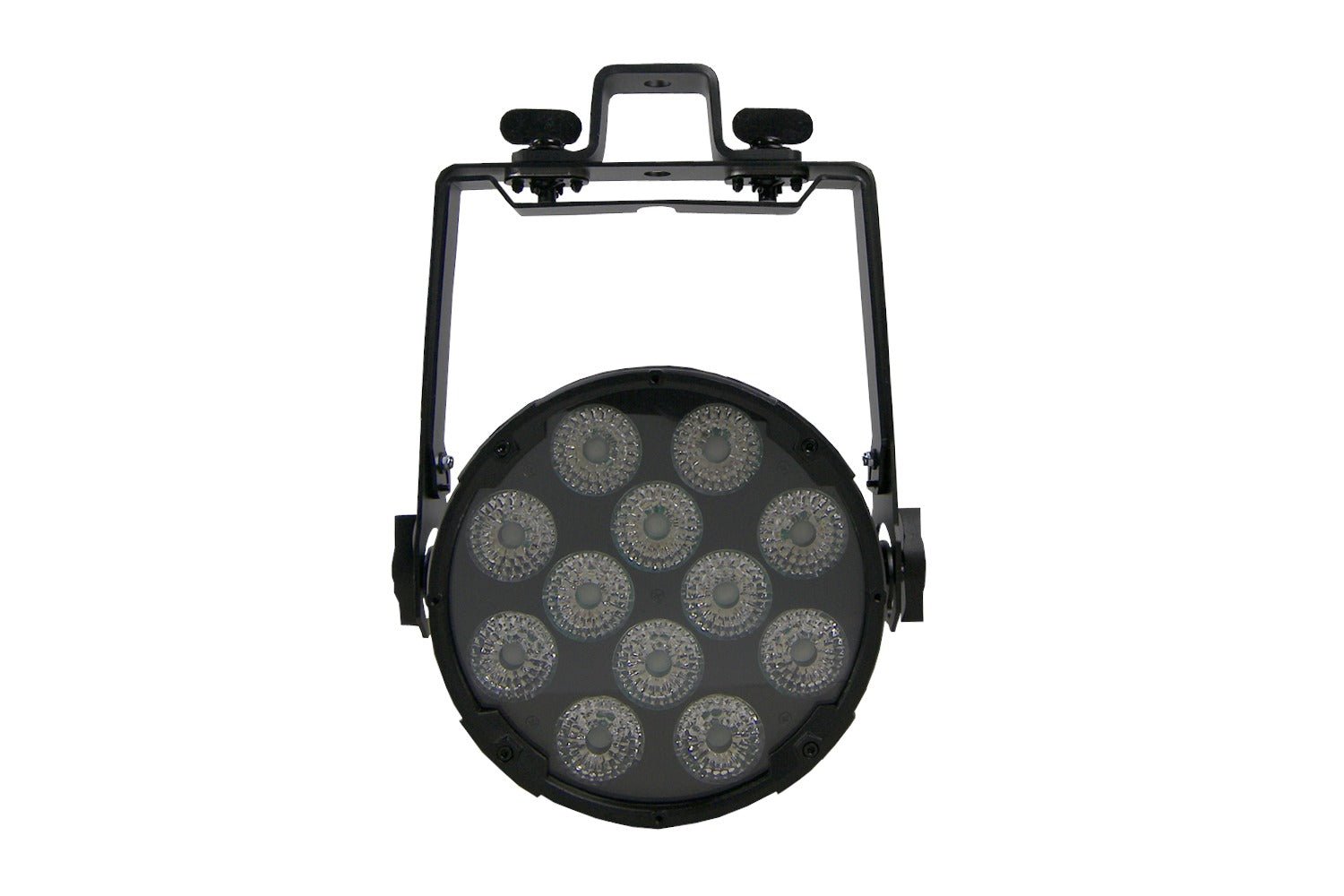

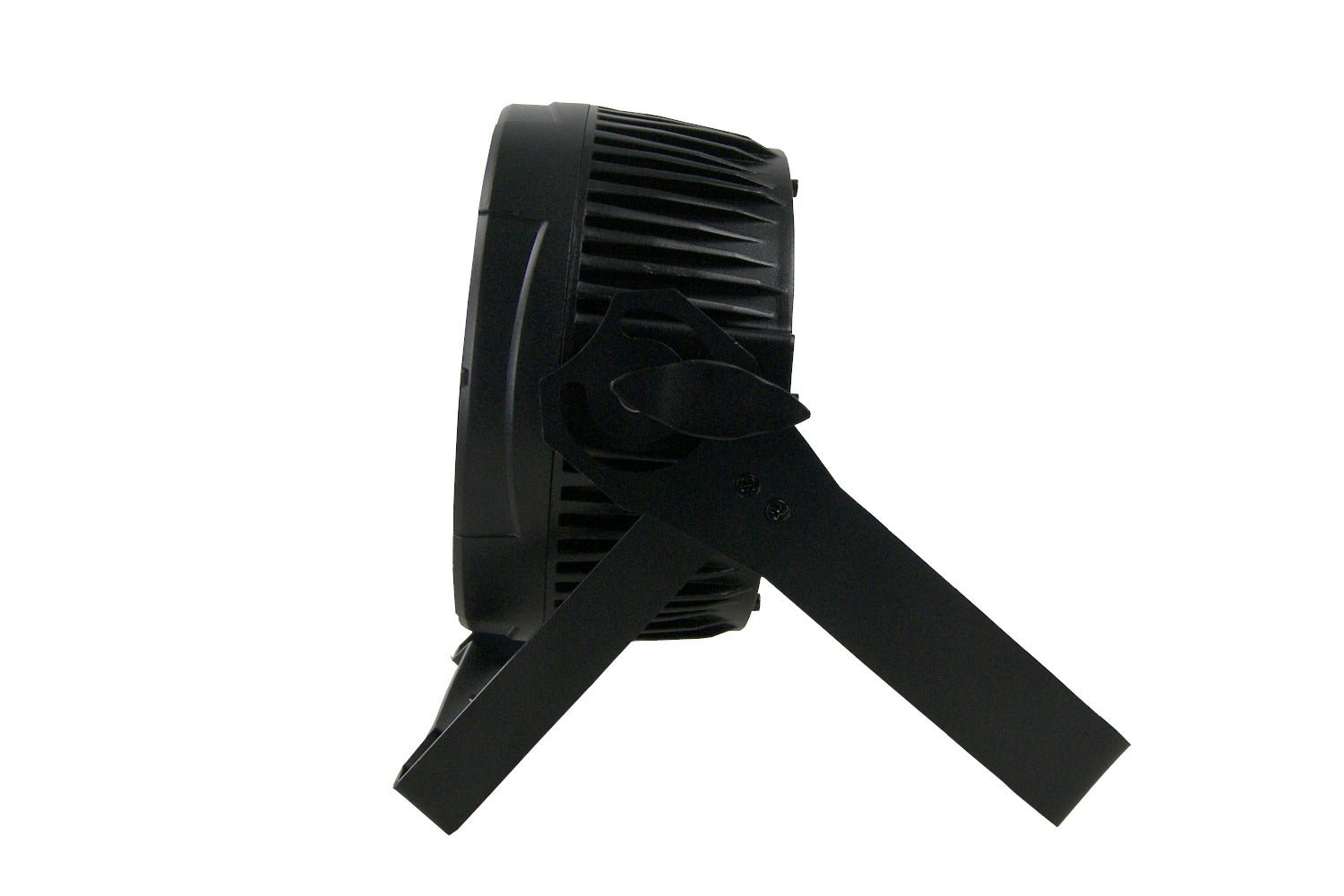

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for secure and efficient installation.

Optional Accessories

• PAR12BDCASEWC – Road Case
• PAR12CASEWC – Protective Carry Case
• PAR12GELFR – Gel Frame
• PAR12FROST – Frost Filter
• PAR12BDKIT – Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance and reliability.
