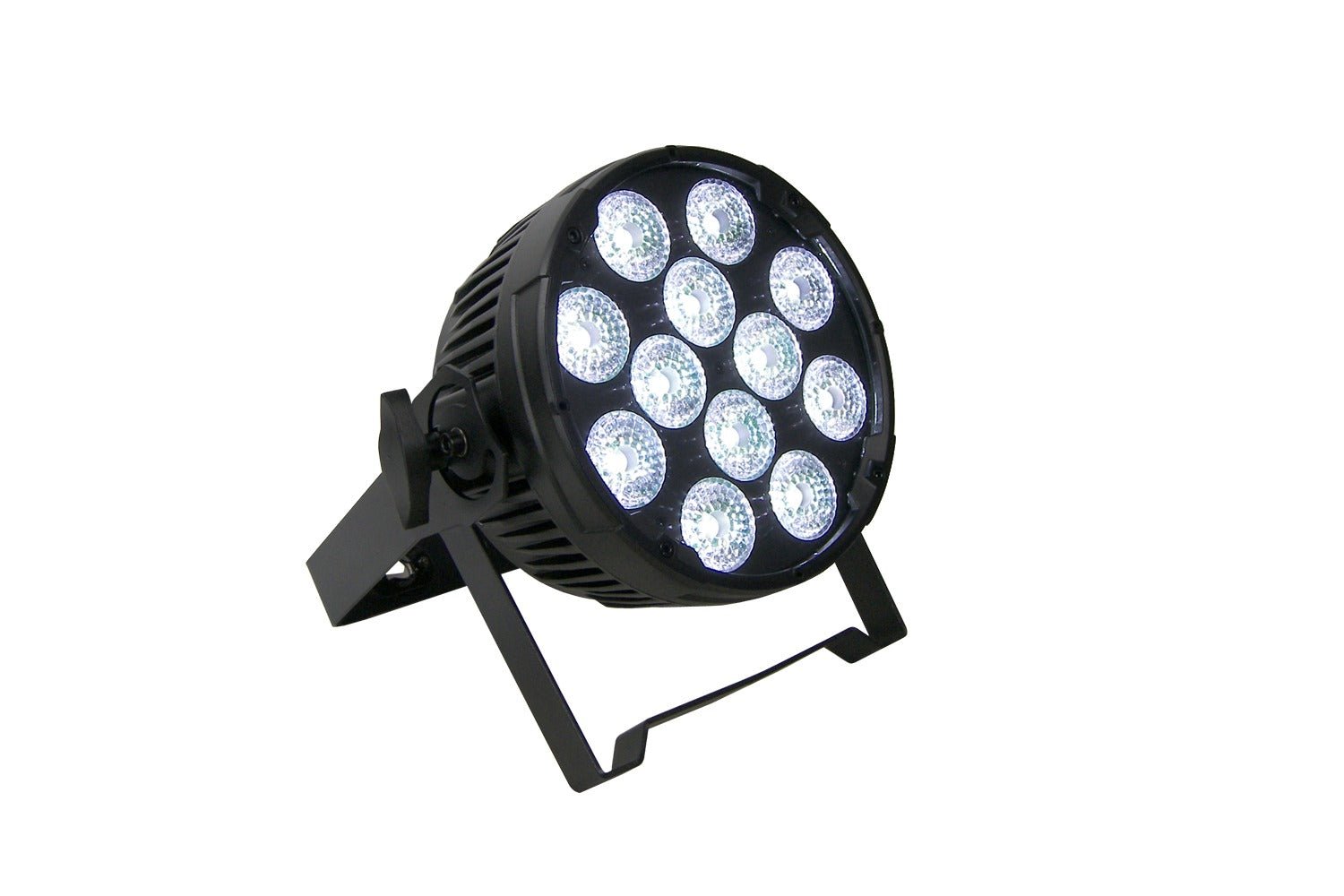

PAR12VW – Indoor Pro Par with 12 x 6W WW/CW/A LEDs

PAR12VW – Indoor Pro PAR with 12 x 6W Variable White & Amber LEDs

The PAR12VW is a professional LED PAR fixture designed for theatres, churches, wedding venues, conference halls, stage productions, and architectural lighting applications. Equipped with 12 high-performance Cool White, Warm White, and Amber LEDs, it provides smooth variable white output and flexible color temperature control, making it ideal for creating warm, natural, and professional lighting environments.

Built for reliability and precision, the PAR12VW features multiple beam angle options, advanced dimming capabilities, and optional wireless DMX support. Its silent fanless cooling system ensures noise-free operation, making it particularly suitable for venues where quiet performance and high-quality white light are essential.

Photometric Specifications

• Light Source: 12 × 6W CW/WW/A LEDs
• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

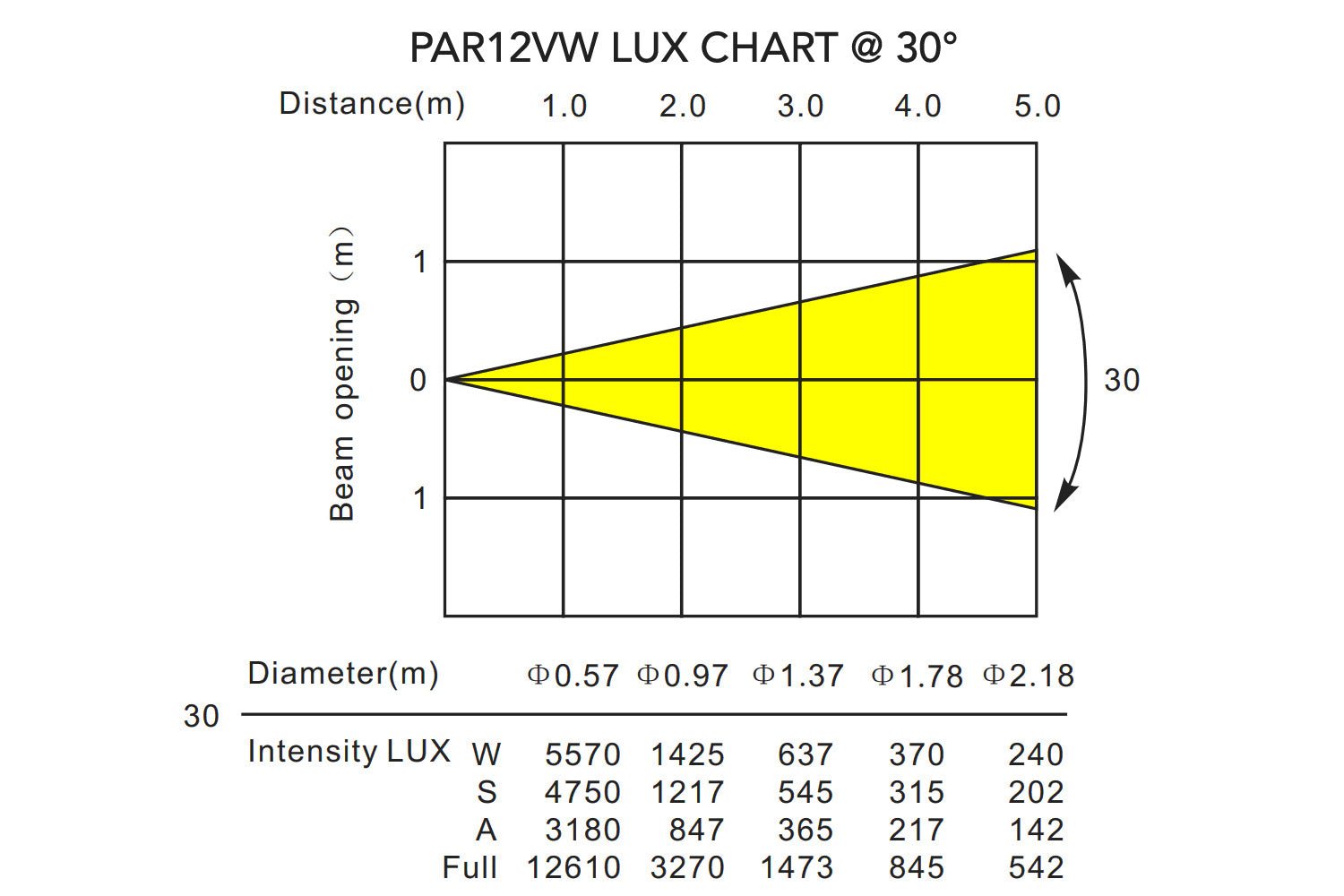

• Output: 3,270 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

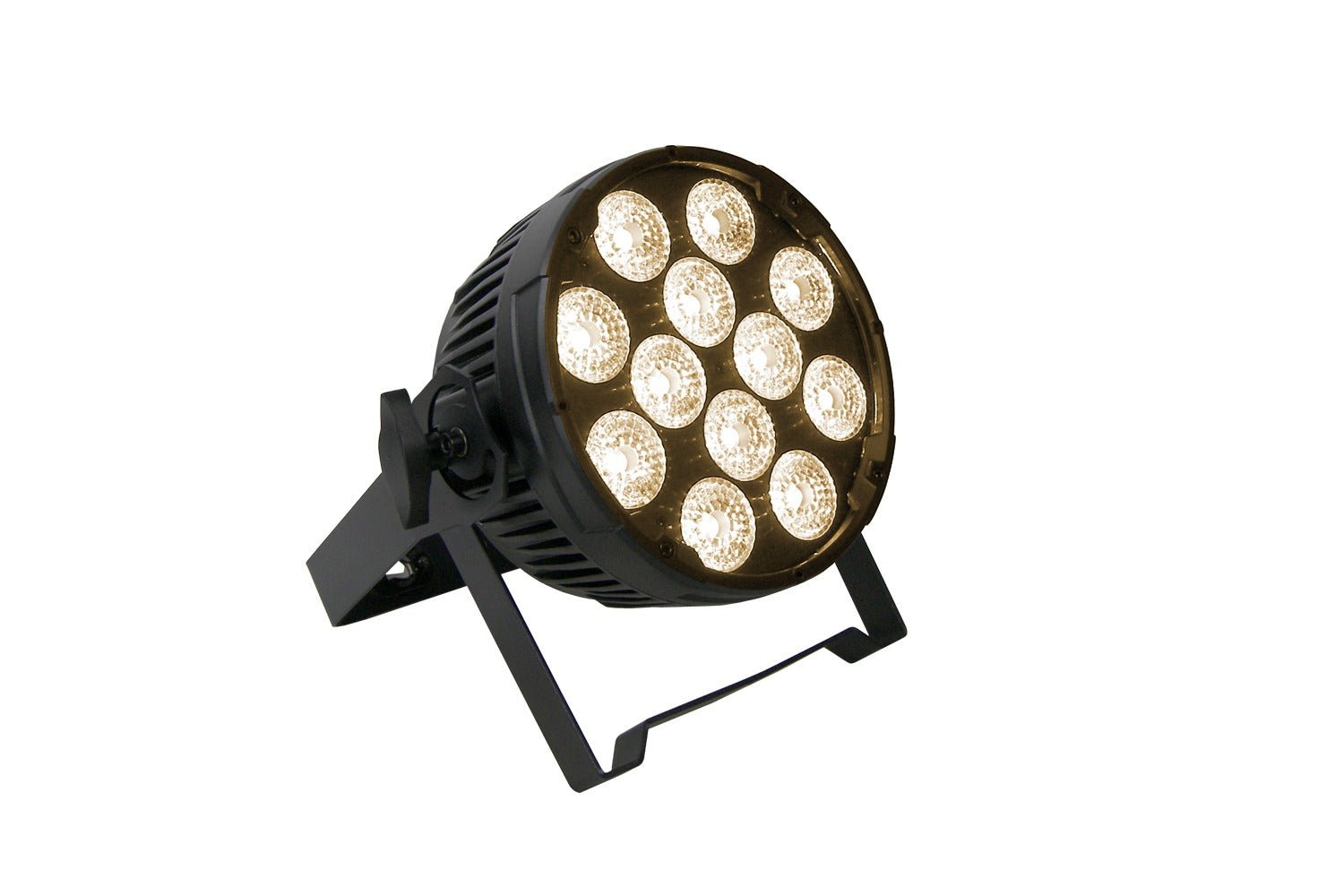

• Variable White Mixing: Cool White, Warm White, and Amber LEDs for flexible color temperature adjustment
• Silent Operation: Fanless cooling system for noise-sensitive environments

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control
• Wireless DMX: Optional WDMX support
• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, and 10CH

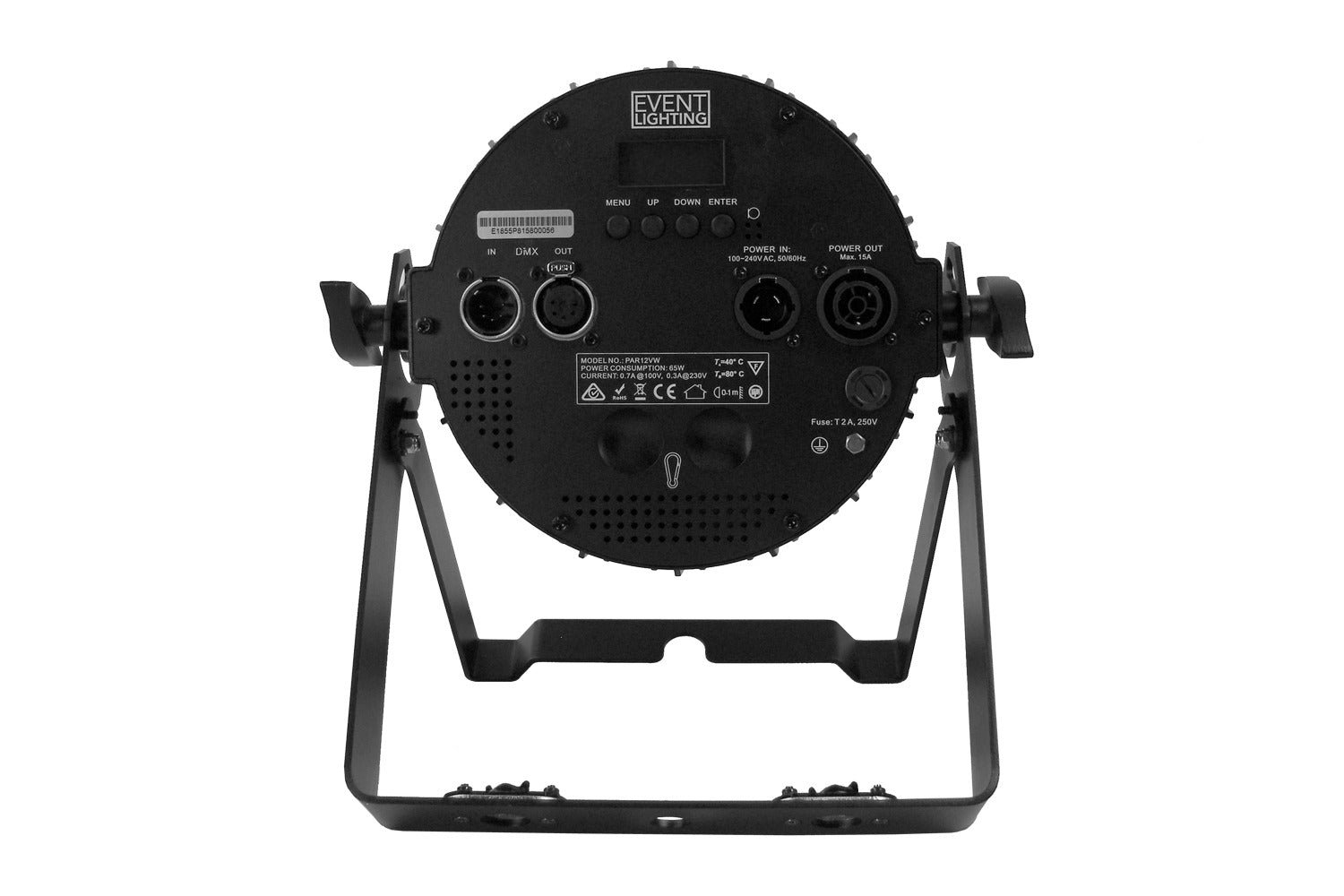

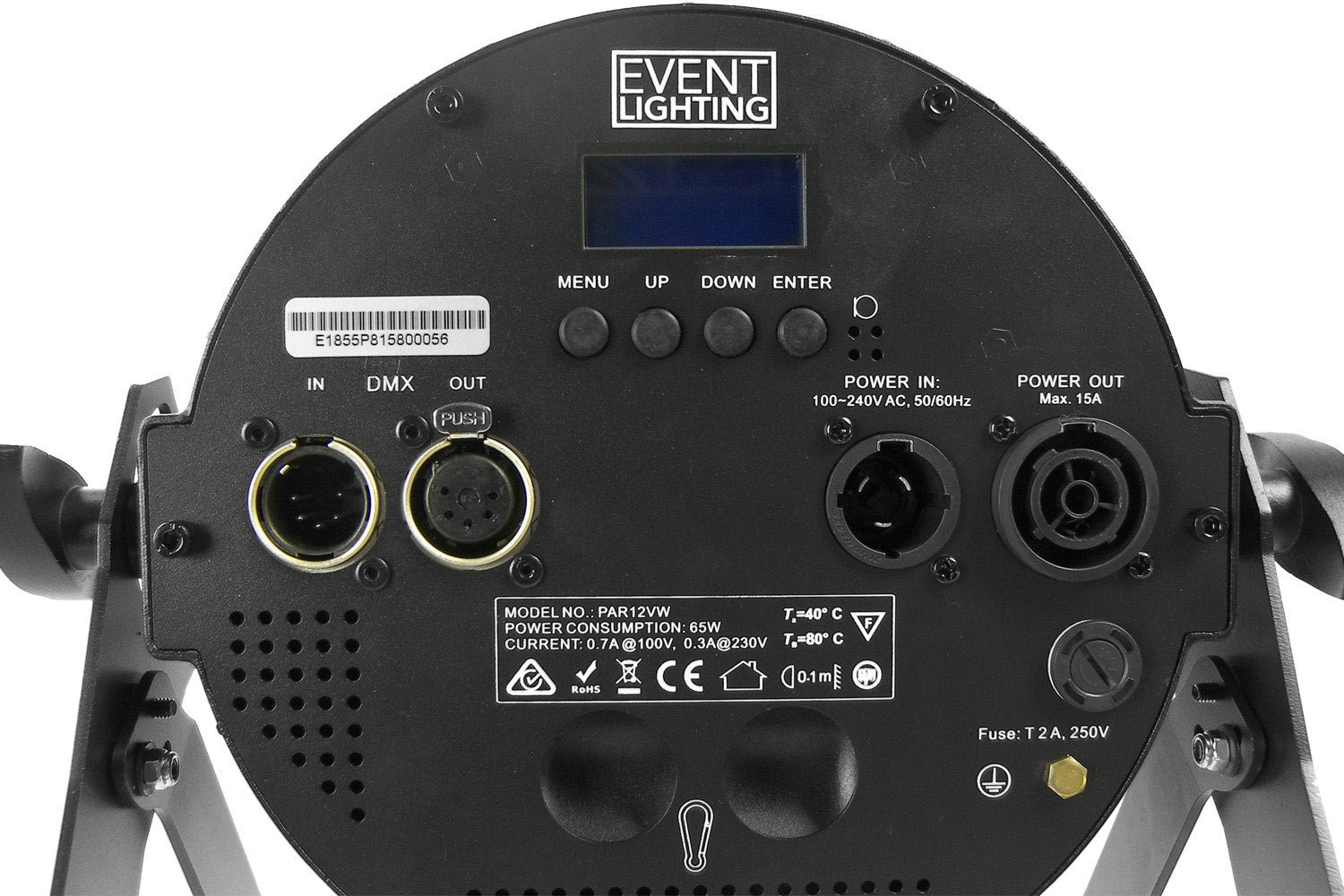

• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 60W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black
• Cooling System: Fanless cooling

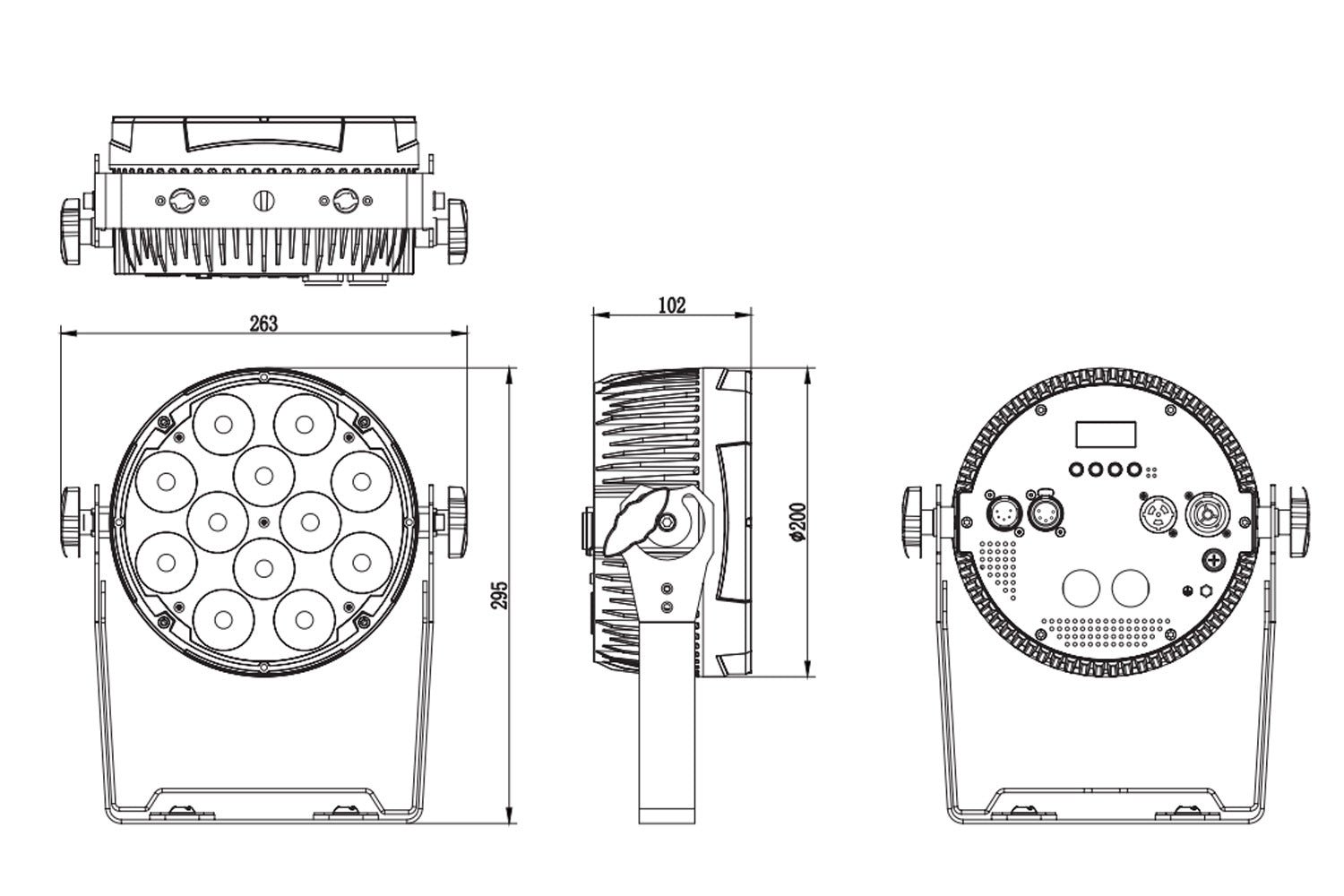

• Dimensions: 263 × 293 × 98 mm (10.4″ × 11.5″ × 3.9″)
• Weight: 3.2 kg (7.1 lbs)

Rigging

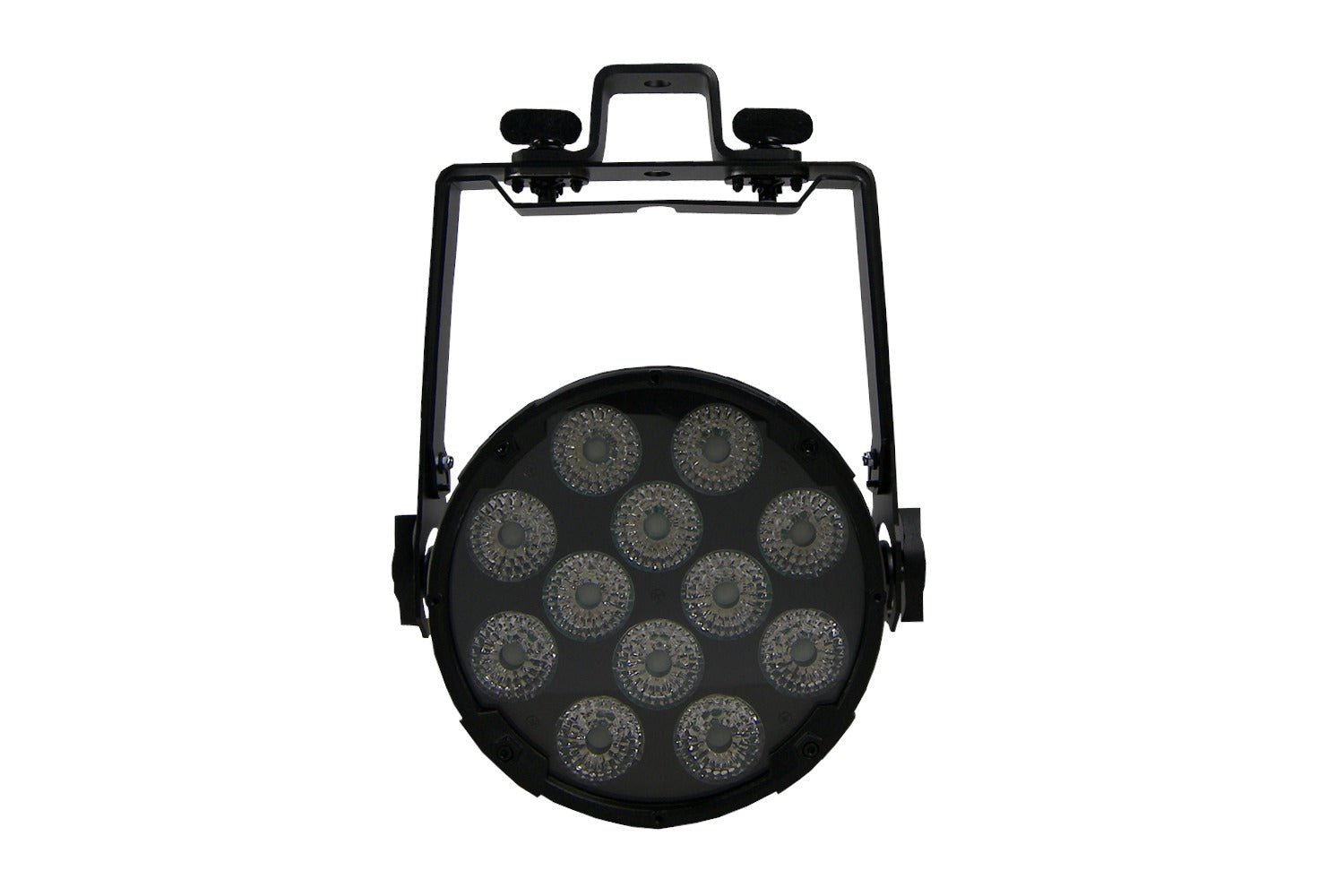

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for secure and efficient installation.

Optional Accessories

• PAR12BDCASEWC – Road Case
• PAR12CASEWC – Protective Carry Case
• PAR12GELFR – Gel Frame
• PAR12FROST – Frost Filter
• PAR12BDKIT – Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance and reliability.
