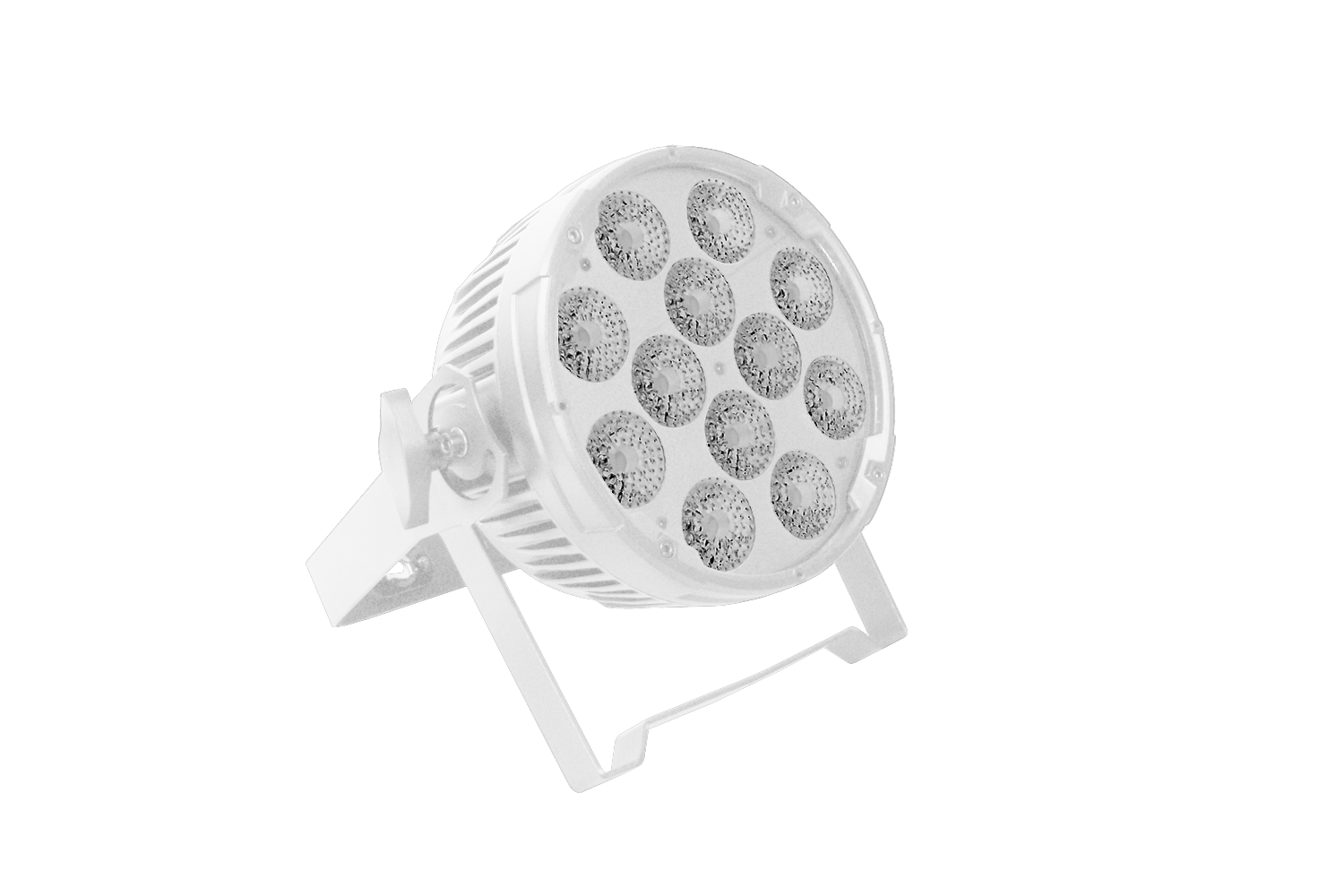

PAR12VW-WH – Indoor Pro Par with 12 x 6W WW/CW/A LEDs (White)

PAR12VW-WH – Indoor Pro PAR with 12 x 6W Variable White & Amber LEDs (White)

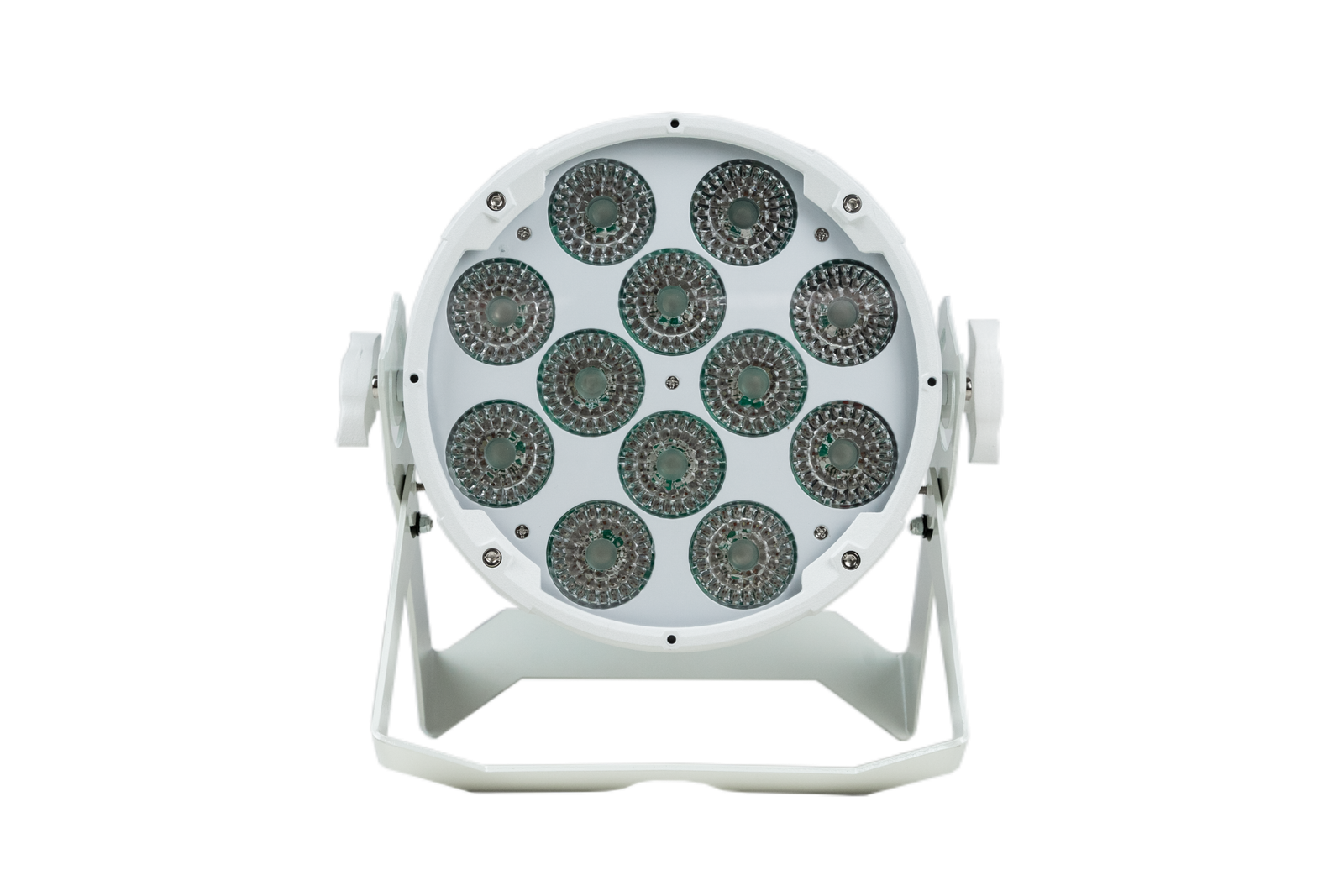

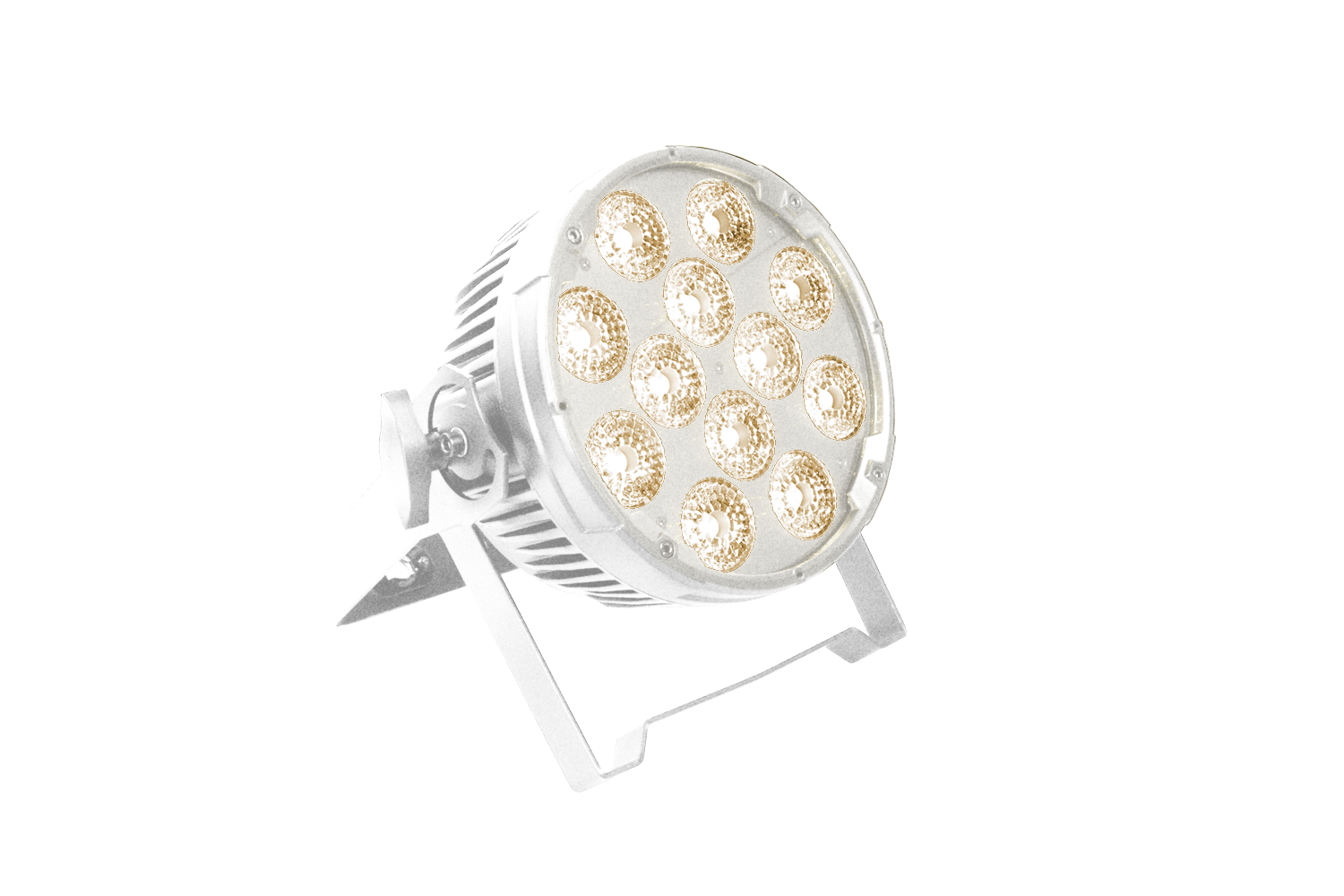

The PAR12VW-WH is a professional LED PAR fixture designed for theatres, churches, wedding venues, corporate events, stage productions, and architectural lighting applications. Featuring 12 high-performance Cool White, Warm White, and Amber LEDs, it delivers smooth variable white output and natural color temperatures, allowing lighting designers to create the perfect atmosphere for any environment.

With advanced dimming technology, multiple beam angle options, and silent fanless operation, the PAR12VW-WH is ideal for installations where high-quality white light, precise control, and quiet performance are essential. Its elegant matte white housing makes it especially suitable for weddings, churches, and premium venue installations.

Photometric Specifications

• Light Source: 12 × 6W CW/WW/A LEDs

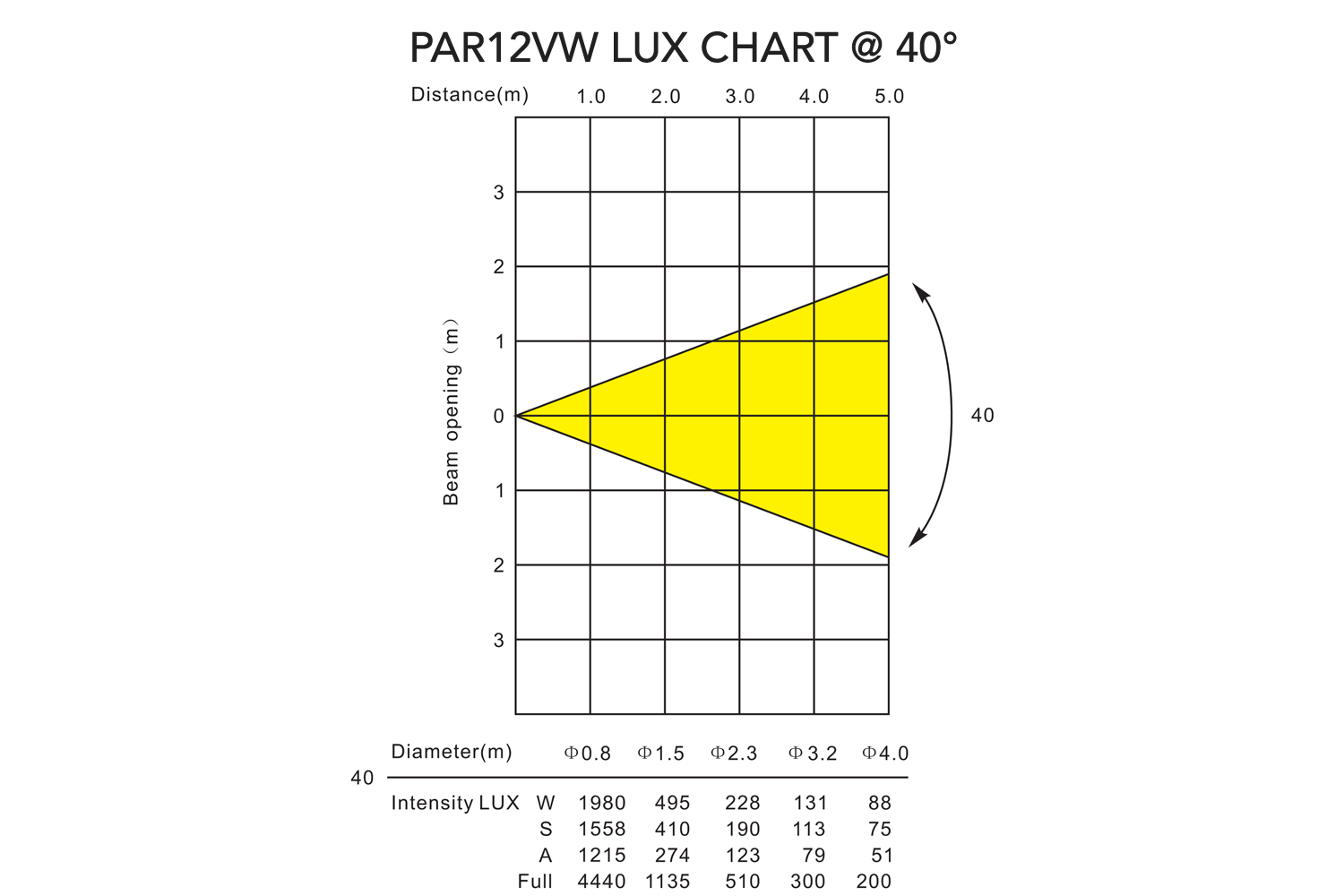

• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

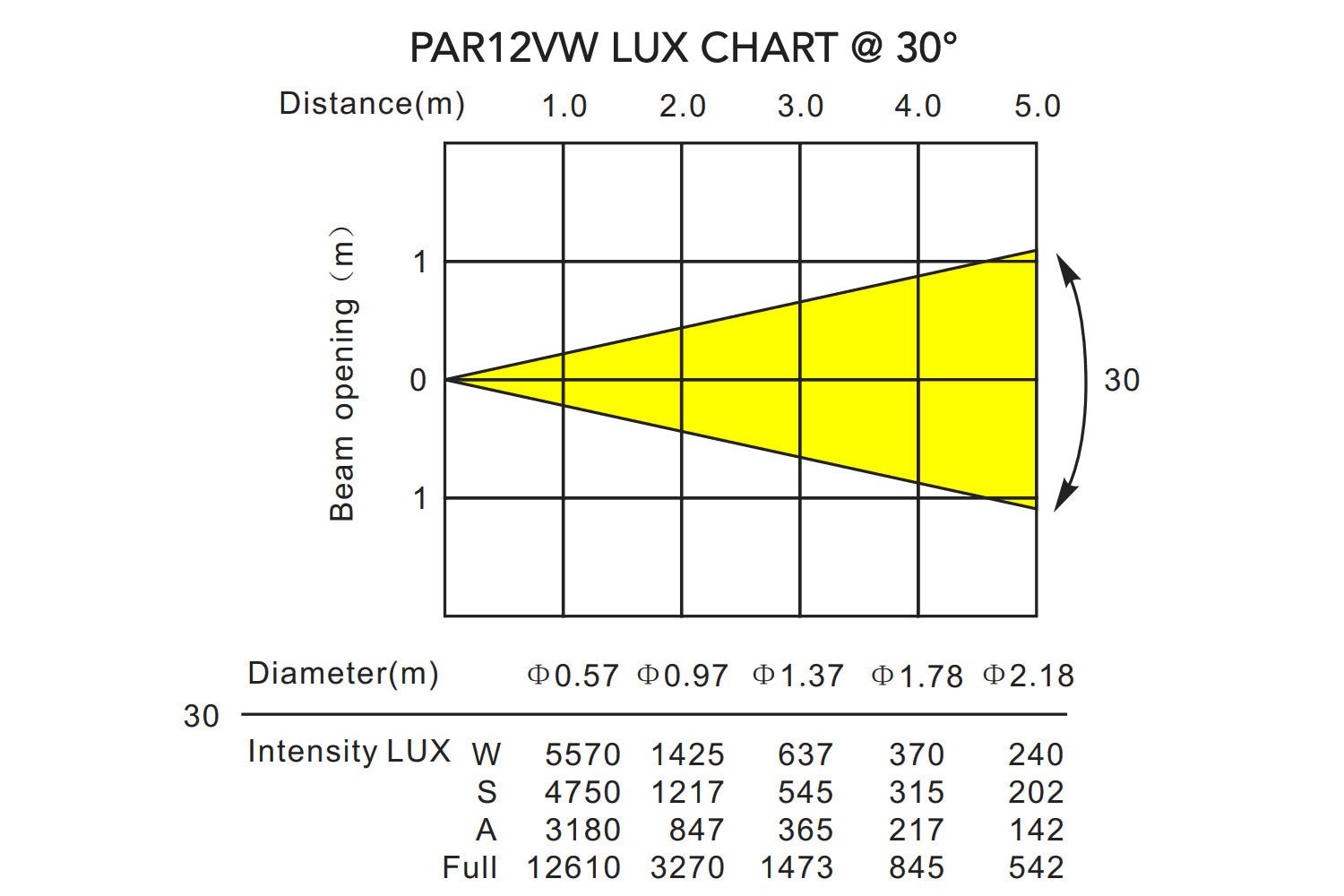

• Output: 3,270 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

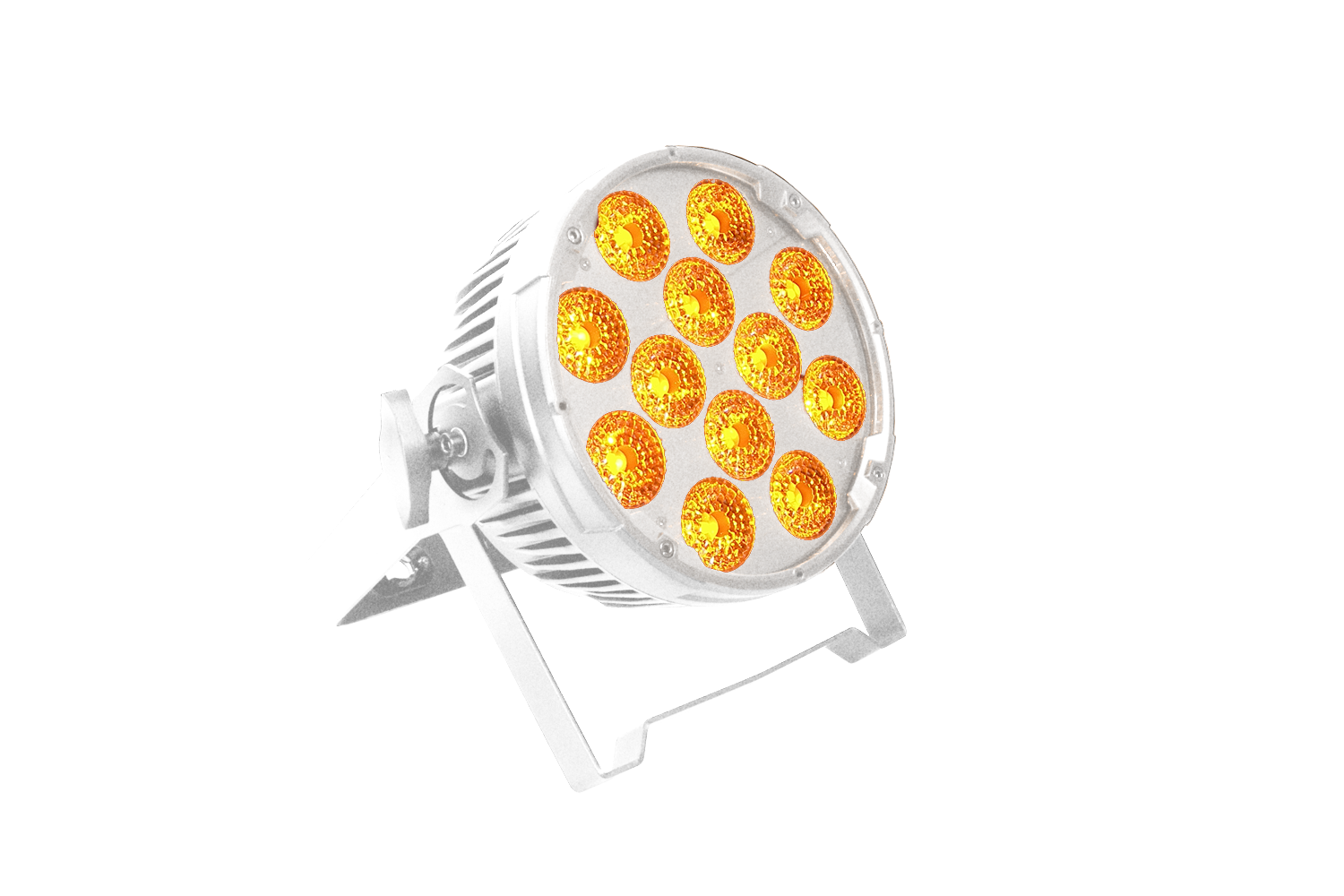

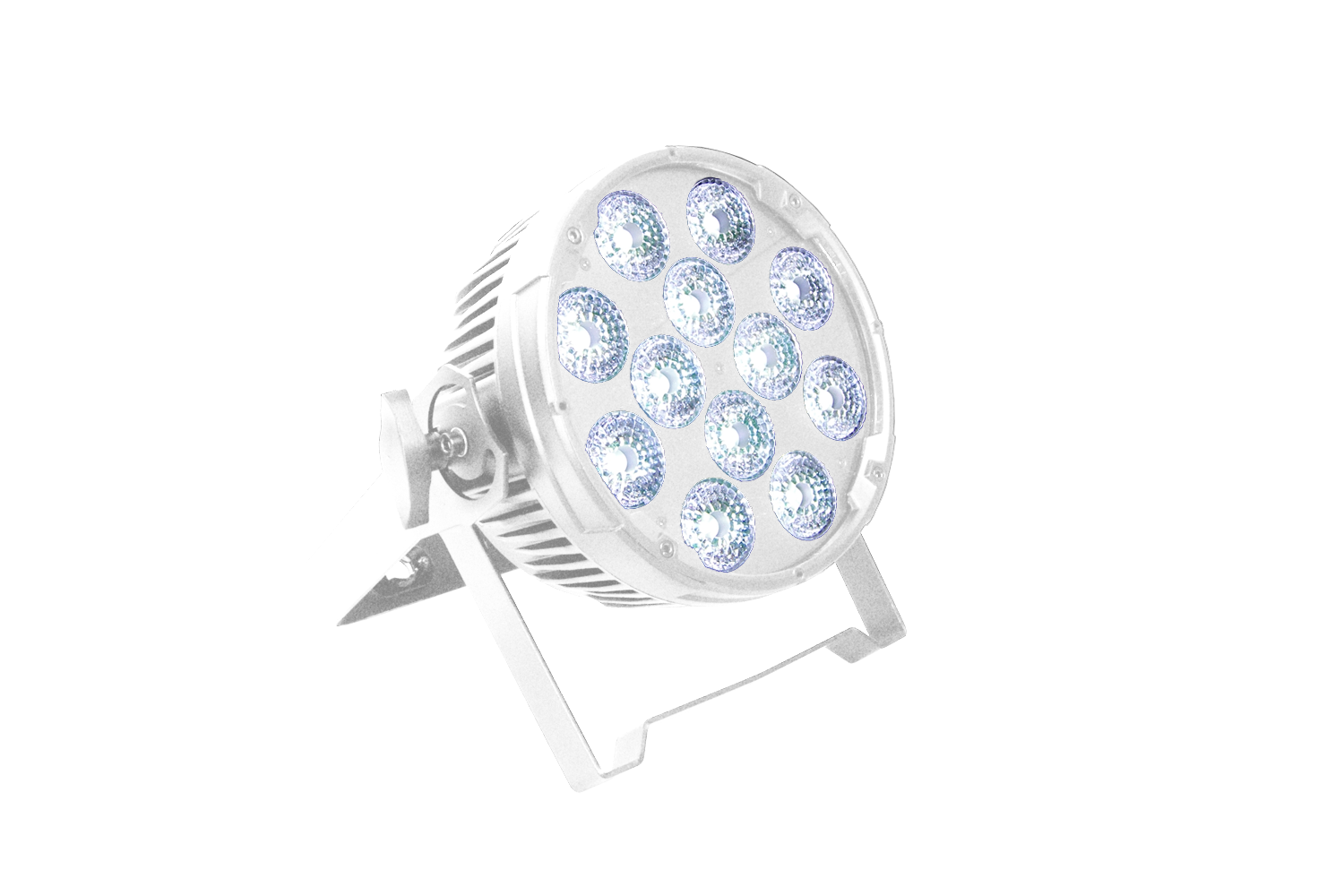

• Variable White Mixing: Cool White, Warm White, and Amber LEDs for flexible color temperature control
• Silent Operation: Fanless cooling design for noise-sensitive environments

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control
• Wireless DMX: Optional WDMX support

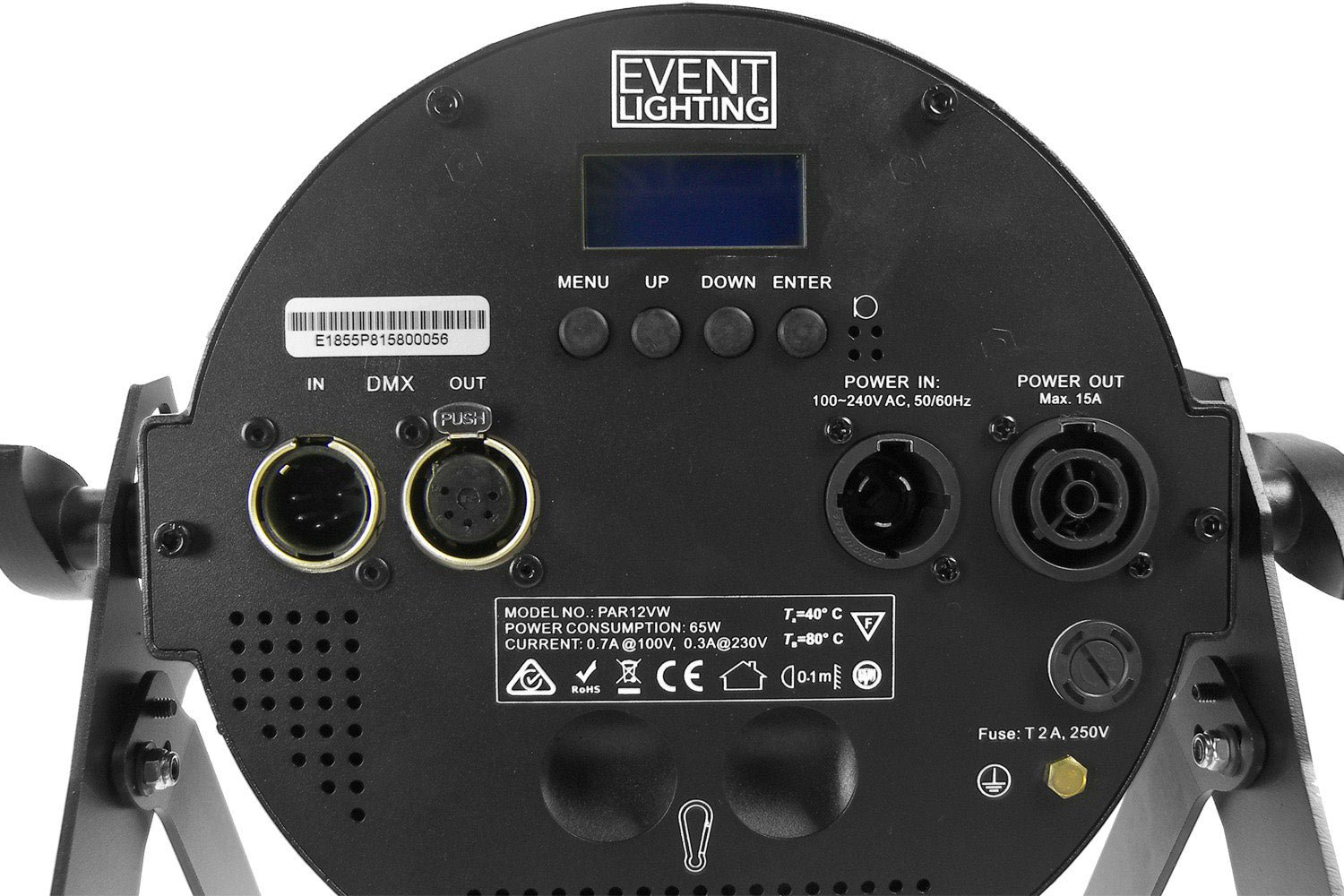

• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, and 10CH

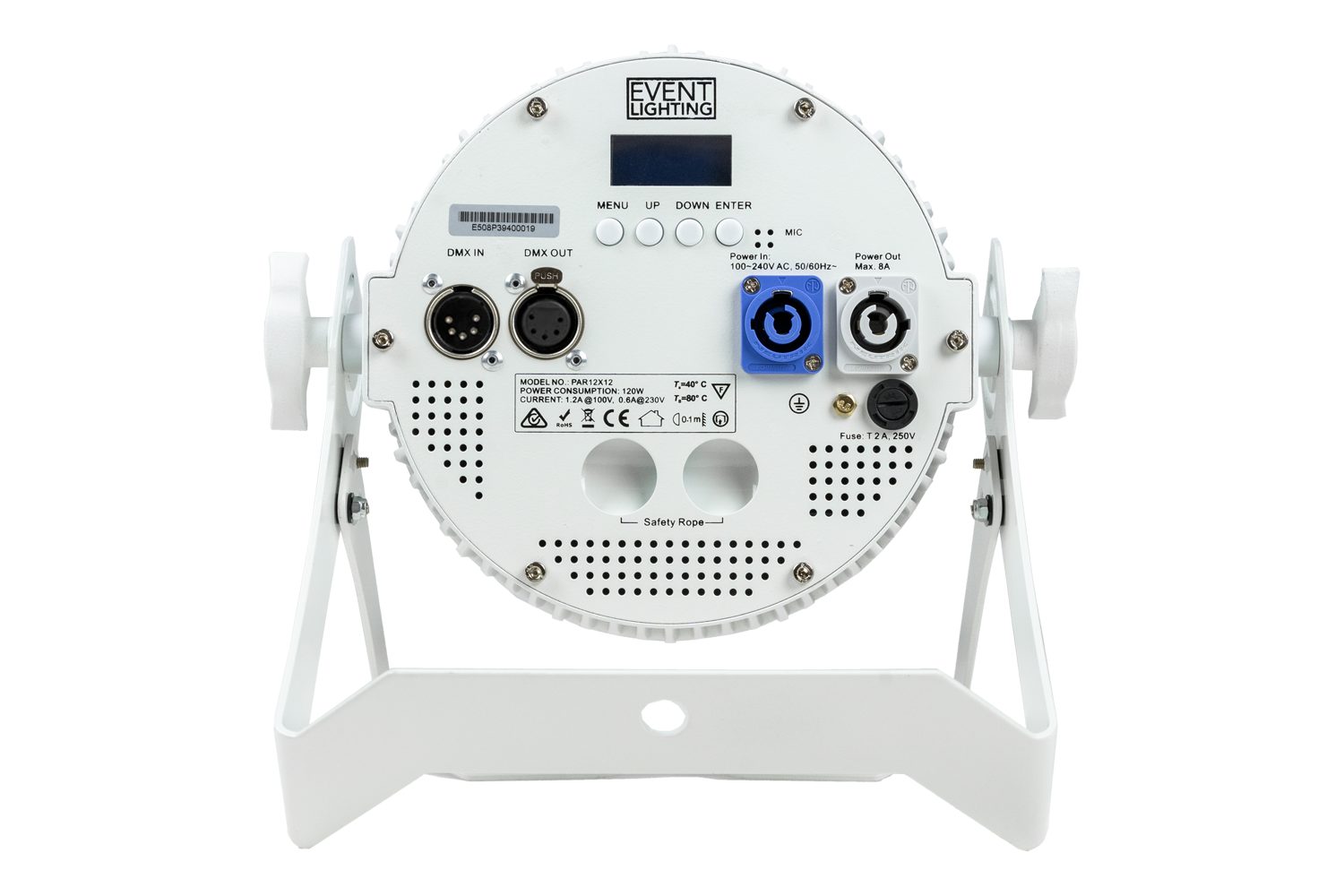

• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 60W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte white

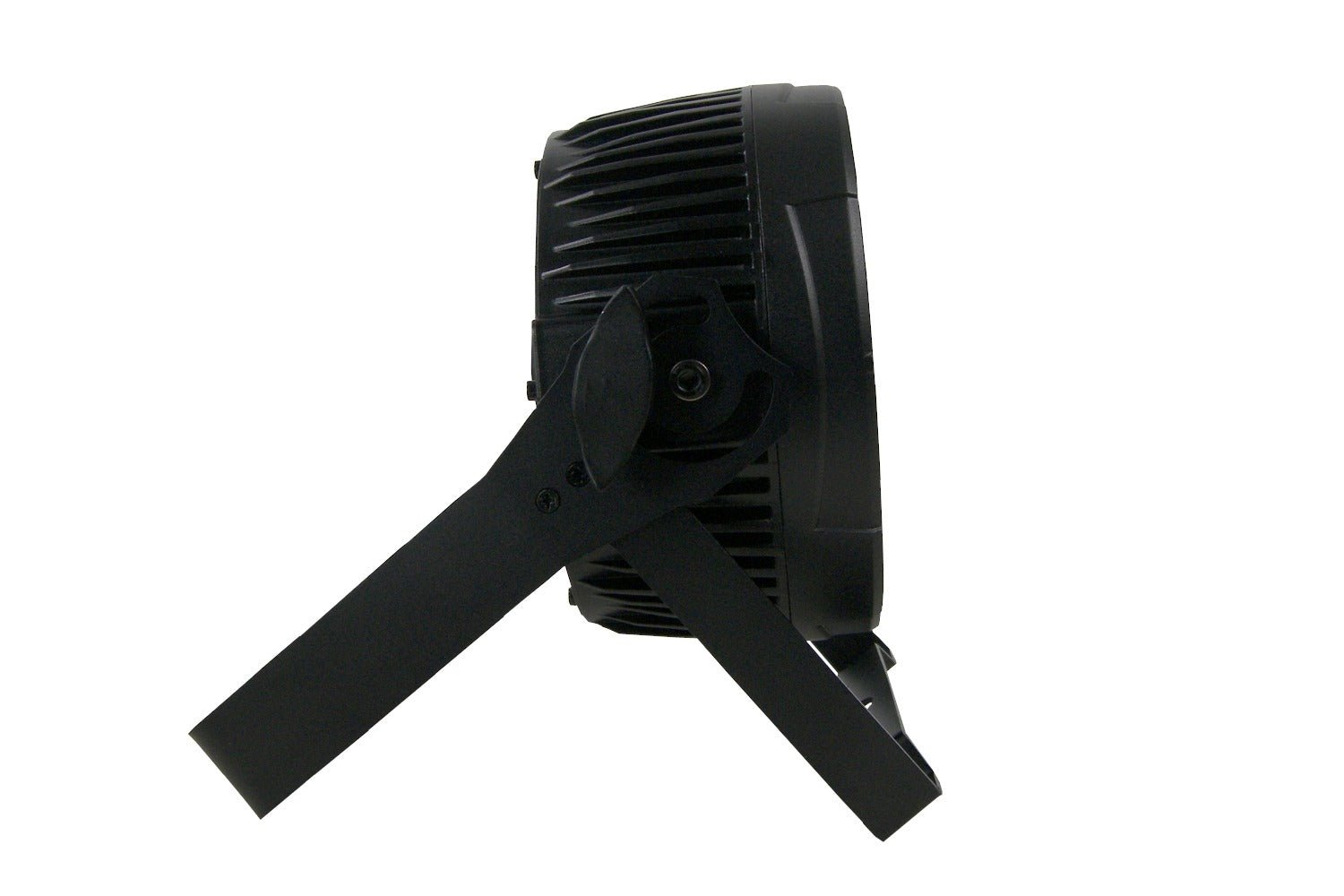

• Cooling System: Fanless cooling

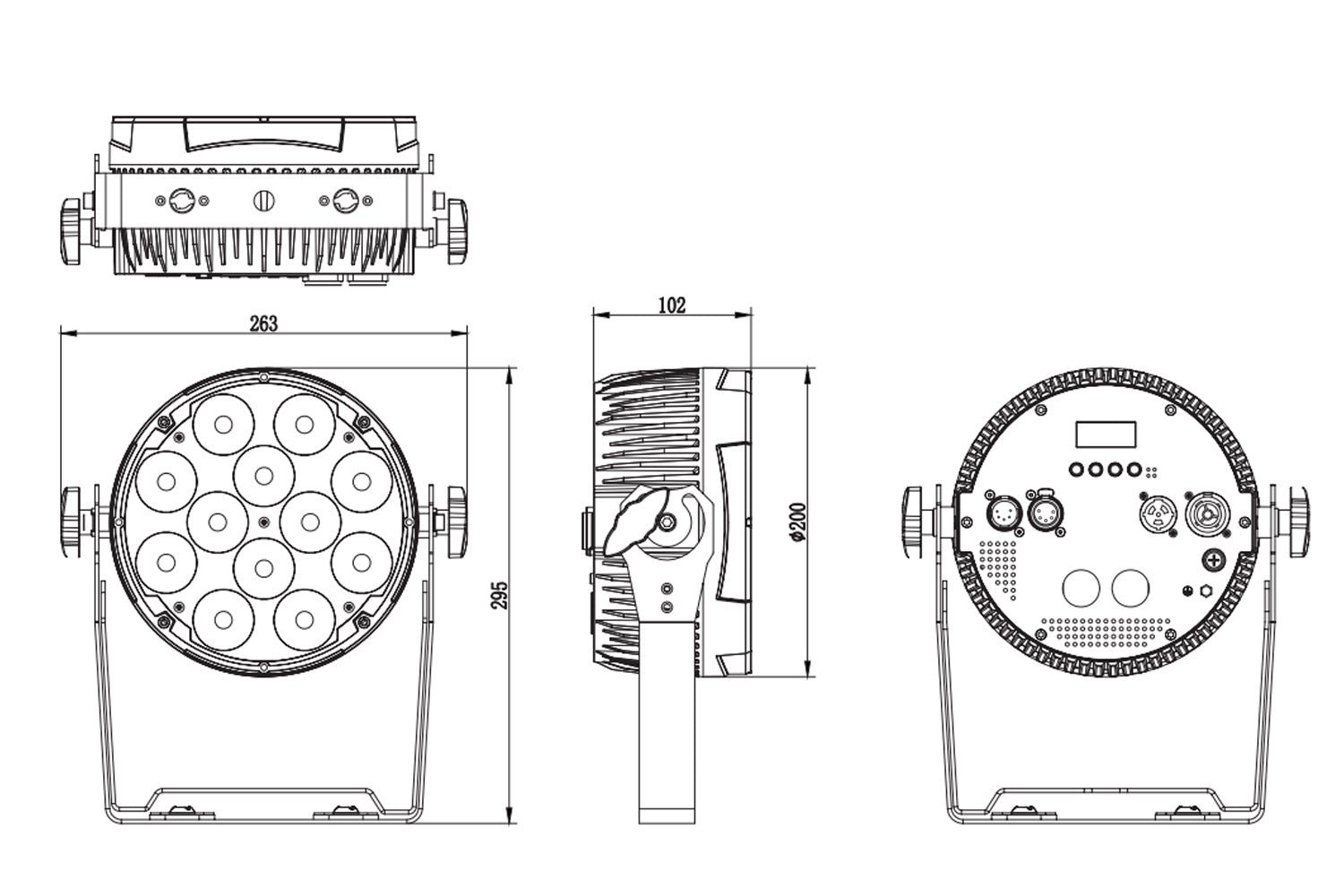

• Dimensions: 263 × 293 × 98 mm (10.4″ × 11.5″ × 3.9″)
• Weight: 3.2 kg (7.1 lbs)

Rigging

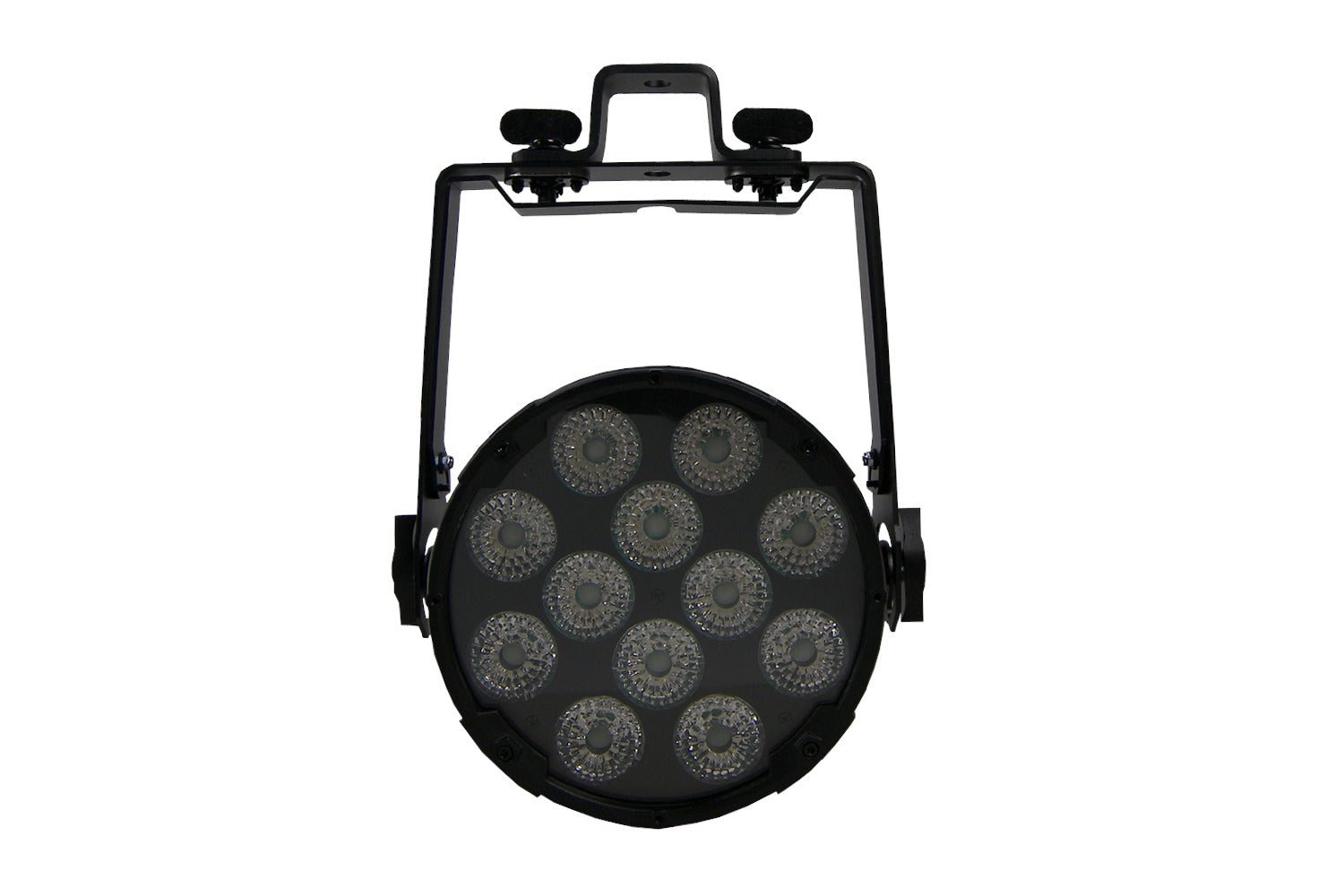

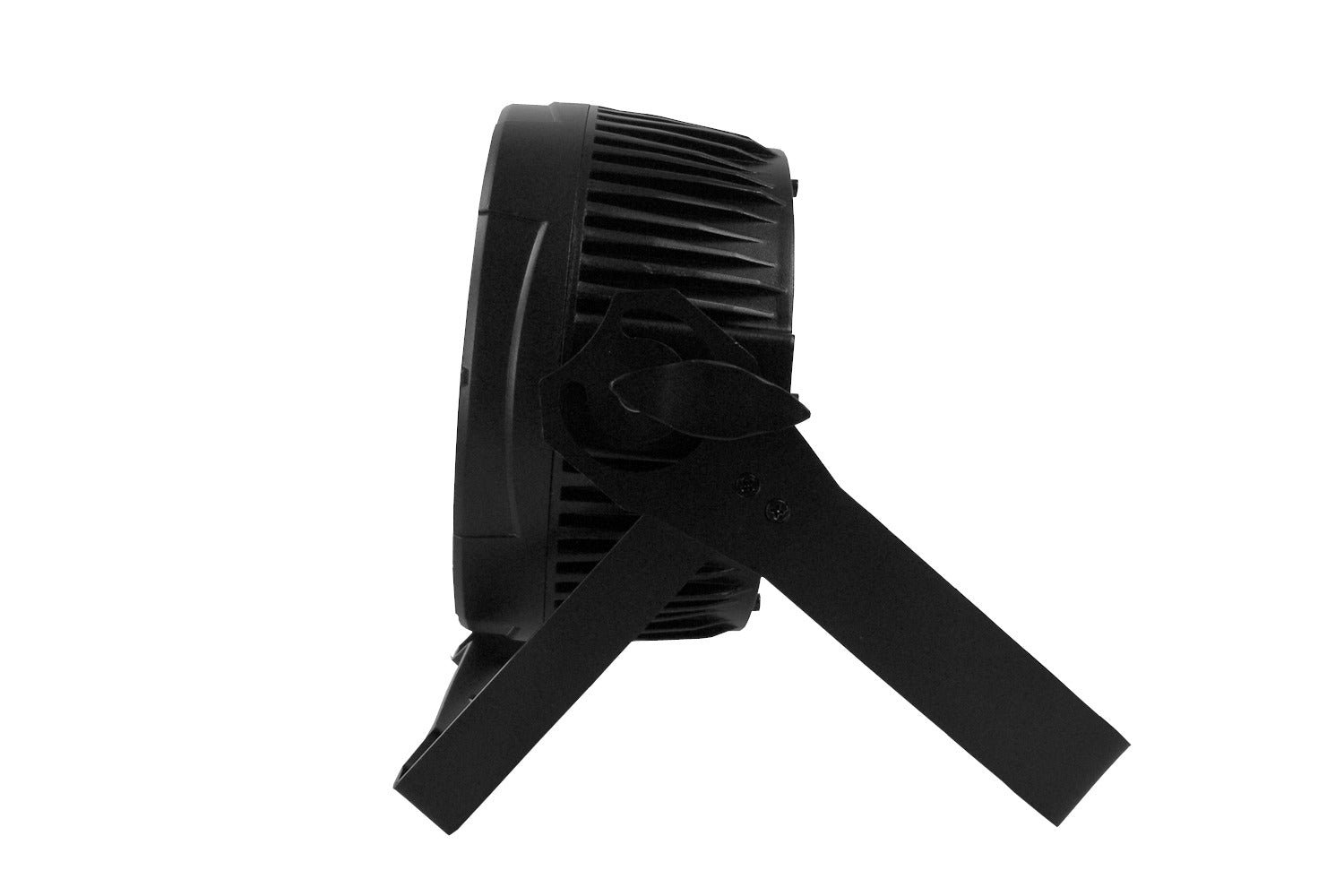

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for secure and efficient installation.

Optional Accessories

• PAR12BDCASEWC – Road Case
• PAR12CASEWC – Protective Carry Case
• PAR12GELFR – Gel Frame
• PAR12FROST – Frost Filter
• PAR12BDKIT – Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance.
