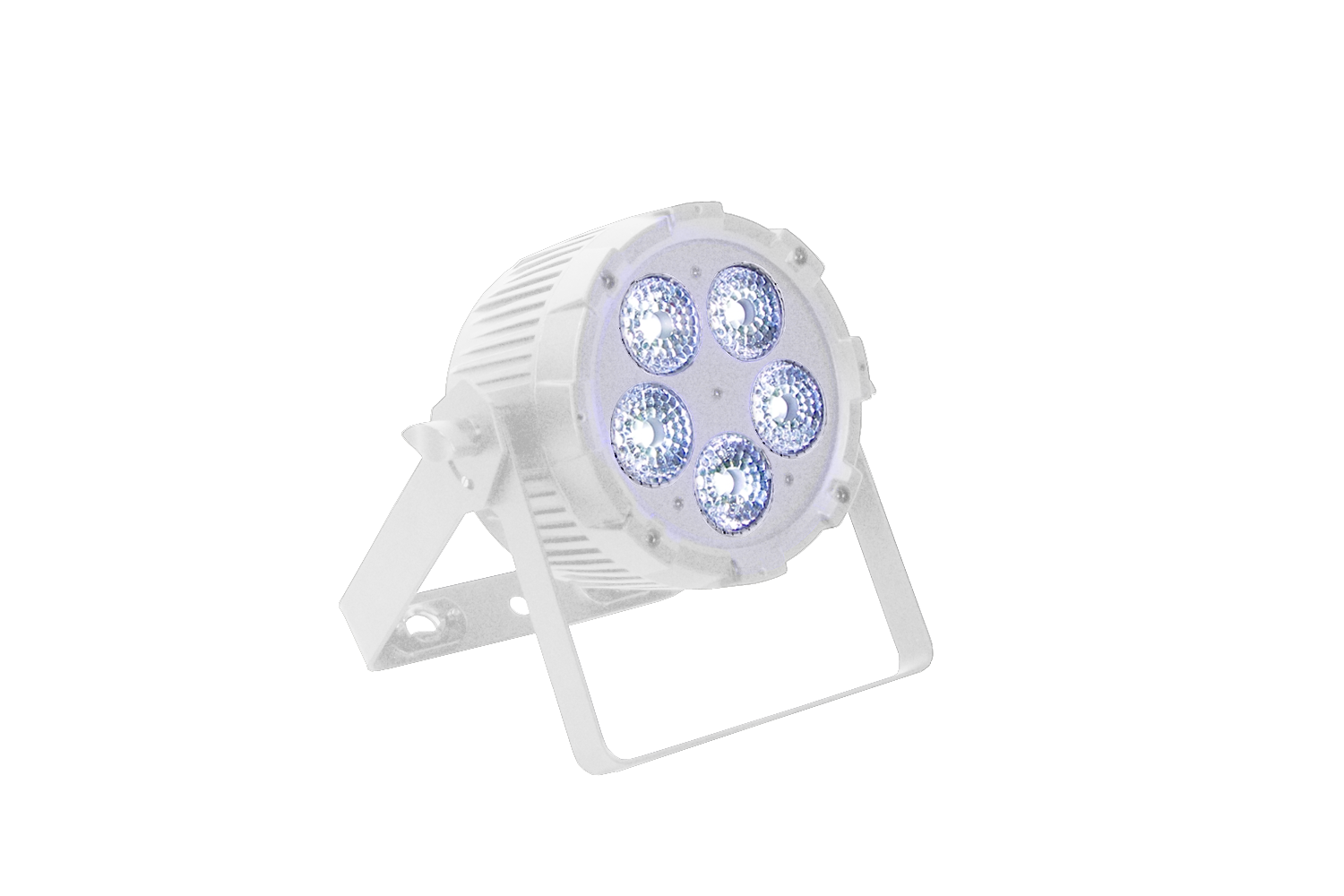

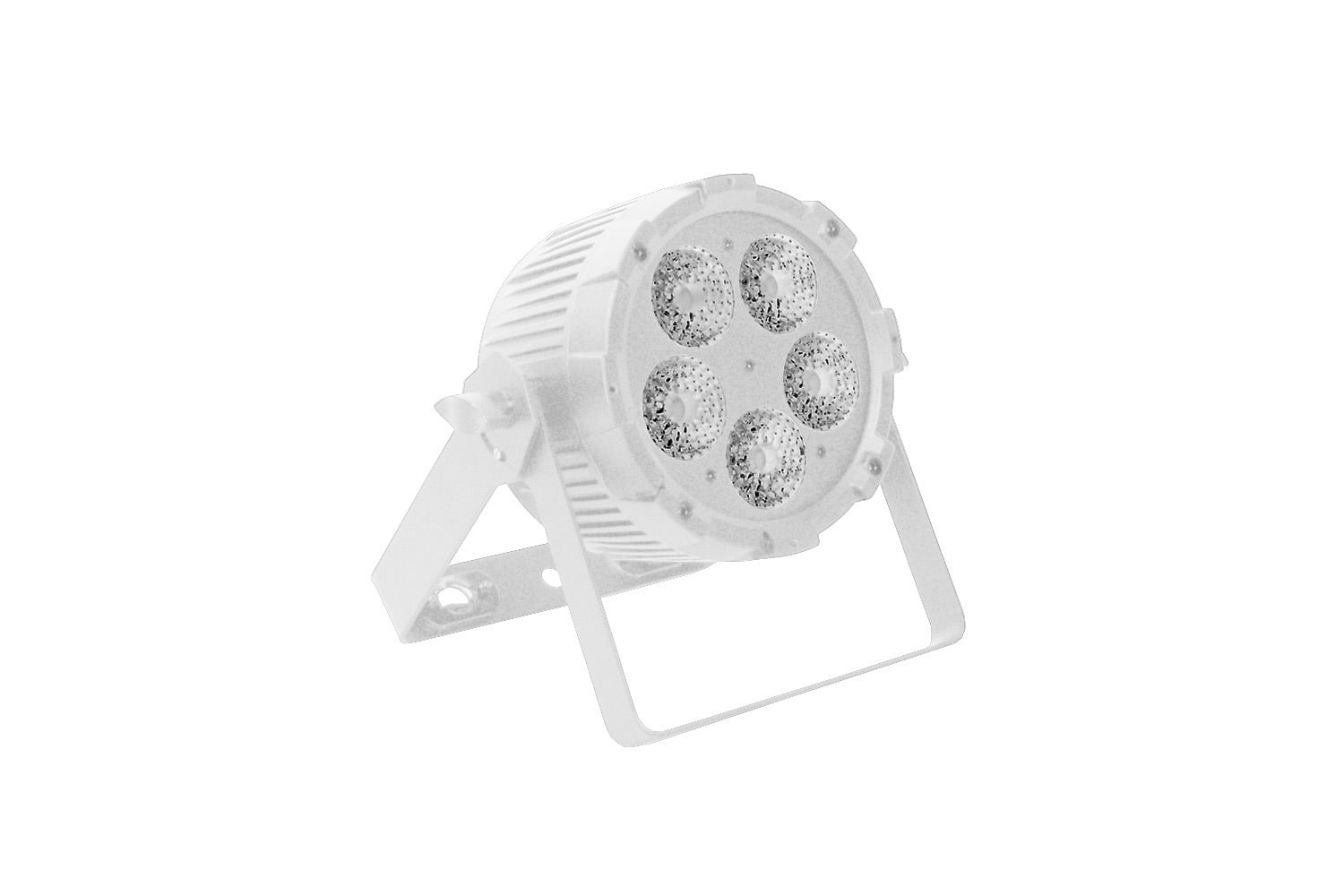

PAR5VW-WH – Indoor Pro Par with 5 x 6W WW/CW/A LEDs (White)

PAR5VW-WH – Indoor Pro PAR with 5 x 6W Variable White & Amber LEDs (White)

The PAR5VW-WH is a compact and versatile professional LED PAR fixture designed for theatres, churches, wedding venues, corporate events, stage productions, and architectural lighting applications. Powered by 5 high-performance 6W WW/CW/A LEDs, it delivers smooth variable white output with warm white, cool white, and amber color mixing for creating the perfect lighting atmosphere.

Offering multiple beam angle options and advanced dimming control, the fixture provides exceptional flexibility for wash lighting, stage illumination, and venue uplighting. Its elegant matte white housing blends seamlessly into wedding venues, churches, and architectural spaces, while the fanless cooling system ensures completely silent operation in noise-sensitive environments.

Photometric Specifications

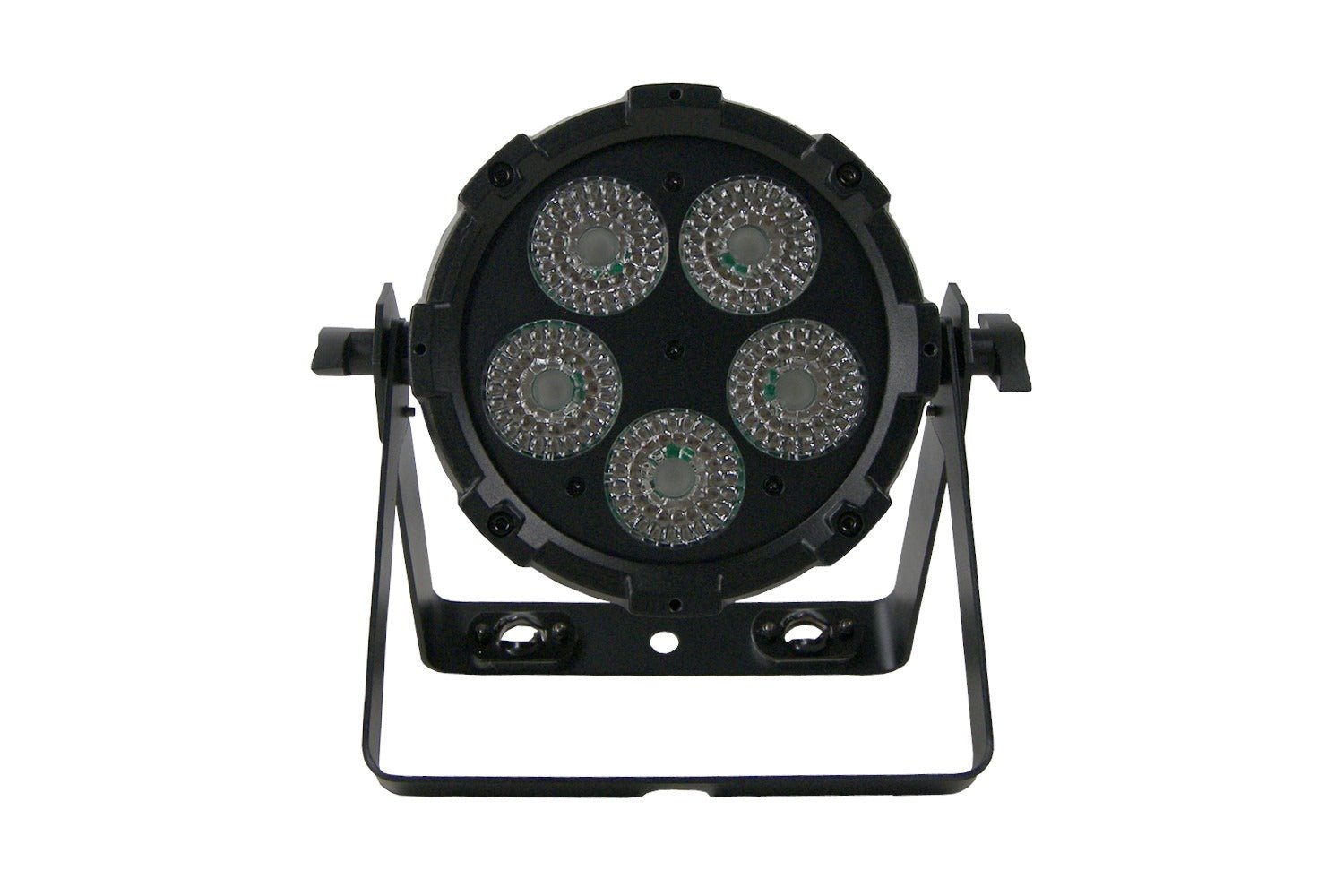

• Light Source: 5 × 6W WW/CW/A LEDs

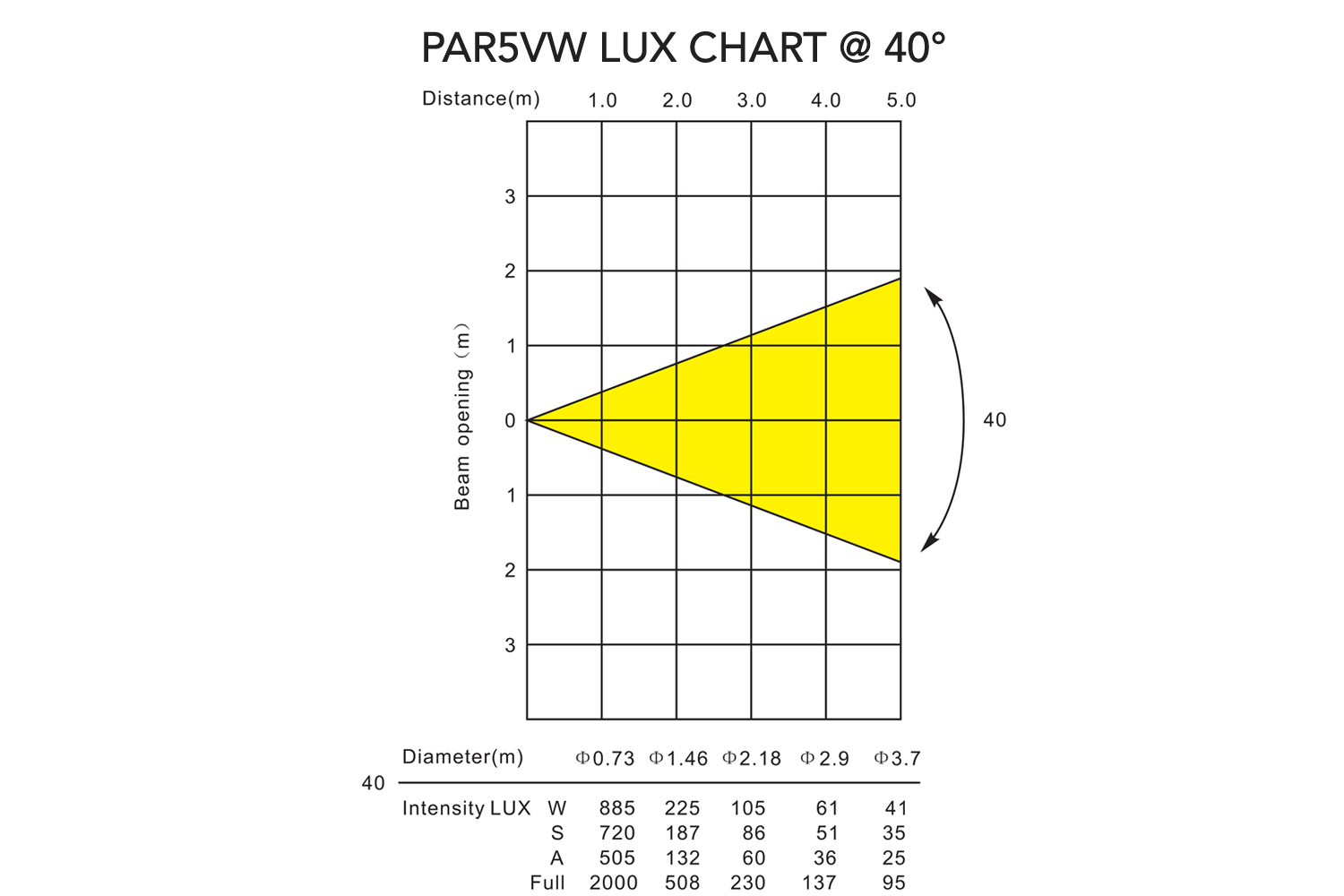

• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

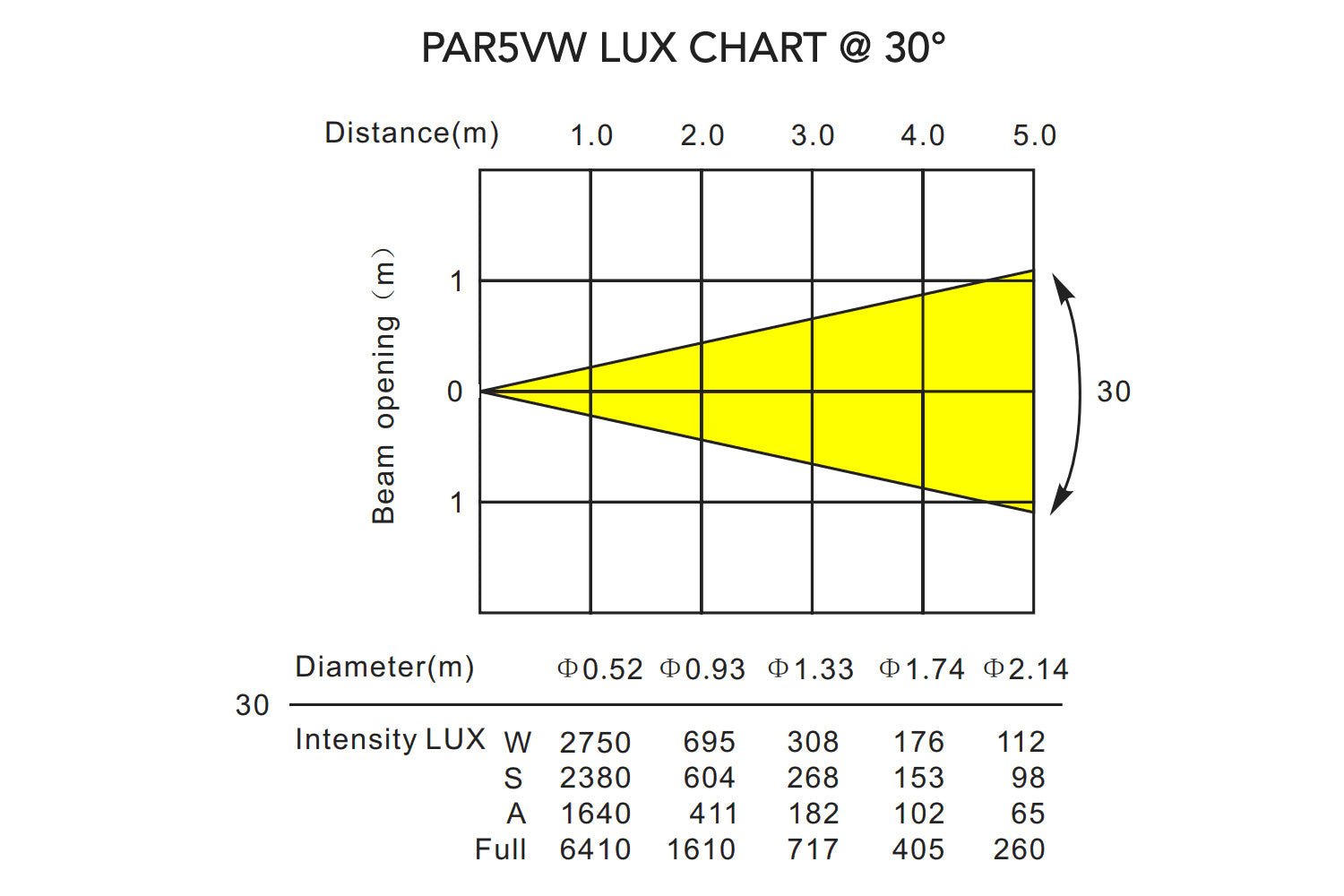

• Output: 1,610 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

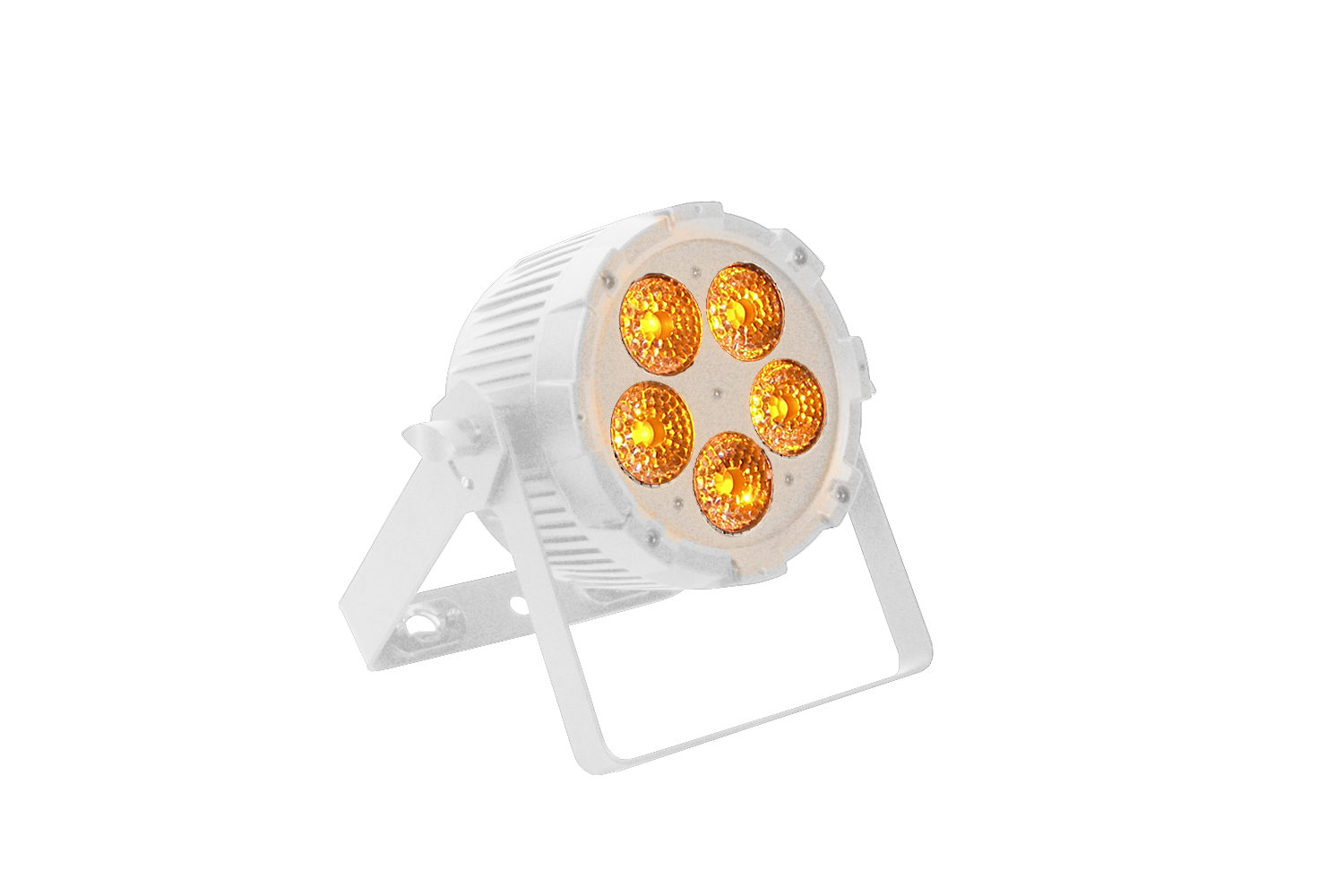

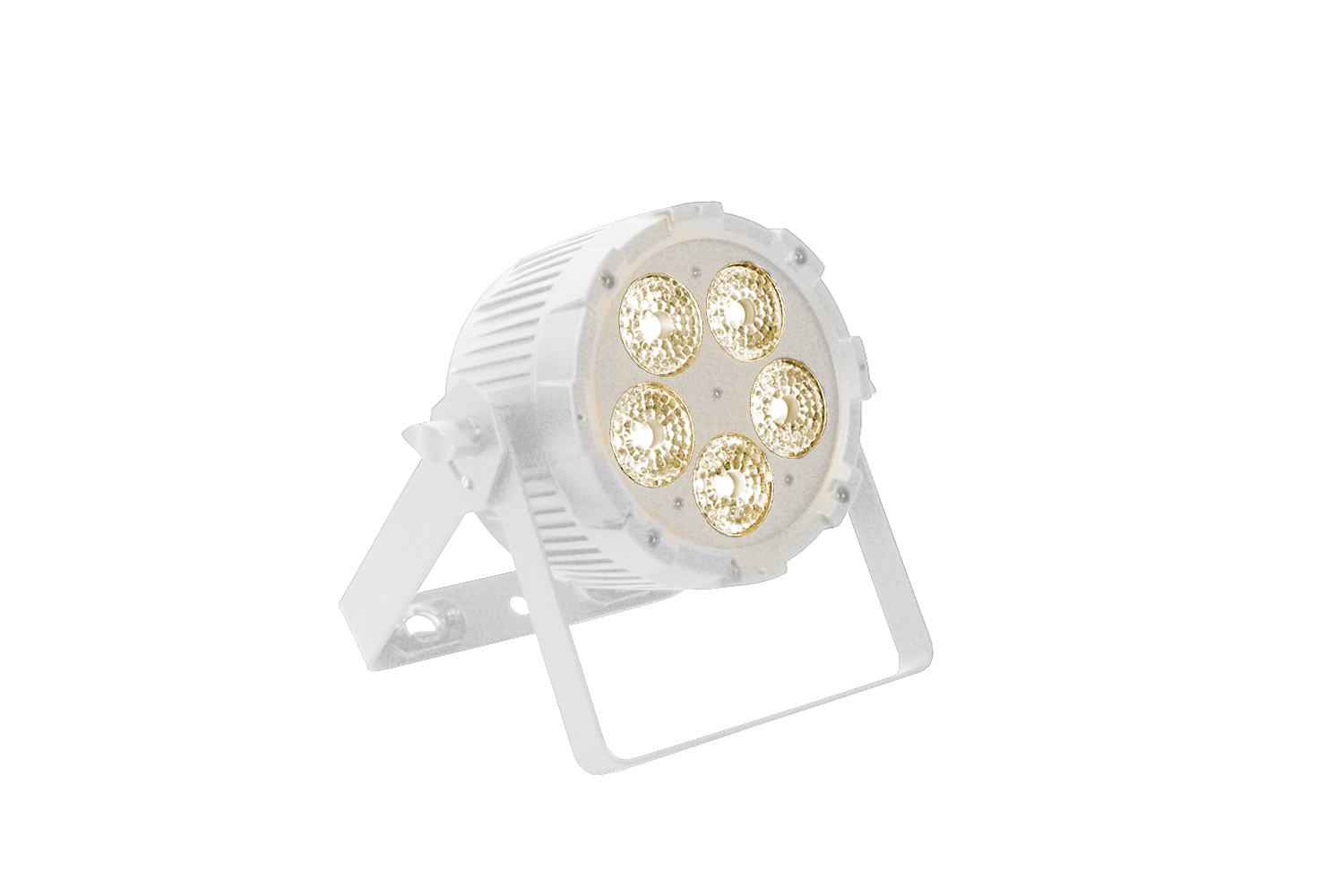

• Variable White Control: Warm White, Cool White, and Amber color mixing
• Silent Operation: Fanless cooling design for noise-free performance

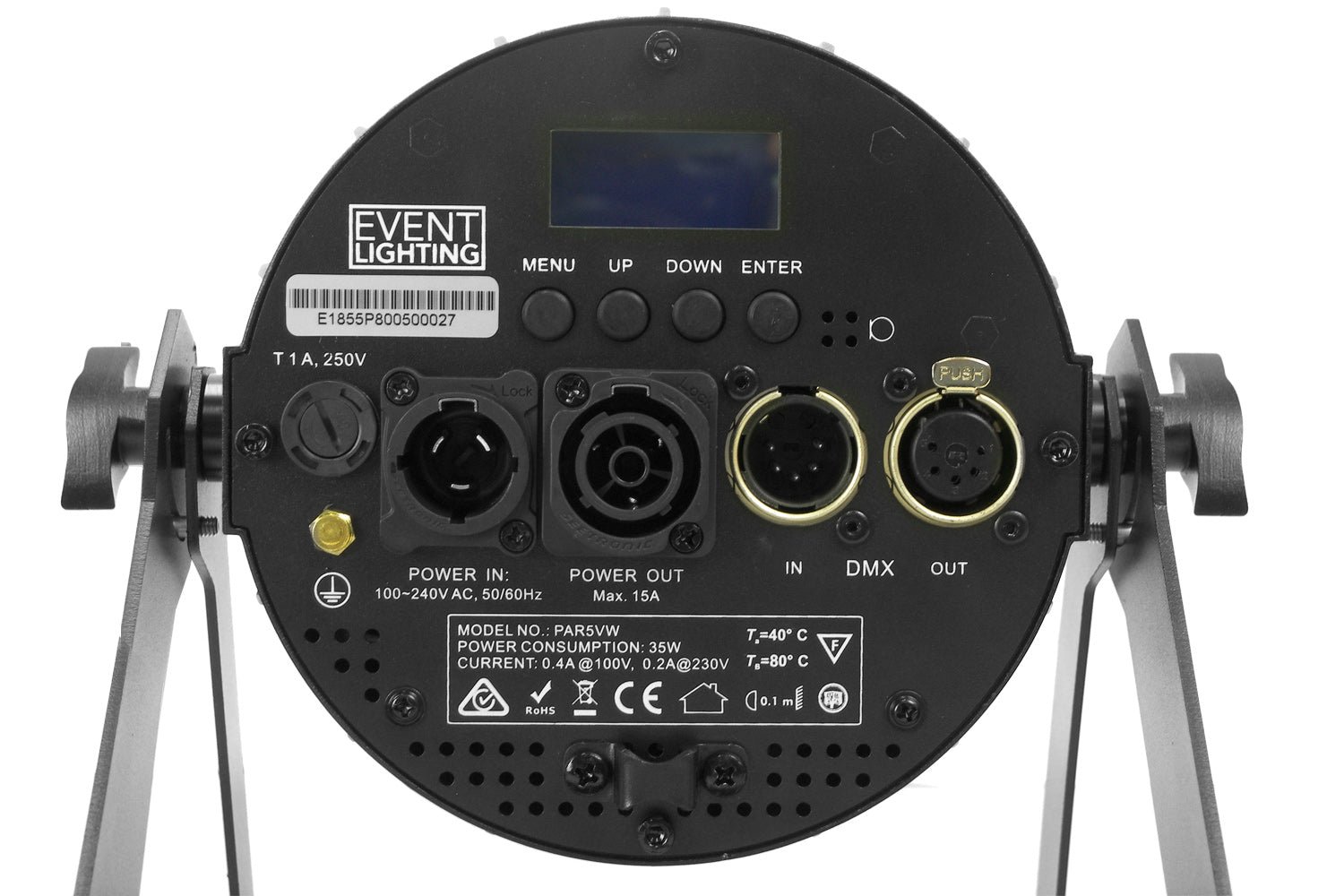

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, Static Color Control
• Wireless DMX: Optional WDMX support
• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, and 10CH
• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 35W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte white
• Cooling System: Fanless cooling

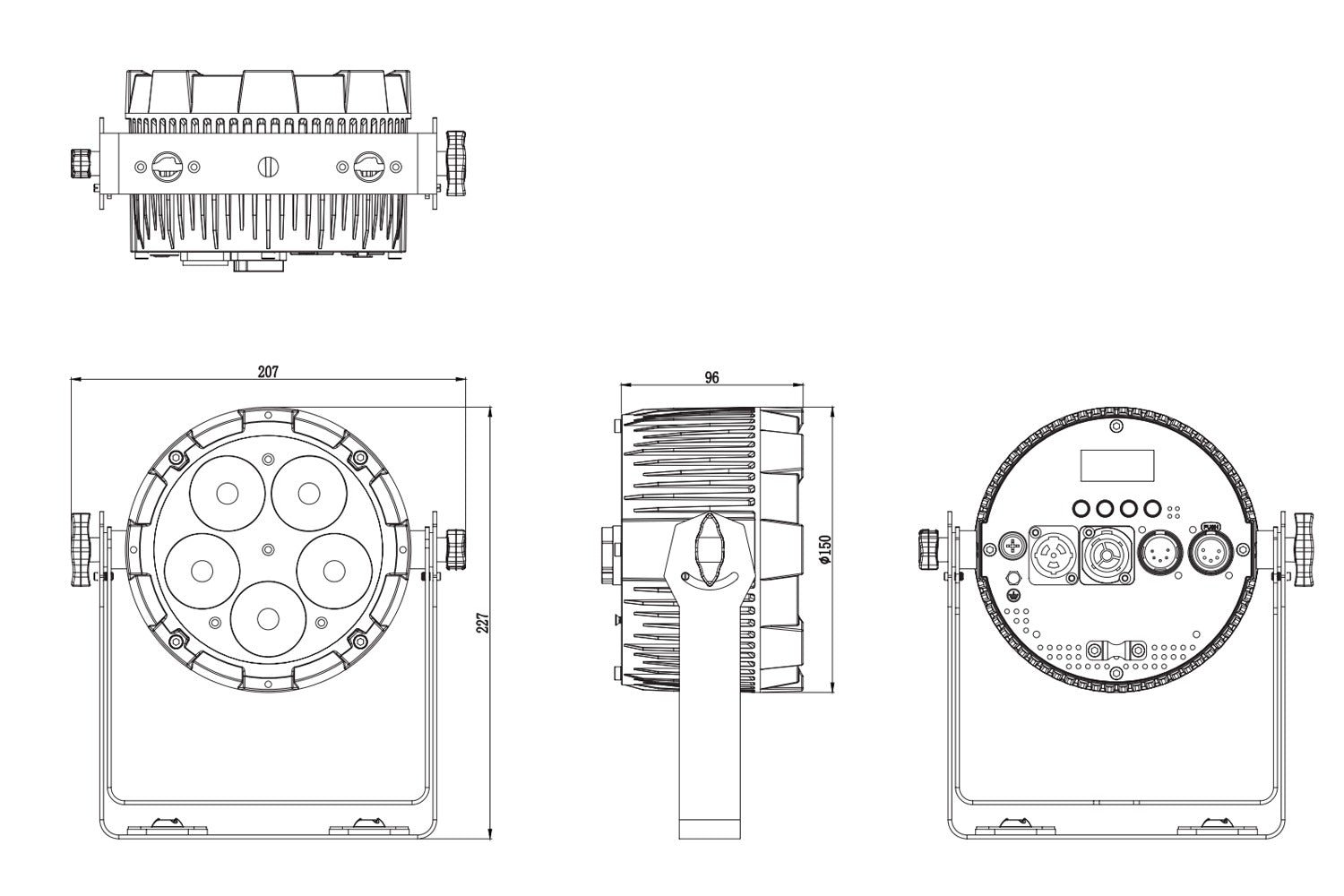

• Dimensions: 207 × 227 × 120 mm (8.1″ × 8.9″ × 4.7″)
• Weight: 1.9 kg (4.2 lbs)

Rigging

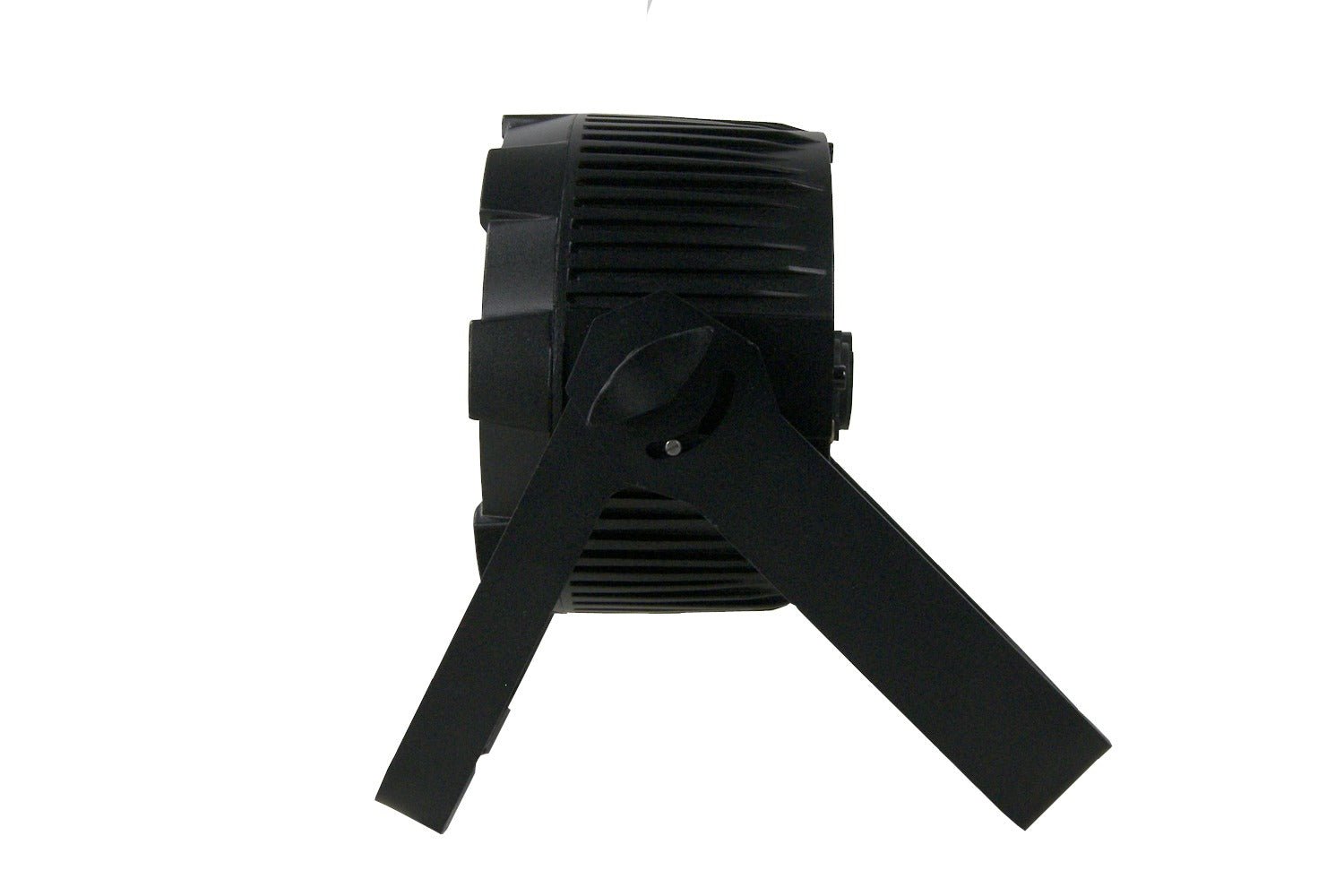

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for fast and secure installation.

Optional Accessories

• PAR5GELFR – Gel Frame
• PAR5FROST – Frost Filter
• PAR5BDKIT-WH – White Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance.
