PAR9X12H-IP – Outdoor Pro Par with 9 x 12W RGBWAU LEDs

PAR9X12H-IP – Outdoor Pro PAR with 9 x 12W RGBWA+UV LEDs

The PAR9X12H-IP is a professional outdoor-rated LED PAR fixture designed for concerts, festivals, architectural lighting, stage productions, outdoor events, and permanent installations. Equipped with 9 high-performance 12W RGBWA+UV 6-in-1 LEDs, it delivers vibrant color mixing, rich UV effects, and reliable illumination in a compact and rugged IP65-rated design.

Built for durability and versatility, the fixture features multiple operating modes, optional wireless DMX capability, and convenient IR remote control. Its fanless cooling system ensures silent operation, while the die-cast aluminum housing provides dependable performance in challenging indoor and outdoor environments.

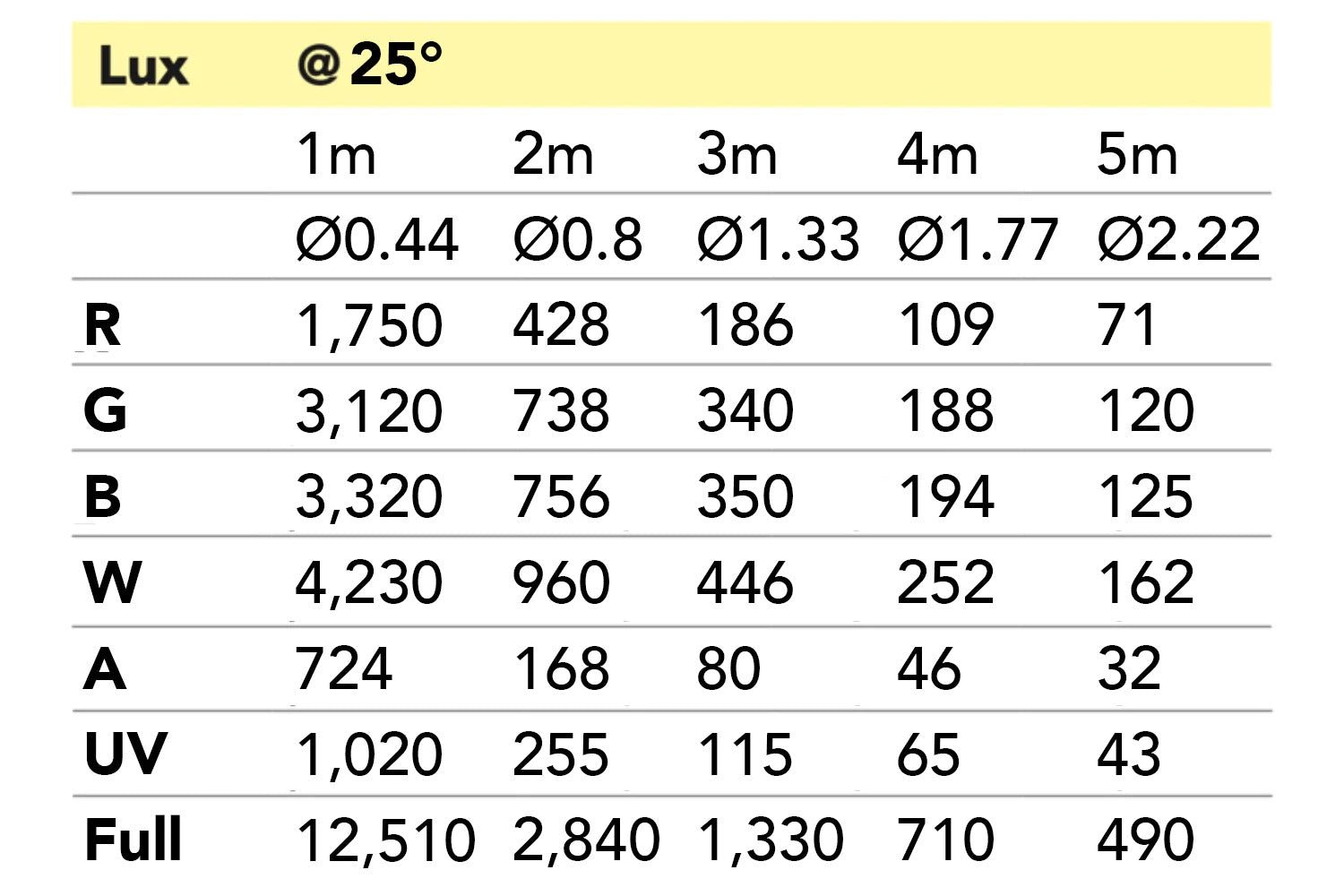

Photometric Specifications

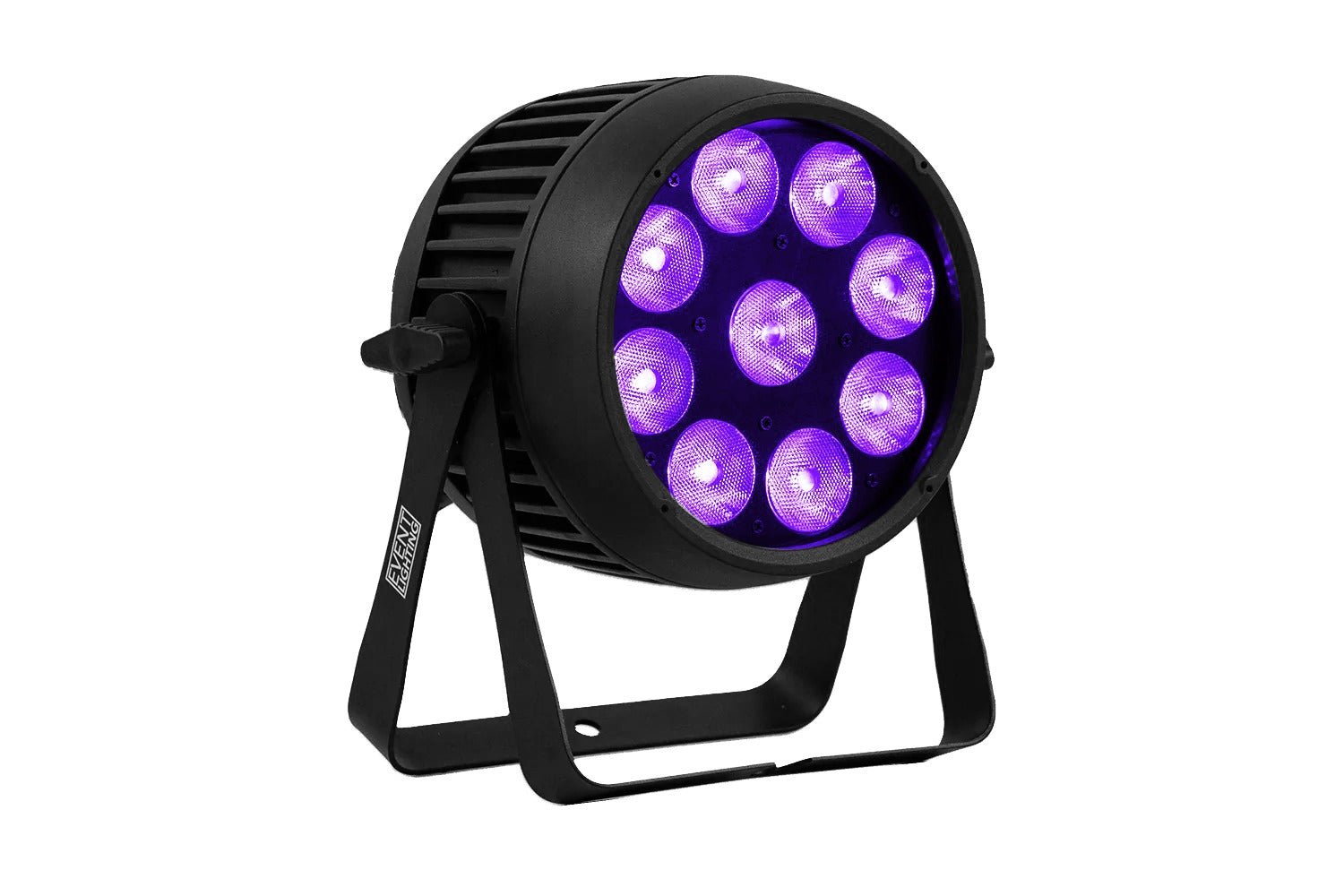

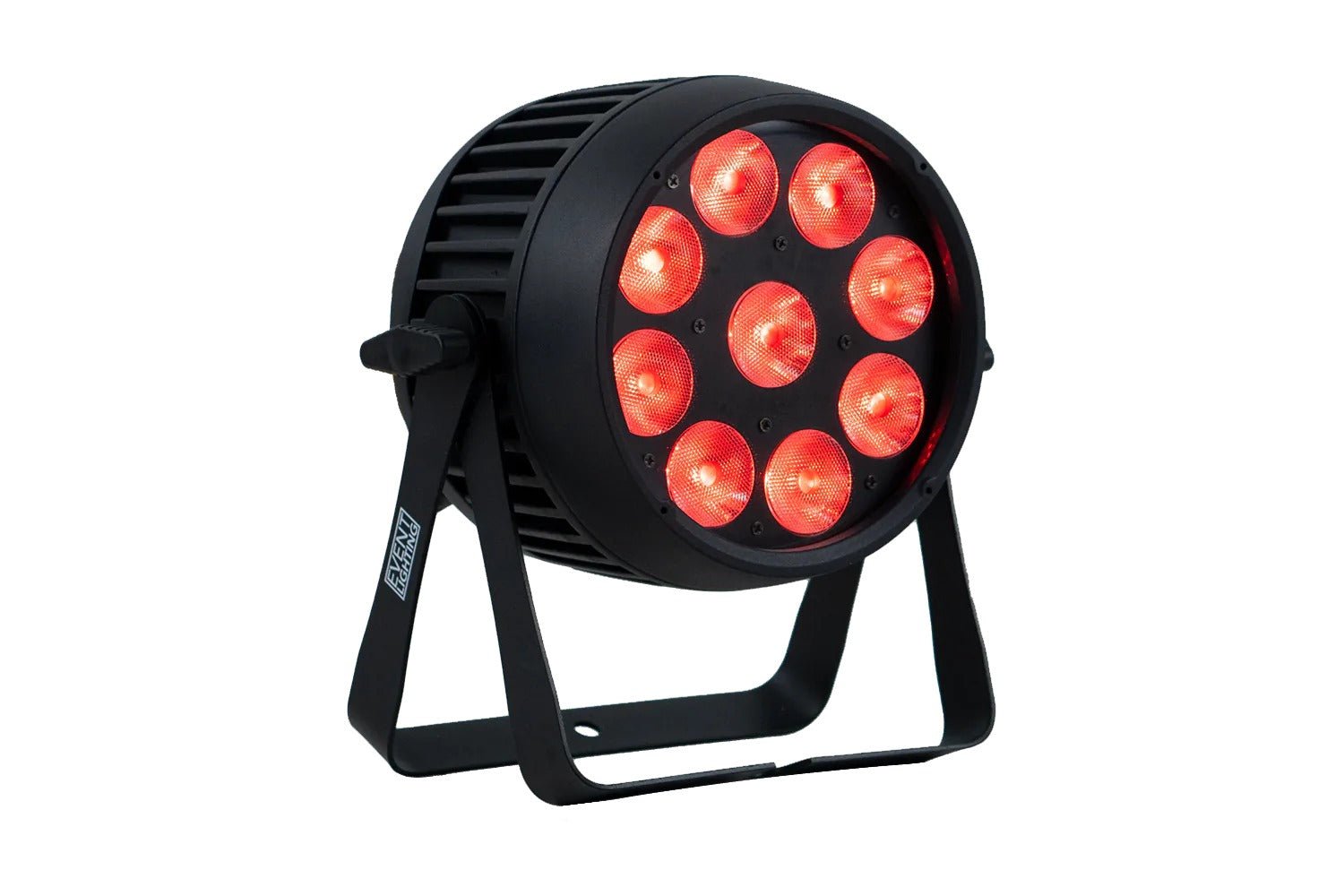

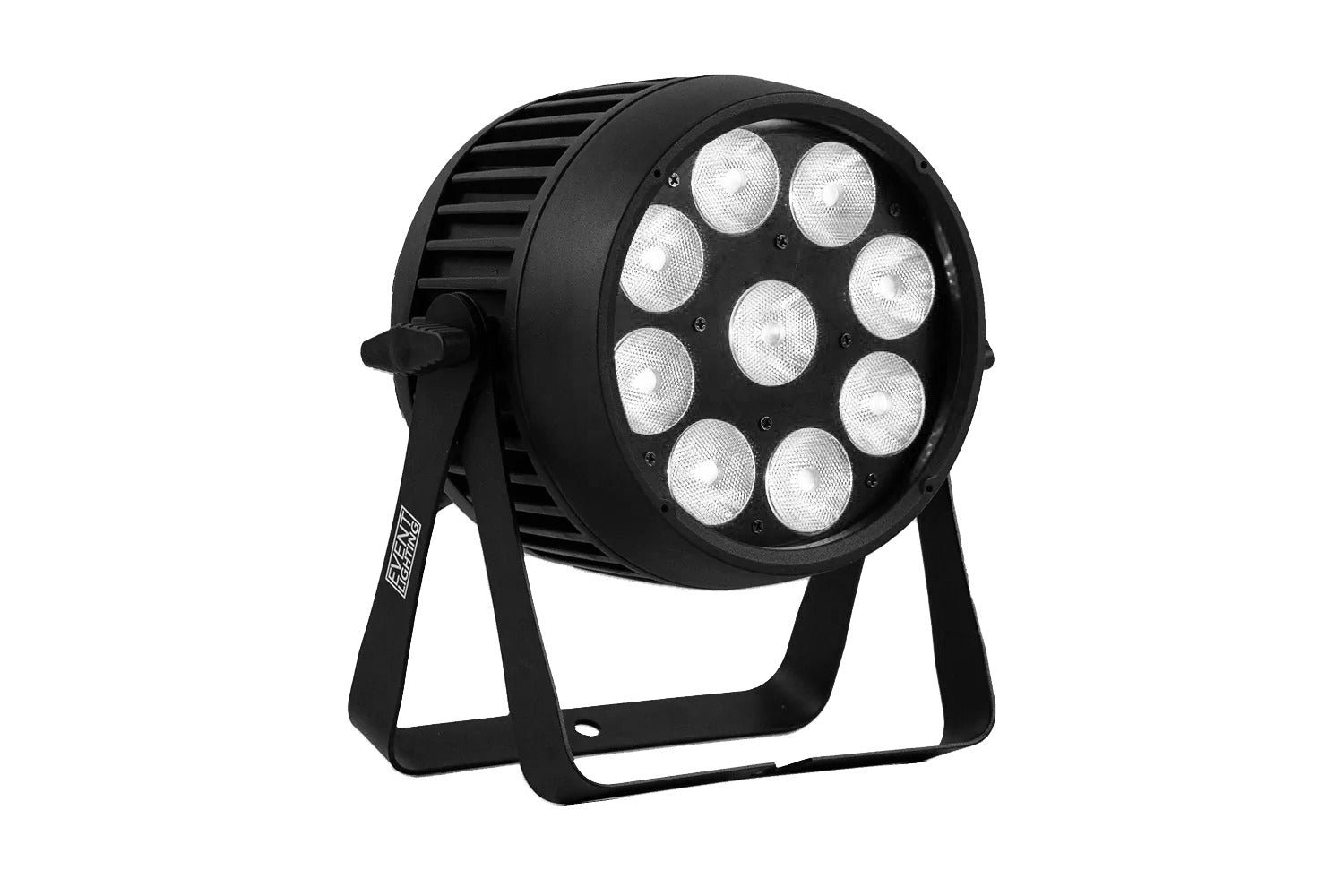

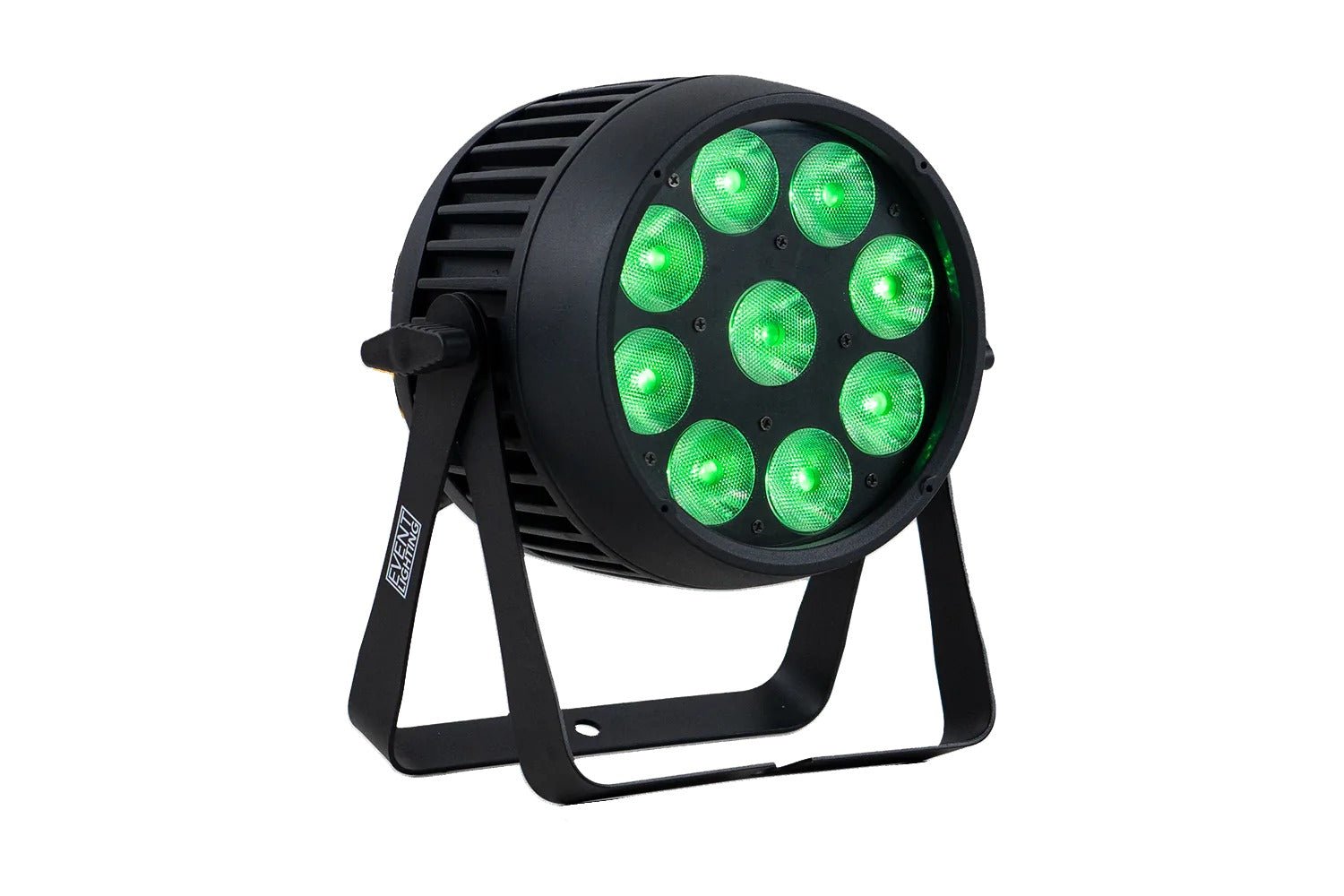

• Light Source: 9 × 12W RGBWA+UV 6-in-1 LEDs
• Beam Angle: 25°
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 0–100% dimming control
• Strobe Effect: Adjustable from 1Hz to 20Hz
• Color Mixing: RGBWA+UV technology for vibrant colors, pastel tones, and UV-enhanced effects
• IR Remote Control: Included for convenient operation
• Silent Operation: Fanless cooling system

Control & Connectivity

• Operating Modes: DMX, Manual, Auto, Sound Active, Master/Slave, and Optional WDMX
• Display: OLED touch display with glass control buttons
• Control Protocol: DMX512 and optional Wireless DMX (W-DMX)
• DMX Channel Modes: 6CH and 10CH

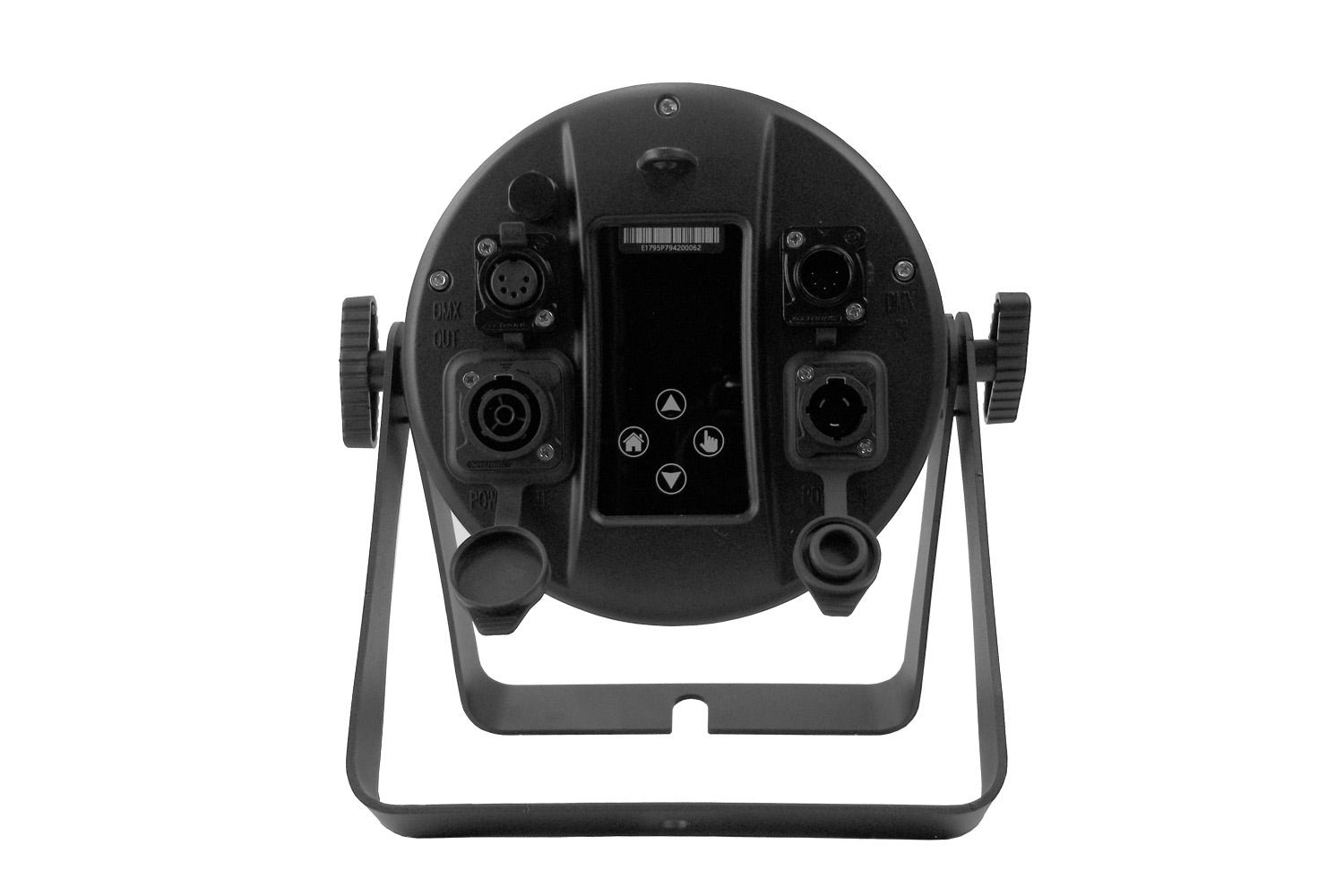

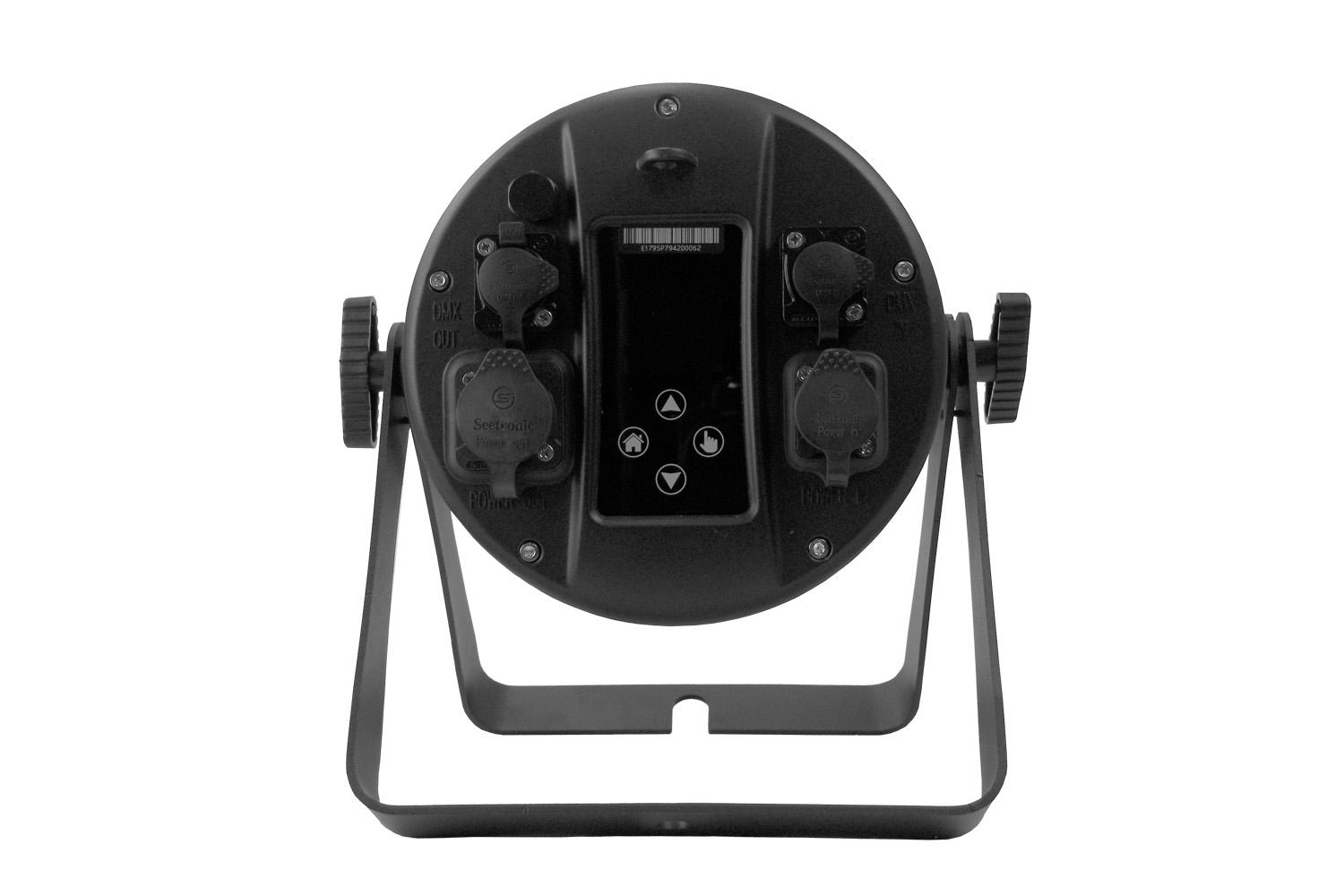

• DMX Interface: Seetronic® 5-pin Outdoor DMX input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 72W
• Power Connection: Seetronic® Outdoor True1 input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black
• Cooling System: Fanless cooling
• IP Rating: IP65 for outdoor applications

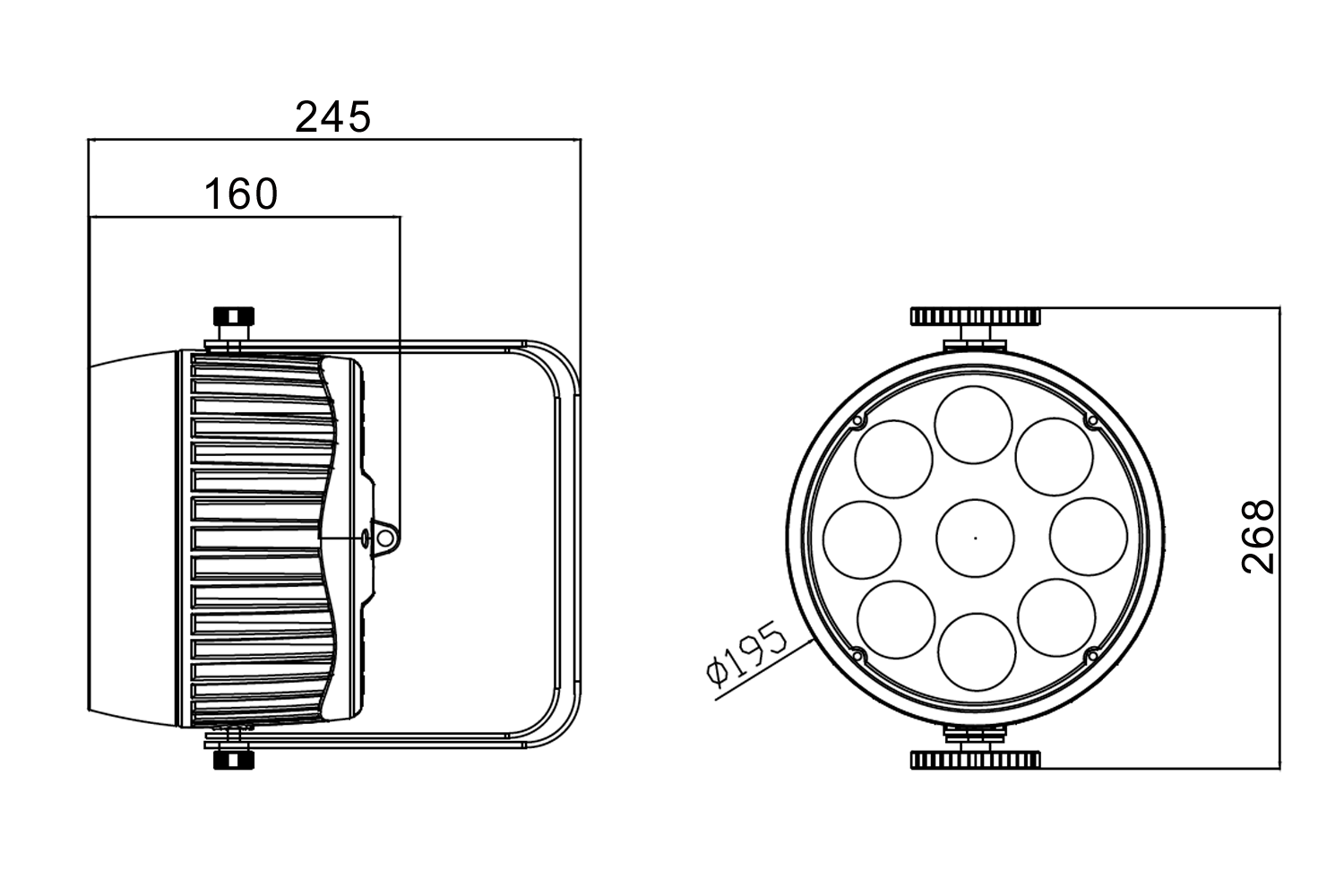

• Dimensions: 268 × 195 × 245 mm
• Weight: 3.9 kg

Included Accessories

• 1m Seetronic® Outdoor Power Cable
• 1m Seetronic® Outdoor DMX Cable
• IR Remote Controller

Compatible Accessories

• PAR9CASEWC – Protective Carry Case

Important Installation Note

For reliable operation, only use the supplied outdoor DMX cable in the fixture’s DMX output port. Using incompatible cables may cause connector damage and require servicing.

Warranty

• Covered by a 3-year manufacturer warranty for dependable long-term performance.
