PARF12X20H-IP – IP65 Parcan with 12 x 20 RGBWAU LEDs with Electronic Frost

PARF12X20H-IP – IP65 RGBWAU LED PAR Fixture with Electronic Frost

The PARF12X20H-IP is a professional outdoor-rated LED PAR fixture designed for concerts, festivals, stage productions, architectural lighting, event venues, and permanent installations. Equipped with 12 high-performance 20W RGBWAU LEDs, it delivers vibrant color mixing, exceptional brightness, and versatile beam control for demanding lighting applications.

Featuring an integrated electronic frost system, the fixture allows seamless transitions between a concentrated beam and a wide wash effect without requiring additional filters. With advanced RGBWAU color mixing technology, users can create rich colors, pastel shades, UV effects, and precise white tones. The rugged fanless design and weather-resistant construction ensure reliable operation in both indoor and outdoor environments.

Photometric Specifications

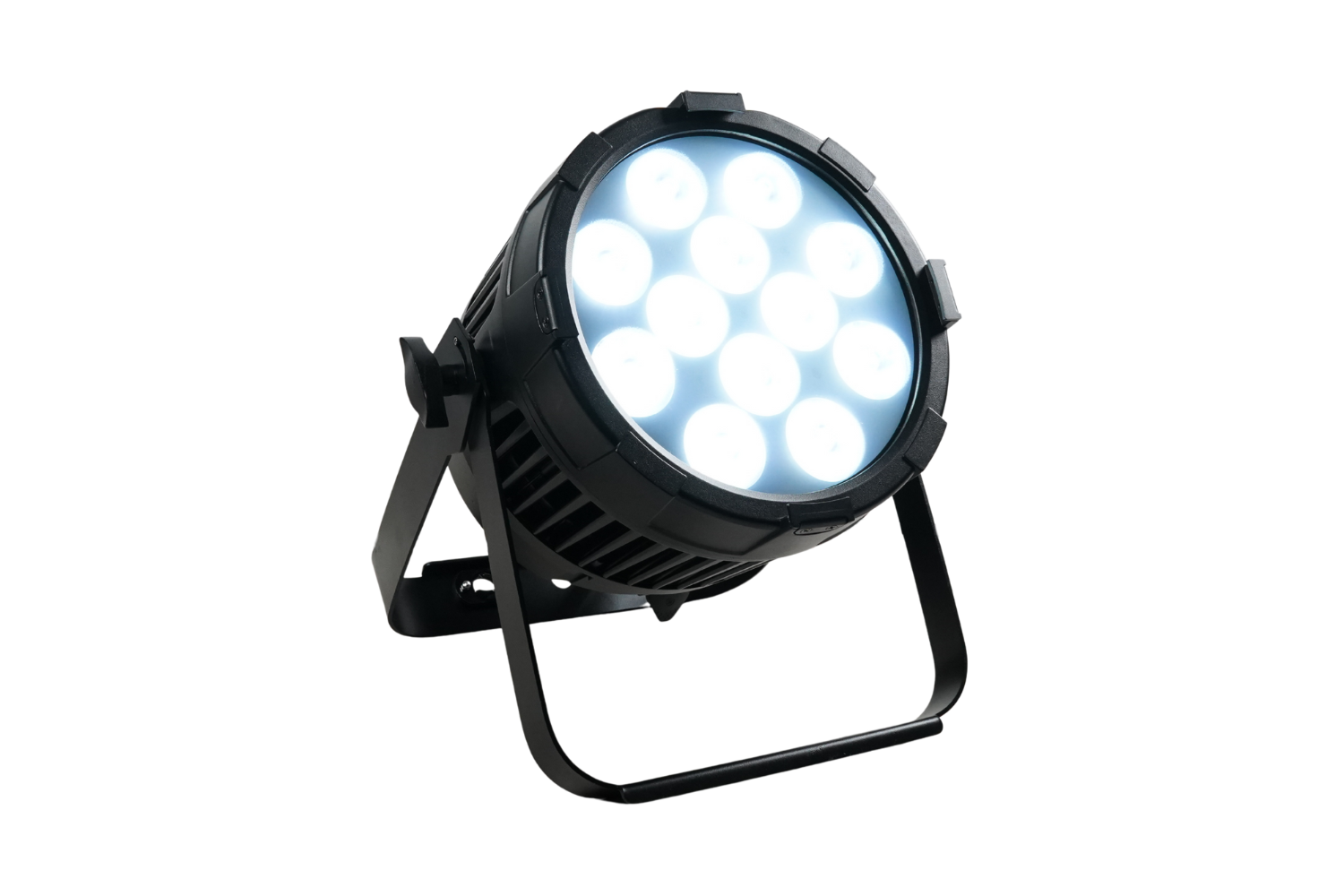

• Light Source: 12 × 20W RGBWAU LEDs
• Beam Angle: 10° standard (Optional: 8°, 15°, 45°)
• Electronic Frost Range:
• Frost 0%: 12°
• Frost 100%: 45°
• Output: 27,440 lux at 2.0m (Full Output, Frost 0%)
• Refresh Rate: 1,200Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

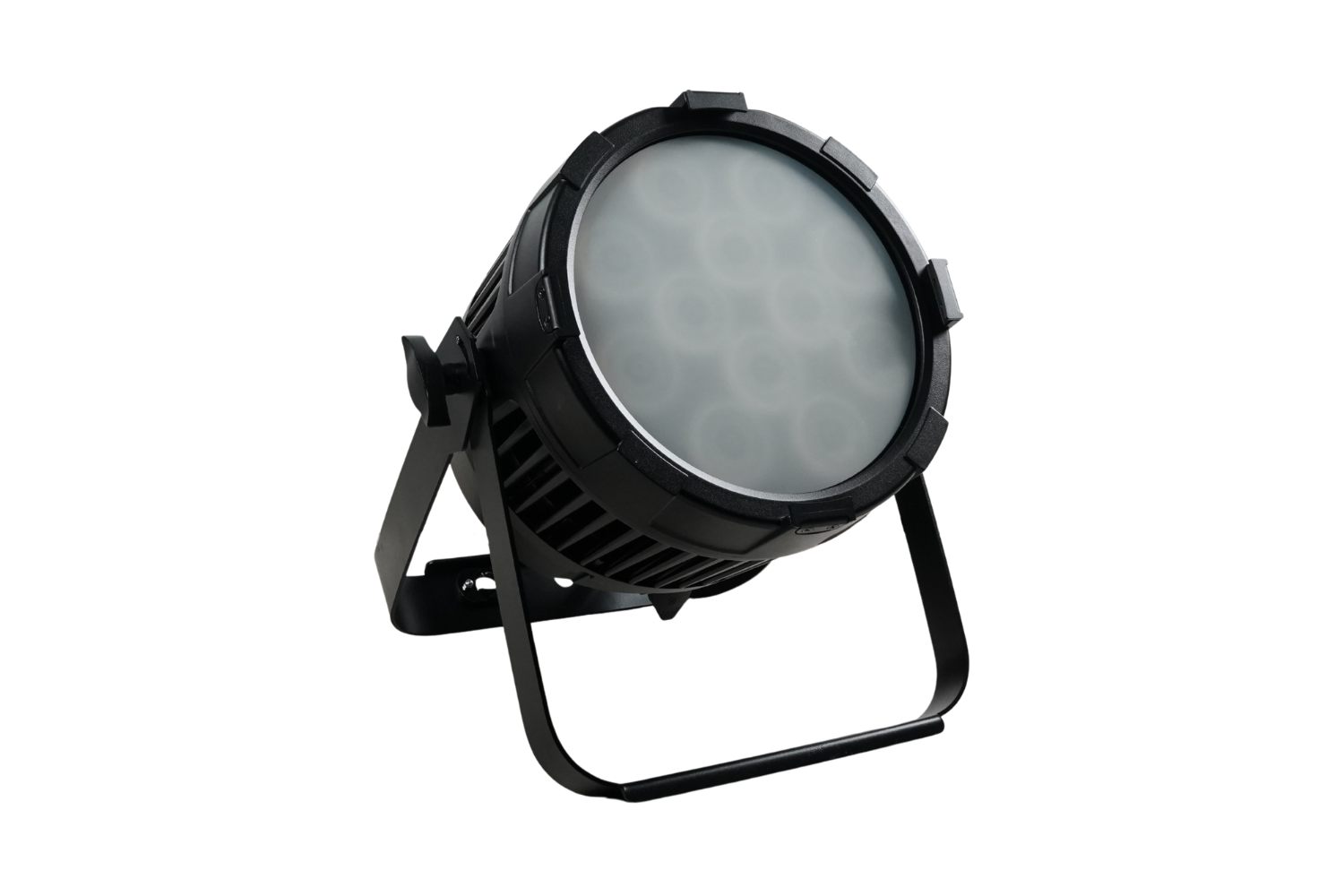

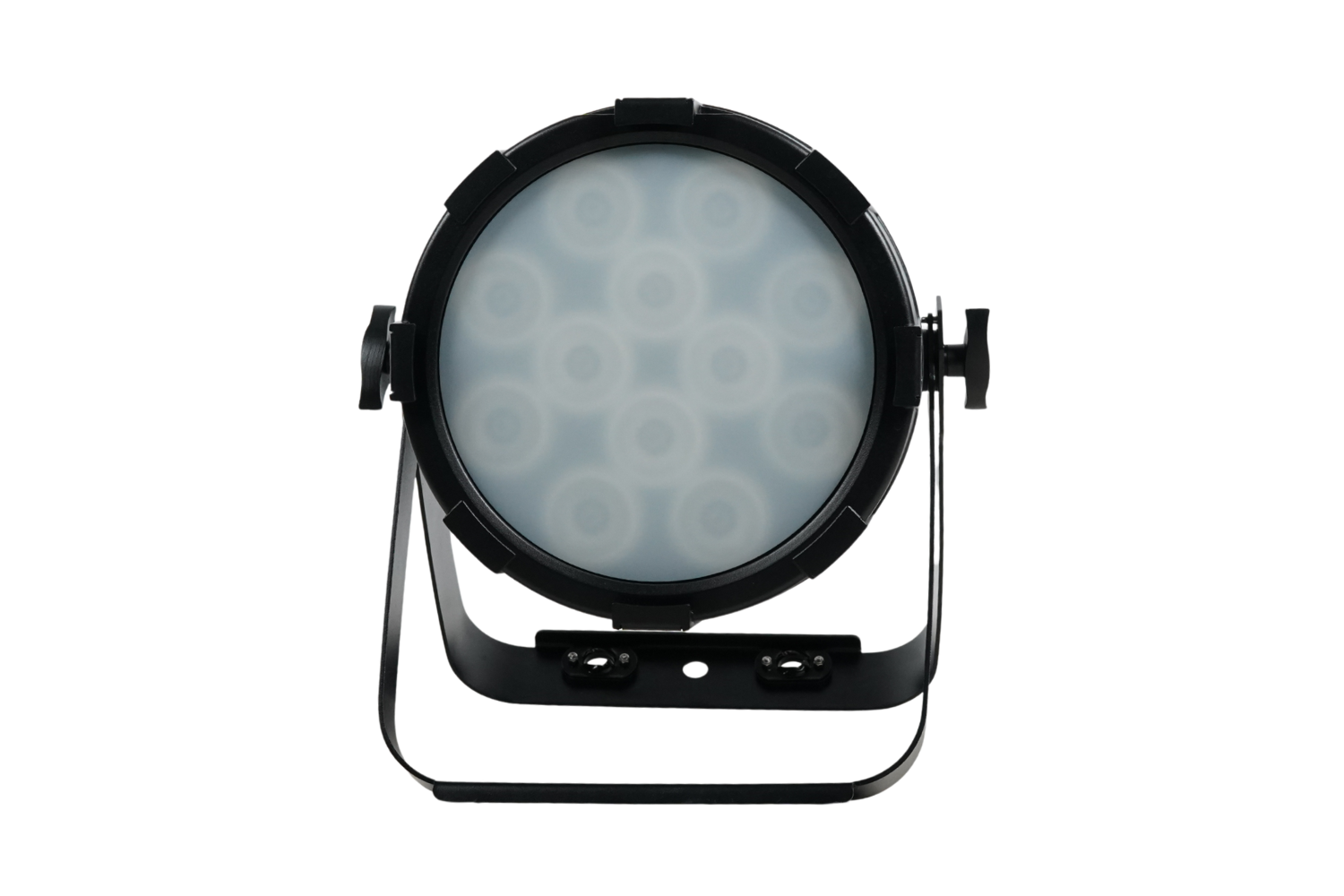

• Electronic Frost: Smooth beam-to-wash transition with adjustable frost
• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

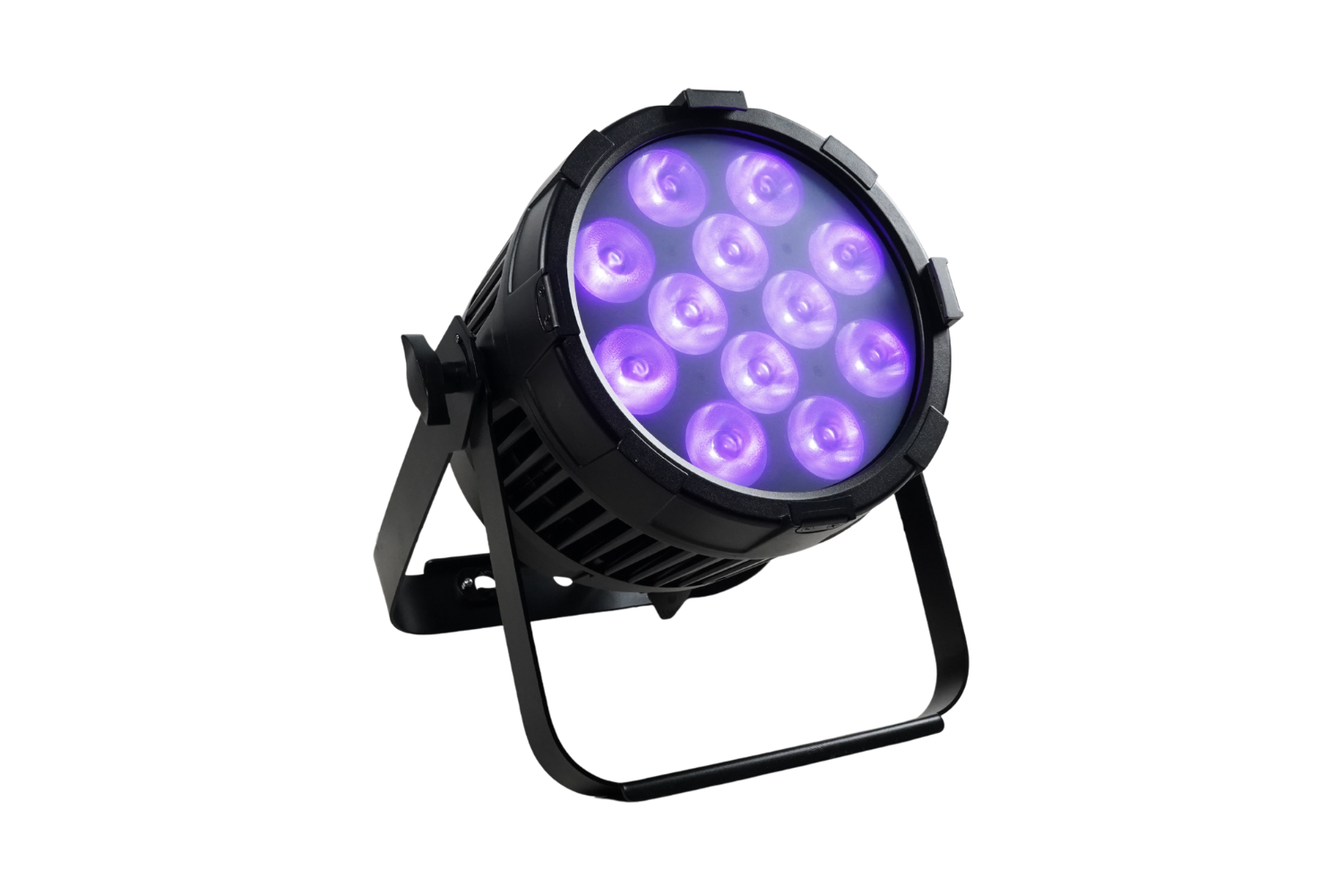

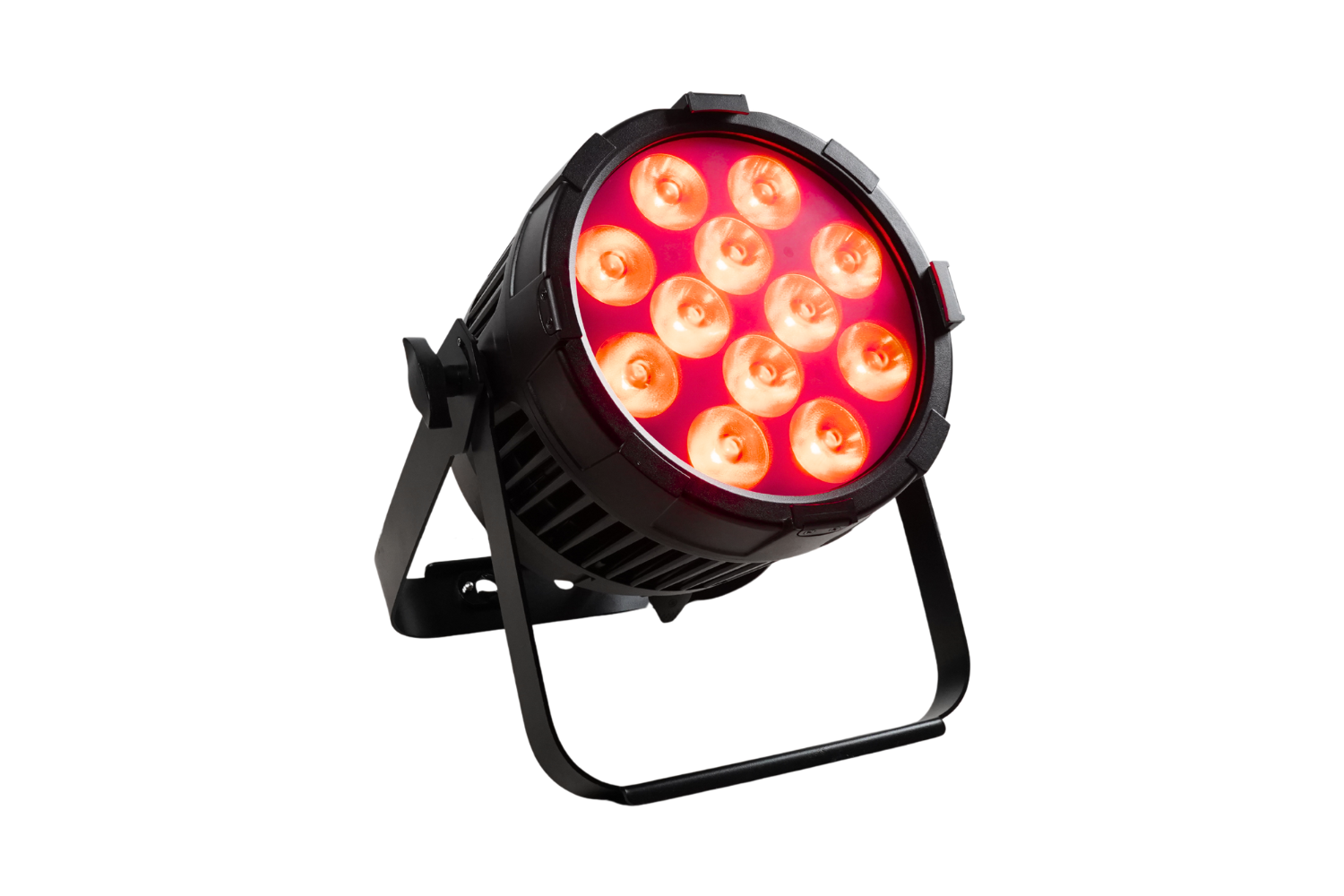

• Color Mixing: RGBWAU technology for vibrant colors and UV effects
• Fanless Design: Silent operation for noise-sensitive environments

Control & Connectivity

• Operating Modes: DMX, WDMX, Auto Run, Sound Active, Master/Slave, Manual, Static, and RDM

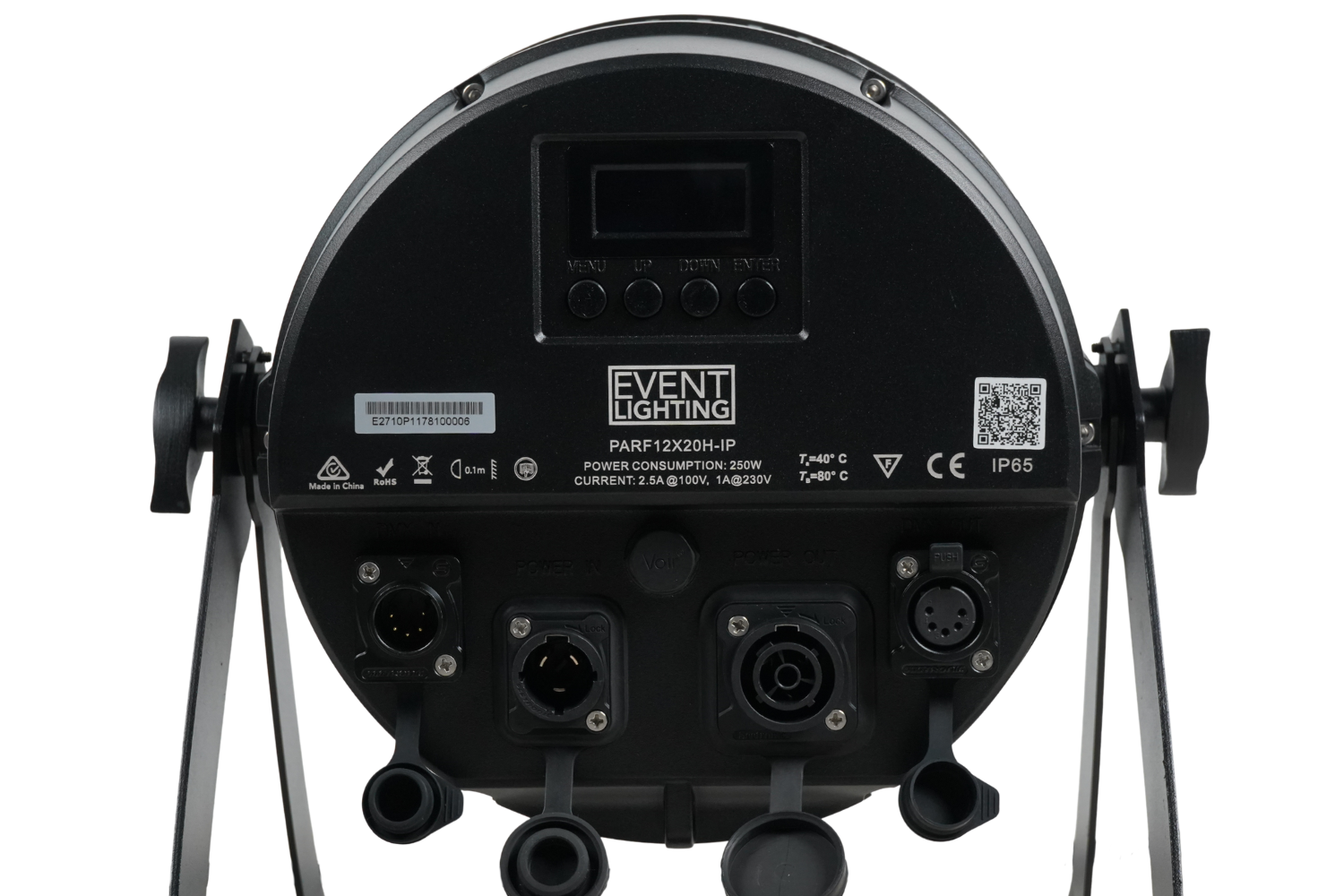

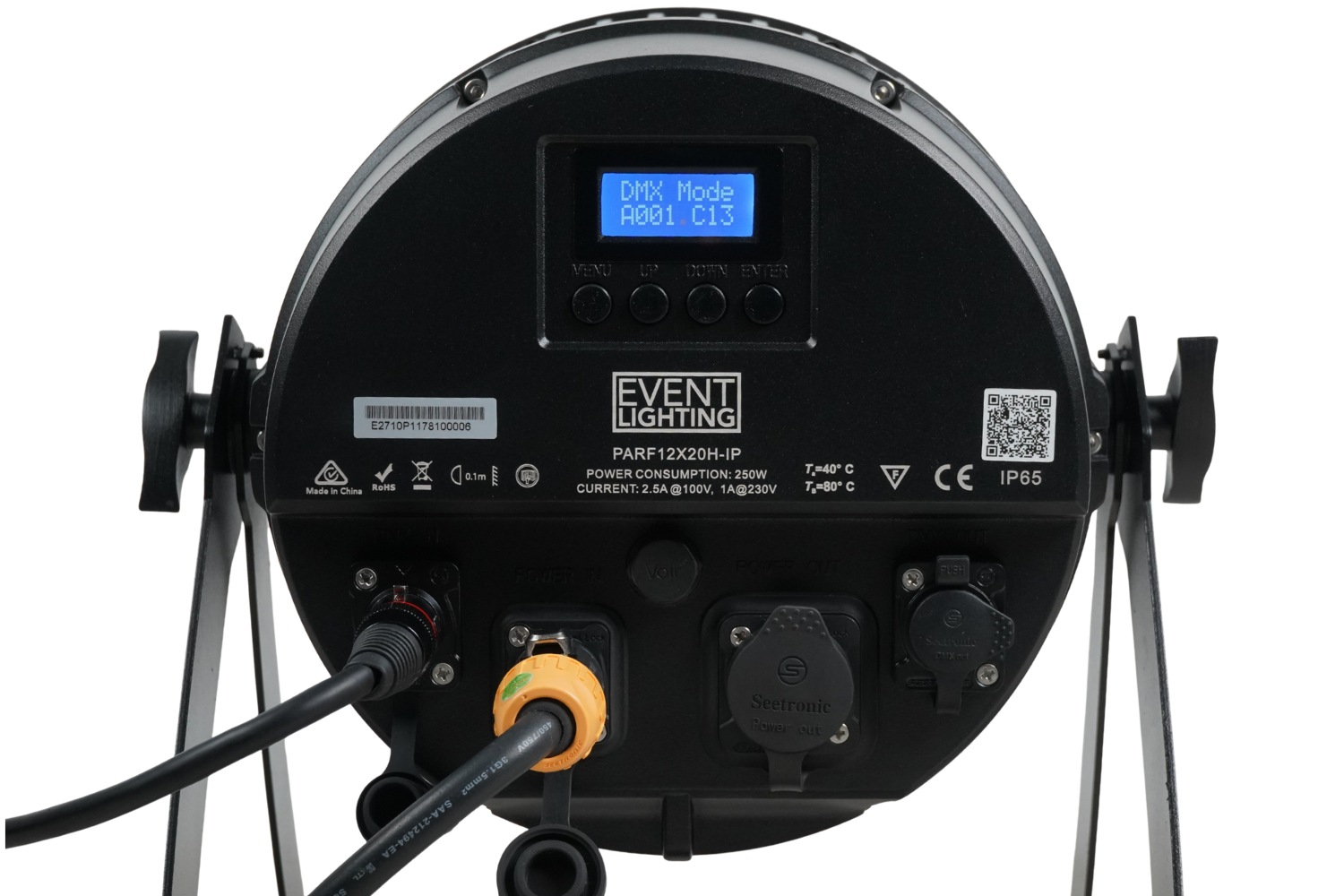

• Display: LCD display with 4-button control panel
• DMX Protocol: DMX512
• DMX Channel Modes: 1CH, 3CH, 4CH, 5W, 5A, 7CH, 9CH, 13CH, and 15CH
• DMX Connections: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 250W
• Fuse Rating: T2A, 250V
• Power Connections: TrueOne power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Professional matte black coating

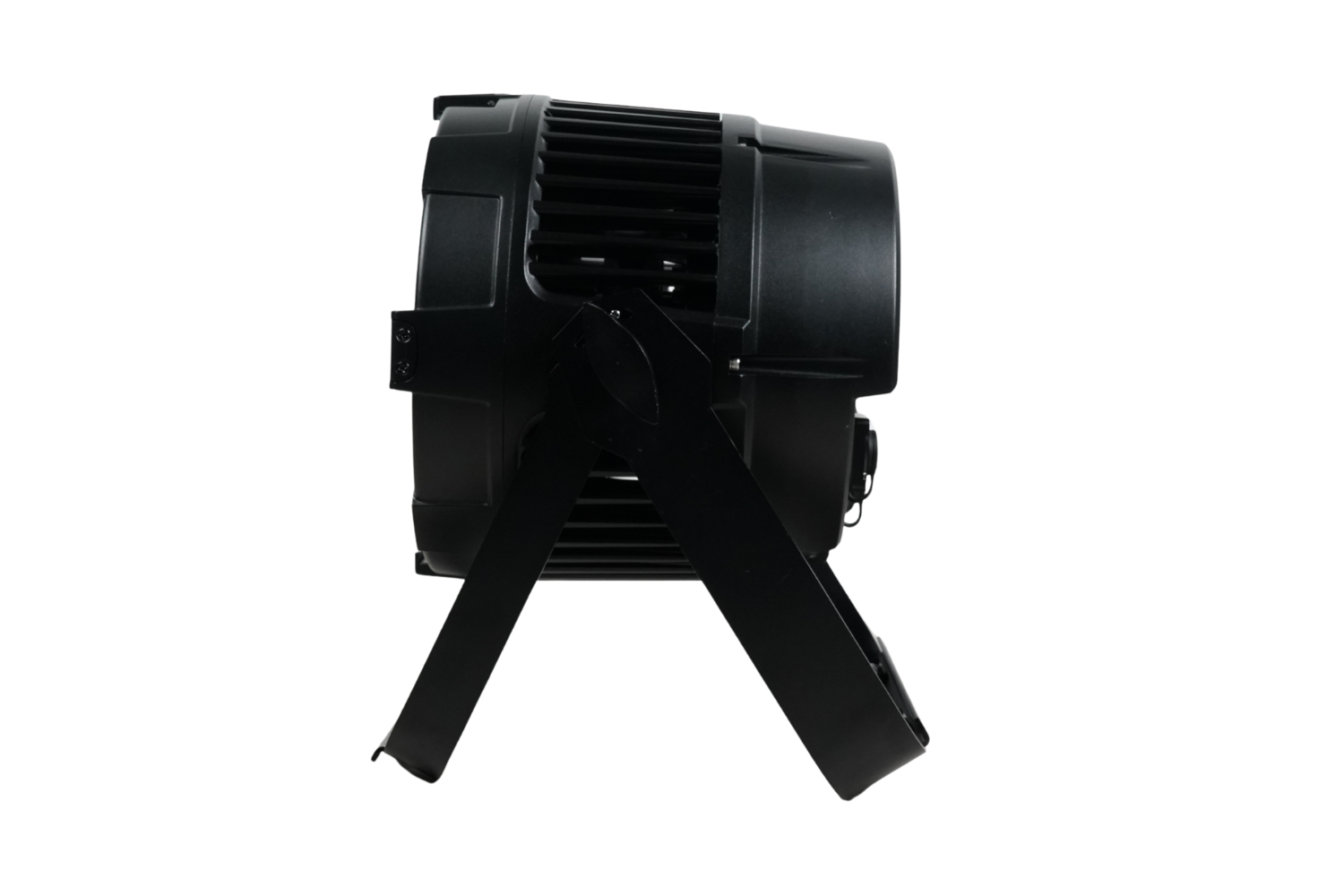

• Cooling System: Fanless cooling design

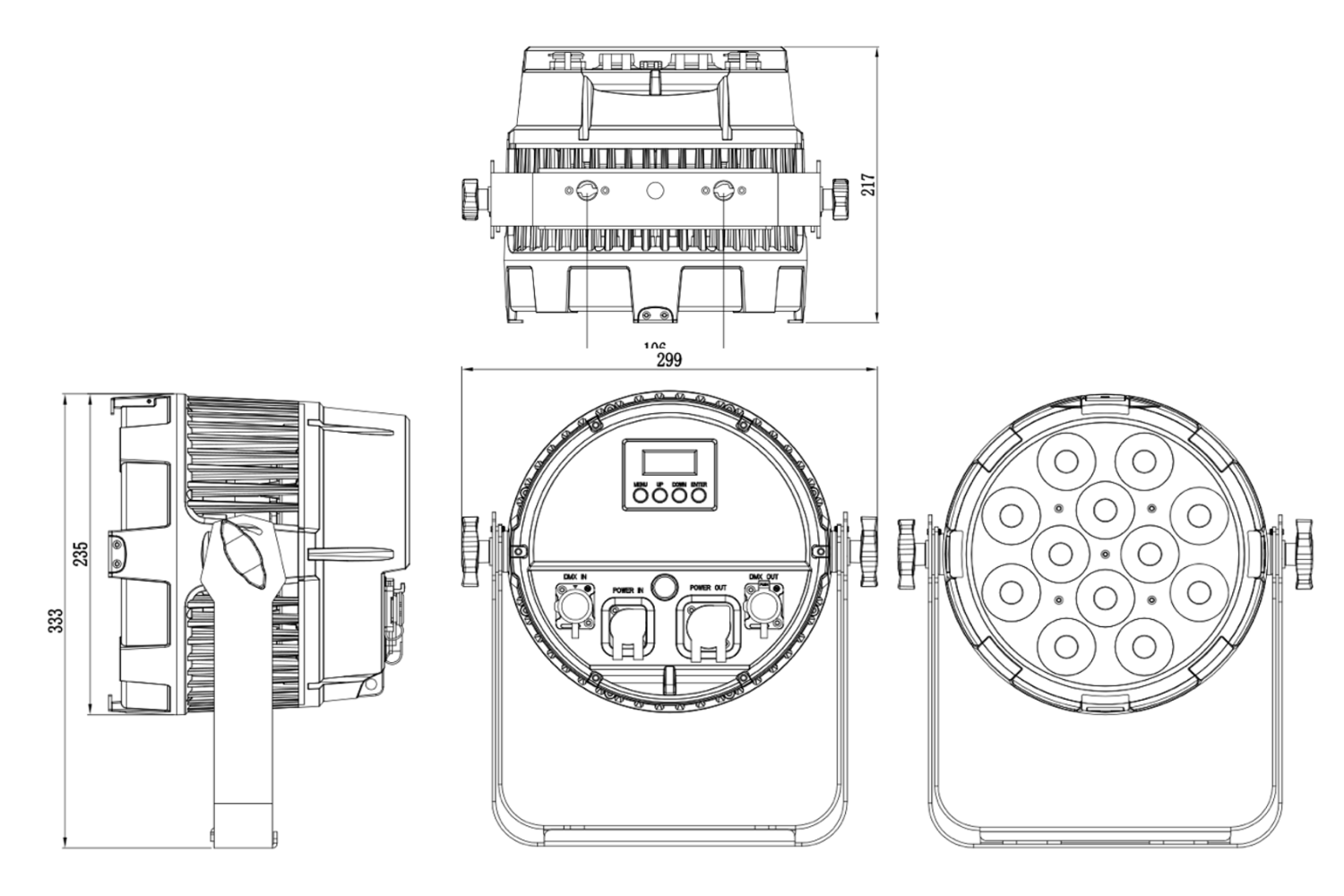

• Dimensions: 299 × 217 × 333 mm (11.8″ × 8.5″ × 13.1″)
• Weight: 6.5 kg (14.3 lbs)

Rigging

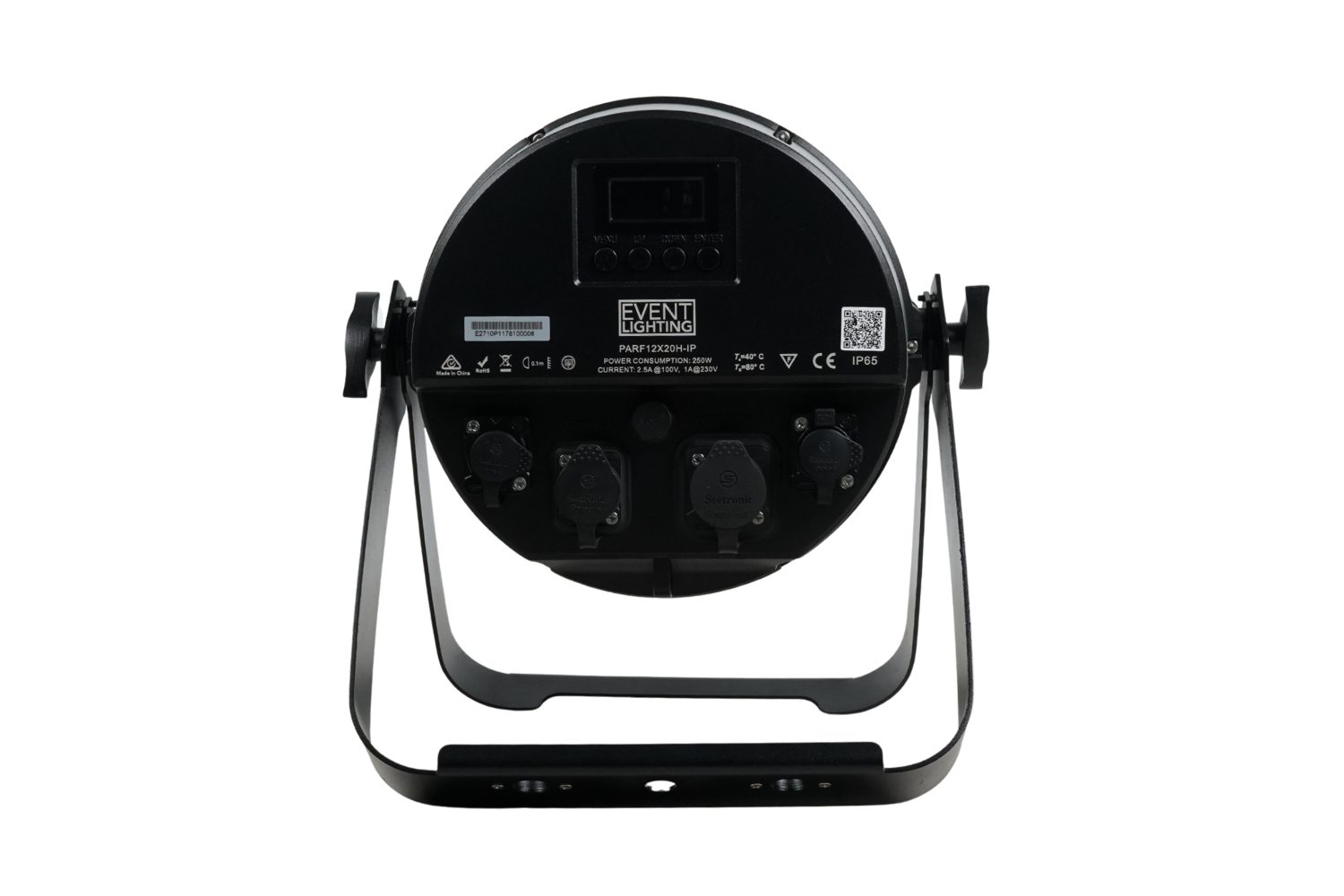

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for fast and secure installation.

Warranty

• Supported by a 3-year manufacturer warranty for dependable long-term performance.
