ST2406 – 2440mm x 610mm Stage Top with rail lock system & recessed stage skirt velcro

ST2406 – 2440mm x 610mm Modular Stage Platform with Rail Lock System

The ST2406 is a professional modular stage platform designed for concerts, exhibitions, corporate events, fashion shows, schools, and performance venues. Its narrow format makes it ideal for catwalks, stage extensions, walkways, risers, and custom staging configurations where flexibility and space efficiency are required.

Constructed with a durable aluminum frame and premium 18mm plywood deck, the platform provides exceptional strength and stability while remaining lightweight enough for efficient transport and installation. The integrated rail lock system ensures secure stage assembly, while the anti-skid black hex pattern surface enhances safety for performers and event personnel. A recessed Velcro channel allows clean and professional stage skirt attachment for a polished event presentation.

Key Features

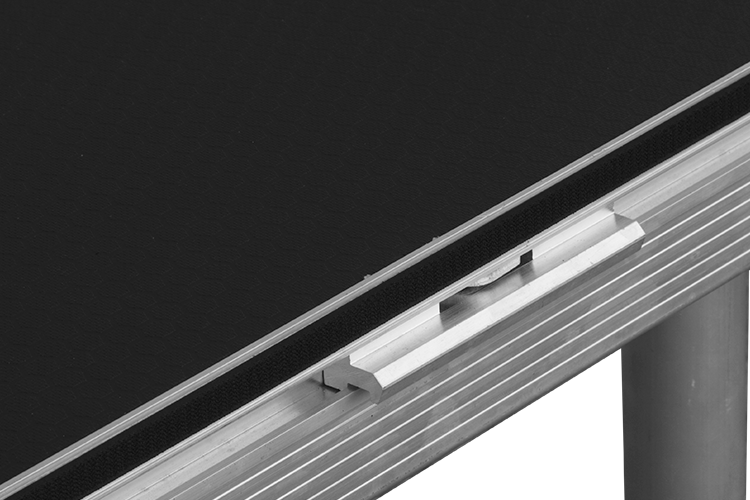

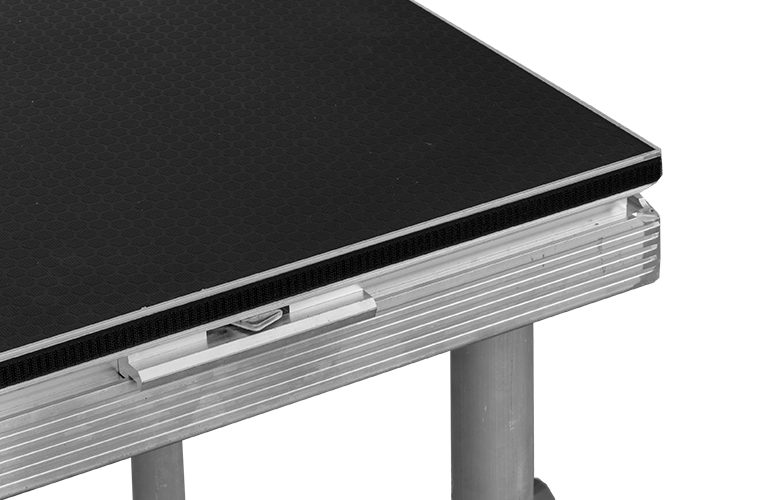

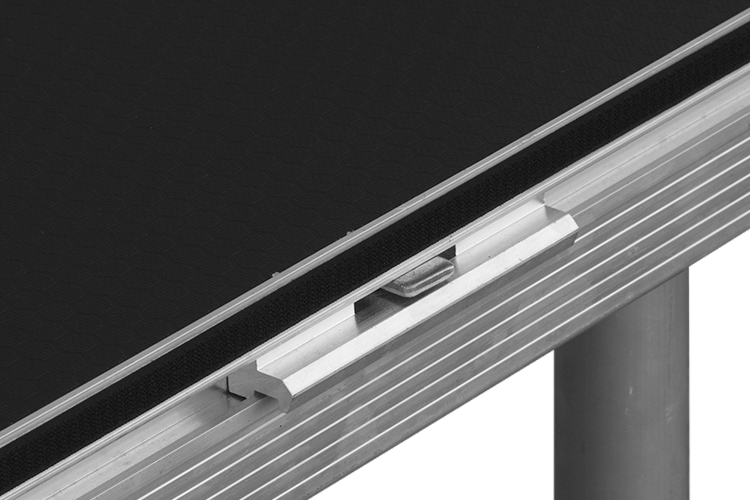

• Secure rail lock system for fast and reliable assembly
• Anti-skid black hex pattern surface for enhanced safety
• Recessed Velcro channel for stage skirt installation
• Heavy-duty aluminum frame with durable plywood construction
• Ideal for catwalks, walkways, risers, and modular staging systems

Construction & Specifications

• Platform Size: 2440mm × 610mm
• Materials: 18mm Plywood and Aluminum Frame
• Surface Finish: Anti-Skid Black Hex Pattern
• Safe Working Load (SWL): 750 kg/m² (153.61 lb/ft²)
• Certification: TÜV Rated
• Dimensions (L × W × H): 2440 × 610 × 80 mm (96.06″ × 24.02″ × 3.15″)
• Weight: 28.40 kg (62 lbs 9.78 oz)
• Leg Requirement: 6 stage legs required (sold separately)

Applications

Suitable for catwalk stages, stage extensions, event walkways, exhibition platforms, school performances, theatres, churches, and portable staging systems requiring a narrow-format platform.

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance.
