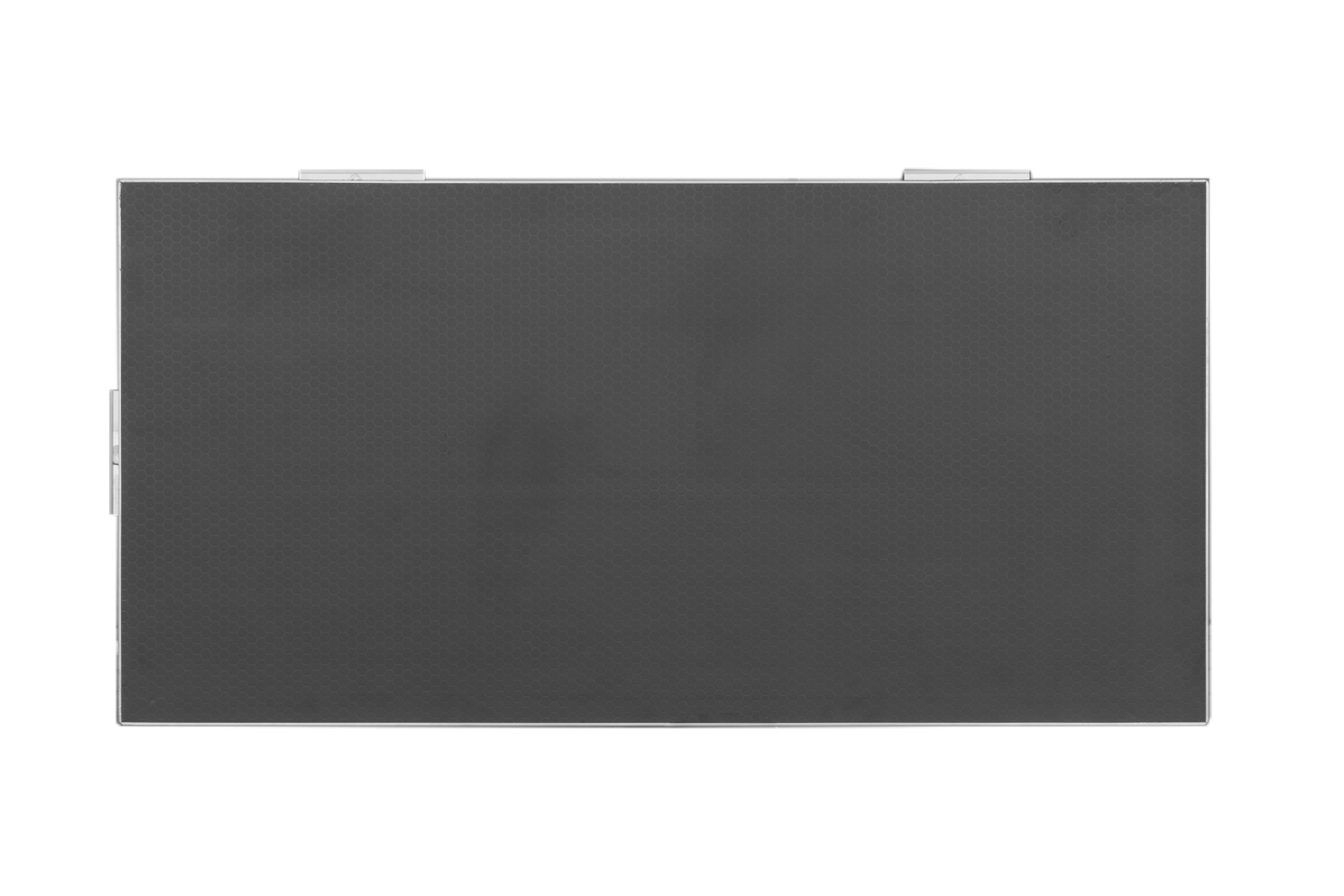

ST1209 – 1220mm x 915mm Stage Top with rail lock system & recessed stage skirt velcro

ST1209 – 1220mm x 915mm Modular Stage Platform with Rail Lock System

The ST1209 is a compact and versatile modular stage platform designed for conferences, exhibitions, schools, churches, theatres, corporate events, and portable staging applications. Its practical size makes it ideal for creating custom stage layouts, risers, presentation platforms, and performance stages where flexibility and efficient space utilization are important.

Constructed from a durable aluminum frame and premium 18mm plywood deck, the platform delivers excellent strength, stability, and long-lasting performance. The anti-skid black hex pattern surface provides enhanced safety for performers and event staff, while the integrated rail lock system ensures quick and secure stage assembly. The recessed Velcro channel allows professional stage skirt installation, helping create a clean and polished event presentation.

Key Features

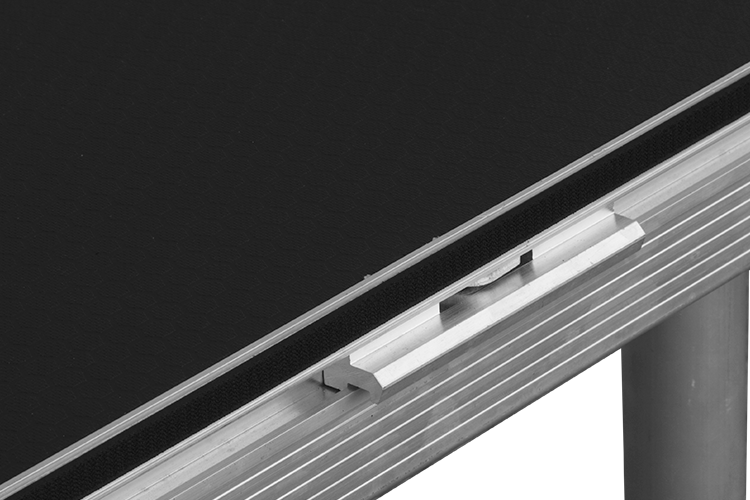

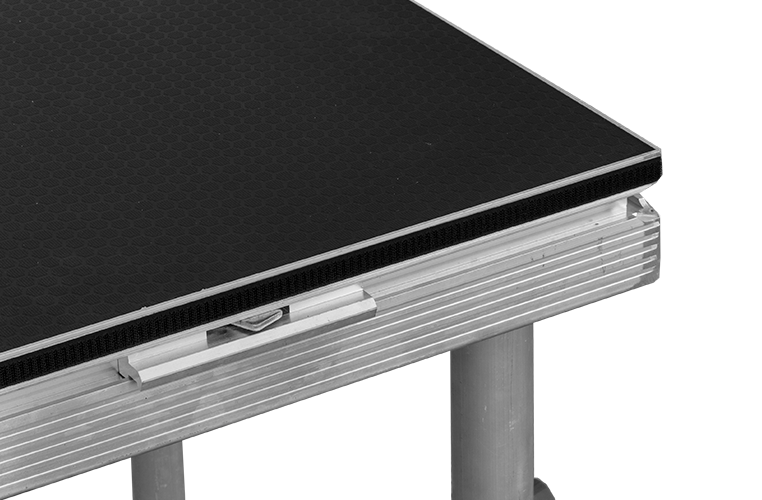

• Secure rail lock system for fast and stable stage assembly
• Anti-skid black hex pattern surface for improved safety
• Recessed Velcro channel for stage skirt attachment
• Heavy-duty aluminum frame with durable plywood construction
• Ideal for portable and modular stage systems

Construction & Specifications

• Platform Size: 1220mm × 915mm
• Materials: 18mm Plywood and Aluminum Frame
• Surface Finish: Anti-Skid Black Hex Pattern
• Safe Working Load (SWL): 750 kg/m² (153.61 lb/ft²)
• Certification: TÜV Rated
• Dimensions (L × W × H): 1220 × 915 × 80 mm (48.03″ × 36.02″ × 3.15″)
• Weight: 22.00 kg (48 lbs 8.03 oz)
• Leg Requirement: 4 stage legs required (sold separately)

Applications

Suitable for conference stages, school performances, exhibitions, church platforms, corporate presentations, fashion events, entertainment venues, and custom modular staging configurations.

Warranty

• Backed by a 3-year manufacturer warranty for reliable long-term performance.
