PAR18X4QL-IP – Outdoor Lite Par with 18 x 4W RGBW LEDs

PAR18X4QL-IP – Outdoor Lite PAR with 18 x 4W RGBW LEDs

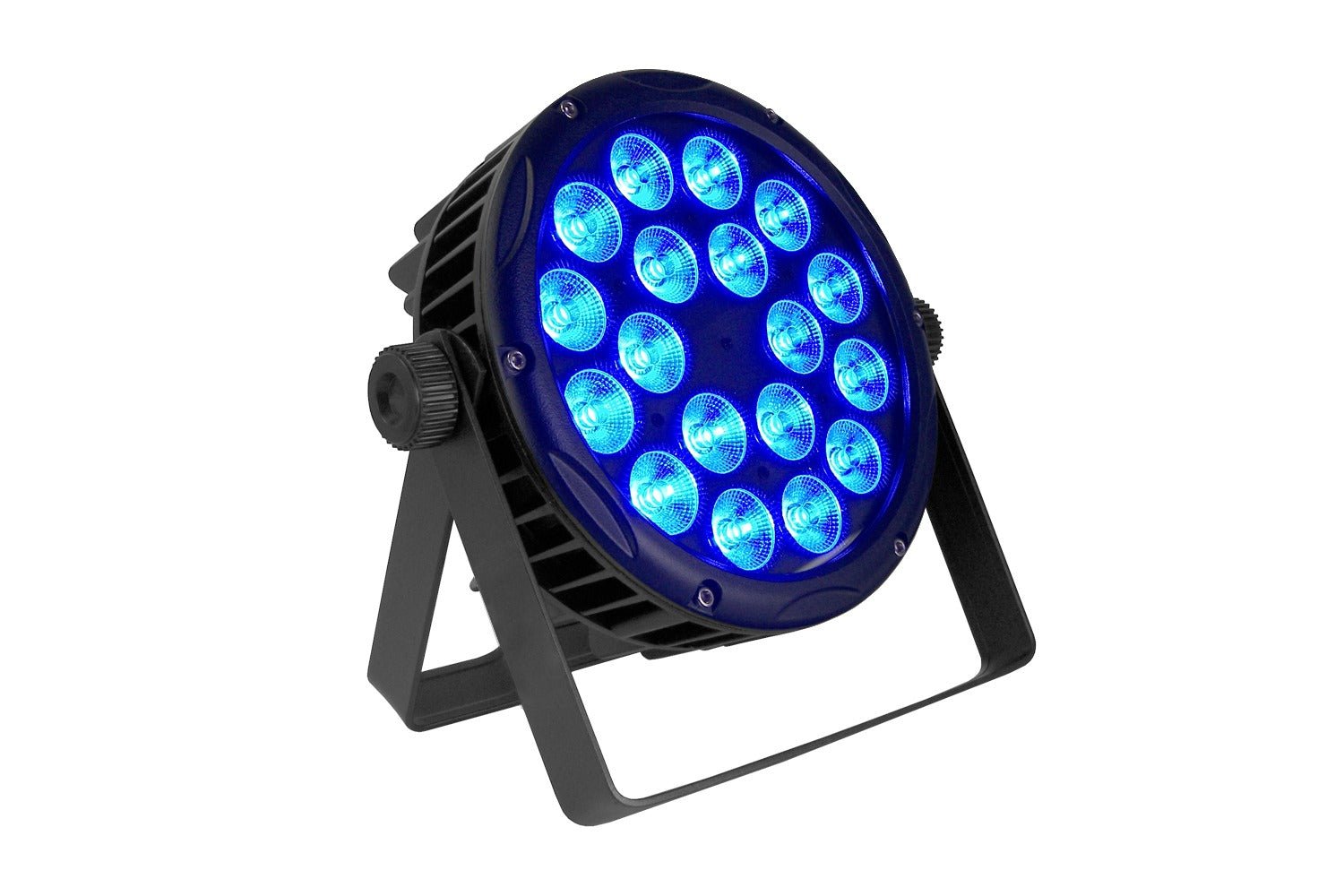

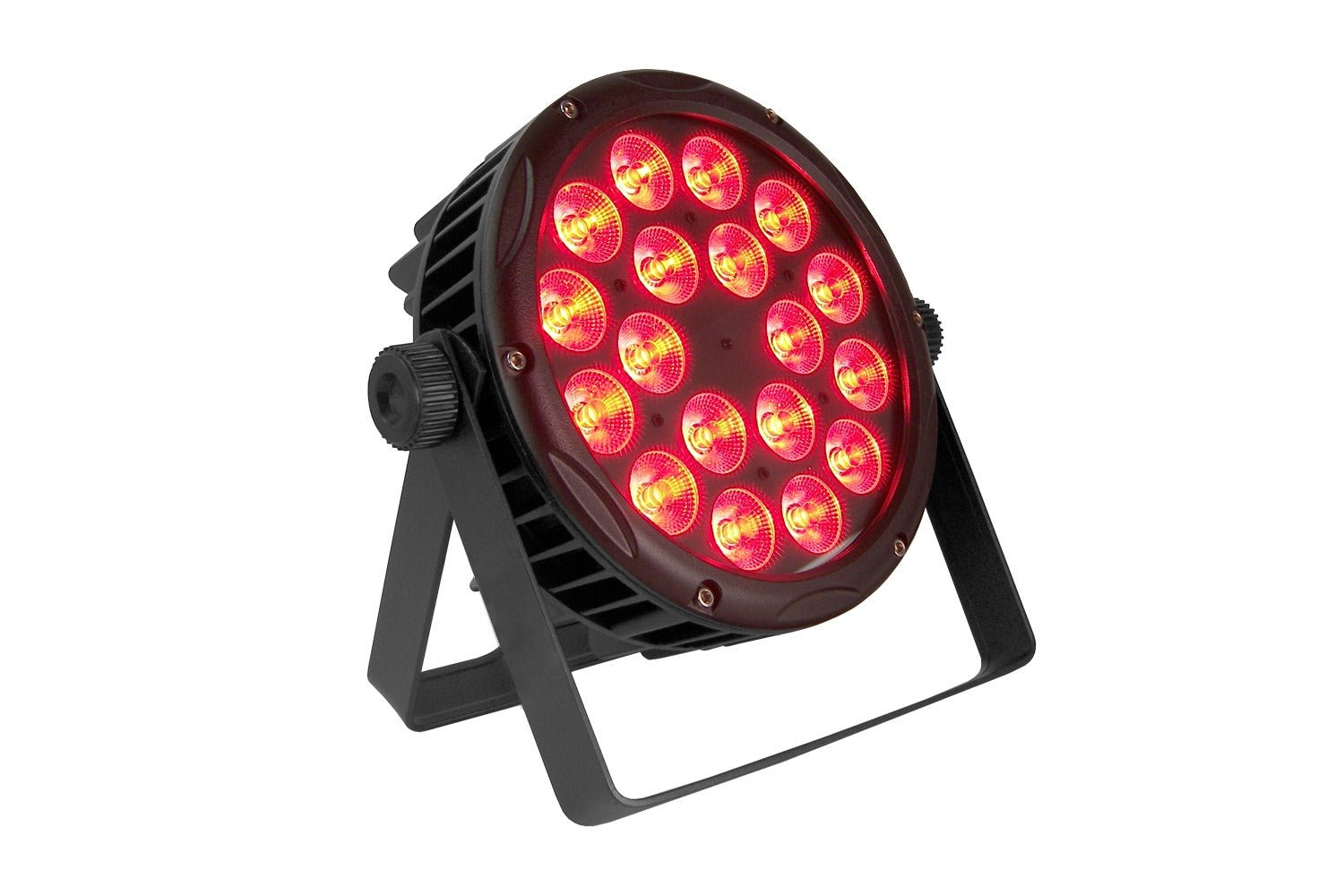

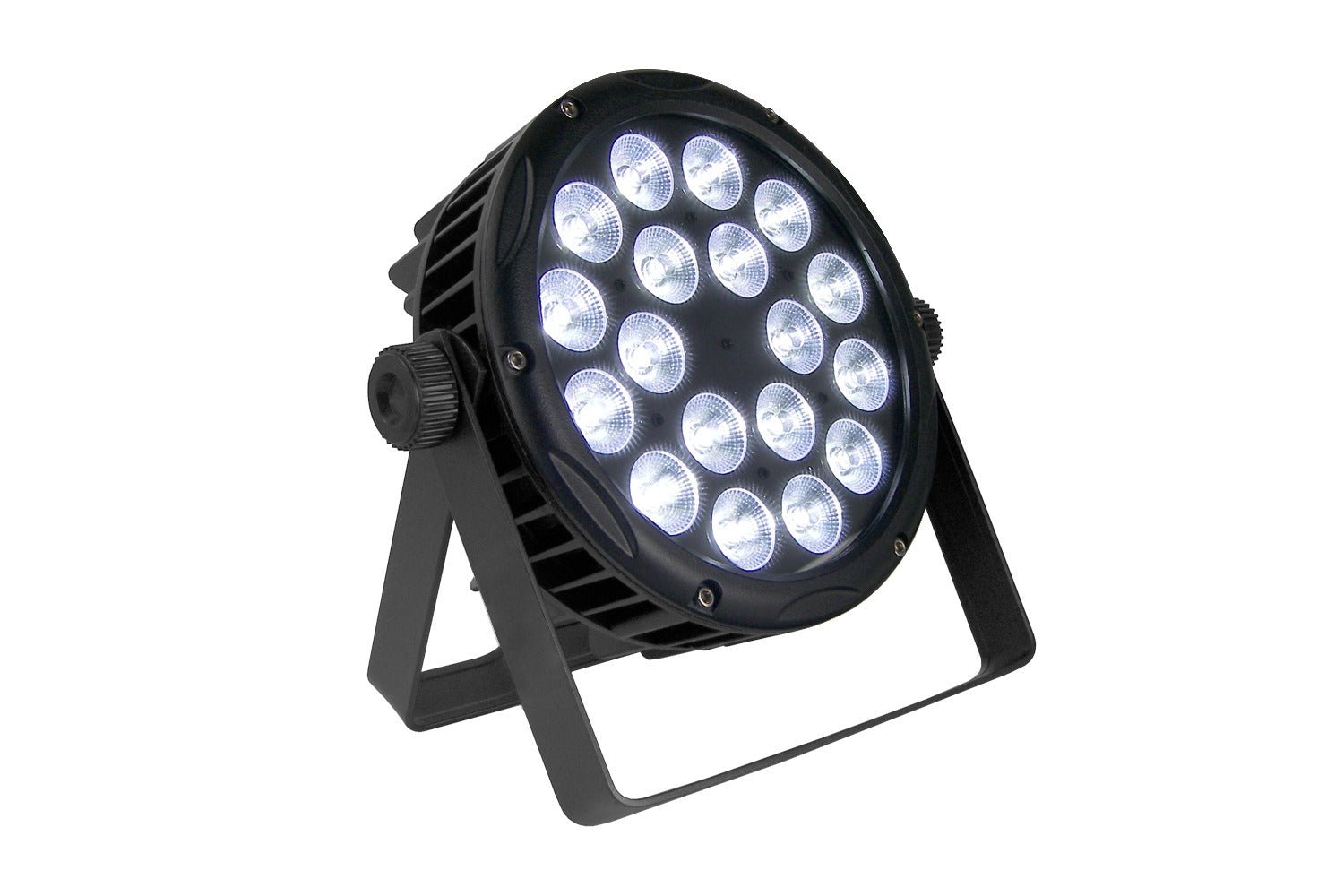

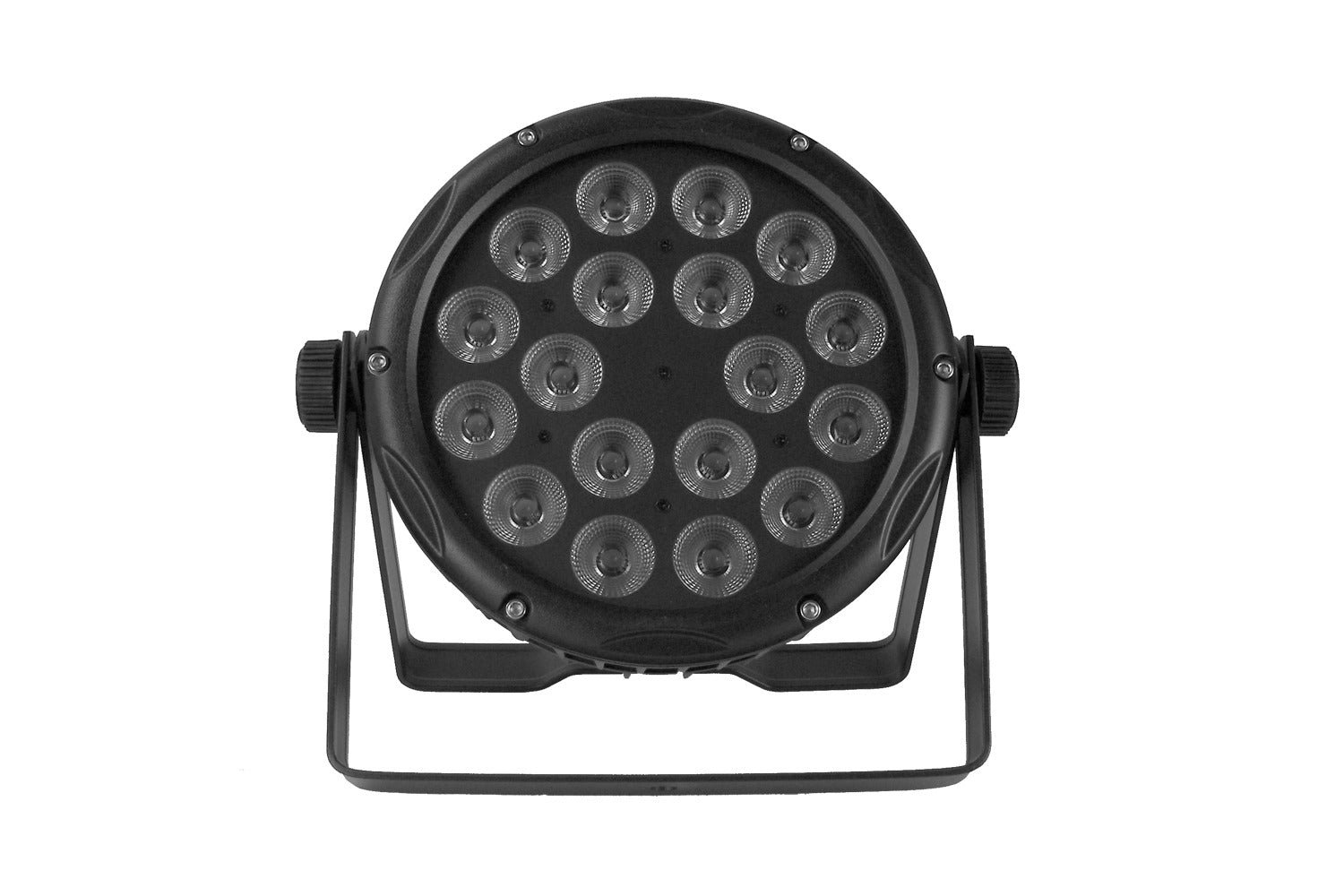

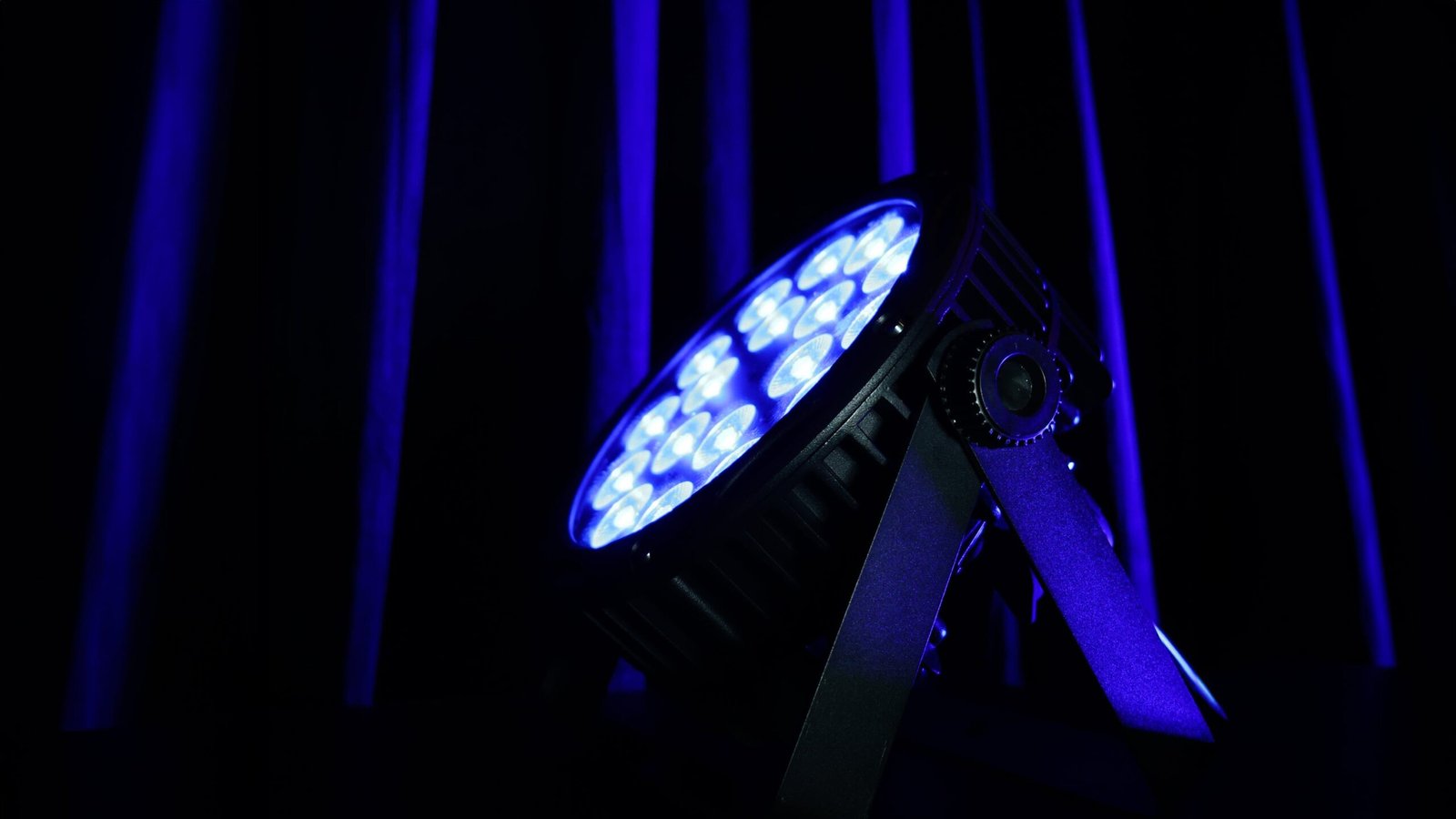

The PAR18X4QL-IP is a compact and reliable outdoor-rated LED PAR fixture designed for architectural lighting, outdoor events, stage productions, landscape illumination, and entertainment applications. Equipped with 18 high-efficiency 4W RGBW 4-in-1 LEDs, it delivers vibrant color mixing, smooth wash effects, and dependable performance in a durable IP65-rated housing.

Built for versatility and ease of use, the fixture supports multiple operating modes including DMX, Auto, Sound Active, Manual, and Master/Slave operation. Its rugged die-cast aluminum construction and weather-resistant design make it suitable for both temporary outdoor events and permanent installations.

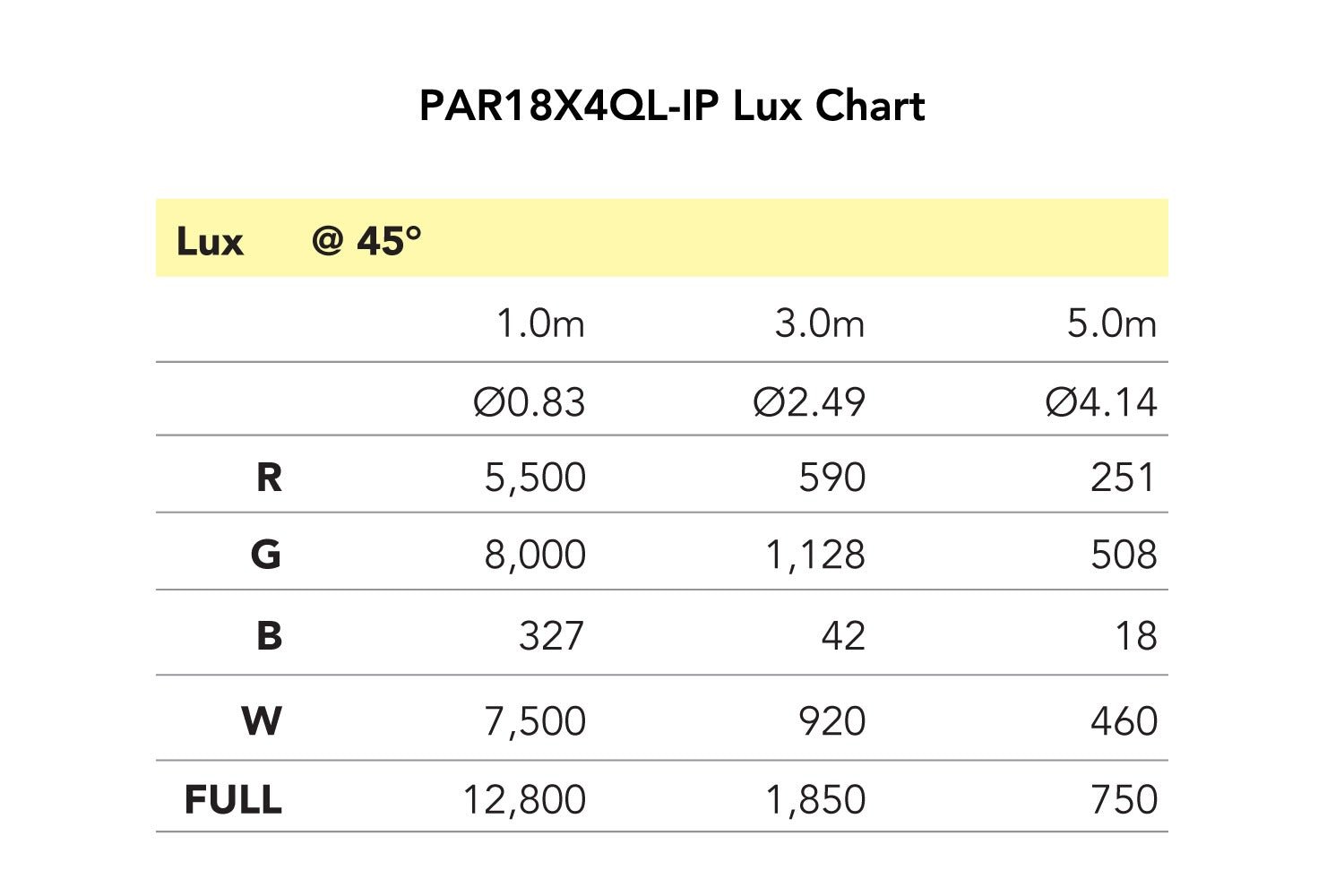

Photometric Specifications

• Light Source: 18 × 4W RGBW 4-in-1 LEDs
• Beam Angle: 45°
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 0–100% linear dimming
• Strobe Effect: Adjustable from 1Hz to 30Hz
• Color Mixing: RGBW technology for vibrant colors and smooth color transitions

Control & Connectivity

• Control Protocol: DMX512
• DMX Channel Modes: 4CH and 8CH
• Operating Modes: DMX, Auto, Manual, Sound Active, and Master/Slave

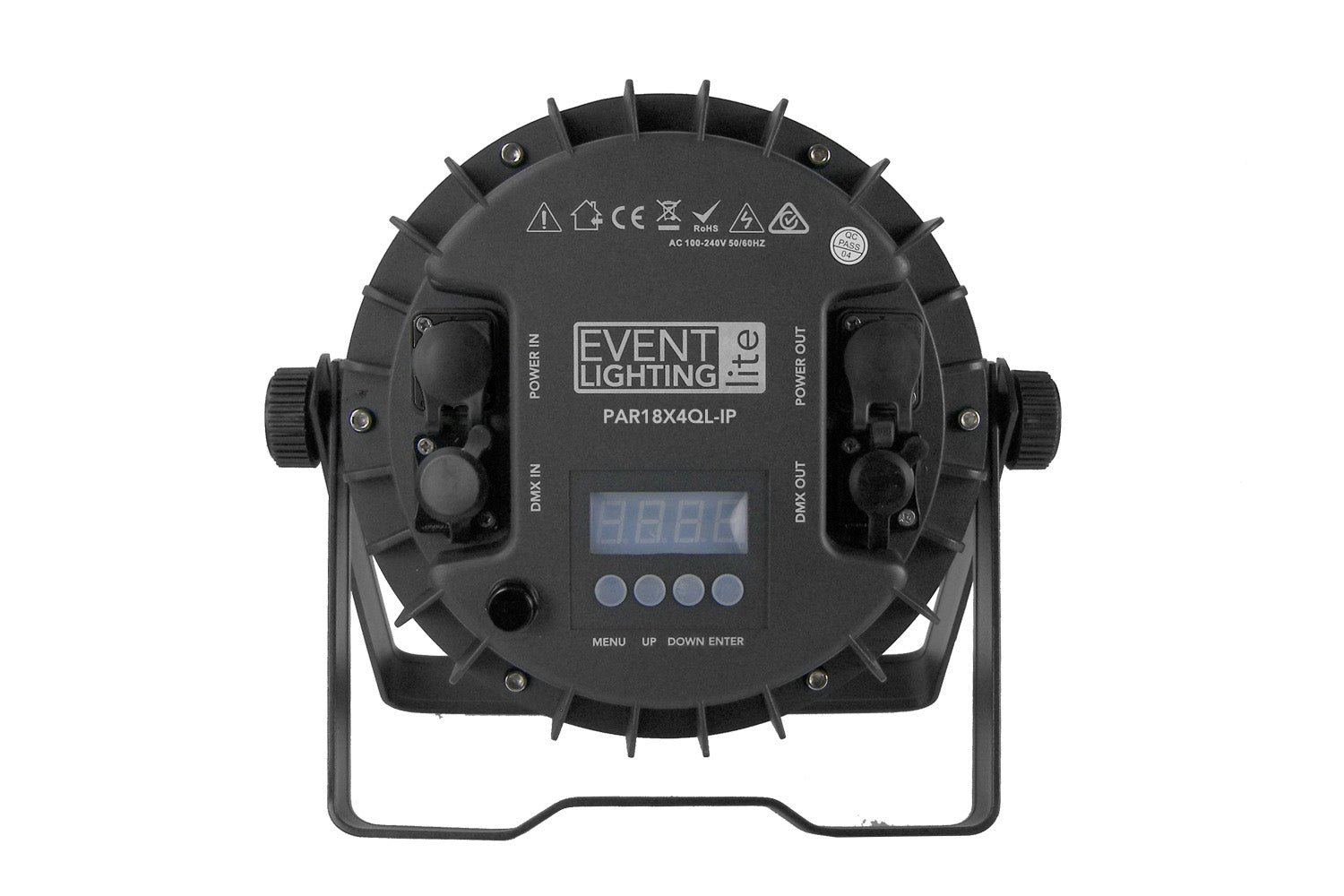

• DMX Interface: 3-pin XLR input and output
• Display: 4-button LED control panel

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 100W
• Power Connection: True1 input and output

Construction & Durability

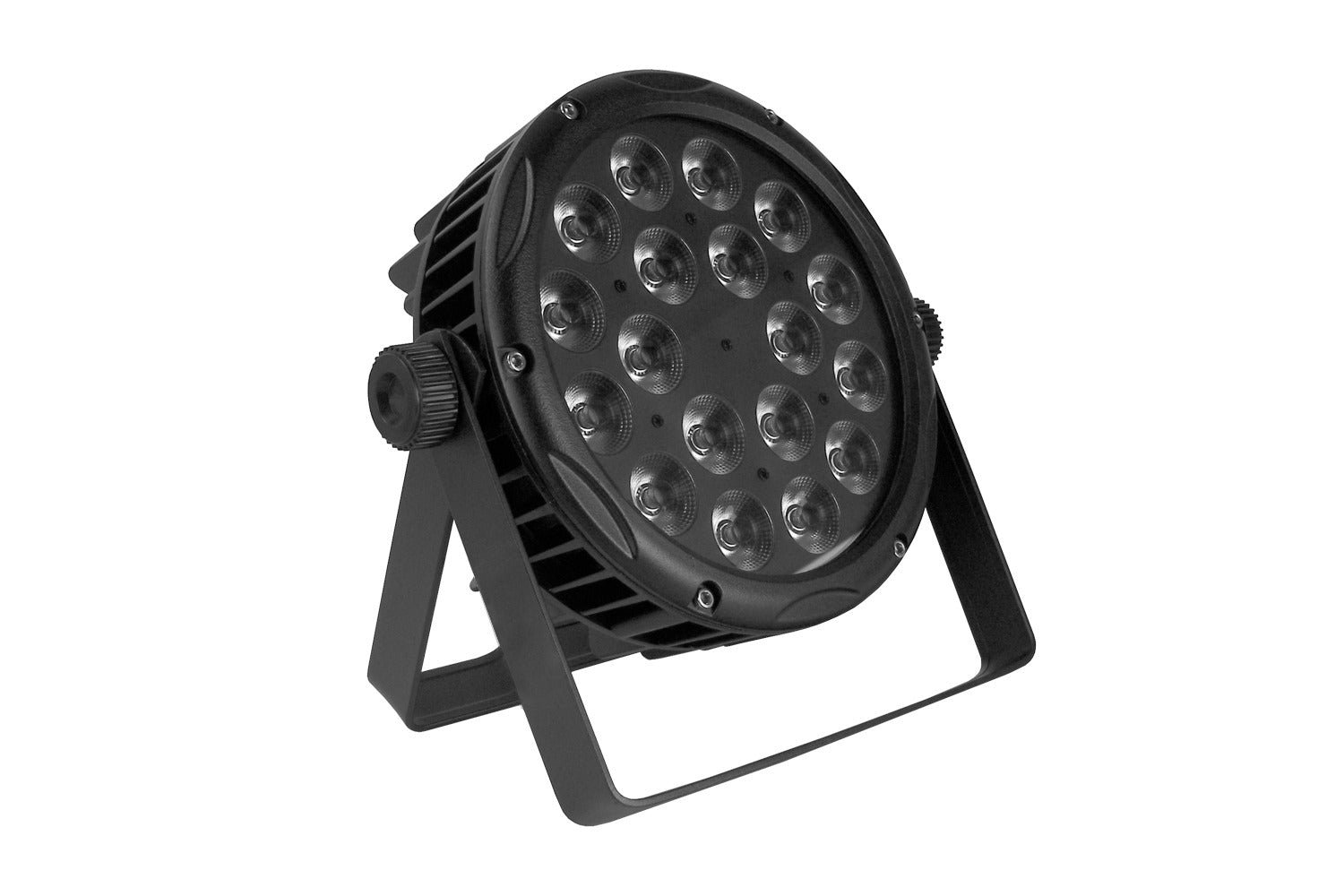

• Housing Material: Die-cast aluminum
• Finish: Matte black
• IP Rating: IP65 weather-resistant design

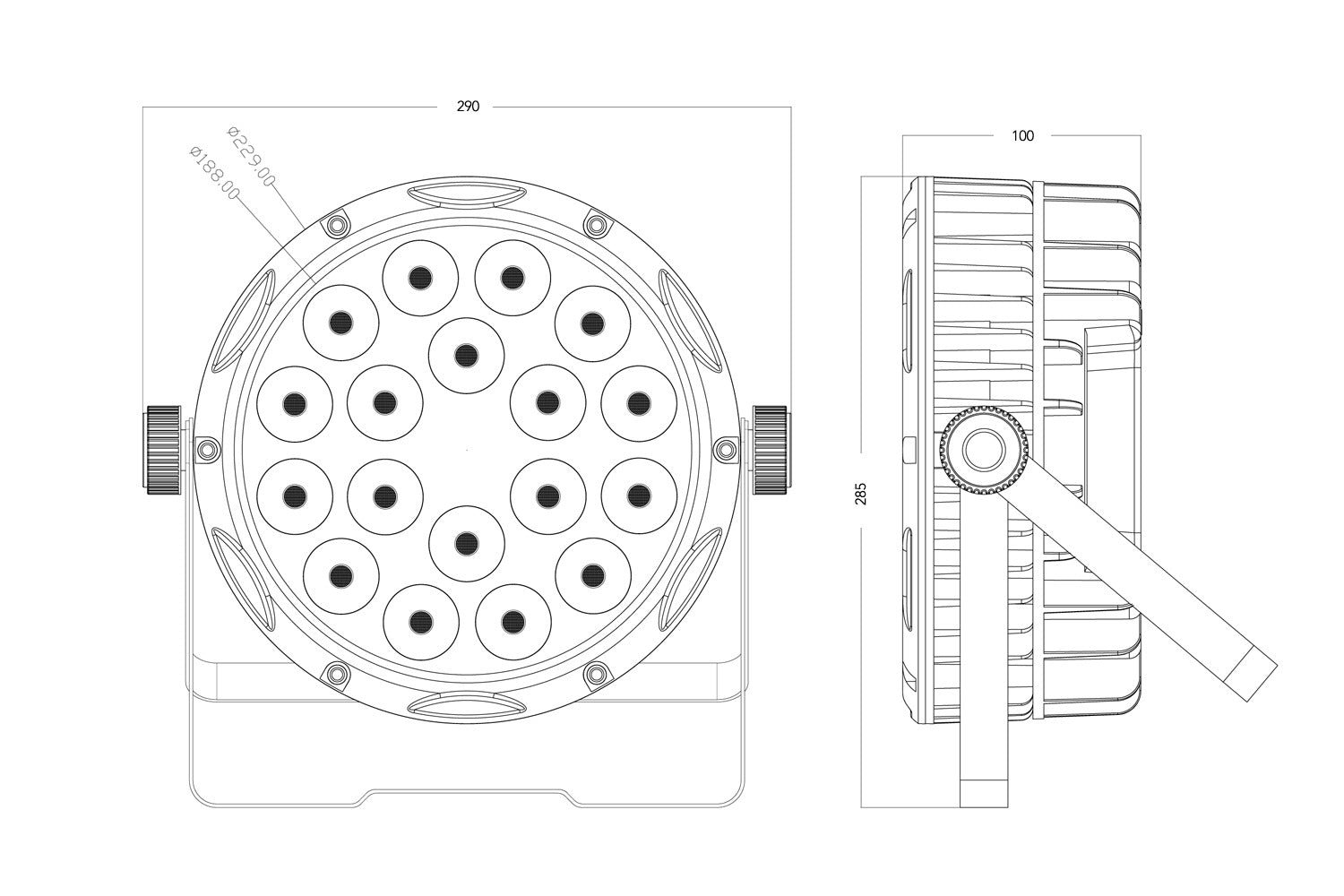

• Dimensions: 290 × 285 × 100 mm
• Weight: 2.0 kg

Applications

Ideal for outdoor events, architectural lighting, building facades, landscape lighting, stage productions, festivals, live performances, and permanent lighting installations.

Warranty

• Backed by a manufacturer warranty for dependable long-term performance and reliability.
