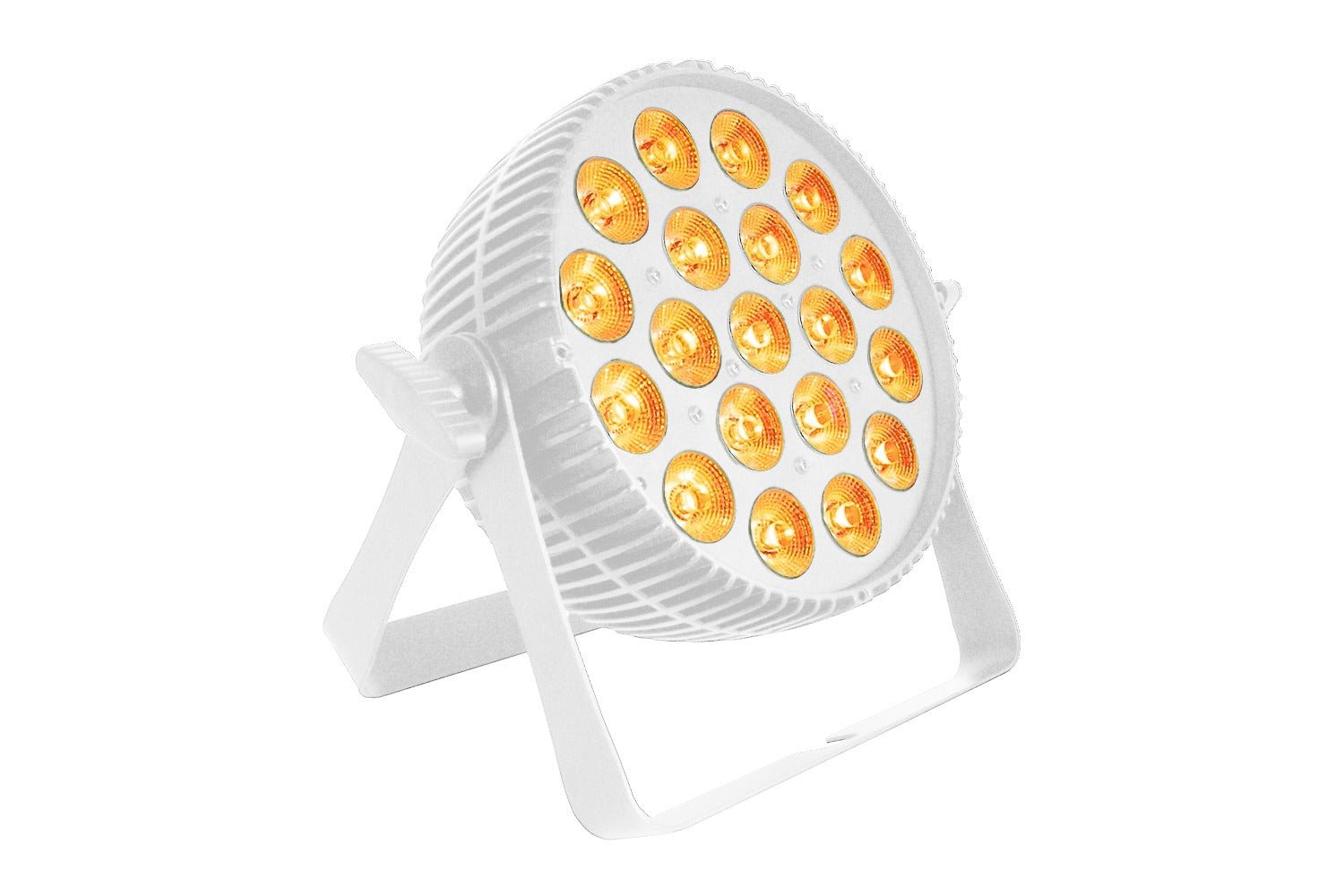

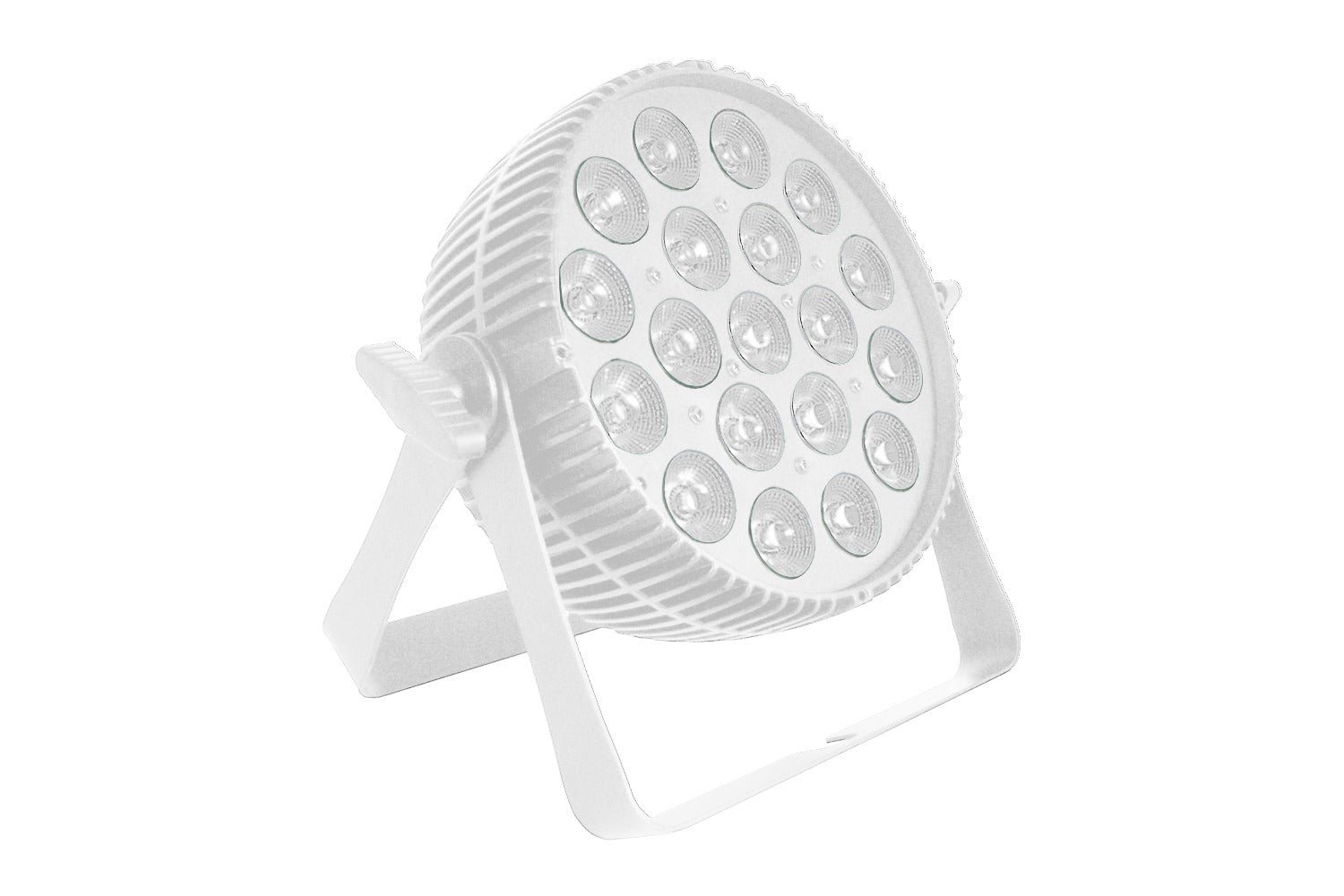

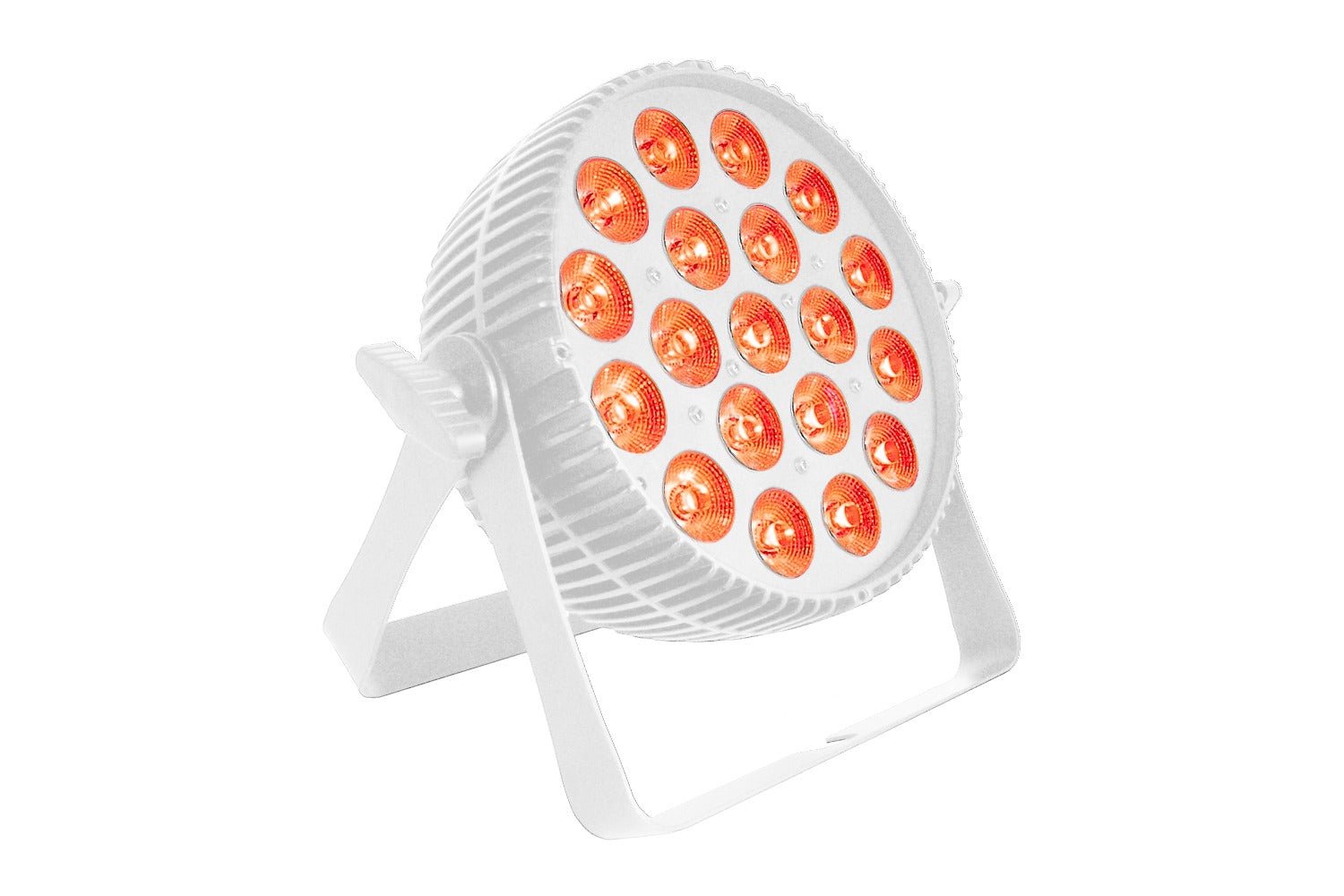

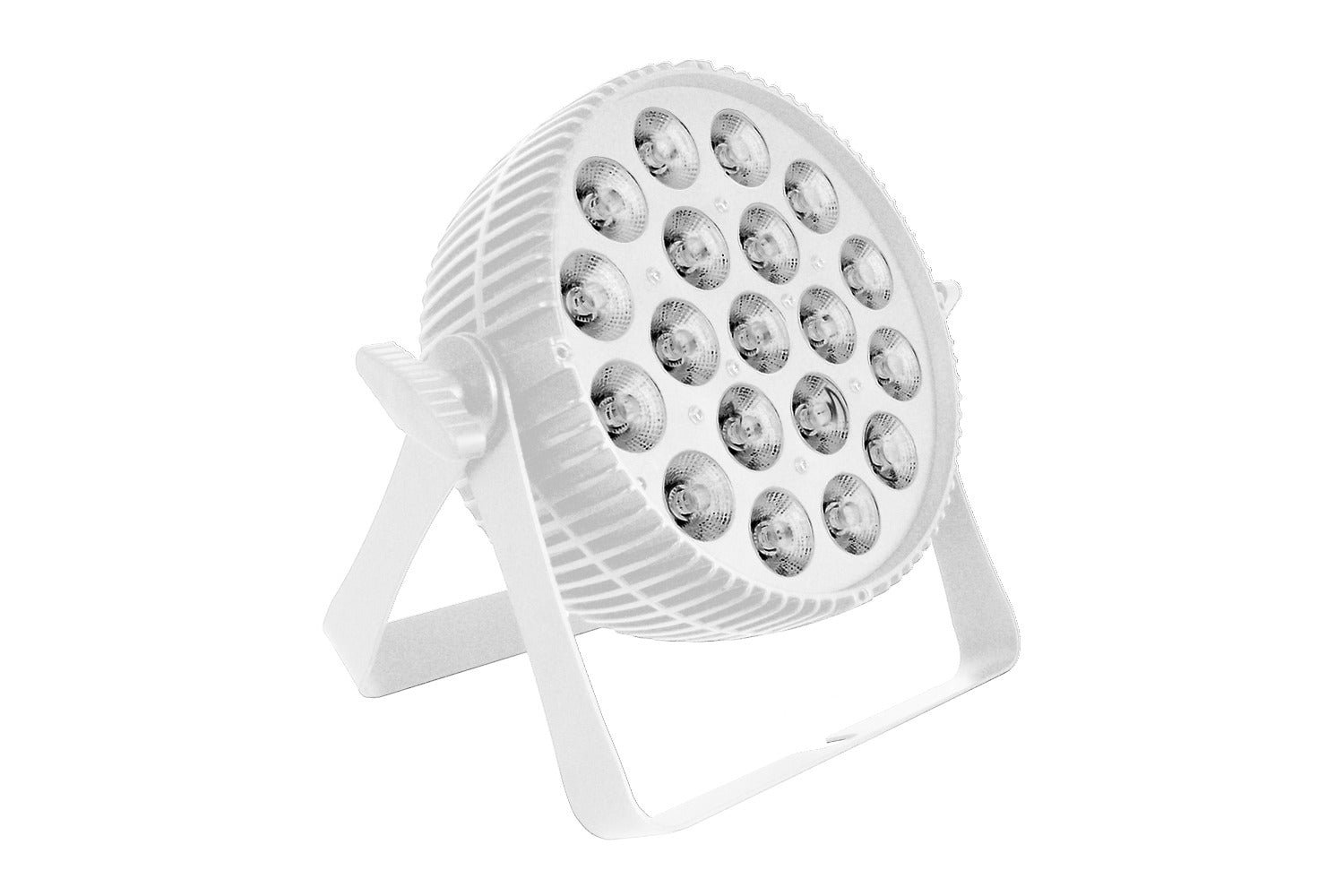

PAR19X12L-WH – Indoor Lite Par with 19 x 12W RGBWAU LEDs (White)

PAR19X12L-WH – Indoor Lite PAR with 19 x 12W RGBWAU LEDs (White)

The PAR19X12L-WH is a compact and powerful LED PAR fixture designed for weddings, churches, event venues, stage productions, architectural lighting, and entertainment applications. Featuring 19 high-output 12W RGBWAU 6-in-1 LEDs, it delivers vibrant color mixing, rich pastel tones, UV effects, and smooth color washes in a lightweight and easy-to-use design.

Built with a durable matte white die-cast aluminum housing, the fixture blends seamlessly into elegant event spaces and architectural environments. With built-in programs, IR remote control capability, fanless cooling, and multiple operating modes, the PAR19X12L-WH offers a reliable and versatile lighting solution for both professional and mobile lighting applications.

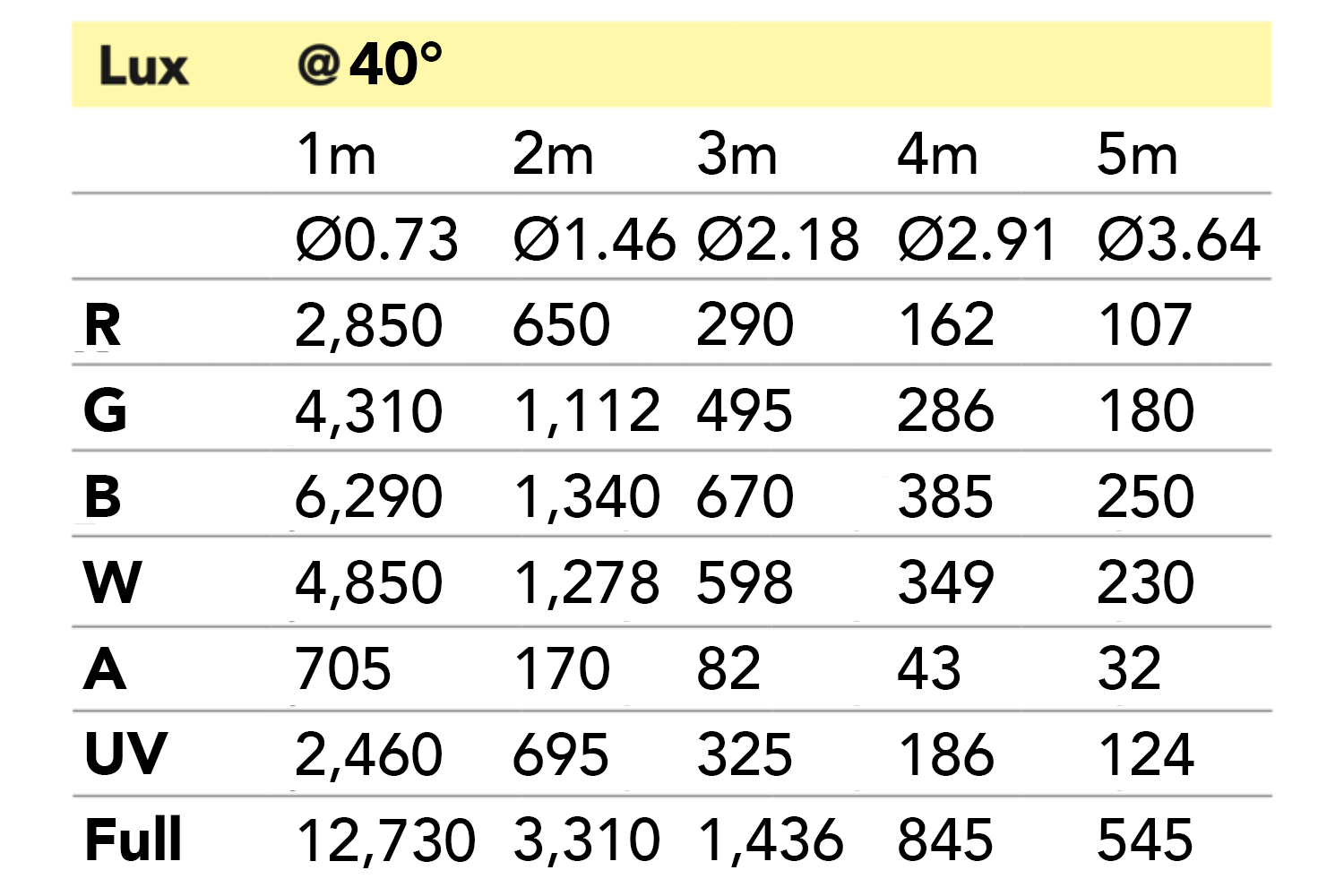

Photometric Specifications

• Light Source: 19 × 12W RGBWAU 6-in-1 LEDs
• Beam Angle: 40°
• PWM Frequency: 20,000Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 0%–100% dimming control
• Strobe Effect: Adjustable from 1Hz to 20Hz

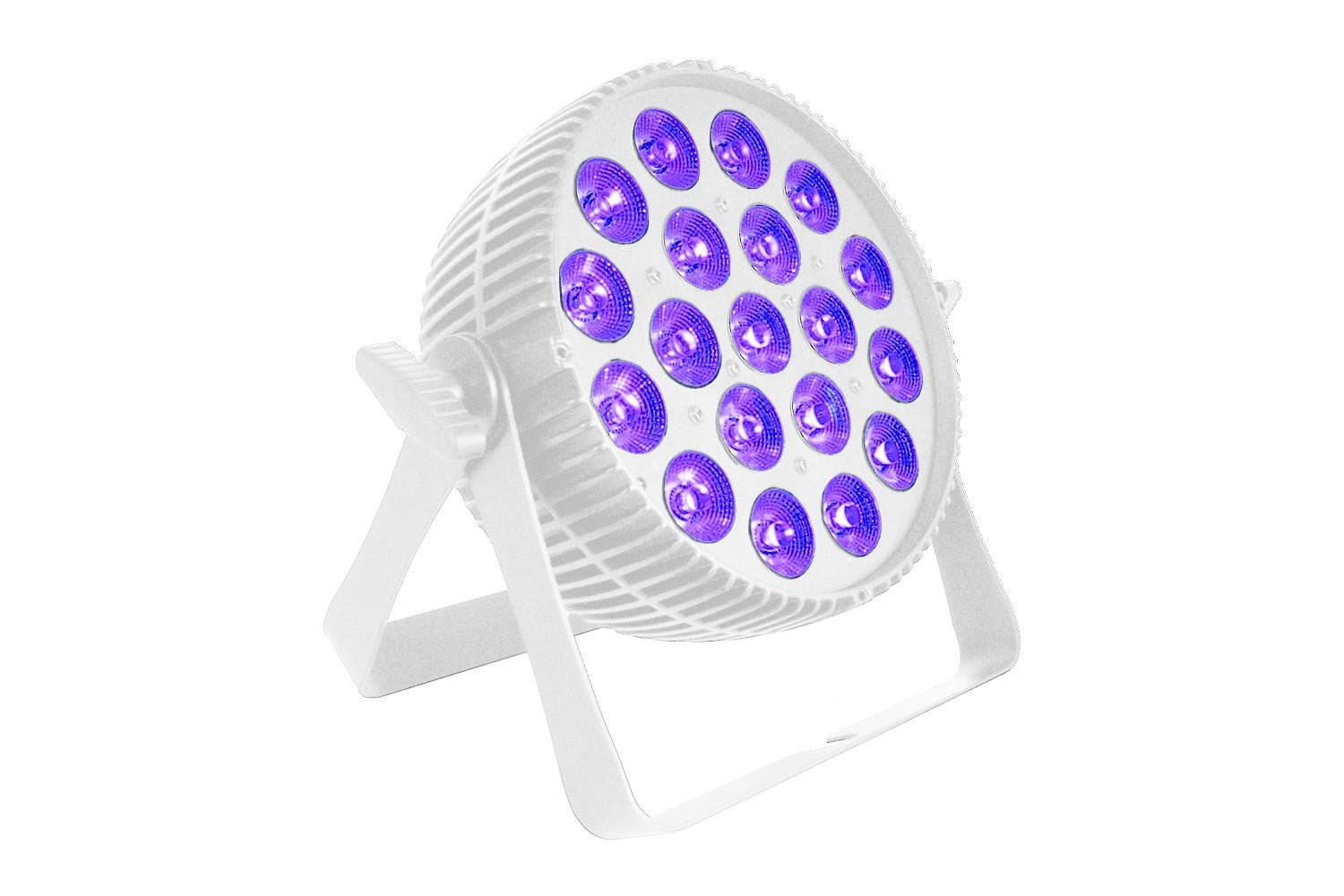

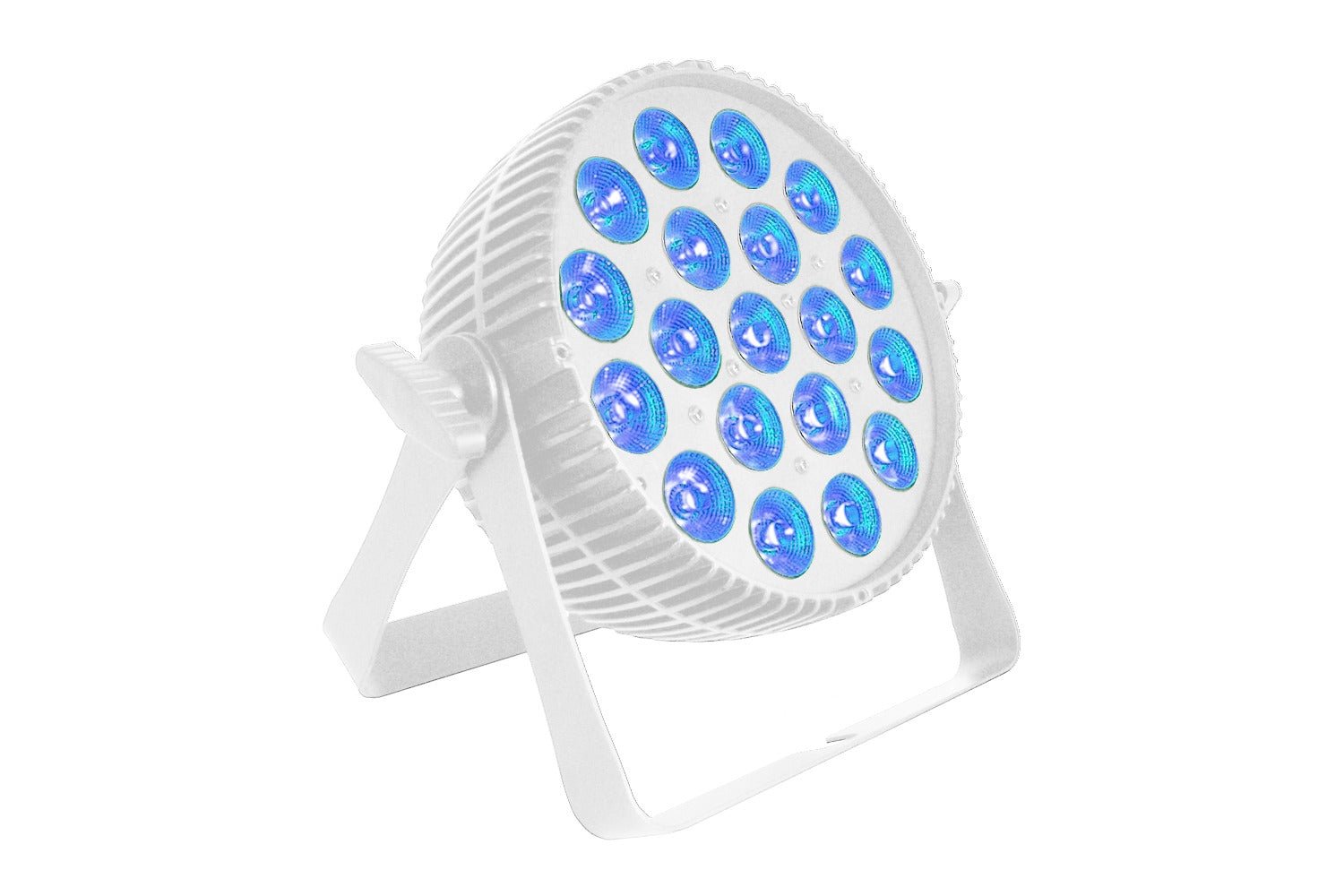

• Color Mixing: RGBWAU technology for vibrant colors, warm tones, and UV effects
• Built-In Programs: Integrated lighting programs for easy operation

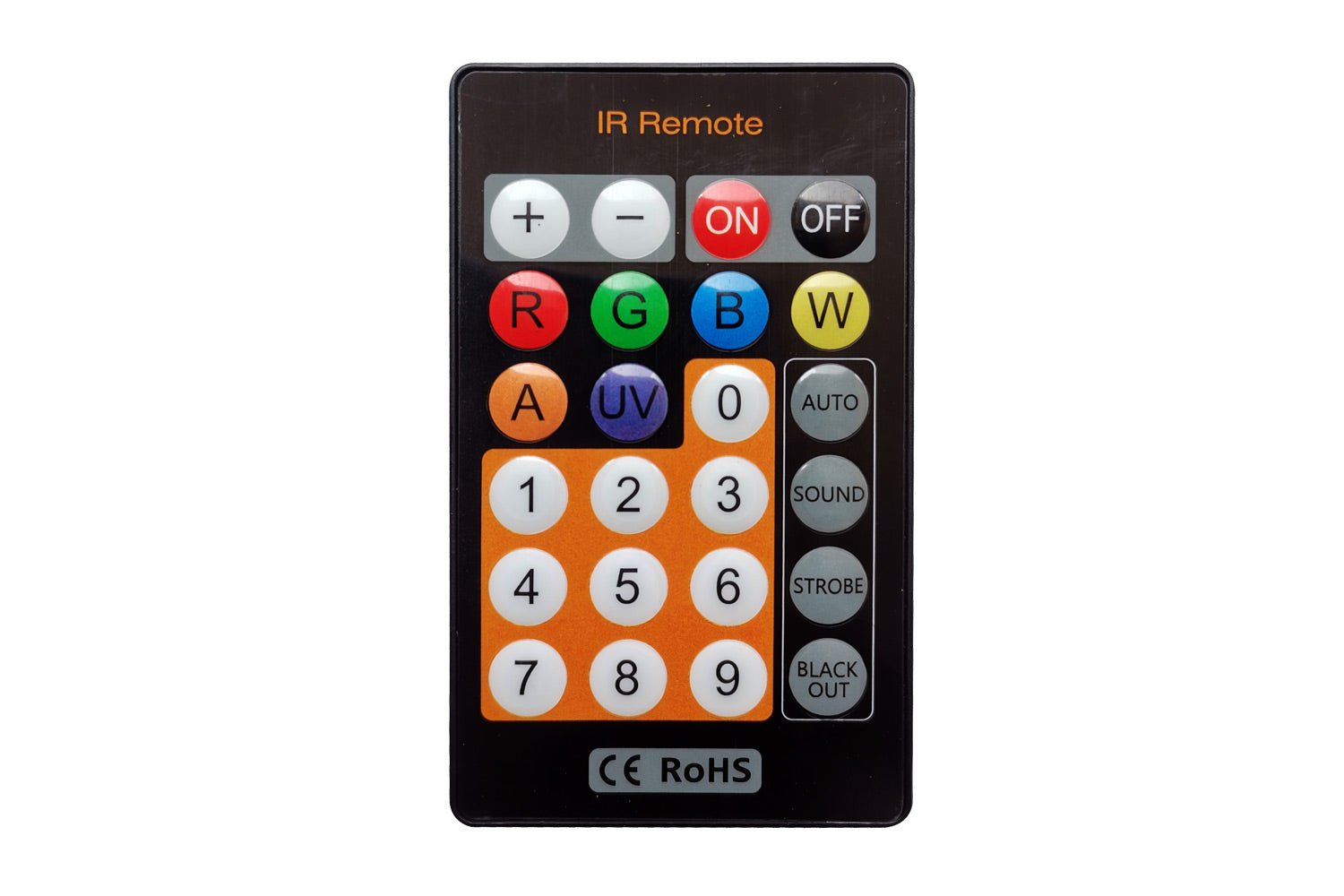

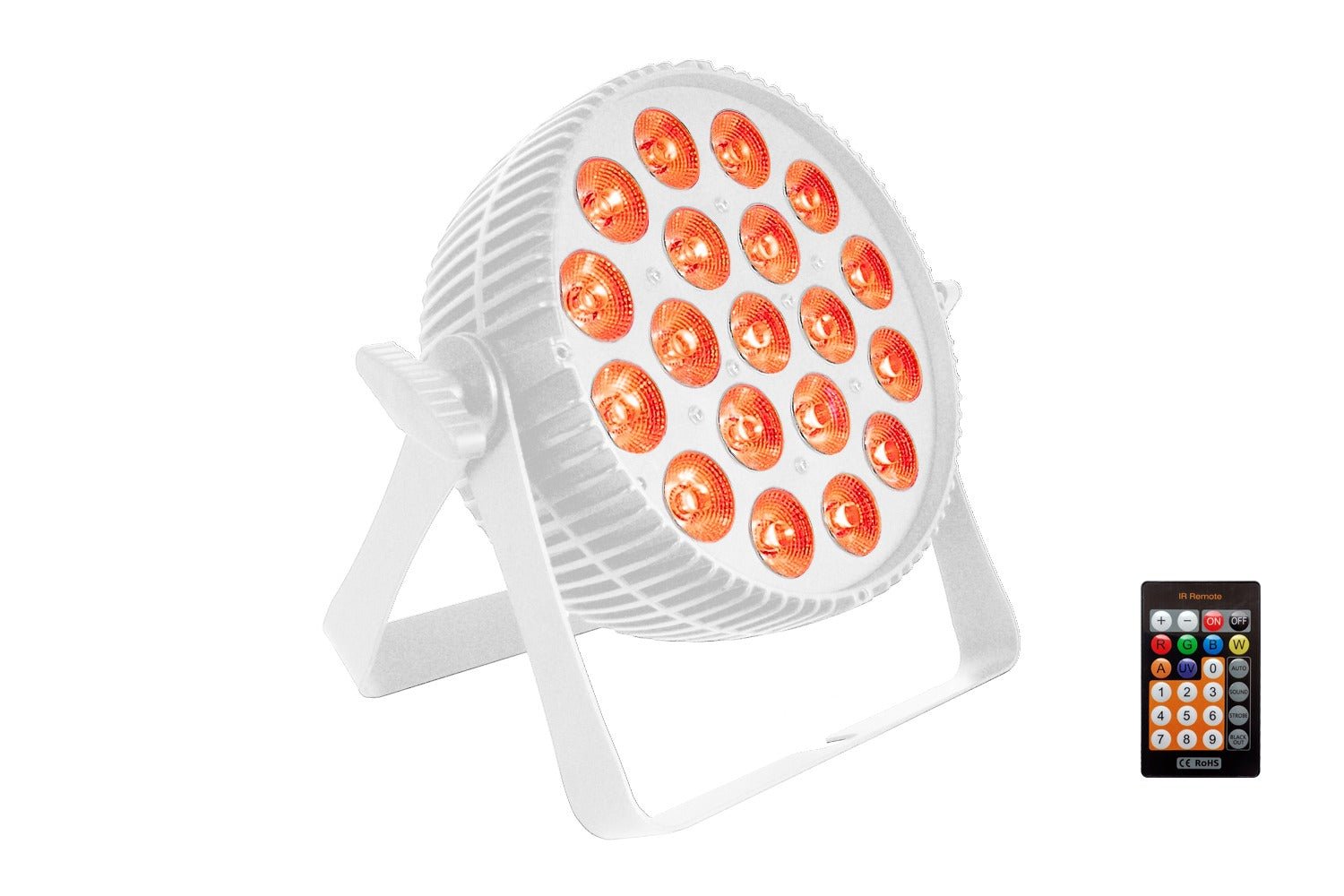

• IR Remote Control: Convenient wireless operation

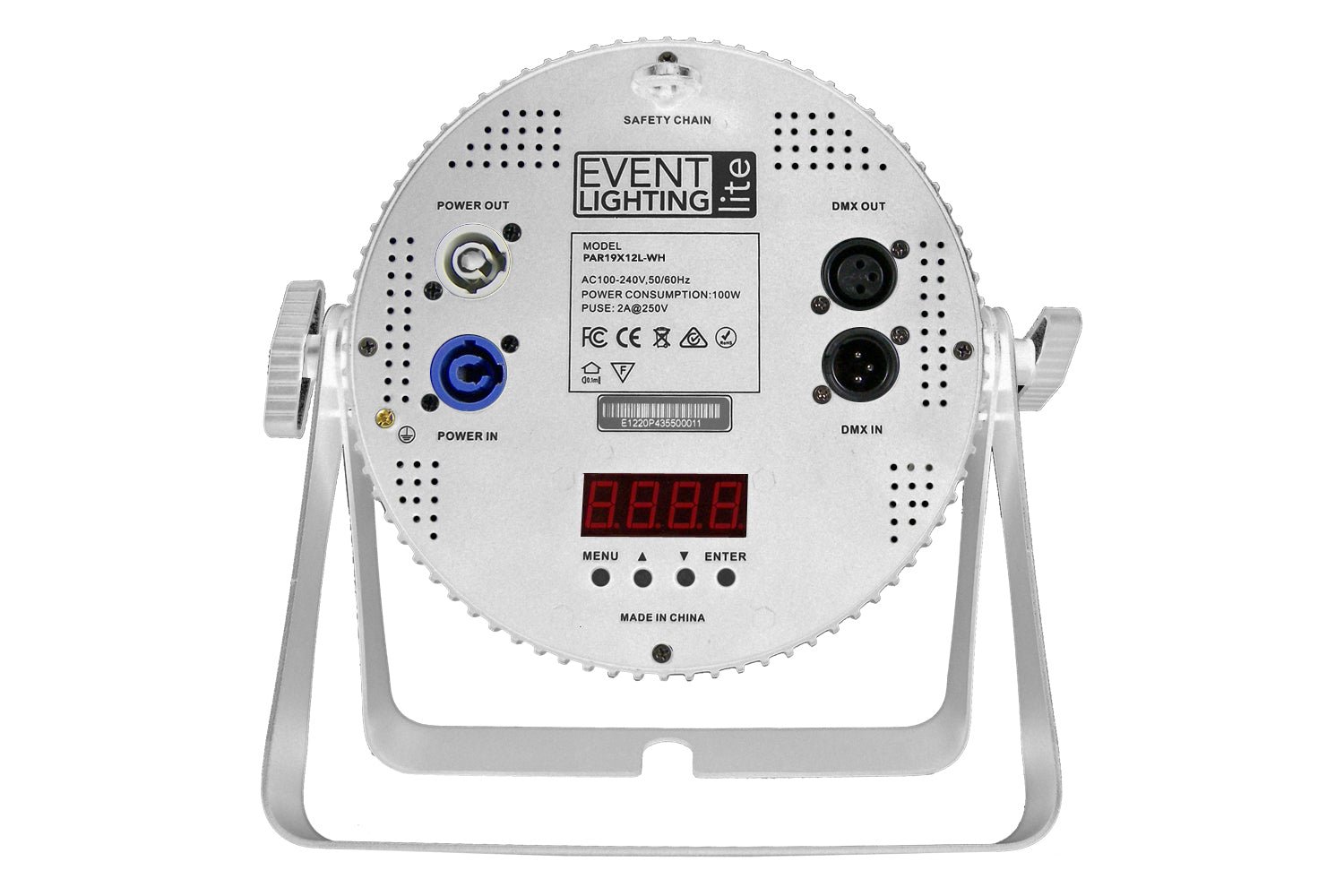

Control & Connectivity

• Control Protocol: DMX512
• DMX Channel Modes: 6CH and 11CH
• Operating Modes: DMX, Manual, Auto, Sound Active, IR Remote, and Master/Slave
• DMX Interface: 3-pin DMX input and output
• Display: 4-digit LED display with 4-button control panel

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 100W
• Power Connection: PowerCON input and output

Construction & Design

• Housing Material: Die-cast aluminum
• Finish: Matte white
• Cooling System: Fanless cooling for silent operation
• Dimensions: 275 × 270 × 84 mm
• Weight: 2.8 kg

Applications

Perfect for weddings, churches, event venues, stage productions, uplighting, architectural lighting, DJ setups, and entertainment installations requiring vibrant color output and reliable performance.

Warranty

• Includes a 2-year manufacturer warranty for dependable long-term operation.
