PAR5H – Indoor Pro Par with 5 x 12W RGBWAU LEDs

PAR5H – Indoor Pro PAR with 5 x 12W RGBWA+UV LEDs

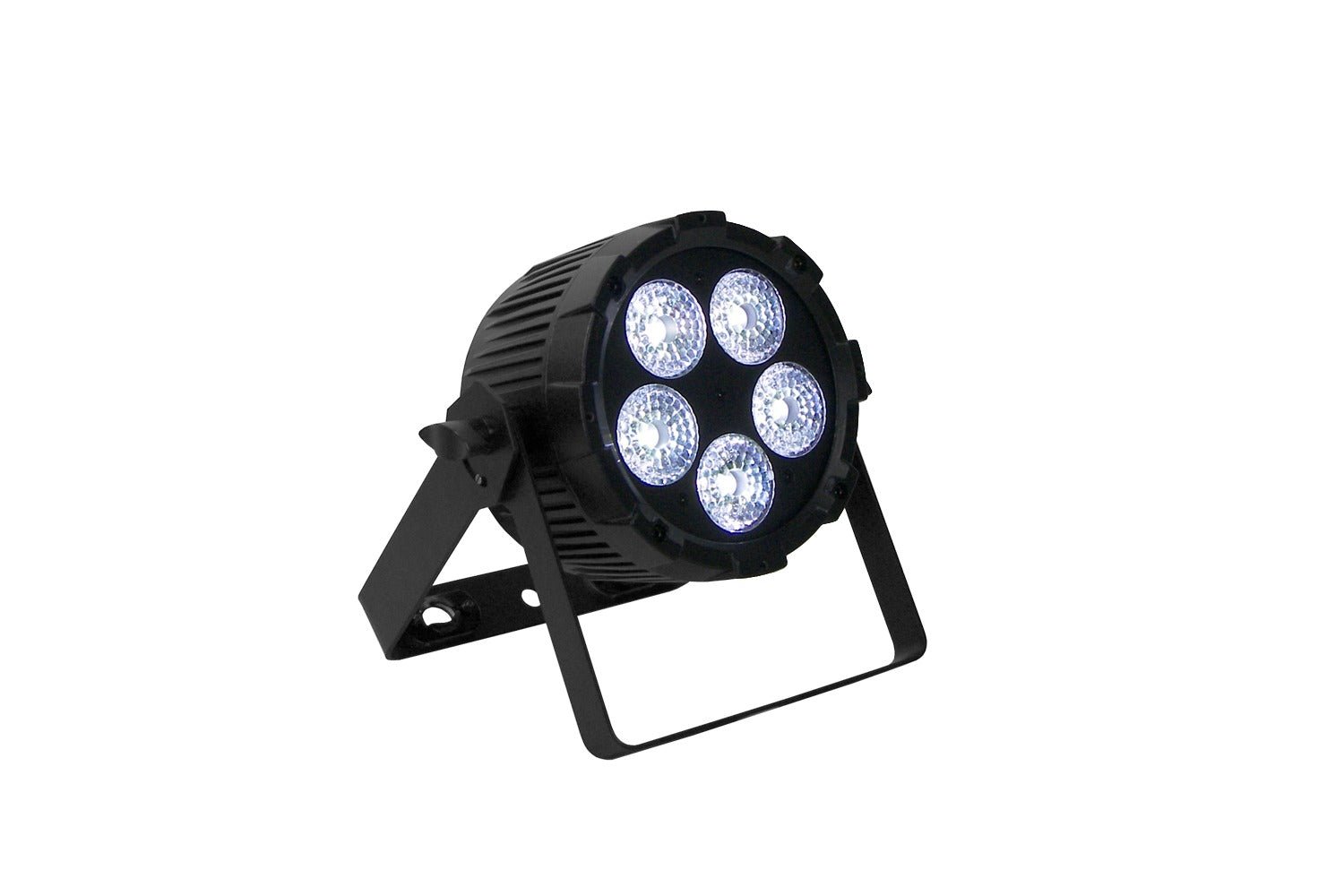

The PAR5H is a compact yet powerful professional LED PAR fixture designed for theatres, churches, wedding venues, stage productions, corporate events, and architectural lighting applications. Featuring 5 high-performance 12W RGBWA+UV 6-in-1 LEDs, it delivers vibrant color mixing, rich pastel tones, ultraviolet effects, and dynamic lighting possibilities in a lightweight and durable design.

Engineered for versatility and reliability, the PAR5H offers multiple beam angle options, advanced dimming capabilities, and optional wireless DMX support. Its fanless cooling system ensures completely silent operation, making it ideal for noise-sensitive environments where performance and discretion are equally important.

Photometric Specifications

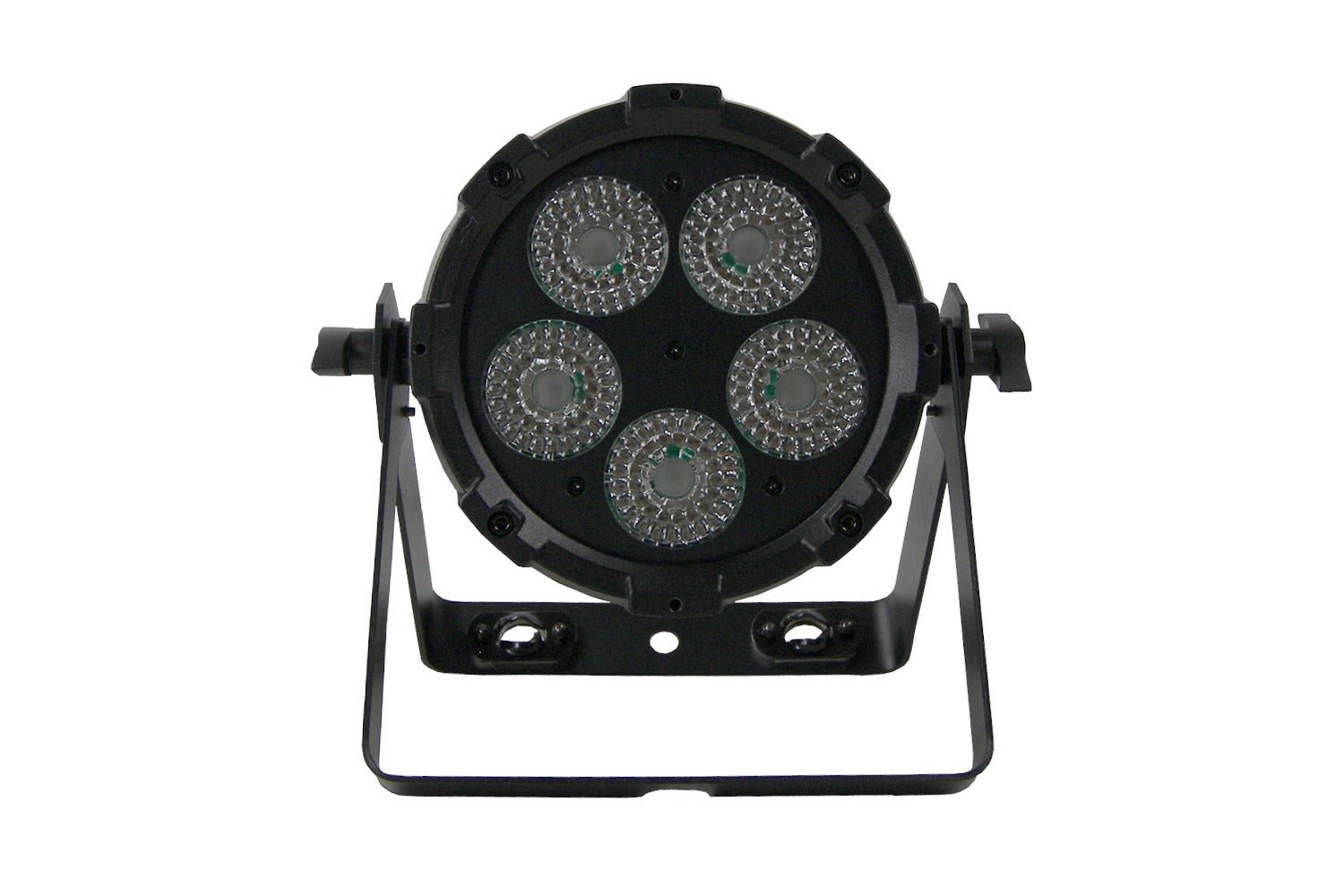

• Light Source: 5 × 12W RGBWA+UV 6-in-1 LEDs
• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

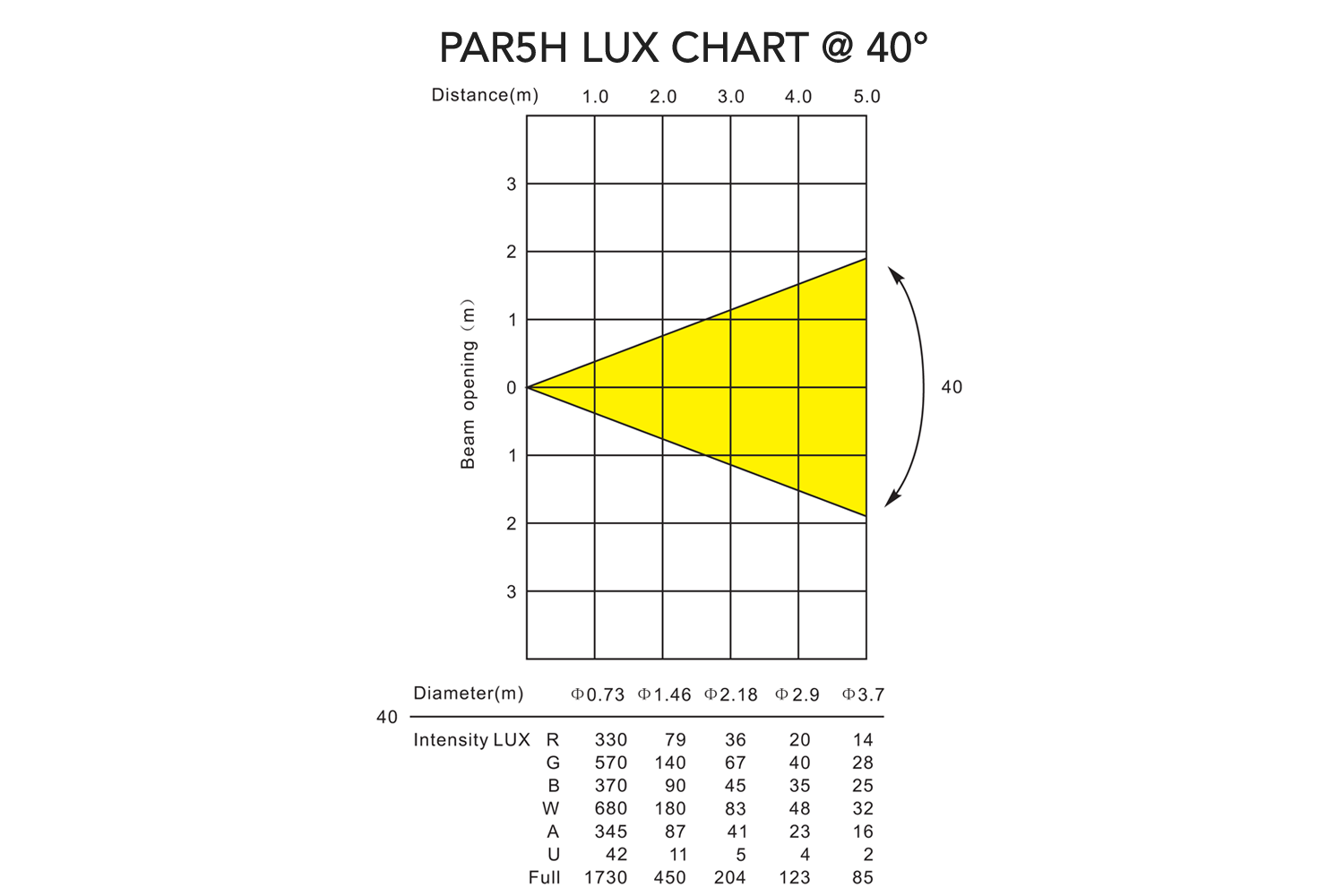

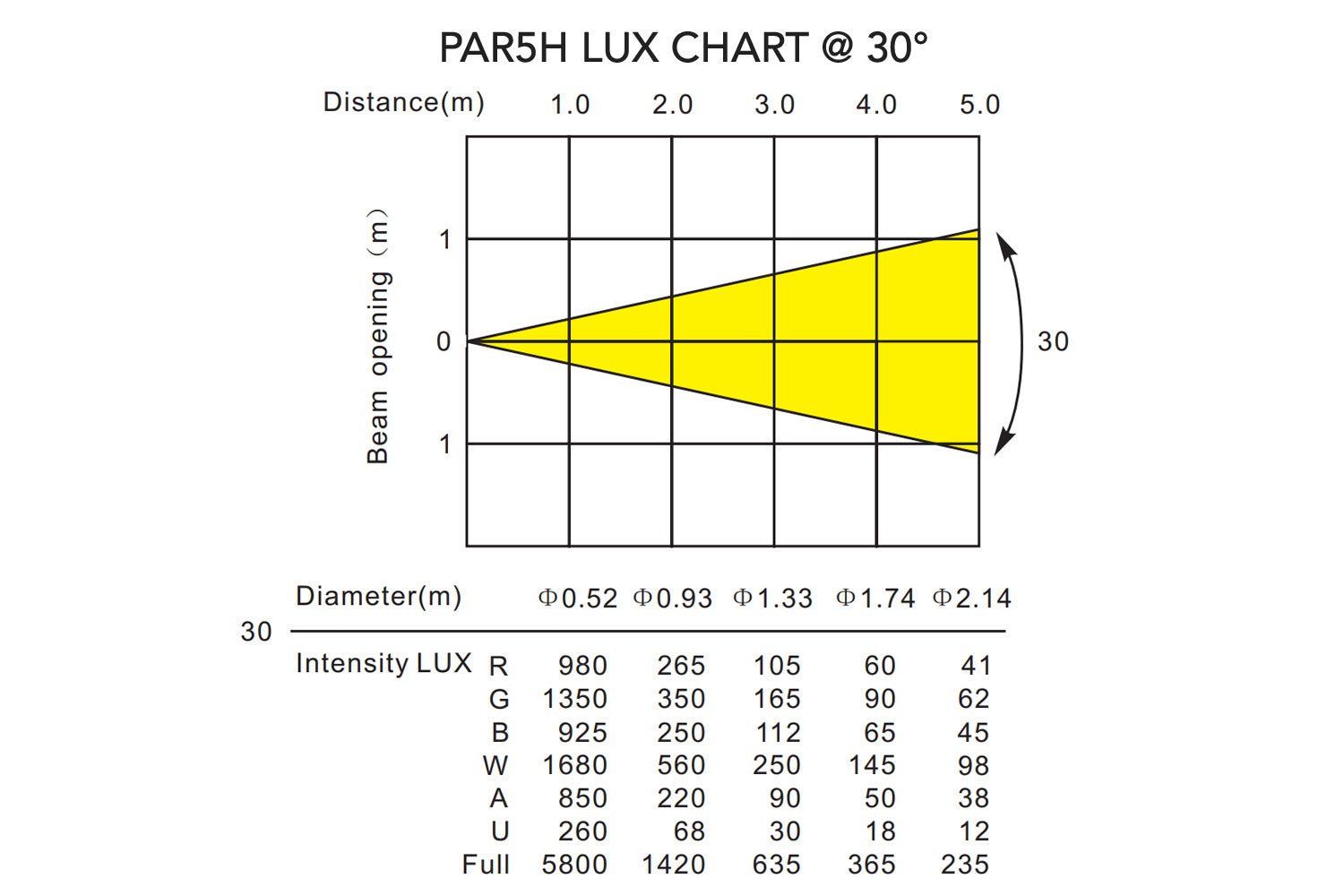

• Output: 1,420 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

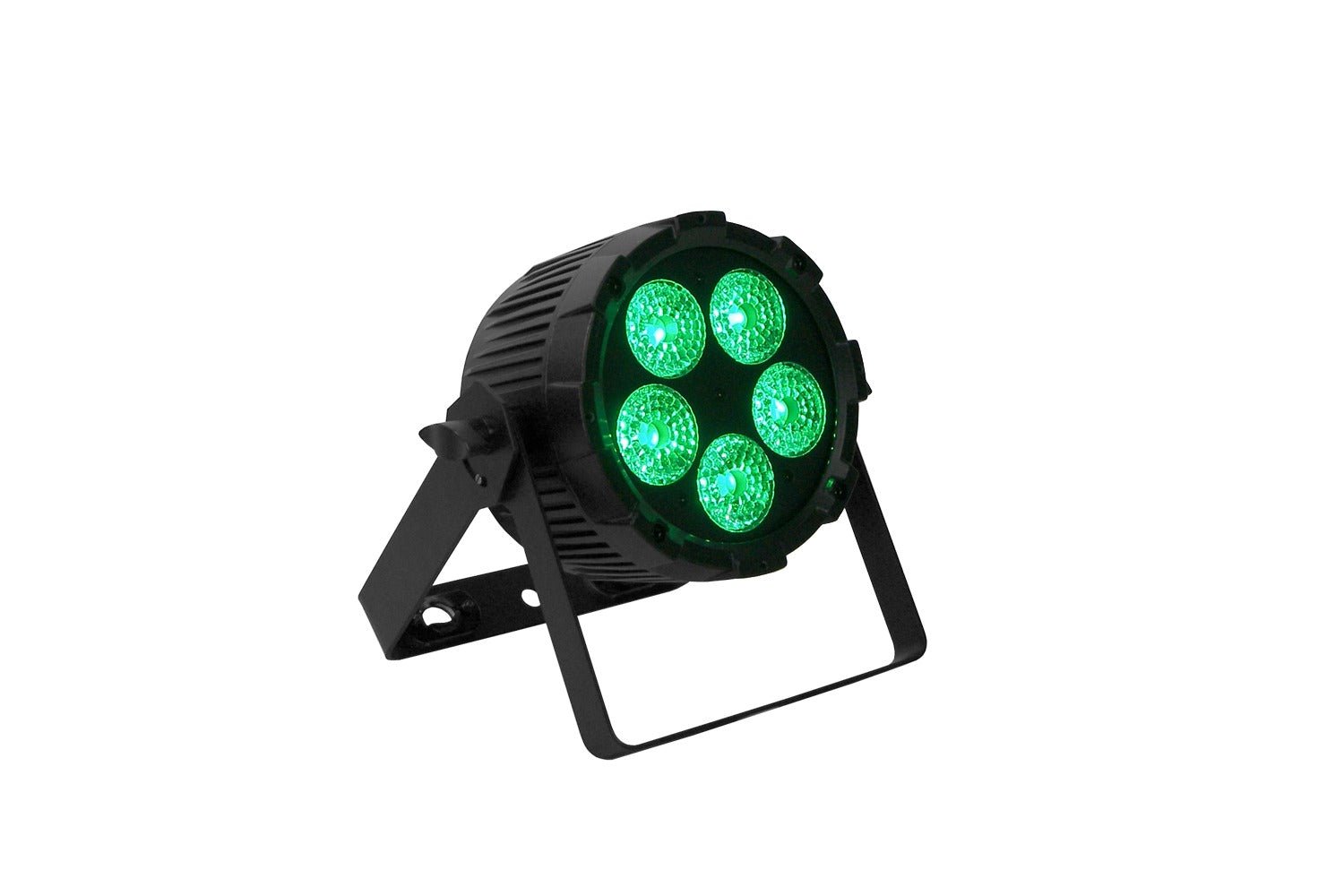

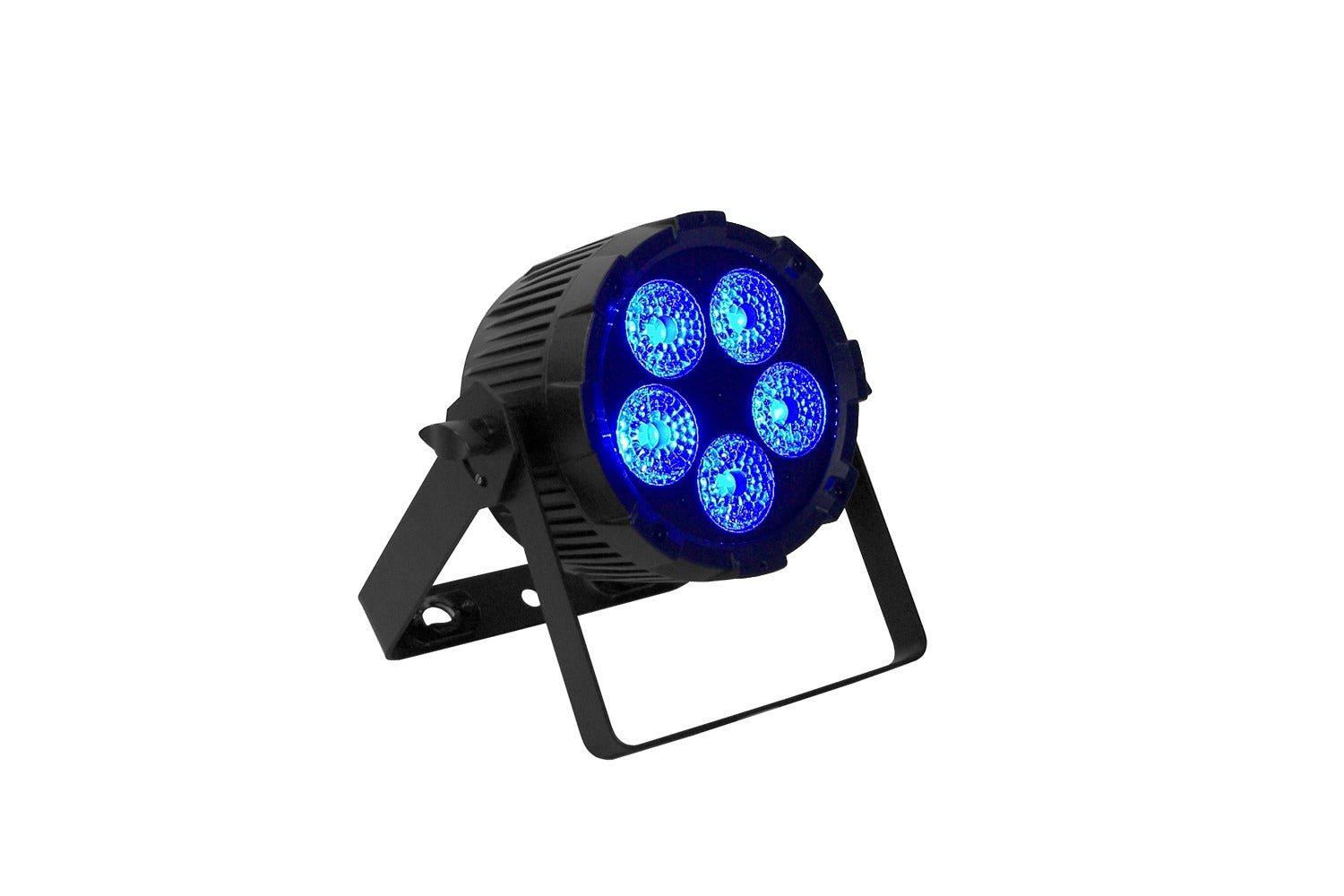

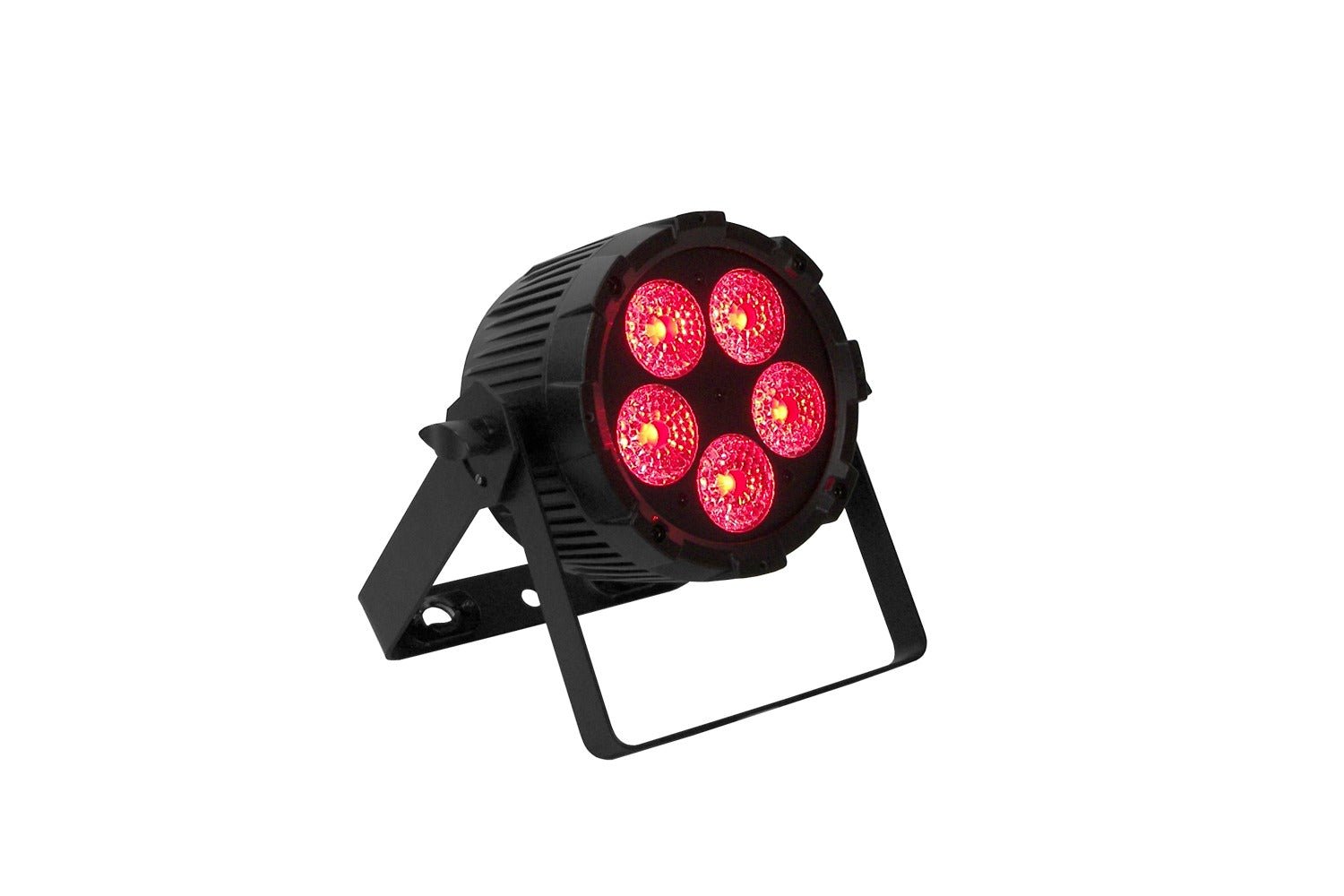

• Color Mixing: RGBWA+UV technology for vibrant colors, pastel shades, and UV-enhanced effects
• Silent Operation: Fanless cooling system

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control
• Wireless DMX: Optional WDMX support
• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, 4W, 4A, 6CH, 8CH, 12CH, and 14CH

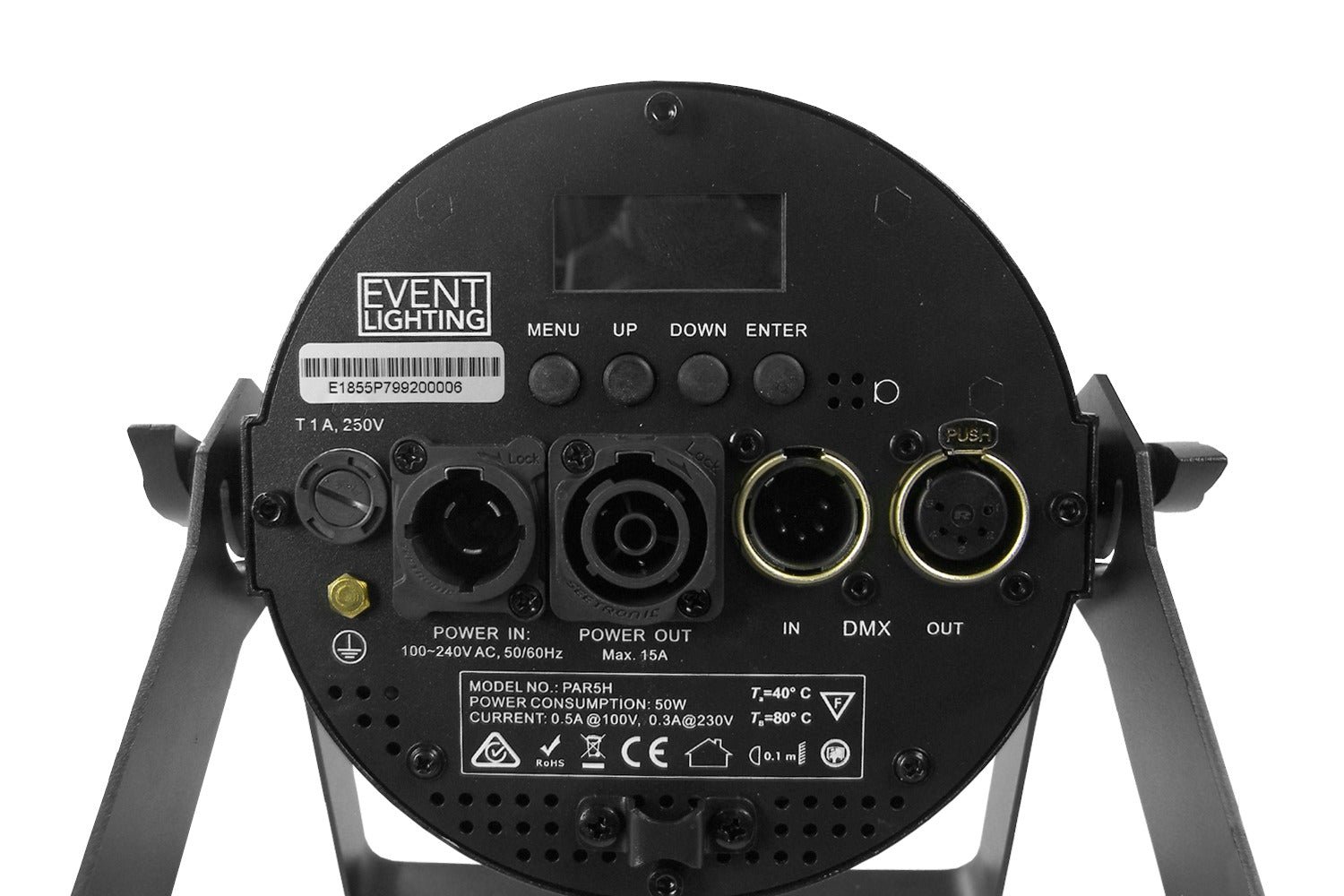

• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 50W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black
• Cooling System: Fanless cooling

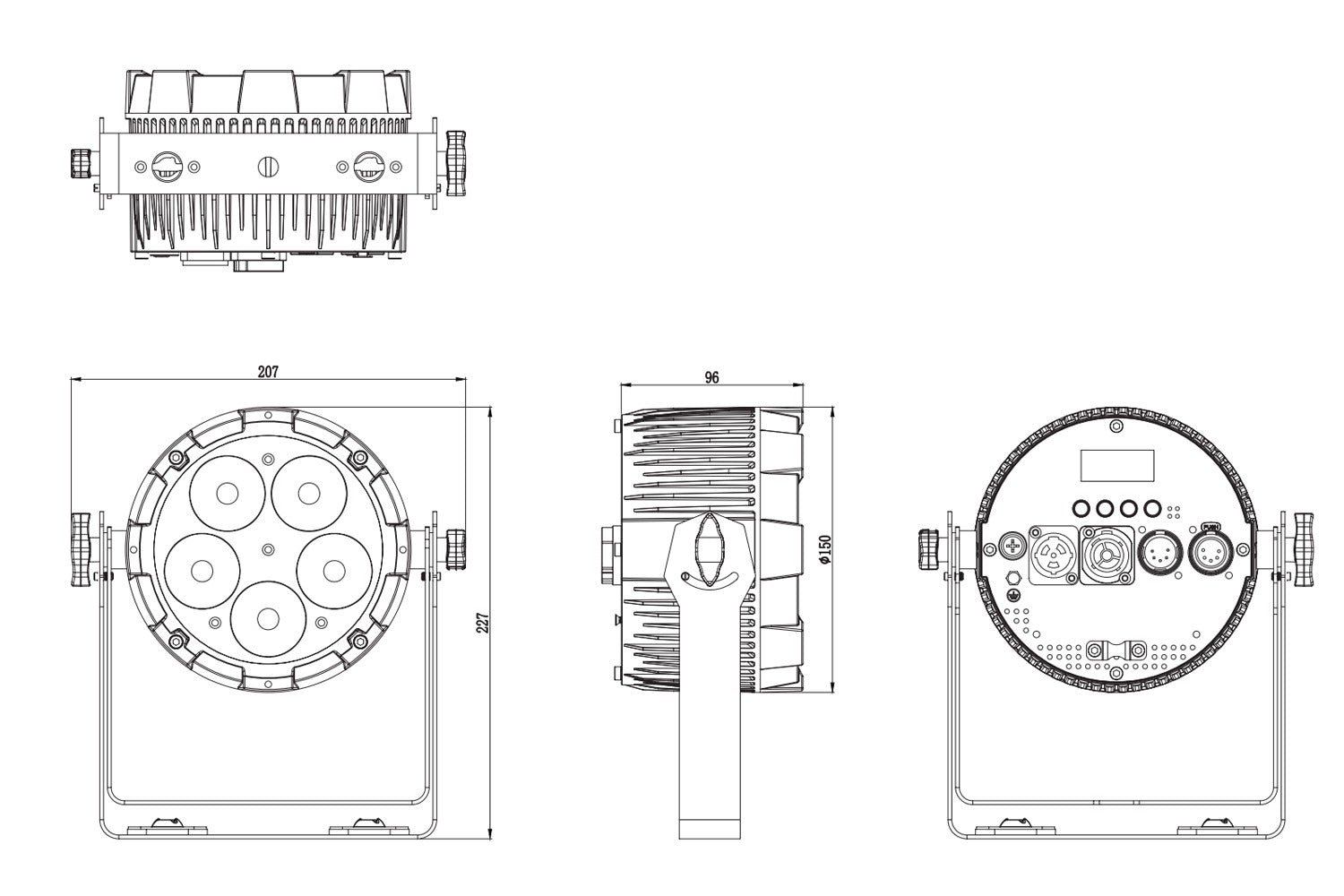

• Dimensions: 207 × 227 × 120 mm (8.1″ × 8.9″ × 4.7″)
• Weight: 1.9 kg (4.2 lbs)

Rigging

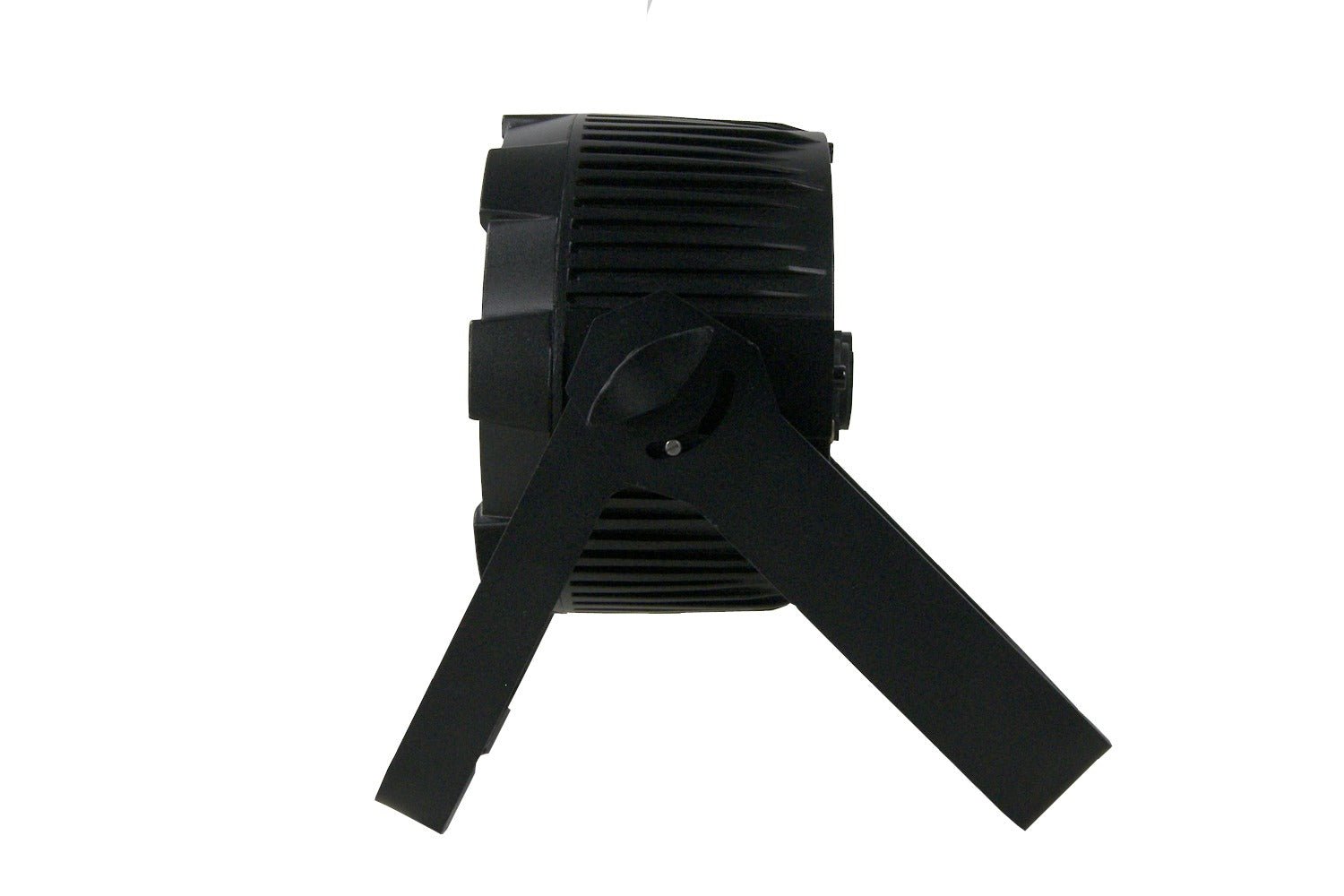

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for secure and efficient installation.

Optional Accessories

• PAR5GELFR – Gel Frame
• PAR5FROST – Frost Filter
• PAR5BDKIT – Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance and reliability.
