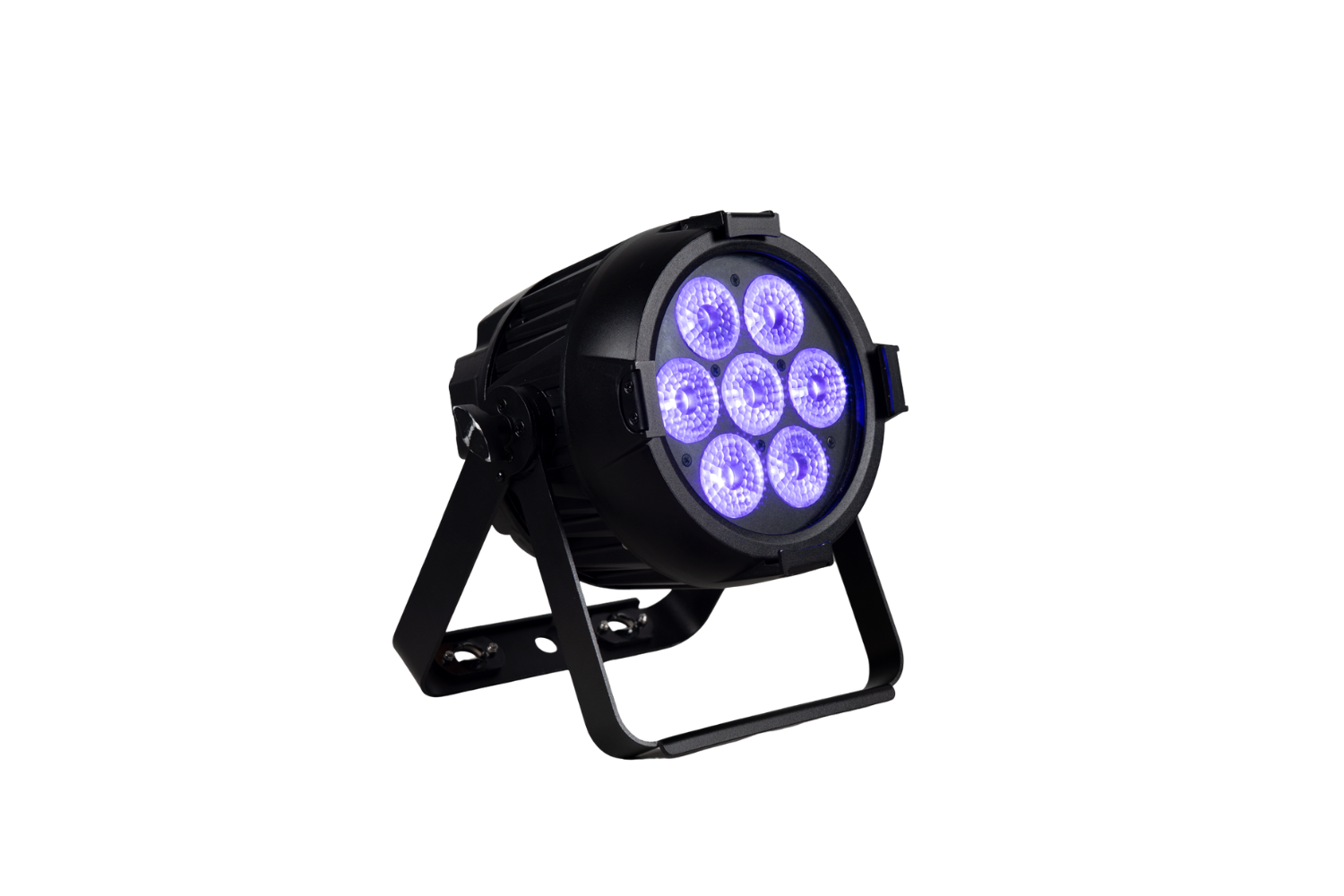

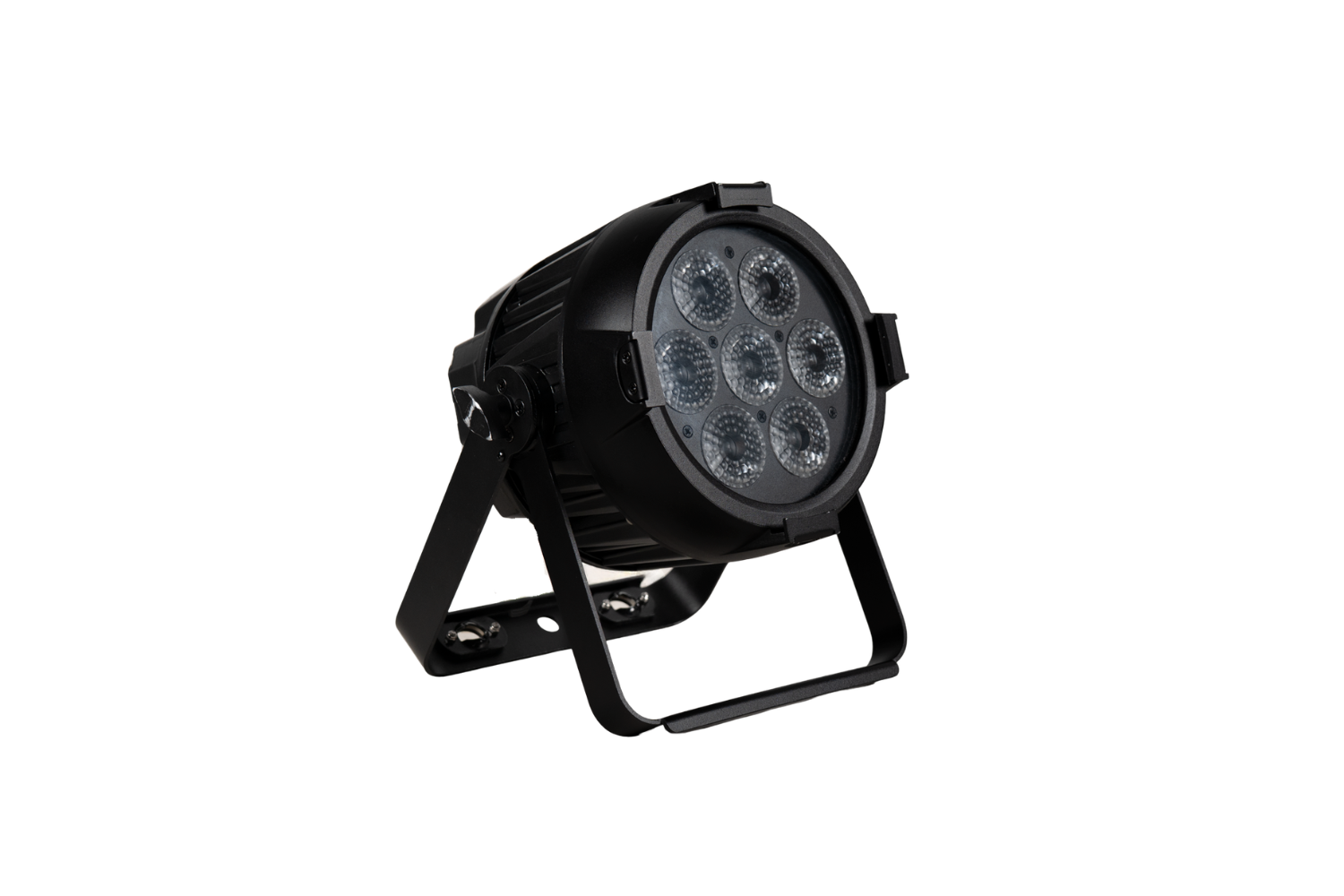

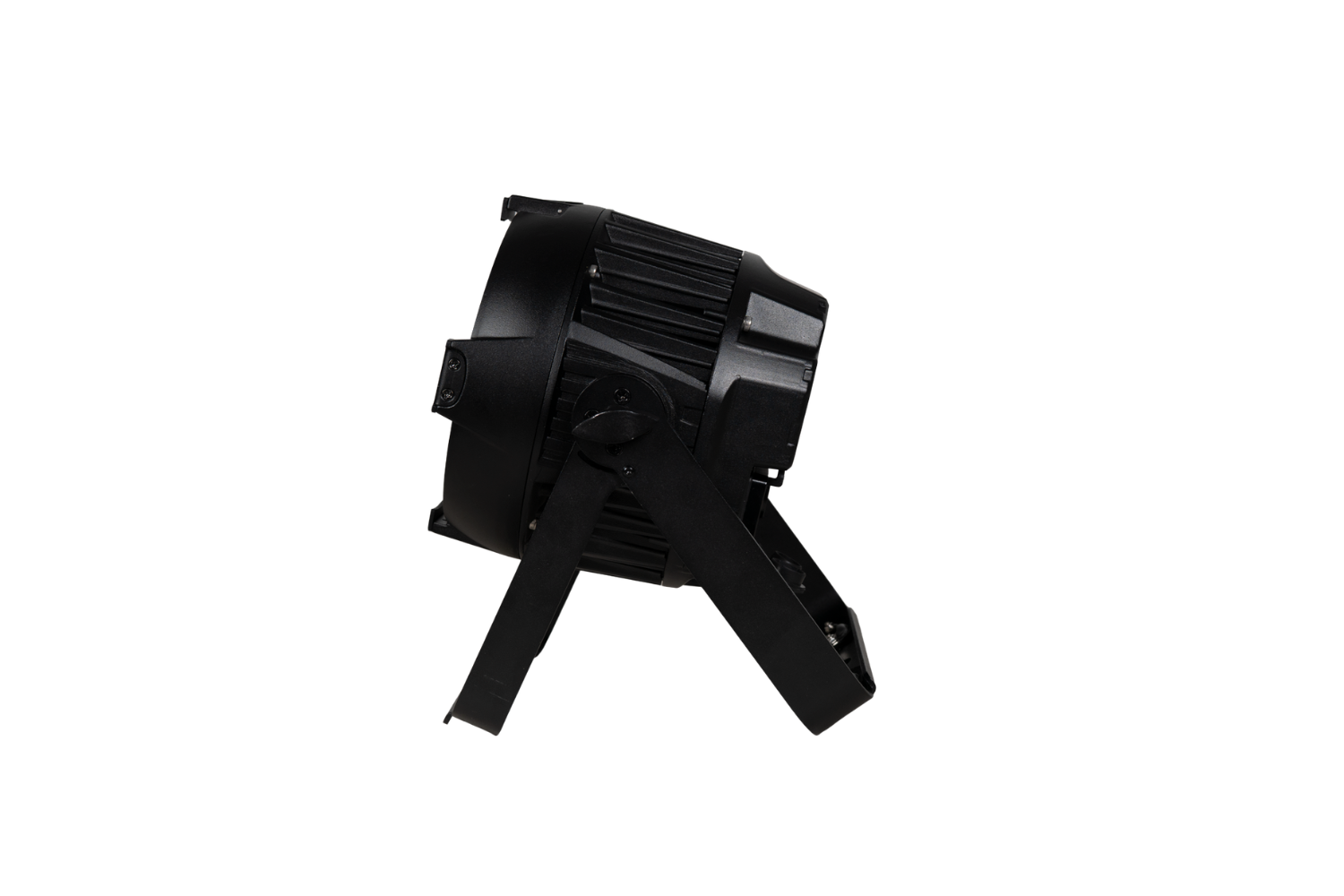

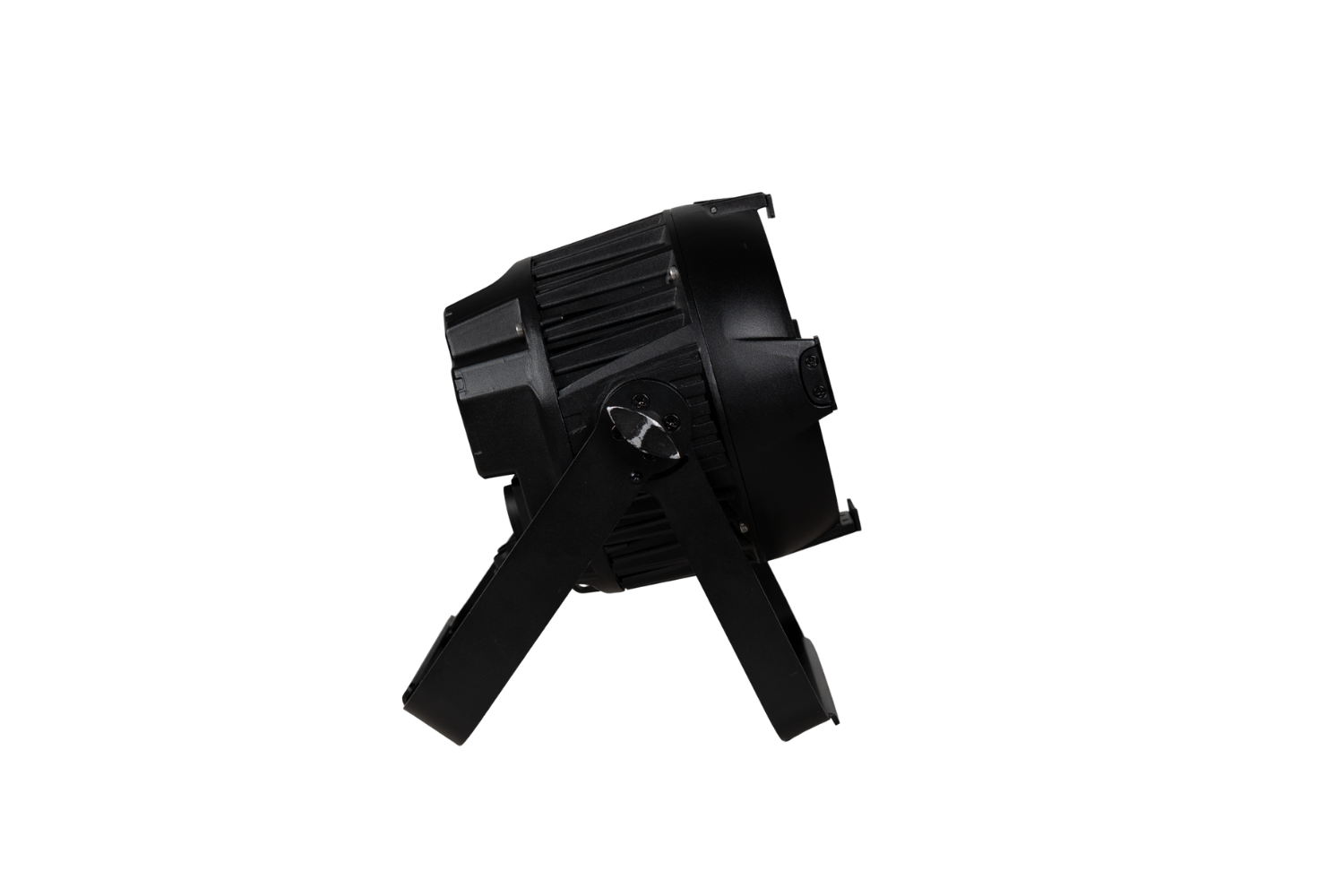

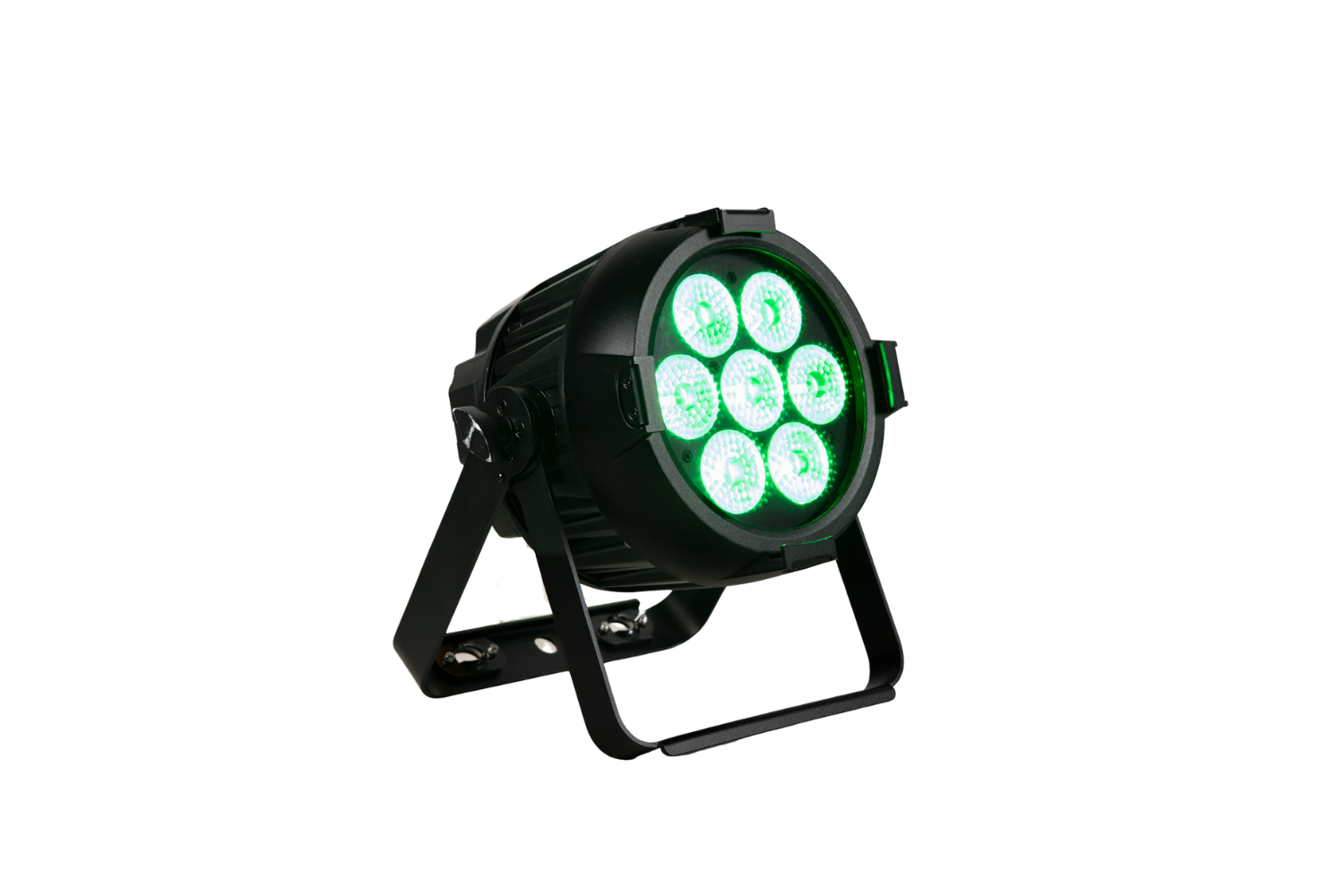

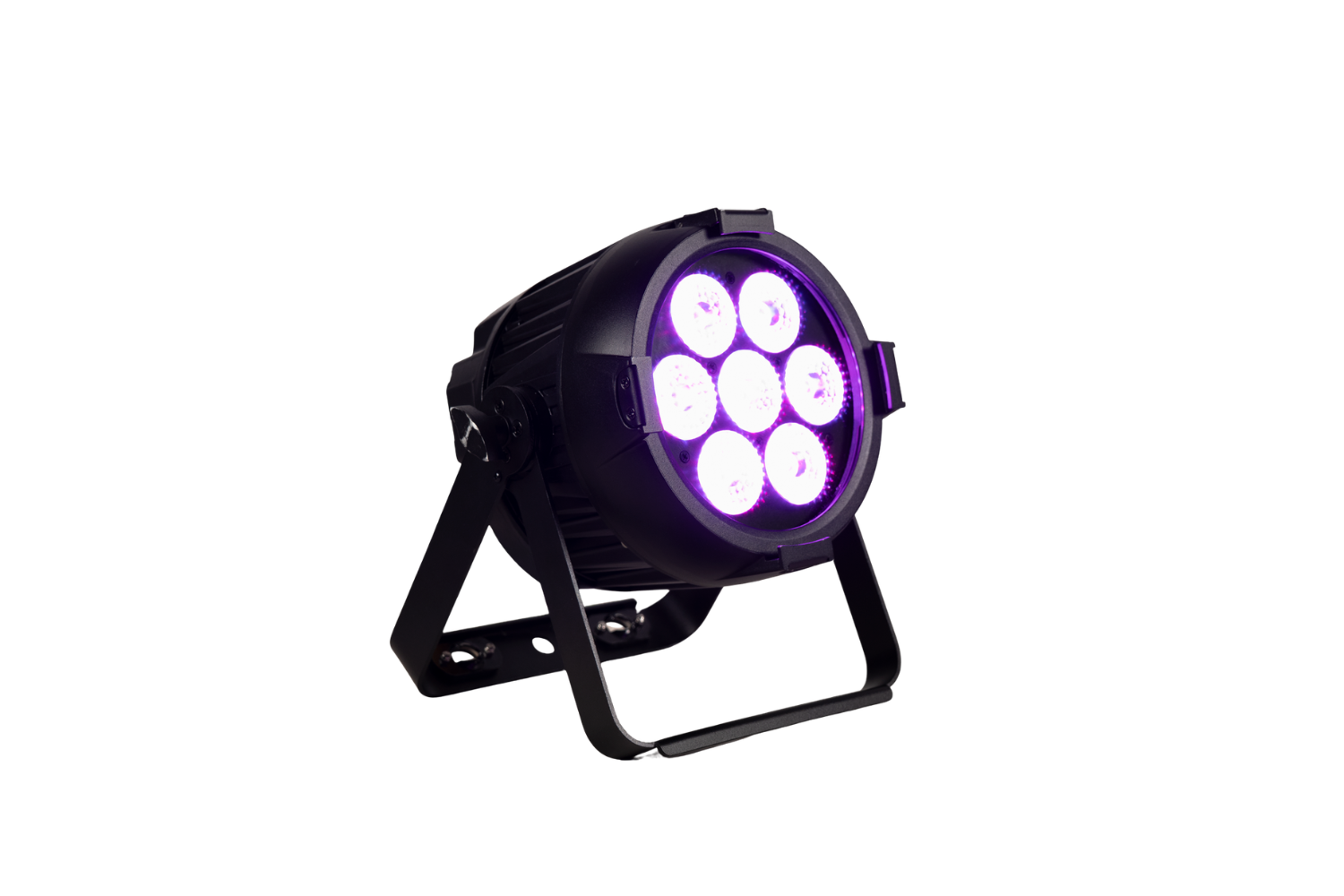

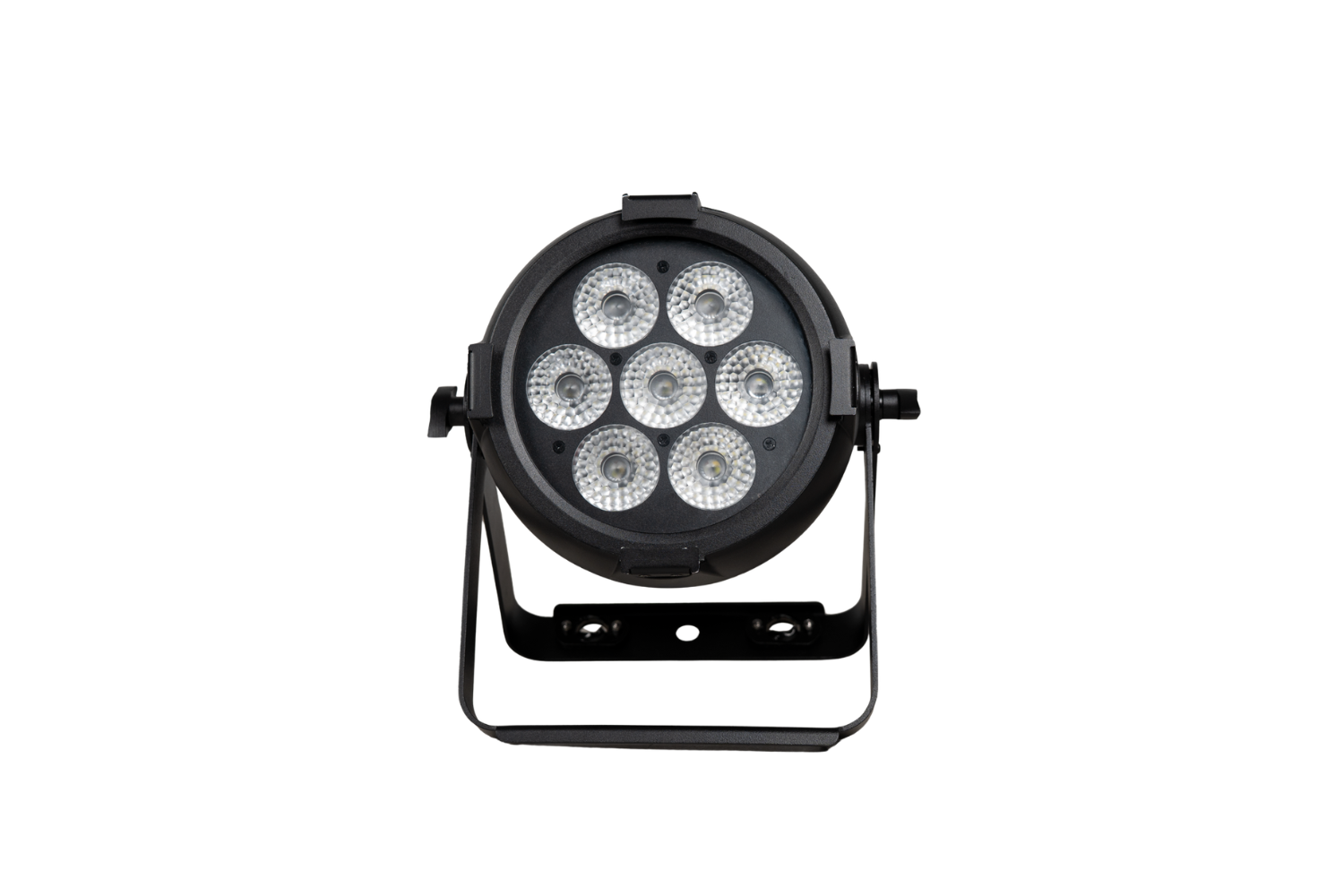

PAR7X20H-IP – Outdoor Pro Par with 7 x 20W RGBWAU LEDs

PAR7X20H-IP – Outdoor Pro Par with 7 x 20W RGBWA+UV LEDs

The PAR7X20H-IP is a powerful outdoor-rated LED PAR fixture designed for concerts, festivals, architectural lighting, stage productions, event venues, and permanent outdoor installations. Equipped with 7 high-output 20W RGBWA+UV 6-in-1 LEDs, it delivers vibrant color mixing, ultraviolet effects, and exceptional brightness for professional lighting applications.

Offering a standard 22° beam angle with optional 8°, 15°, and 45° lenses, this fixture provides the flexibility to create anything from tight beam effects to wide-area washes. Producing up to 12,700 lux at 2 meters, it ensures impressive illumination even in demanding environments. With integrated WDMX wireless control, multiple dimming curves, and a rugged IP65-rated housing, the PAR7X20H-IP is built for reliable indoor and outdoor performance.

Photometric Specifications

• Light Source: 7 × 20W RGBWA+UV 6-in-1 LEDs
• Beam Angle: 22° standard (Optional: 8°, 15°, 45°)
• Output: 12,700 lux at 2.0m (full output)
• PWM Frequency: 1,240Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz
• Color Mixing: RGBWA+UV technology for vibrant colors and UV effects
• Wireless DMX: Integrated WDMX functionality

Control & Connectivity

• Operating Modes: DMX, WDMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, Static Color Control
• Display: LCD display with 4-button control panel
• DMX Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, 4W, 4A, 6CH, 8CH, 12CH, and 14CH

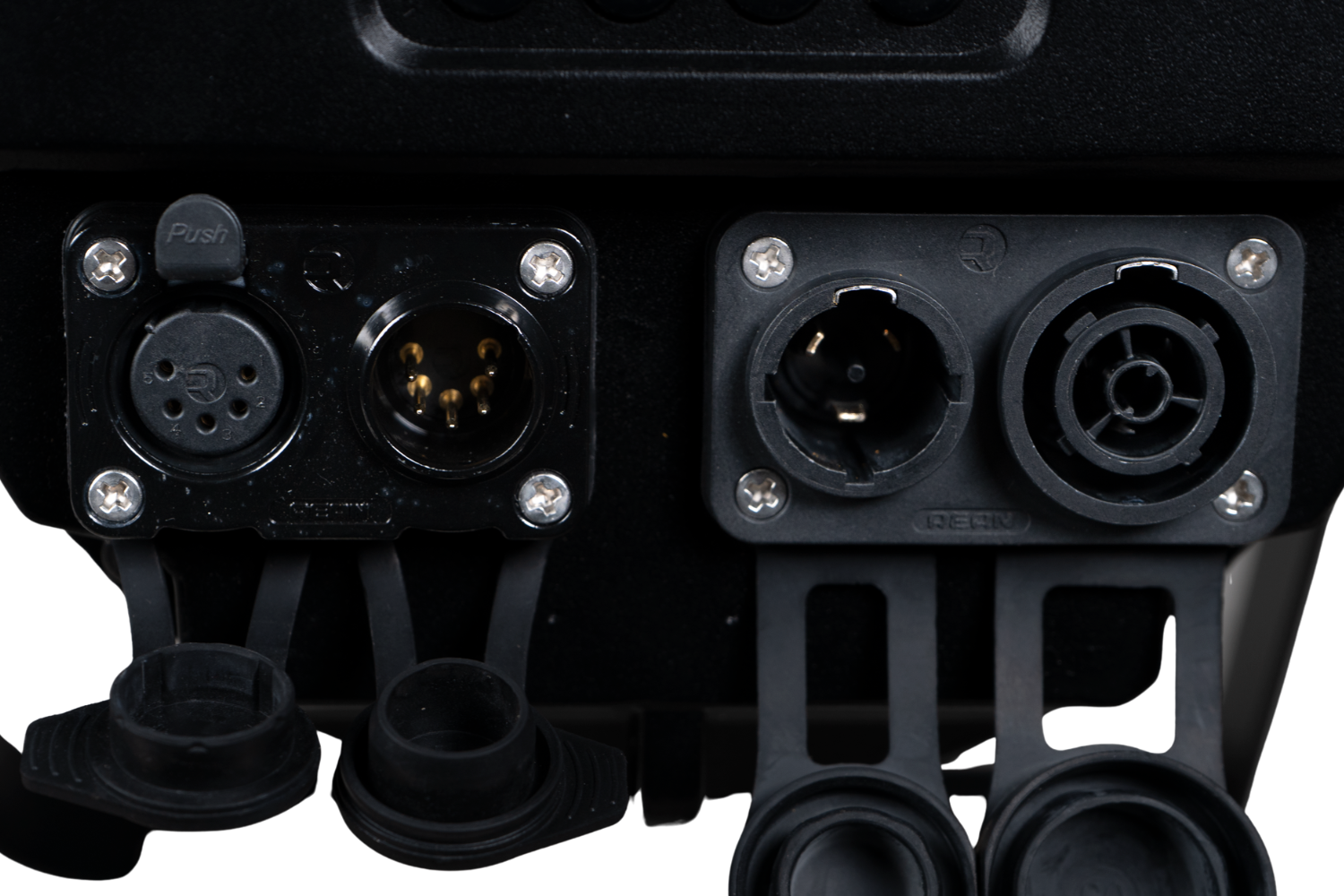

• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 250W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black professional coating
• Cooling System: Silent fanless cooling
• IP Rating: IP65 for outdoor and weather-resistant operation
• Dimensions: 299 × 217 × 333 mm (11.8″ × 8.5″ × 13.1″)
• Weight: 6.5 kg (14.3 lbs)

Rigging

• Includes 1 Omega bracket with 1/4-turn quick-lock mounting system for fast and secure installation.

Warranty

• Covered by a 3-year manufacturer warranty for dependable long-term performance.
