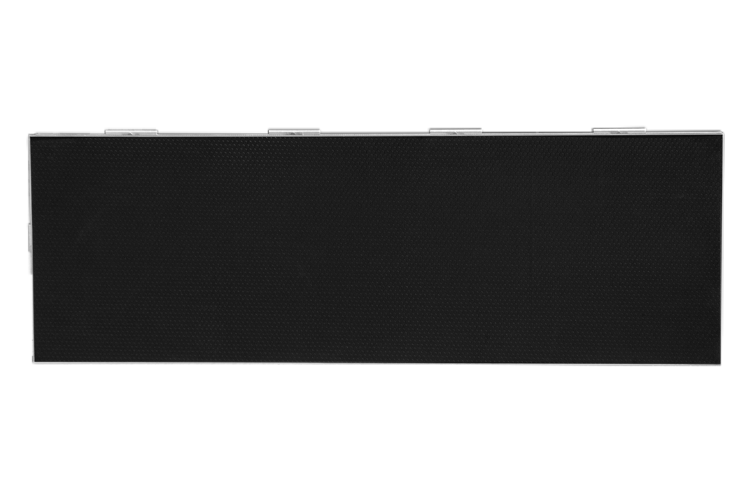

ST1806 – 1830mm x 610mm Modular Stage Platform with Rail Lock System
The ST1806 is a compact and lightweight modular stage platform designed for catwalks, stage extensions, walkways, risers, exhibitions, conferences, and portable event staging applications. Its narrow profile makes it an excellent solution for creating customized stage layouts while maintaining strength, stability, and professional presentation.
Manufactured using a high-strength aluminum frame and premium 18mm plywood deck, the platform delivers reliable performance for a wide range of indoor and outdoor events. The anti-skid black hex pattern surface enhances safety for performers and crew members, while the integrated rail lock system ensures fast, secure, and stable stage assembly. A recessed Velcro channel is included for neat and professional stage skirt installation.
Key Features

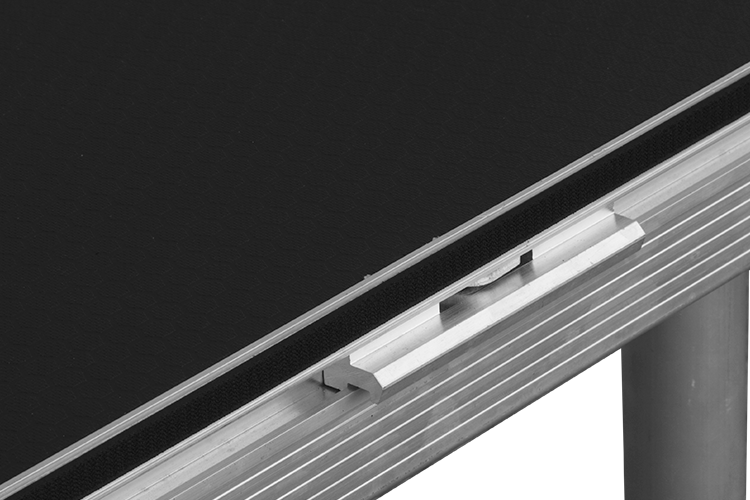

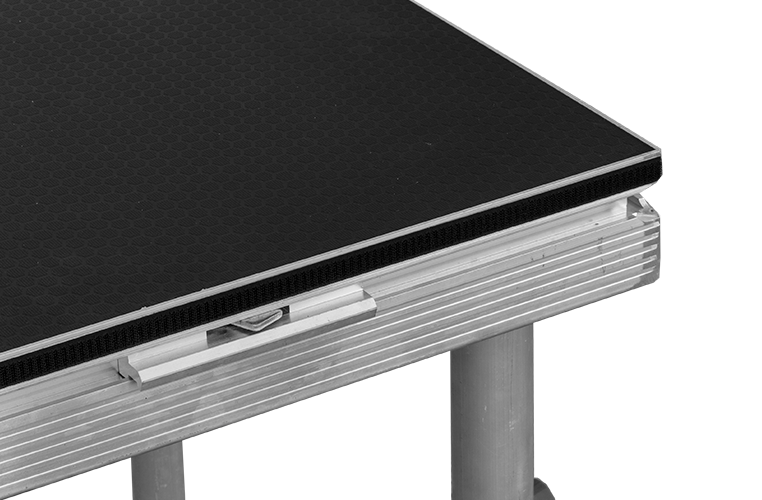

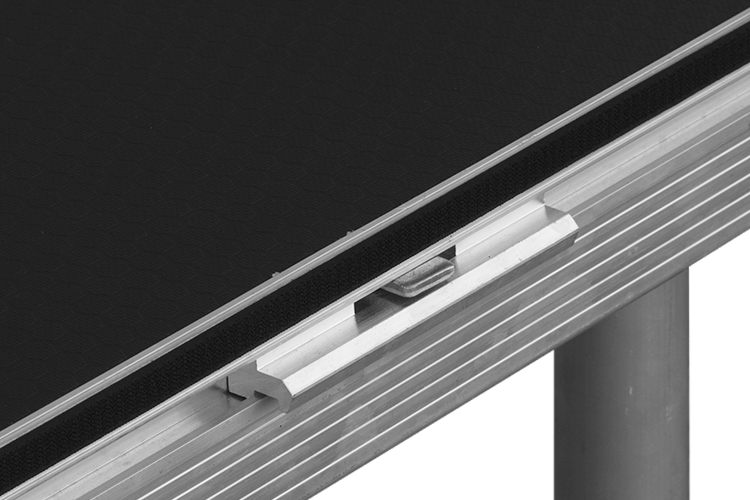

- Secure rail lock system for quick and stable stage assembly
- Anti-skid black hex pattern surface for improved safety
- Recessed Velcro channel for stage skirt attachment

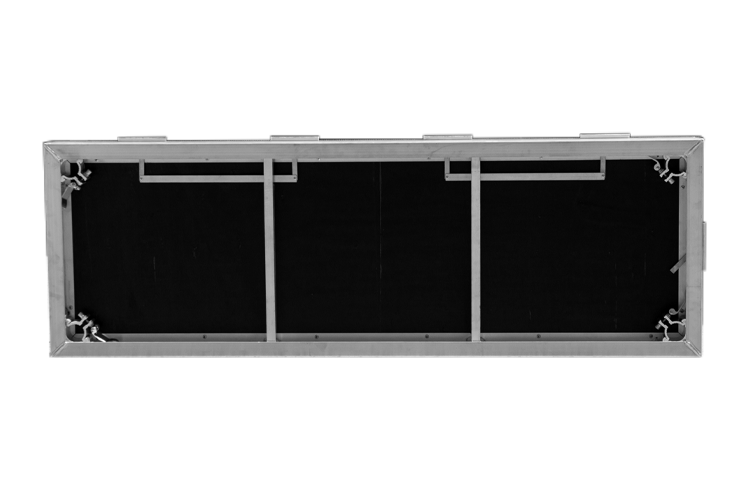

- Lightweight yet durable aluminum frame construction
- Ideal for walkways, catwalks, risers, and modular stage systems
Construction & Specifications
- Platform Size: 1830mm × 610mm
- Materials: 18mm Plywood and Aluminum Frame
- Surface Finish: Anti-Skid Black Hex Pattern
- Safe Working Load (SWL): 750 kg/m² (153.61 lb/ft²)
- Certification: TÜV Rated
- Dimensions (L × W × H): 1830 × 610 × 80 mm (72.05″ × 24.02″ × 3.15″)
- Weight: 21.20 kg (46 lbs 11.81 oz)
- Leg Requirement: 4 stage legs required (sold separately)
Applications
Perfect for catwalk stages, event walkways, exhibition platforms, school performances, churches, conference venues, fashion shows, and portable staging systems requiring a narrow-format platform.
Warranty
- Includes a 3-year manufacturer warranty for dependable long-term performance.
