OPERAZ400FCP-IP – IP65 400W RGBWALC Profile with manual zoom

OPERAZ400FCP-IP – IP65 400W RGBWALC LED Profile Fixture with Manual Zoom

The OPERAZ400FCP-IP is a premium outdoor-rated LED profile fixture designed for professional stage productions, concerts, theatres, architectural installations, and large-scale live events. Powered by a high-output 400W RGBWALC 6-in-1 COB LED engine, it delivers vibrant color mixing, exceptional brightness, and outstanding performance in both indoor and outdoor environments.

Featuring a manual zoom range of 15° to 40°, the fixture provides precise beam shaping and flexible coverage for spotlighting, projection, and stage lighting applications. The advanced RGBWALC color system offers rich color rendering, smooth color transitions, and accurate white light generation, making it suitable for demanding lighting productions. Its IP65-rated construction ensures reliable operation in challenging weather conditions and outdoor installations.

Photometric Specifications

• Light Source: 400W RGBWALC 6-in-1 COB LED
• CRI: ≥90
• Beam Angle: Adjustable from 15° to 40°
• Zoom Control: Manual zoom adjustment
• LED Lifespan: Over 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit linear dimming from 0% to 100%
• Strobe Effect: Integrated strobe functionality
• Advanced Color Mixing: RGBWALC technology for vibrant colors and superior white light quality
• Included Accessory: Gel frame supplied as standard

Control & Connectivity

• Operating Modes: DMX, Master/Slave, and Manual Dimming
• DMX Channel Modes: 2 channel configurations

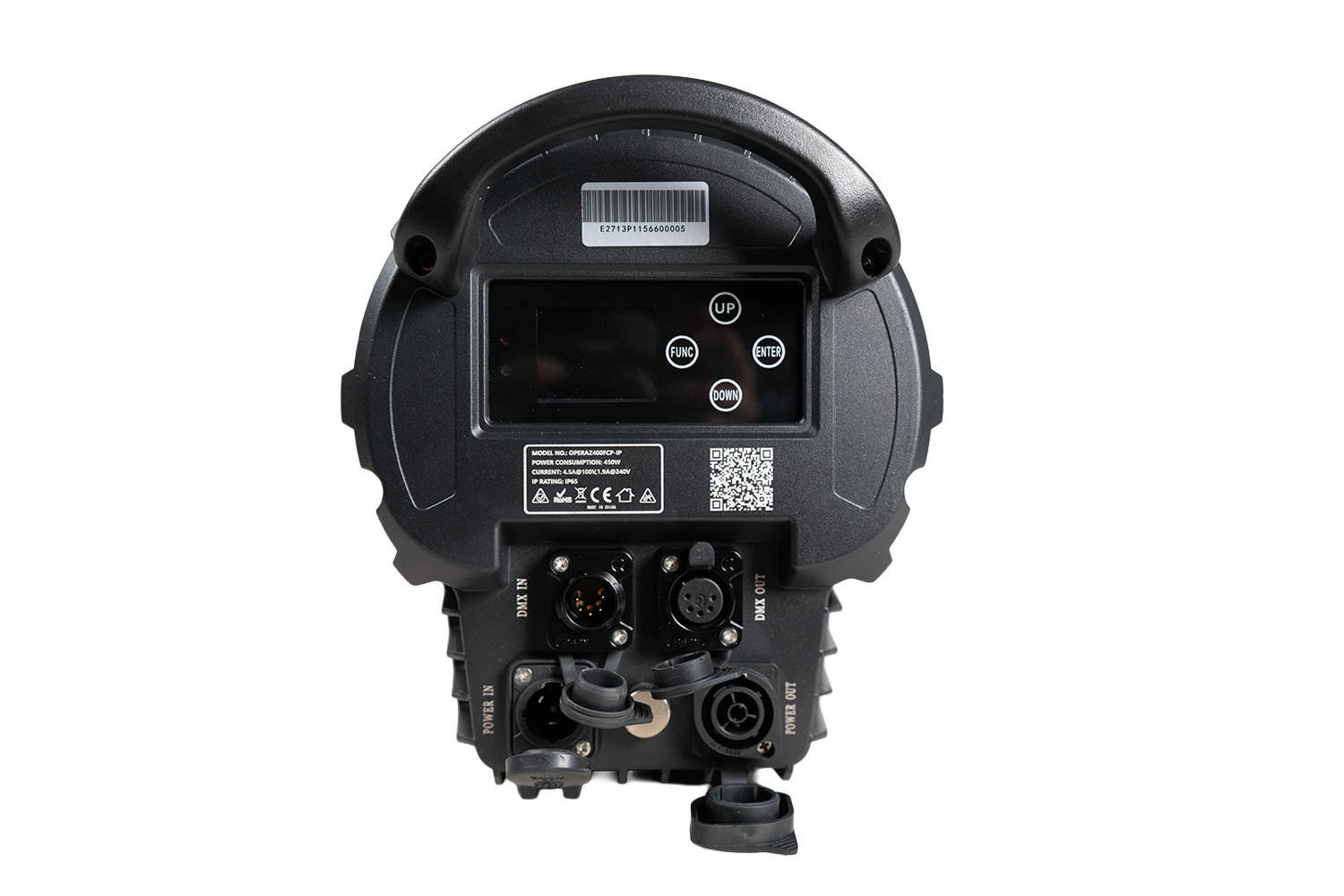

• Display: LCD control panel for intuitive operation
• DMX Connection: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Rated Power Consumption: 450W
• Power Connection: TrueOne power input and output

Construction & Durability

• IP Rating: IP65 for outdoor and weather-resistant applications
• Cooling System: Quiet fan cooling system (under 25dB at 1m) with copper tube heat dissipation
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Dimensions: 760 × 235 × 270 mm (29.9″ × 9.3″ × 10.6″)
• Weight: 11.3 kg (24.9 lbs)

Optional Accessories

• OPERAZGOBOH: Optional gobo holder designed for OPERAZ Series Profile fixtures.

Warranty

• Includes a 3-year manufacturer warranty for reliable long-term operation and performance.
