OPERAC200VWF – Compact Fresnel Engine with 200W COB Variable White LED

OPERAC200VWF – Compact Fresnel Fixture with 200W Variable White COB LED

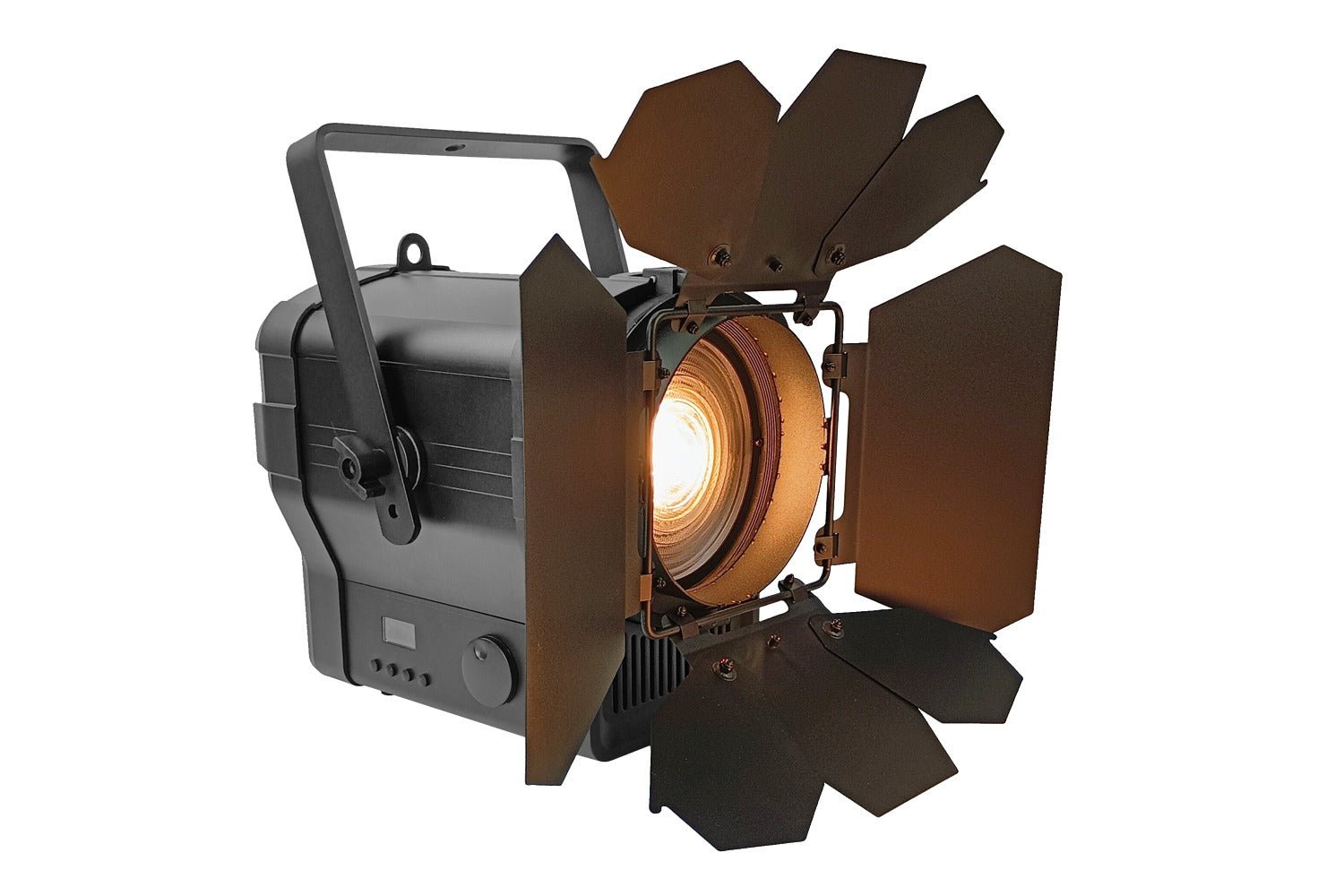

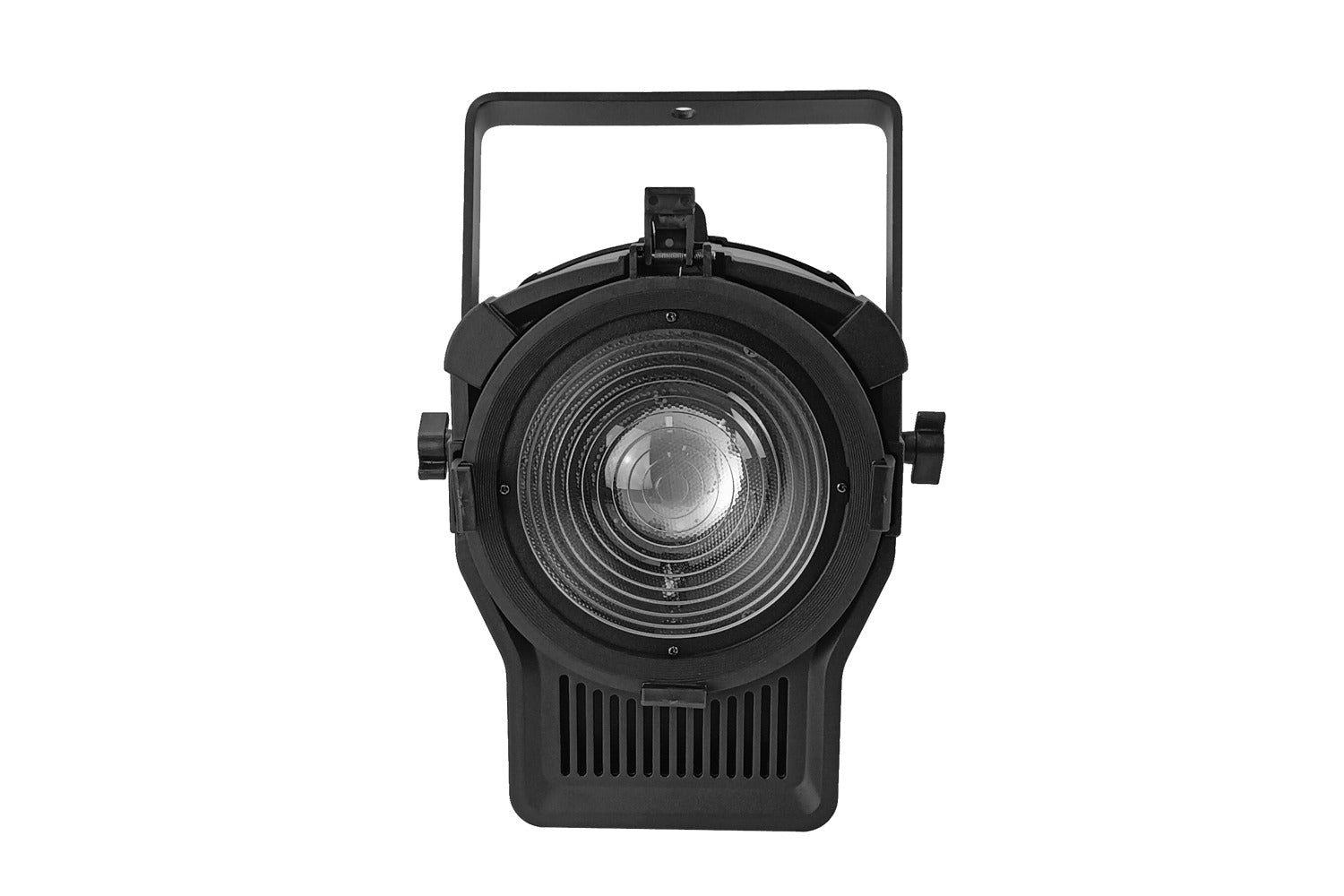

The OPERAC200VWF is a professional compact Fresnel lighting fixture powered by a high-output 200W COB Variable White LED engine. Designed for theatres, studios, broadcast environments, houses of worship, and live productions, it delivers exceptional white light quality with adjustable color temperature and precise beam control.

Featuring a tunable white range from 3200K to 5600K, this fixture allows seamless adaptation to different lighting environments. Its manual zoom system provides beam adjustment from 23° to 62°, making it suitable for both spotlighting and wide-area illumination. The dedicated 1-channel mode enables simple color temperature matching with existing fixtures while maintaining easy operation through a single-channel dimmer.

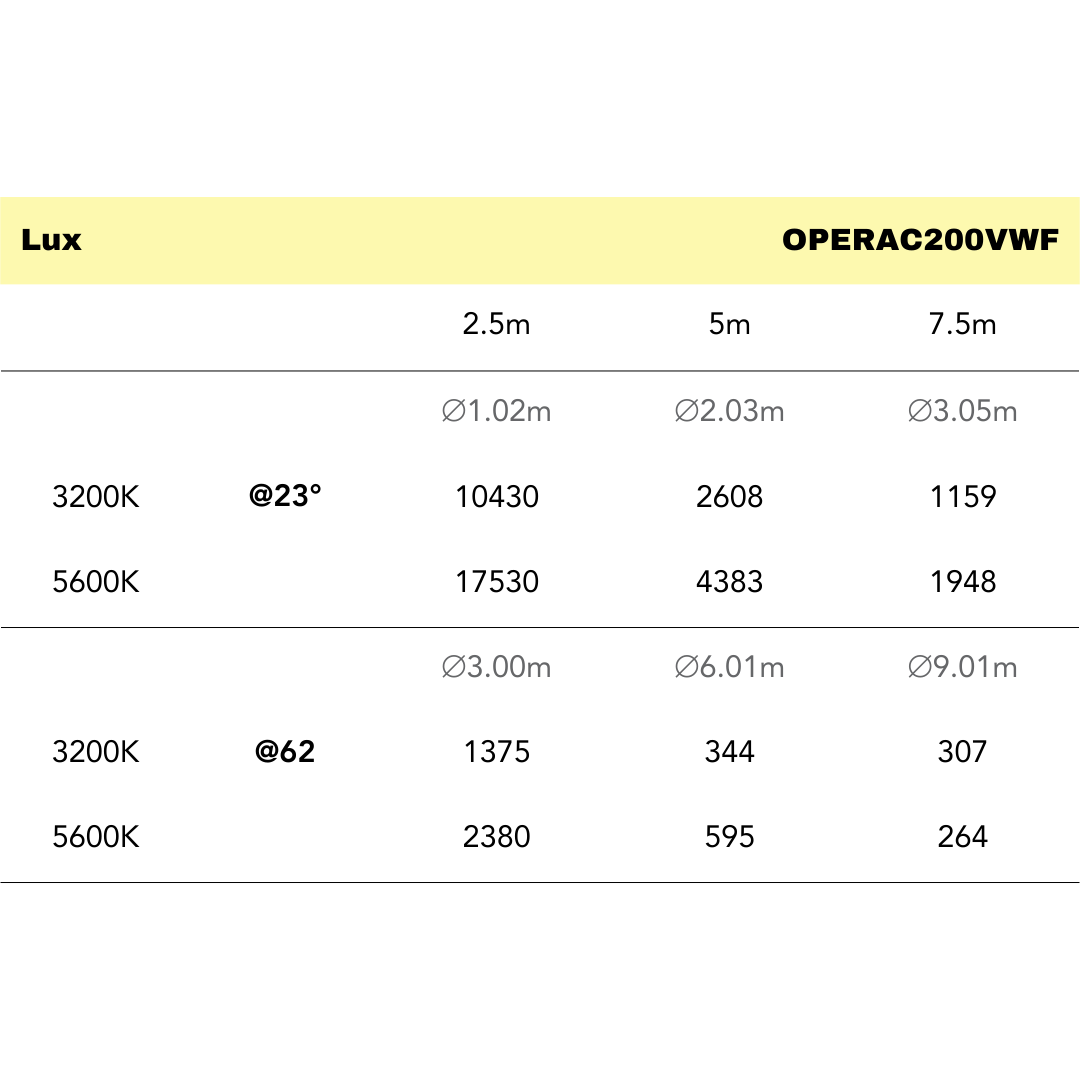

Photometric Specifications

• Light Source: 200W COB Variable White LED
• CRI: 95 for accurate color rendering
• Beam Angle: Adjustable from 23° to 62°
• Color Temperature: Variable 3200K–5600K
• PWM Frequency: Selectable from 1,000Hz to 16,000Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 16-bit smooth dimming from 0% to 100%
• Dimmer Curves: 3 selectable dimming curves
• Dimmer Speed: Adjustable dimming response speed
• Zoom Control: Manual zoom adjustment (23°–62°)
• Optical System: Precision glass lens assembly with 120mm Fresnel lens

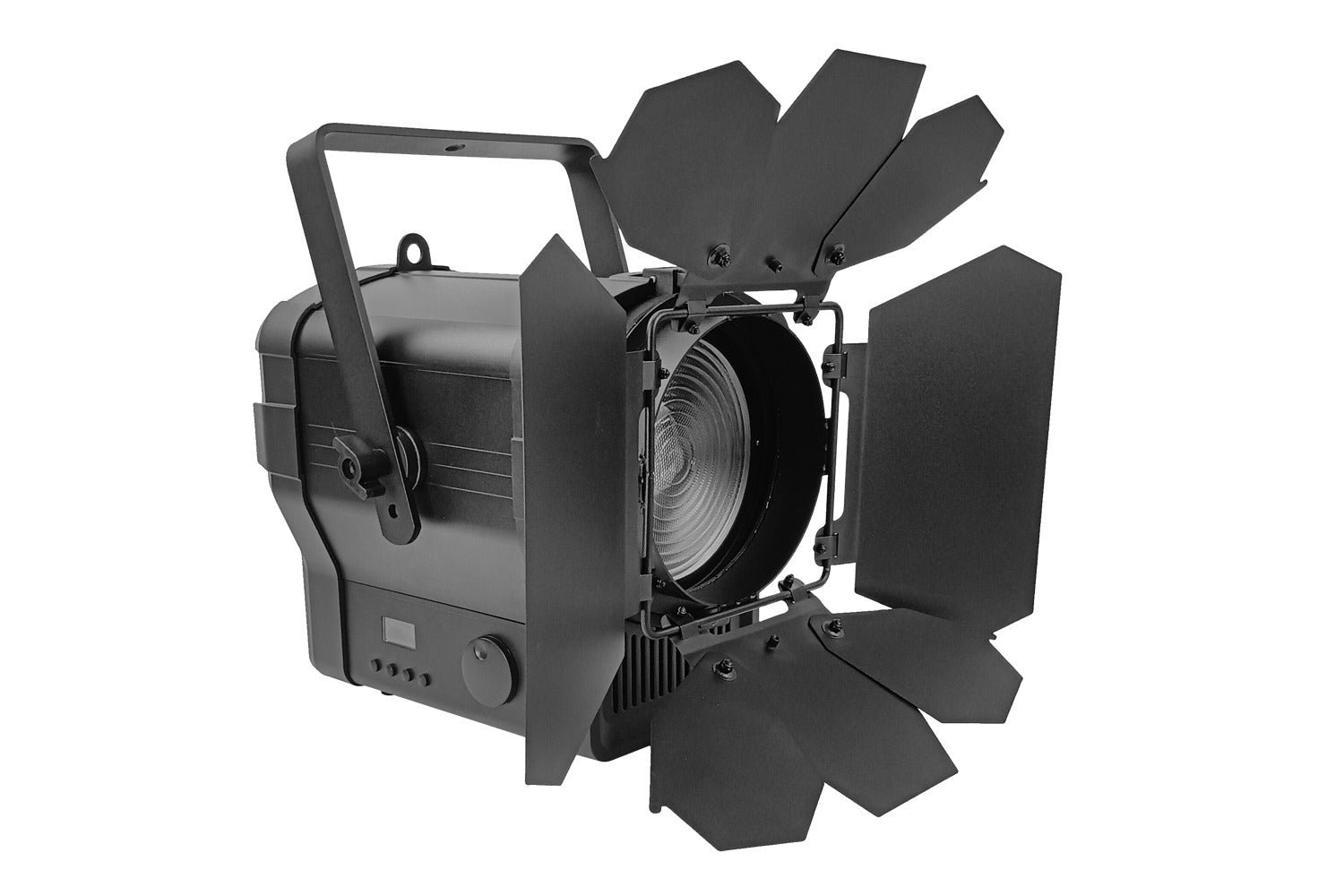

• Included Accessories: 8-leaf barn door and gel frame

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 200W
• Power Connectivity: True1 power input and output

Control & Connectivity

• Operating Modes: DMX, RDM, and Manual

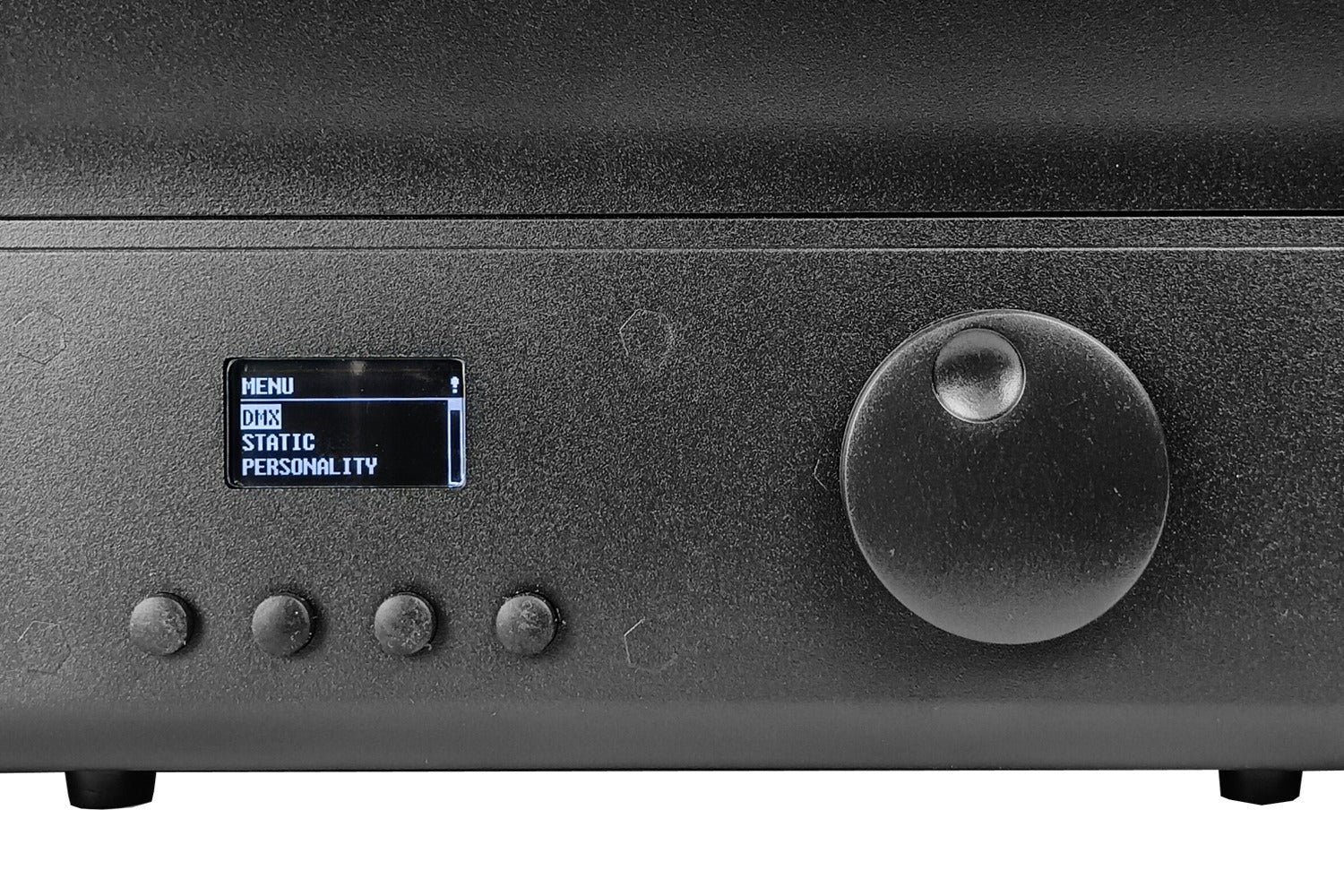

• Display: TFT-LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 6CH, and 9CH

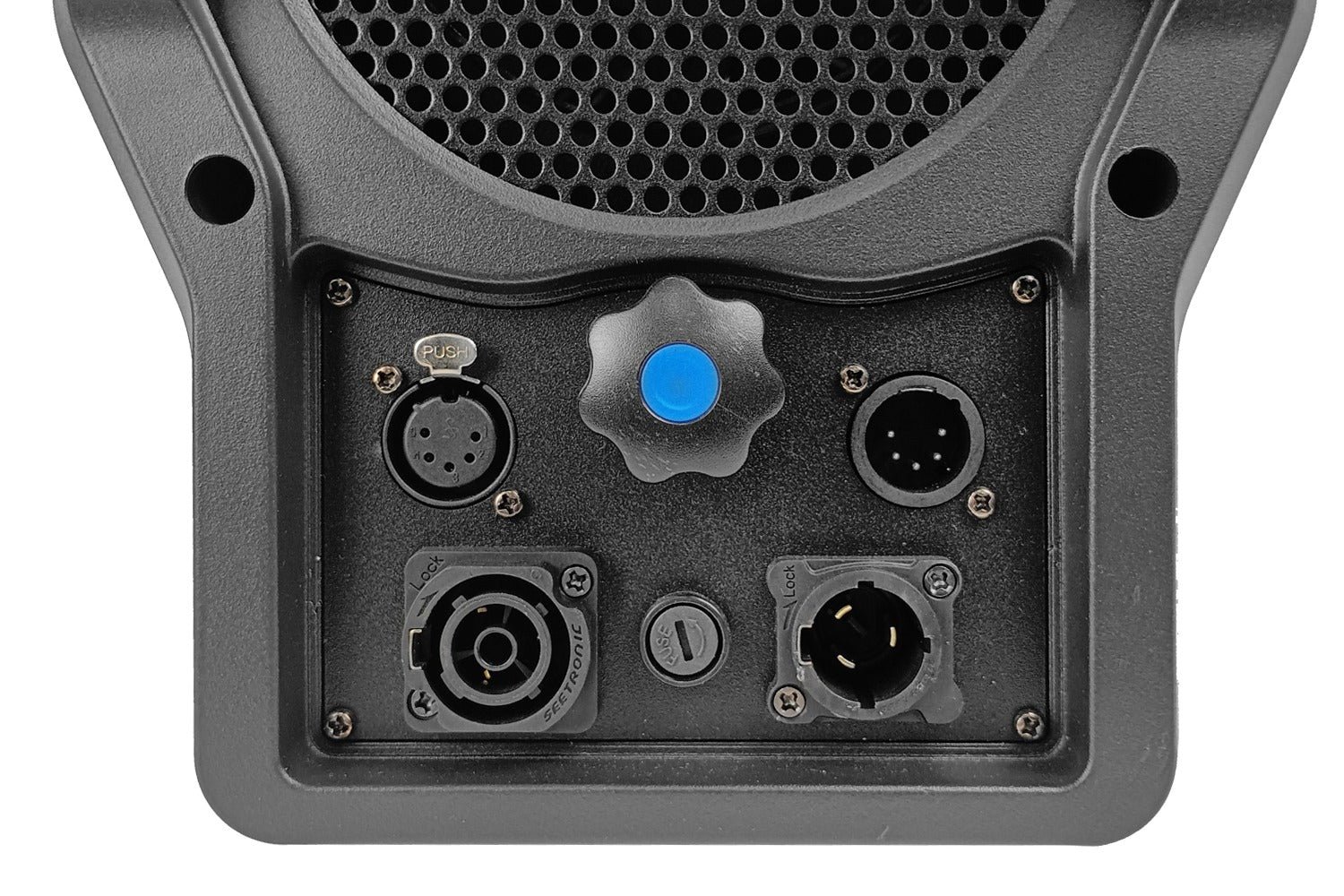

• Control Interface: 5-pin XLR DMX input and output

Construction & Reliability

• Housing Material: Rugged die-cast aluminum construction
• Finish: Matte black professional coating
• Tilt Adjustment: ±90°
• Operating Temperature: -10°C to 40°C
• Cooling System: Silent fan with intelligent automatic temperature control
• IP Rating: IP20

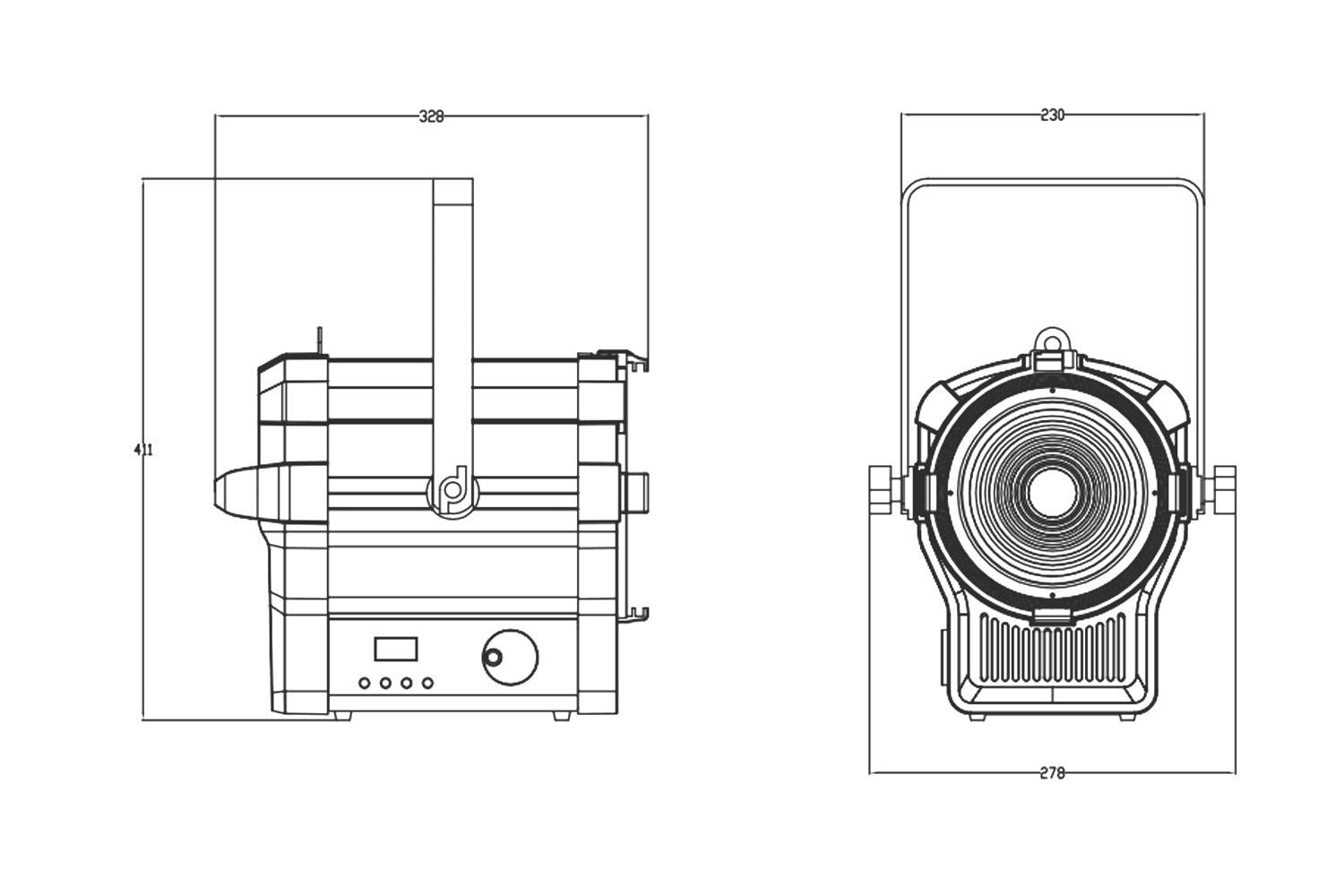

• Dimensions: 328 × 411 × 278 mm (12.9″ × 16.2″ × 10.9″)
• Weight: 8.2 kg (18.1 lbs)

Warranty

• Includes a 3-year manufacturer warranty for dependable long-term performance.
