OPERA300FCF – Fresnel LED Engine with 300W RGBALC with Motorised Zoom

OPERA300FCF – 300W RGBALC LED Fresnel with Motorized Zoom

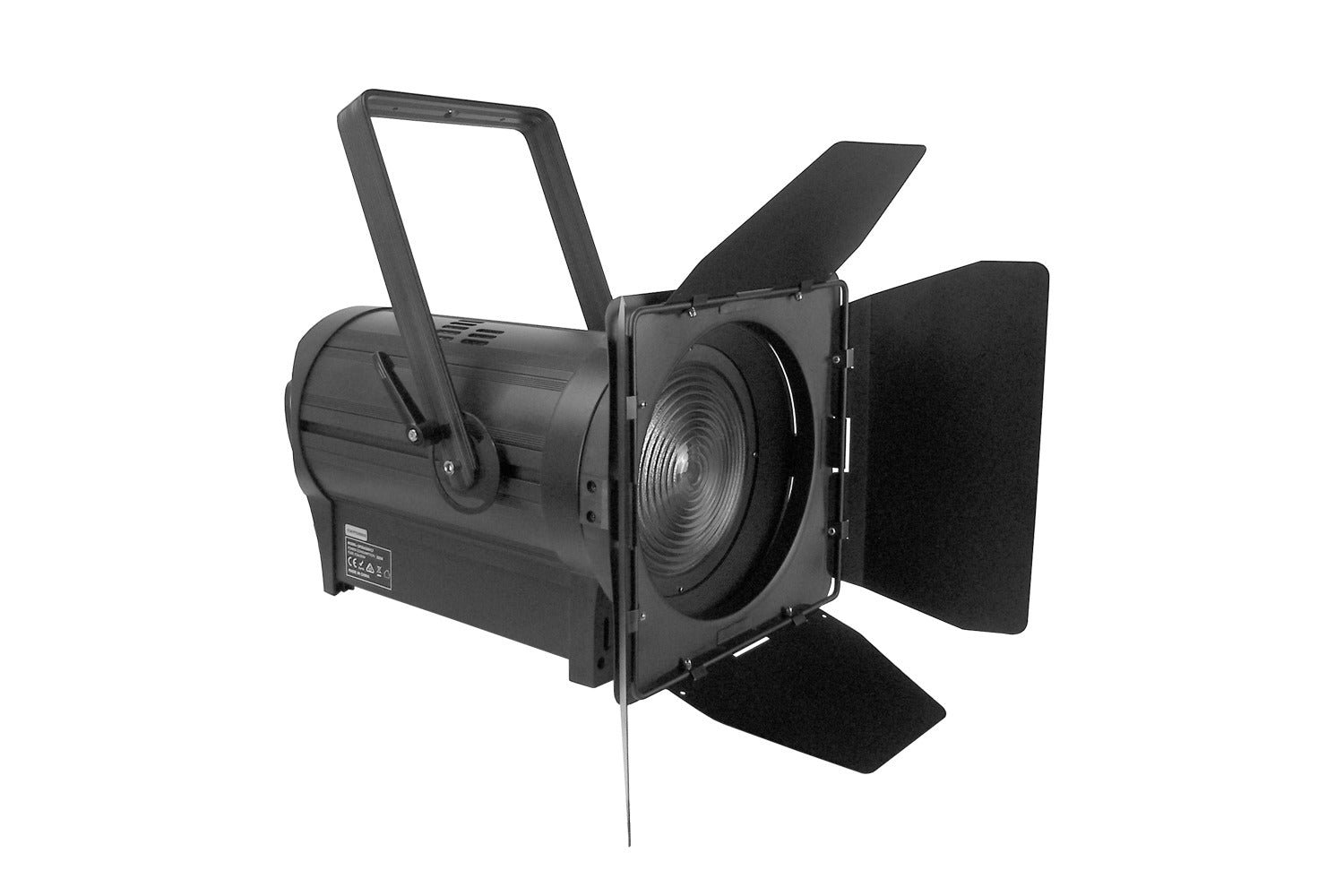

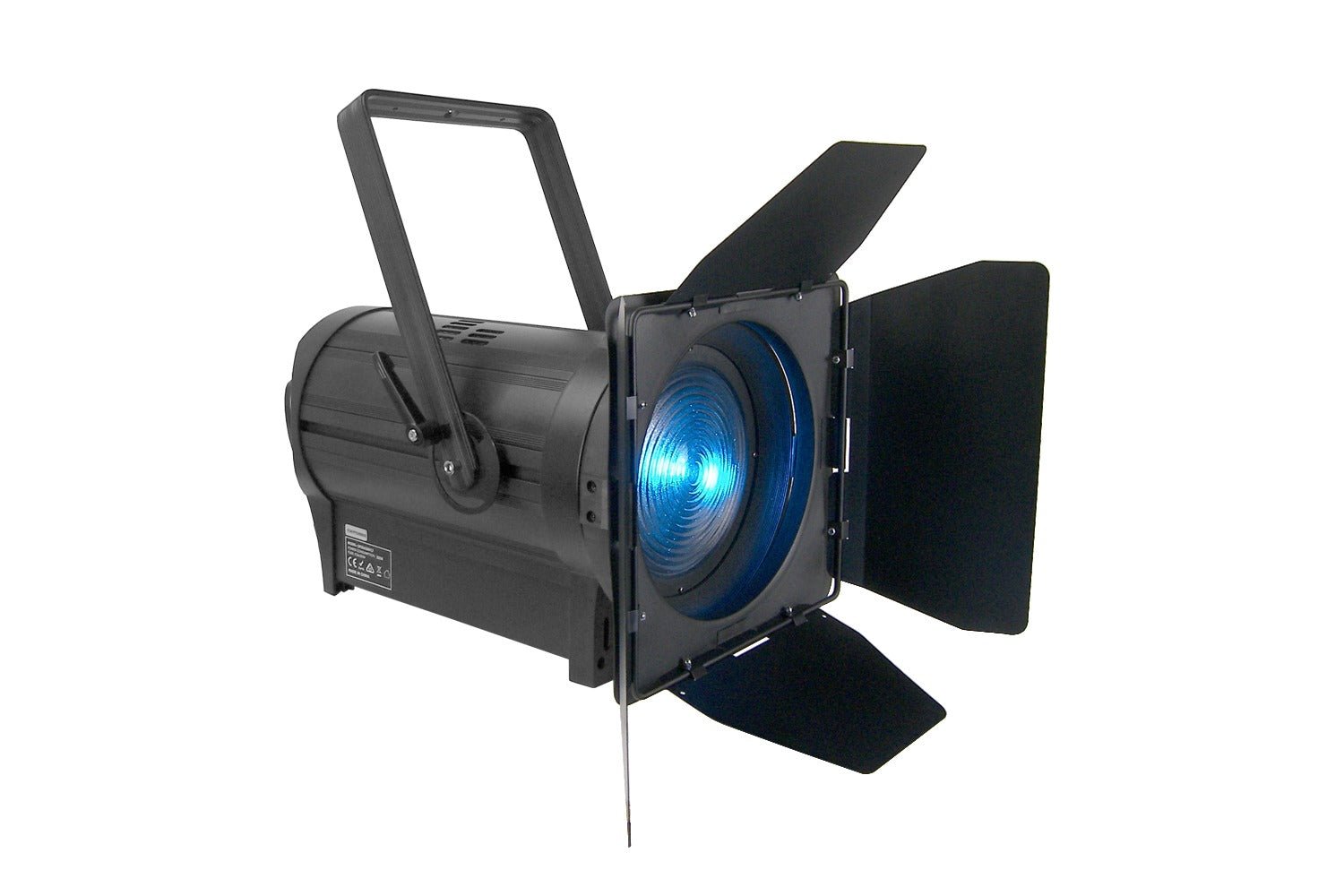

The OPERA300FCF is a high-performance professional Fresnel lighting fixture powered by an advanced 300W RGBALC LED engine. Designed for theatres, television studios, concert venues, houses of worship, and large-scale live productions, it delivers exceptional color quality, powerful output, and flexible beam control.

Featuring a motorized zoom system with an adjustable beam range of 14° to 55°, the fixture provides precise illumination for both spotlighting and wide-area coverage. Its RGBALC color mixing technology offers smooth color transitions, superior white light reproduction, and an adjustable color temperature range from 2700K to 10000K. Integrated HSIC color control enables quick access to virtually any desired color, making it ideal for creative lighting applications.

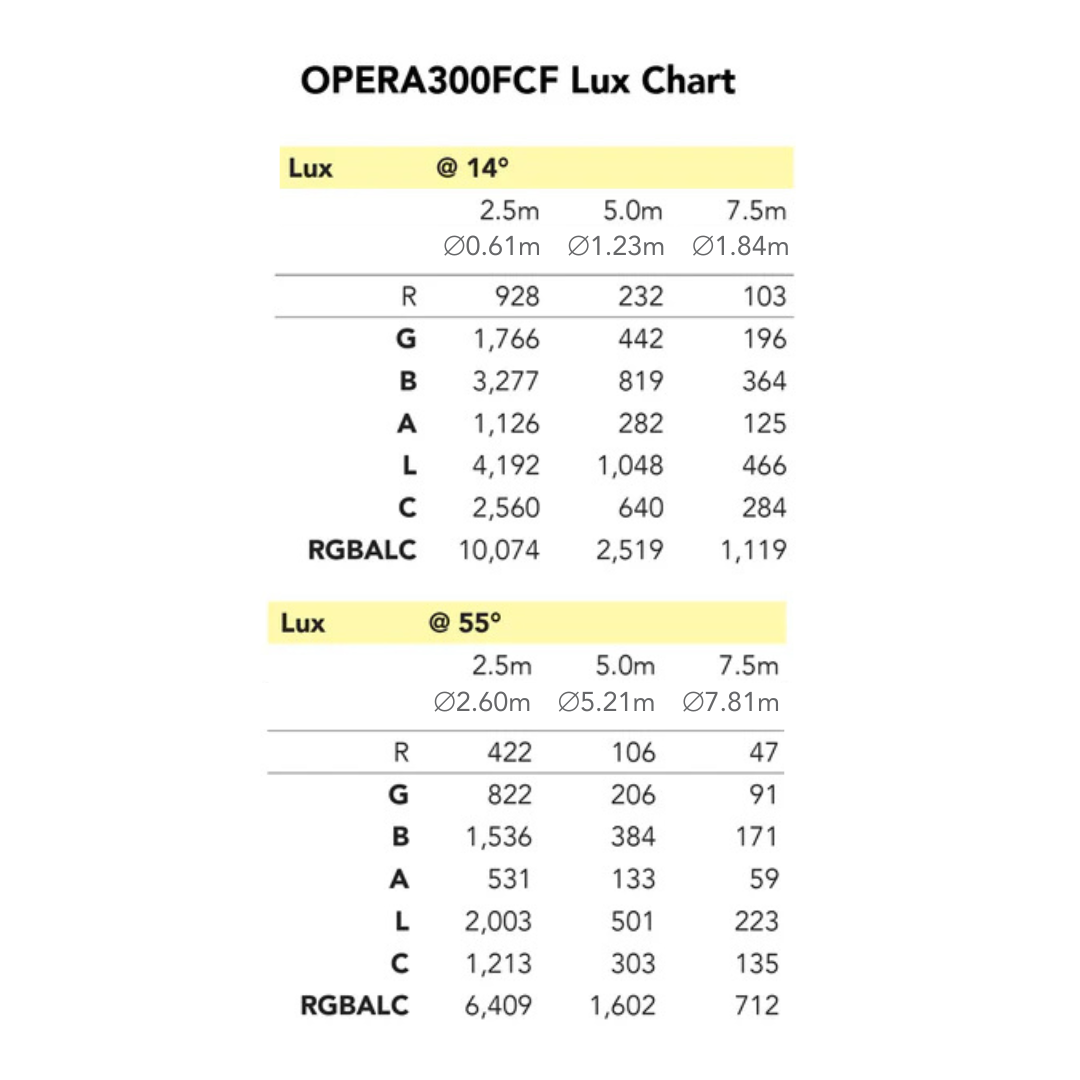

Photometric Specifications

• Light Source: 300W RGBALC LED Engine
• CRI: Up to 97
• Beam Angle: Adjustable from 14° to 55°
• Color Temperature: 2700K–10000K Variable White
• Output Power: 300W RGBALC
• PWM Frequency: Selectable from 1,000Hz to 8,000Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit dimming from 0% to 100%
• Zoom Control: Motorized zoom adjustment (14°–55°)
• Color Mixing: RGBALC color system for enhanced color accuracy
• Color Control: HSIC color management for fast color selection
• Optical System: Precision glass lens assembly with 175mm Fresnel lens

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 300W
• Power Connectivity: True1 power input and output

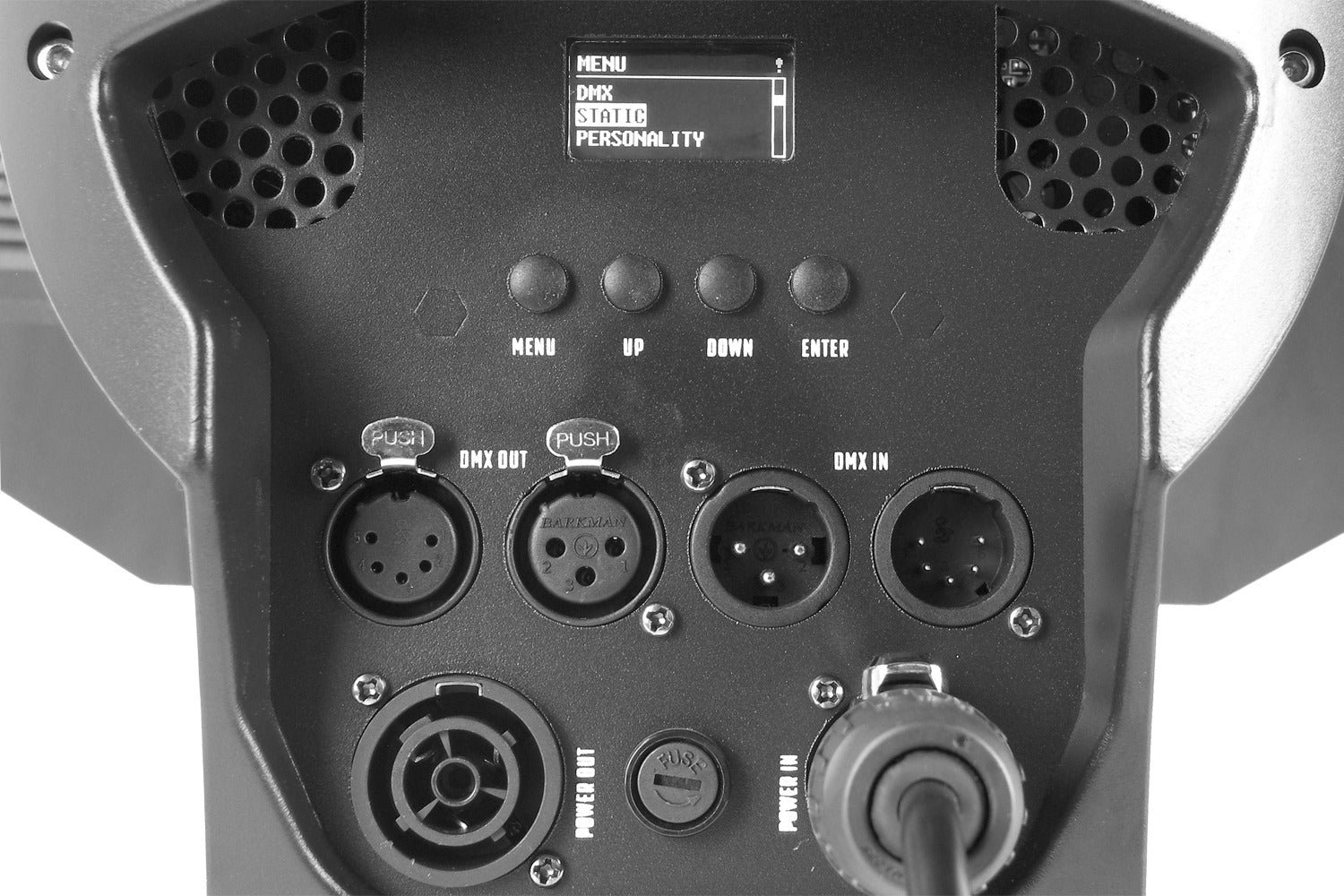

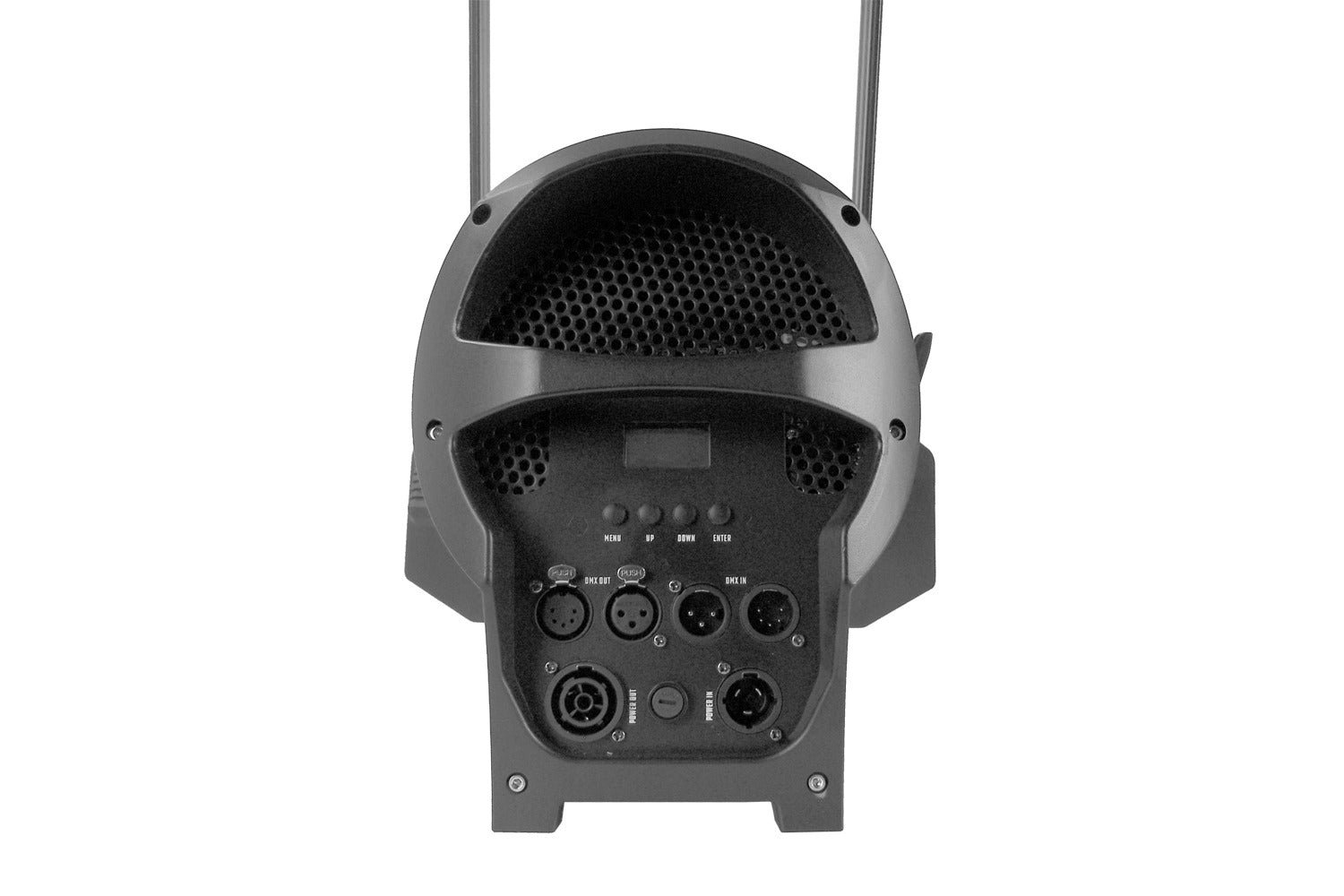

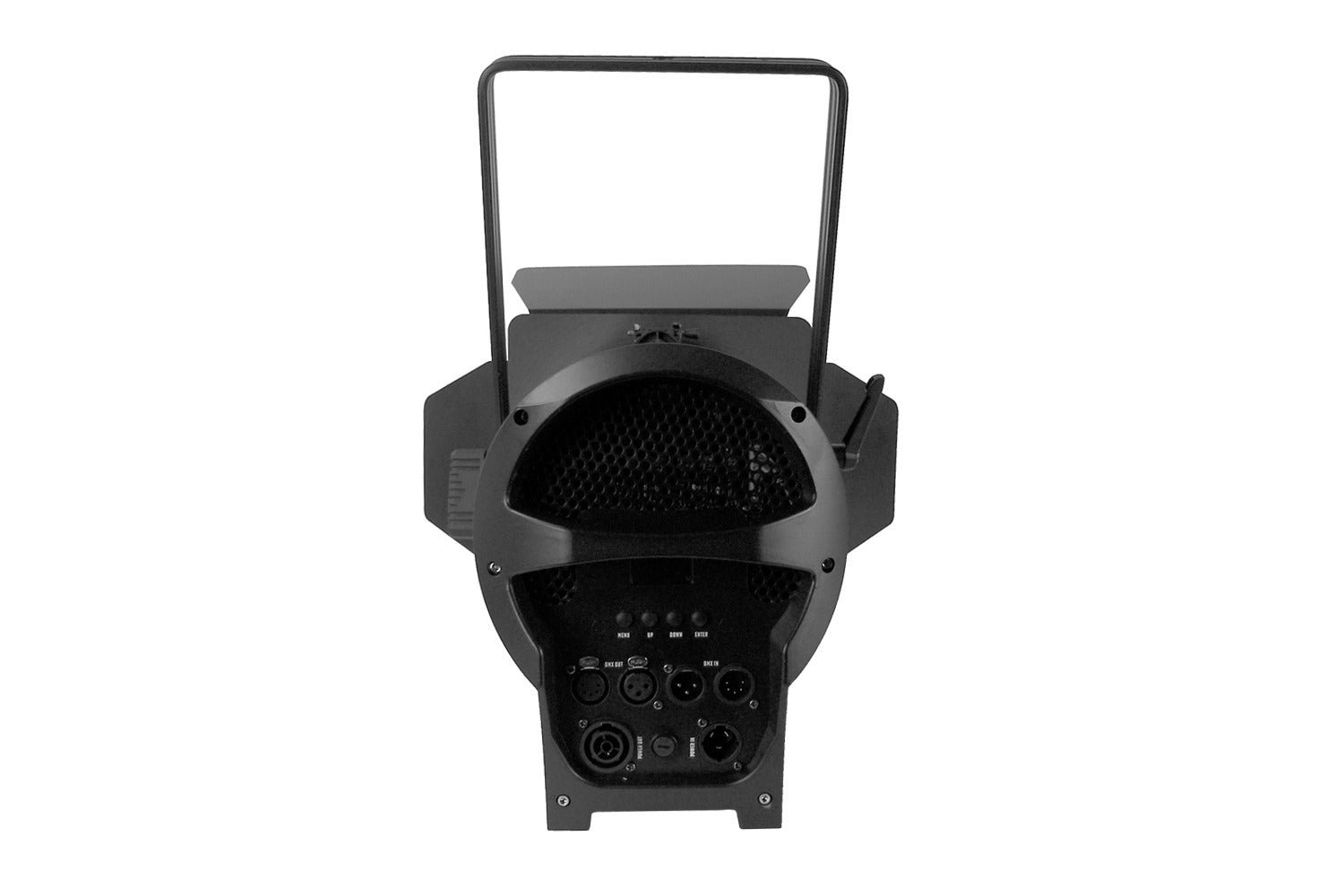

Control & Connectivity

• Operating Modes: DMX, RDM, and Manual
• Display: OLED display with 4-button control interface
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 3CH, 6CH, 8CH, 10CH, 12CH, 18CH, and 10H-CH
• Control Interface: 3-pin and 5-pin XLR input/output

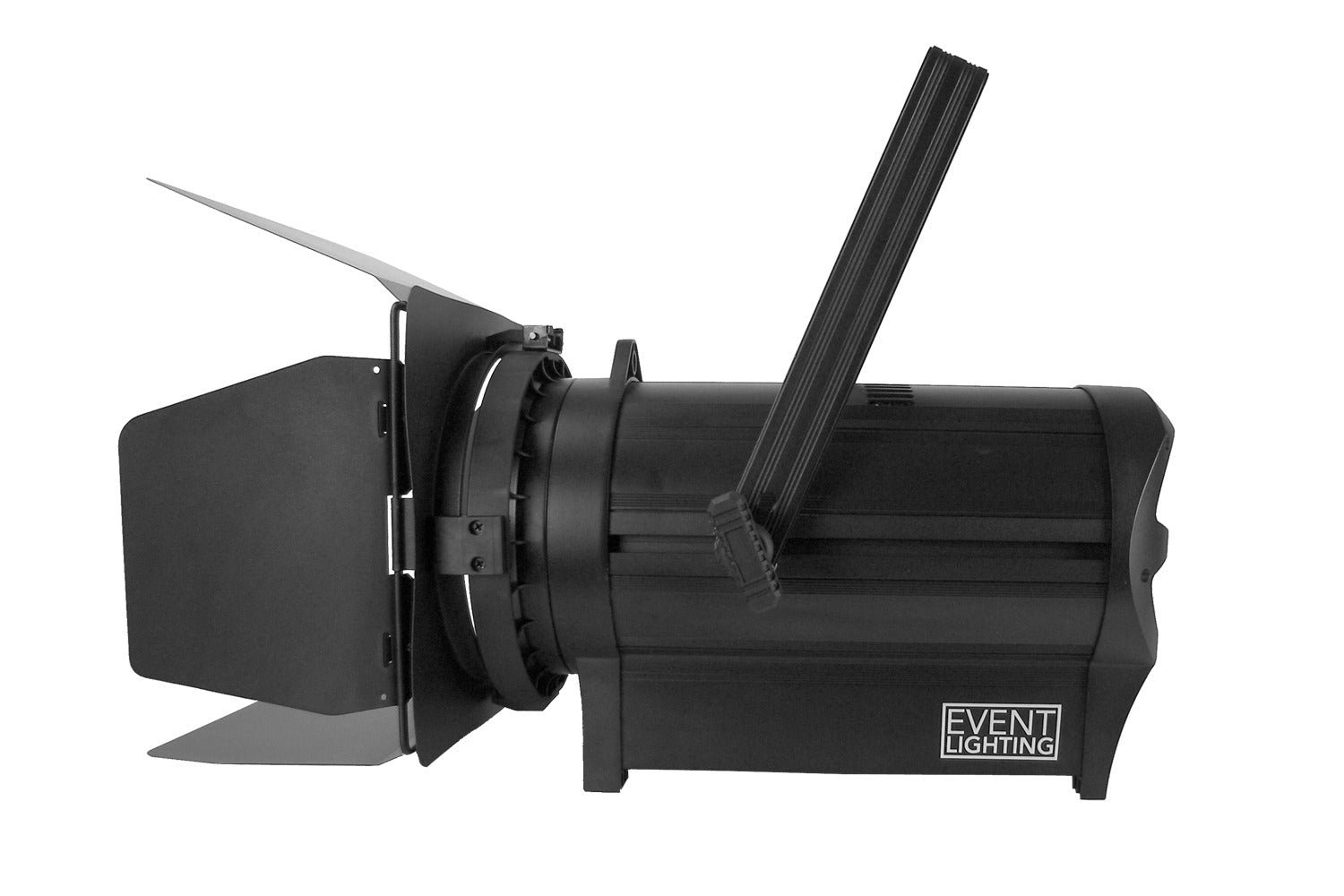

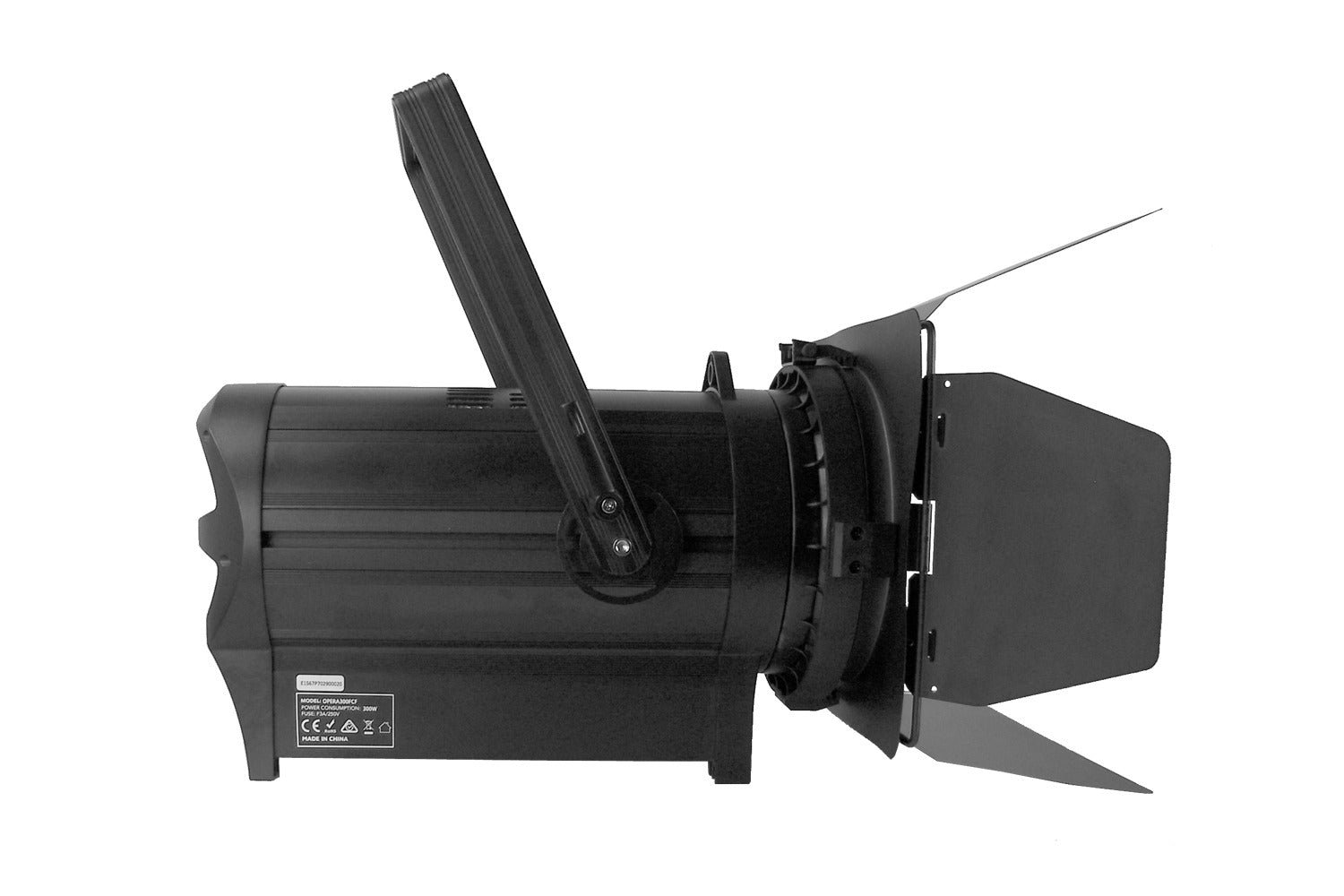

Construction & Reliability

• Housing Material: Robust die-cast aluminum construction
• Finish: Professional matte black coating
• Tilt Range: ±90°
• Cooling System: Silent fan with intelligent temperature management
• IP Rating: IP23
• Dimensions: 538 × 270 × 395 mm
• Weight: 10 kg

Warranty

• Supplied with a 3-year manufacturer warranty for dependable long-term operation.
