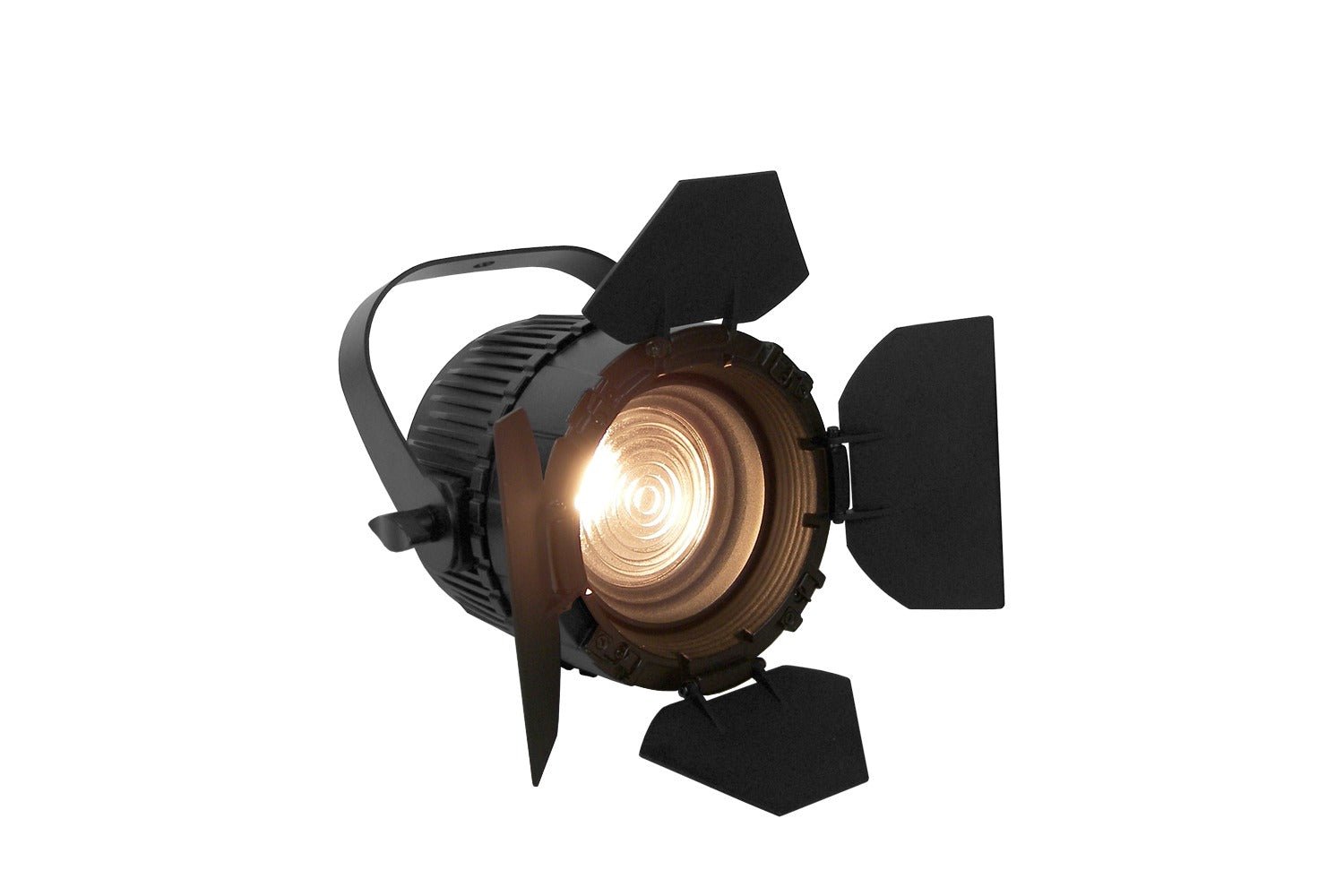

F96VW – Variable White Fresnel with Manual Zoom

F96VW – Variable White Fresnel Light with Manual Zoom

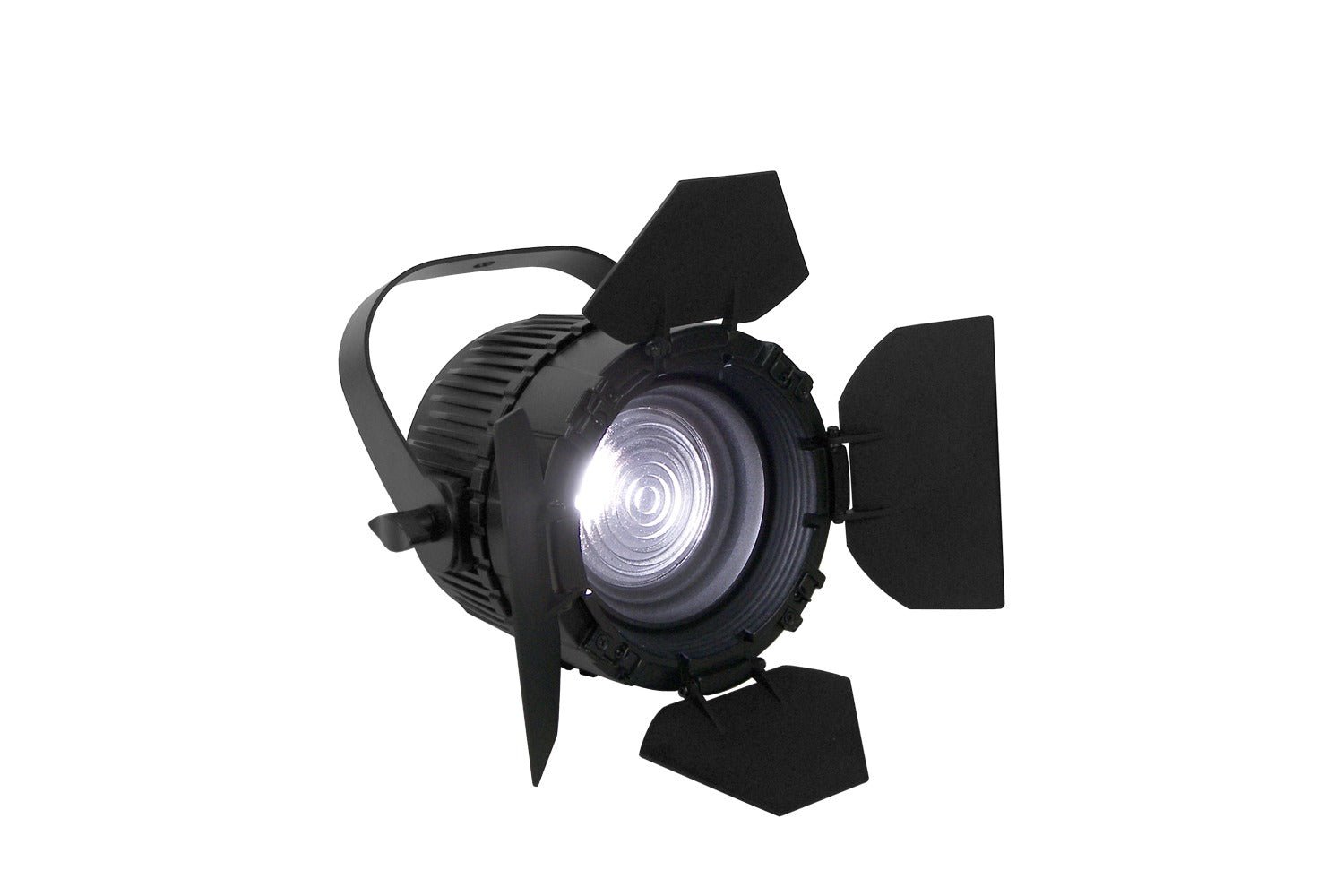

The F96VW is a compact and professional Variable White Fresnel fixture engineered for theatres, studios, churches, exhibition spaces, conference venues, and live events. Equipped with dual COB LEDs combining cool and warm white light sources, it delivers smooth white light adjustment and excellent color accuracy for a wide range of lighting applications.

Its manual zoom system offers a flexible beam angle range from 20° to 50°, allowing users to easily adapt the light output for both focused highlights and broader coverage. With a CRI of 95+, the fixture ensures true-to-life color reproduction, making it ideal for stage, broadcast, and architectural lighting environments. The silent fanless cooling design provides reliable operation without unwanted noise.

Photometric Specifications

• Light Source: 2 × 48W COB LEDs (5,700K Cool White & 2,700K Warm White)
• CRI: 95+
• Beam Angle: Adjustable from 20° to 50°
• Field Angle: 50° to 67°

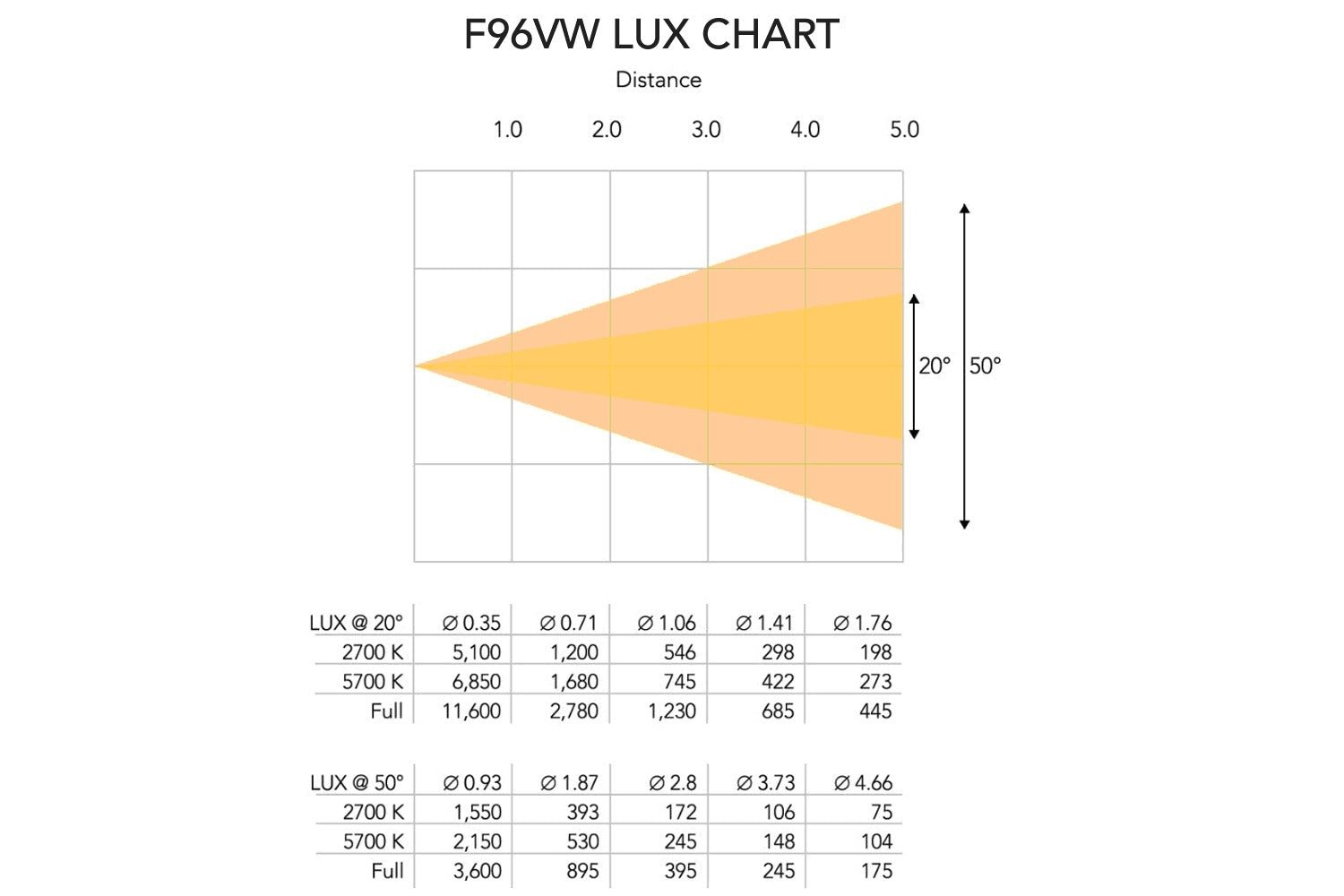

• Light Output: 1,230 lux at 3m (20°), 395 lux at 3m (50°)
• Lens: 80mm Fresnel lens
• PWM Frequency: 1,200Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit dimming from 0% to 100%
• Strobe Effect: Adjustable from 1Hz to 25Hz
• Zoom Control: Manual zoom adjustment (20°–50°)

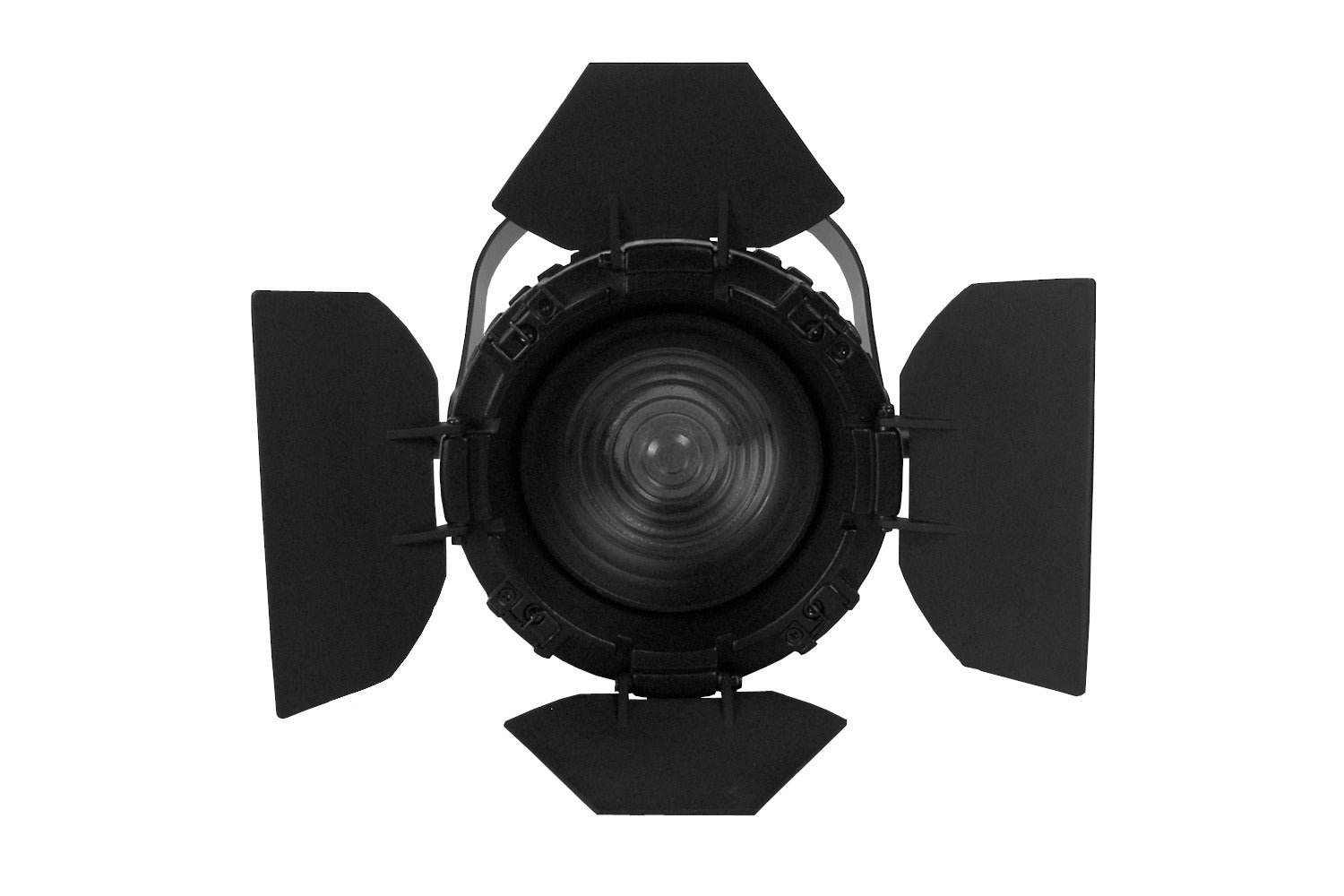

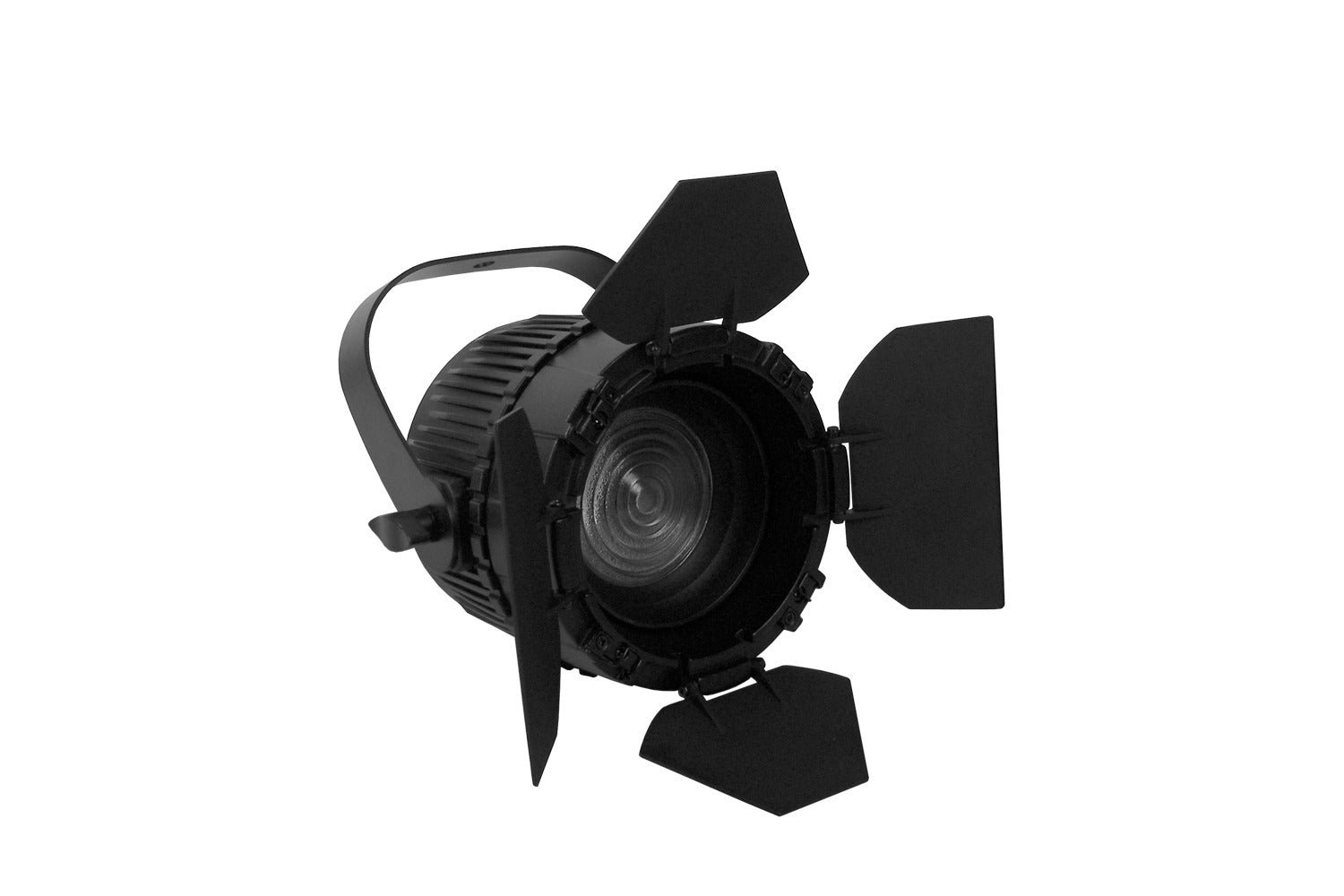

• Included Accessories: Barn door and gel clip

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 75W

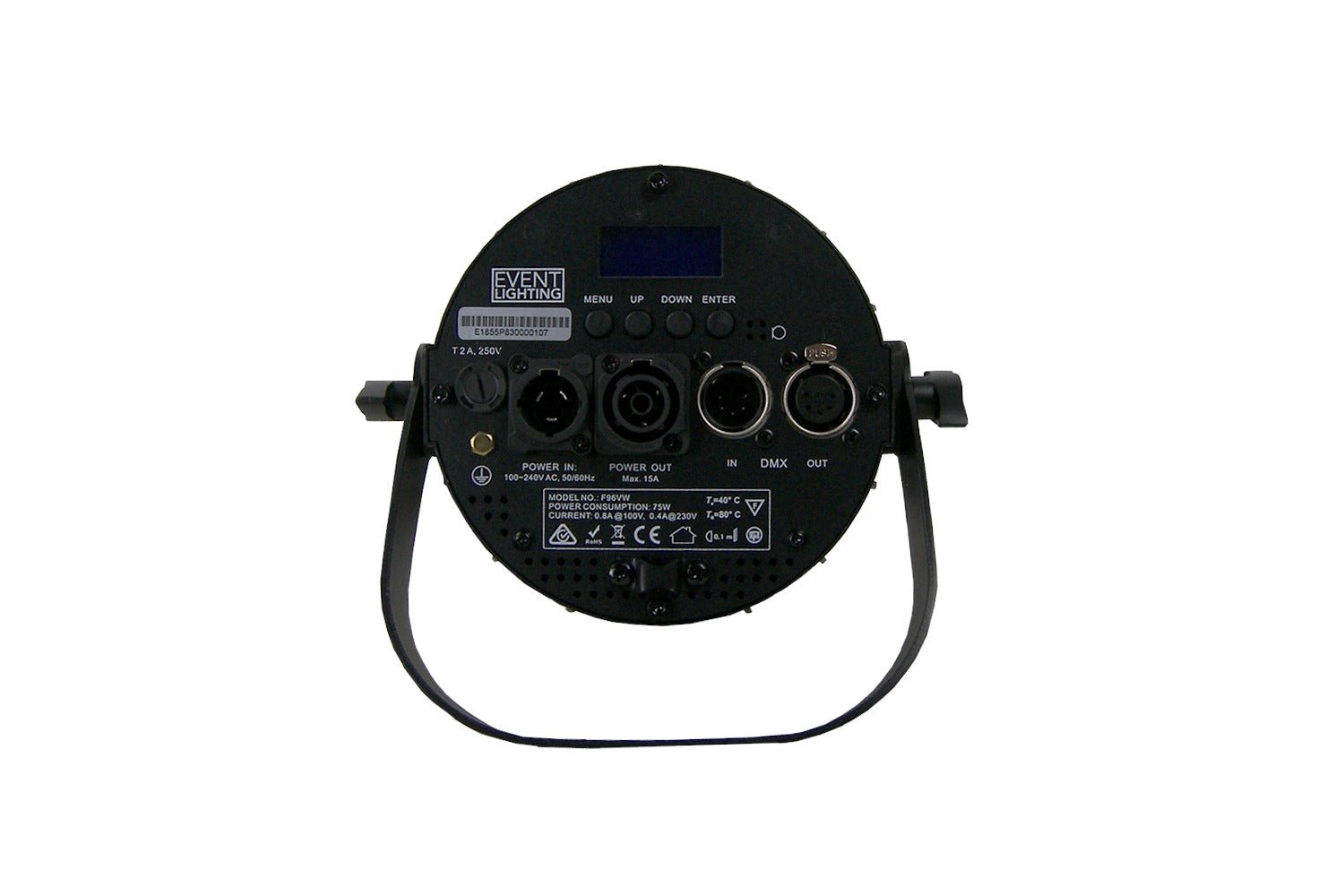

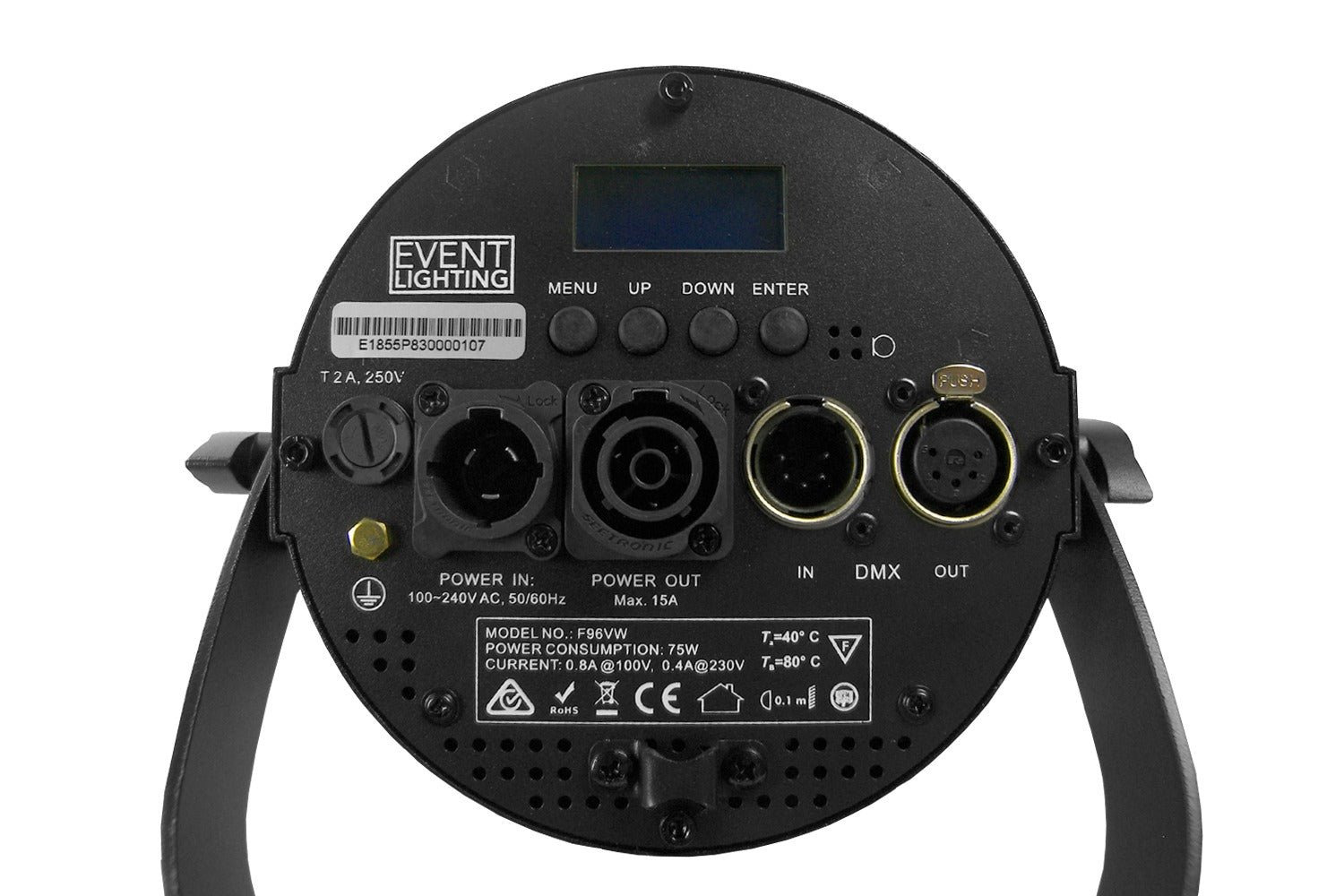

• Power Connection: True1 power input and output

Control & Connectivity

• Operating Modes: Manual, Master/Slave, DMX, and optional WDMX
• Display: LCD display with 4-button control interface
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, and 7CH
• Control Interface: 5-pin XLR input and output

Construction & Reliability

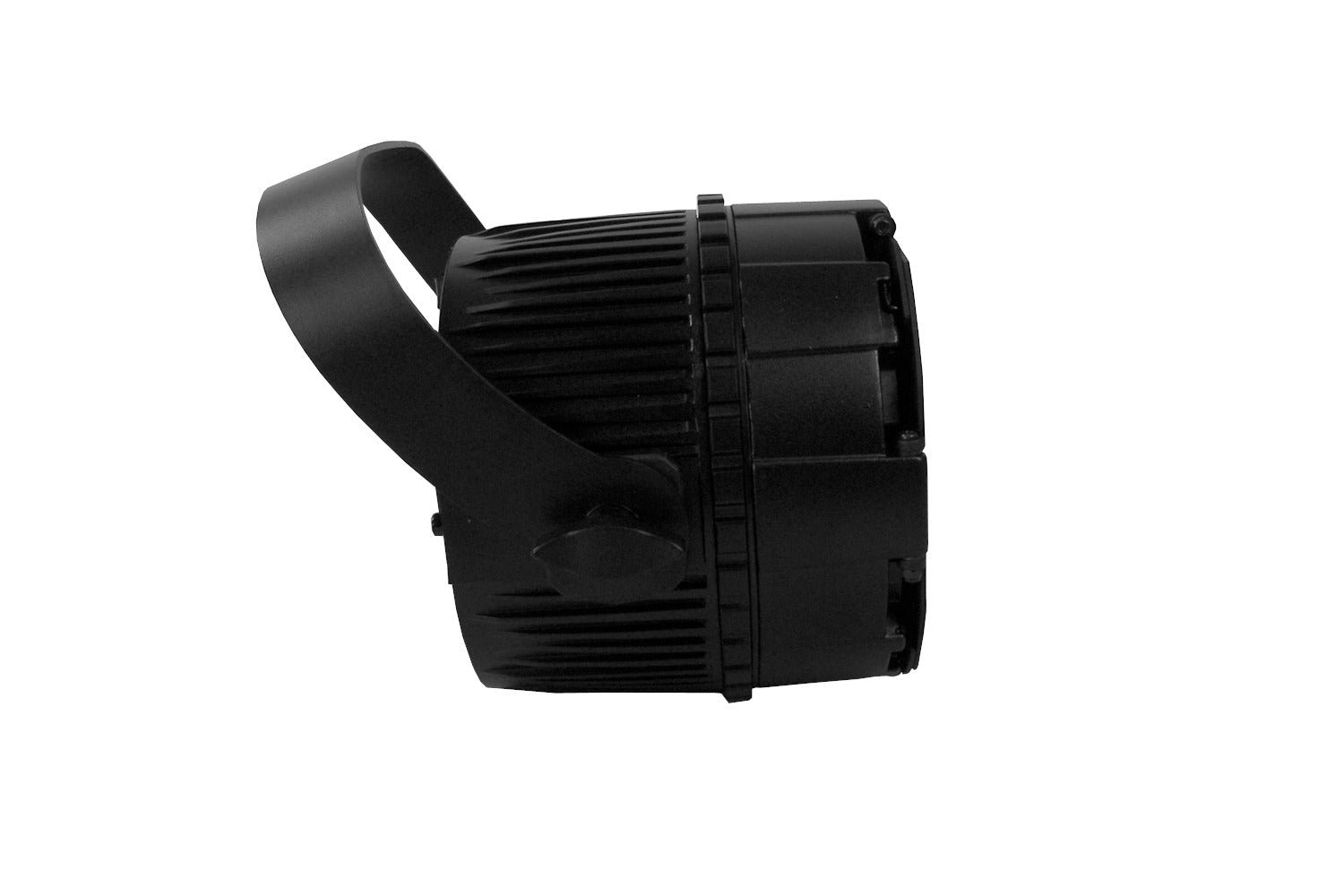

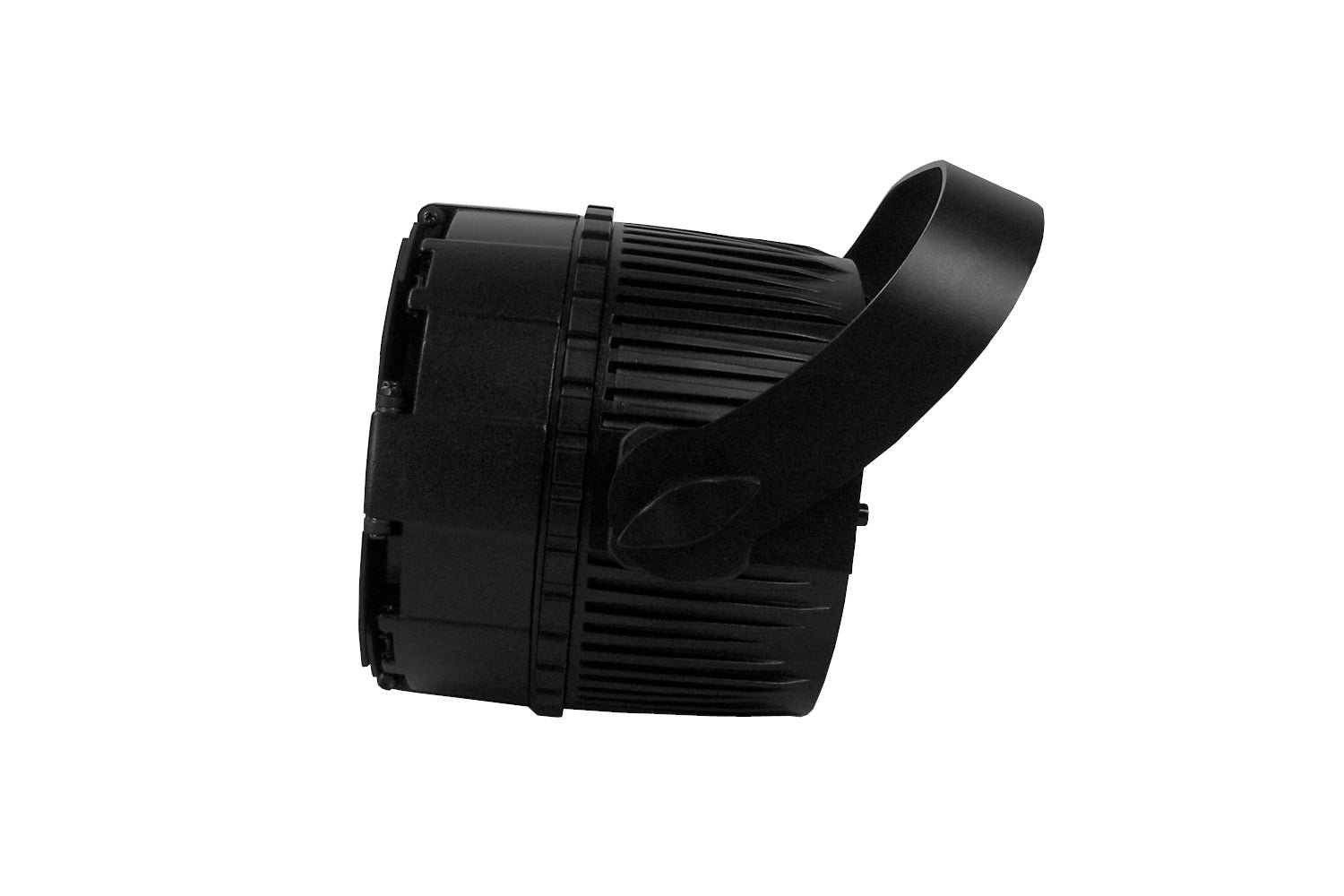

• Housing Material: Durable die-cast aluminum housing
• Finish: Professional matte black coating
• Cooling System: Fanless cooling with built-in temperature protection

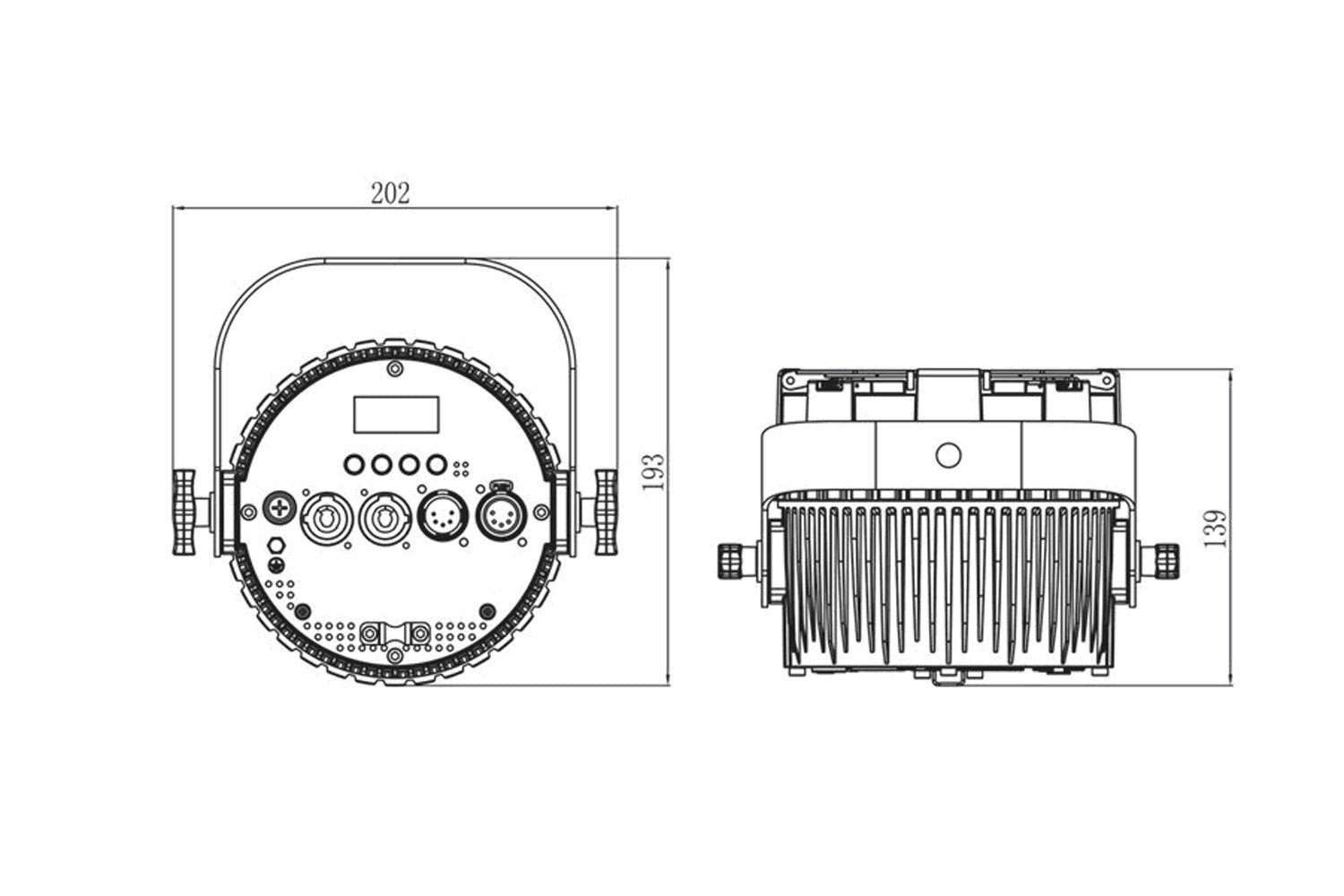

• Dimensions: 202 × 139 × 193 mm (7.95″ × 5.47″ × 7.6″)
• Weight: 2.3 kg (5 lbs)

Warranty

• Backed by a 3-year manufacturer warranty for dependable and long-lasting performance.
