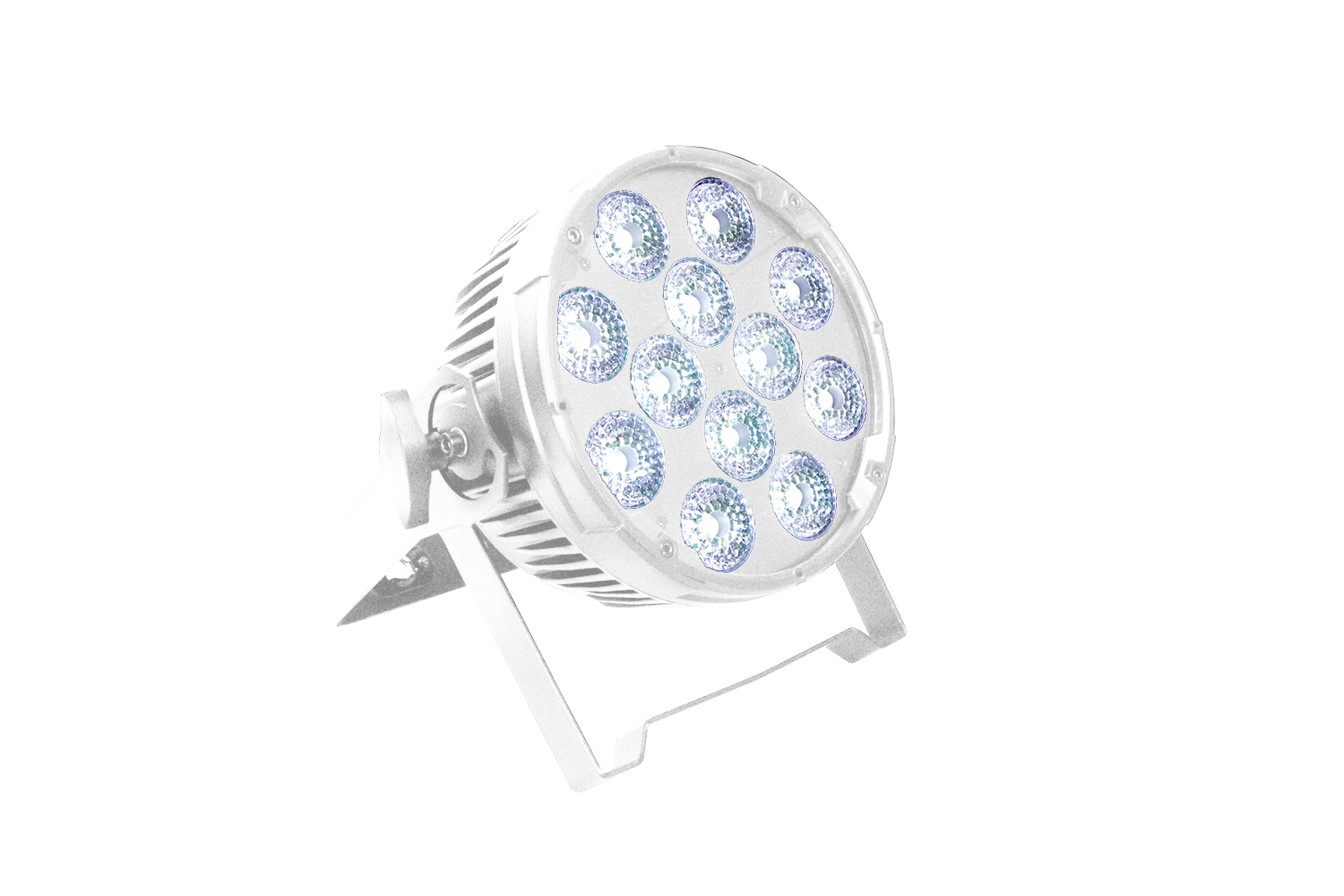

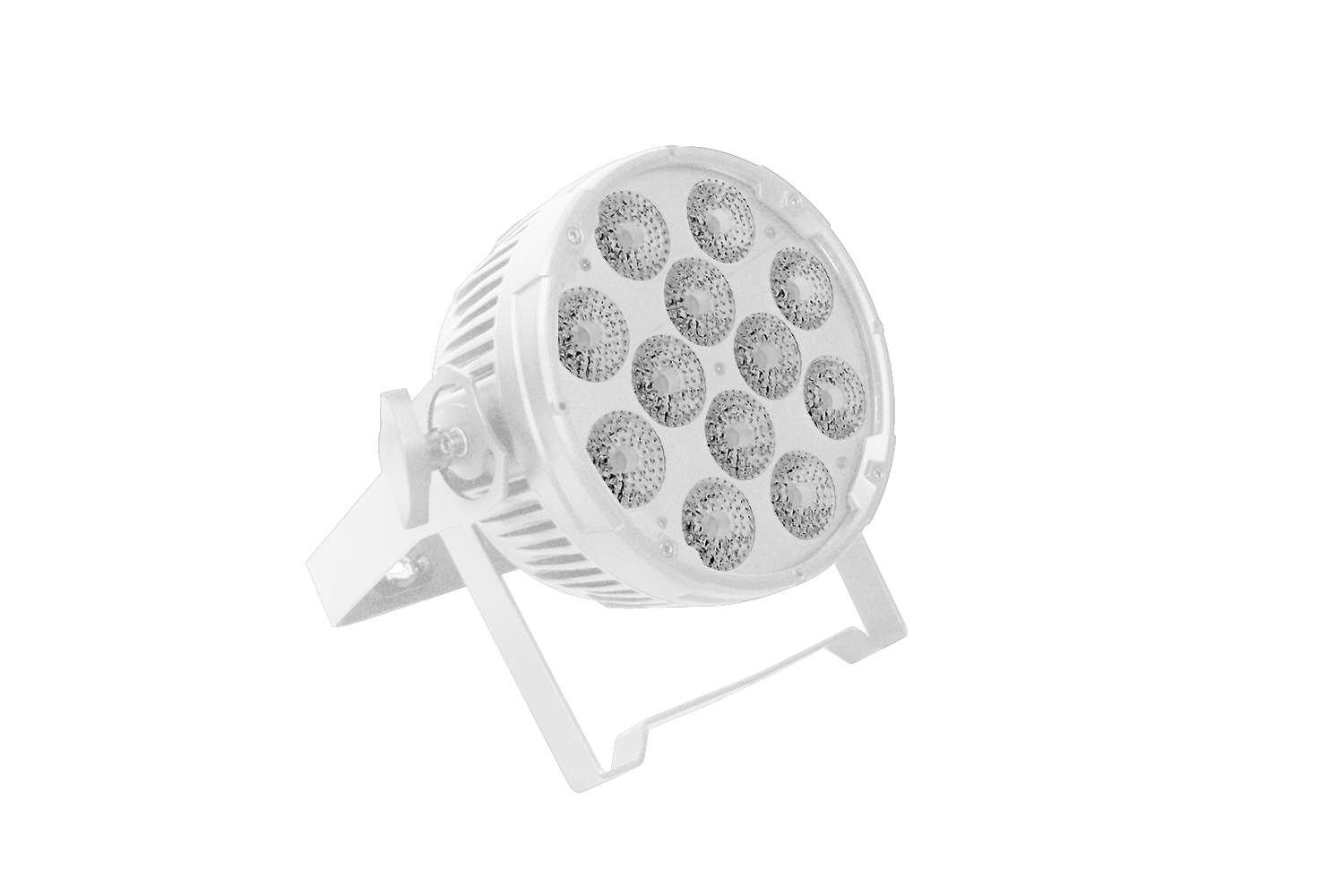

PAR12Q-WH – Indoor Pro Par with 12 x 8W RGBW LEDs (White)

PAR12Q-WH – Indoor Pro PAR with 12 x 8W RGBW LEDs (White)

The PAR12Q-WH is a professional LED PAR fixture designed for theatres, churches, wedding venues, live productions, corporate events, and architectural lighting applications. Equipped with 12 high-performance 8W RGBW LEDs, it delivers vibrant color mixing, smooth color transitions, and powerful wash effects while maintaining exceptional reliability and silent operation.

Offering multiple beam angle options and advanced dimming technology, the fixture provides excellent flexibility for a variety of lighting environments. Its elegant matte white housing blends seamlessly into premium event spaces and architectural installations, making it an ideal choice for venues where aesthetics and performance are equally important.

Photometric Specifications

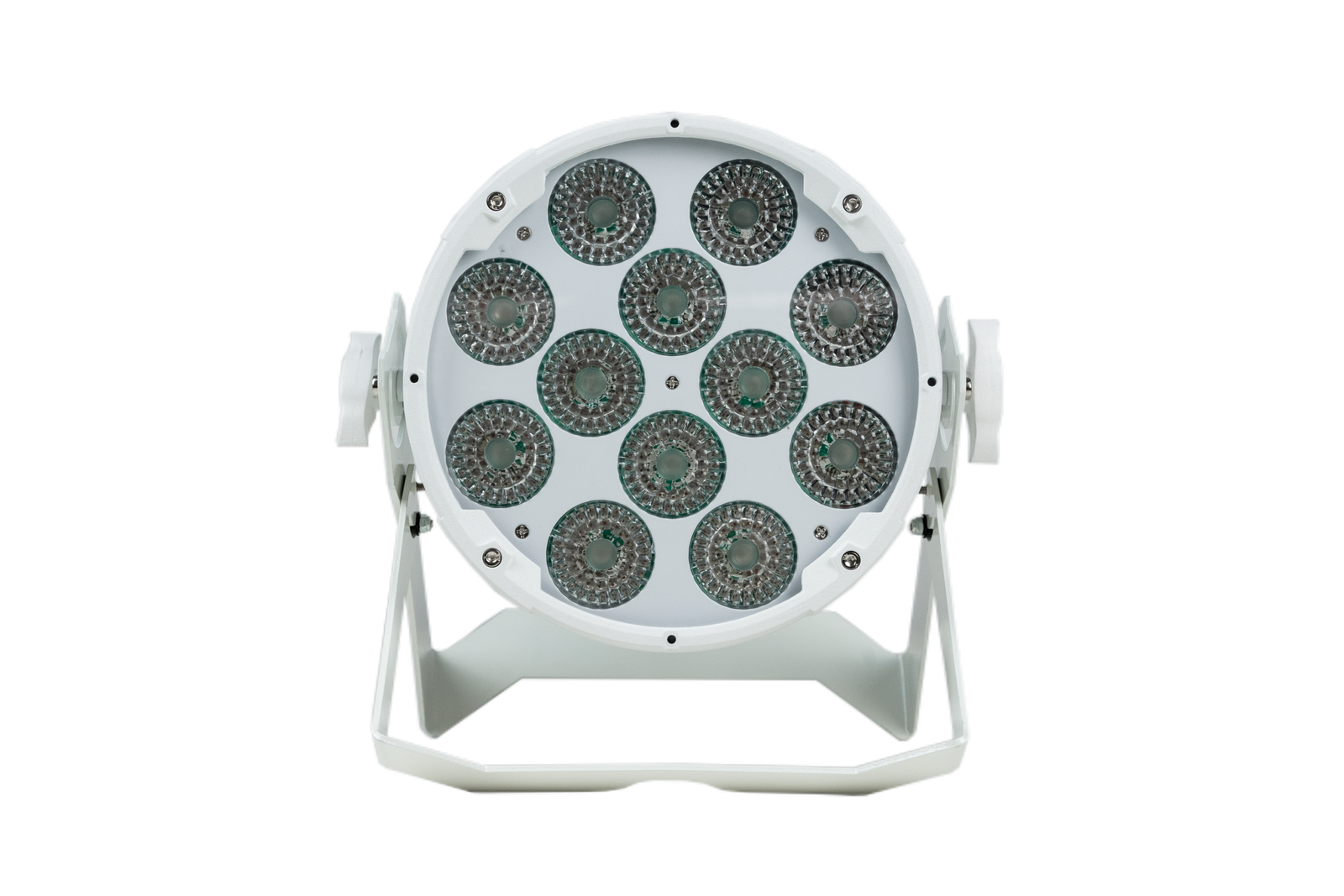

• Light Source: 12 × 8W RGBW LEDs

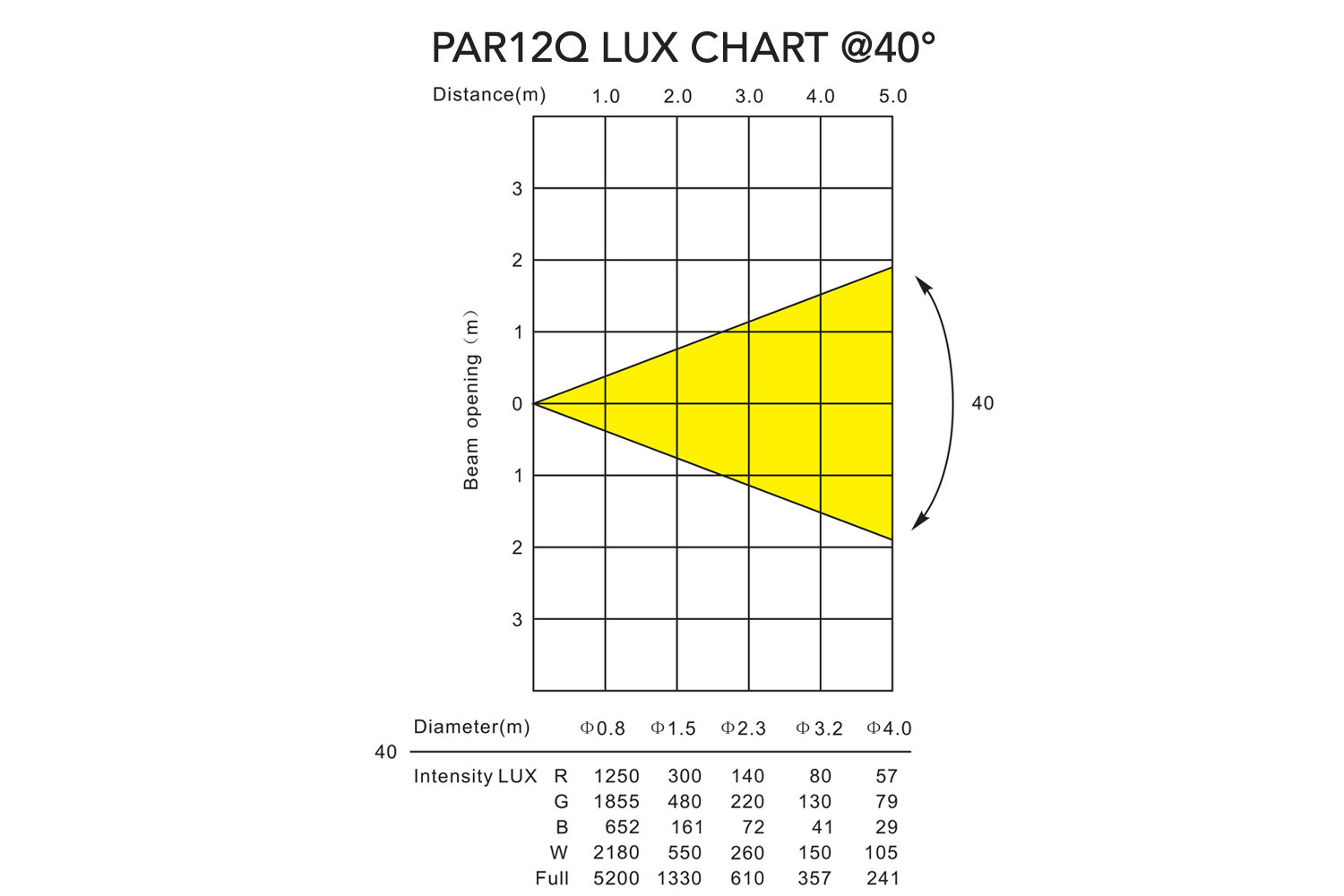

• Beam Angle: 30° standard (Optional: 40°, 25°, 15°)

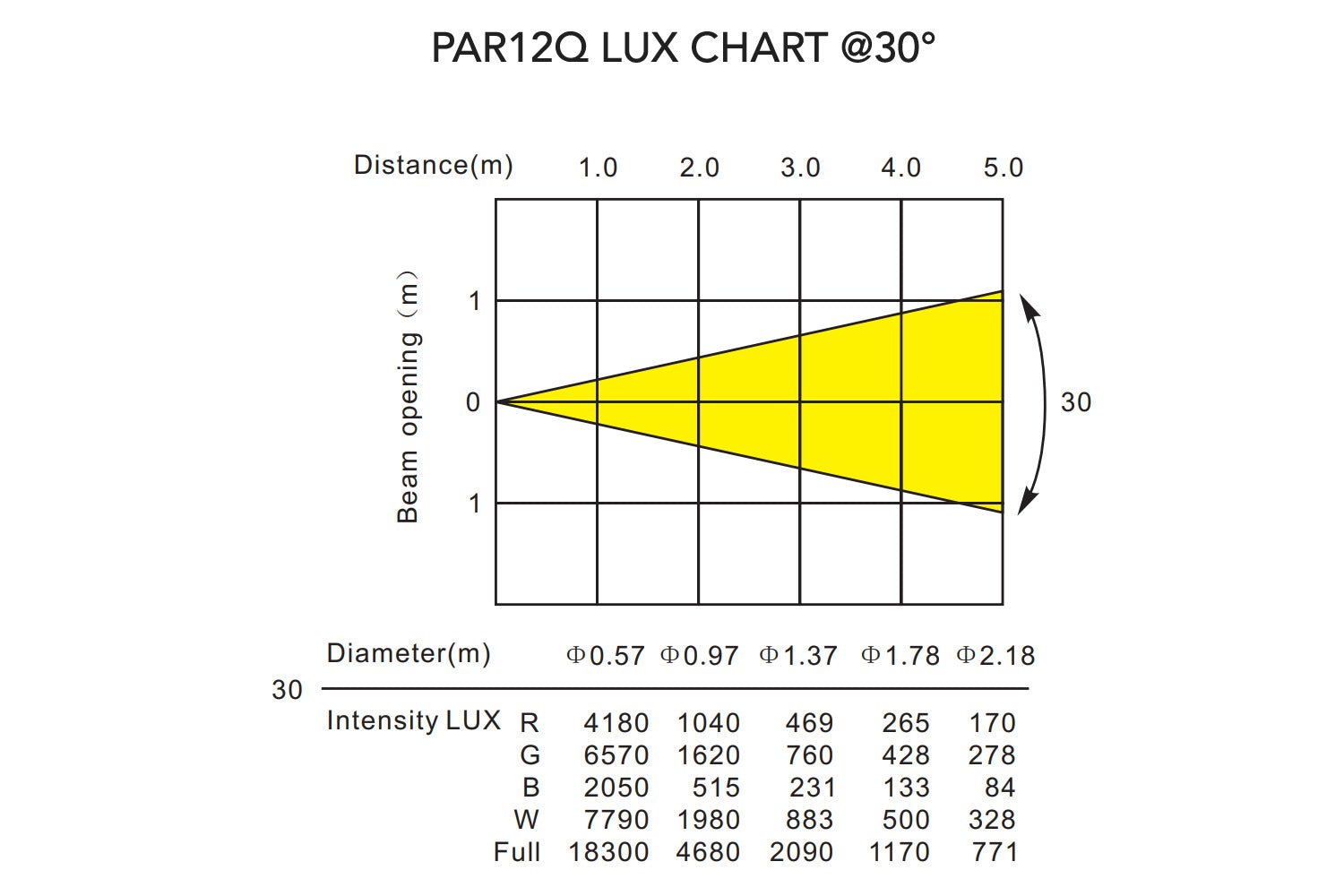

• Output: 4,680 lux at 2.0m (full output)
• PWM Frequency: 2,940Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 5 selectable 16-bit dimming curves
• Strobe Effect: Adjustable from 1Hz to 30Hz

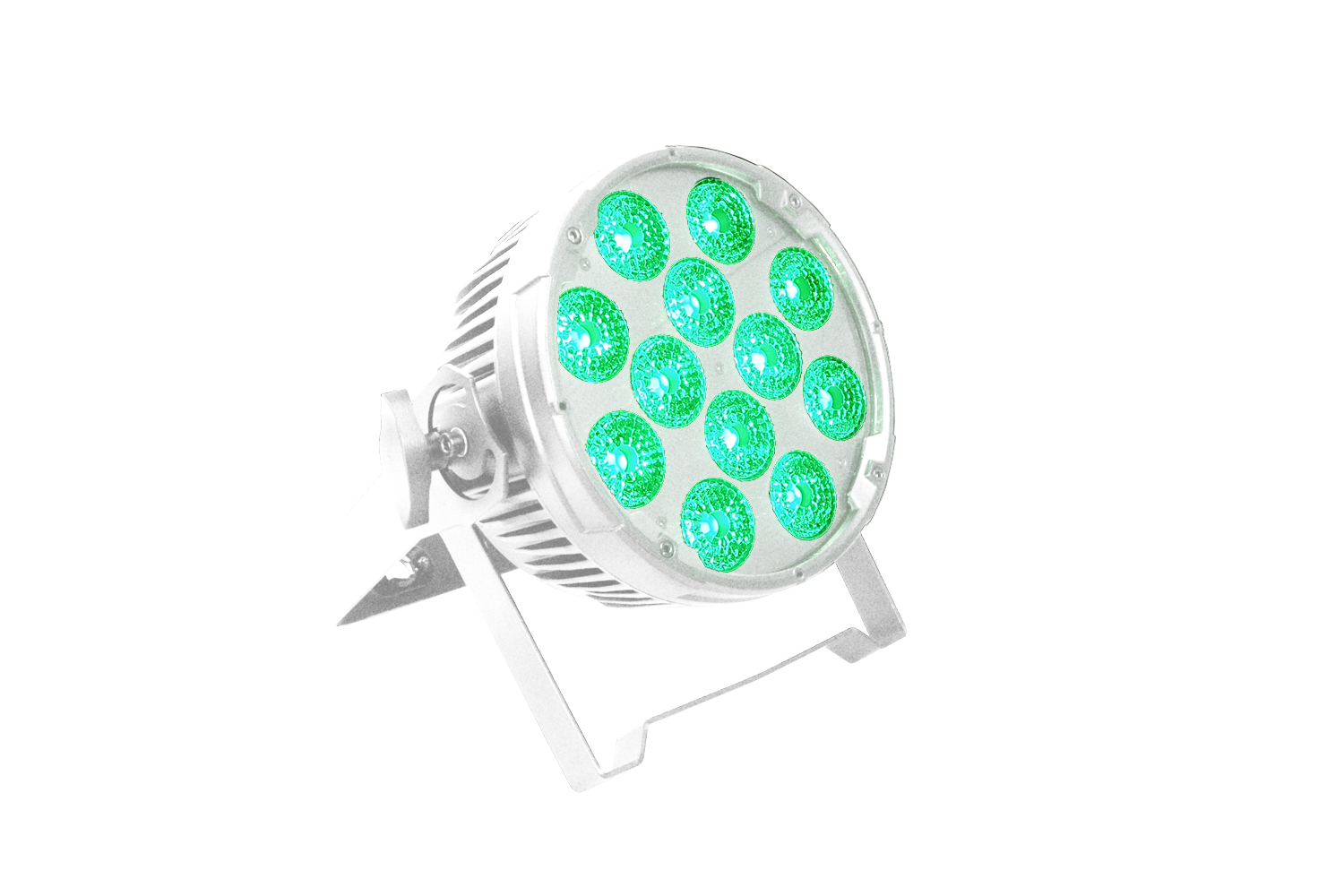

• Color Mixing: RGBW technology for vibrant colors and smooth pastel tones
• Silent Operation: Fanless cooling system for noise-sensitive environments

Control & Connectivity

• Operating Modes: DMX, Auto Run, Sound Active, Master/Slave, Manual Color Control, and Static Color Control
• Wireless DMX: Optional WDMX support

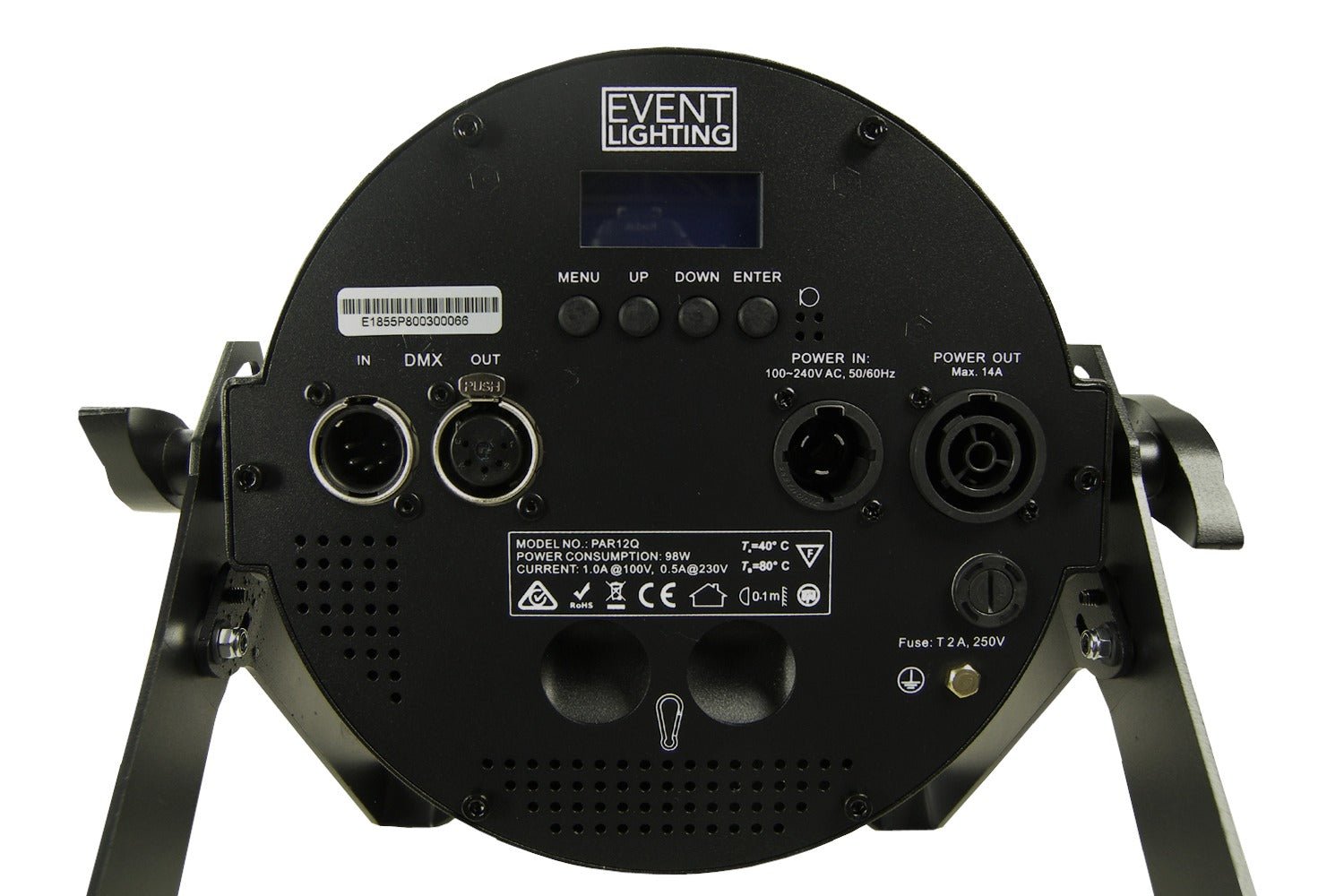

• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 3CH, 4CH, 6CH, and 10CH

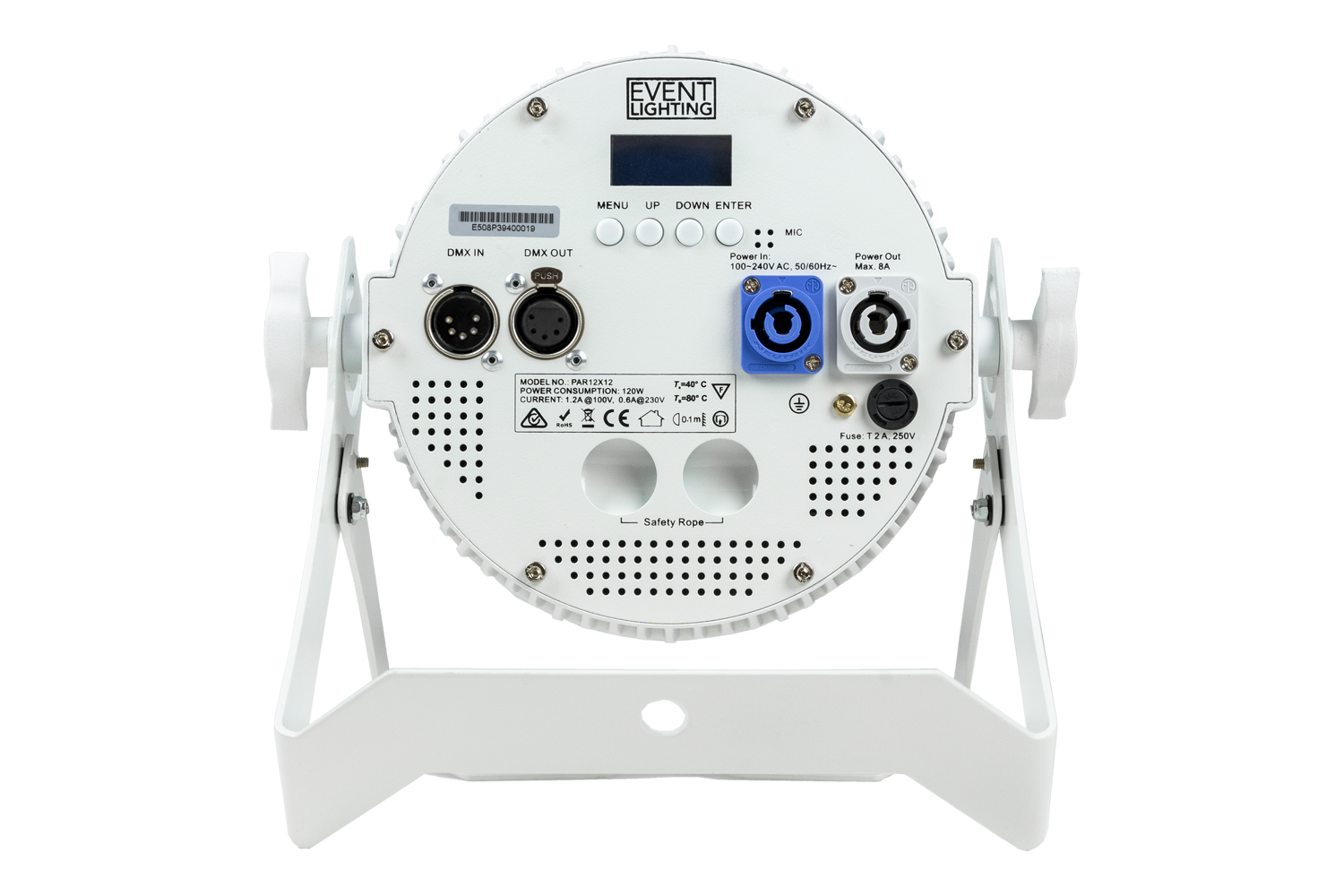

• DMX Interface: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 98W
• Power Connection: True1 power input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte white
• Cooling System: Fanless cooling

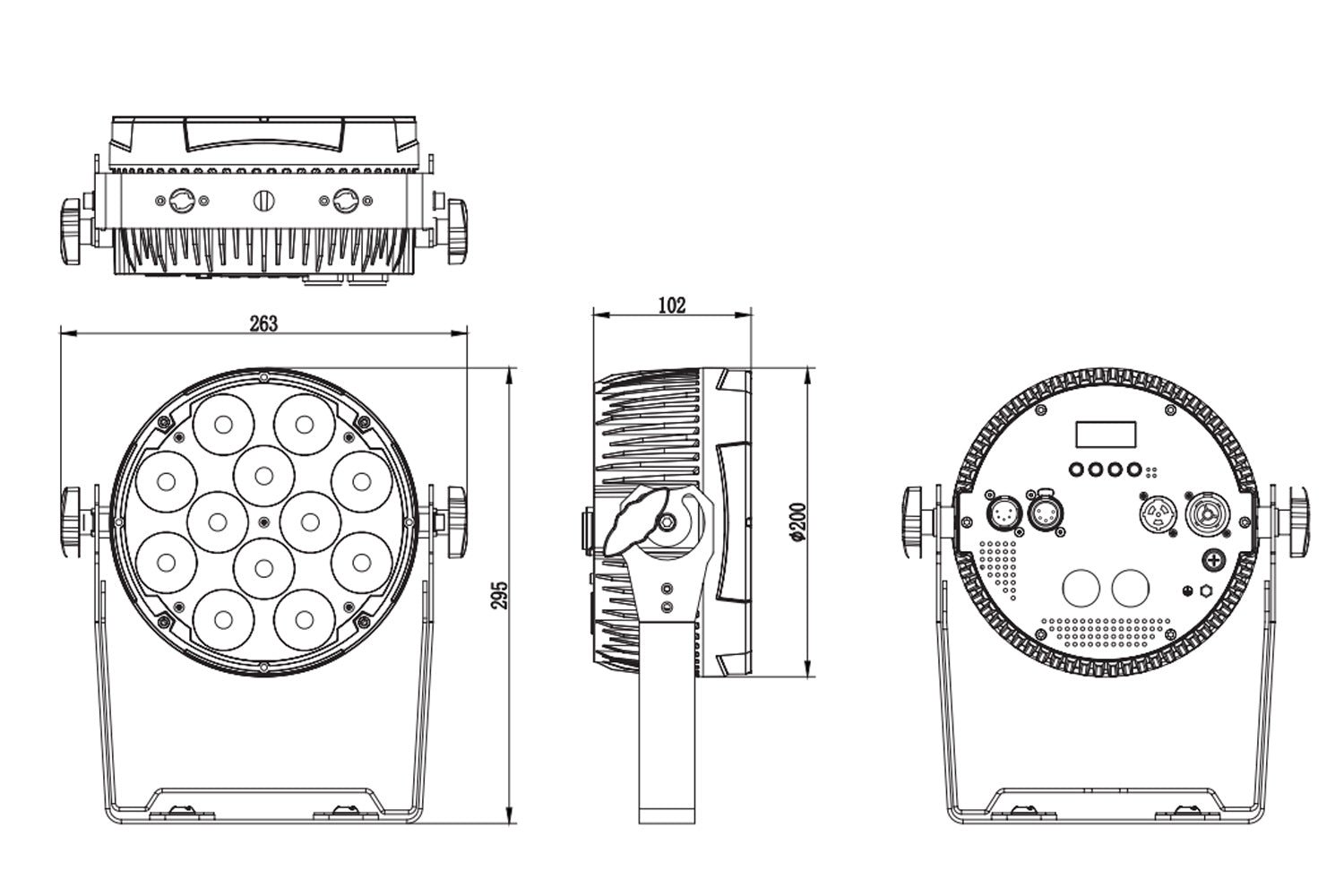

• Dimensions: 263 × 293 × 98 mm (10.4″ × 11.5″ × 3.9″)
• Weight: 3.2 kg (7.1 lbs)

Rigging

• Includes 1 Omega bracket with ¼-turn quick-lock mounting system for fast and secure installation.

Optional Accessories

• PAR12BDCASEWC – Road Case
• PAR12CASEWC – Protective Carry Case
• PAR12GELFR – Gel Frame
• PAR12FROST – Frost Filter
• PAR12BDKIT-WH – White Barndoor Kit
• CRMXTRXII – Wireless DMX Receiver

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term performance and reliability.
