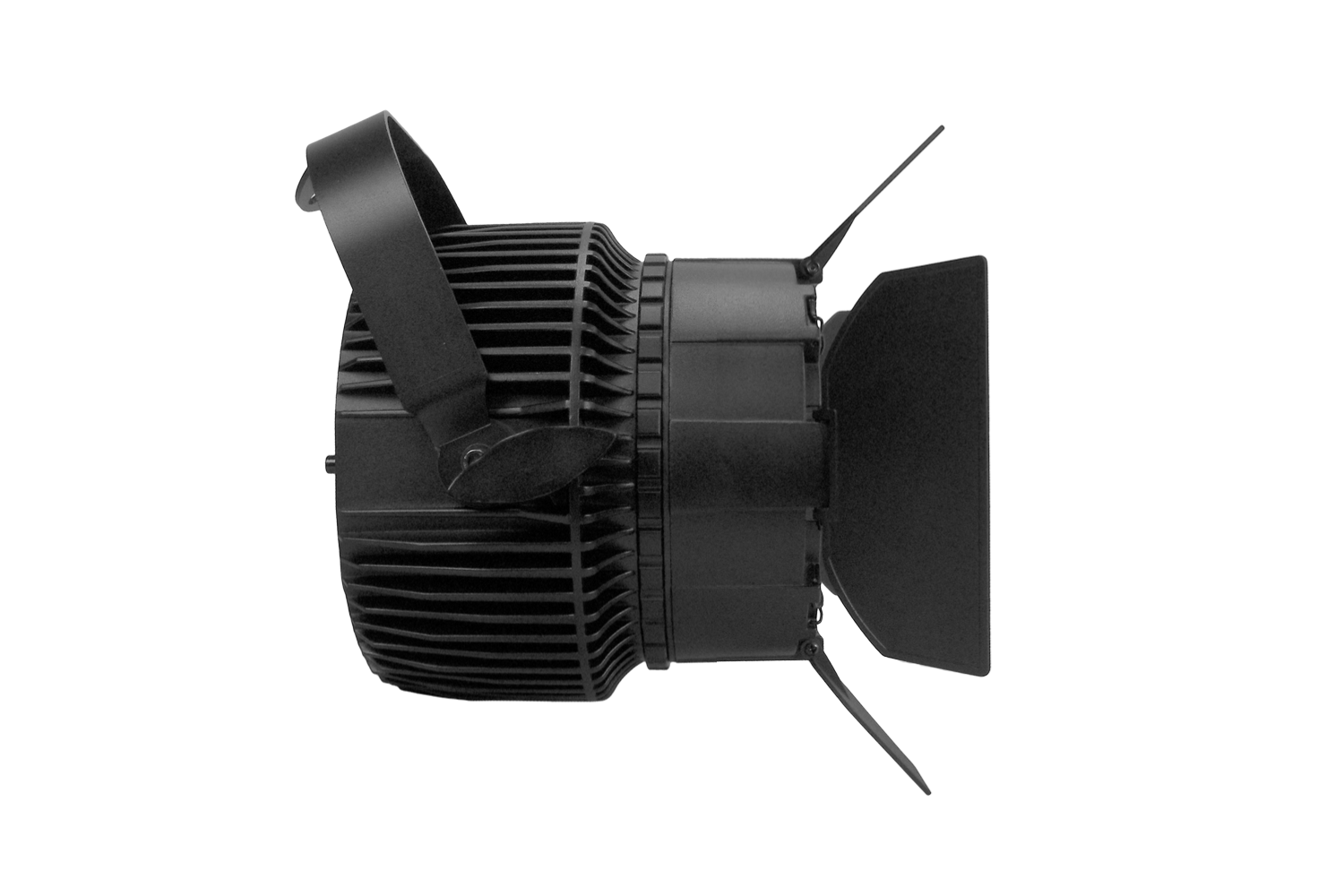

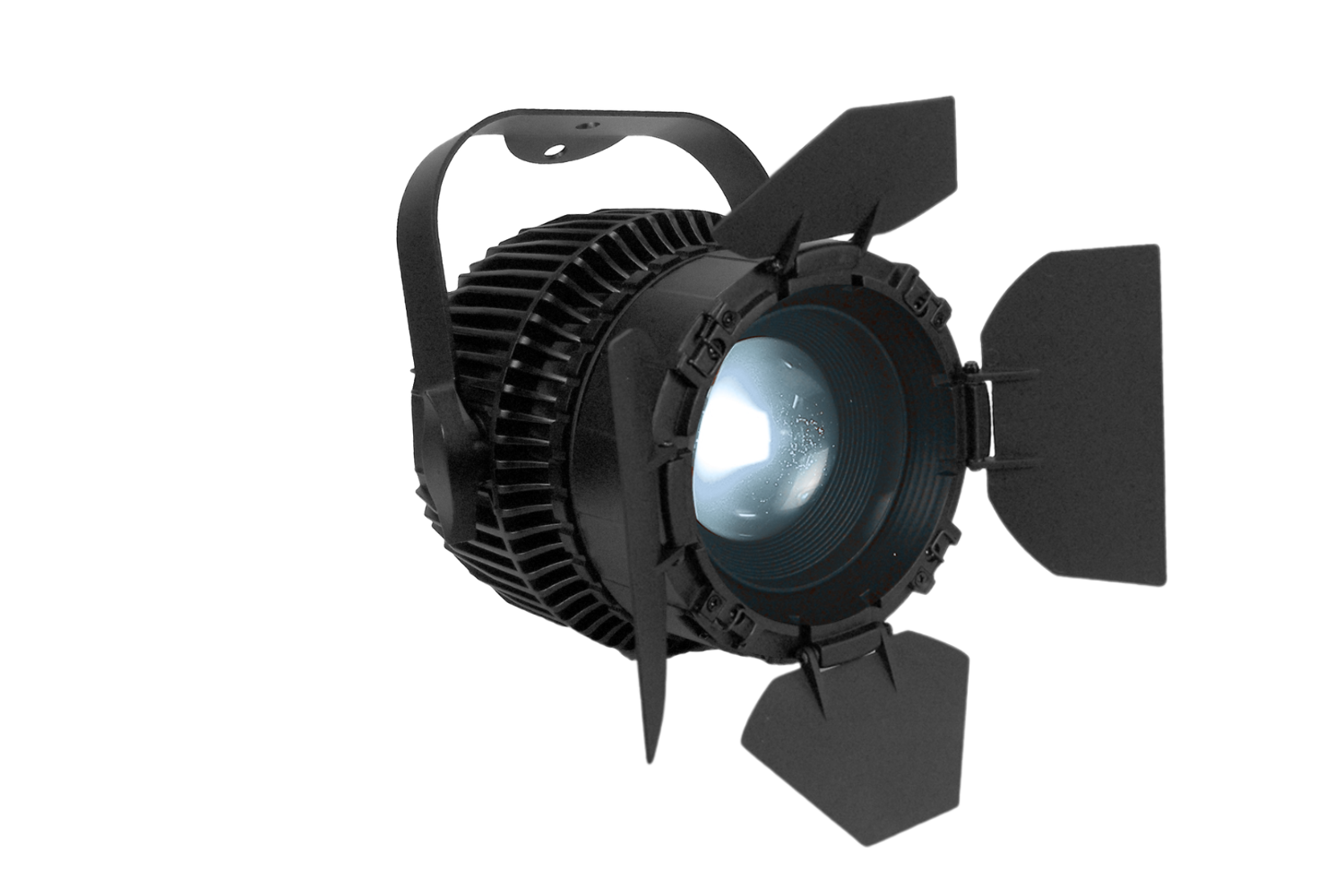

F200VW – Variable White Fresnel with Manual Zoom

F200VW – Variable White Fresnel with Manual Zoom

Photometric Specifications

• Light Source: Equipped with 2 × 100W COB LEDs featuring both 6,500K cool white and 2,700K warm white color temperatures.
• Color Rendering Index (CRI): Greater than 95 for accurate and natural color reproduction.
• Beam Angle: Adjustable from 20° to 53°.
• Field Angle: Variable between 34° and 70°.

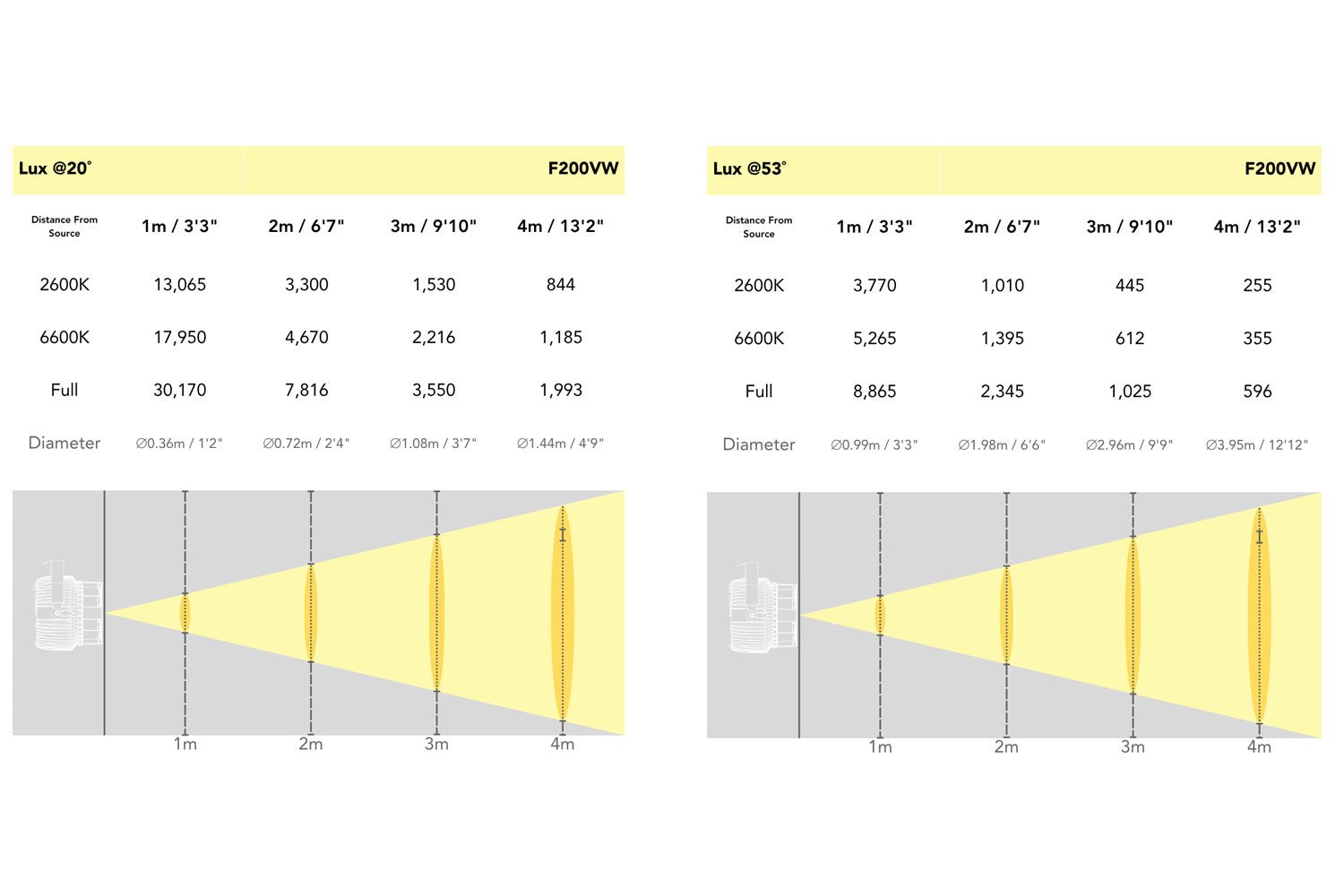

• Light Output: Delivers up to 3,550 lux at a distance of 3 meters with a 20° beam angle, and 1,025 lux at 3 meters with a 53° beam angle.
• Lens Type: High-quality 80mm plano-convex optical lens.
• PWM Frequency: 1,200Hz for flicker-free operation.
• LED Lifetime: Rated for up to 50,000 hours of continuous use.

Performance Features

• Dimming Control: Smooth 0–100% dimming with 16-bit precision.
• Strobe Effect: Adjustable strobe frequency from 1Hz to 25Hz.
• Zoom Function: Manual zoom adjustment ranging from 20° to 53°.

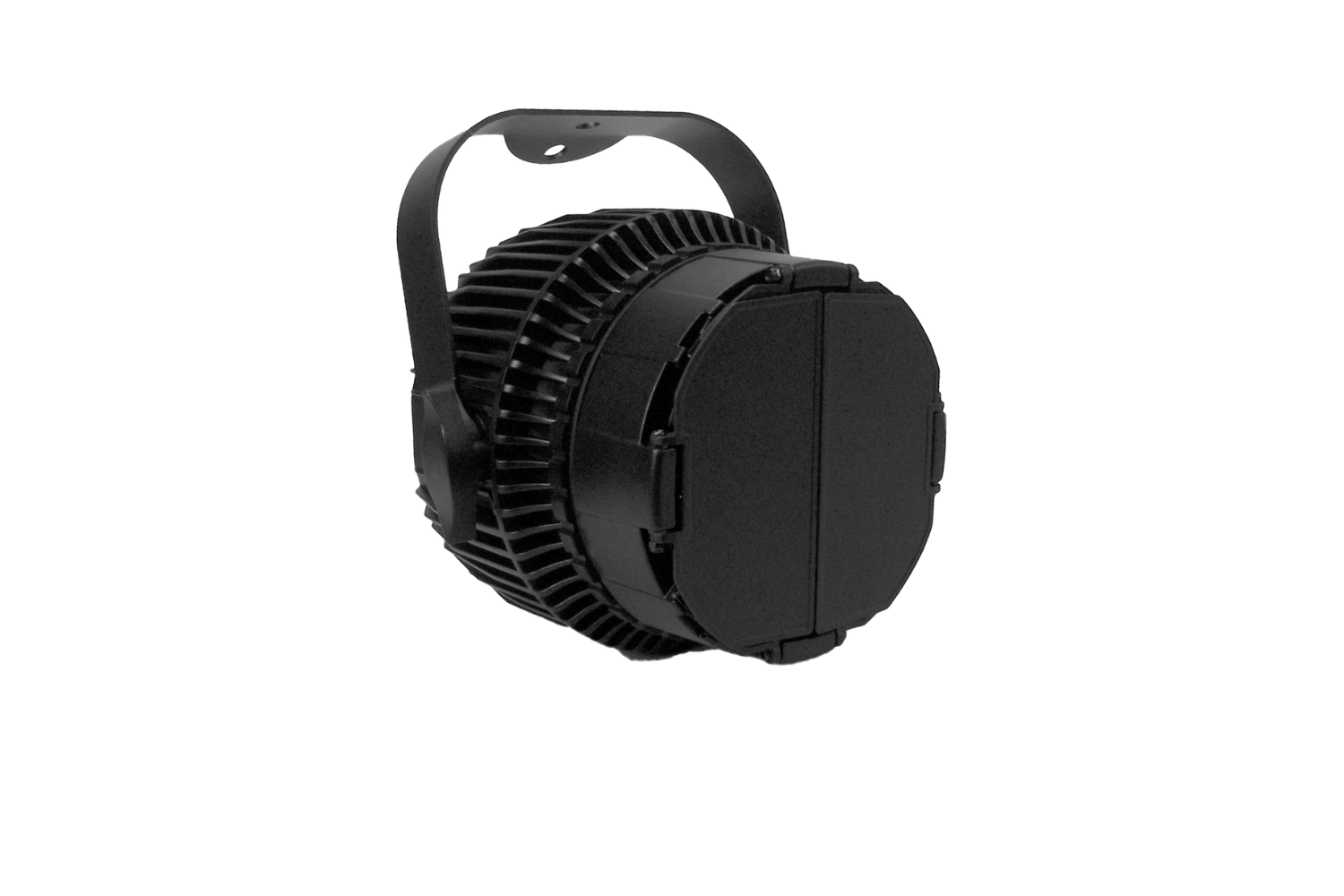

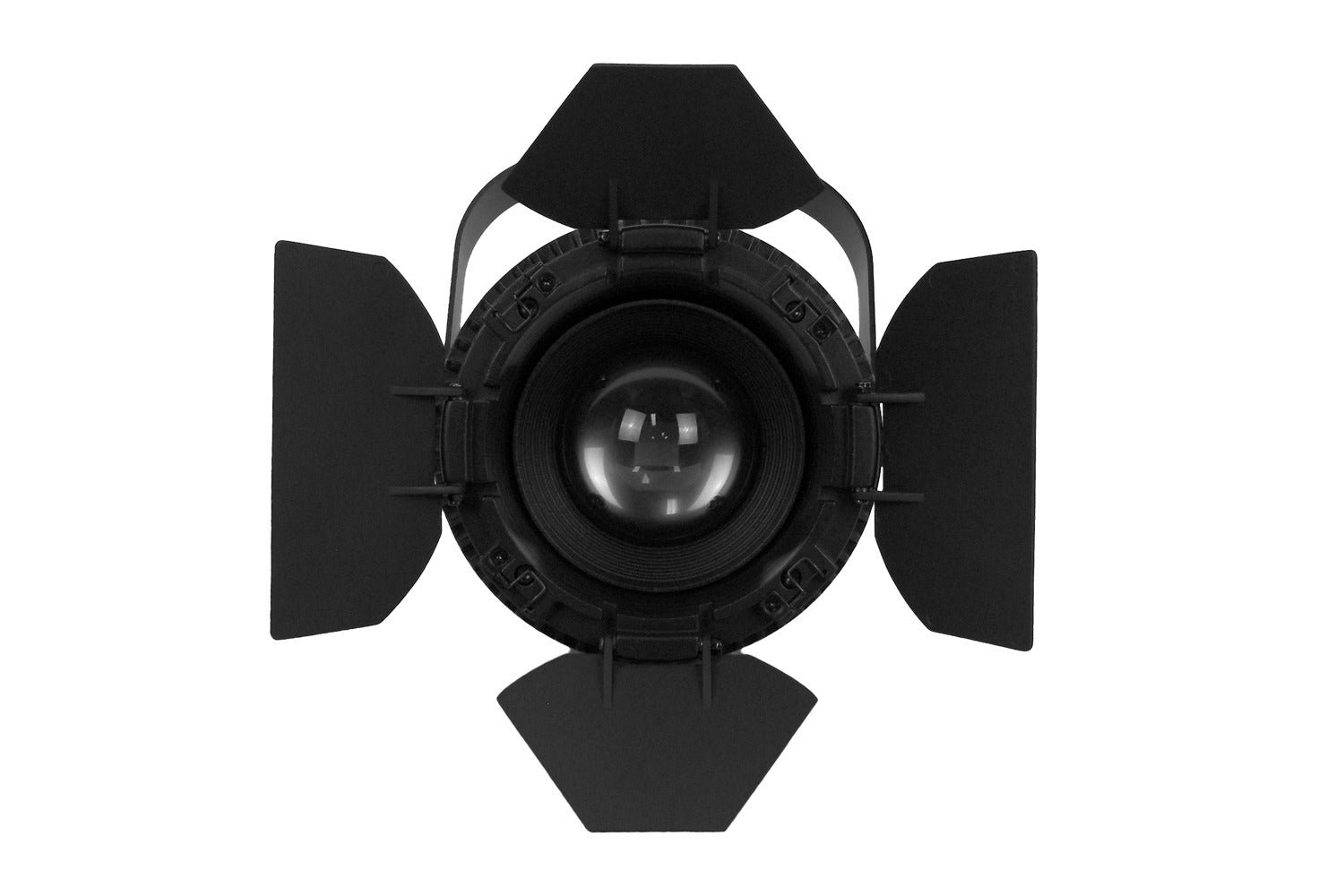

• Barn Door: Included for precise light shaping and control.
• Gel Frame Clip: Supplied for convenient color filter installation.

Electrical Specifications

• Input Voltage: Compatible with 100–240V AC, 50/60Hz power sources.
• Power Consumption: 200W.

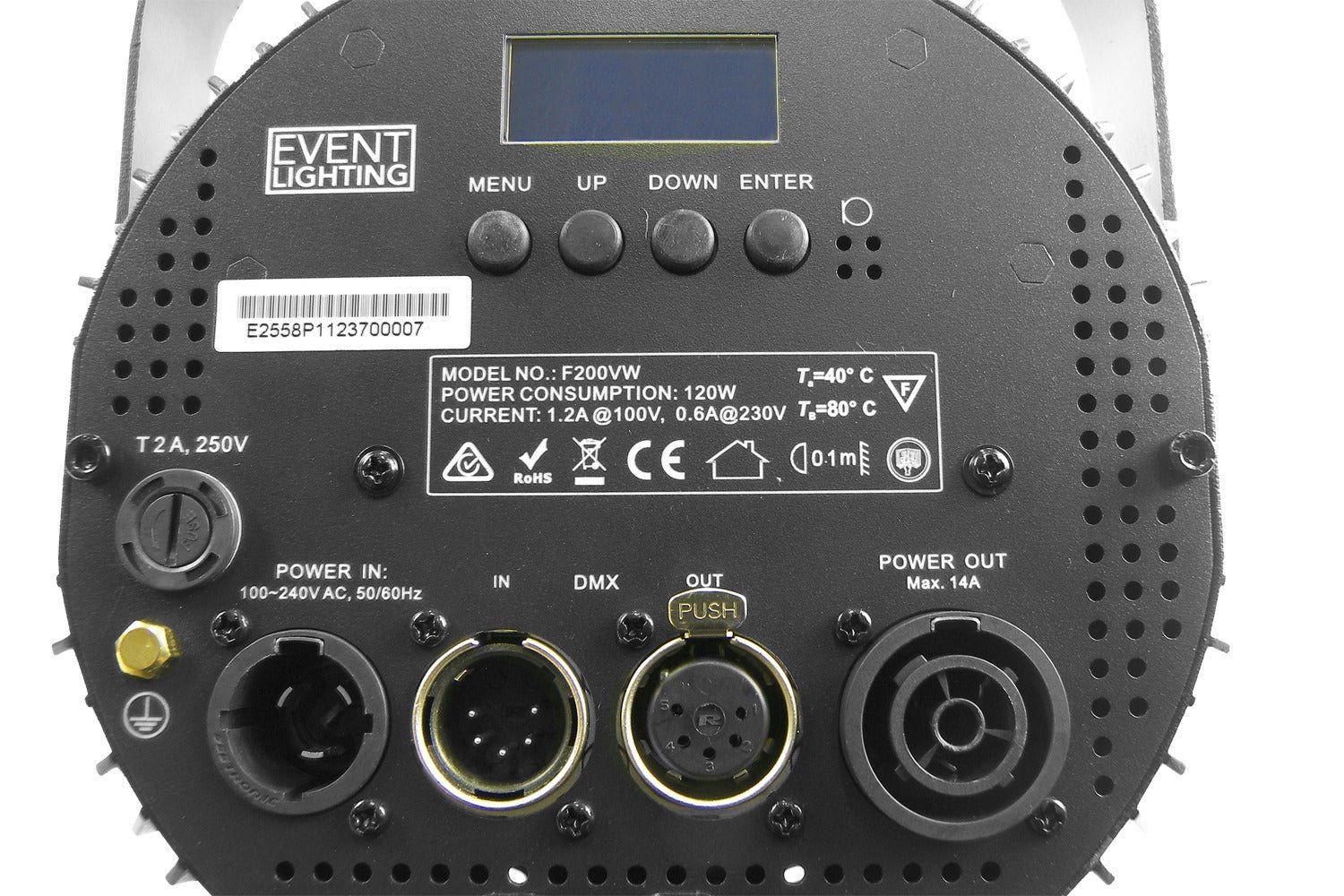

• Power Connectivity: True1 power input and output connections.

Control & Operation

• Operating Modes: Supports Manual, Master/Slave, DMX, optional WDMX, and RDM functionality.

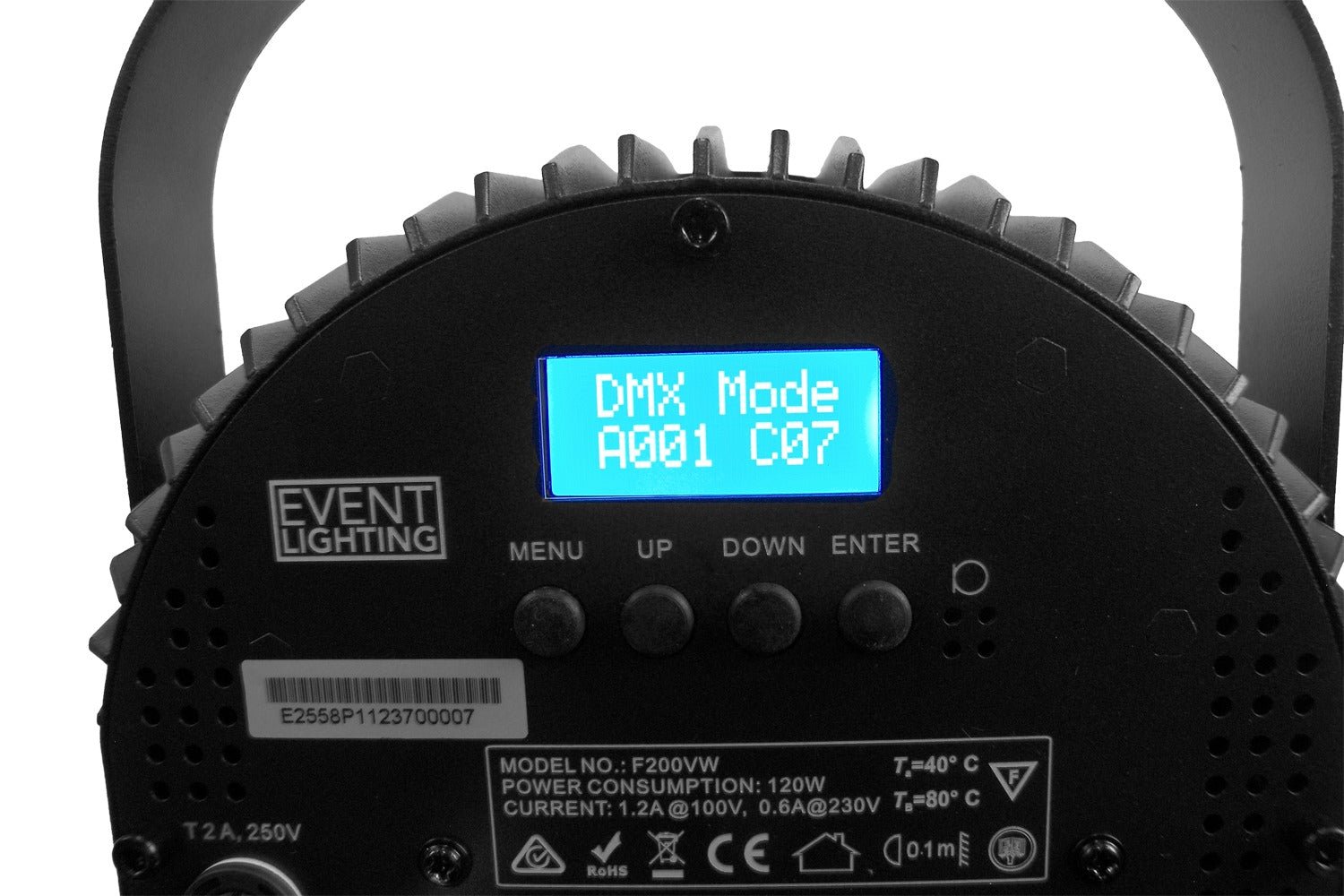

• Display Interface: User-friendly LCD display with a 4-button control panel.
• Control Protocol: DMX512 standard.
• DMX Channel Modes: 1, 1U, 2, 5, 7, and User-defined modes.

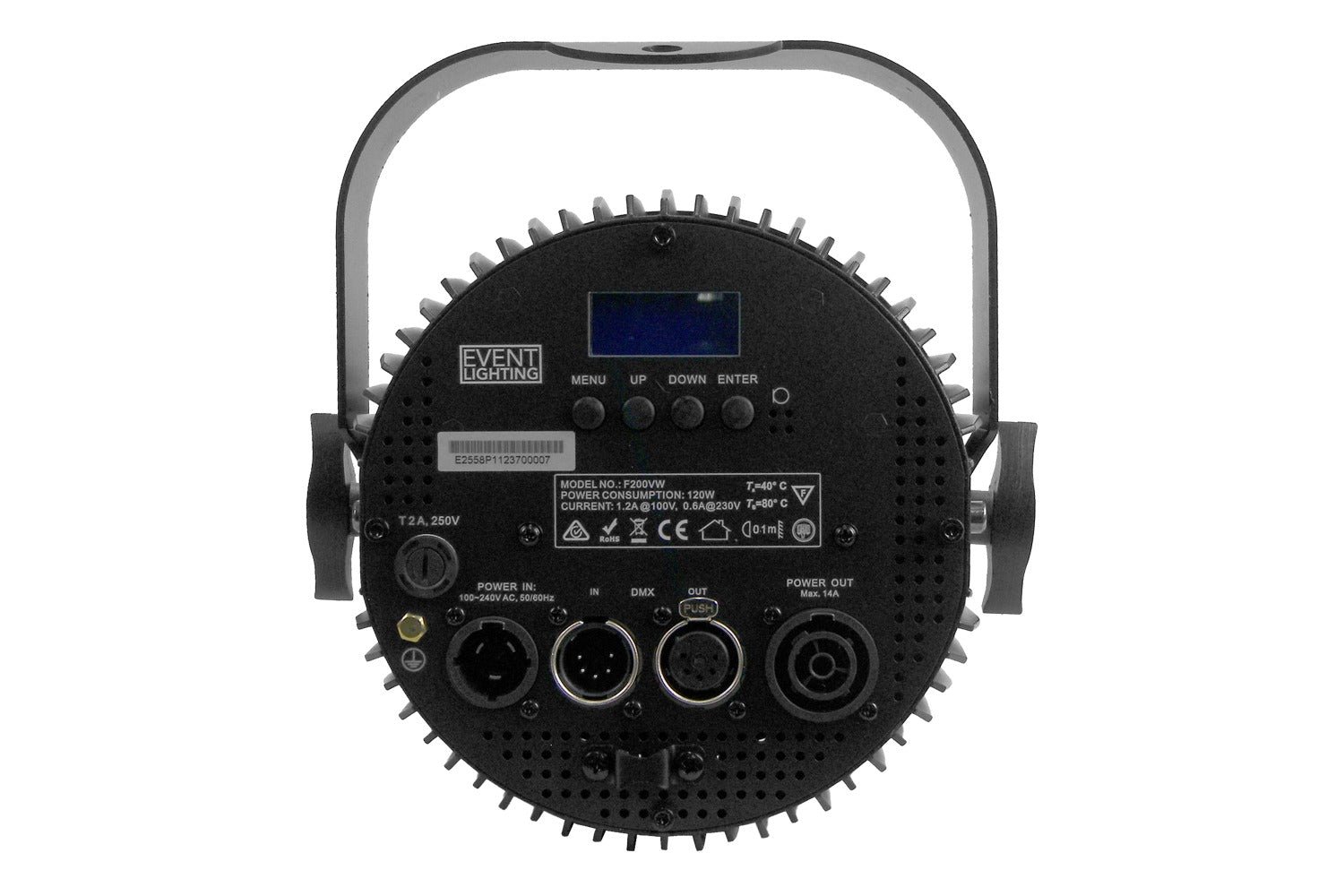

• Data Connection: 5-pin XLR input and output connectors.

Construction & Design

• Housing Material: Durable die-cast aluminum construction.
• Finish: Professional matte black coating.
• Cooling System: Silent fanless cooling with built-in temperature protection.

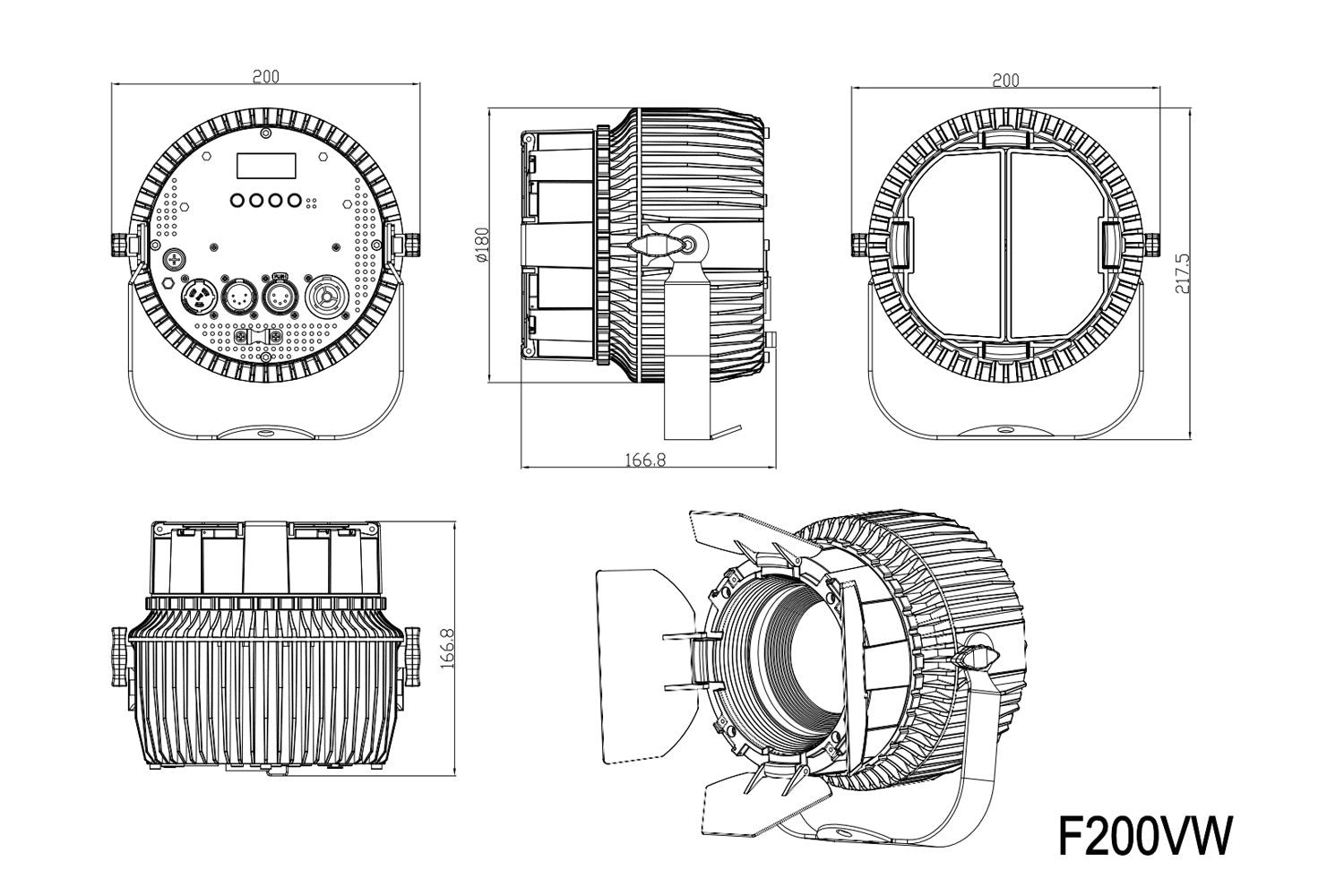

• Dimensions: 217.5 × 167 × 200 mm (8.6″ × 6.6″ × 7.9″).
• Weight: 3.2 kg (7 lbs).
