OPERAC100VWF – Compact Fresnel Engine with 100W COB Variable White LED

OPERAC100VWF – Compact Fresnel Fixture with 100W Variable White COB LED

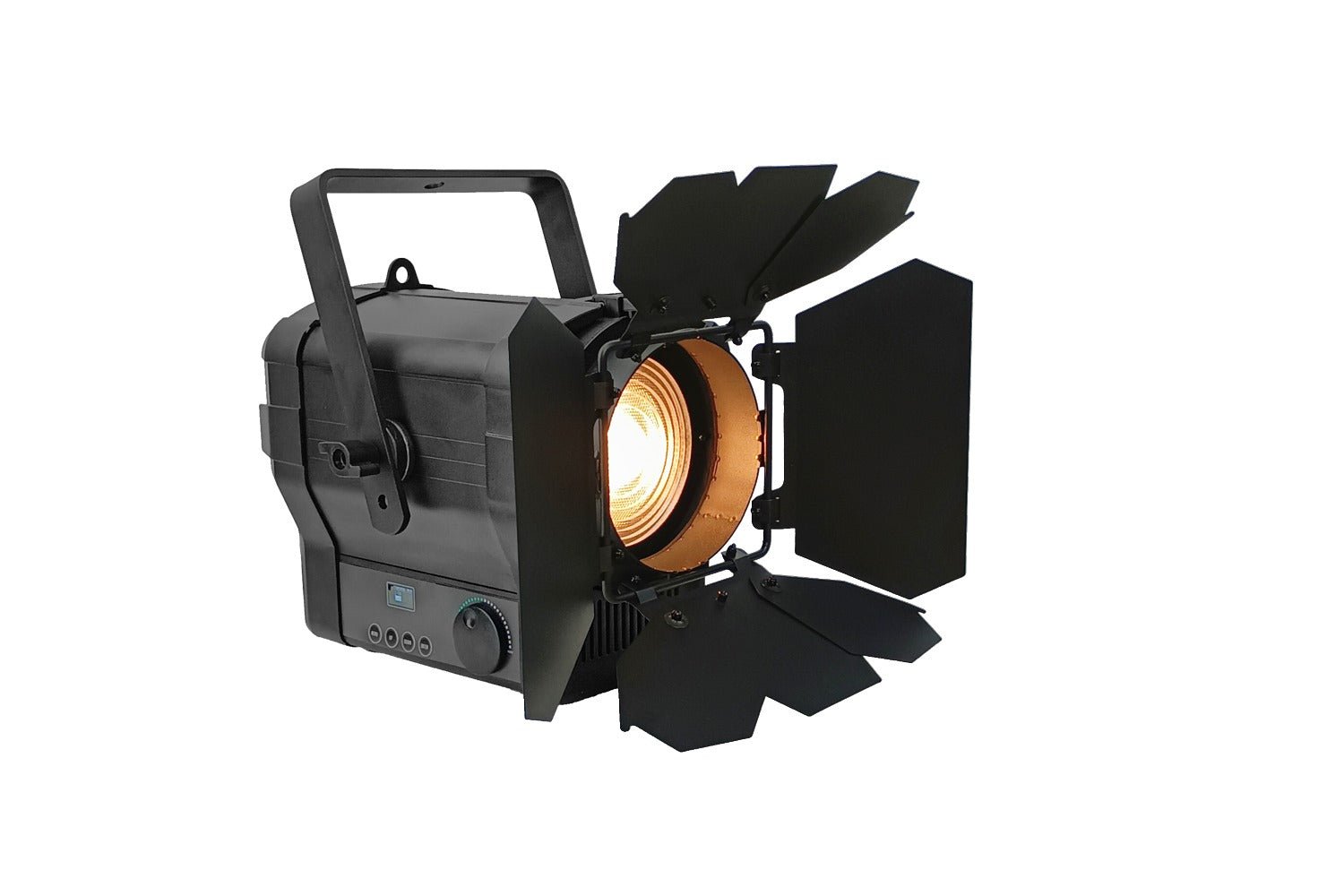

The OPERAC100VWF is a compact and efficient Fresnel lighting fixture featuring a powerful 100W COB Variable White LED engine. Designed for theatres, studios, houses of worship, broadcast applications, and live events, it delivers high-quality white light with excellent color accuracy and flexible beam control.

With an adjustable color temperature range of 3200K to 5600K, this fixture can easily adapt to different lighting environments and seamlessly match existing lighting setups. Its manual zoom mechanism allows beam adjustment from 14° to 55°, providing versatility for both focused and wide-area illumination. The built-in 1-channel mode simplifies operation by enabling color temperature control through a single-channel dimmer.

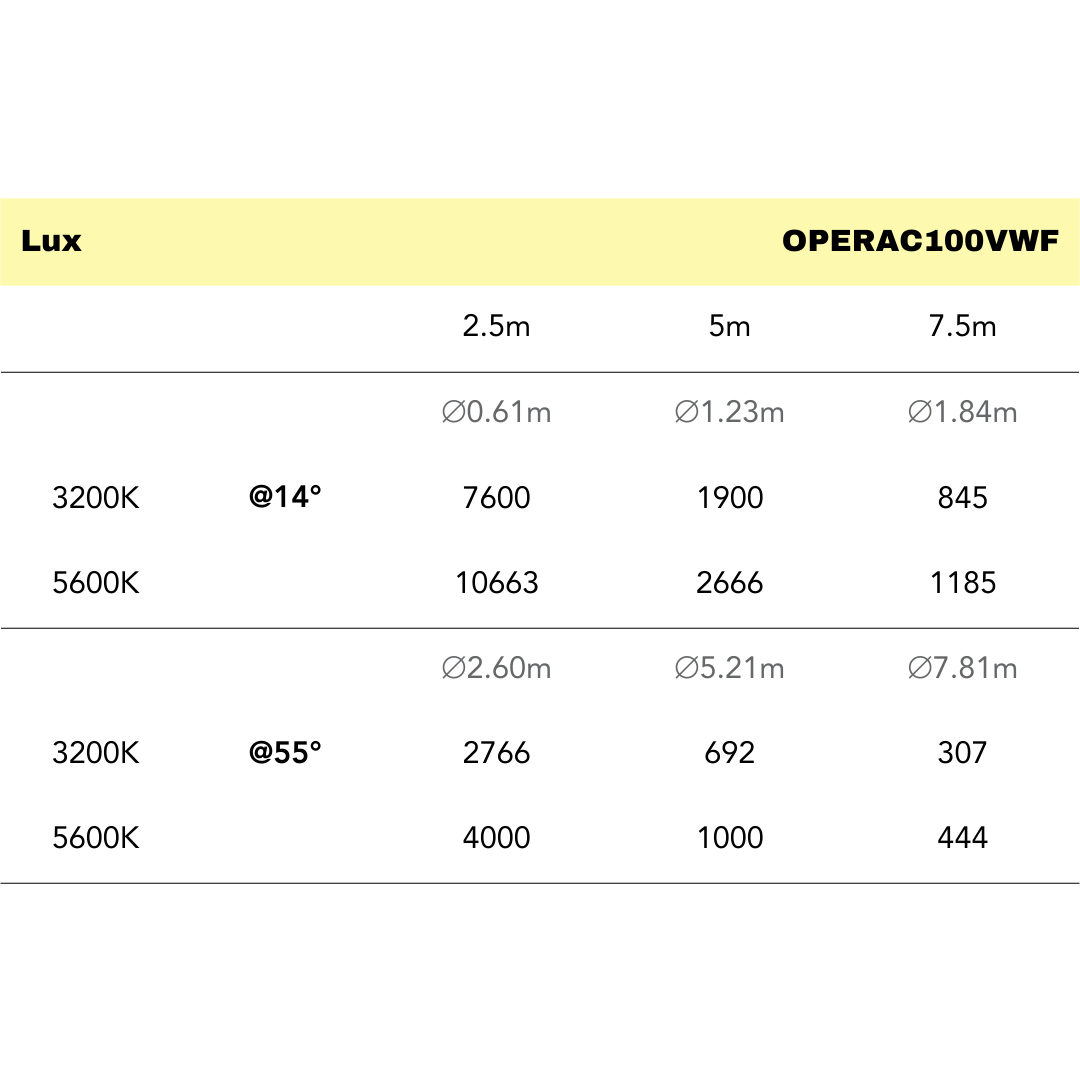

Photometric Specifications

• Light Source: 100W COB Variable White LED
• CRI: 95 for superior color rendering
• Beam Angle: Adjustable from 14° to 55°
• Color Temperature: Variable from 3200K to 5600K
• PWM Frequency: Selectable from 1,000Hz to 16,000Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 16-bit smooth dimming from 0% to 100%
• Dimmer Curves: 3 selectable dimming curves
• Dimmer Speed: Adjustable fade response
• Zoom Control: Manual zoom adjustment (14°–55°)

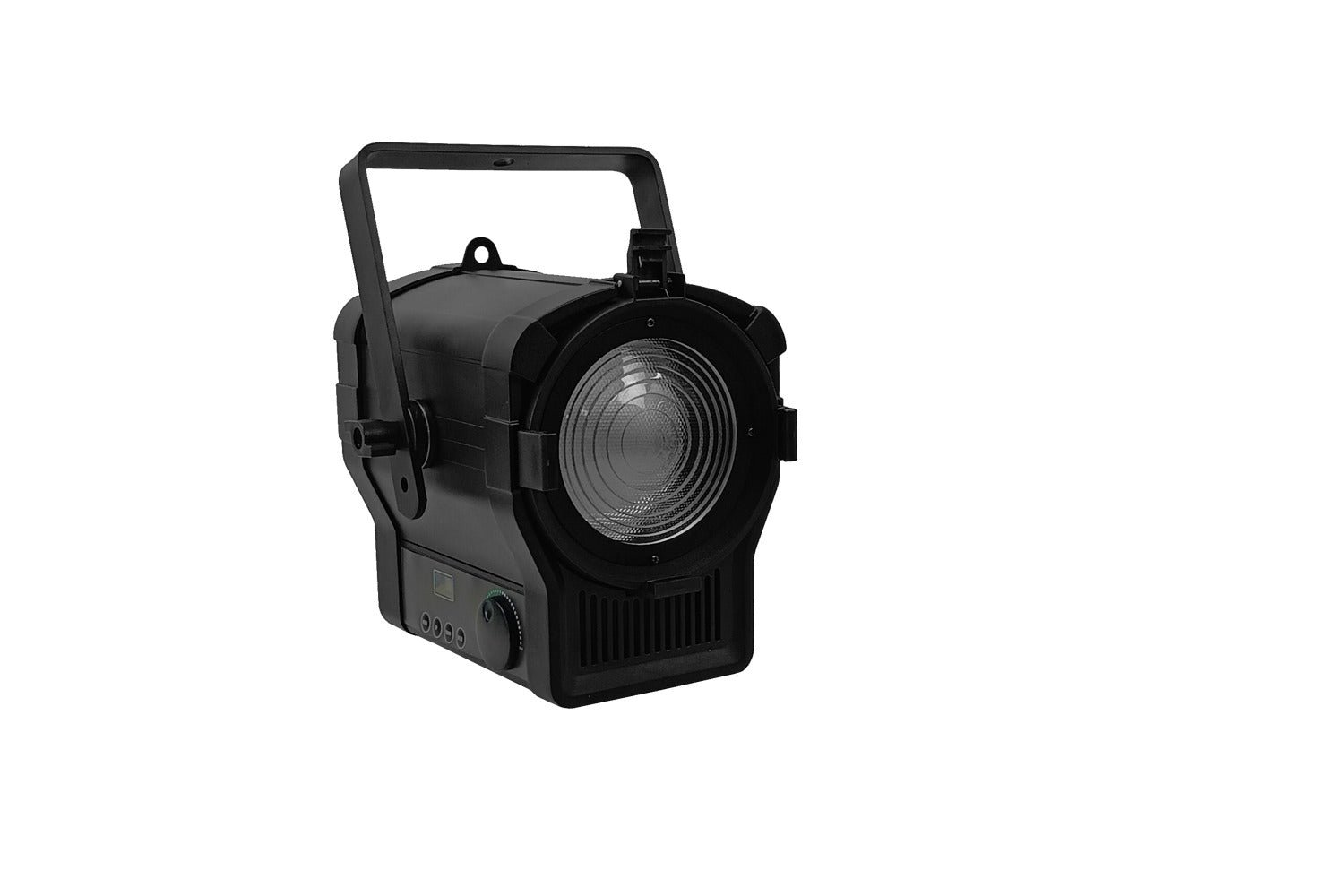

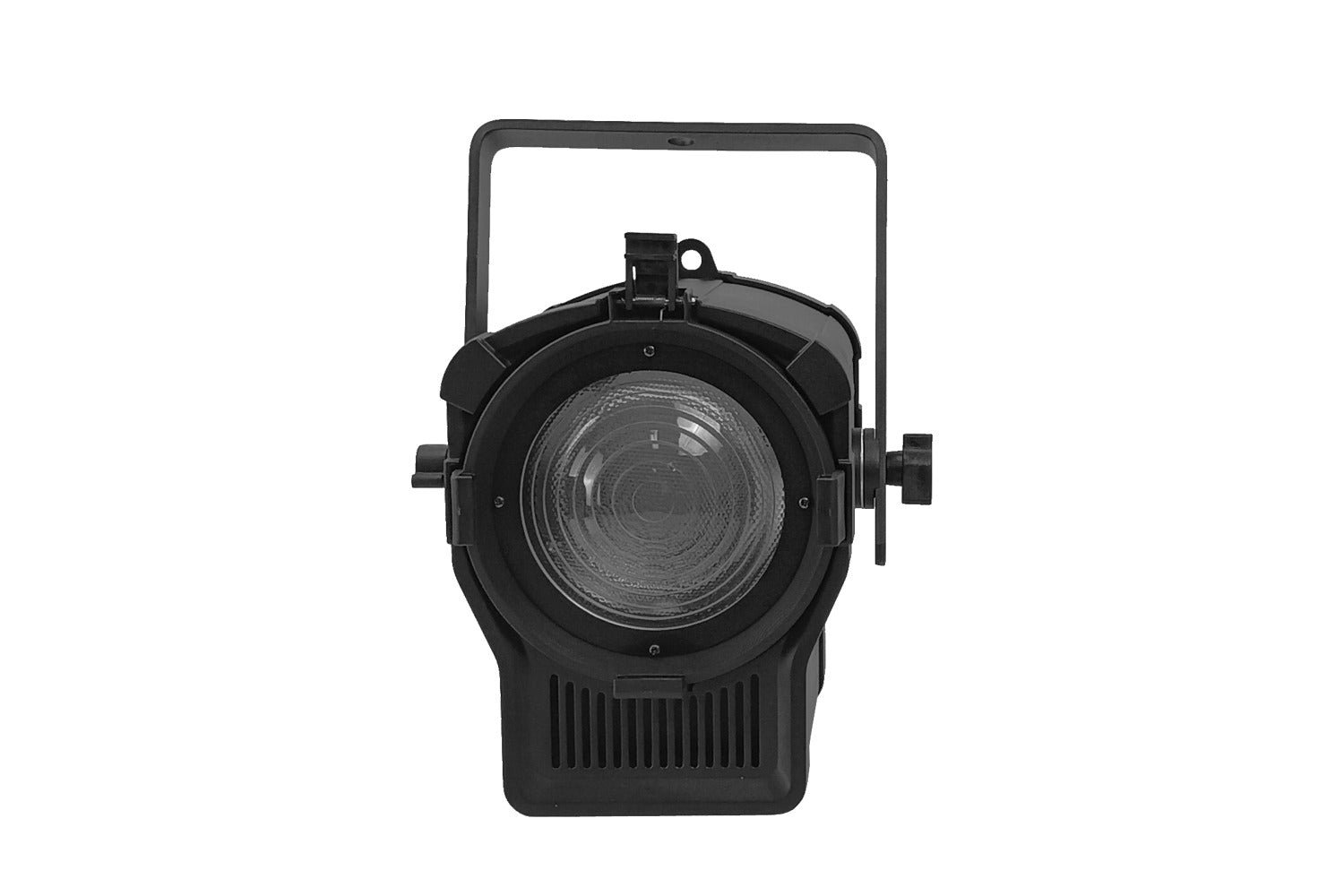

• Optical System: Precision glass lens assembly with 120mm Fresnel lens

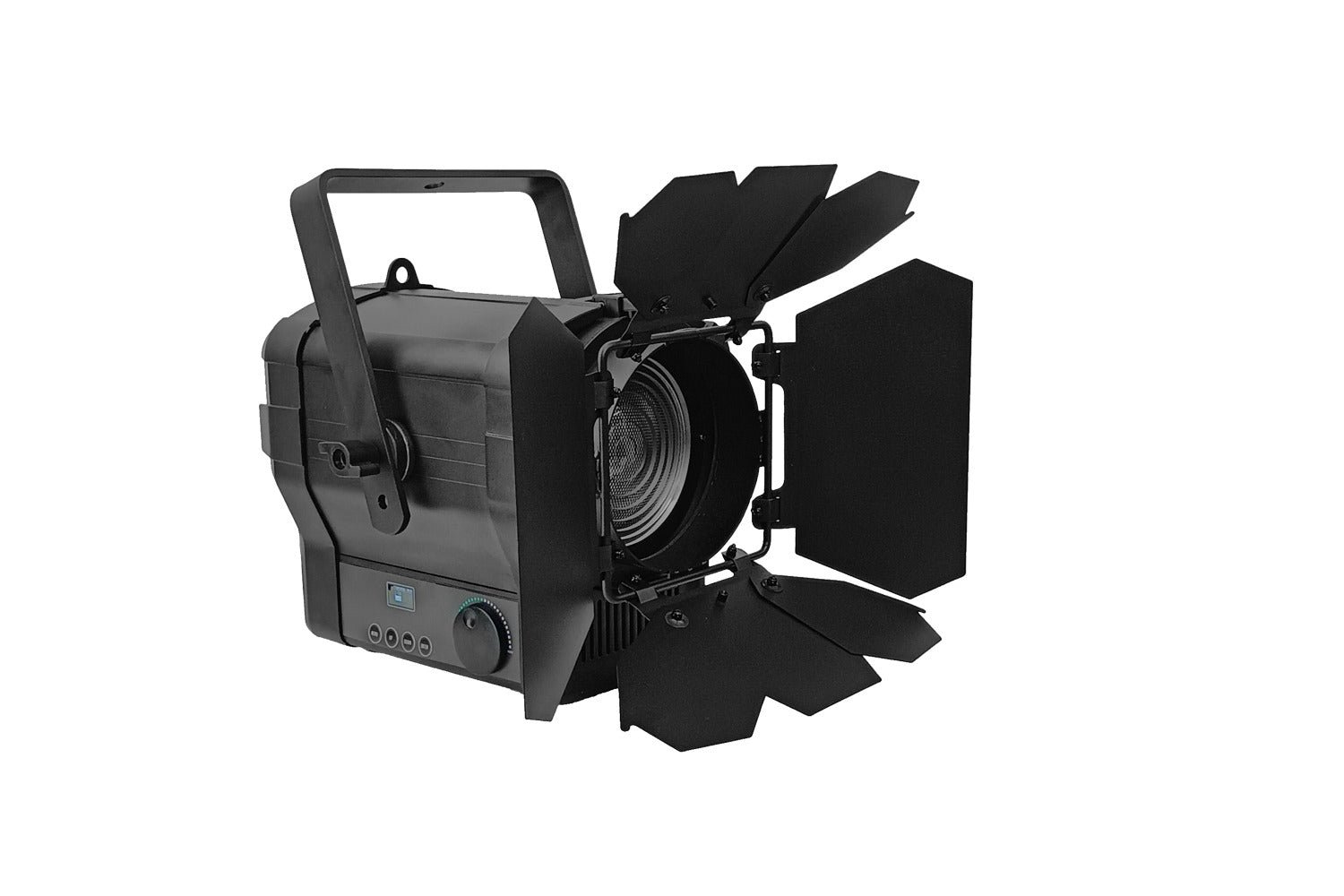

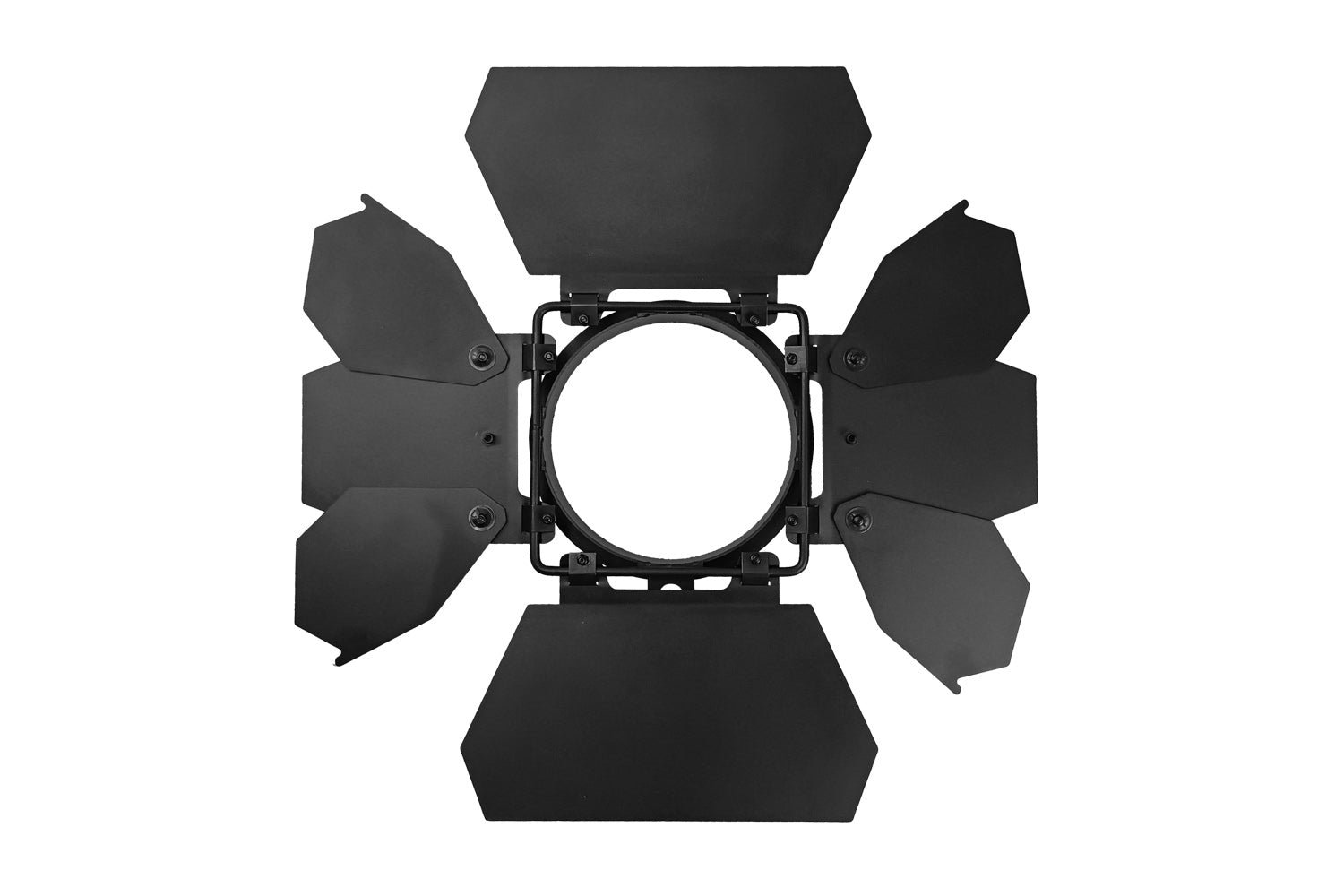

• Included Accessories: 8-leaf barn door and gel frame

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 100W

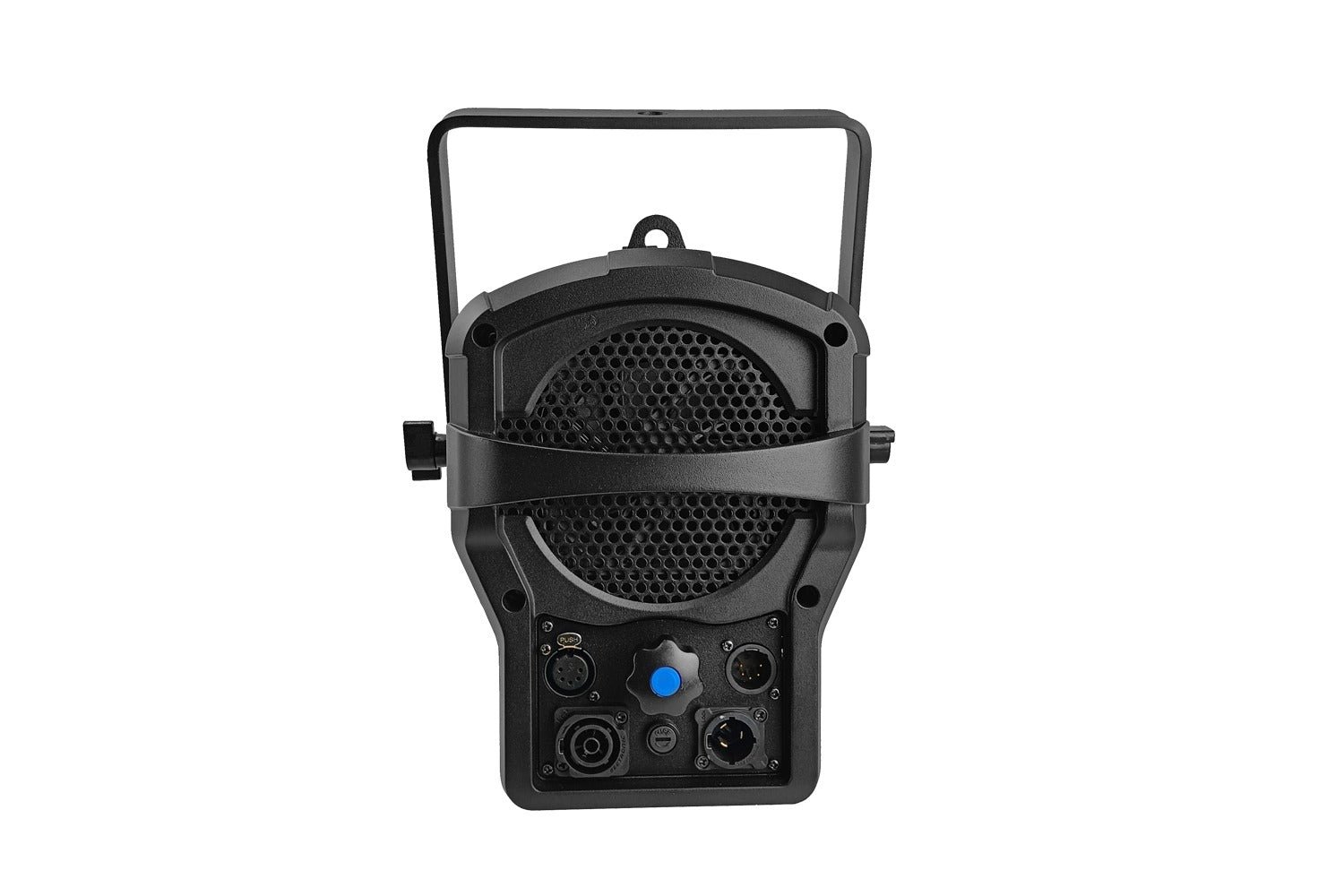

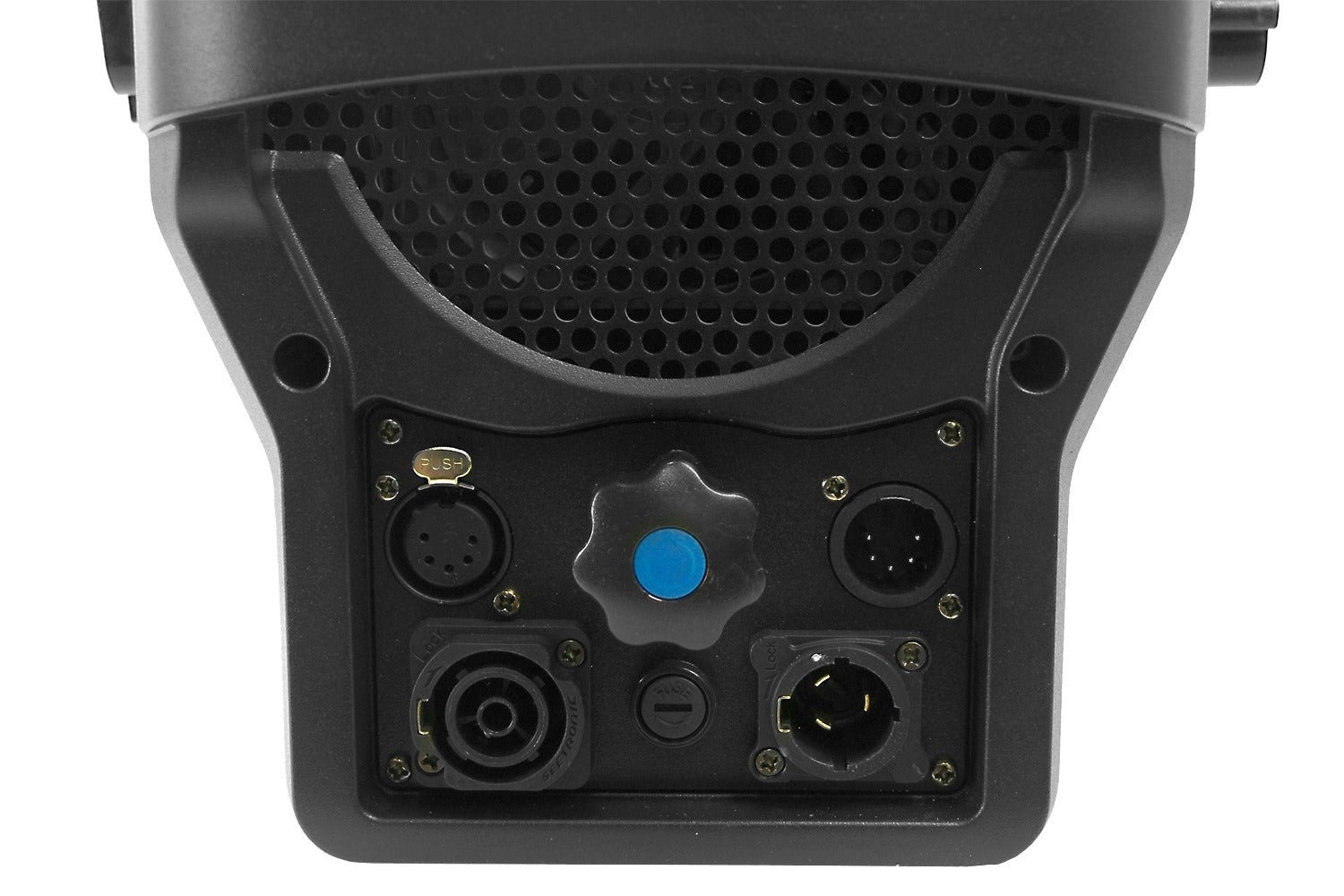

• Power Connections: True1 power input and output

Control & Connectivity

• Operating Modes: DMX, RDM, and Manual

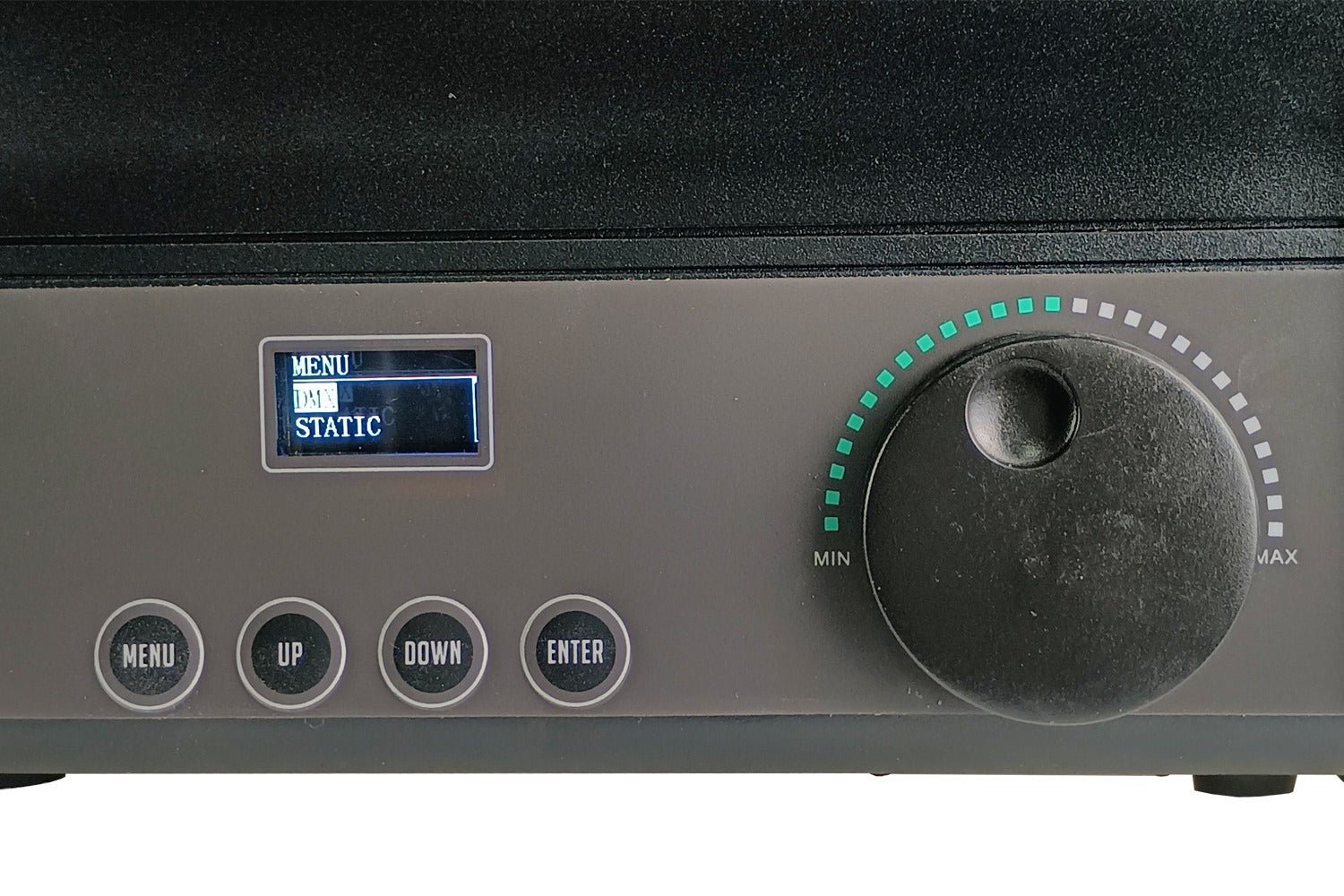

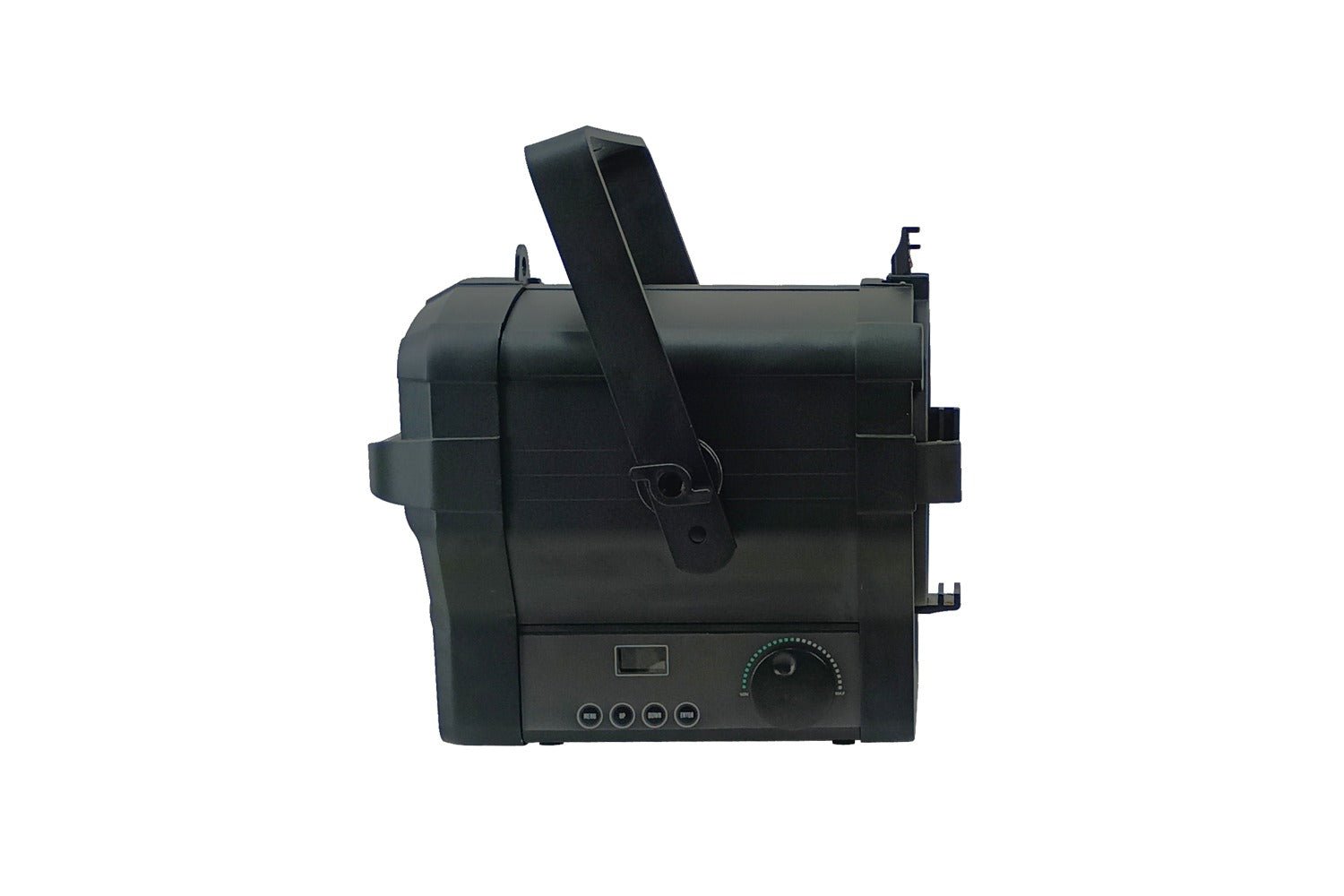

• Display: TFT-LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 6CH, and 9CH
• Control Interface: 5-pin XLR DMX input and output

Construction & Reliability

• Housing Material: Durable die-cast aluminum body
• Finish: Professional matte black coating
• Tilt Range: ±90°
• Operating Temperature: -10°C to 40°C
• Cooling System: Silent fan with intelligent temperature regulation
• IP Rating: IP20

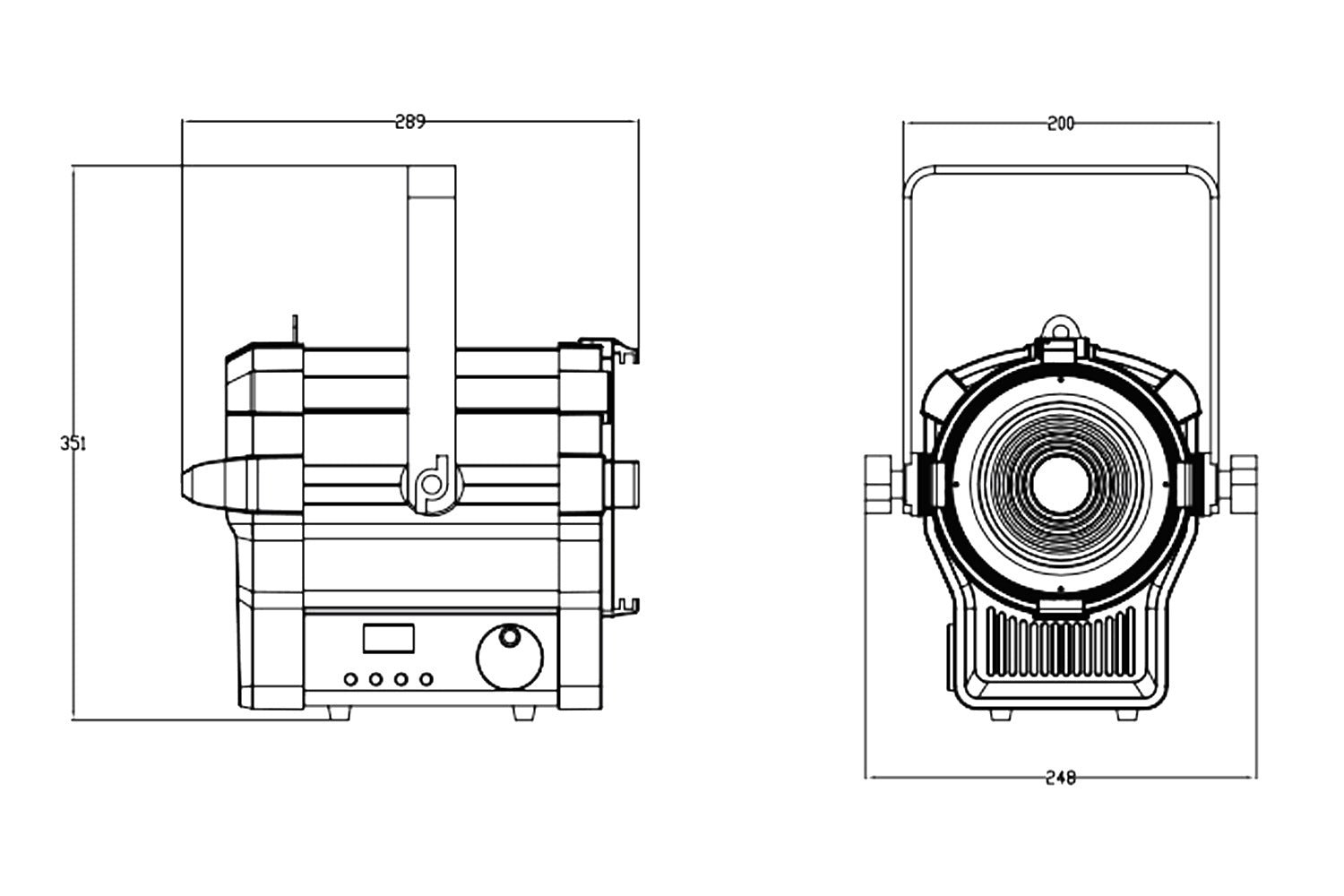

• Dimensions: 289 × 351 × 248 mm (11.4″ × 13.8″ × 9.8″)
• Weight: 6.7 kg (14.8 lbs)

Warranty

• Supported by a 3-year manufacturer warranty for dependable performance and long service life.
