OPERAZ200WP-IP – IP65 200W Warm White Profile with manual zoom

OPERAZ200WP-IP – IP65 200W Warm White LED Profile Fixture with Manual Zoom

The OPERAZ200WP-IP is a professional outdoor-rated LED profile fixture engineered for theatres, live events, architectural lighting, houses of worship, and outdoor stage productions. Powered by a high-efficiency 200W Warm White LED source, it delivers consistent illumination, excellent color rendering, and reliable performance in challenging environments.

Featuring a manual zoom system with an adjustable beam range of 15° to 40°, this fixture provides precise beam shaping for spotlighting, projection, and stage lighting applications. Available in 3100K or 5600K color temperature options, it offers flexibility to match different production requirements. Its rugged IP65-rated housing ensures protection against dust, rain, and harsh outdoor conditions, making it suitable for both temporary and permanent installations.

Photometric Specifications

• Light Source: 200W Warm White LED
• Color Temperature: 3100K or 5600K
• CRI: ≥90
• Beam Angle: Adjustable from 15° to 40°
• Zoom Control: Manual zoom adjustment
• LED Lifespan: Over 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit linear dimming from 0% to 100%
• Strobe Effect: Built-in strobe functionality
• Precision Optics: Designed for accurate beam projection and edge control
• Included Accessory: Gel frame supplied as standard

Control & Connectivity

• Operating Modes: DMX, Master/Slave, and Manual Dimming
• DMX Channel Modes: 4 channel configurations

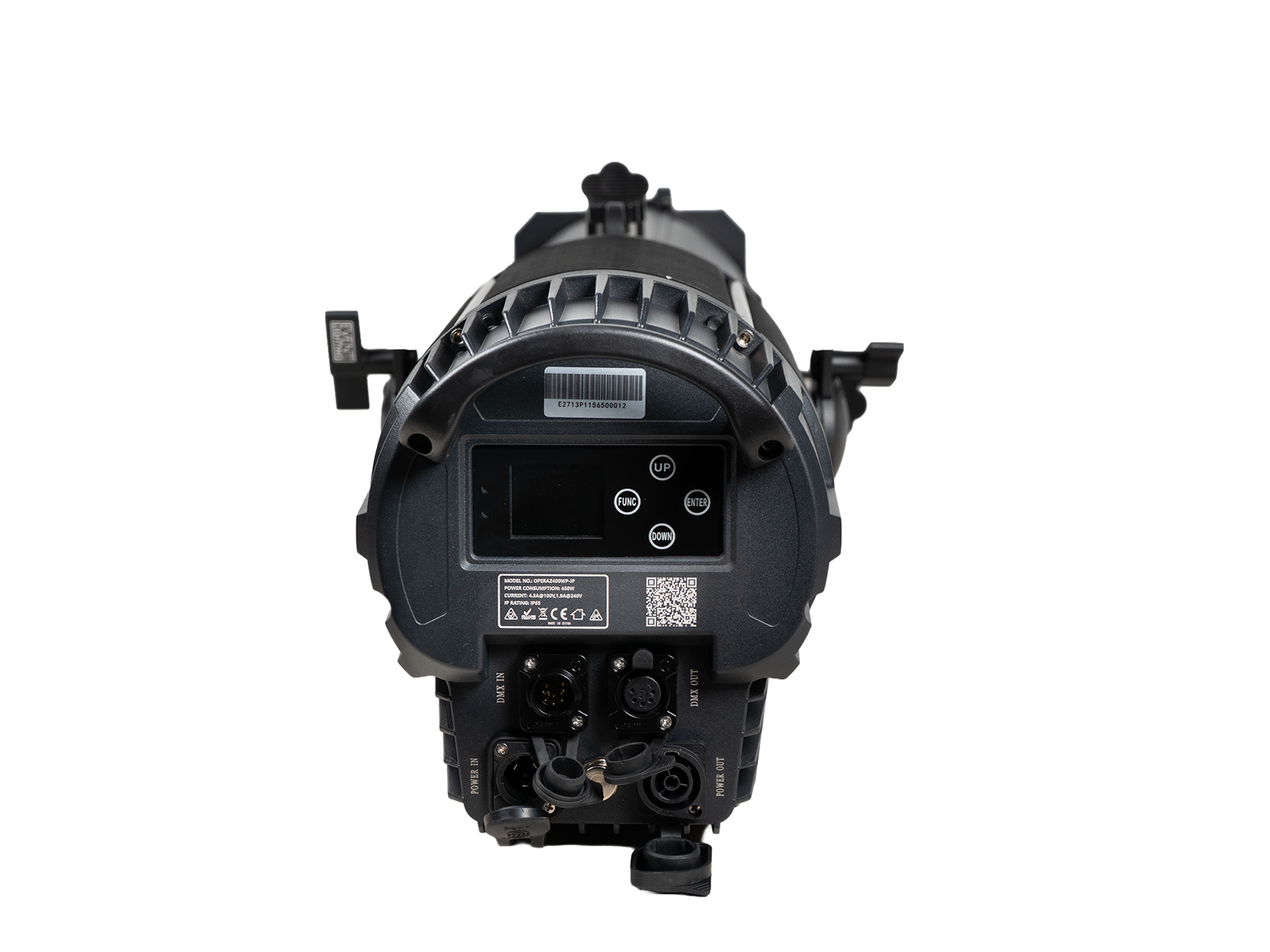

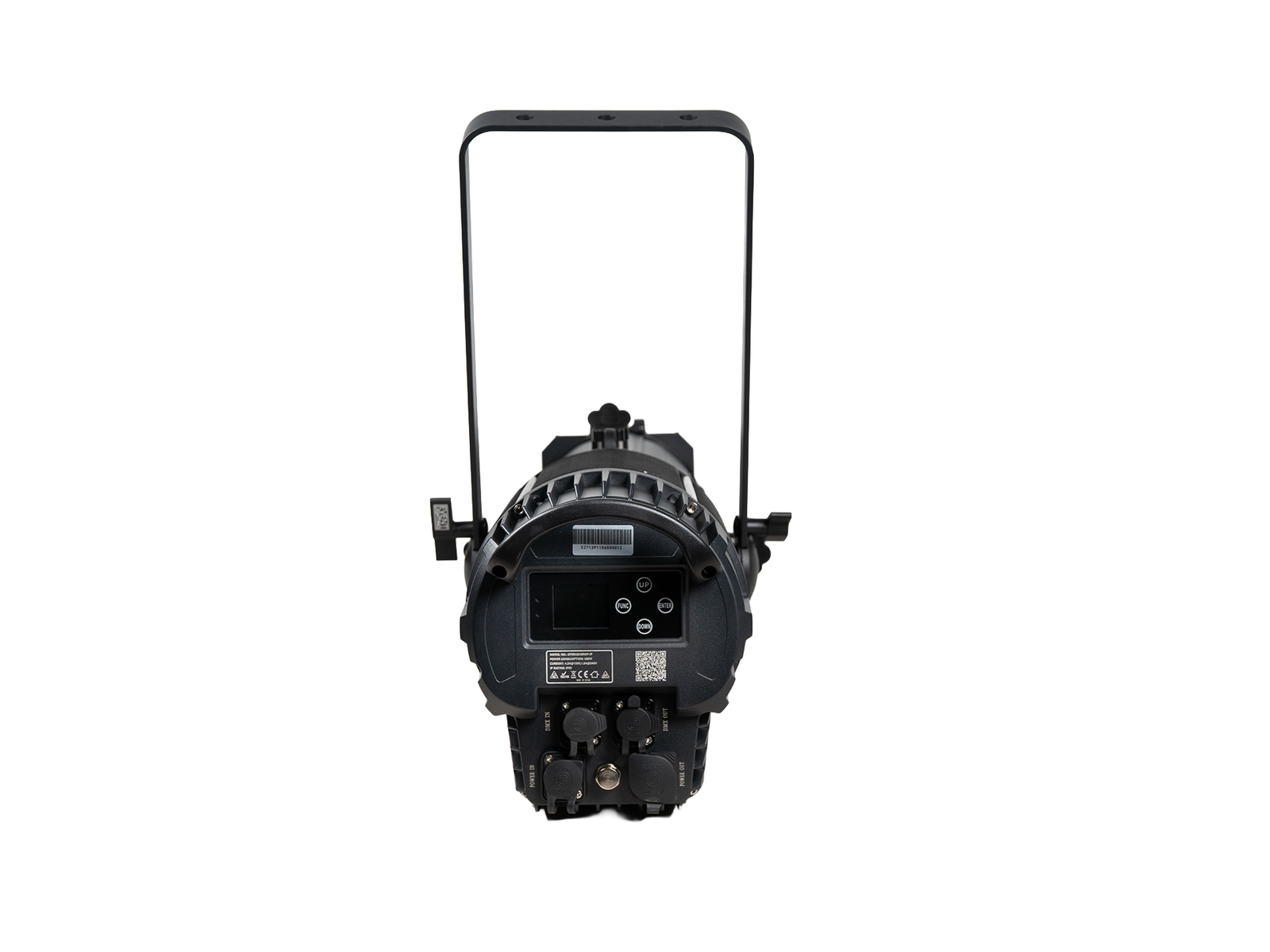

• Display: LCD control panel for easy setup and operation
• DMX Connection: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Rated Power Consumption: 250W
• Power Connection: TrueOne power input and output

Construction & Durability

• IP Rating: IP65 for reliable outdoor operation
• Cooling System: Quiet fan cooling system (under 25dB at 1m) with copper tube heat dissipation
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Dimensions: 760 × 235 × 270 mm (29.9″ × 9.3″ × 10.6″)
• Weight: 11.3 kg (24.9 lbs)

Optional Accessories

• OPERAZGOBOH: Optional gobo holder compatible with OPERAZ Series Profile fixtures.

Warranty

• Includes a 3-year manufacturer warranty for dependable long-term performance.
