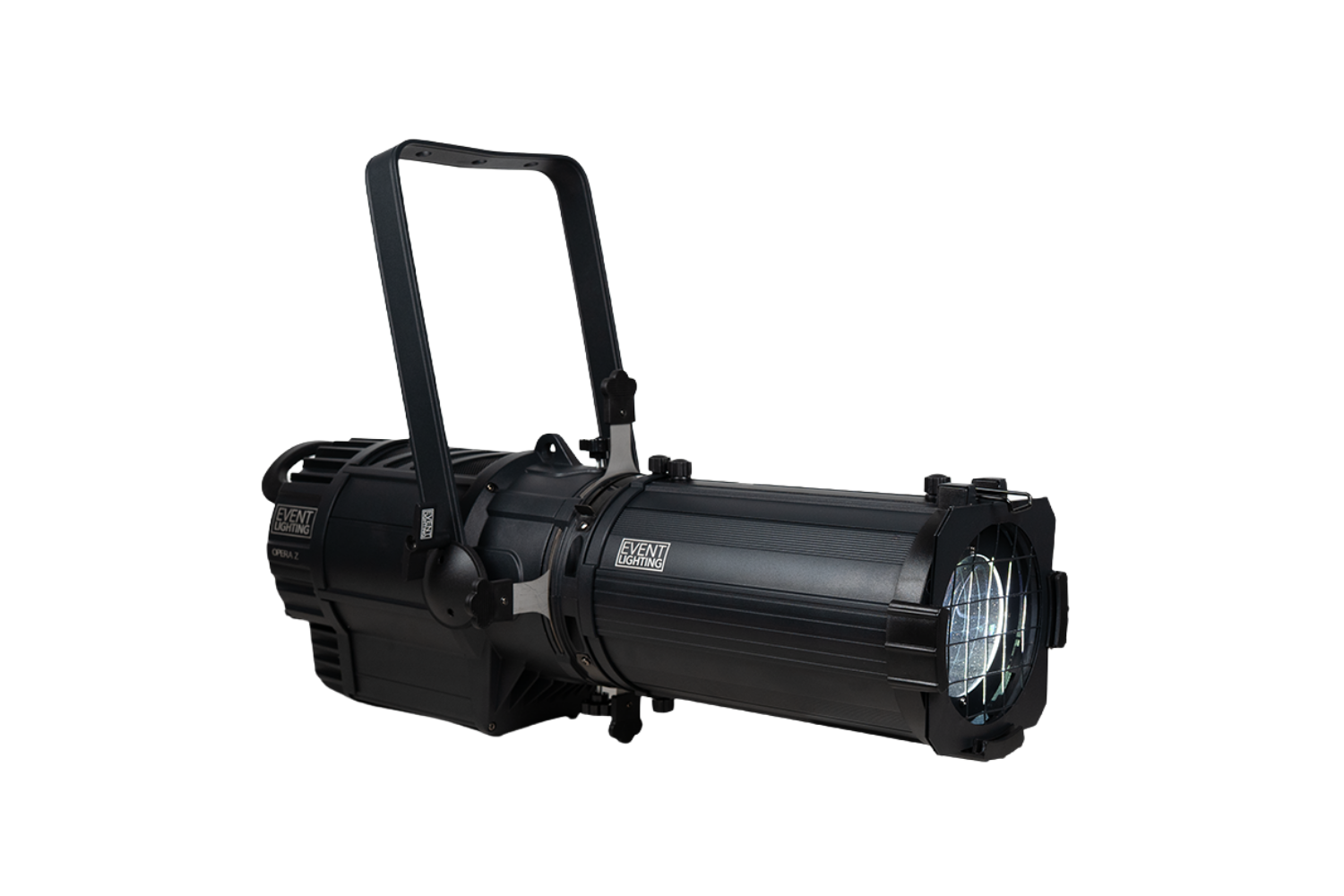

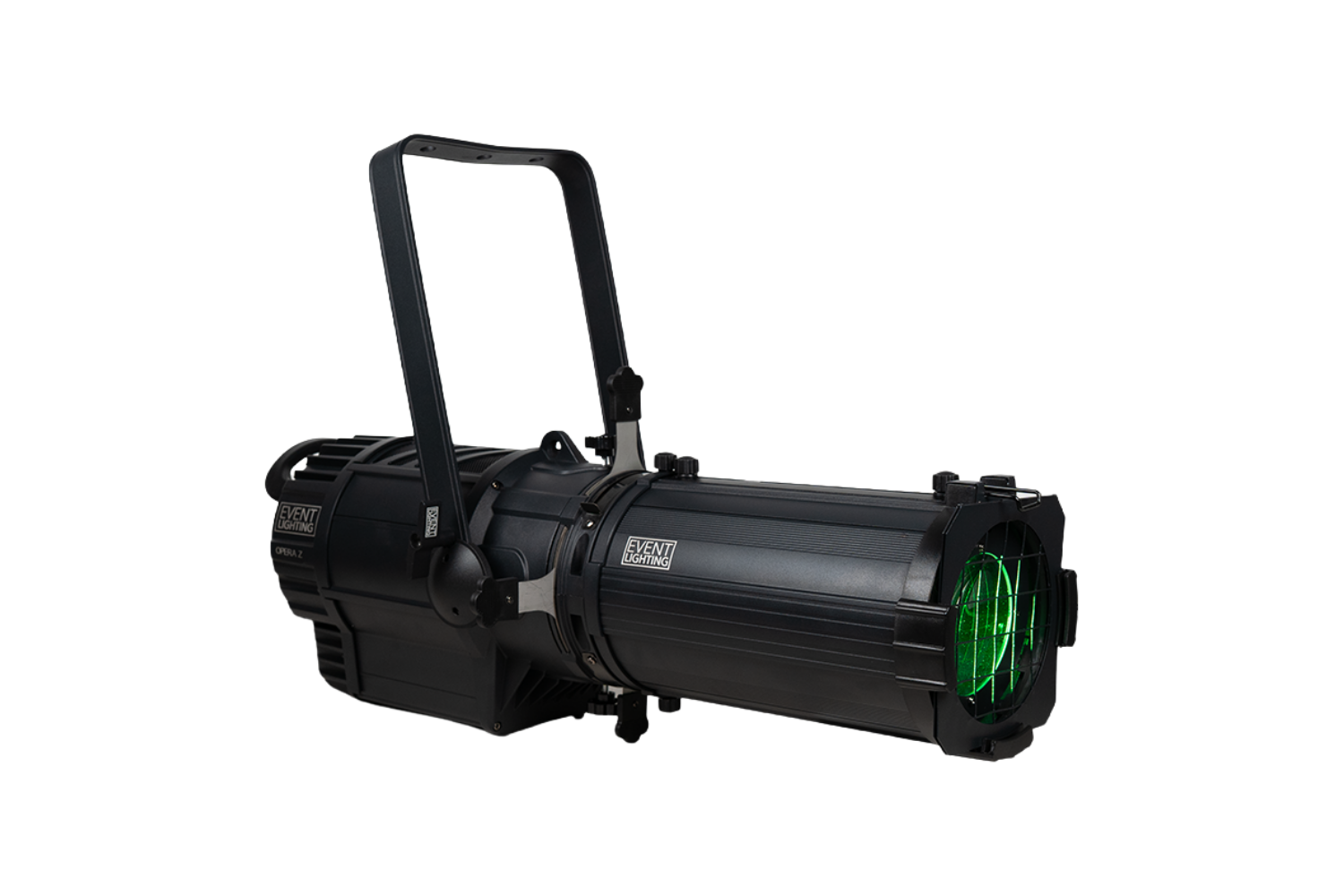

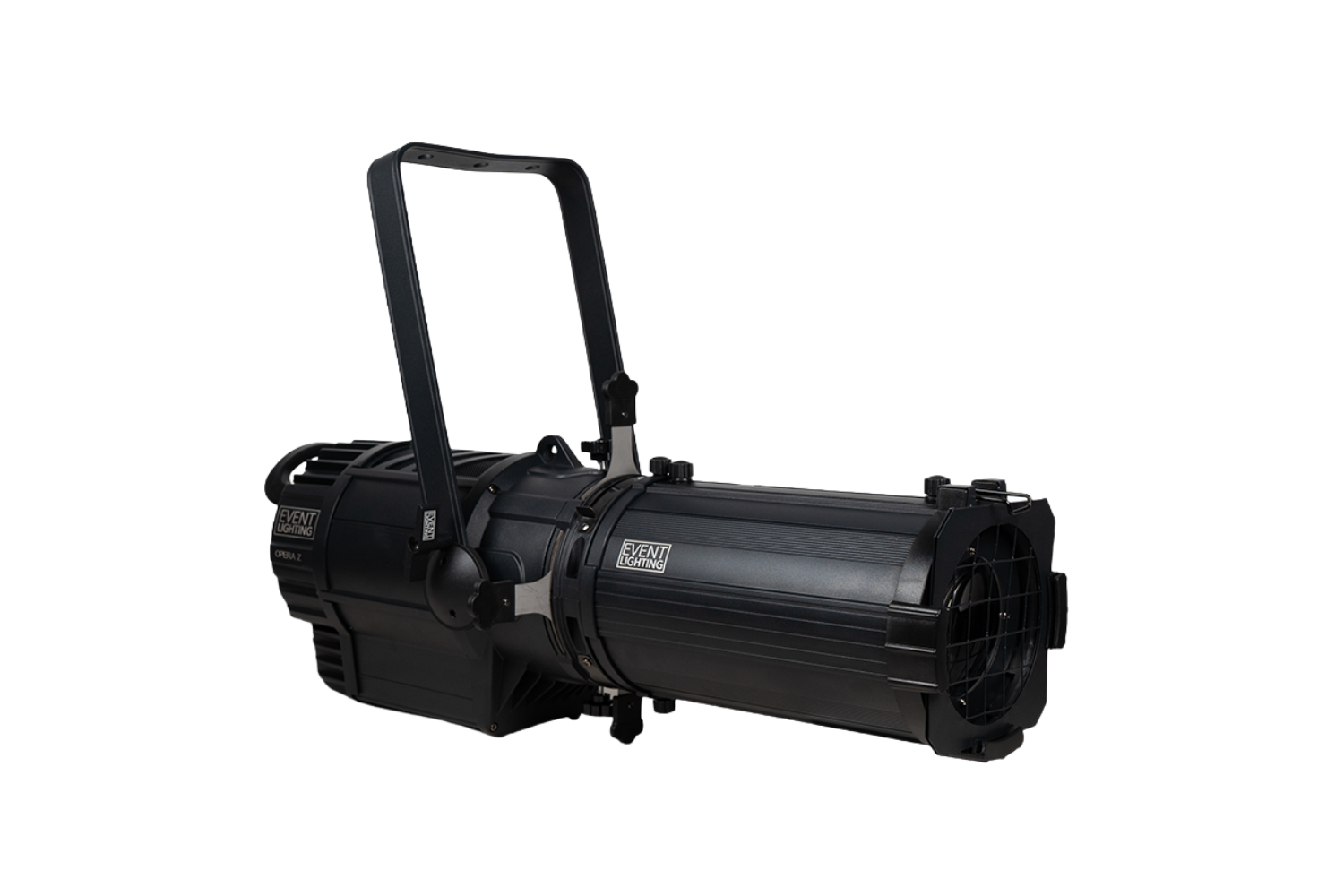

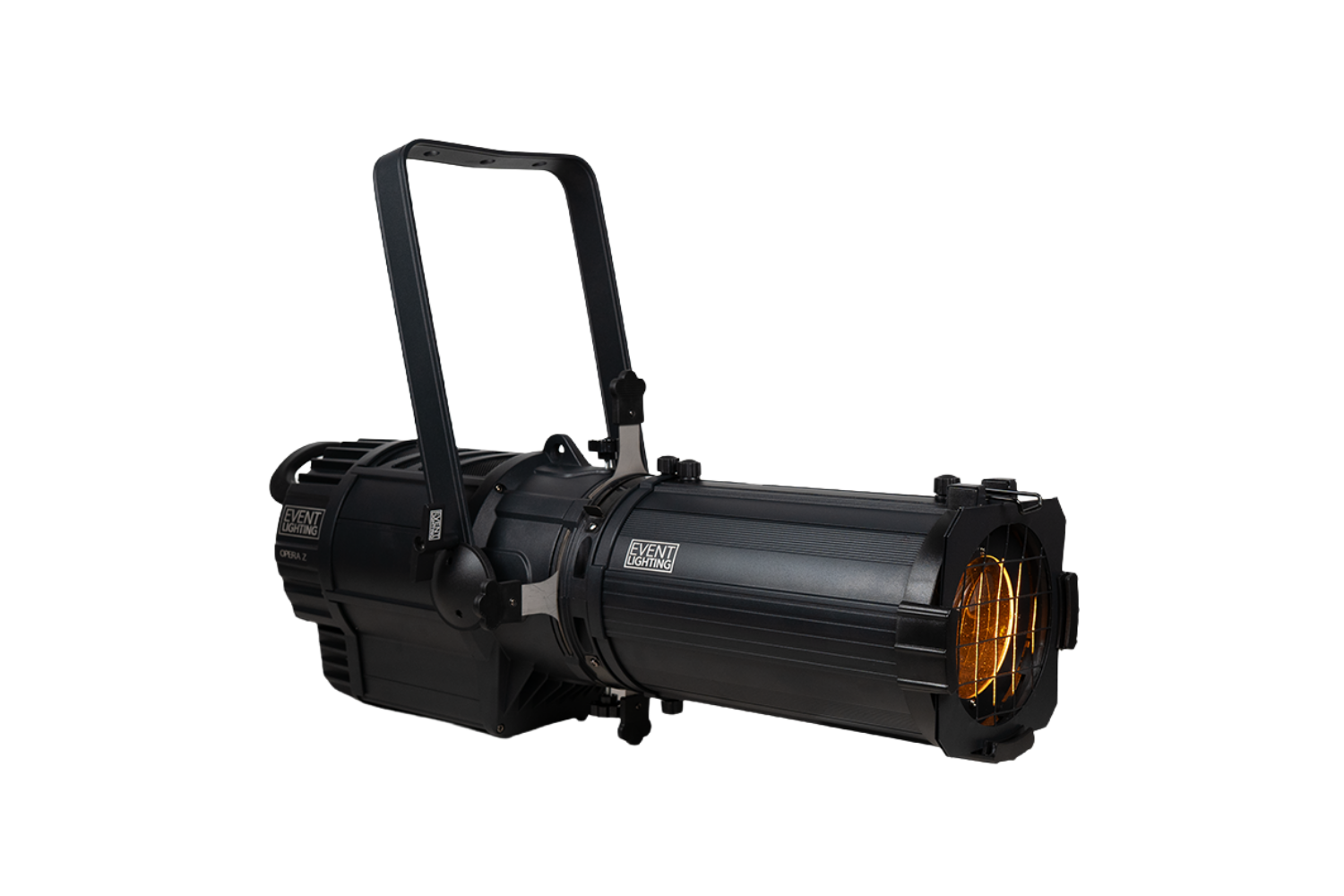

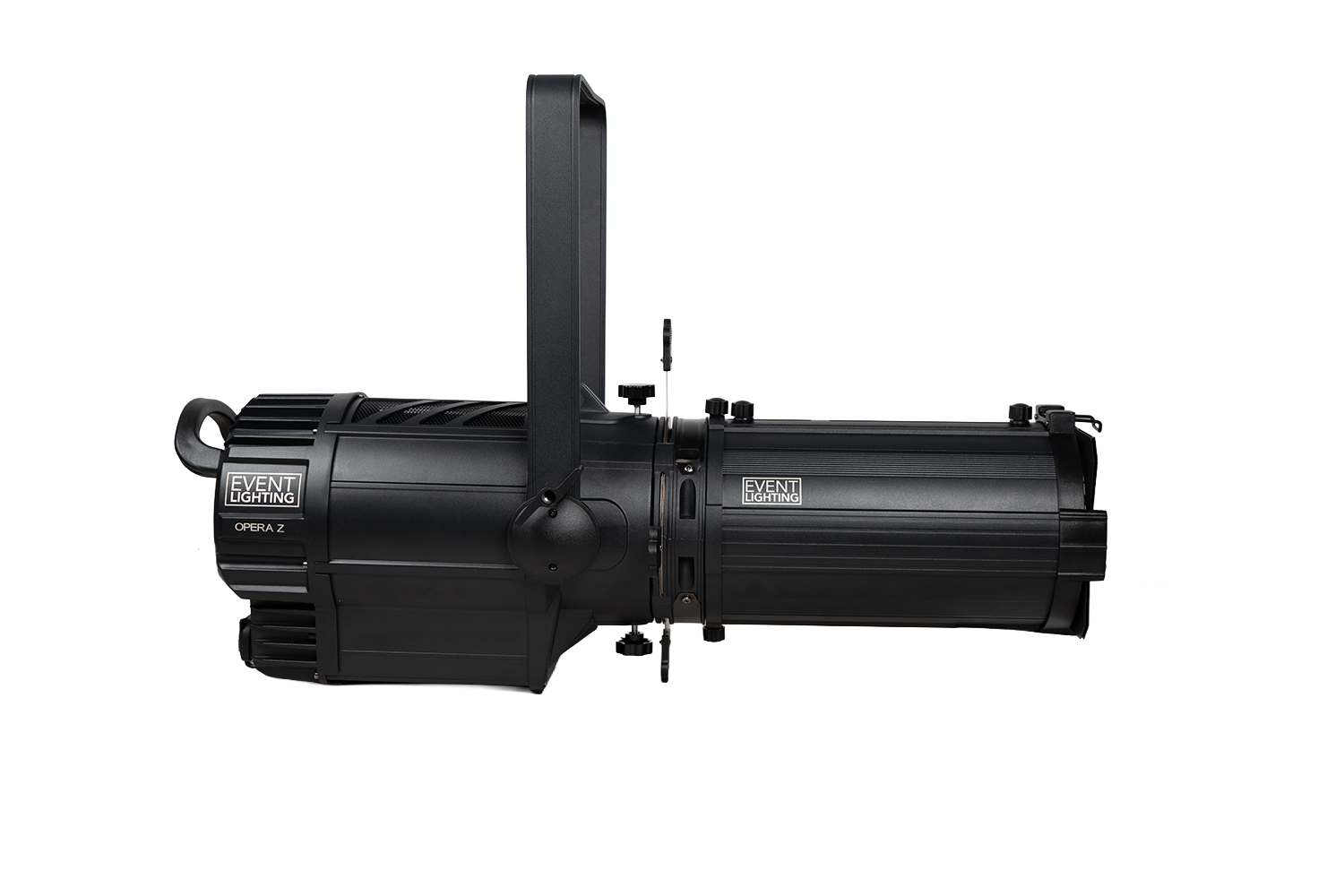

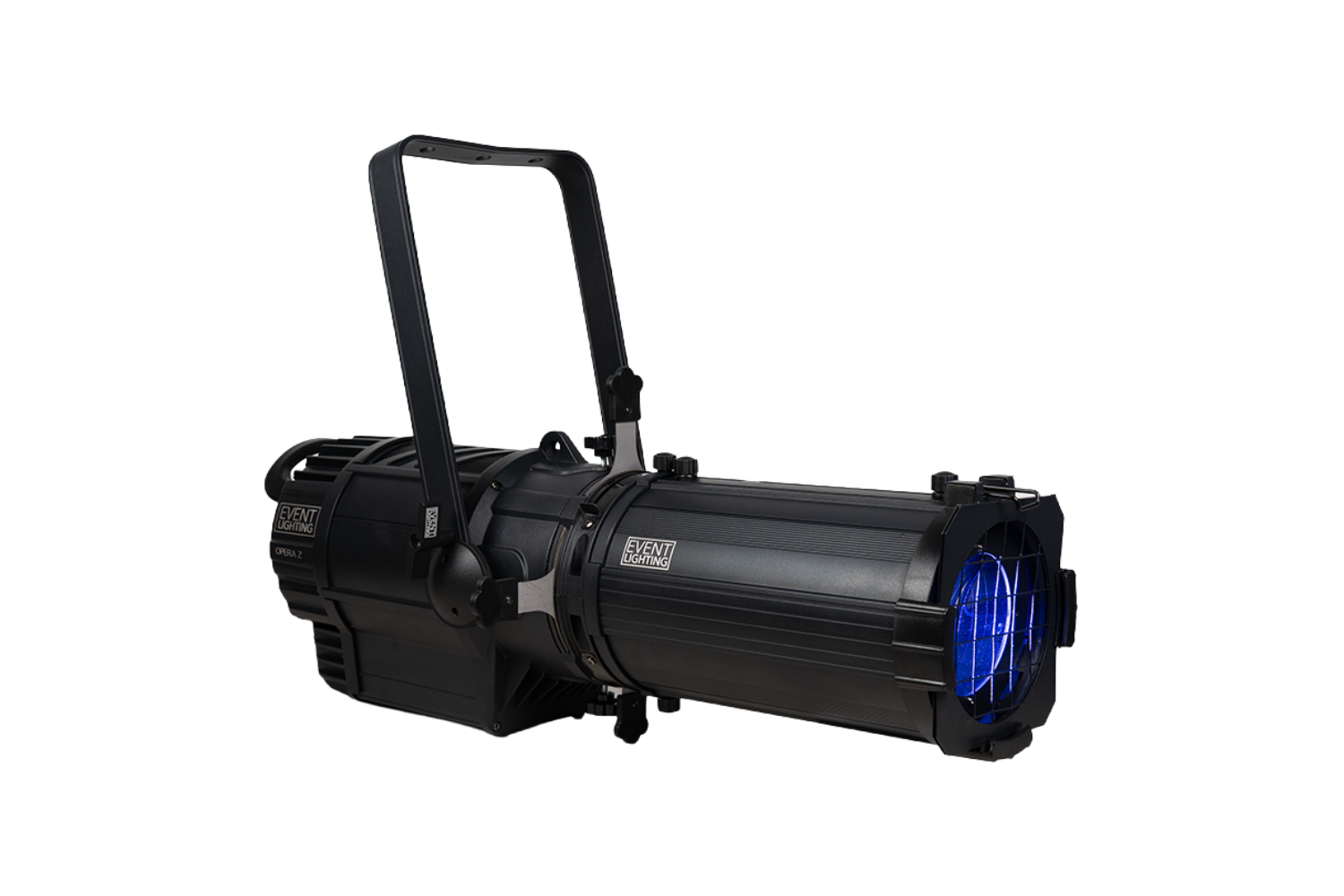

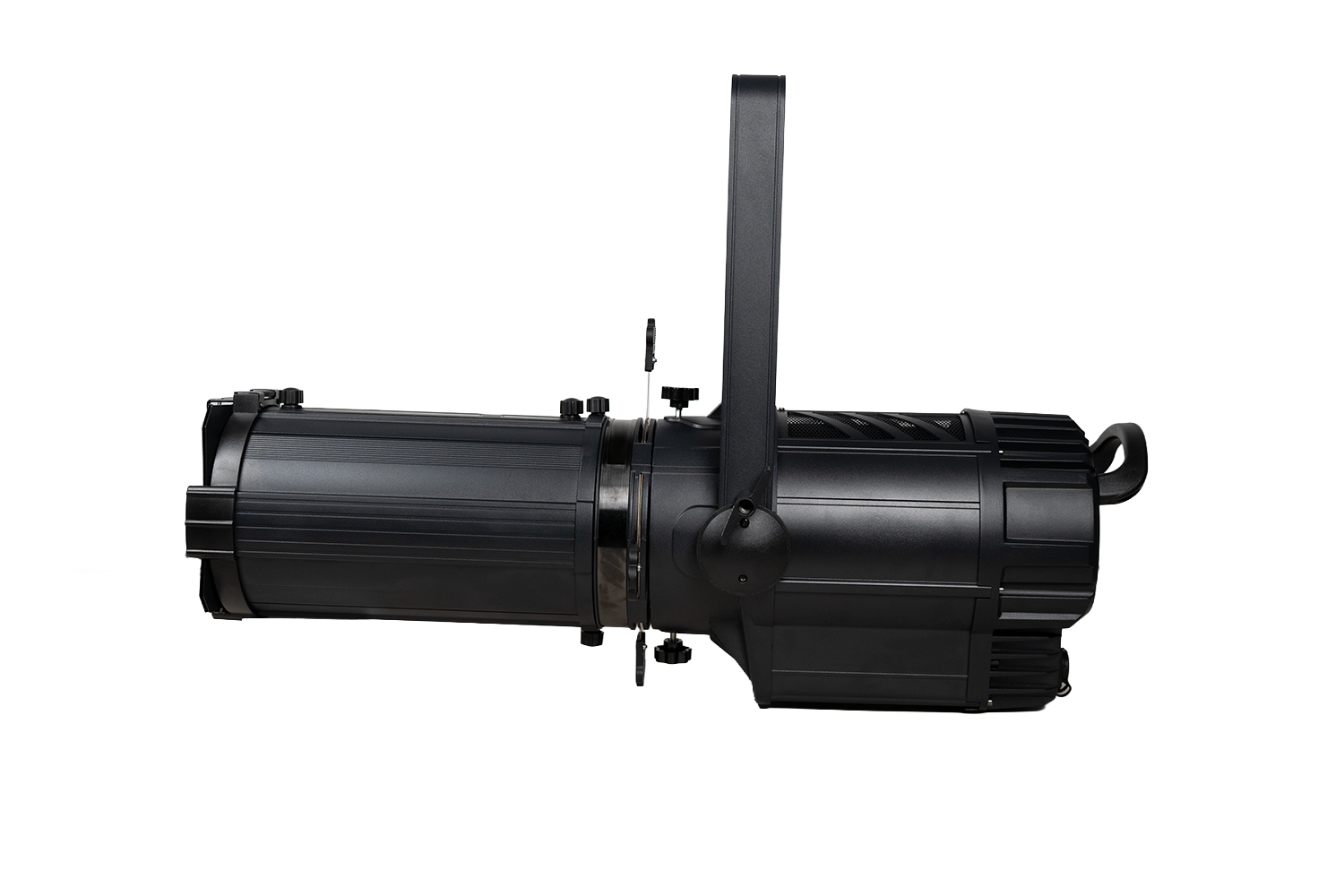

OPERAZ300FCP – IP20 300W RGBALC Profile with manual zoom

OPERAZ300FCP – 300W RGBALC LED Profile Fixture with Manual Zoom

The OPERAZ300FCP is a professional-grade LED profile fixture featuring a powerful 300W RGBALC LED engine designed for theatres, broadcast studios, houses of worship, live events, and stage productions. Combining advanced color mixing technology with precise beam control, it delivers exceptional lighting performance for demanding applications.

Equipped with a manual zoom system ranging from 15° to 40°, the fixture allows users to easily adjust beam spread for accurate spotlighting and stage illumination. The RGBALC LED source provides vibrant color mixing and excellent white light quality, while a CRI of 90+ ensures natural color reproduction. Its quiet cooling system makes it suitable for noise-sensitive environments such as theatres and television studios.

Photometric Specifications

• Light Source: 300W RGBALC LED
• Beam Angle: Adjustable from 15° to 40°
• Zoom: Manual zoom adjustment
• CRI: ≥90
• LED Lifespan: Over 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit linear dimming from 0% to 100%
• Strobe Effect: Built-in strobe functionality

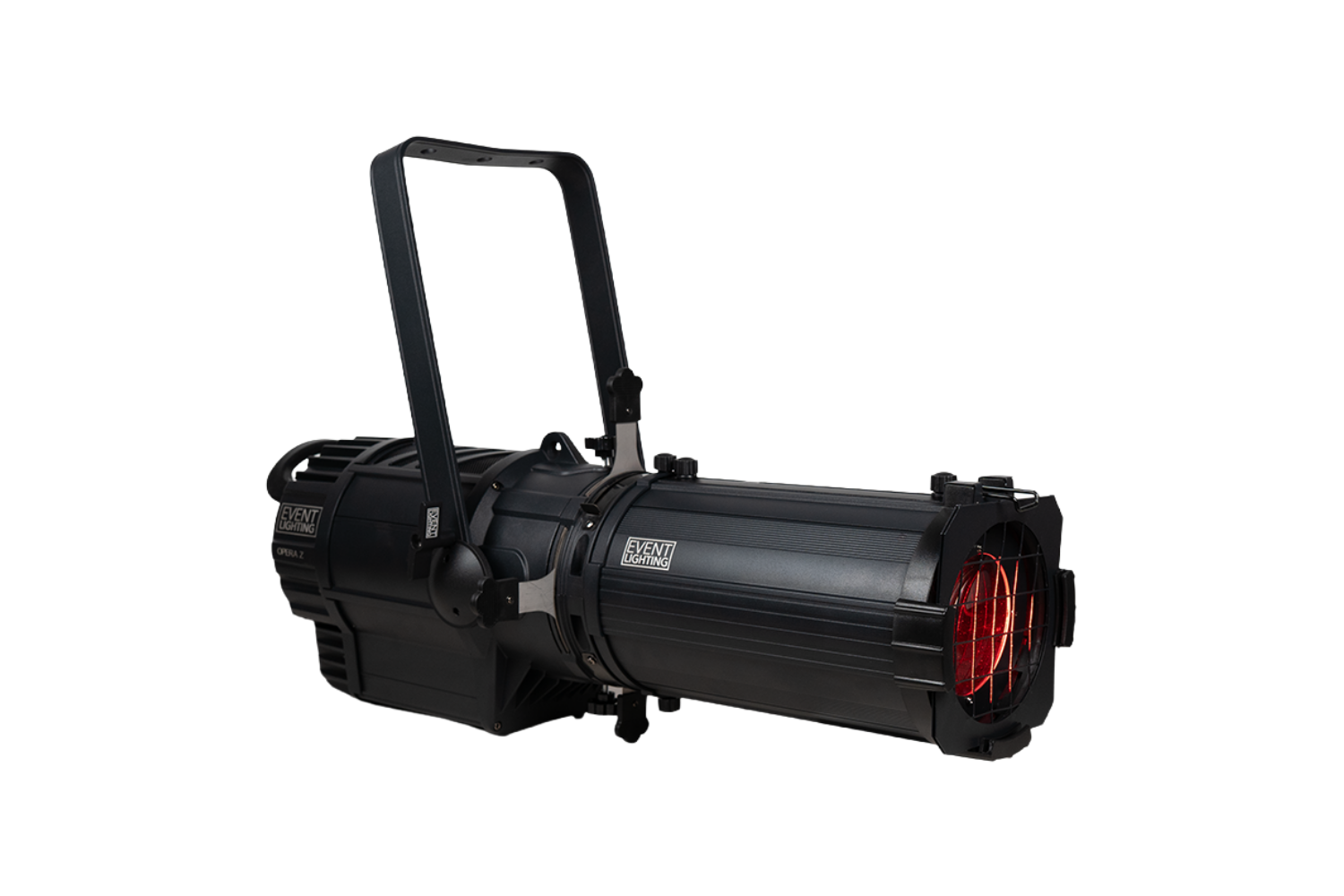

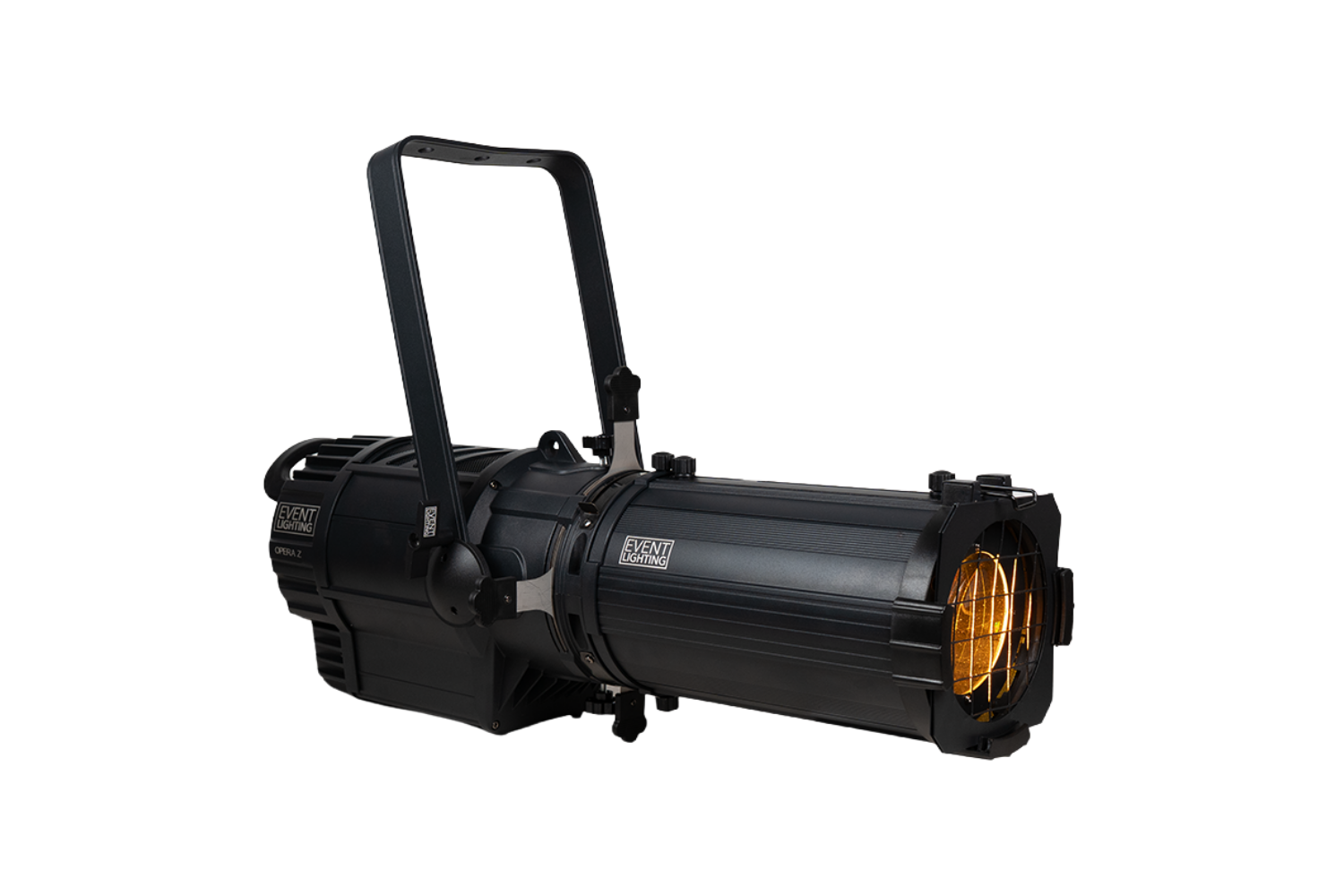

• Color Mixing: Advanced RGBALC color system for rich and accurate color output

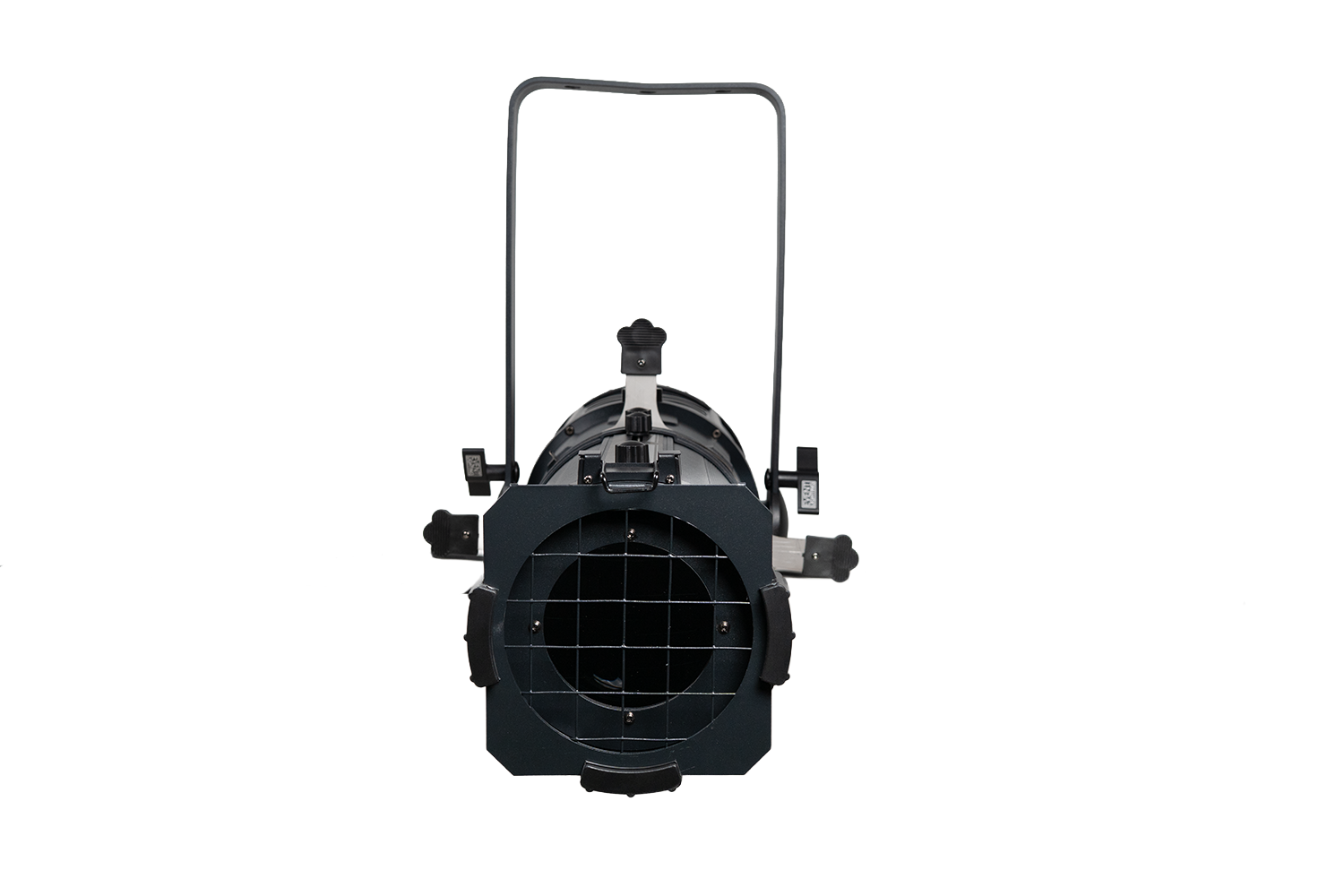

• Included Accessory: Gel frame supplied as standard

Control & Connectivity

• Operating Modes: DMX, Master/Slave, and Manual Dimming
• DMX Channel Modes: 2 channel configurations

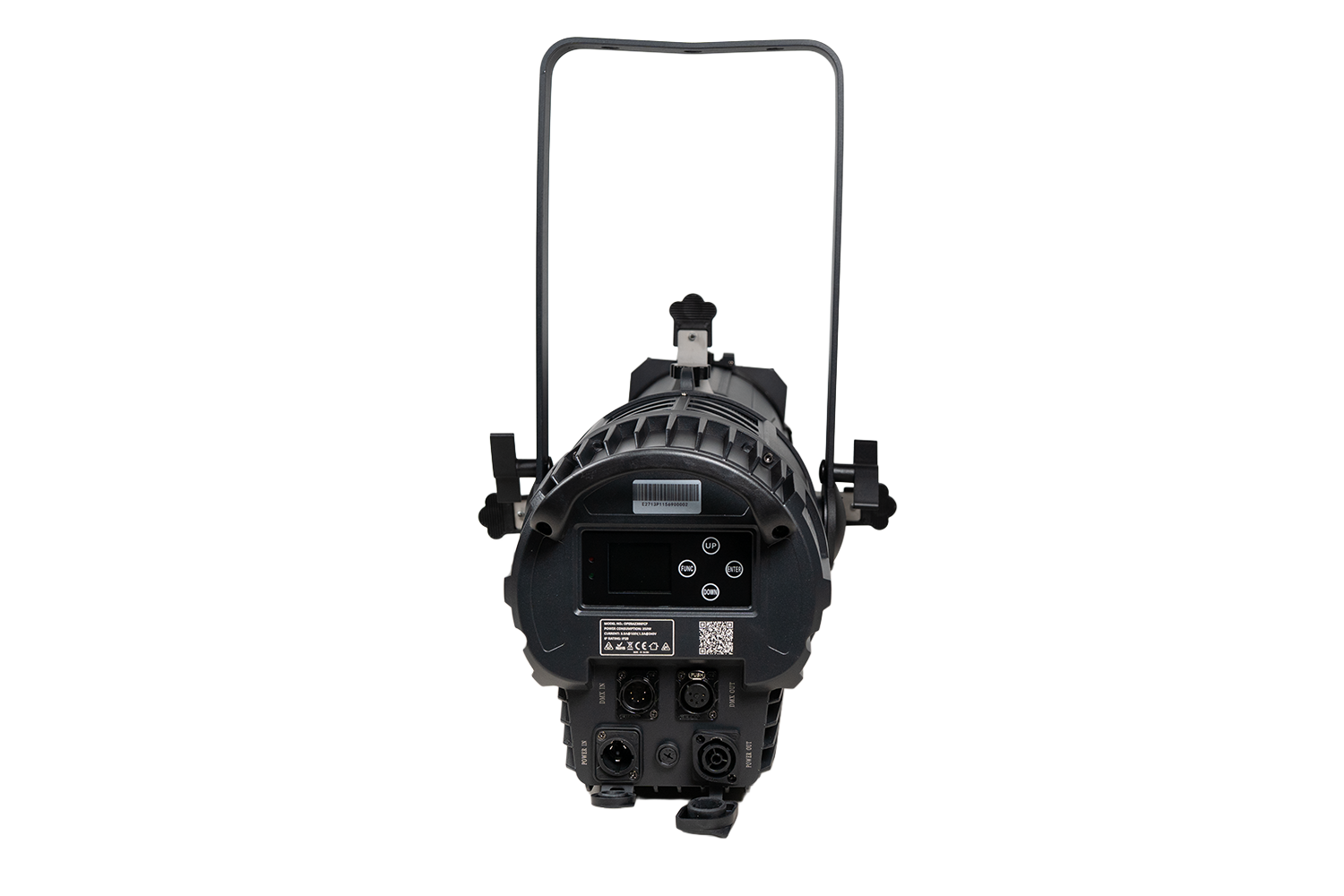

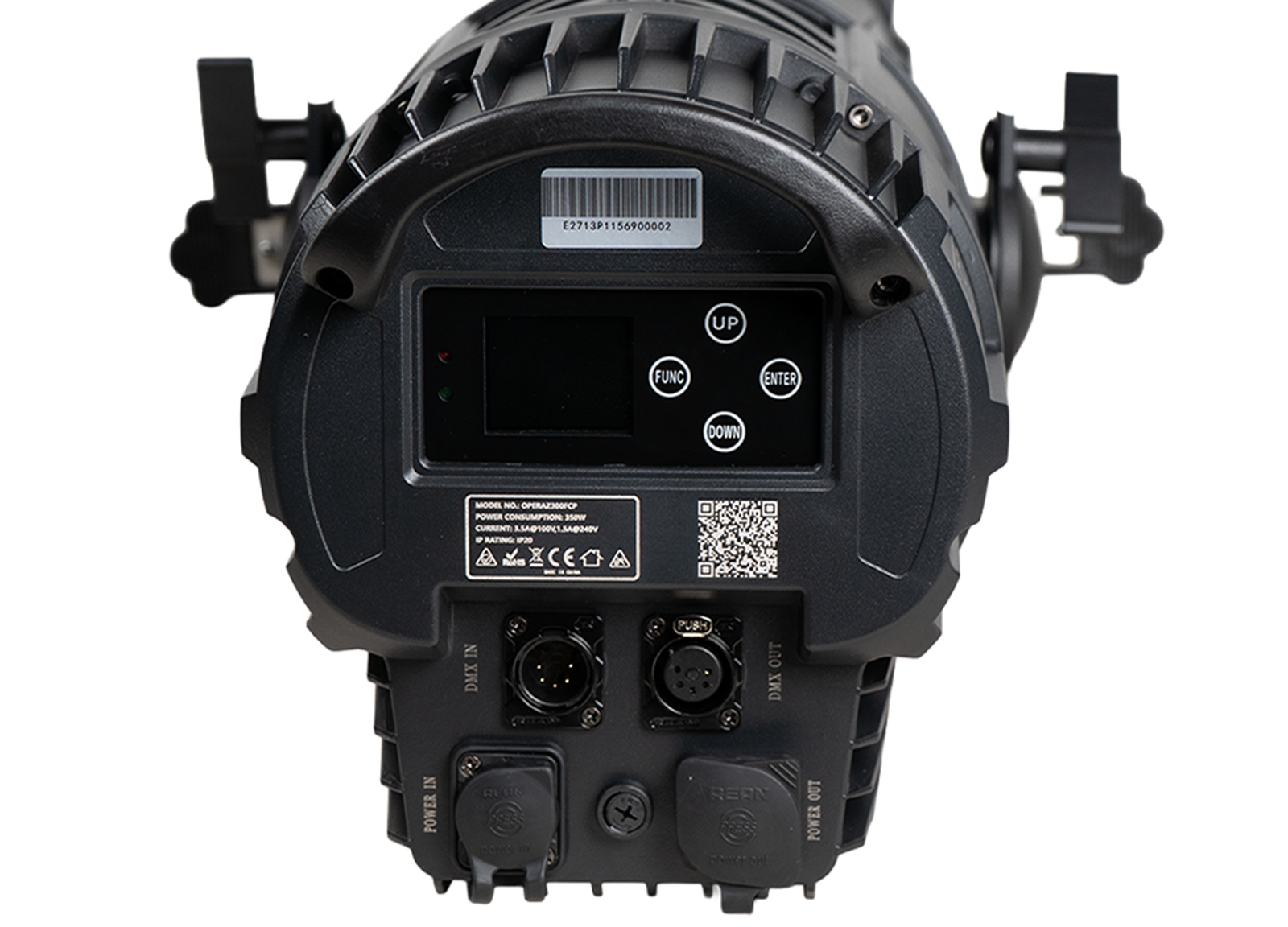

• Display: LCD control panel for easy setup and navigation
• DMX Connection: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Rated Power Consumption: 350W
• Power Connection: TrueOne power input and output

Construction & Performance

• IP Rating: IP20
• Cooling System: Quiet fan cooling system (under 25dB at 1m) with copper tube heat dissipation
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Dimensions: 700 × 235 × 270 mm (27.5″ × 9.3″ × 10.6″)
• Weight: 9.4 kg (20.7 lbs)

Optional Accessories

• OPERAZGOBOH: Optional gobo holder designed for OPERAZ Series Profile fixtures.

Warranty

• Includes a 3-year manufacturer warranty for dependable long-term performance.
