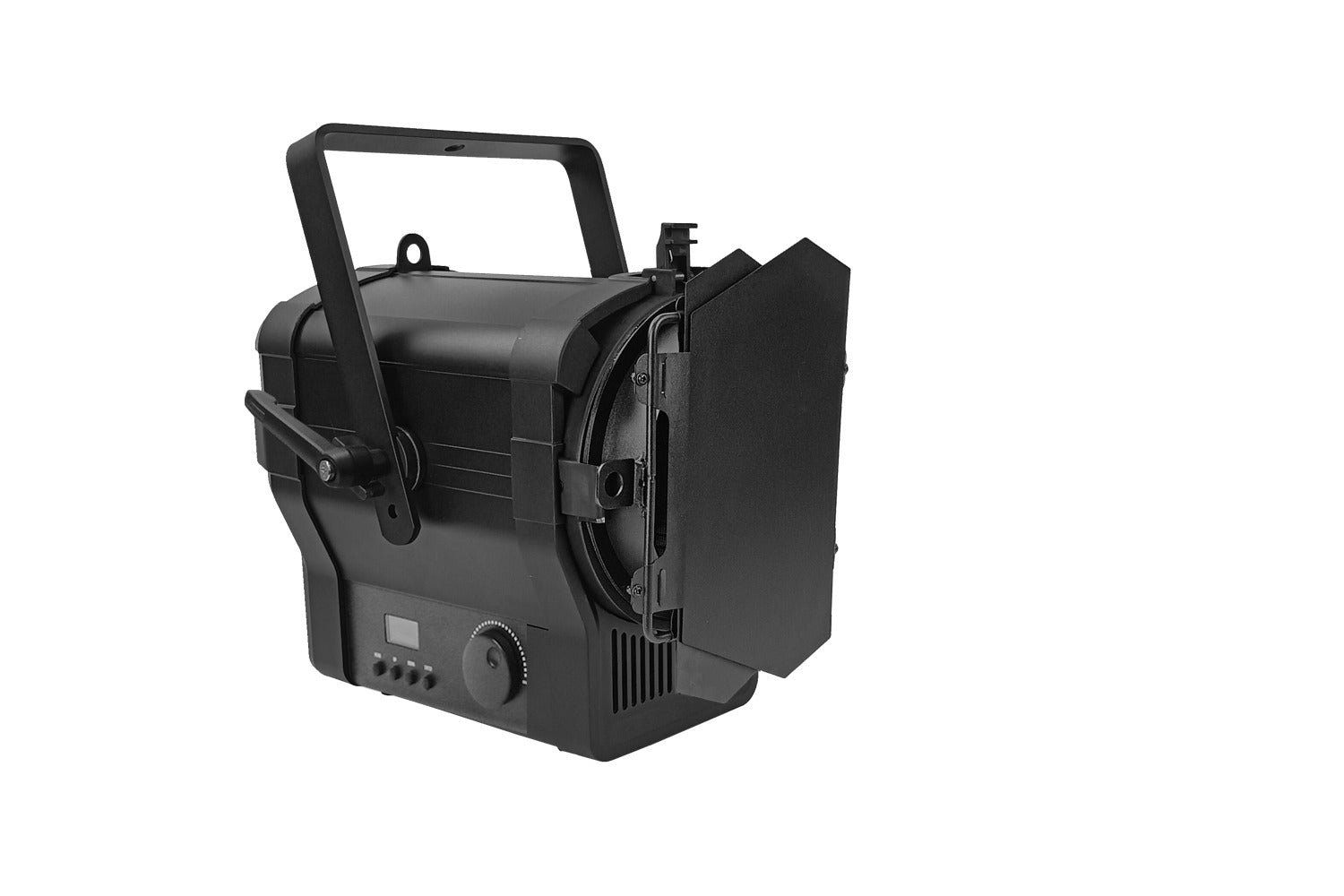

OPERAC200FCF – Compact Fresnel Engine with 200W COB RGBW LED

OPERAC200FCF – Compact Fresnel Fixture with 200W COB RGBW LED

The OPERAC200FCF is a professional-grade compact Fresnel lighting fixture powered by a high-performance 200W COB RGBW LED engine. Designed for theatres, studios, stage productions, houses of worship, and live events, it offers excellent color mixing, smooth dimming performance, and versatile beam control.

Featuring a manual zoom range from 14° to 55°, this fixture allows precise adjustment of beam spread to suit various lighting requirements. The integrated 1-channel mode enables easy color temperature matching with existing lighting systems while simplifying operation through a single-channel dimmer setup.

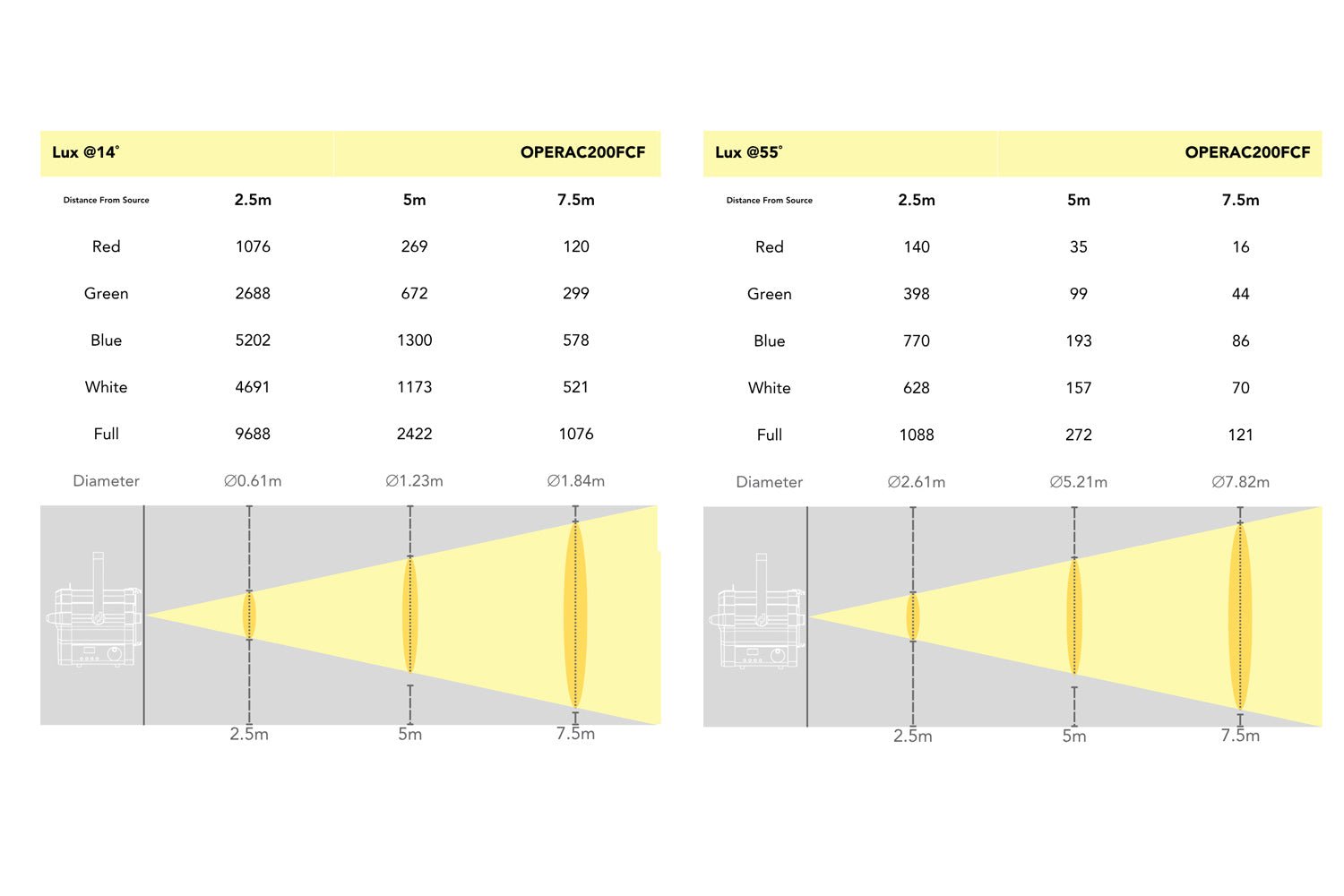

Photometric Specifications

• Light Source: 200W COB RGBW LED
• CRI: 90
• Beam Angle: Adjustable from 14° to 55°
• LED Lifetime: Up to 50,000 hours

Features & Effects

• Dimming: 16-bit smooth dimming from 0% to 100%
• Zoom Control: Manual zoom adjustment (14°–55°)

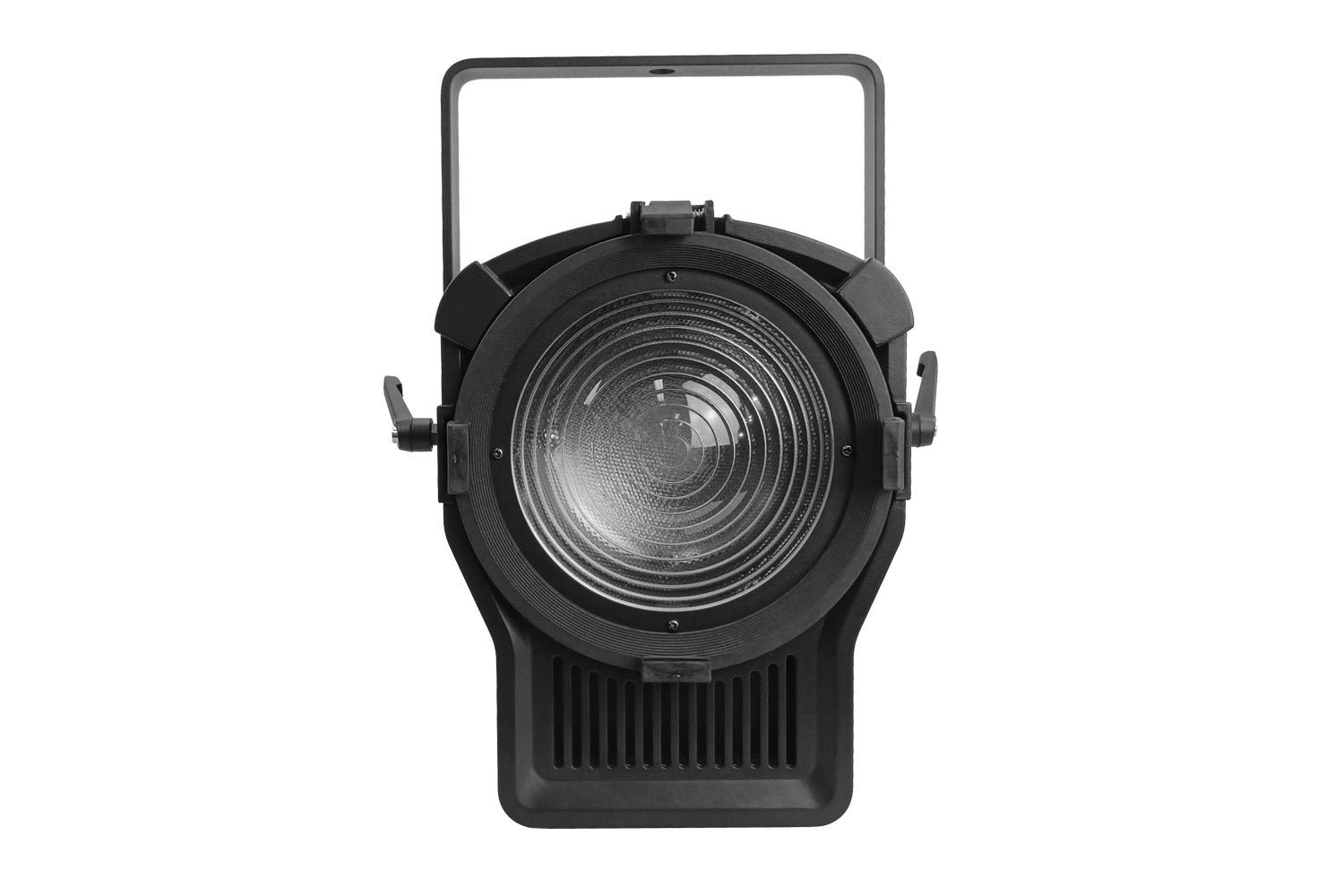

• Optical System: Premium glass lens assembly with 150mm Fresnel lens

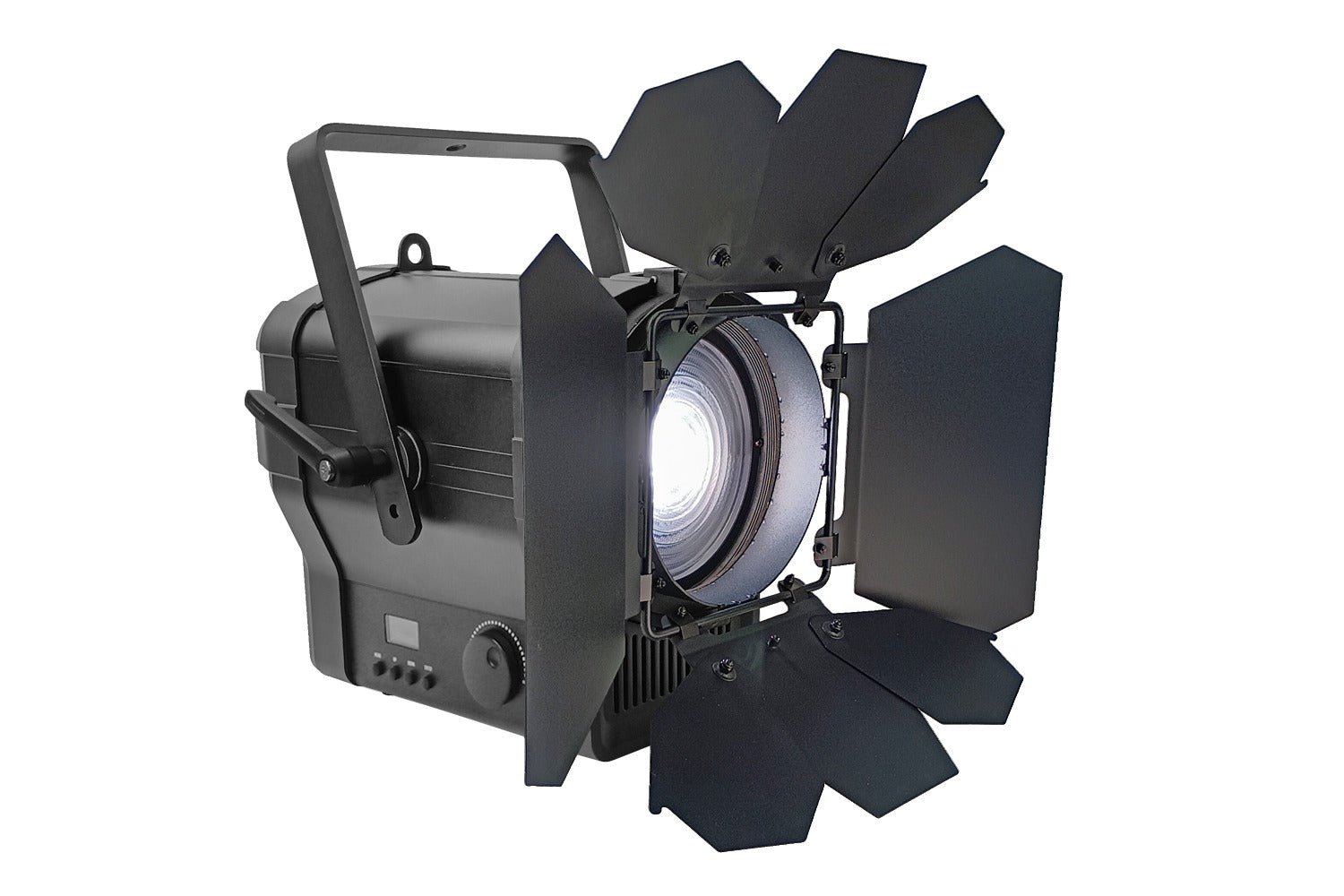

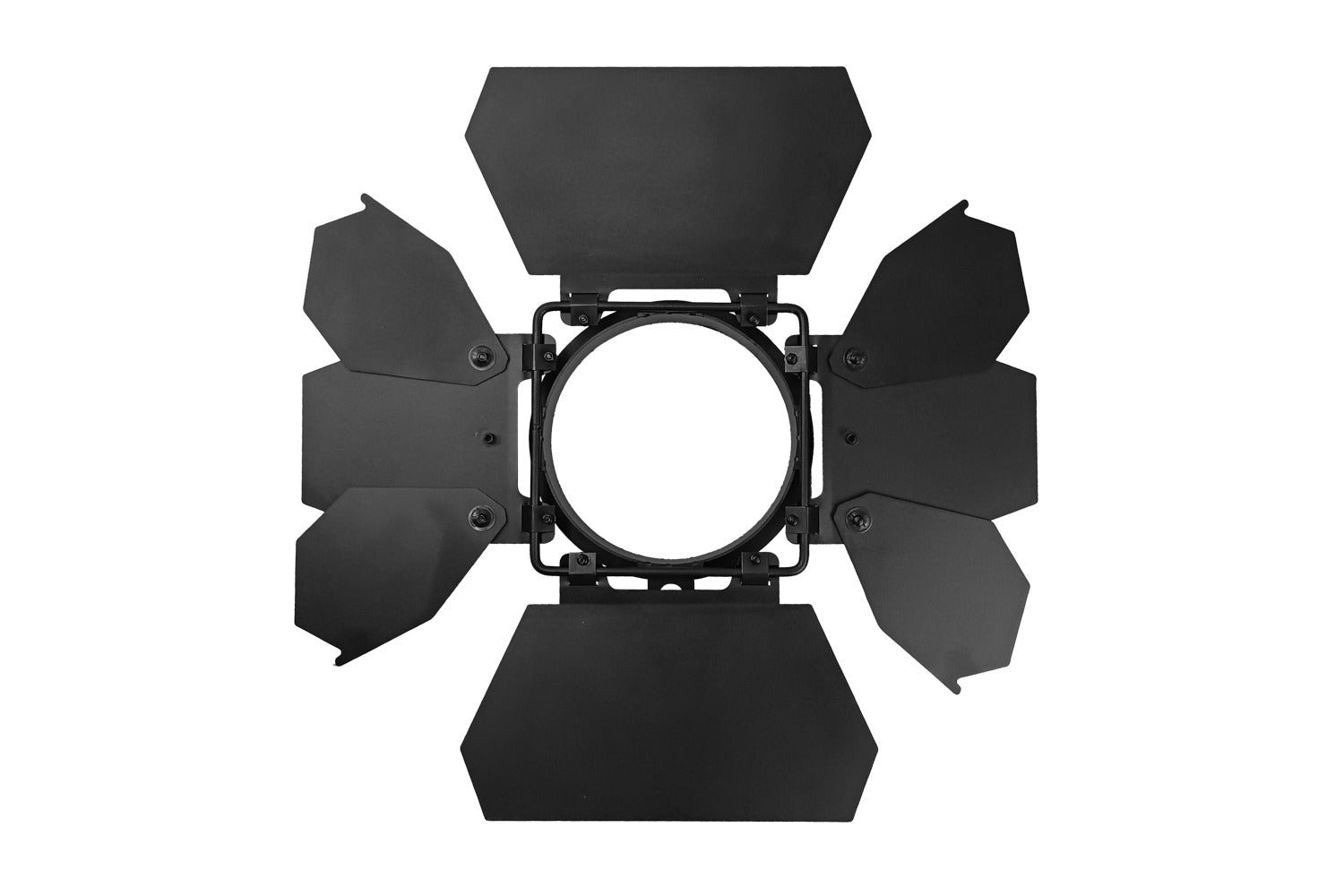

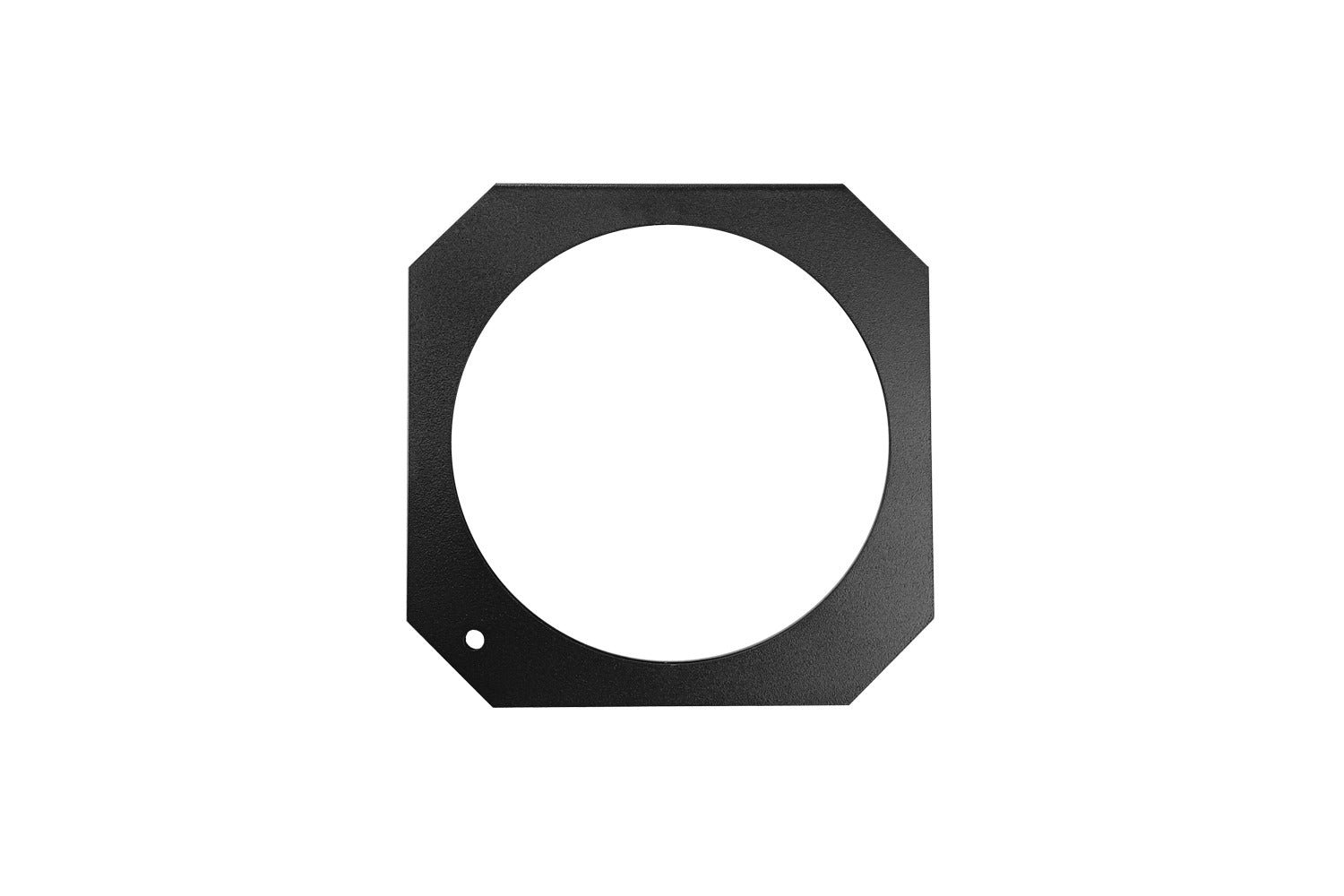

• Accessories Included: 8-leaf barn door and gel frame

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 200W
• Power Connections: True1 power input and output

Control & Connectivity

• Operating Modes: DMX, RDM, and Manual Control

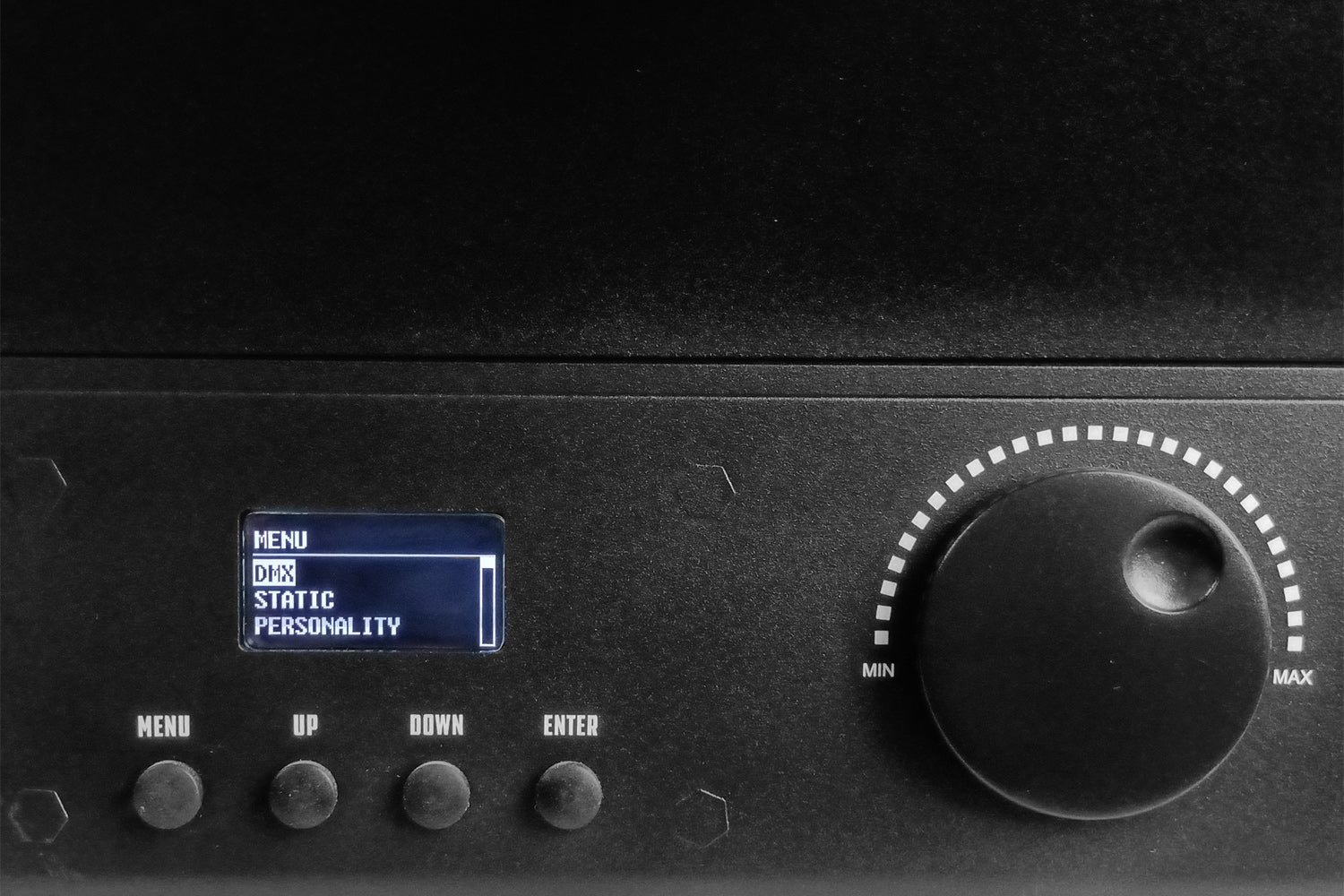

• Display: TFT-LCD display with 4-button control interface
• Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 4CH, 5CH, 9CH, 13CH, and optional 9H-CH

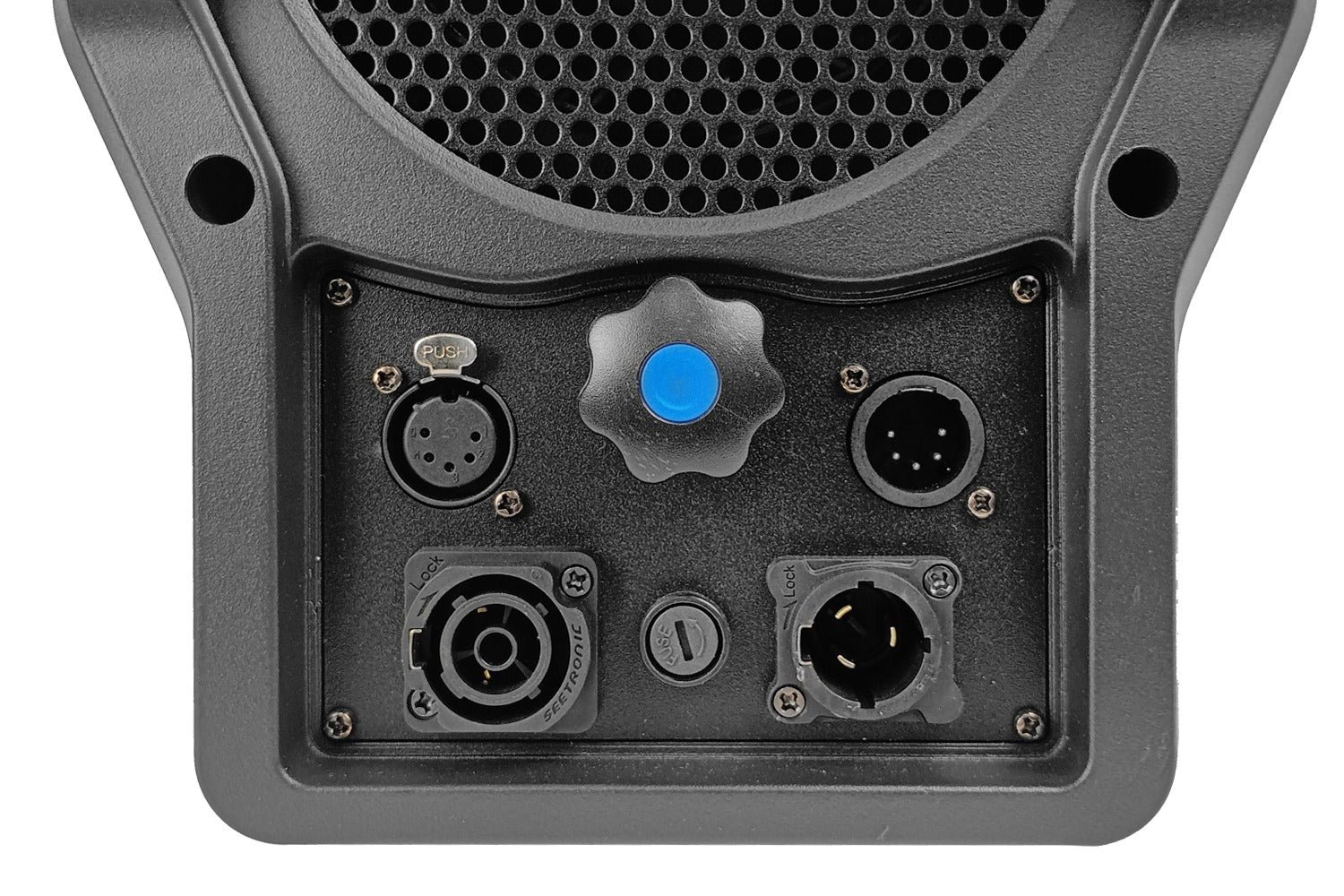

• Data Connections: 5-pin XLR DMX input and output

Construction & Durability

• Housing Material: Die-cast aluminum construction
• Finish: Matte black professional finish
• Tilt Range: ±90°
• Operating Temperature: -10°C to 40°C

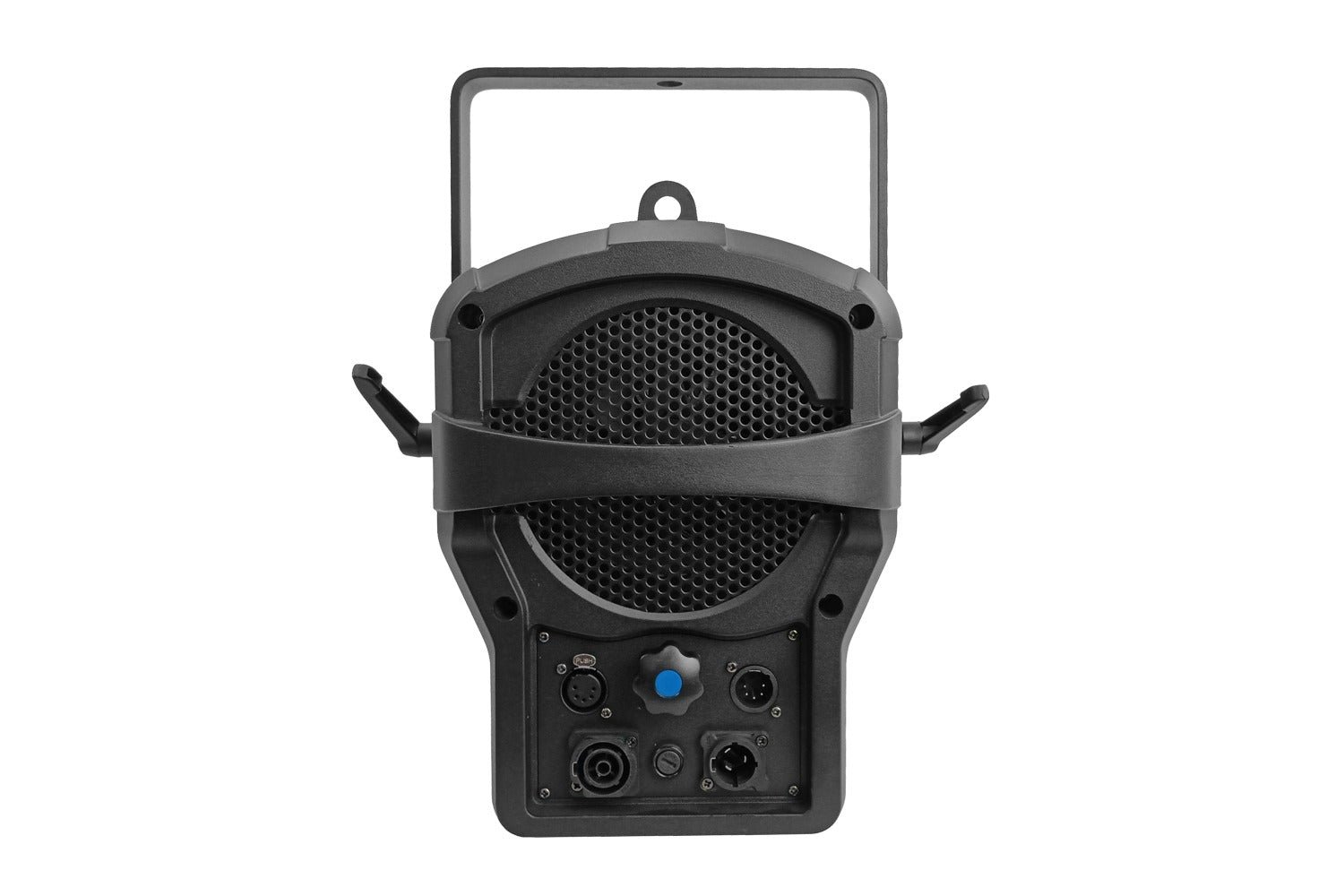

• Cooling System: Silent fan with intelligent automatic temperature regulation
• IP Rating: IP20

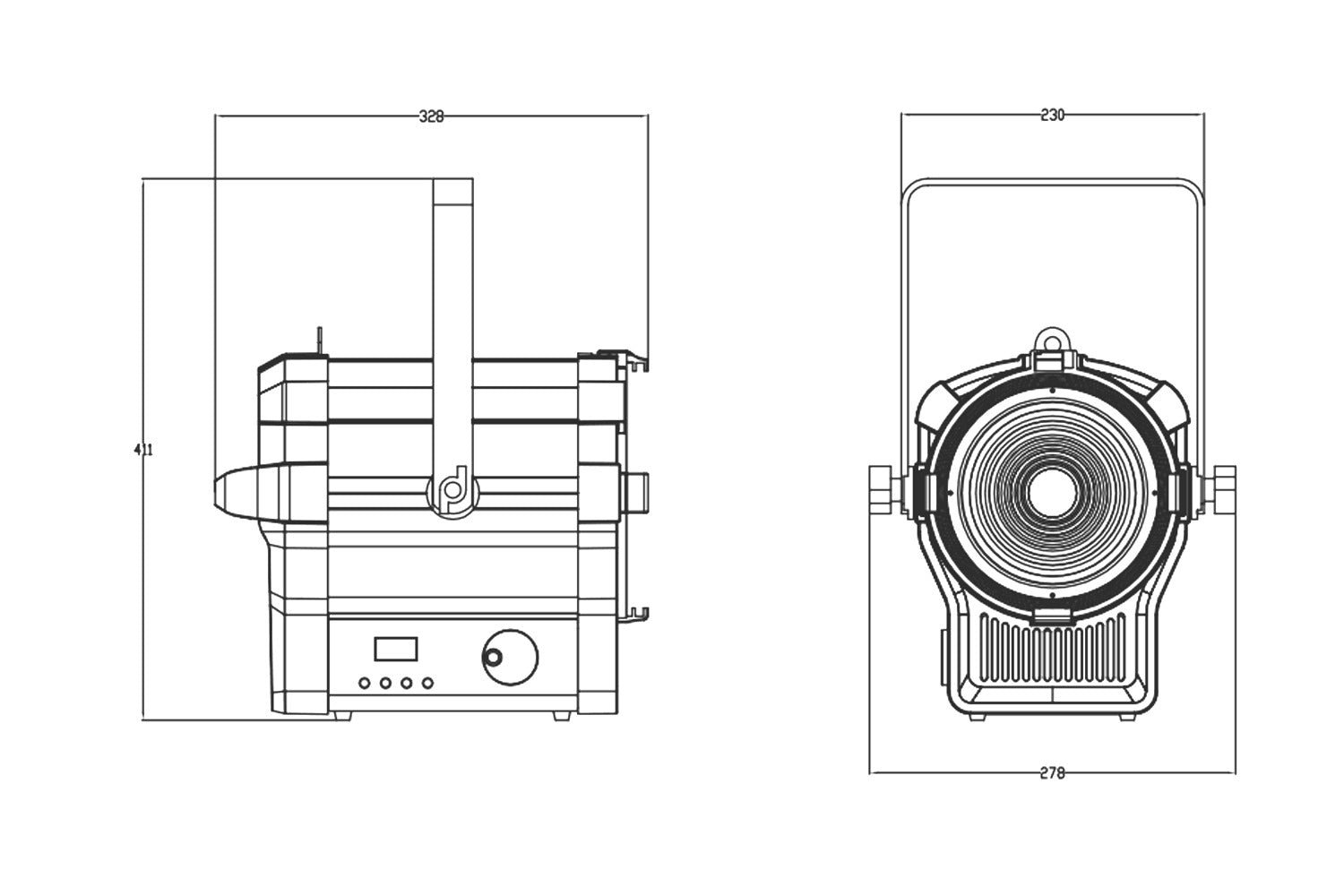

• Dimensions: 328 × 411 × 278 mm (12.9″ × 16.2″ × 10.9″)
• Weight: 8.2 kg (18.1 lbs)

Warranty

• Backed by a comprehensive 3-year manufacturer warranty for reliable long-term performance.
