OPERAZ400WP-IP – IP65 400W Warm White Profile with manual zoom

OPERAZ400WP-IP – IP65 400W Warm White LED Profile Fixture with Manual Zoom

The OPERAZ400WP-IP is a high-performance outdoor-rated LED profile fixture designed for professional stage productions, theatres, live events, architectural lighting, and outdoor entertainment venues. Powered by a robust 400W Warm White LED source, it delivers powerful illumination, excellent color quality, and reliable operation in both indoor and outdoor environments.

Featuring a manual zoom range of 15° to 40°, the fixture offers precise beam control for spotlighting, highlighting, and projection applications. Available in 3100K or 5600K color temperature options, it provides flexibility to suit various lighting requirements. With its IP65-rated construction, the fixture is protected against dust and water, making it ideal for permanent outdoor installations and demanding event environments.

Photometric Specifications

• Light Source: 400W Warm White LED
• Color Temperature: 3100K or 5600K
• CRI: ≥90
• Beam Angle: Adjustable from 15° to 40°
• Zoom Control: Manual zoom adjustment
• LED Lifespan: Over 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit linear dimming from 0% to 100%
• Strobe Effect: Integrated variable strobe functionality
• Precision Optics: Designed for accurate beam shaping and projection applications
• Included Accessory: Gel frame supplied as standard

Control & Connectivity

• Operating Modes: DMX, Master/Slave, and Manual Dimming
• DMX Channel Modes: 2 channel configurations

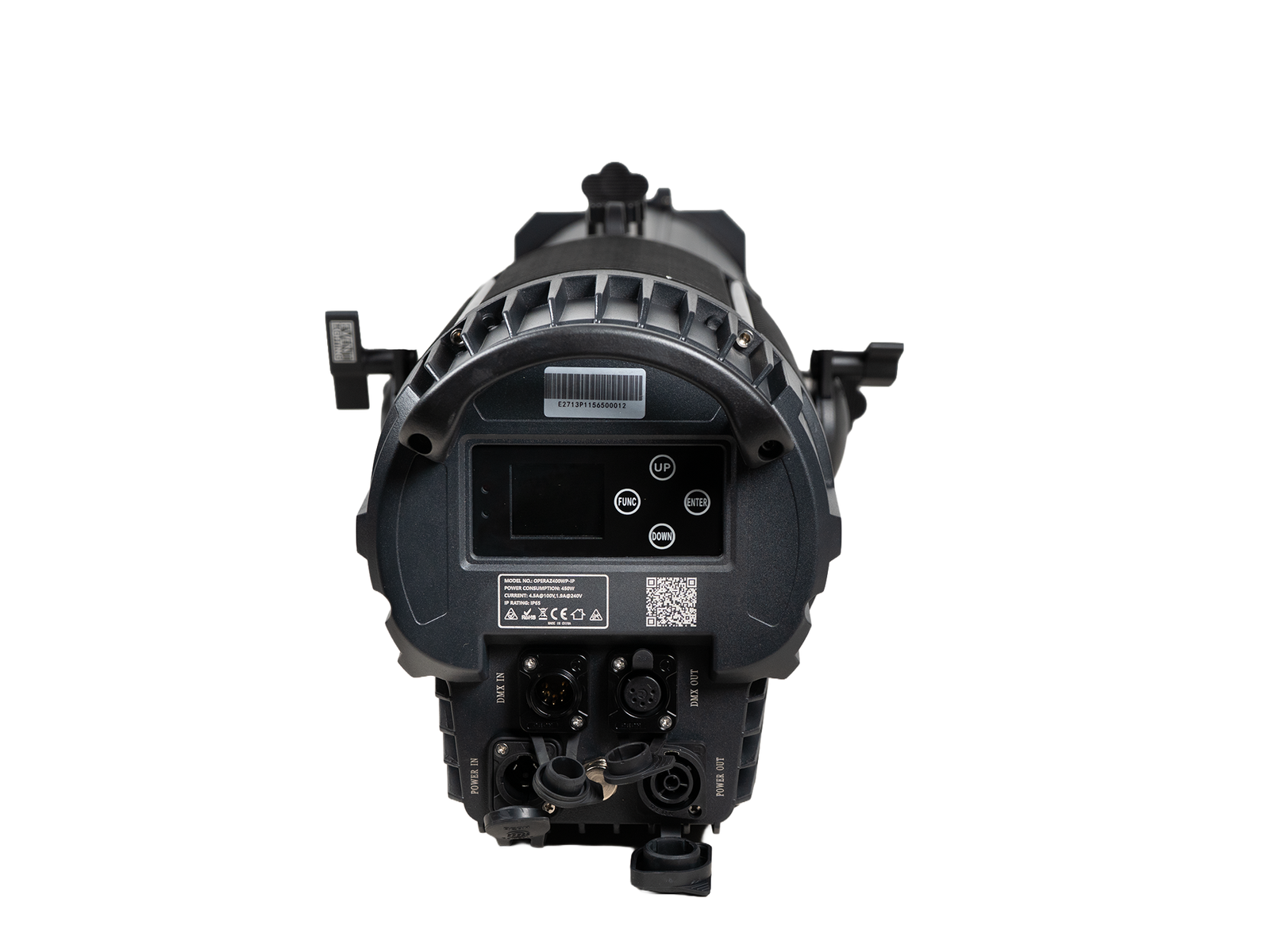

• Display: LCD control panel for intuitive operation
• DMX Connection: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Rated Power Consumption: 450W
• Power Connection: TrueOne power input and output

Construction & Durability

• IP Rating: IP65 for outdoor and all-weather applications
• Cooling System: Quiet fan cooling system (under 25dB at 1m) with copper tube heat dissipation
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Dimensions: 760 × 235 × 270 mm (29.9″ × 9.3″ × 10.6″)
• Weight: 11.3 kg (24.9 lbs)

Optional Accessories

• OPERAZGOBOH: Optional gobo holder compatible with OPERAZ Series Profile fixtures.

Warranty

• Backed by a 3-year manufacturer warranty for dependable performance and long-term reliability.
