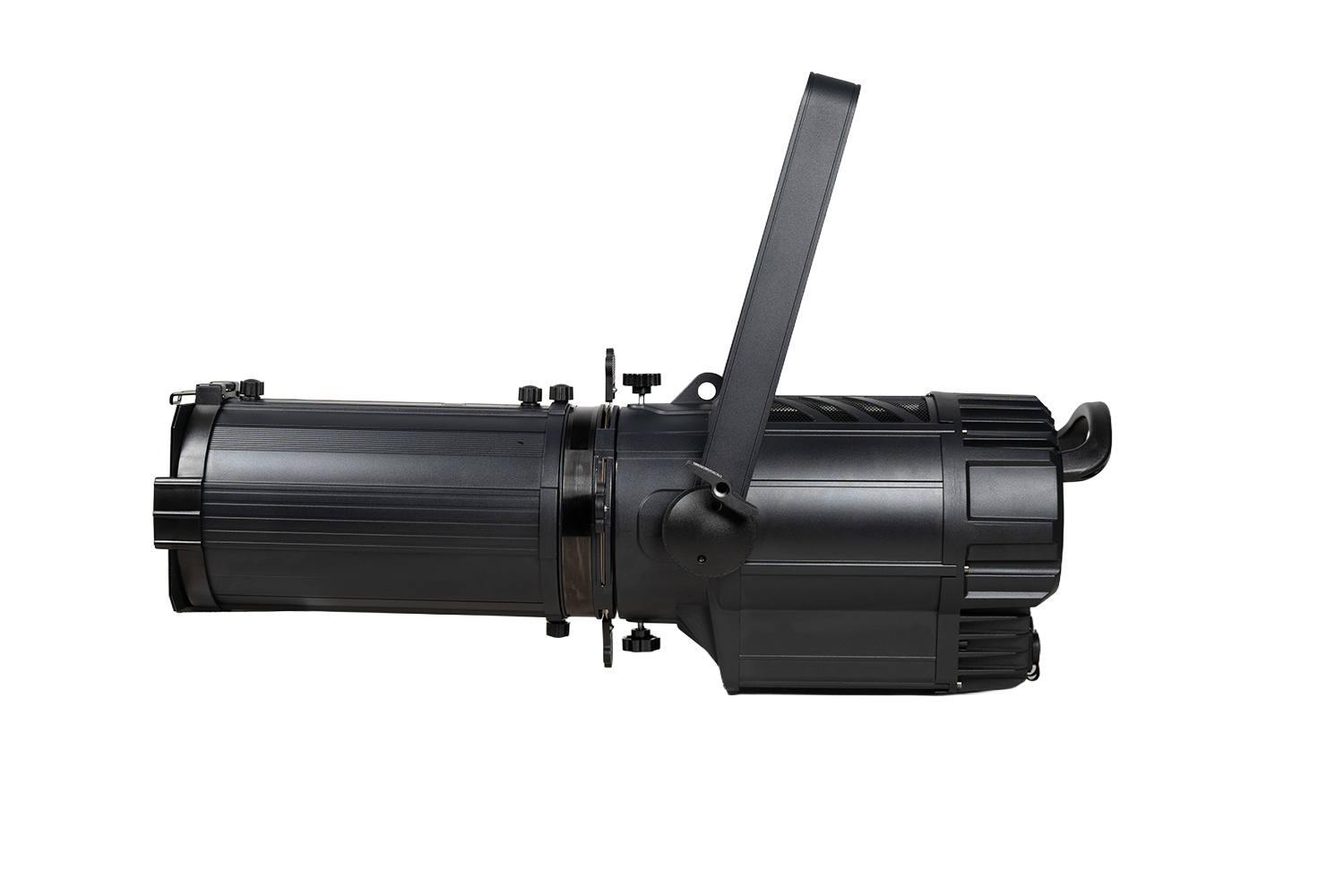

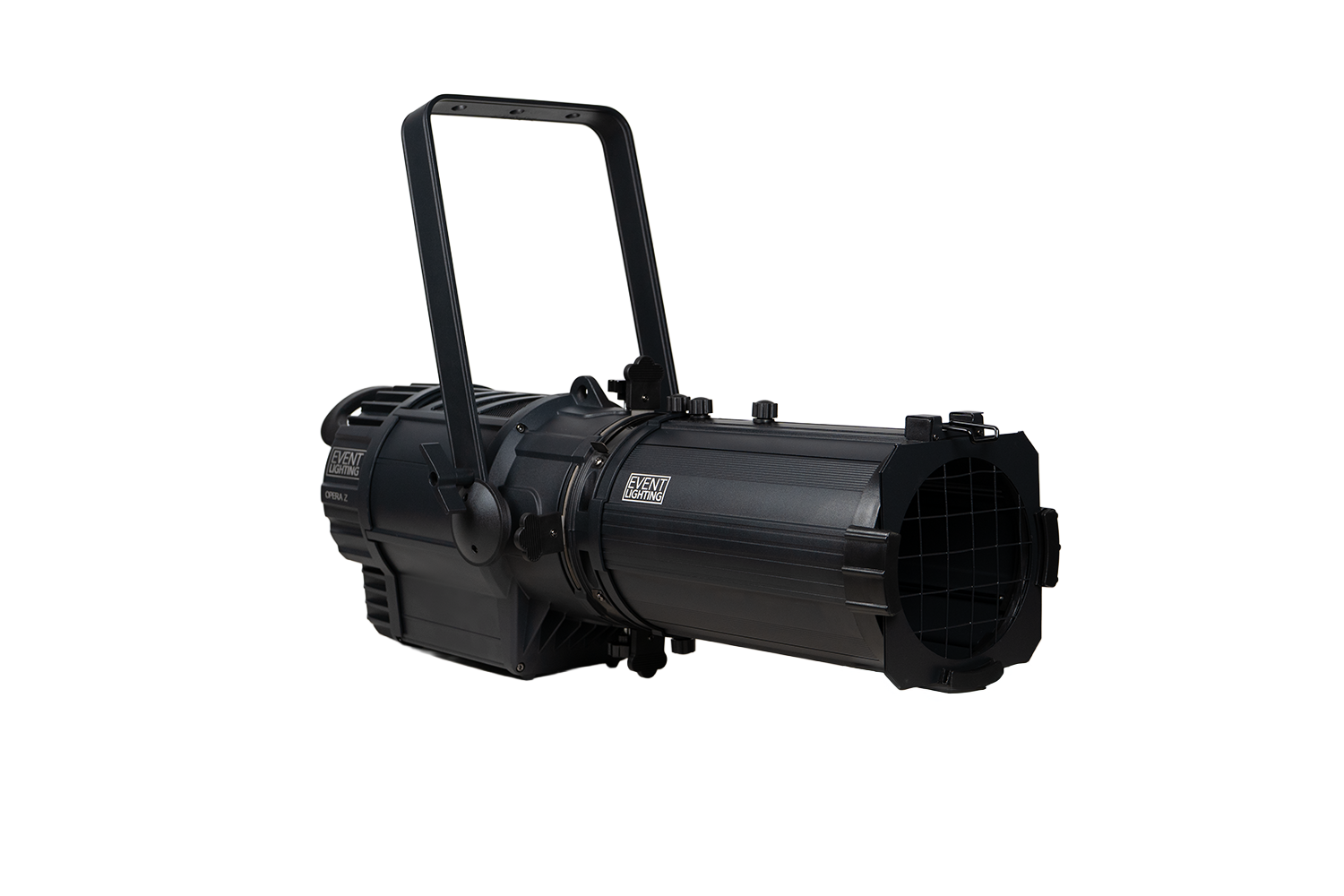

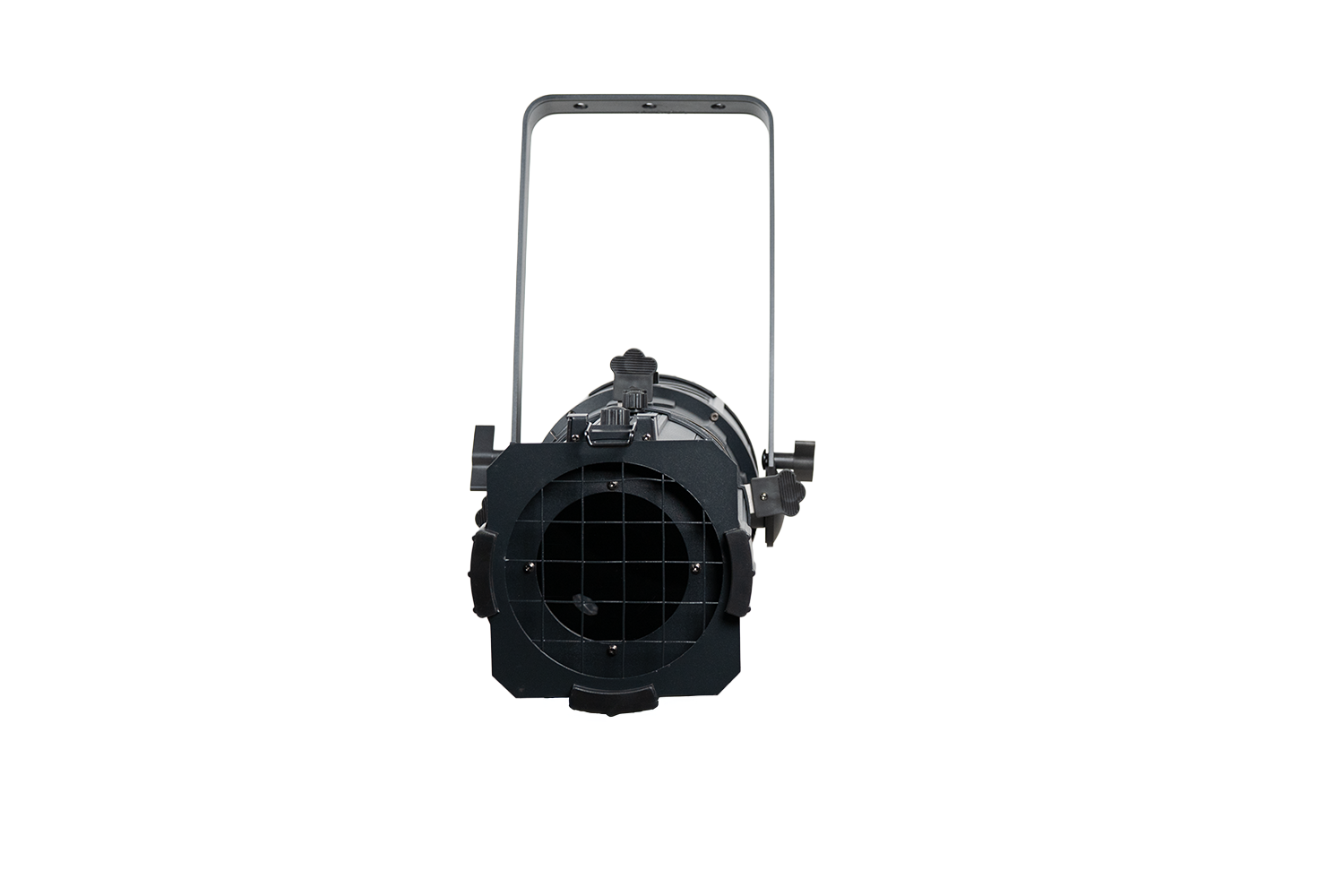

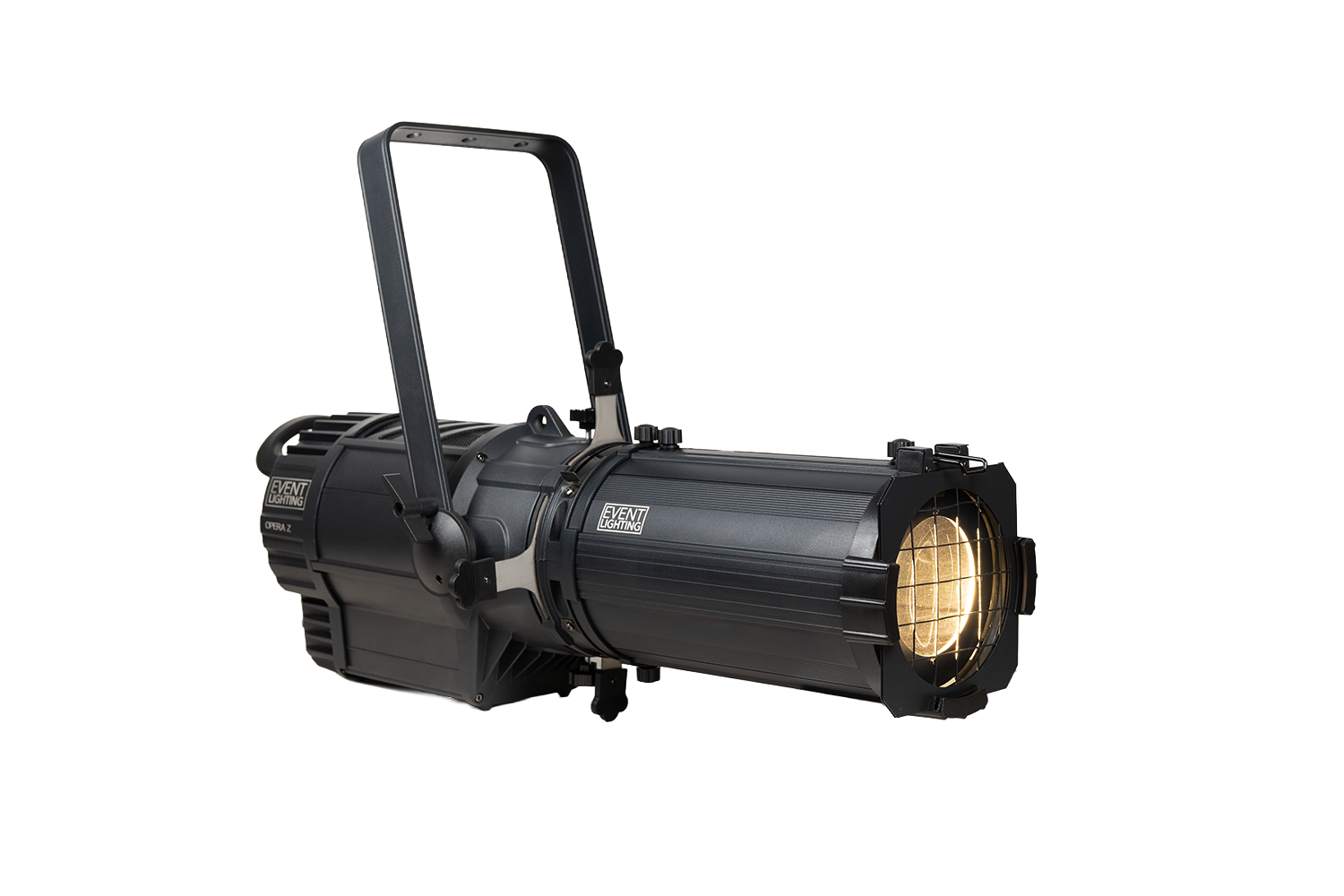

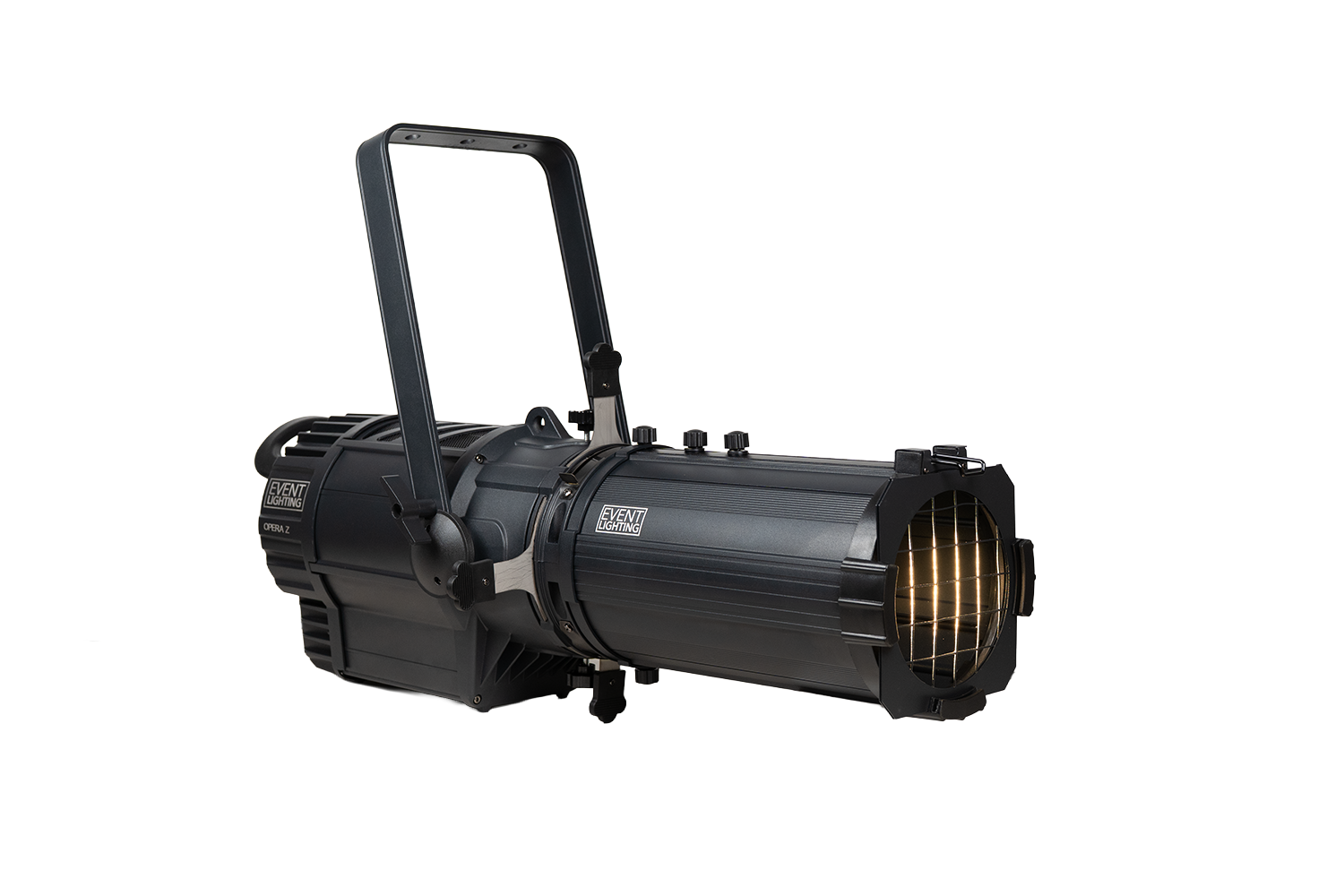

OPERAZ200WP – IP20 200W Warm White Profile with manual zoom

OPERAZ200WP – 200W Warm White LED Profile Fixture with Manual Zoom

The OPERAZ200WP is a professional IP20-rated LED profile fixture designed for theatres, studios, live productions, houses of worship, and stage lighting applications. Powered by a high-performance 200W Warm White LED source, it delivers powerful illumination, excellent beam control, and reliable performance for indoor lighting environments.

Featuring a manual zoom system with an adjustable beam range from 15° to 40°, the fixture allows precise focusing and flexible stage coverage. Available in 3100K or 5600K color temperature options, it provides versatile lighting solutions for different production requirements. With a CRI of 90+, it ensures accurate and natural color reproduction for professional lighting setups.

Photometric Specifications

• Light Source: 200W Warm White LED
• Color Temperature: 3100K or 5600K
• CRI: ≥90
• Beam Angle: Adjustable from 15° to 40°
• Zoom Control: Manual zoom adjustment
• LED Lifespan: Over 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit linear dimming from 0% to 100%
• Strobe Effect: Built-in strobe functionality
• Precision Optics: Designed for accurate beam projection and edge definition
• Included Accessory: Gel frame supplied as standard

Control & Connectivity

• Operating Modes: DMX, Master/Slave, and Manual Dimming
• DMX Channel Modes: 4 channel configurations

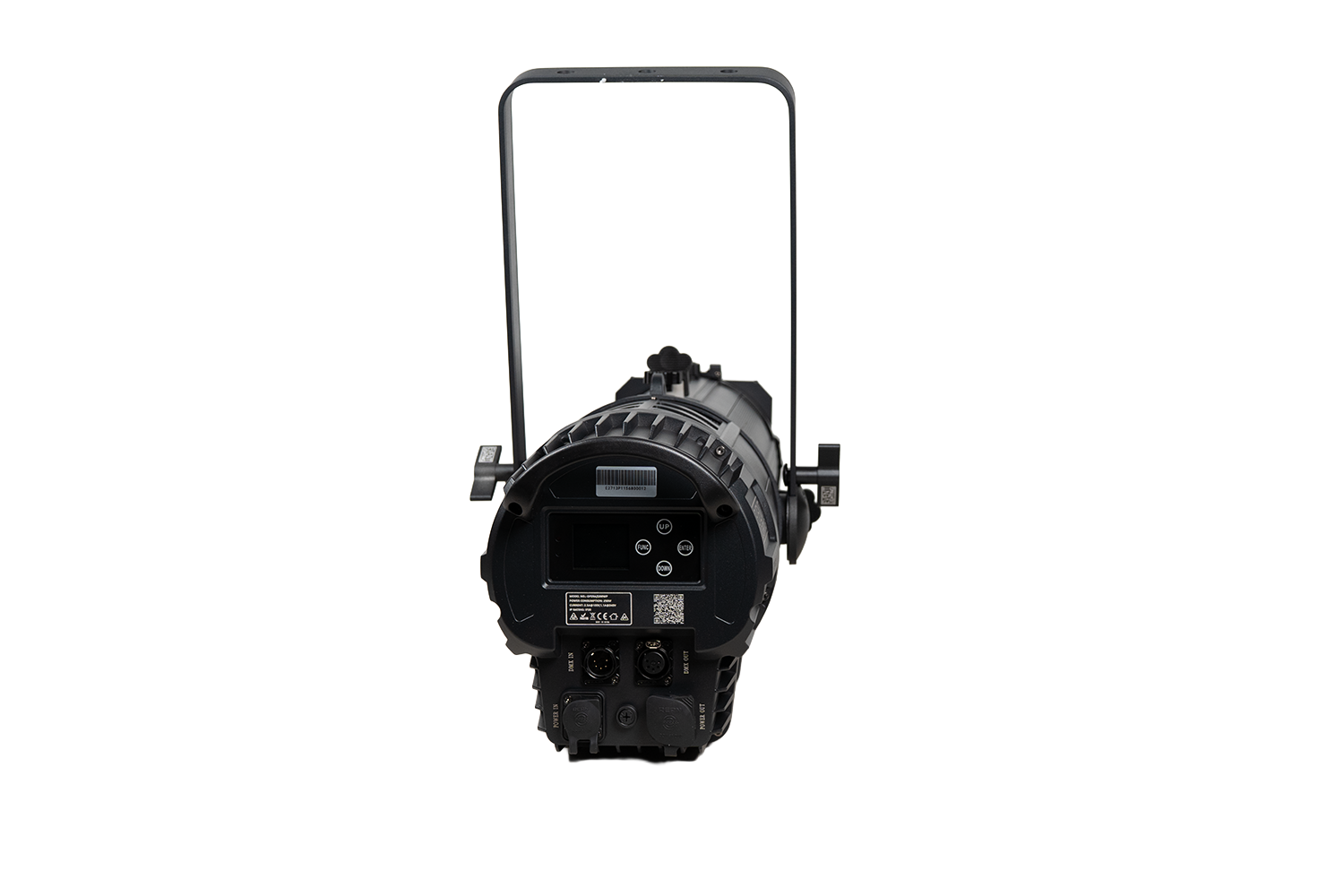

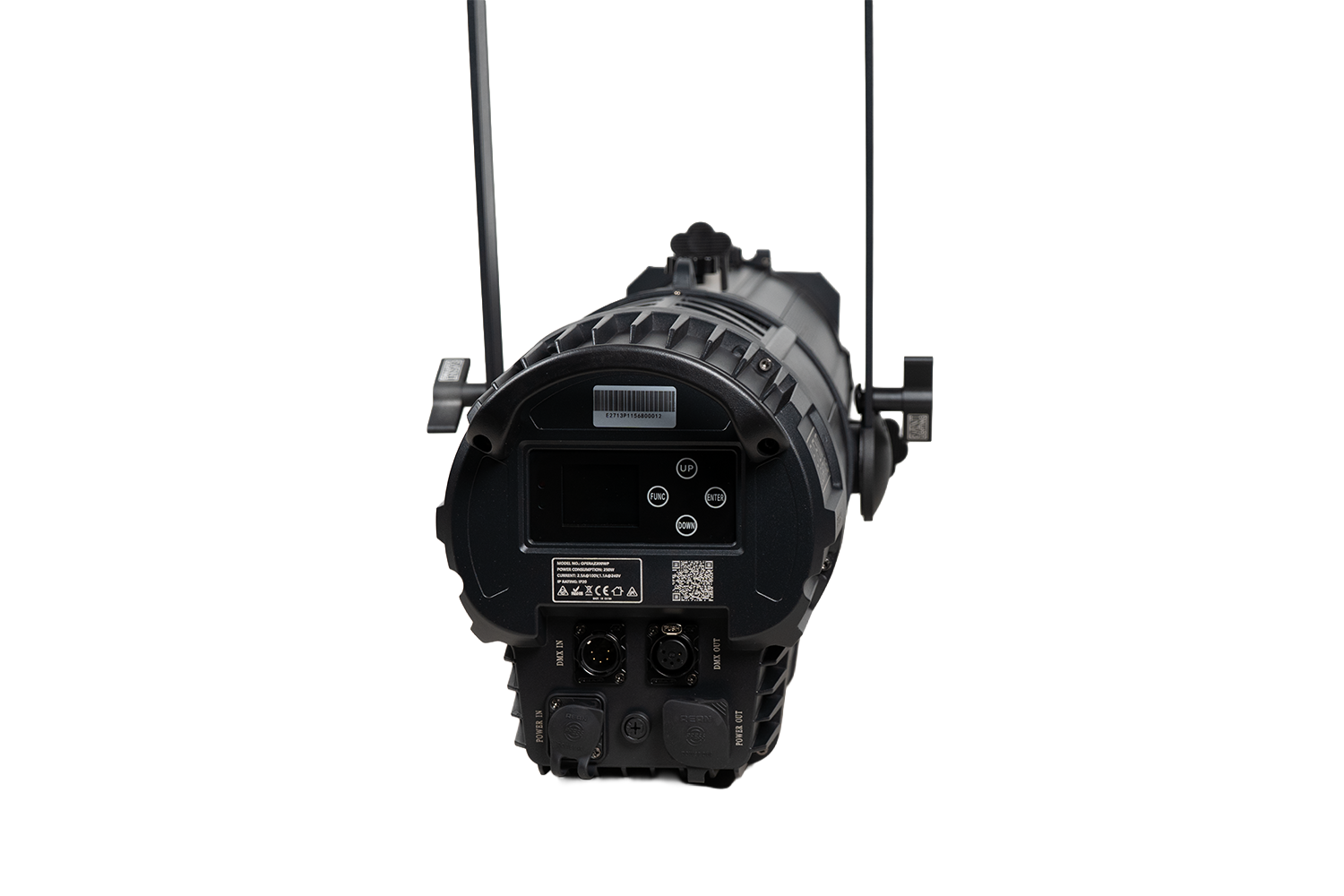

• Display: LCD display for simple setup and operation
• DMX Connection: 5-pin XLR input and output

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Rated Power Consumption: 250W
• Power Connection: TrueOne power input and output

Construction & Performance

• IP Rating: IP20 for indoor applications
• Cooling System: Quiet fan cooling system (under 25dB at 1m) with copper tube heat dissipation
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Dimensions: 700 × 235 × 270 mm (27.5″ × 9.3″ × 10.6″)
• Weight: 9.4 kg (20.7 lbs)

Optional Accessories

• OPERAZGOBOH: Optional gobo holder compatible with OPERAZ Series Profile fixtures.

Warranty

• Backed by a 3-year manufacturer warranty for dependable long-term operation.
