F96VW-WH – Variable White Fresnel with Manual Zoom (White)

F96VW-WH – Variable White Fresnel Light with Manual Zoom (White Finish)

The F96VW-WH is a compact and versatile Variable White Fresnel lighting fixture designed for theatres, studios, churches, galleries, conference rooms, and professional event applications. Powered by dual 48W COB LEDs with warm and cool white outputs, it provides smooth color temperature blending and excellent illumination quality.

Featuring an adjustable manual zoom range from 20° to 50°, this fixture offers flexible beam control for both focused and wide-area lighting. With a CRI of 95+, it delivers natural and accurate color reproduction, making it ideal for applications where color quality is essential. Its silent fanless cooling system ensures noise-free operation in sound-sensitive environments.

Photometric Specifications

• Light Source: 2 × 48W COB LEDs (5,700K Cool White & 2,700K Warm White)
• CRI: 95+
• Beam Angle: Adjustable from 20° to 50°
• Field Angle: 50° to 67°

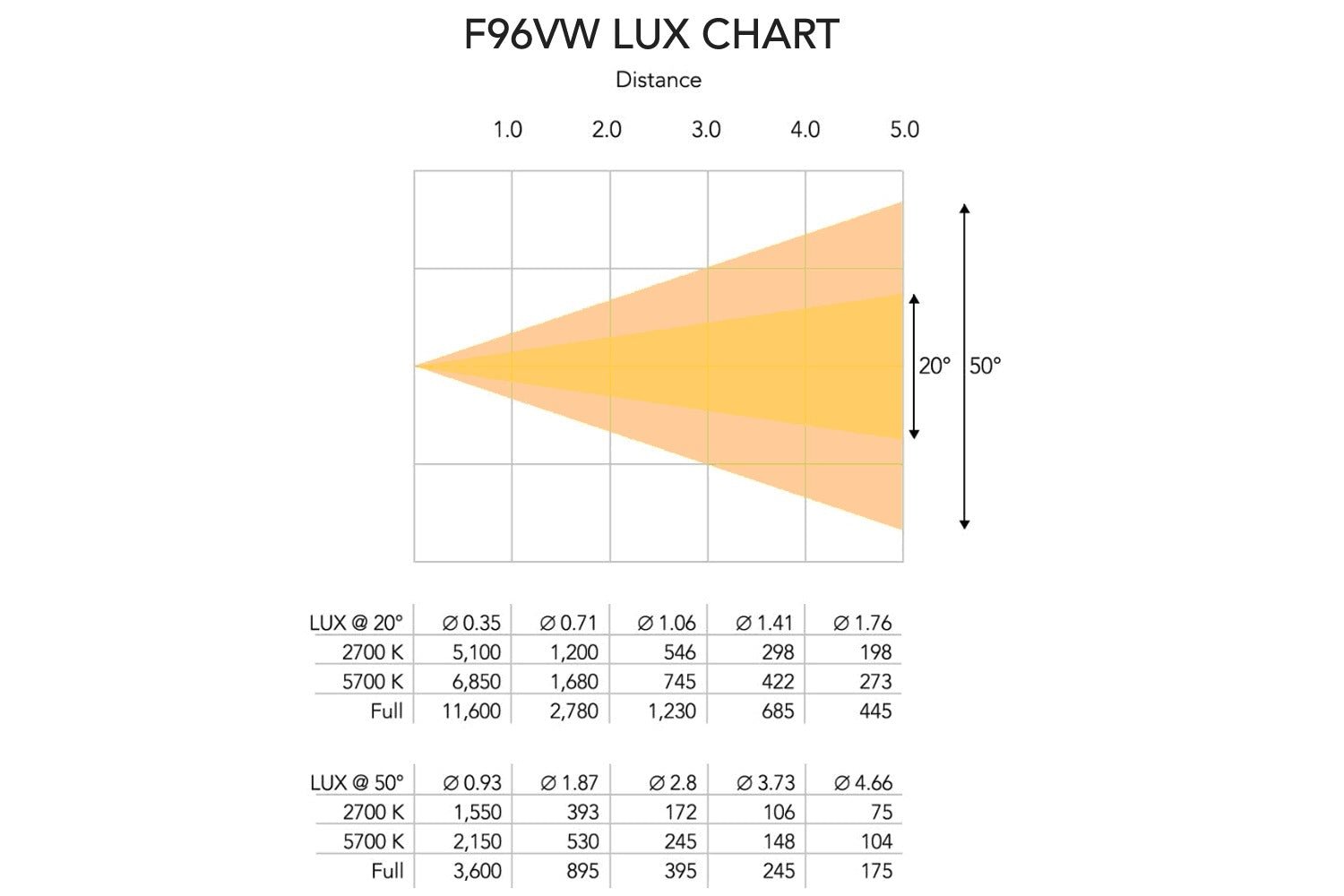

• Light Output: 1,230 lux at 3m (20°), 395 lux at 3m (50°)

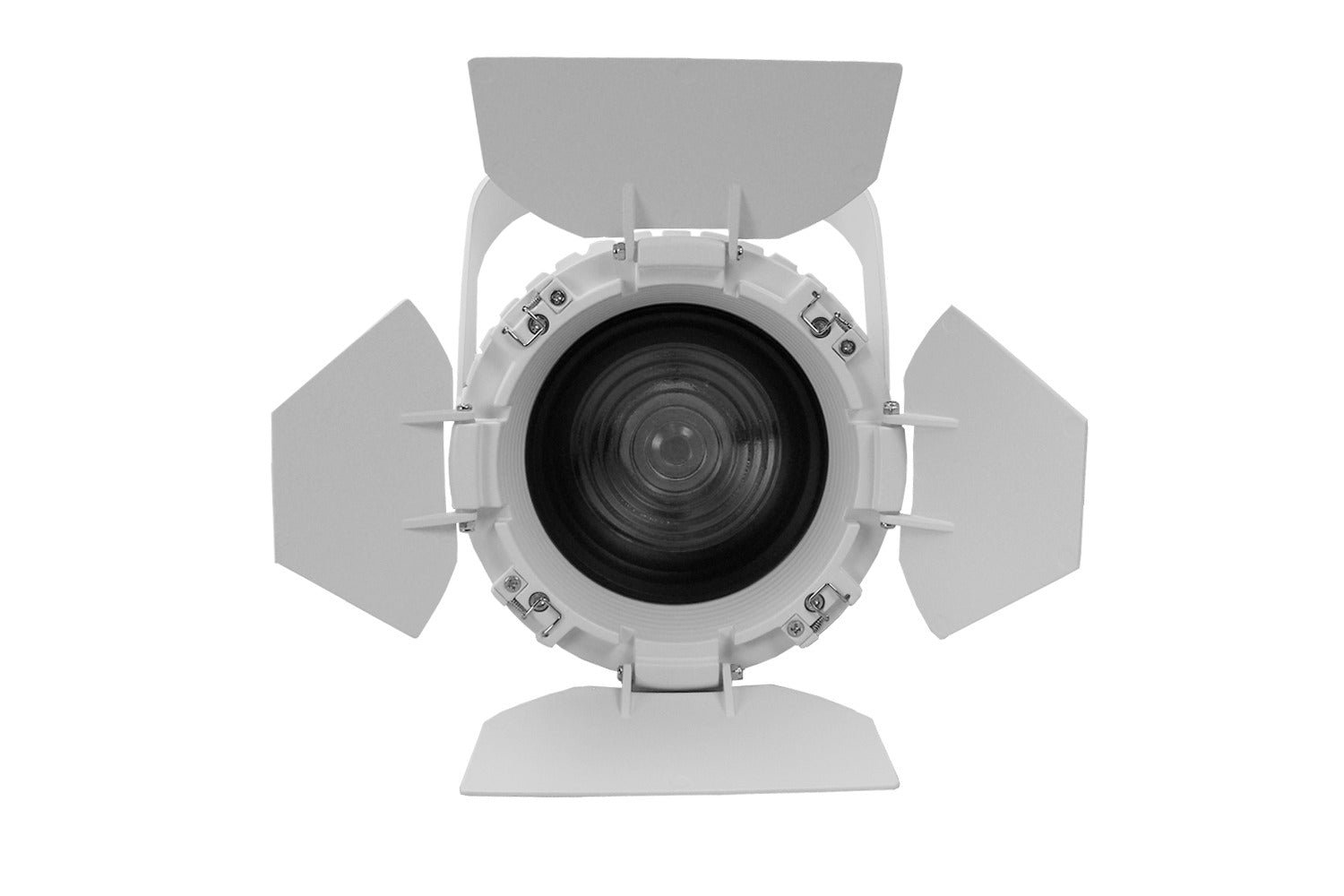

• Lens: 80mm Fresnel lens
• PWM Frequency: 1,200Hz
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: Smooth 16-bit dimming from 0% to 100%
• Strobe Effect: Adjustable from 1Hz to 25Hz
• Zoom Control: Manual zoom adjustment (20°–50°)

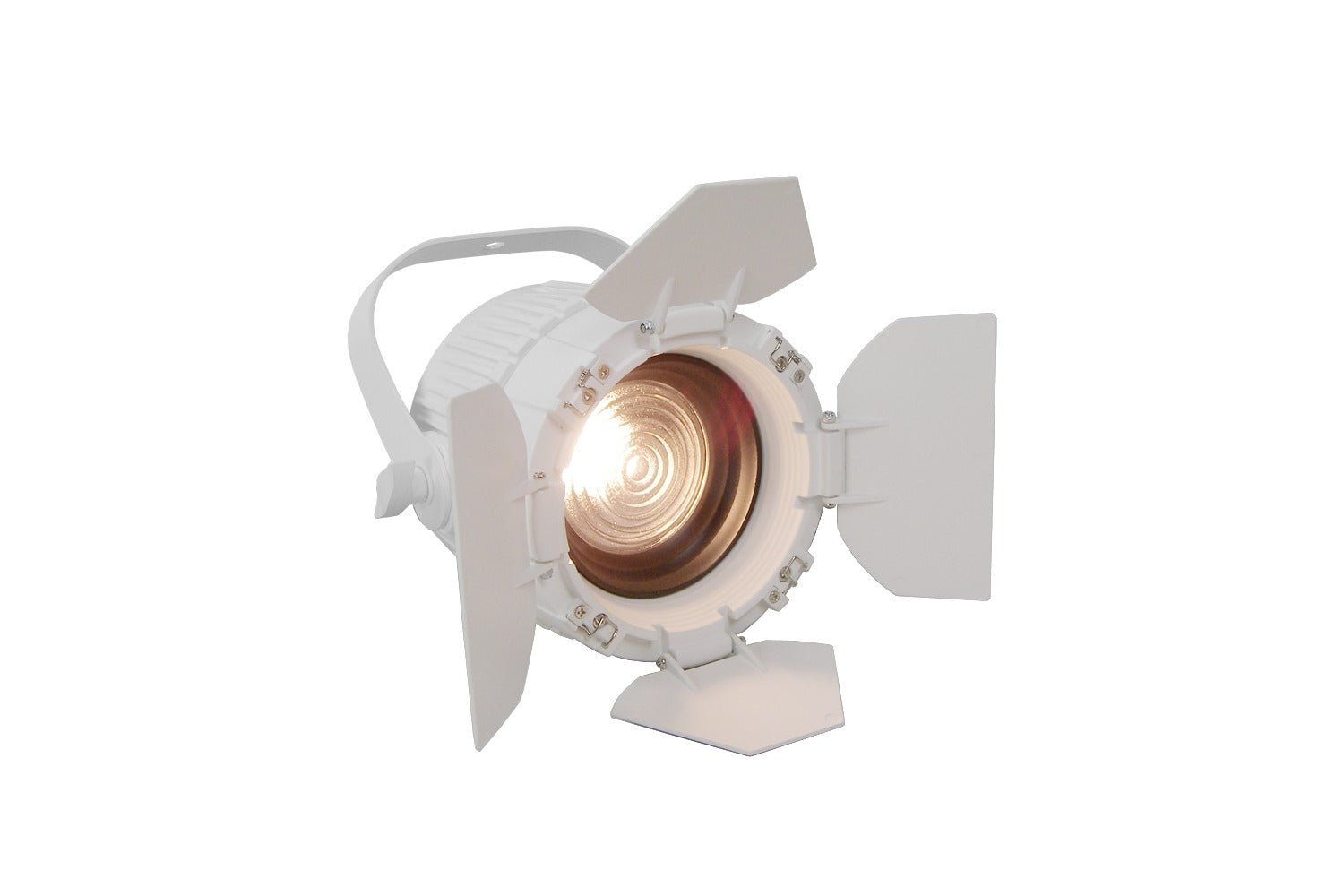

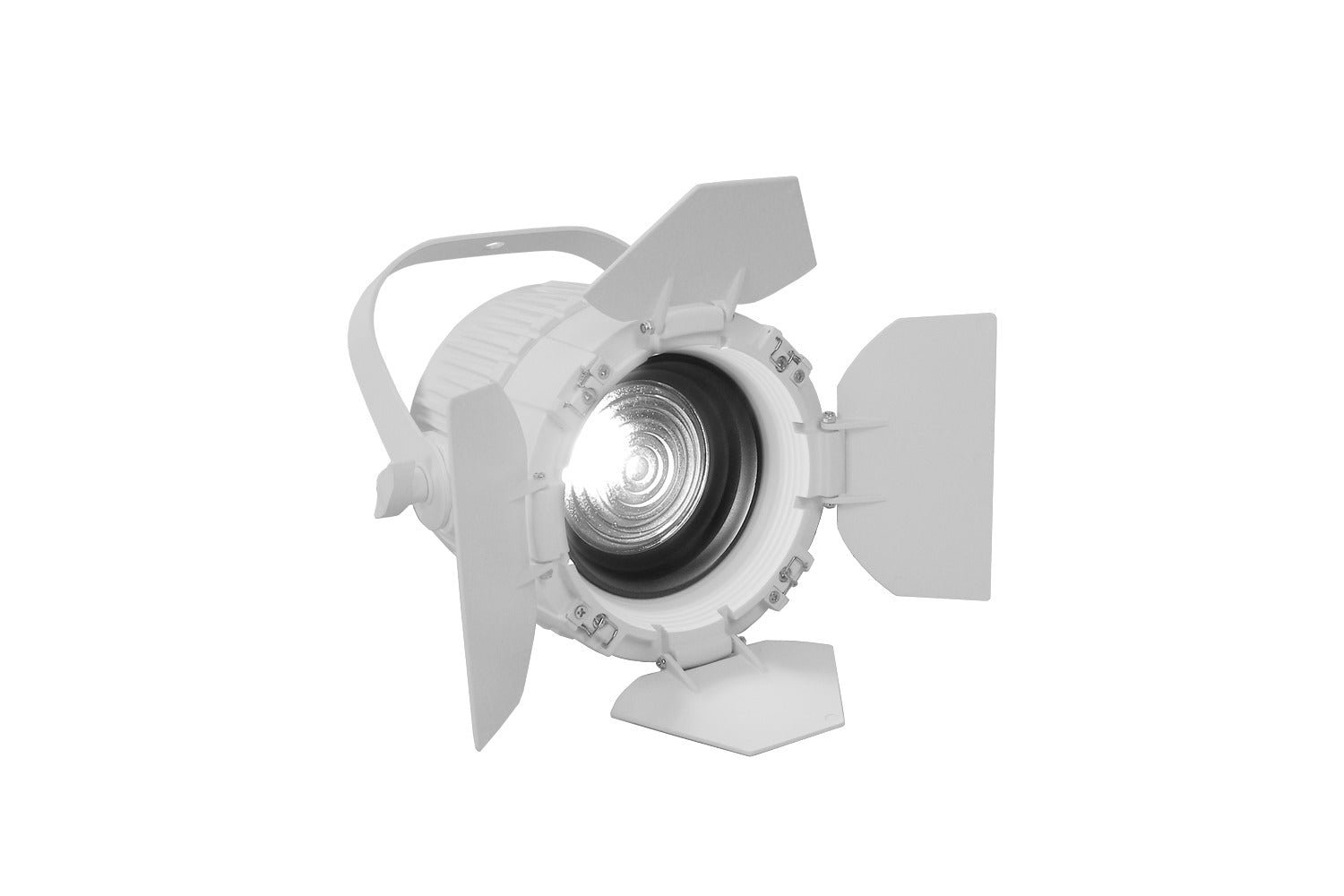

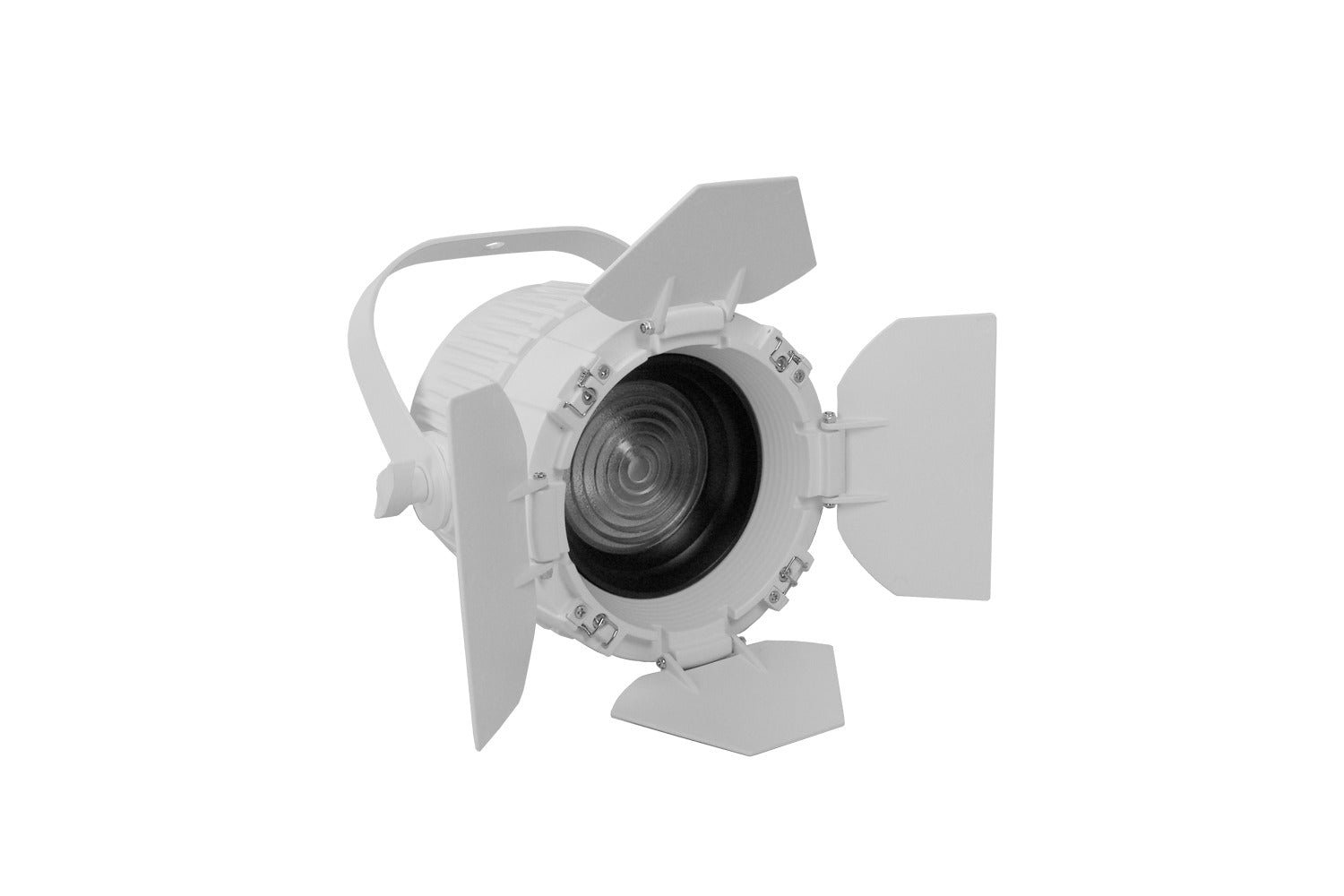

• Included Accessories: Barn door and gel clip

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 75W

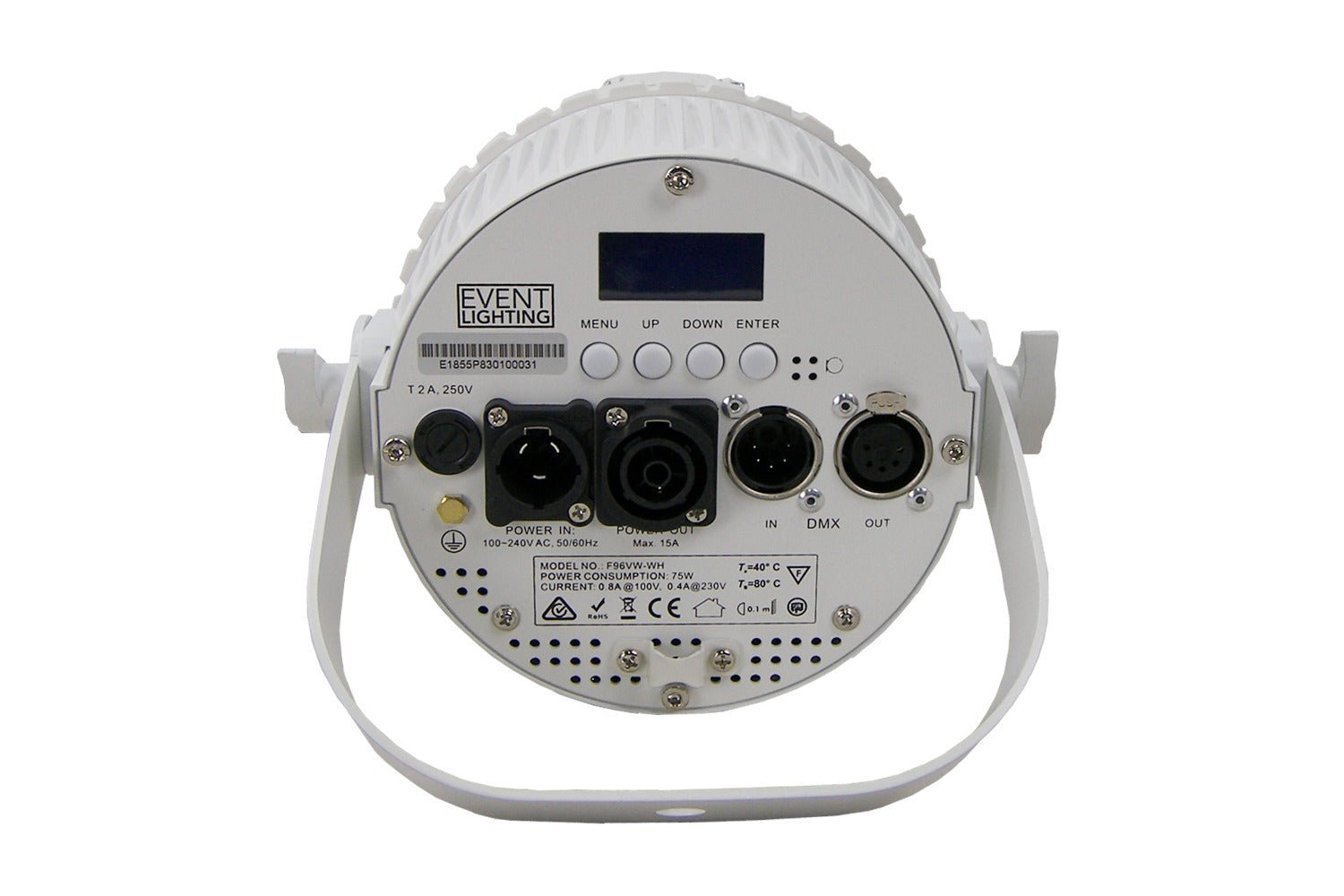

• Power Connection: True1 power input and output

Control & Connectivity

• Operating Modes: Manual, Master/Slave, DMX, and optional WDMX
• Display: LCD display with 4-button control panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, and 7CH
• Control Interface: 5-pin XLR input and output

Construction & Performance

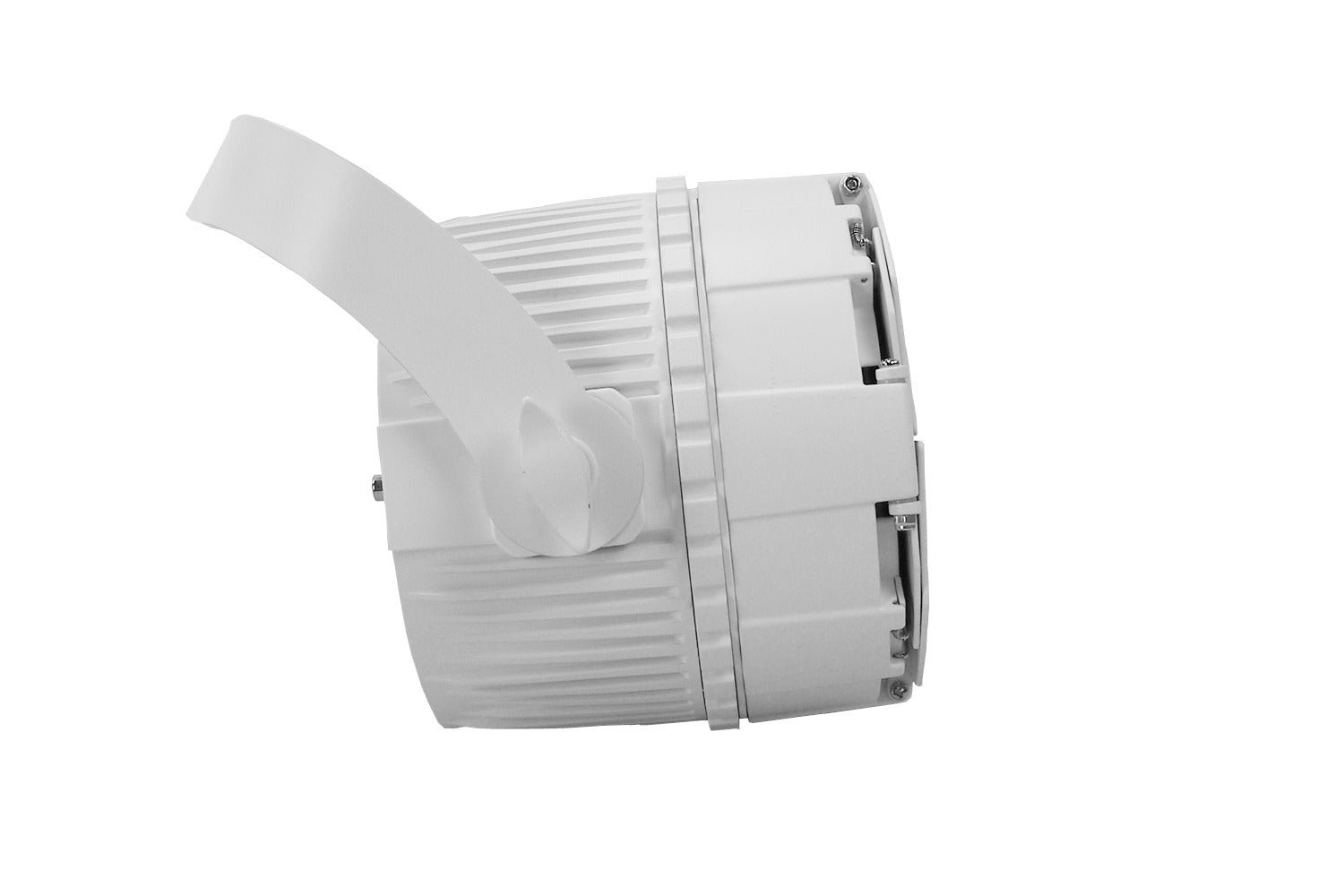

• Housing Material: Durable die-cast aluminum construction
• Finish: Professional white housing
• Cooling System: Fanless cooling with built-in temperature protection

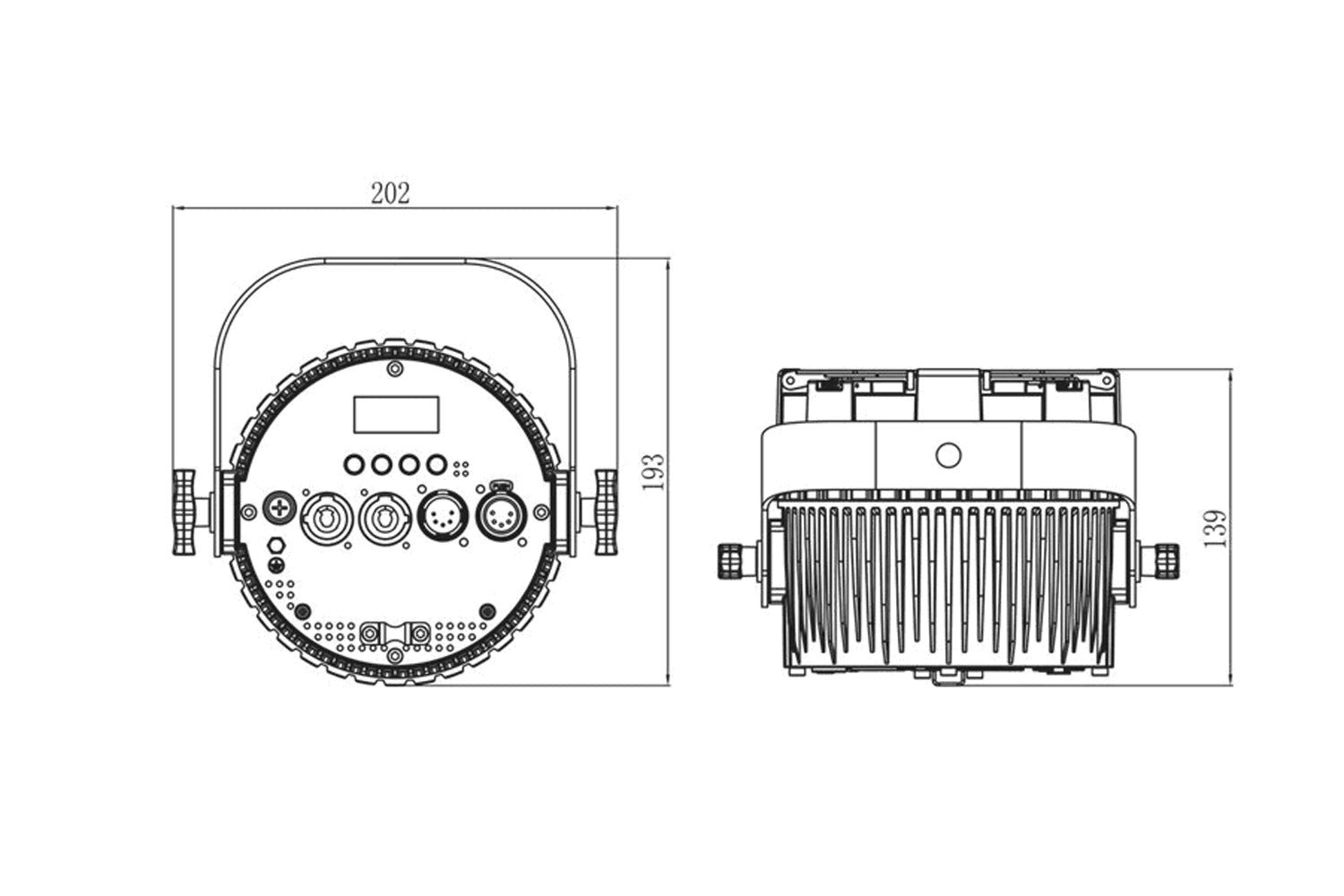

• Dimensions: 202 × 139 × 193 mm
• Weight: 2.3 kg

Warranty

• Includes a 3-year manufacturer warranty for reliable long-term operation.
