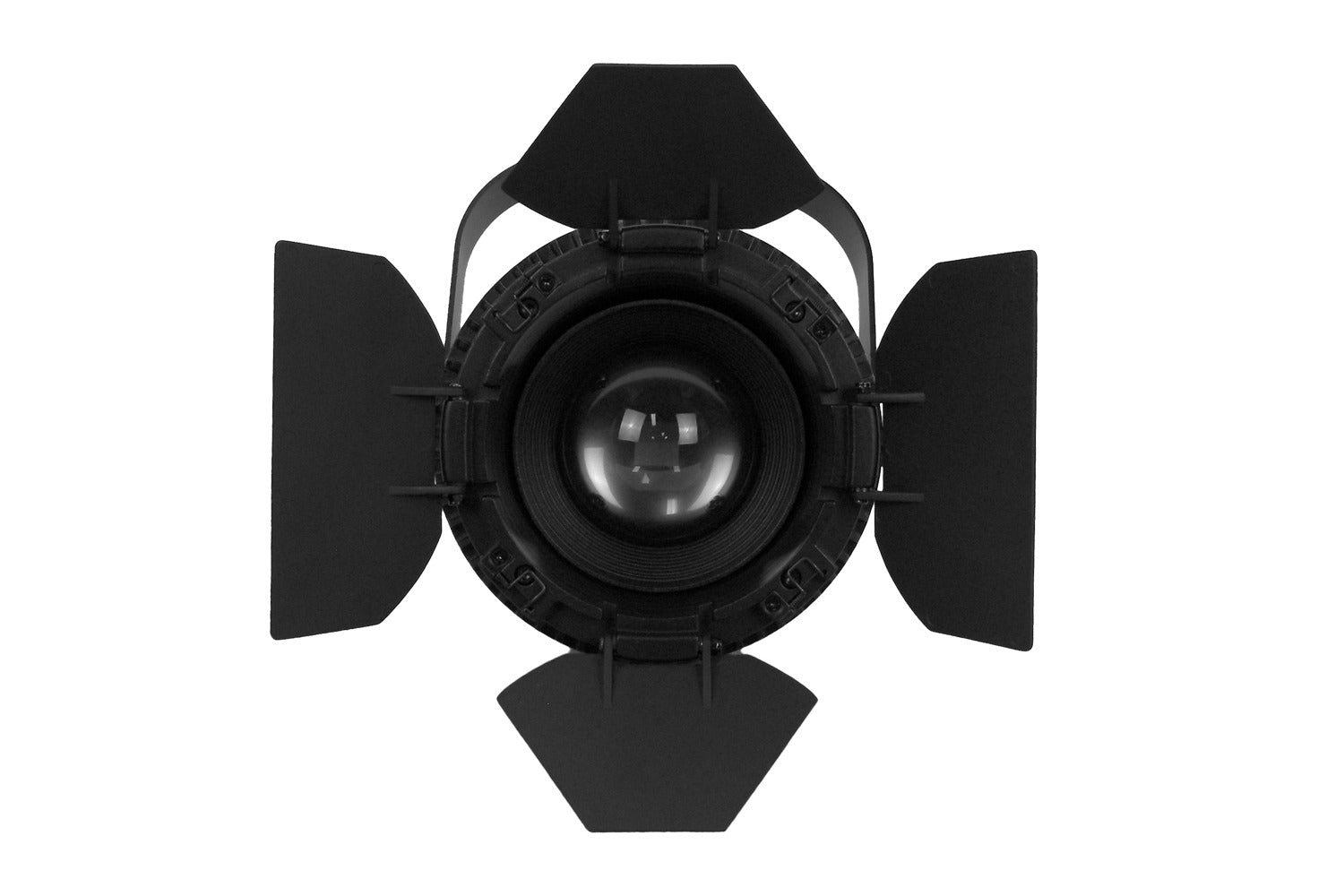

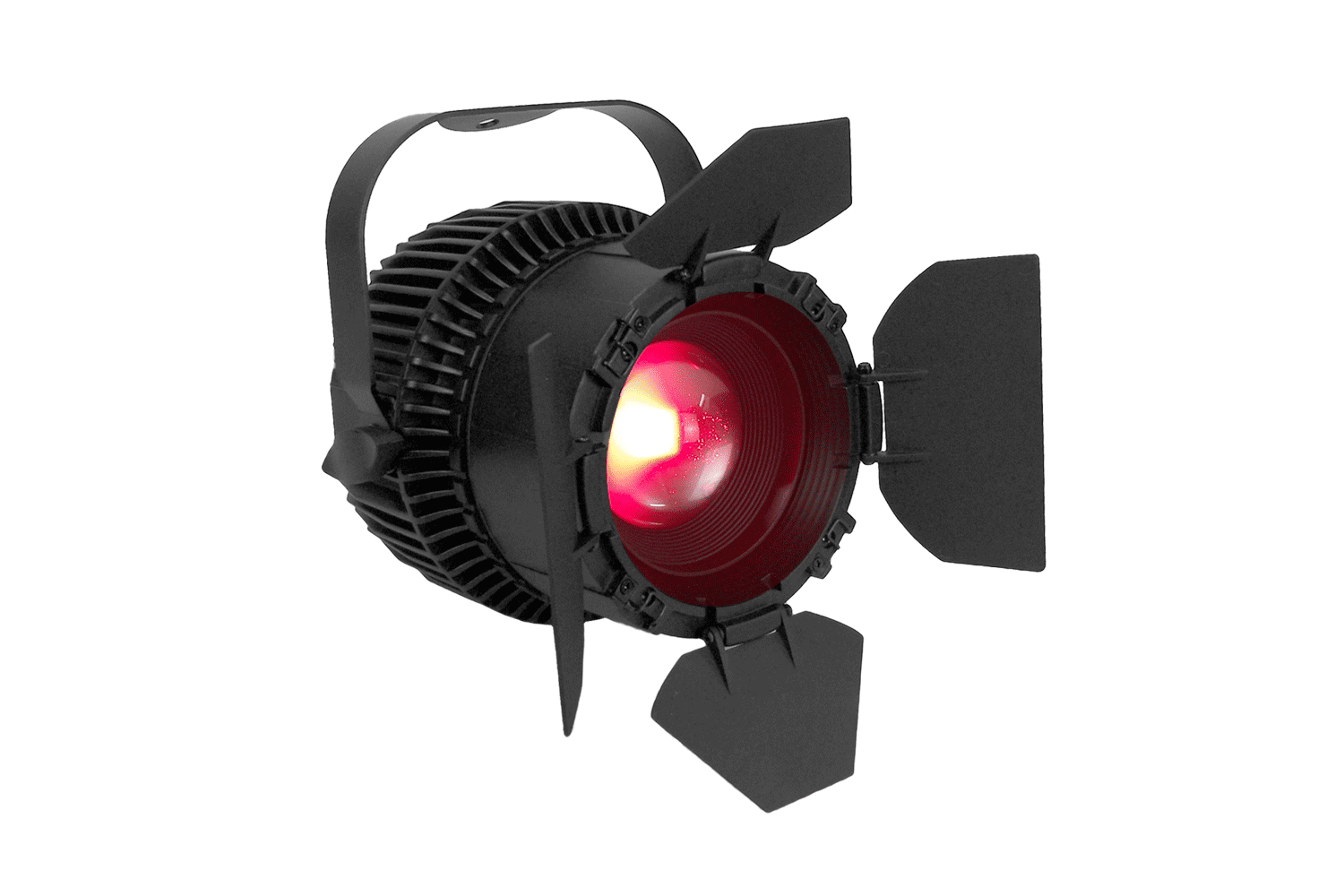

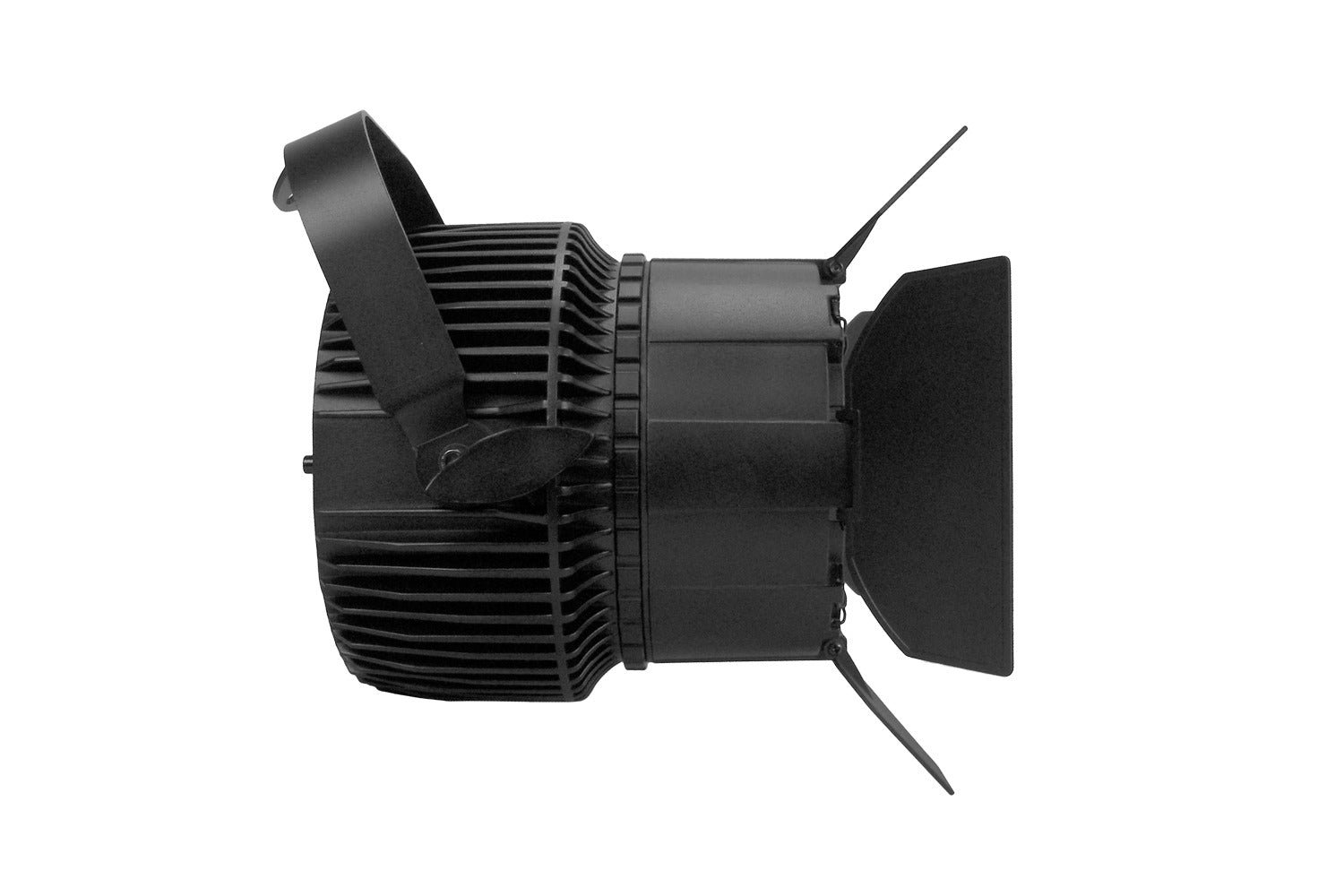

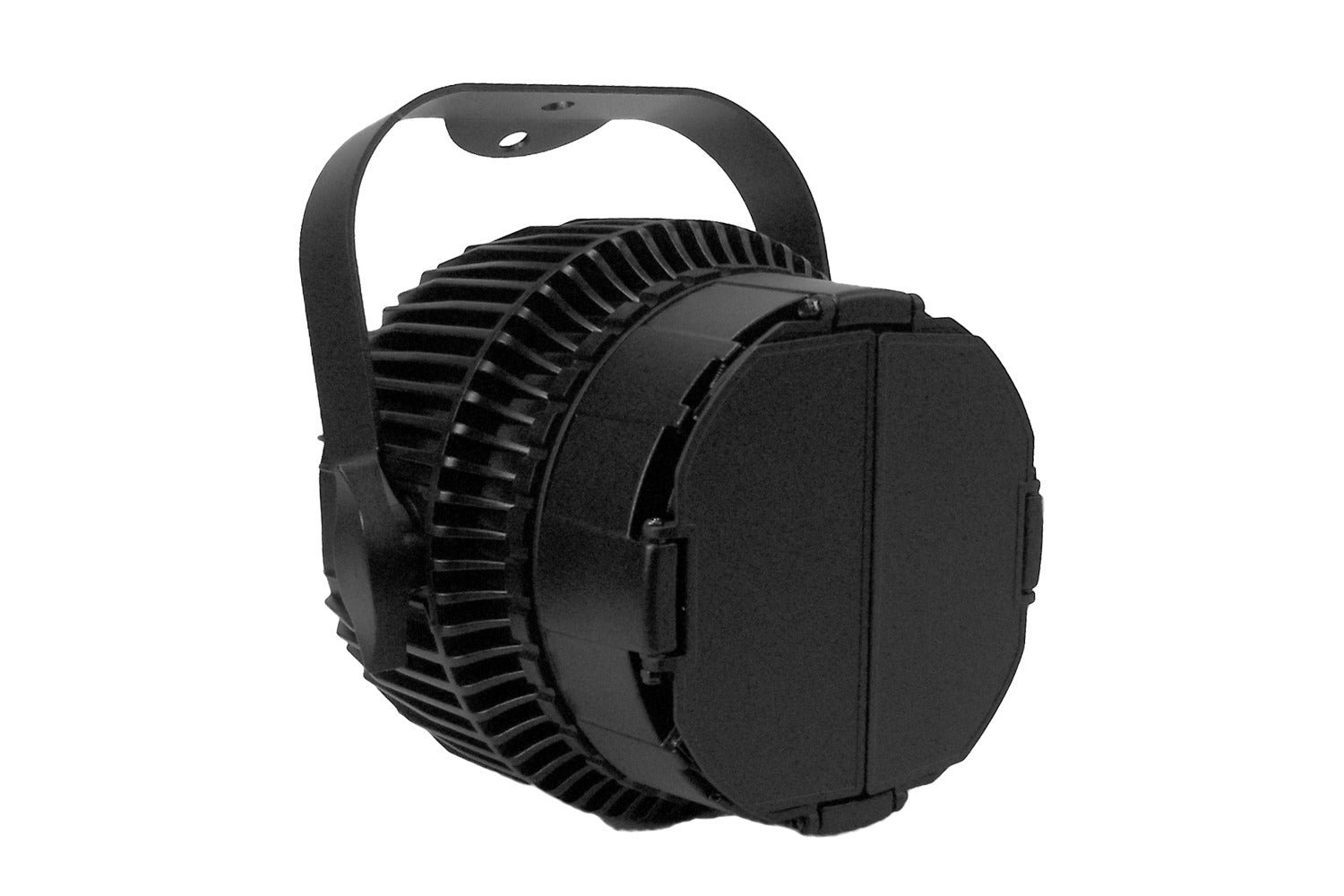

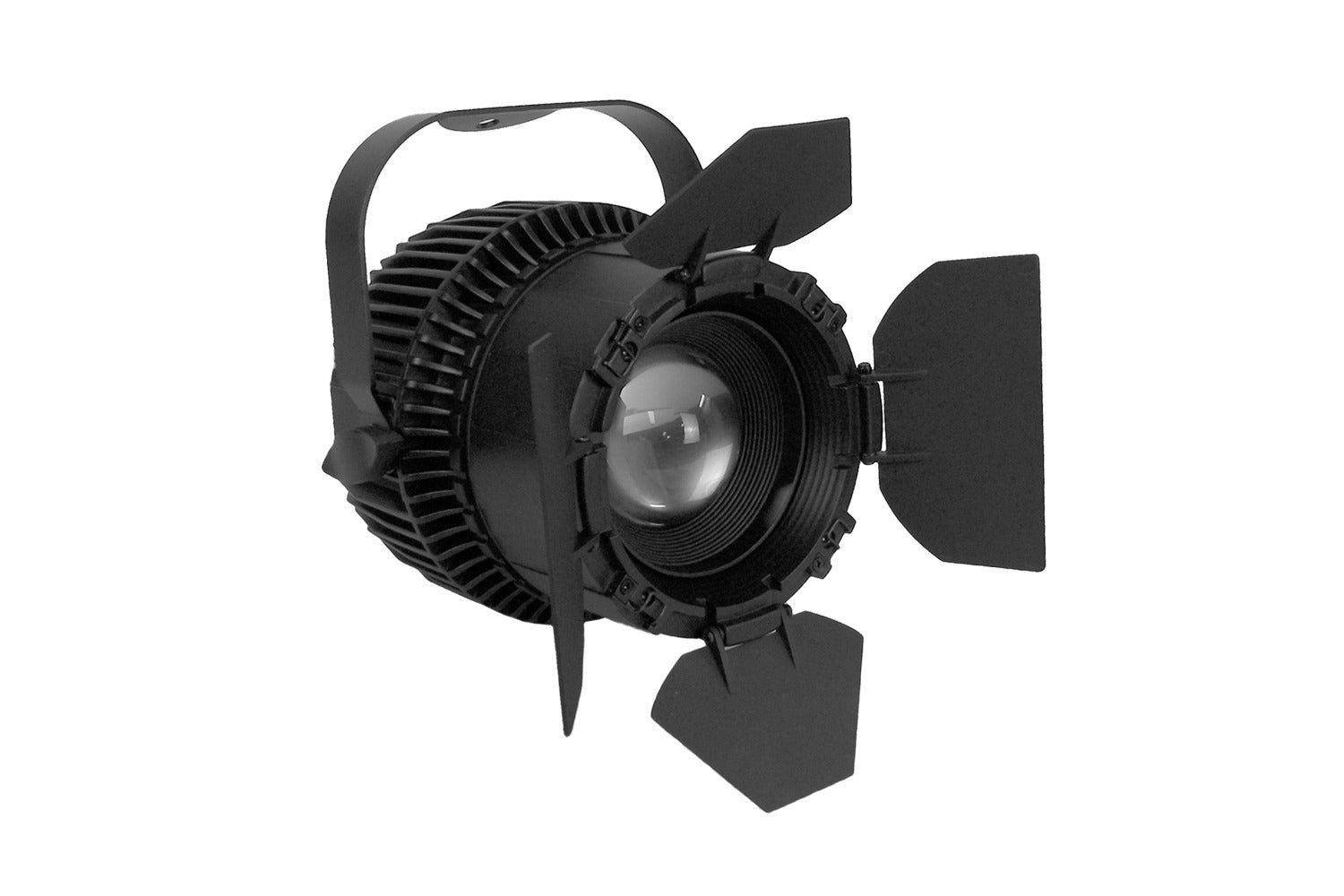

F160QW – Quad Colour Fresnel with Manual Zoom

F160QW – Quad Colour Fresnel with Manual Zoom

Photometrics

• Light Source: 4  x 40W 4in1 RGBW(Warm White) LED
• CRI: Warm white – 80, but it can be up to 95 mixing with RGB（low level)
• Beam Angle: 15°~55°
• Field Angle: 25°~65°

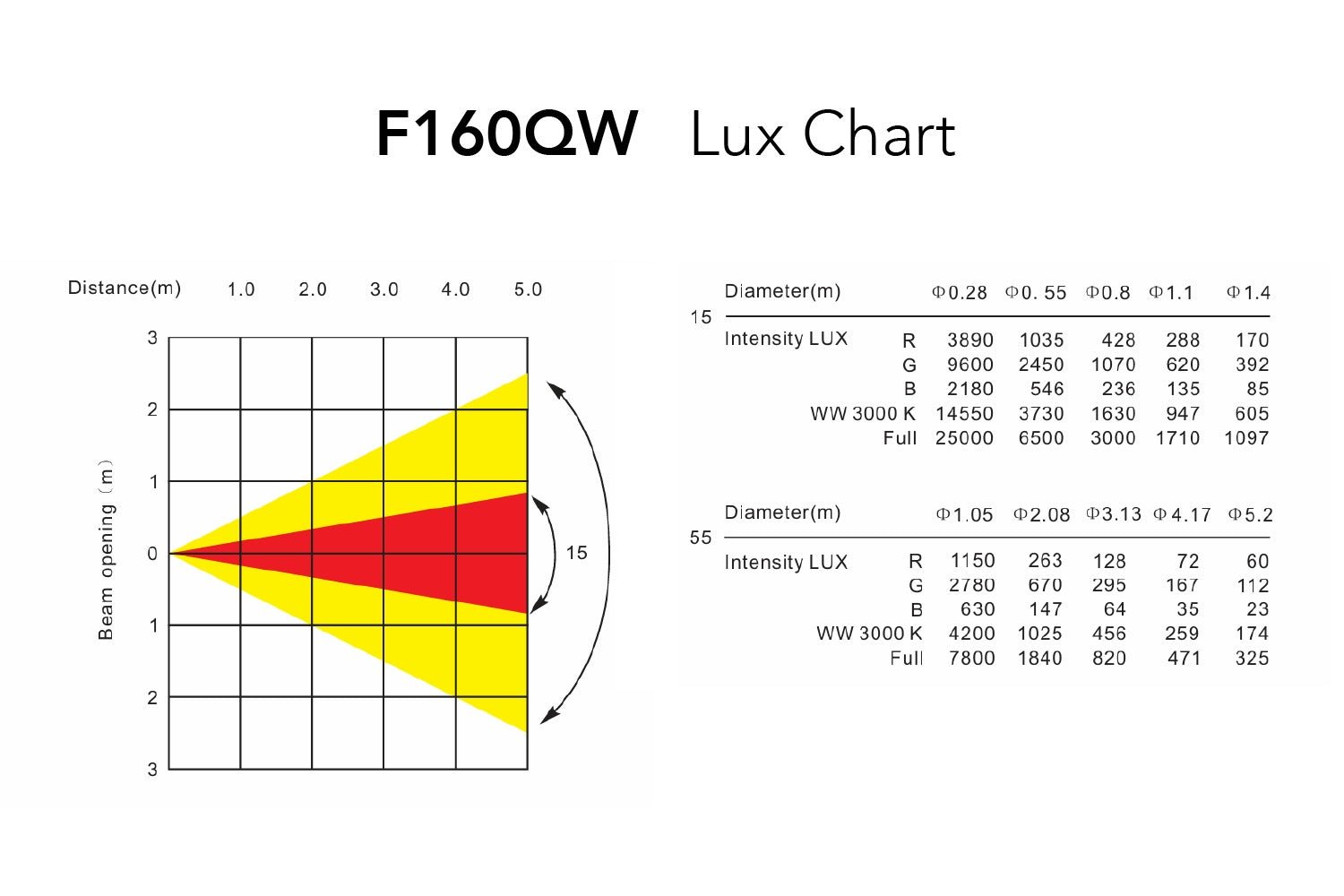

• Output: 3,000 lux @3M at 15°, 820 lux @3M at 55°
• Lens: 80mm Planconvex lens
• PWM: 24,000 Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Strobe: 1~25Hz
• Zoom: Manual, 15°~55°
• Barn Door: Included
• Gel Clip: Included

Power

• Power Supply: 100~240V AC, 50/60Hz, 160W
• Power Connection: True1 in/out

Control

• Operational Modes: Manual, Master / Slave & DMX, WDMX (optional), RDM

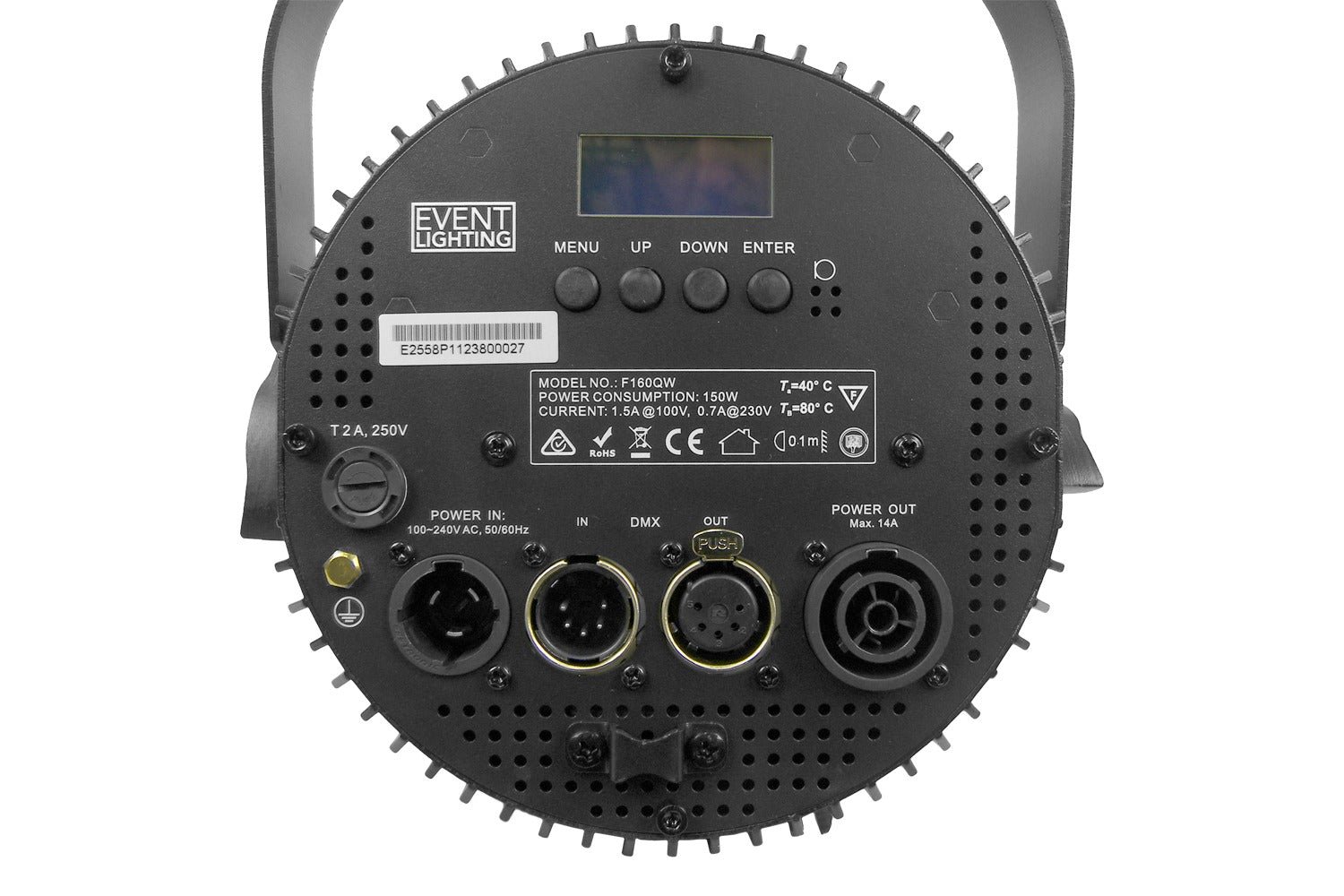

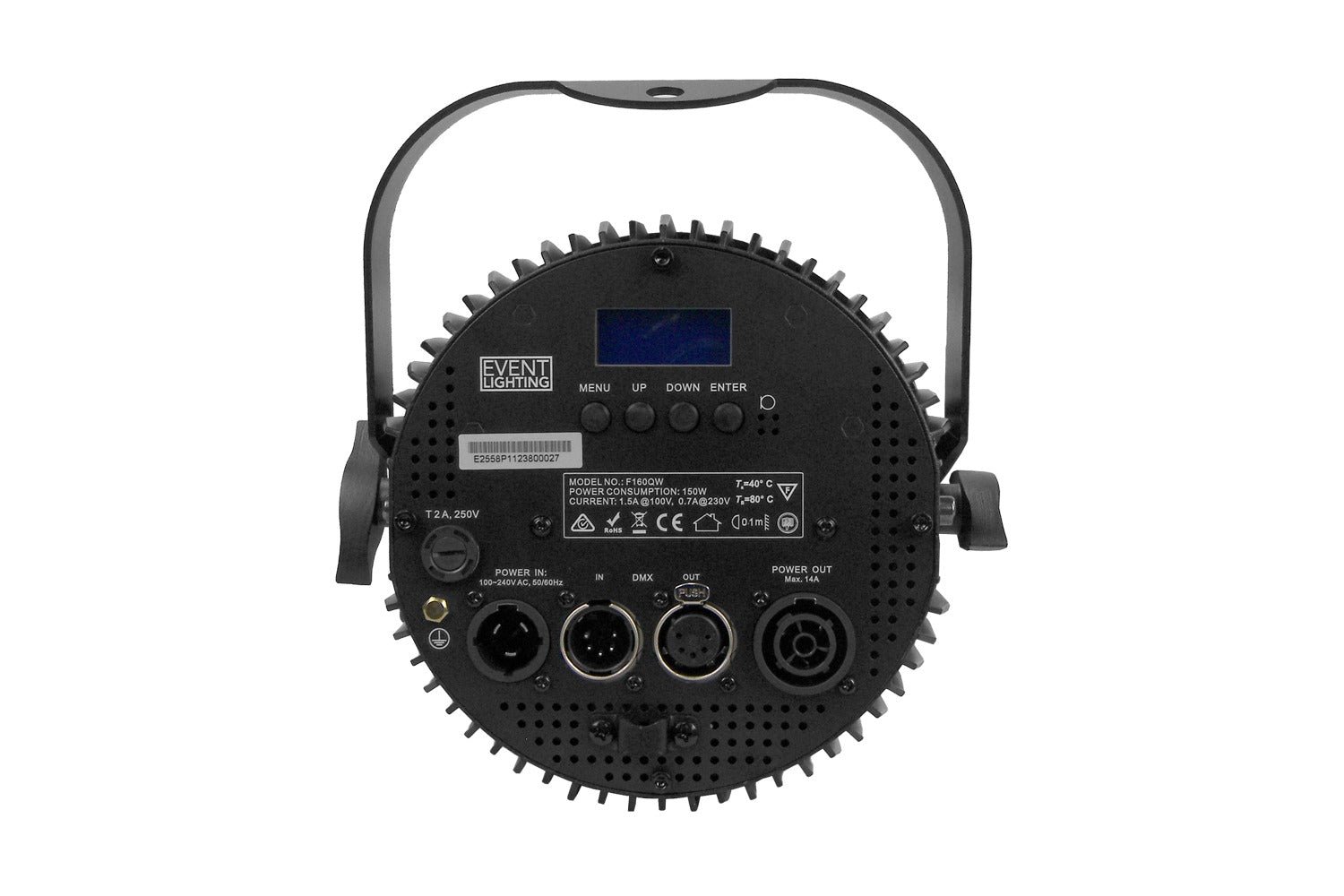

• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3 / 4 / 6 / 10 / 11 / User
• Control Interface: 5-pin XLR in/out

Housing

• Housing Materials: Die- cast Aluminum Housing
• Housing Finishing: Matte Black
• Cooling: Fanless Cooling with Temperature Protection

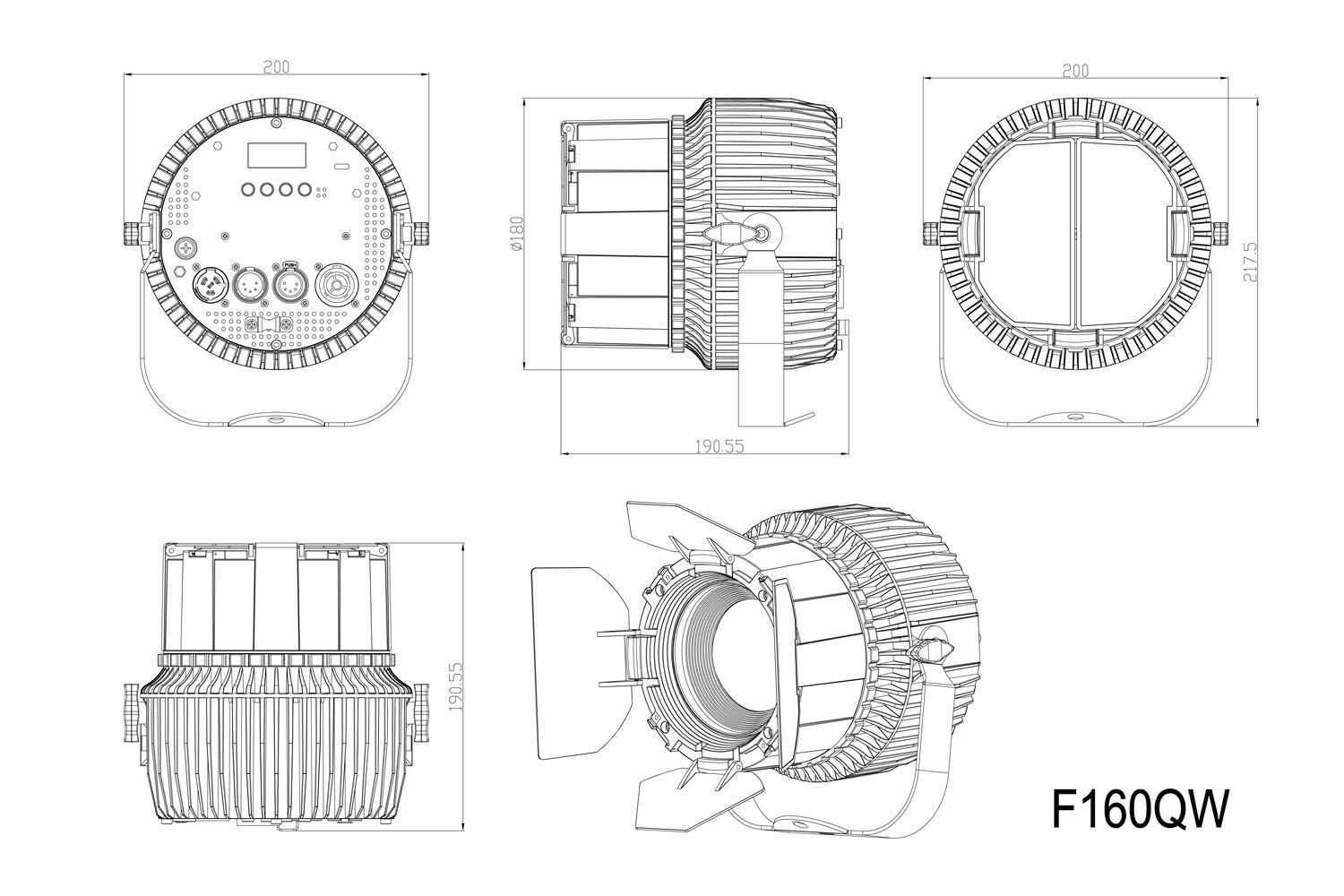

• Dimensions: 217.5 x 190.5 x 200mm / 8.6″ x 7.5″ x 7.9″
• Net Weight: 3.4 kg / 7.5 lbs

Warranty: 3 years
