OPERAC100FCF – Compact Fresnel Engine with 100W COB RGBW LED

OPERAC100FCF – Compact Fresnel Fixture with 100W COB RGBW LED

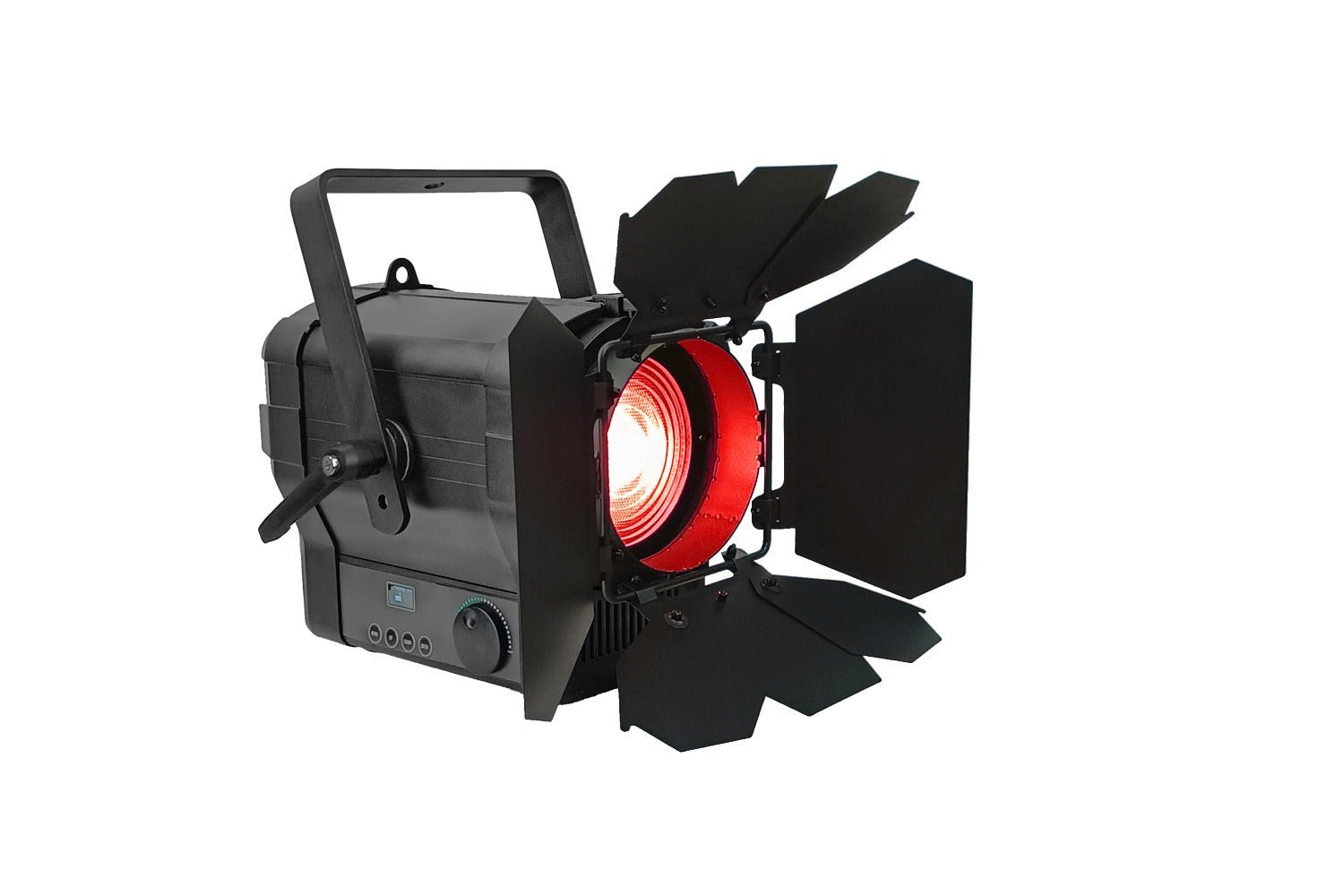

The OPERAC100FCF is a versatile compact Fresnel lighting fixture equipped with a powerful 100W COB RGBW LED engine, delivering vibrant color mixing and reliable illumination for theatres, studios, houses of worship, live productions, and event venues.

With a manual zoom range of 22° to 62°, this fixture provides flexible beam adjustment for both focused and wide-area lighting applications. Its dedicated 1-channel mode allows easy color temperature matching with existing lighting systems while offering simplified control through a single-channel dimmer.

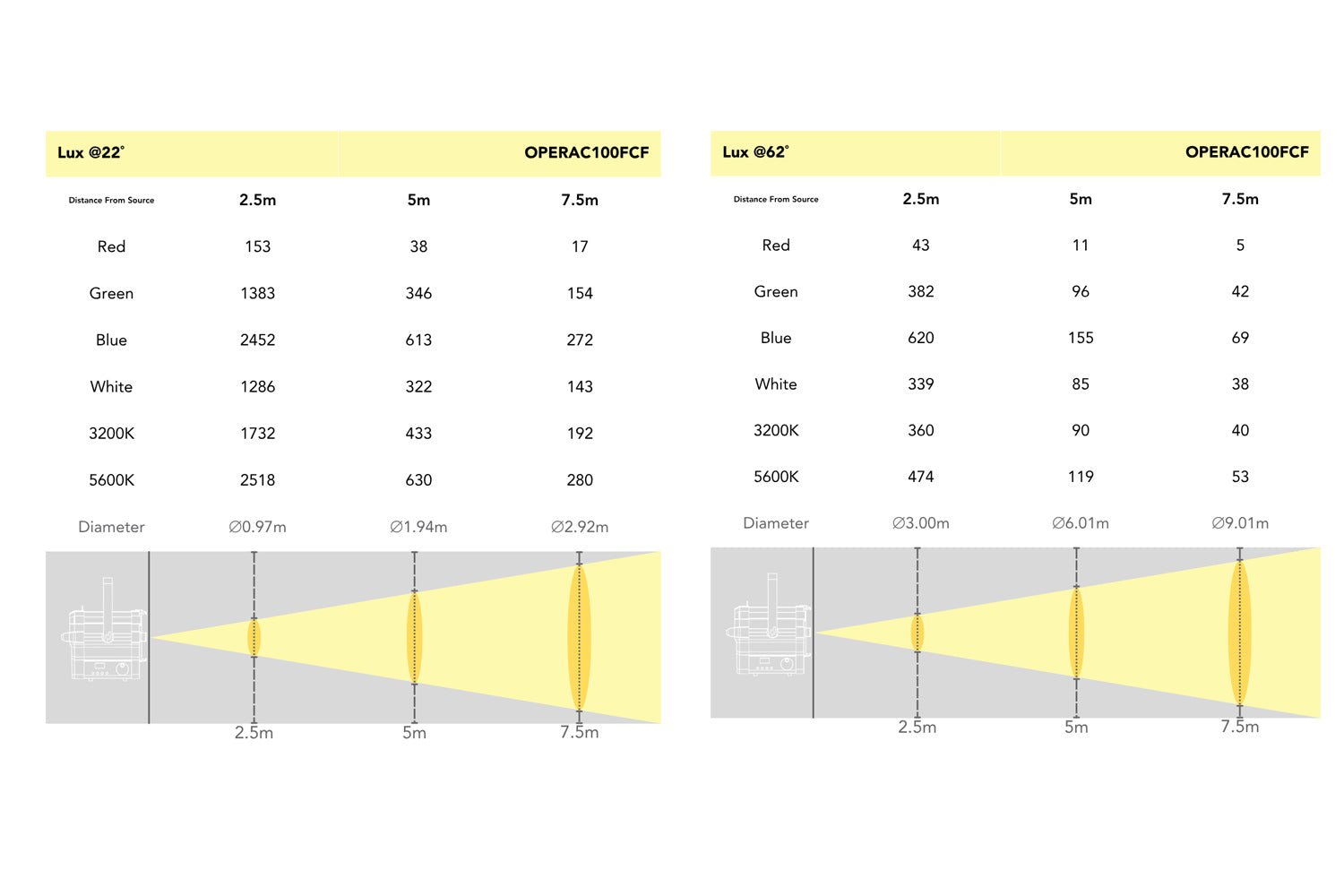

Photometric Specifications

• Light Source: 100W COB RGBW LED
• CRI: 90
• Beam Angle: Adjustable from 22° to 62°
• LED Lifespan: Up to 50,000 hours

Features & Effects

• Dimming: 16-bit smooth dimming from 0% to 100%
• Zoom Control: Manual zoom adjustment (22°–62°)

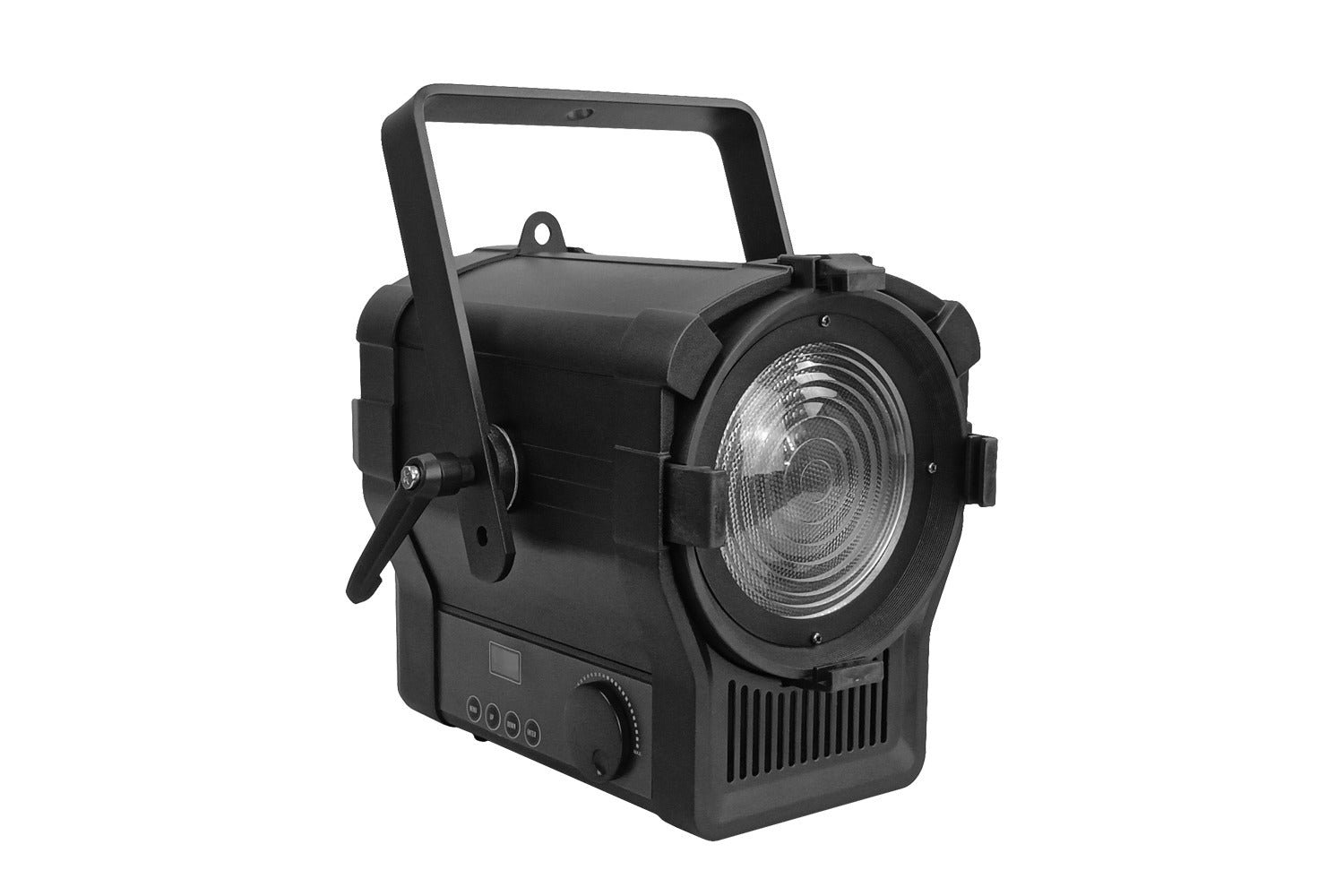

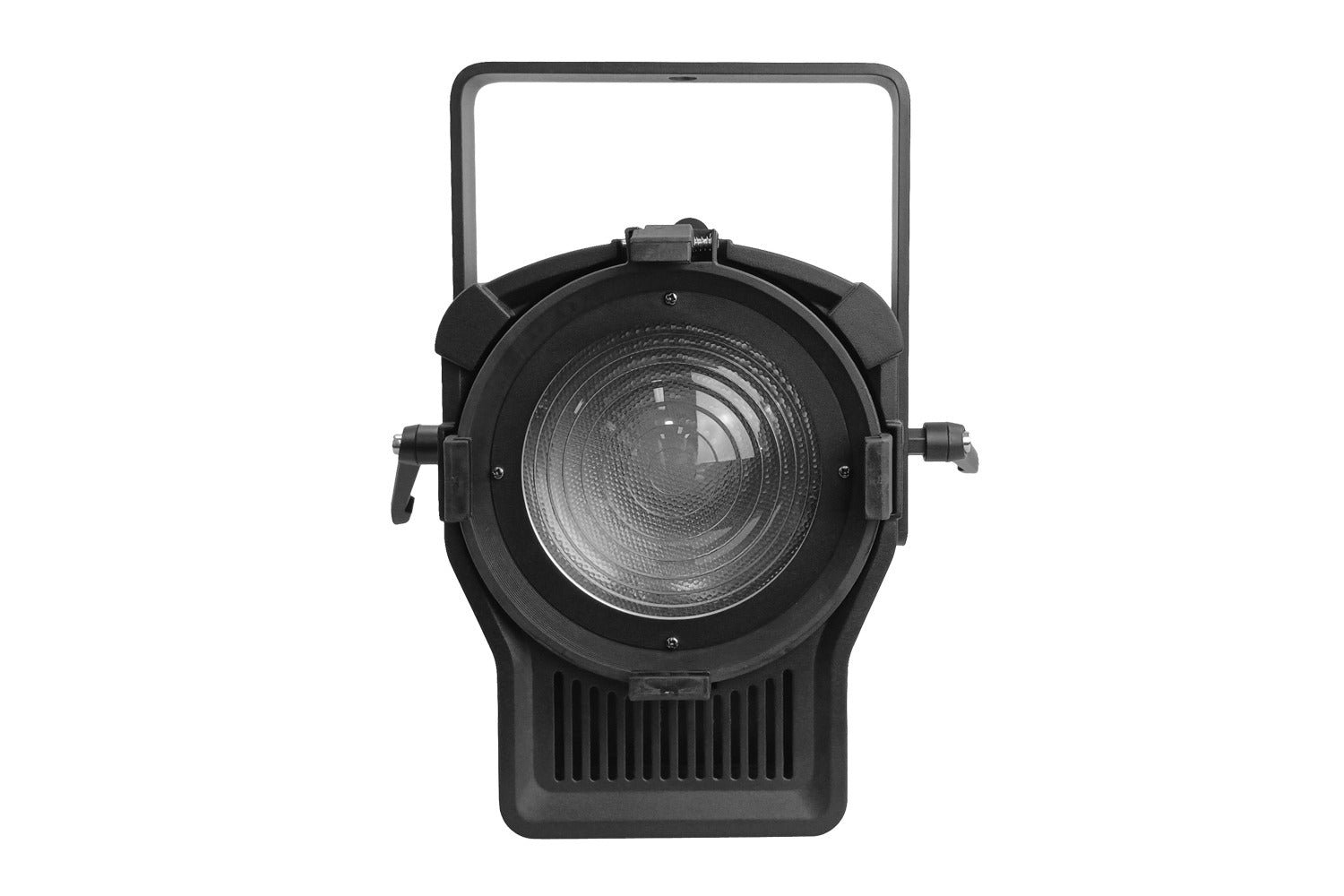

• Optical System: High-quality glass lens assembly with 120mm Fresnel lens

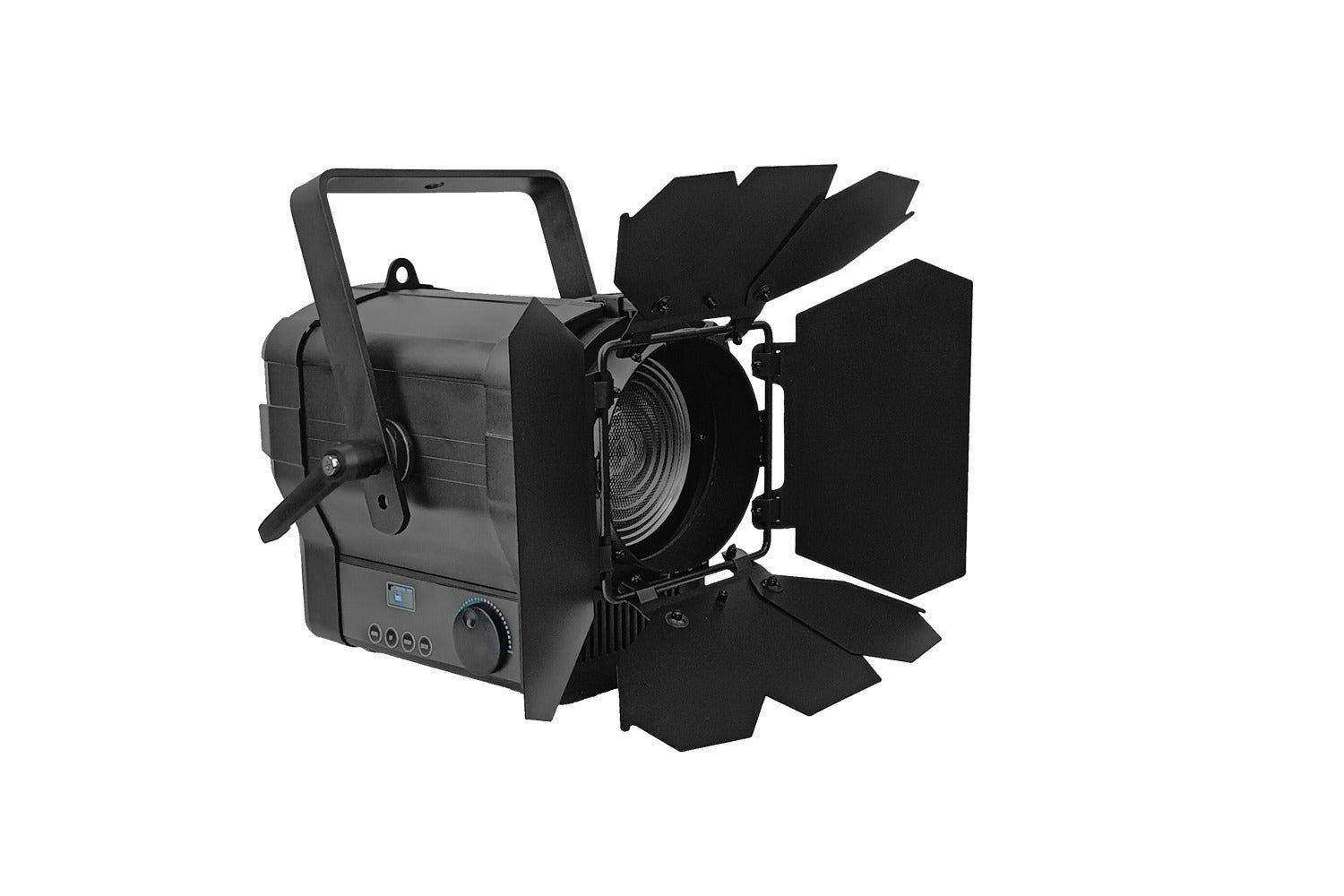

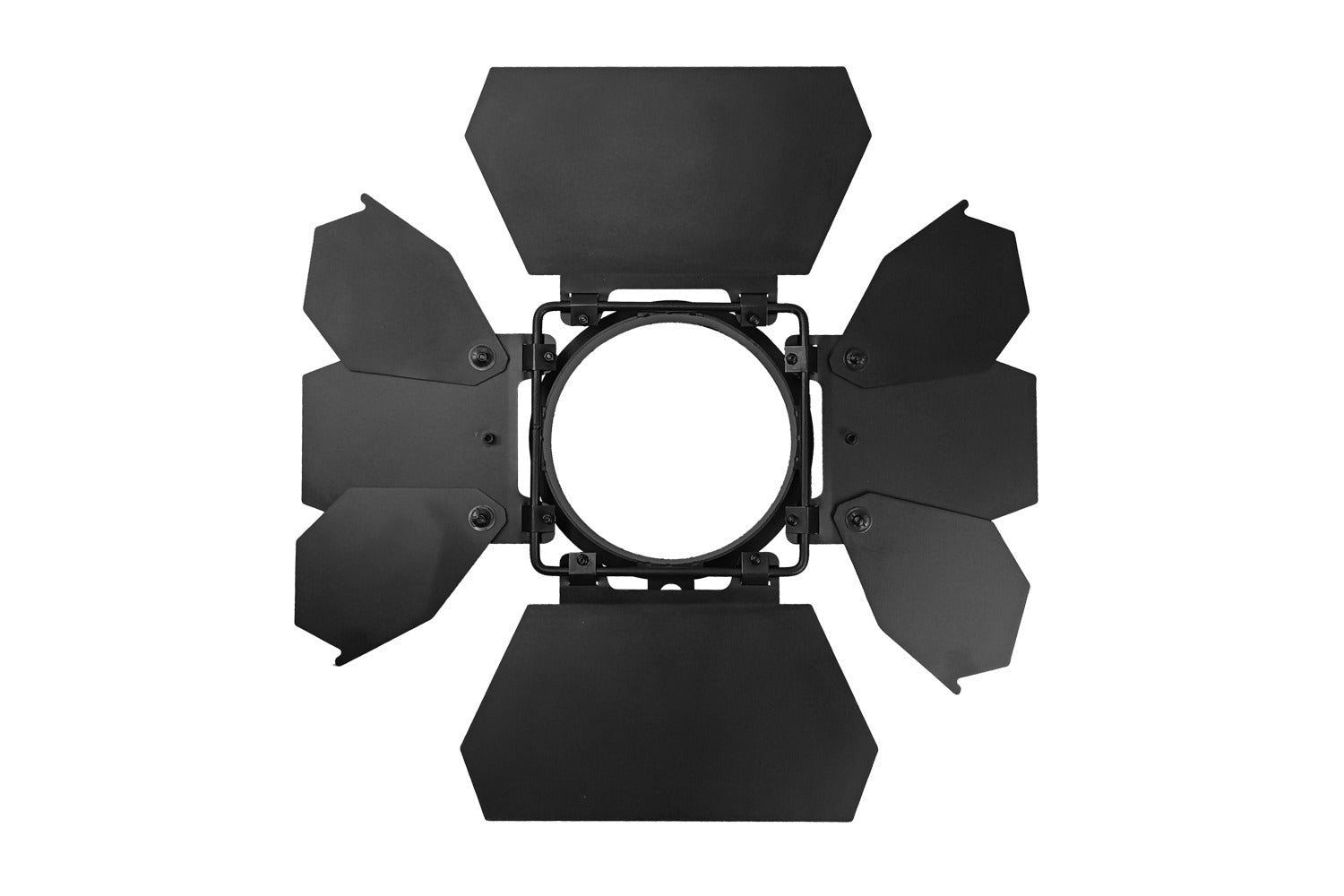

• Included Accessories: 8-leaf barn door and gel frame

Electrical Specifications

• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 100W

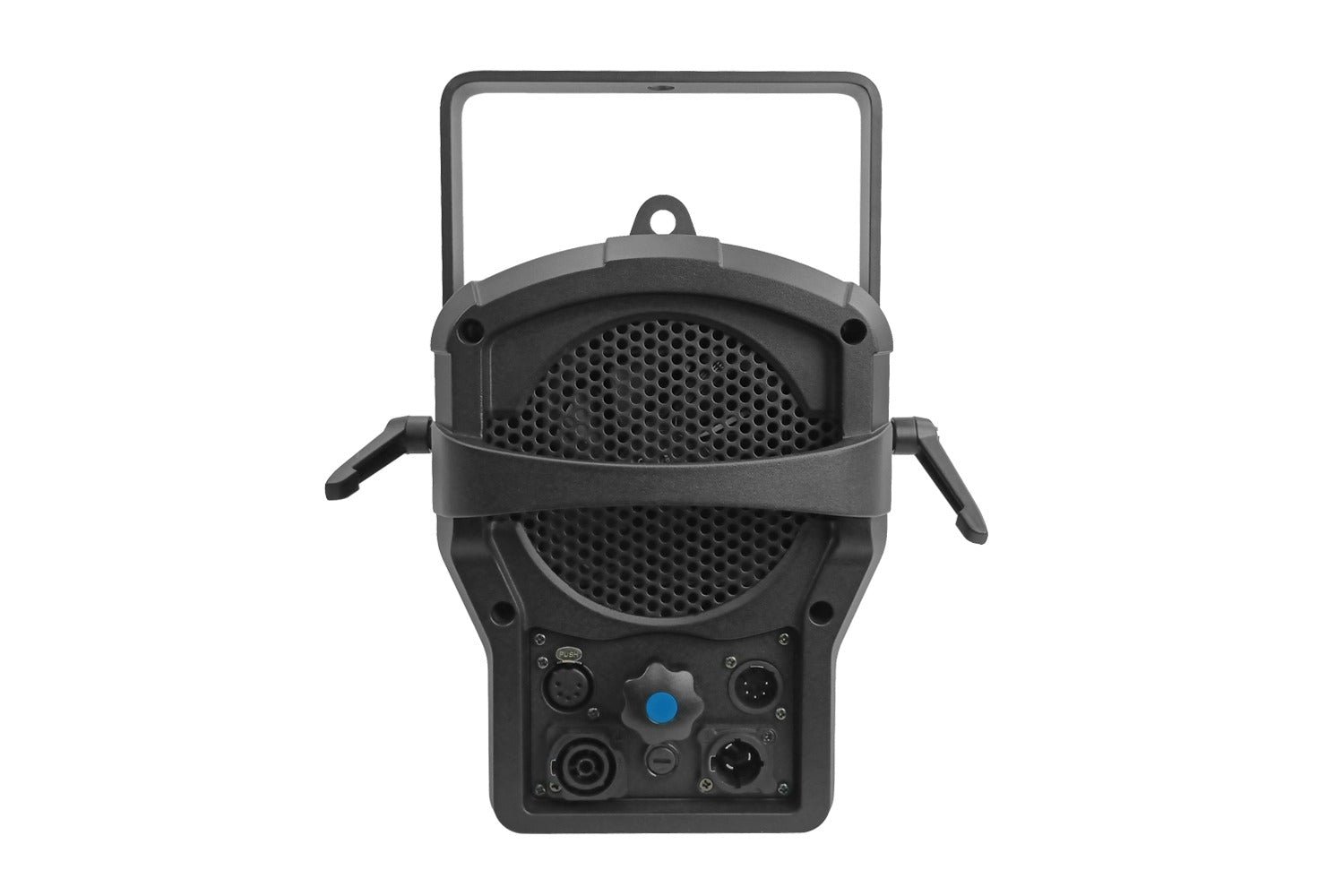

• Power Connectivity: True1 power input and output

Control & Connectivity

• Operating Modes: DMX, RDM, and Manual

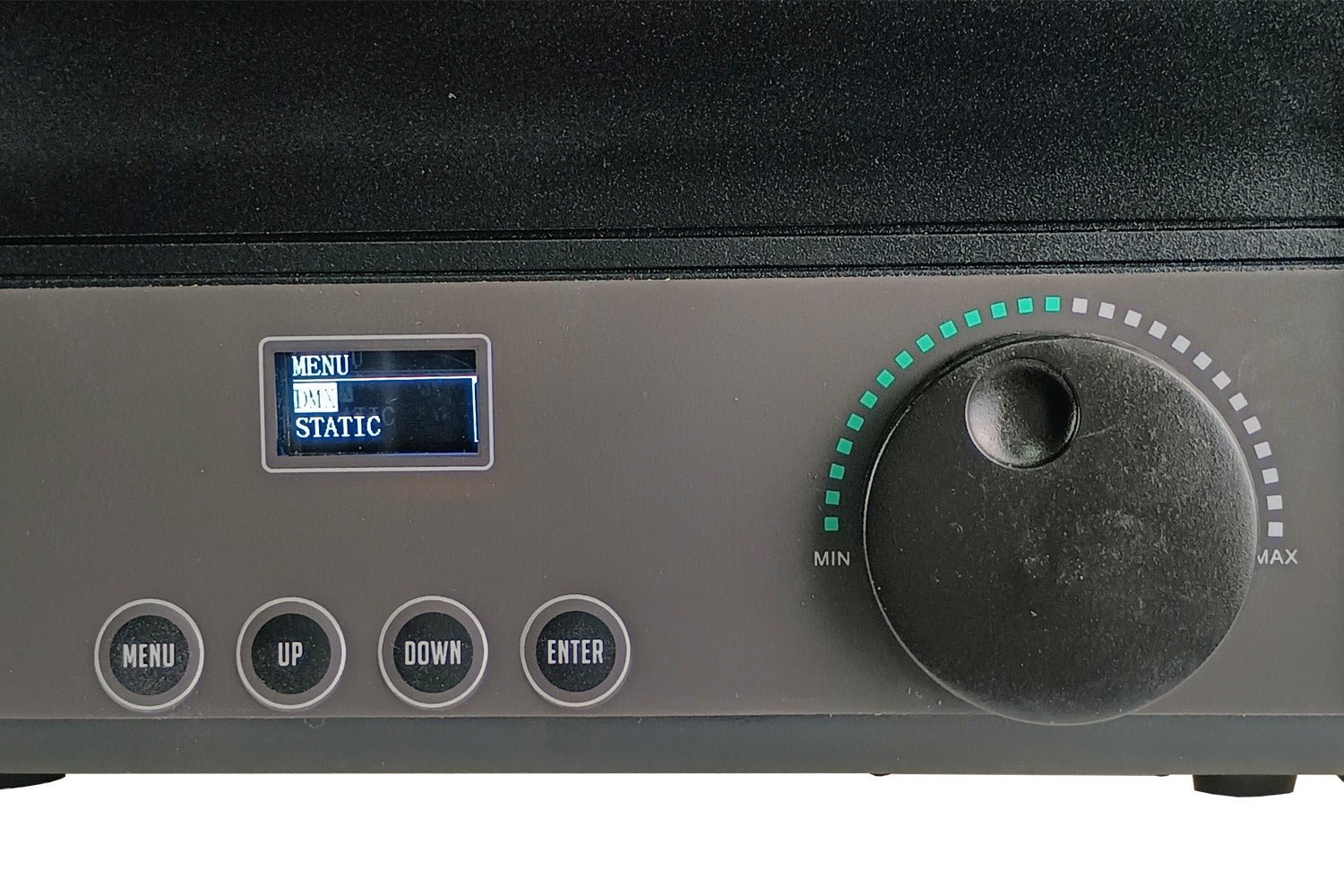

• Display: TFT-LCD display with 4-button navigation panel
• Control Protocol: DMX512
• DMX Channel Modes: 1CH, 2CH, 4CH, 5CH, 7CH, 9CH, 13CH, and optional 9H-CH

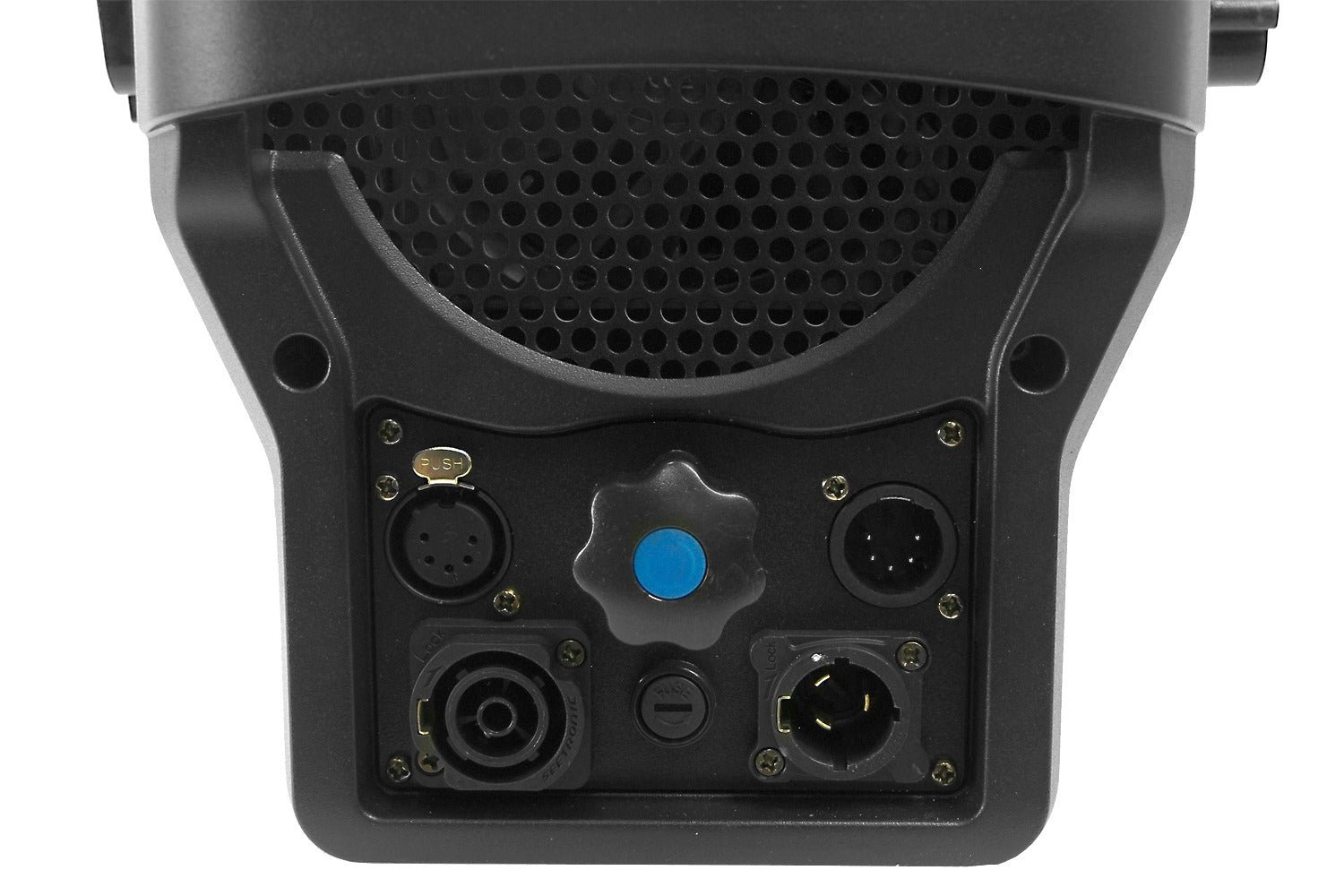

• Data Interface: 5-pin XLR DMX input and output

Construction & Performance

• Housing Material: Durable die-cast aluminum body
• Finish: Professional matte black coating
• Tilt Adjustment: ±90°
• Operating Temperature: -10°C to 40°C
• Cooling System: Silent fan with intelligent temperature management
• IP Rating: IP20

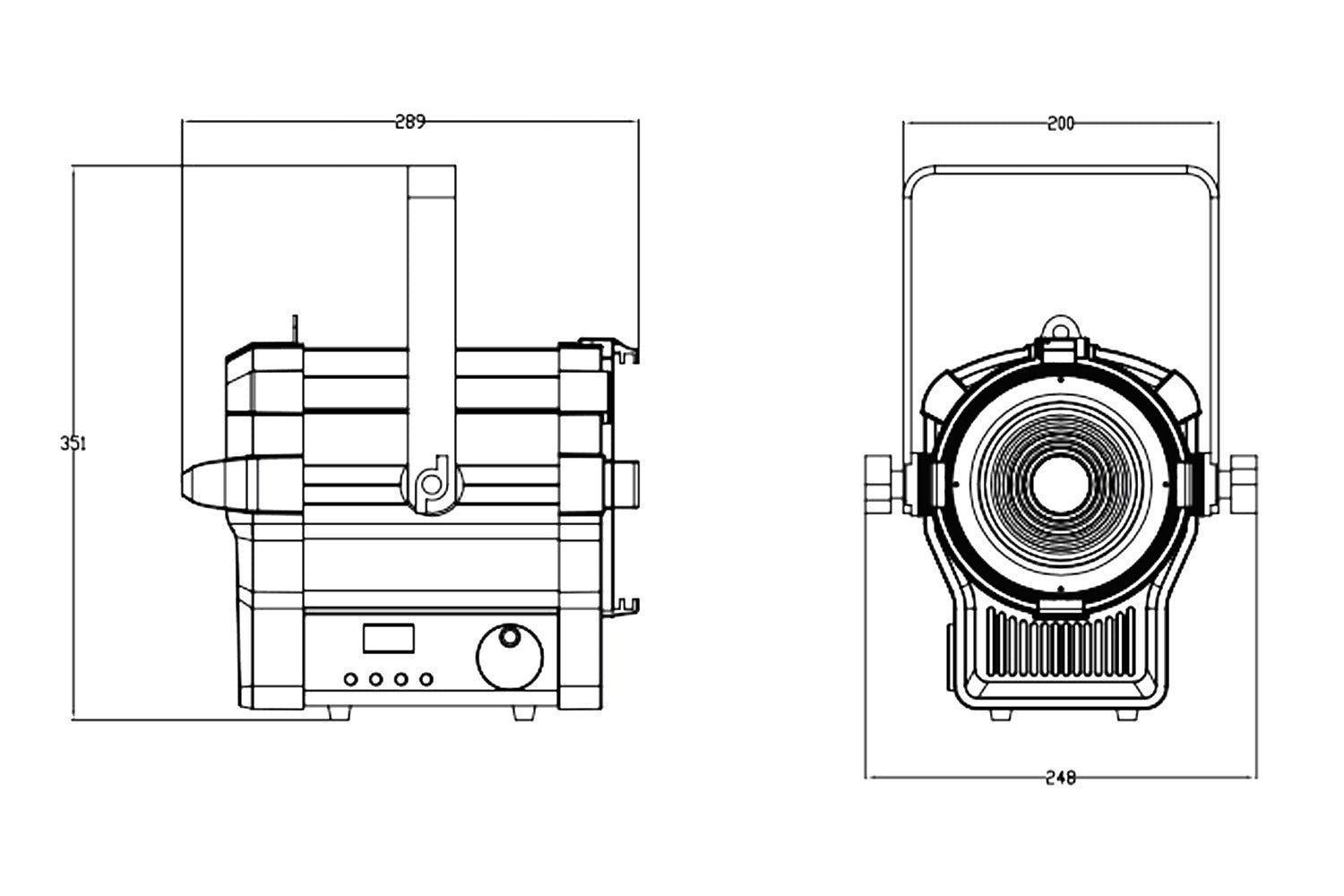

• Dimensions: 289 × 351 × 248 mm (11.4″ × 13.8″ × 9.8″)
• Weight: 6.7 kg (14.8 lbs)

Warranty

• Covered by a 3-year warranty for dependable long-term operation.
